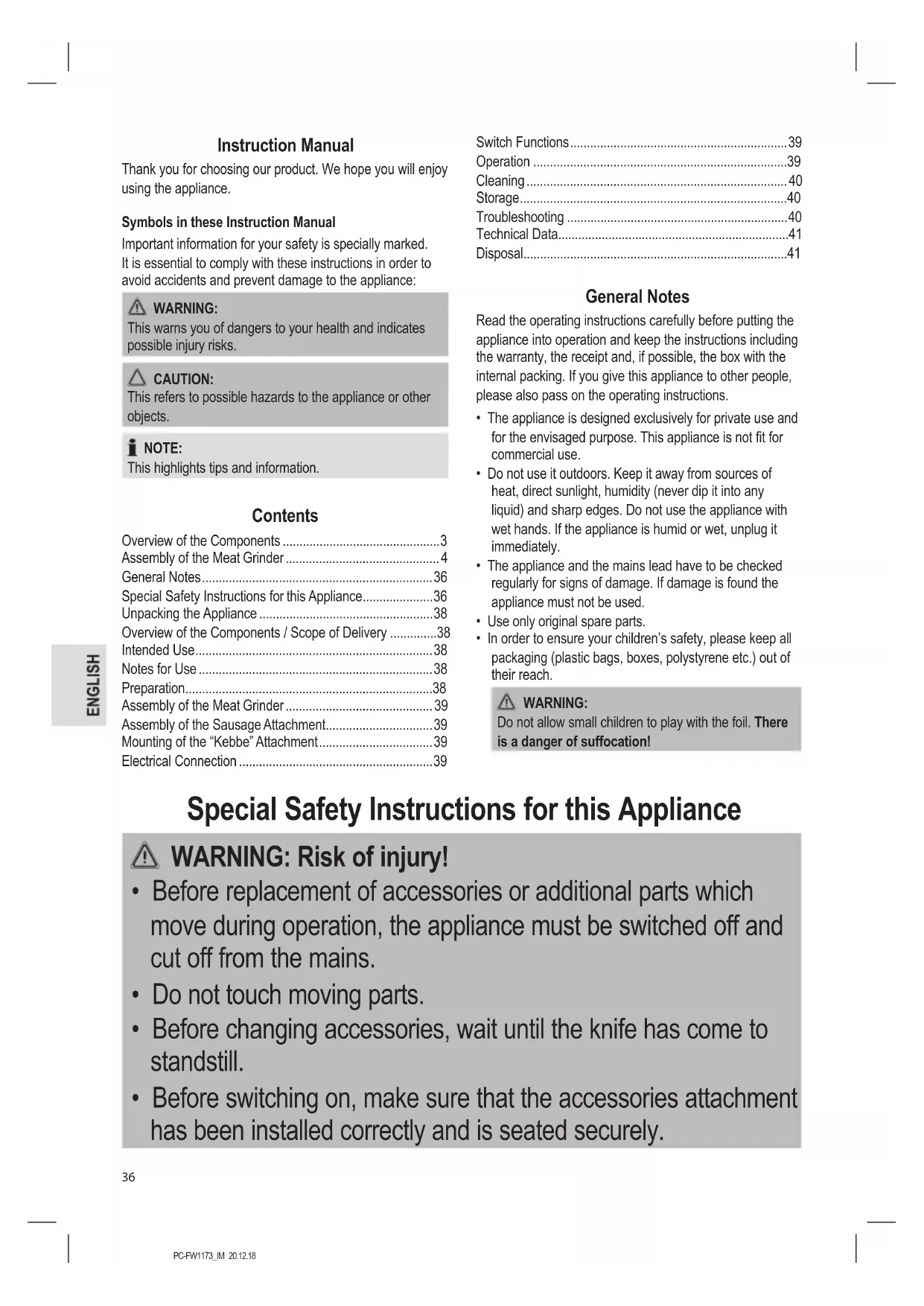

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil. There is a danger of suffocation! Special Safety Instructions for this Appliance

WARNING: Risk of injury!

• Before replacement of accessories or additional parts which move during operation, the appliance must be switched off and cut off from the mains.

• Do not touch moving parts.

• Before changing accessories, wait until the knife has come to standstill.

• Before switching on, make sure that the accessories attachment has been installed correctly and is seated securely.PC-FW1173_IM 20.12.18

WARNING: Risk of injury!

• Always use the supplied tamper. Never insert your ngers or tools into the lling neck!

• Handle the knife with the necessary care when taking out and cleaning it!

• Always disconnect the appliance from the supply if it is left unat- tended and before assembling, disassembling or cleaning.

• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali- ed persons in order to avoid a hazard.

• This appliance shall not be used by children.

• Keep the appliance and its cord out of reach of children.

• Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. CAUTION: Do not immerse the appliance into water for cleaning. Please fol- low the instructions as stipulated in the chapter “Cleaning”.

• Do not break up hard items such as bones or shells.

• Do not manipulate safety switches.

• Use this appliance only for the processing of food. The abuse for any other purposes may result in injury.PC-FW1173_IM 20.12.18

1. Remove the appliance from its packaging.

2. Remove all packaging material such as plastic lms, ller

material, cable ties and cardboard packaging.

3. Check the content for any missing parts.

4. In the event that the packaging content should be incom-

plete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately. NOTE: There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under “Cleaning”. Overview of the Components / Scope of Delivery 1 Filling tray 2 Switch ON / / R (Forward / Off / Return) 3 Function switch ON / R (On / Return) 4 Motor 5 Screw 6 Spiral housing 7 Tamper Illustrations A - C 8 Spiral 9 Knife 10 3 perforated disks (ne, medium, coarse) 11 Plug 12 Sausage attachment 13 2-part “Kebbe” attachment Intended Use This appliance serves

• You can shape noodles or dough with different attach- ments. It is intended for the use in private households and similar applications. It may only be used in the manner described in these oper- ating instructions. You may not use the appliance for commercial purposes. Use for any other purpose is considered improper and not for the intended purpose and can result in damage to prop- erty and personal injury. The manufacturer shall not be liable for damages caused by not intended use. Notes for Use

• Do not mince any hard objects, such as bones or shells.

• Cut the meat into 2.5 cm pieces. Ensure that there are no bones or tendons in the meat.

• To shred the meat coarsely, use the disc with the largest holes.

• In a second step, select the disc with the ner or centre holes. Depending on how nely you want to shred the meat.

• Before you start, lightly coat the sieves with vegetable fat.

• If you mince meat, place a container under the outlet.

• With the help of the “Kebbe” attachment (13) tubes of meat or dough can be formed. Making Sausage

• You can use both natural and synthetic casings.

• If you have opted for a natural casing, soak this casing some time in water before using it.

• Tie a knot at one end of the casing.

• Slide the casing over the sausage attachment.

• Feed the sausage meat through the sausage attachment and ll the sausage casing.

• Make sure that the sausage meat is “loosely” stuffed into the casing as the sausage expands in volume during cooking or frying and may cause the casing to burst open.

• When the rst sausage reaches the desired length, squeeze the sausage at the end of the sausage attach- ment together with your ngers.

• Turn the sausage once or twice around its own axis.

• Until you have established some exercise routine, you can turn off the appliance after each sausage length. Preparation Please see the overviews on pages 3 and 4.

1. Open the xture for the spiral housing with the screw (5)

2. Place the spiral housing (6) with the ller neck facing up-

wards into the spiral drive and turn the screw clockwise until it is closed.

3. Place the lling tray on to the ller neck in such a way

that the xture for the tray is above the motor block.

4. Push the spiral (8) into the horizontal section of the spiral

housing until the axle locks in place. Assembly of the accessories is described by the following sections. Prepare the mincer according to your require- ments.PC-FW1173_IM 20.12.18

Assembly of the Meat Grinder NOTE: The design of the perforated disks represents a rmly connected unit. This should not be loosened under any circumstances.

• Please also observe our illustrations under “A” (Page 4).

• Please follow points 1 to 4 as described under “Prepa- ration”.

5. Insert the knife with the sharpened edge outwards onto

the shaft of the scroll.

6. Select a perforated disc (10). Use the recesses to do so.

7. Rotate the catch clockwise.

More details can be found under “Electrical connection” & “Operation”. Assembly of the Sausage Attachment

• Please also observe our illustrations under “B” (Page 4).

• First proceed as described under “Preparation” and “Assembly of the Meat Grinder”, points 1 to 6.

7. Position the sausage attachment on the spiral housing.

8. Rotate the catch clockwise.

More details can be found under “Electrical connection” & “Operation”. Mounting of the “Kebbe” Attachment

• Please also observe our illustrations under “C” (Page 4).

• Please follow points 1 to 4 as described under “Prepa- ration”.

5. Position the 2-piece Kebbe attachment on the shaft of

the spiral. Use the recesses to do so.

6. Rotate the catch clockwise.

More details can be found under “Electrical connection” & “Operation”. Electrical Connection

1. Check whether the mains voltage that you want to use,

corresponds with that of the appliance. You will nd the information about it on the rating plate.

2. Ensure that the function switch is set to “ ” (Off).

3. Only connect the appliance to a properly installed safety

socket. Switch Functions Function Switch ON / R (On / Return) Use the switch (3) to select the desired operating mode for the switch (2). Switch ON / / R (Forward / Off / Return) The appliance is equipped with a forward and return function. If the scroll should block, you can use the return function, in order to release it. - Forward

• Turn the switch (3) to “ON”.

• Turn the switch (2) to “ON”. The appliance is in the “Forward” mode. - Return

• Turn the switch (2) to “ ” nd wait until the motor stops.

• Turn the switch (3) to “R”. Press “R” on the switch (2). The appliance will be in the “Return” mode as long as you keep the switch pressed down. - Switching Off

• Move the switch (2) to “ ” and pull the power plug. Operation

WARNING: Risk of injury!

Always use the supplied tamper. Never insert your ngers or tools into the lling neck! CAUTION: Do not use the appliance for longer than 10 continuous minutes. Let it cool for 10 minutes before using it again.

1. Put the pieces of meat (meat paste / sausage mass or

dough) on the lling tray and into the ller neck.

2. Stuff, if necessary, the meat respectively the dough with

the tamper (7). Ending Operation

1. Disconnect the power plug.

2. Disassemble all parts of the meat grinder.

3. Clean the parts used as described under “Cleaning”.PC-FW1173_IM 20.12.18

• Always pull the power supply plug before cleaning and wait until the appliance has cooled down.

• Never immerse the motor assembly in water for cleaning. It could result in an electric shock or re.

• The blade of the meat grinder is sharp! There is a risk of injury! Proceed carefully when disassembling, cleaning and assem- bling the individual parts. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents. Motor assembly

• Only wipe the motor assembly with a damp cloth and dry with a dry cloth after. Filling tray, spiral, spiral housing and all accessories CAUTION: Do not clean these parts in the dishwasher. The surfaces could become lacklustre.

• These parts can be cleaned by hand in the wash basin.

• Rinse with clear water and dry the parts. Storage

• Clean the appliance as described. Let the accessories dry completely.

• We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.

• Always store the appliance at a well ventilated and dry place outside the reach of children.

• Regularly coat the steel discs with vegetable oil. Troubleshooting Problem Possible Cause Remedy The appliance does not function. The appli- ance has no power supply. Check the socket with another appliance. Plug in the mains plug correctly. Check the main circuit breaker. The appli- ance is faulty. Contact our service centre or a specialist. The function switch (3) is set to “R”. Set the function switch to “ON”. The appliance is blocked. Meat residue is sticking to the spiral.

1. Set the switch (2) to “

and wait until the motor has stopped.

3. Press “R” on the switch

(2) to loosen the blocked meat residue.

4. Switch the appliance off

and pull the power plug.

Technical Data Model:.................................................................PC-FW 1173 Power supply:.....................................220 - 240 V~, 50 / 60 Hz Nominal power consumption: .......................................650 W Maximum power consumption:. .................................. 2000 W Sound pressure level: ...............................................84 dB(A) Protection class: ................................................................. Ⅱ Net weight: ....................................................... approx. 5.2 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibil- ity and low voltage directives, and has been constructed in accordance with the latest safety regulations. Disposal Meaning of the Symbol “Dustbin” Protect our environment; electrical appliances do not belong in household waste. Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use. You help reduce the potential impact of incorrect disposal on the environment and human health. You contribute to recycling, and other forms of recycling of electrical and electronic equipment. Information concerning the disposal of appliances can be obtained from your local or municipal authorities.PC-FW1173_IM 20.12.18
