Product type	Electric chopper
Brand	ProfiCook
Model	PCMZ 1150
Power supply	220-240 V~, 50/60 Hz
Power	400 W
Container capacity	Approx. 1 liter
Net weight	Approx. 1.95 kg
Max. continuous operation	45 seconds, then 2 minutes rest
Operating cycles	Max. 5 cycles before 15-20 minute break
Speeds	2 speeds (I slow, II fast) by impulse
Actuation type	Momentary operation (push button)
Safety	Safety switch on the motor unit; sharp blades (caution)
Materials	Container and lid plastic, stainless steel blades
Cleaning	Motor unit: dry cloth; other parts: hand wash, not dishwasher safe
Included accessories	2 knives, container, safety lid, ring seal, silicone guide ring, non-slip rubber ring, 4 sheaths
Intended use	Chopping solid foods (meat, vegetables, dried fruit, ice cubes); not for liquids
Protection class	II

Frequently Asked Questions - PCMZ 1150 PROFICOOK

How to assemble the ProfiCook PCMZ 1150 chopper?

Place the rubber ring on a flat surface, then the container on top. Insert one or two knives (assemble first if needed) onto the central shaft. Add ingredients, close the safety lid ensuring the silicone seals, then attach the motor unit by aligning the notches.

What is the maximum continuous operation time?

The appliance is designed for continuous operation of maximum 45 seconds. Let it cool for at least 2 minutes before using again. After 5 cycles, allow a 15 to 20 minute break.

Can I crush ice cubes with this appliance?

Yes, use both knives and fill the container with a maximum of 200 g of ice cubes. Press the switch briefly several times for a uniform consistency.

What to do if the appliance does not start?

First check the power connection. The appliance is equipped with a safety switch: make sure the motor unit, lid and knives are correctly installed and engaged.

Can I use the chopper to blend liquids?

No, this appliance is designed only for chopping solid foods. Do not use it to stir or mix liquids, as this could damage the appliance.

What is the maximum quantity of food to chop?

It depends on the food. For example: raw meat 400 g, onions 250 g, parsley 50 g, parmesan 200 g. Refer to the instruction manual table for recommendations.

How to clean the chopper correctly?

Always unplug the appliance. Do not immerse the motor unit; clean it with a dry cloth. Wash the container, lid, knives and ring by hand with dish soap, rinse and dry. Do not put these parts in the dishwasher.

Are the chopper parts dishwasher safe?

No, the container, safety lid, knives and rubber ring should not be washed in the dishwasher as surfaces may tarnish. Wash them by hand.

How to store the appliance?

After complete cleaning and drying, store the appliance in a dry, well-ventilated place, out of reach of children. Use the original packaging if possible. Put the sheaths on the knives to protect the blades.

What are the important safety precautions?

The blades are very sharp: handle them with care during assembly, disassembly and cleaning. Do not allow children to use the appliance. Always unplug the appliance before assembling, disassembling or cleaning. Never use the appliance if the cord is damaged.

USER MANUAL PCMZ 1150 PROFICOOK

Transparent kitchen utensil with a stainless steel lid and black handle, no visible text or symbols on the device itself.

Multizerkleinerer PC-MZ 1150

Multi-snijmachine • Multi-hachoir • Multi-cortador • Multicubettatrice

B

Bedienungsanleitung

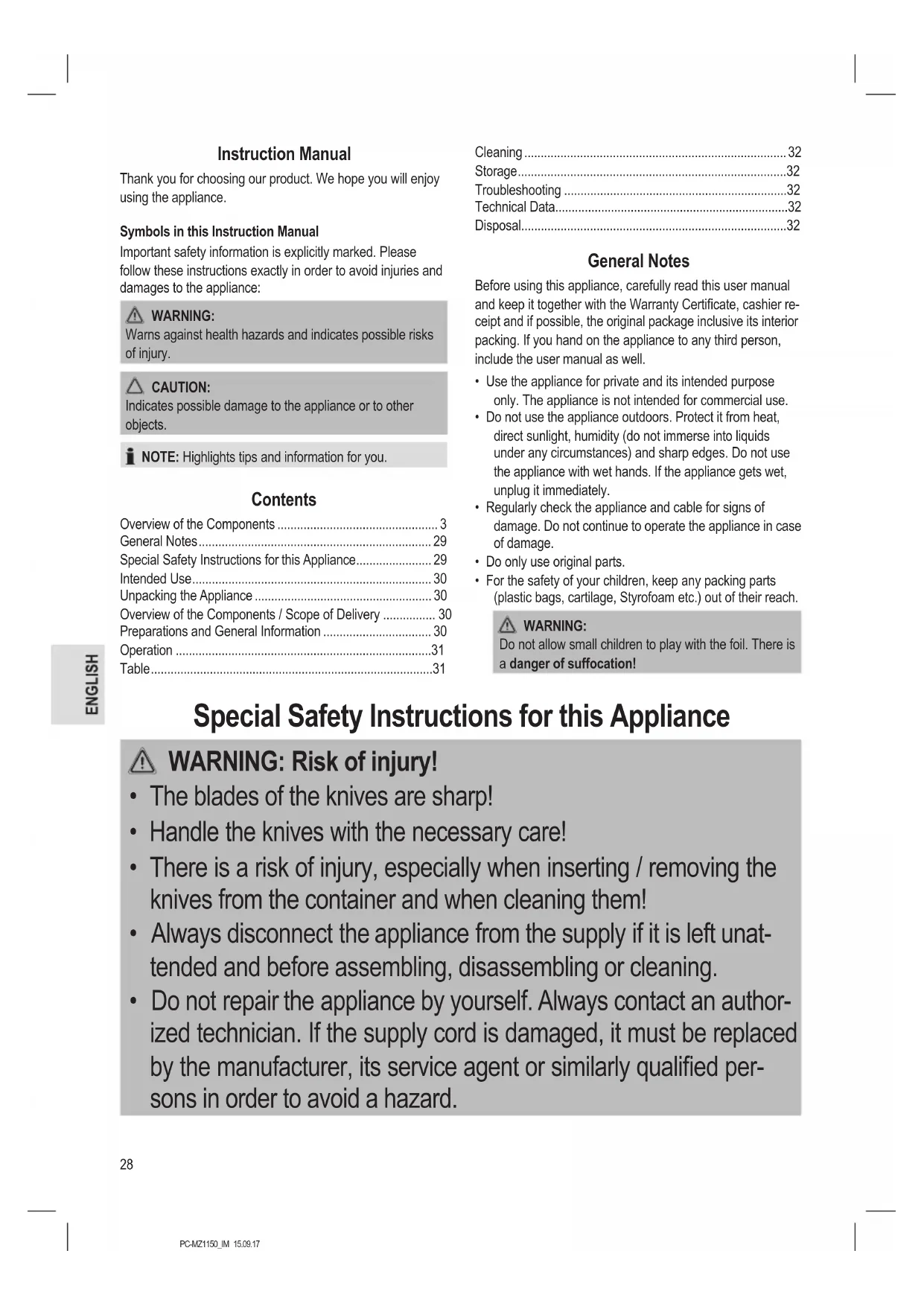

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important safety information is explicitly marked. Please follow these instructions exactly in order to avoid injuries and damages to the appliance:

WARNING:

Warns against health hazards and indicates possible risks of injury.

CAUTION:

Indicates possible damage to the appliance or to other objects.

NOTE: Highlights tips and information for you.

Contents

Overview of the Components .... 3

General Notes 29

Special Safety Instructions for this Appliance....29

Intended Use....30

Unpacking the Appliance 30

Overview of the Components / Scope of Delivery 30

Preparations and General Information 30

Operation 31

Table....31

Cleaning 32

Storage....32

Troubleshooting 32

Technical Data....32

Disposal....32

General Notes

Before using this appliance, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the appliance to any third person, include the user manual as well.

• Use the appliance for private and its intended purpose only. The appliance is not intended for commercial use.
• Do not use the appliance outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the appliance with wet hands. If the appliance gets wet, unplug it immediately.
• Regularly check the appliance and cable for signs of damage. Do not continue to operate the appliance in case of damage.
• Do only use original parts.
• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

WARNING: Risk of injury!

• The blades of the knives are sharp!
- Handle the knives with the necessary care!
- There is a risk of injury, especially when inserting / removing the knives from the container and when cleaning them!
- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: Risk of injury!

• This appliance shall not be used by children.
- Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

CAUTION:

The motor housing must not be immersed in water for cleaning. Follow the instructions provided in the chapter "Cleaning".

Intended Use

This appliance is intended for processing foodstuffs that can be shredded.

It is not suitable for stirring or mixing liquids.

Do not operate the appliance when empty.

It is intended for the use in private households and similar applications.

Only use this appliance as instructed in this user manual. Do not use this appliance commercially.

No other use is intended and can cause damage or personal injuries.

The manufacturer does not assume any liability for damages resulting from improper use.

Unpacking the Appliance

1. Remove the appliance from the package.
2. Remove all packaging material such as films, filler, cable holders and cardboard.
3. Check the delivery contents for completeness.
4. Should the package contents be incomplete or damages be found, do not take the appliance into operation. Take it immediately back to the dealer.

i NOTE:

Dust or production residues can be located on the appliance. We recommend to clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Switch (Setting I)
2 Switch (Setting II)
3 Motor housing
4 Silicone guide ring
5 Safety cover
6 Seal ring
7 Two knives
8 Container
9 Guide bolt
10 Non-slip rubber ring

No illustration:

Blade guard (4 pieces)

Preparations and General Information

• Prepare the dish. Refer to the table below.
- Place the rubber ring on a level surface. Place the container on the rubber ring.

Assembling the Appliance

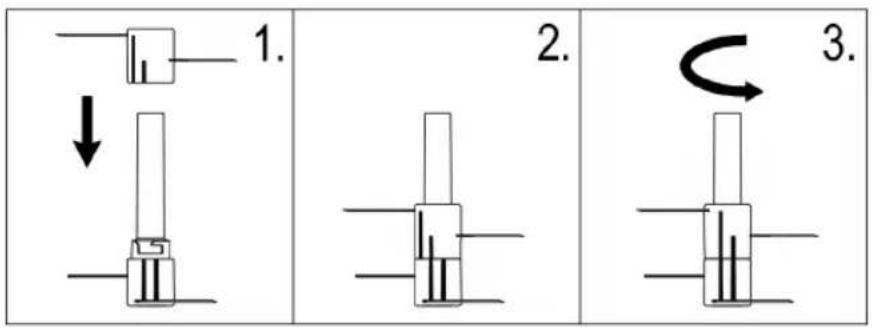

Whether you use only one knife or both knives depends on the quantity and consistency of your food.

1. If you would like to use both knives, assemble them before putting them into the container. Refer to figure B on page 3.
2. Carefully pull off the blade guard.
3. Place the knife with the long shaft onto the pin of the container.

NOTE:

• The shaft on the bottom of the container drives the knife.
  • Always fit the knife first.

• Only then fill in the food.

• The safety cover is equipped with 2 silicone rings. Prior to each use, make sure that the silicone rings are correctly positioned:

• Large seal ring on the bottom side of the safety cover;

• Small guide ring in the center of the safety cover.

• Put on the safety cover. The shaft of the tool must now protrude through the hole in the protective cover.

• Place the motor unit on the cover. In doing so, use the recesses in the safety cover.

Electrical Connection

1. Check whether the power supply that you want to use coincides with that of the appliance. This information can be found on the nameplate.
2. Connect the mains plug to a properly installed protective contact socket.

NOTE:

• The motor unit is equipped with a safety switch.
• If the appliance does not start, check if the motor housing, safety cover and knife are correctly fitted.

Operation

The multi-chopper has push-button operation. The motor will run as long as you keep the switch pressed down.

Setting I = low speed setting

Setting II = high speed setting

CAUTION:

• The appliance is suited for a short-term operation of maximum 45 seconds. Allow it to cool down for approx. 2 minutes before using it again.
  • After 5 operating cycles, allow the appliance to cool down for approx. 15 - 20 minutes.

The following table comprises information for usage.

You would like to use food that is not listed in the table?

Make comparisons:

Apple pieces have a similar consistency as garlic cloves.

Table

Food Preparation Max. Quantity ca. Duration
Boiled eggs	Shelled, quartered	300 g (1⁄4 pieces)	10 seconds
Herbs 200 g 30 seconds
Walnuts/hazelnuts	Without nutshells!	250 g	25 seconds
Almonds	Without shells!	250 g	25 seconds
Garlic	Peeled	250 g	15 seconds
Onions	2 cm cubes	250 g	15 seconds
Parsley	Wash, destalk	50 g	20 seconds
Bread (breadcrumbs)	2 cm cubes	100 g	20 seconds
Raw meat	2 cm cubes, without bones, skin and sinews!	400 g	35 seconds
Parmesan cheese	2 cm cubes	200 g	20 seconds
Cooking chocolate	1 cm cubes ice-cold	100 g	5 x 2 seconds
Carrots	1 cm cubes	200 g	15 seconds

You may also chop up ice cubes:

• Use both knives for this.
• Fill the container with ice cubes to max. 200 g.
  • Repeatedly press the switch for only a short time.

NOTE:

The ice cubes are chopped more evenly and you may specify the granularity better.

Cleaning

WARNING:

• After use and before cleaning always disconnect from mains power supply!
- Do not submerge the motor housing in water! It could lead to electric shock or fire.
- The cutting surfaces of the knives are sharp. There is a risk of injury! Handle these with the necessary care!

CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.

- Clean the motor housing with a dry cloth without additional cleaning agents.

Container, Safety Cover, Knives and Rubber Ring

CAUTION:

• Do not wash these accessories in the dishwasher. The surfaces may become dull.

• Do not fill the bowl with boiling water.

• Wash these accessories manually in dishwater.

• Rinse with clear water and dry with a cloth.
• For storage install the blade guard!

Storage

• Clean the appliance as described. Let the accessories dry completely.
  • We recommend that you keep the appliance in the original packaging, if you do not want to use it for a longer period.
  • Always store the appliance out of reach of children in a well ventilated, dry place.

Troubleshooting

The appliance does not work.

Solution:

Check mains power connection.

Further possible causes:

The appliance is equipped with a safety switch.

This prevents accidental starting of the motor.

Solution:

Check that the motor housing, safety cover and knife are fitted correctly.

Technical Data

Model: PC-MZ 1150
Power supply: 220 - 240 V\~, 50 / 60 Hz
Power consumption: 400 W
Protection class:....II
Short term operation: ...... On 45 seconds/ Off 2 minutes
Capacity: approx. 1 liters
Net weight: .... approx. 1.95 kg
The right to make technical and design modifications in the course of continuous product development remains reserved.
This appliance complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the Symbol "Dustbin"

Protect our environment; electrical appliances do not belong in household waste.

Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use.

You help reduce the potential impact of incorrect disposal on the environment and human health.

You contribute to recycling, and other forms of recycling of electrical and electronic equipment.

Information concerning the disposal of appliances can be obtained from your local or municipal authorities.
