USER MANUAL PC-FW 1272 PROFICOOK

Abrak A-D PucyHKN A-D JA

WICTIG:

Be sure to read the separately enclosed safety instructions first.

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components 3

Assembly of the Meat Grindera 4

Unpacking the Appliance 10

Overview of the Components / Scope of Delivery 10

Intended Use 10

Warnings for the Use of the Appliance 11

Notes for Use 11

Preparation. 11

Electrical Connection 12

Switch Functions 12

Operation 12

Cleaning 12

Storage. 13

Troubleshooting 13

Technical Data. 13

Disposal. 13

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Tamper
2 Filling tray
3 Switch ON/0/R (forward/off/reverse)
4 Function switch I/O (on/reverse)
5 Motor
6 Screw
7 Spiral housing

IllustrationsA-D

8 Spiral
9 Knife

10 Perforated disks (fine, medium, coarse)
11 Closure
12 Sausage attachment
13 2-part "Kebbe" attachment
14 Biscuit Attachment
15 Rail for biscuits

Intended Use

This appliance is used for:

• Grinding (mincing) food.
• Shaping paste or dough with different attachments.

It is intended for the use in private households and similar applications.

It may only be used in the manner described in these operating instructions.

Use for any other purpose is considered improper and not for the intended purpose and can result in damage to property and personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Warnings for the Use of the Appliance

• The blades of the knife are sharp! There is a risk of injury! Be careful when assembling, disassembling and cleaning the individual parts.
• Do not touch any moving parts.
• Before changing accessories, wait until the knife stops.
• Before switching on, make sure that the accessory attachment is correctly fitted and firmly attached.
  Always use the supplied tamper. Never insert your fingers or tools into the filling neck!

Notes for Use

CAUTION:

Do not mince any hard objects, such as bones or shells.

• Cut the meat into 2.5cm pieces. Ensure that there are no bones or tendons in the meat.
• To shred the meat coarsely, use the disc with the largest holes.
• In a second step, select the disc with the finer or centre holes. Depending on how finely you want to shred the meat.
• Before you start, lightly coat the sieves with vegetable fat.
• If you mince meat, place a container under the outlet.
• With the help of the "Kebbe" attachment (13) tubes of meat or dough can be formed.

Making Sausage

You can use both natural and synthetic casings.

1. If you have opted for a natural casing, soak this casing some time in water before using it.
2. Tie a knot at one end of the casing.

3. Slide the casing over the sausage attachment. Feed the sausage meat through the sausage attachment and fill the sausage casing.

4. Make sure that the sausage meat is "loosely" stuffed into the casing as the sausage expands in volume during cooking or frying and may cause the casing to burst open.

5. When the first sausage reaches the desired length, squeeze the sausage at the end of the sausage attachment together with your fingers.

6. Turn the sausage once or twice around its own axis.
7. Until you have established some exercise routine, you can turn off the appliance after each sausage length.

Shaping Biscuits

1. Assemble the biscuit attachment. Slide the rail onto the desired biscuit shape.
2. Put the dough on the filling tray and filler.
3. Hold the dough strands at the outlet with your hand and cut off the required length.

Preparation

Please see the overviews on pages 3 and 4.

1. Open the fixture for the spiral housing with the screw (6) on the appliance.
2. Place the spiral housing (7) with the filler neck facing upwards into the spiral drive and turn the screw clockwise until it is closed.
3. Place the filling tray on to the filler neck in such a way that the fixture for the tray is above the motor block.
4. Push the spiral (8) into the horizontal section of the spiral housing.

Assembly of the accessories is described by the following sections. Prepare the meat grinder according to your requirements.

Assembly of the Meat Grinder

• Please also refer to the illustrations under "A" (page 4).

• Please follow points 1 to 4 as described under "Preparation".

• Insert the knife with the sharpened edge outwards onto the shaft of the scroll.

• Select a perforated disc (10). Pay attention to the recesses.
• Rotate the catch clockwise.

Continue reading under "Electrical connection" & "Operation".

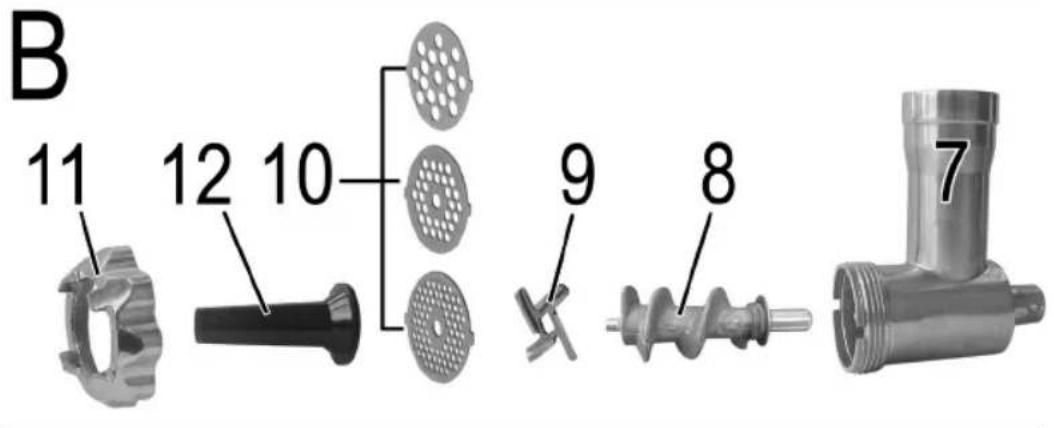

Assembly of the Sausage Attachment

• Please also refer to the illustrations under "B" (page 4).
• Please follow points 1 to 4 as described under "Preparation".
• Insert the knife with the sharpened edge outwards onto the shaft of the scroll.
• Select a perforated disc (10). Pay attention to the recesses.
• Position the sausage attachment on the spiral housing.
• Rotate the catch clockwise.

Continue reading under "Electrical connection" & "Operation".

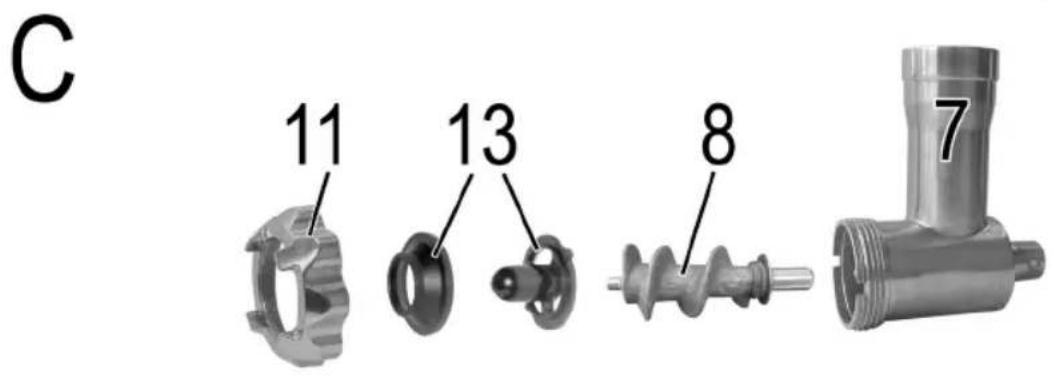

Mounting of the "Kebbe" Attachment

• Please also refer to the illustrations under "C" (page 4).
• Please follow points 1 to 4 as described under "Preparation".
• Position the 2-piece Kebbe attachment on the shaft of the spiral. Pay attention to the recesses.
• Rotate the catch clockwise.

Continue reading under "Electrical connection" & "Operation".

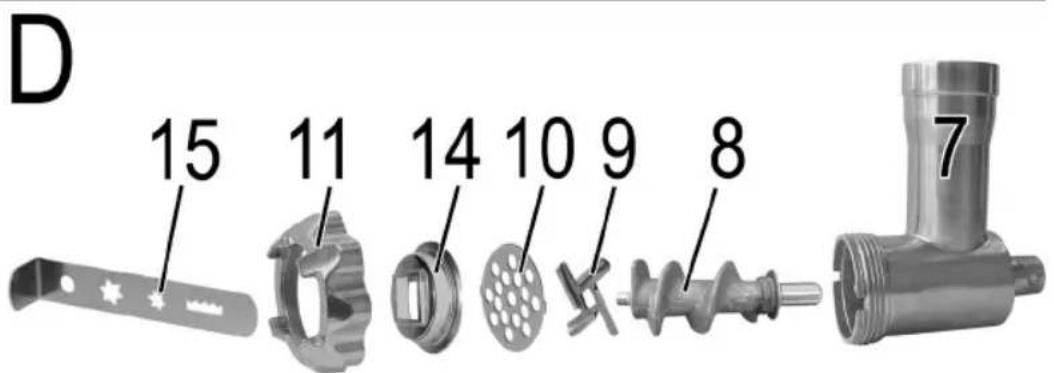

Assembly of the Cookie Attachment

You can shape different forms with this attachment after preparing a cookie dough. This is especially suitable for spritz biscuits.

• Please also refer to the illustrations under "D" (page 4).
• Please follow points 1 to 4 as described under "Preparation".
• Insert the knife with the sharpened edge outwards onto the shaft of the scroll.
• Insert the coarse perforated disc. Note the recesses.
• Place the biscuit attachment (14) in the cap.
• Turn the shutter together with the biscuit attachment clockwise onto the spiral housing.
• Push the rail (15) through the slots on the biscuit attachment.

Continue reading under "Electrical connection" & "Operation".

Electrical Connection

1. Check whether the mains voltage that you want to use, corresponds with that of the appliance. You will find the information about it on the rating plate.
2. Ensure that the switch (3) is set to "0". The function selector switch (4) must be disengaged.
3. Only connect the appliance to a properly installed safety socket.

Switch Functions

Function Switch I/O (On/Reverse)

Use the function switch (4) to select the desired operating mode for the switch (3).

Switch ON / 0 / R (Forward / Off / Reverse)

The appliance is equipped with a forward and return function. If the scroll should block, you can use the return function, in order to release it.

- Forward

• Turn the function switch (4) to "I".
• Turn the switch (3) to "ON". The appliance is in the "forward" mode.

- Reverse

• Turn the switch (3) to "0" and wait until the motor stops.
• Turn the function switch (4) to "O". Press "R" on the switch (3). The appliance will be in the "reverse" mode as long as you keep the switch pressed down.

- Switching Off

• Move the switch (3) to "0" and pull the power plug.

Operation

WARNING: Risk of Injury!

Always use the supplied tamper. Never insert your fingers or tools into the filling neck!

CAUTION:

Do not use the appliance for longer than 10 continuous minutes. Let it cool for 10 minutes before using it again.

1. Put the pieces of meat (meat paste / sausage mass or dough) on the filling tray and into the filler neck.
2. Stuff, if necessary, the meat respectively the dough with the tamper.

Ending Operation

1. Pull the mains plug out of the socket.
2. Disassemble all parts of the meat grinder.
3. Clean the parts used as described under "Cleaning".

Cleaning

WARNING:

• Always unplug the mains plug from the socket before cleaning. Wait until the appliance has cooled down.
• Never immerse the motor assembly in water for cleaning. It could result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

Motor Unit

Only wipe the motor unit with a damp cloth and dry with a dry cloth after.

Filling Tray, Spiral, Spiral Housing and all Accessories

CAUTION:

Do not clean these parts in the dishwasher. The surfaces could become lacklustre.

• Use a little dishwashing liquid and clean these components in warm rinsing water.
• Rinse with clear water and dry the parts.

Storage

• Clean the appliance as described. Let the accessories dry completely.
  We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  Always store the appliance at a well ventilated and dry place outside the reach of children.
• Regularly coat the steel discs with vegetable oil.

Troubleshooting

Problem Possible Cause	Remedy
The appliance does not function.	The appliance has no power supply.	Check the socket with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	The appliance is faulty. Contact	our service centre or a specialist.
	The function switch (4) is set to “O”.	Set the function switch to “I”.
The appliance is blocked.	Food residues have stuck to the filament.	1. Set the switch (3) to “0” and wait until the motor has stopped.2. Set the function switch (4) to “O”.3. Press “R” on the switch (3) to loosen the blocking food residues.4. Switch the appliance off and pull the power plug.5. Now remove any sticking residue.

Technical Data

Model: PC-FW 1272

Power supply: 220 - 240 V~, 50 / 60 Hz

Rated power: 350 - 450 W

Maximum power of the blocked motor: 1000 -1200 W

Protection class: II

Net weight: approx. 4 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
