USER MANUAL L1721 DGM

L-1721 17"TFT LCD MONITOR

Illustration of a flat-screen computer monitor with no text or symbols on the screen or stand.

User's Manual

English 2

繁體中文 12

简體中文 22

Français 32

Deutsh 42

Italiano ....52

Español 62

Dutch 72

Português 82

Warning :

Read this instruction carefully.

1. Keep this equipment from humidity. The equipment shall not be exposed to dripping or splashing.
2. The equipment is for indoor use in dry locations.
3. The socket-outlet shall be installed near the equipment and shall be easily accessible.
4. Operate the equipment only on maximum ambient temperature 40 degreeC, without any cover.

Table of content 2

View of Monitor....3

Unpacking 4

Warning 4

Hardware Installation....5

Menu control button 6

Key introduction 6

Cleaning Notices 7

Precaution 7

Troubleshooting....7

OSD (On-Screen Display) Menu Mode....8-9

Display Mode 10

Specification 11

All Information in this manual may change from time to time without prior notice.

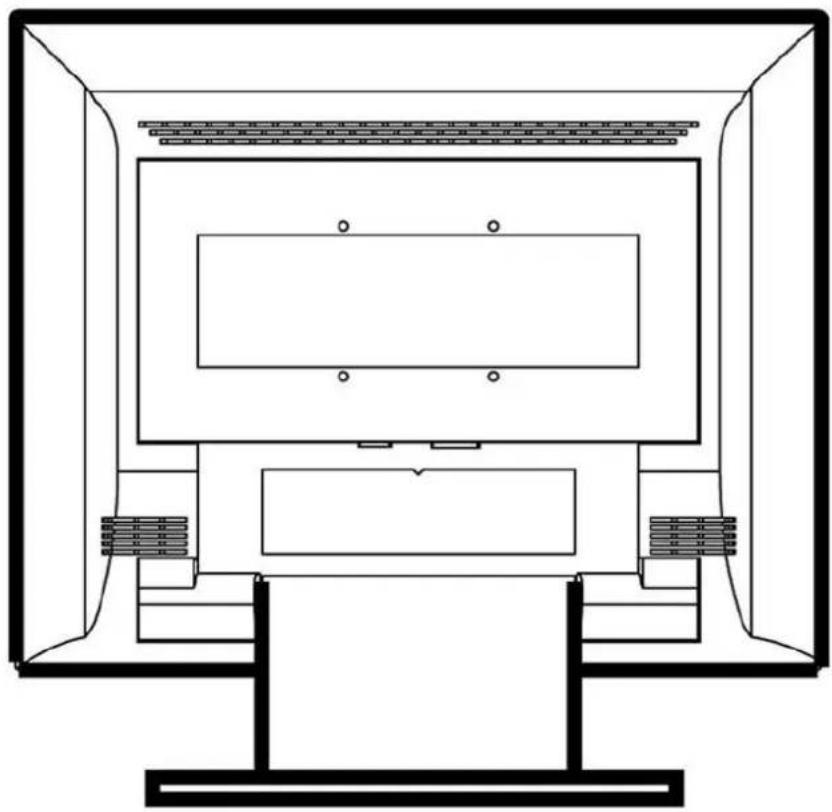

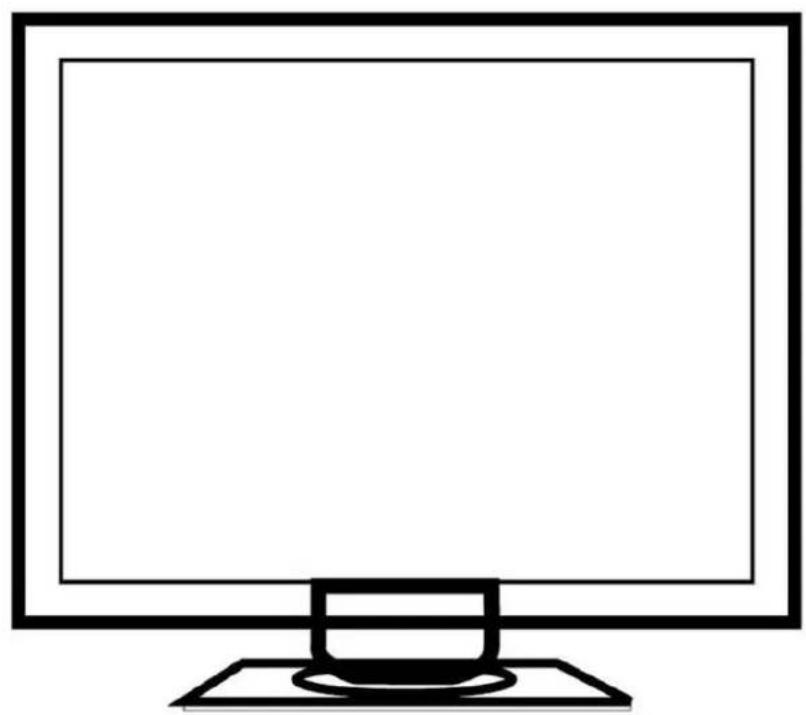

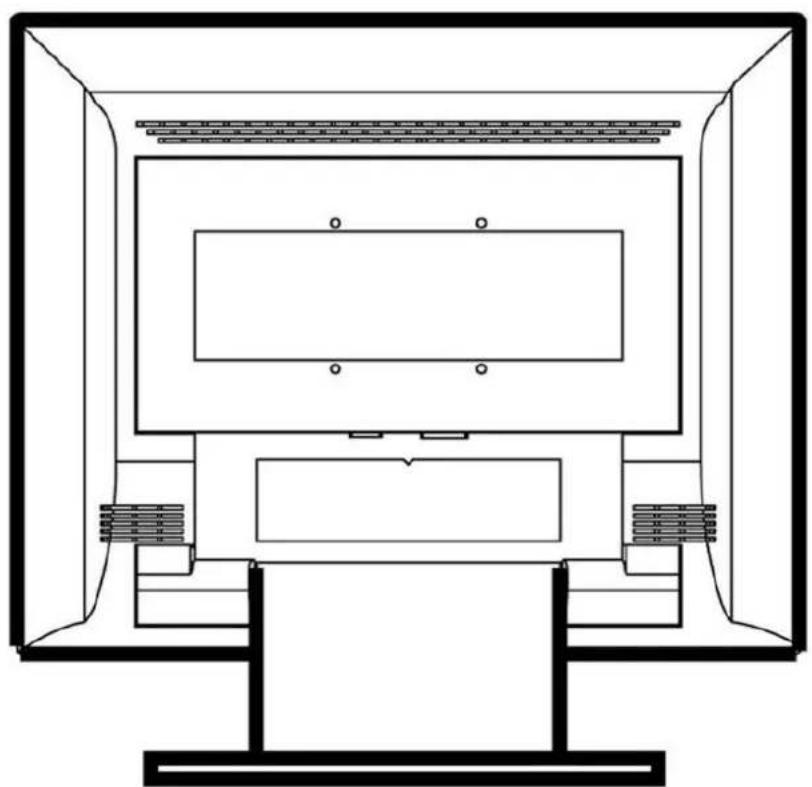

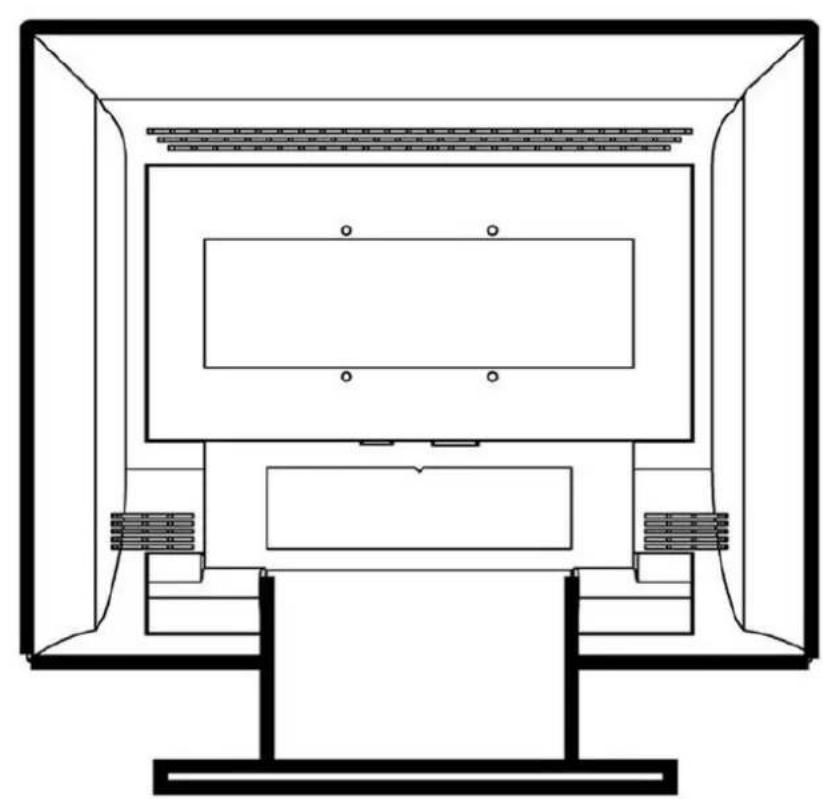

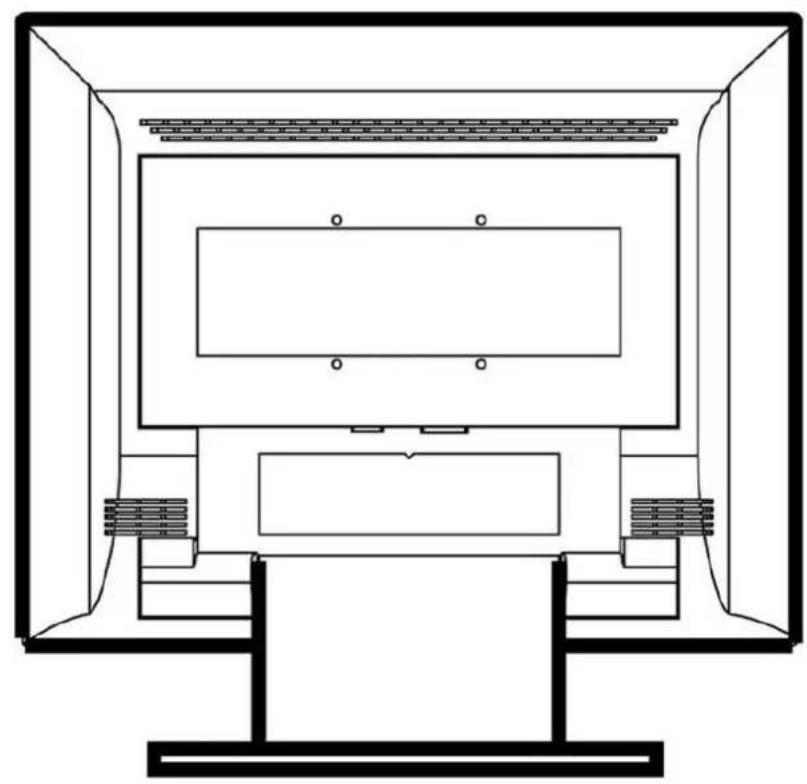

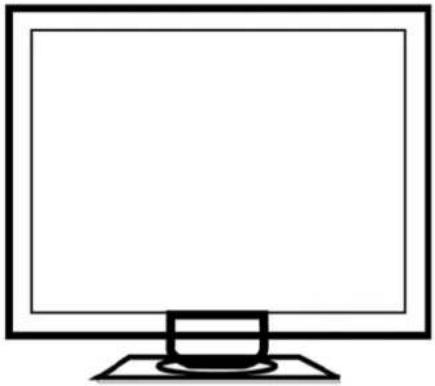

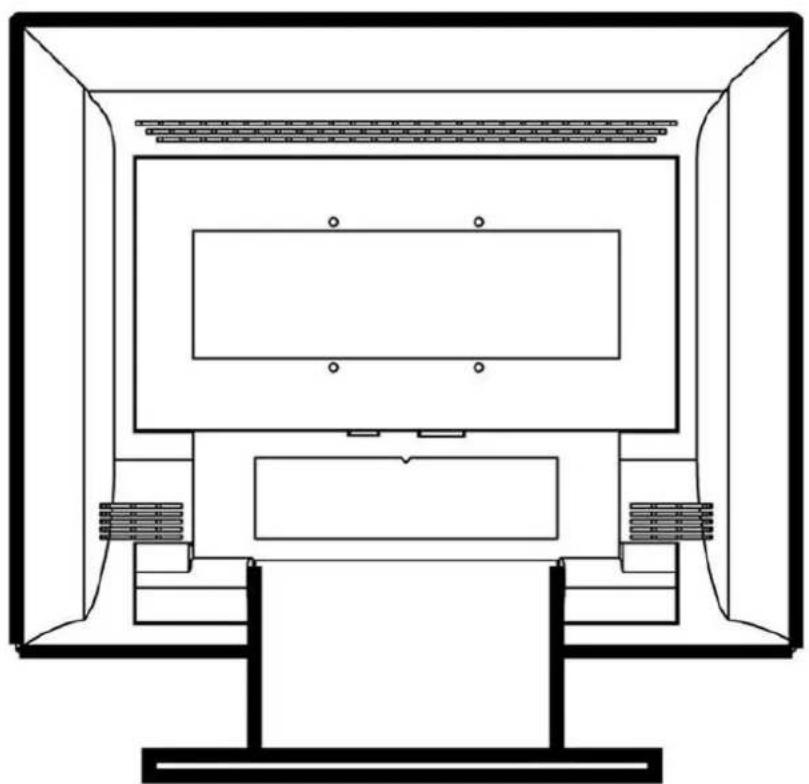

View of Monitor

Line drawing of a computer monitor with blank screen and stand (no text or symbols)

Top-down architectural floor plan of a modern room with furniture and structural elements (no text or labels)

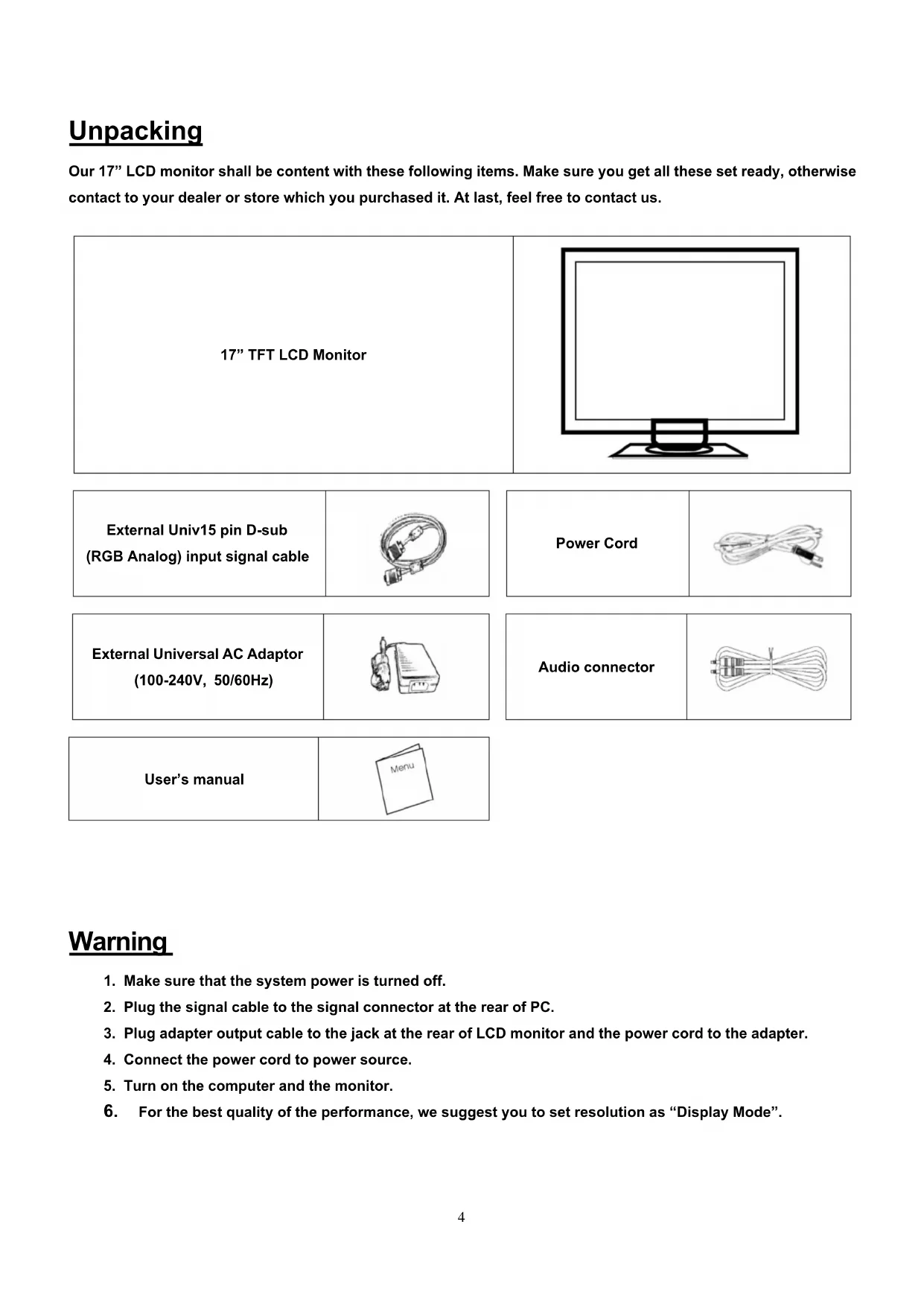

Unpacking

Our 17" LCD monitor shall be content with these following items. Make sure you get all these set ready, otherwise contact to your dealer or store which you purchased it. At last, feel free to contact us.

17” TFT LCD Monitor

External Univ15 pin D-sub (RGB Analog) input signal cable

Power Cord

External Universal AC Adaptor(100-240V, 50/60Hz)

Audio connector

User's manual

Warning

1. Make sure that the system power is turned off.
2. Plug the signal cable to the signal connector at the rear of PC.
3. Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4. Connect the power cord to power source.
5. Turn on the computer and the monitor.
6. For the best quality of the performance, we suggest you to set resolution as "Display Mode".

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

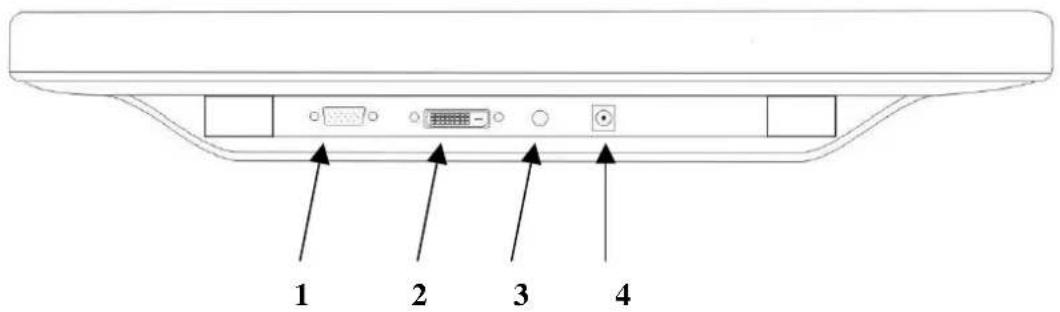

Input

1 2 3 4

【1】PC In: This can be connected with the D-Sub 15 pin signal Cable.
【2】DVI Port : This can be connected with the DVI signal Cable. * DVI function is optional.
【3】LINE in : This can be connected to the audio-out connector of any sound resource.
【4】DC port : This is for connecting the power cable.

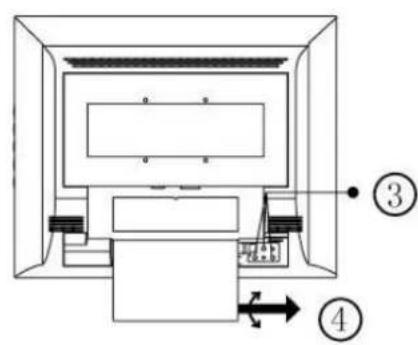

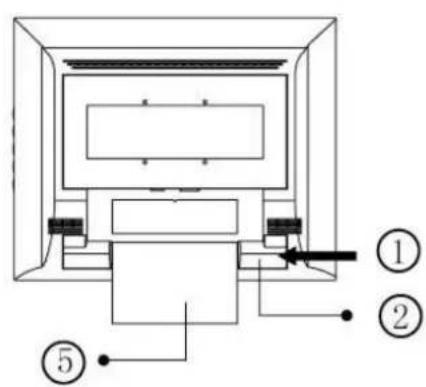

Wall mount instruction

Technical diagram of a mechanical or electrical component with numbered parts labeled ①, ②, and ⑤.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Power: Turn the LCD power on and off. When the power is on, the light is showing green, stand by will be orange.

OSD Menu: Press the button to OSD menu, menu right adjustment.

Auto Tune: Auto adjust, menu left adjustment.

Decrease < - >: Hot-key of volume adjust ment. Decrease the option value in the OSD menu.

Increase < + >: Switch from DVI operating environment to VGA. Increase the option value in the OSD menu.

Cleaning Notice

1. Be gentle to clean the screen.
2. Never, ever, using any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.
3. We suggest that using a clean camel hair brush or a soft, clean, lint-free cloth to wipe the screen.
4. Don't give any pressure directly to the LCD

Precaution

1. Do not expose the monitor to direct sunlight or heat.
2. Do not spill liquid on the monitor.
3. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.
4. Do not use your monitor when magnets or electronic products are operating nearby.
5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
6. Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
7. Don't use your fingers to touch the LCD Screen, directly. Fingerprint that contains oil and may be difficult to clear.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check:

1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

* Characters look too dark or too light

Check:

1. Using OSD Menu to adjust the Brightness.

* When your monitor shall be Adjusted?

Check:

1. If the resolution of frequency is being changed.

. The Text appears on the screen are unclear.

Check

1. Make sure the resolution or refresh rate match with the Display Mode.

OSD (On-Screen Display) Menu Mode

Option select

1. Press the OSD button to access menu.
2. Using Auto Tune for left adjustment.
3. Press OSD again for right adjustment.

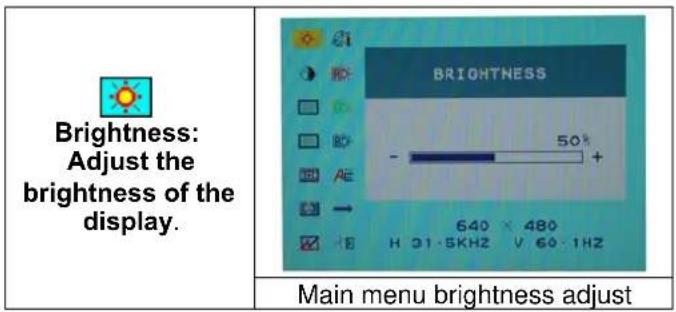

Brightness: Adjust the brightness of the display. BRIGHTNESS - 50° + 640 × 480 H 31·5KHZ V 60·1HZ Main menu brightness adjust

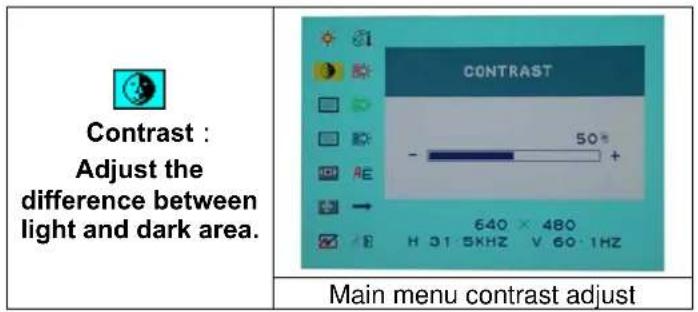

Contrast : Adjust the difference between light and dark area. CONTRAST 50° - AE 640 × 480 H 31·5KHZ V 60·1HZ Main menu contrast adjust

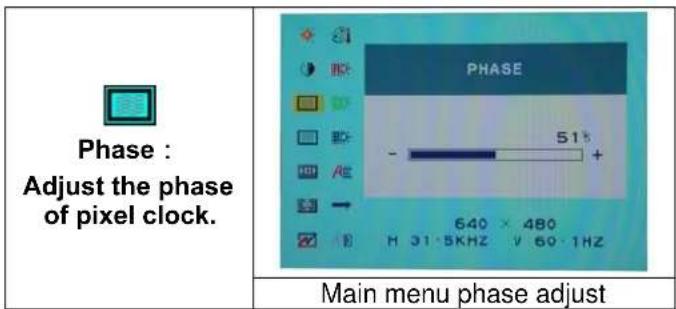

Phase : Adjust the phase of pixel clock. PHASE 51% - 640 × 480 H 31·5KHZ V 60·1HZ Main menu phase adjust

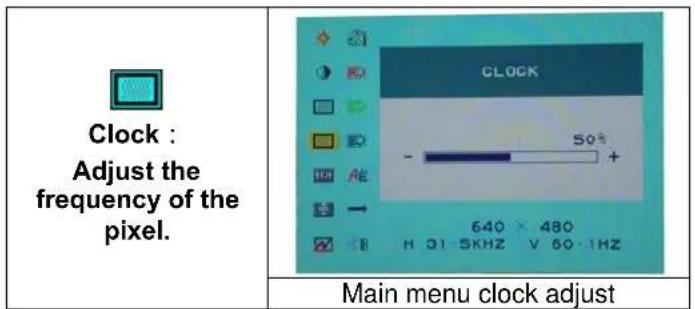

Clock : Adjust the frequency of the pixel. CLOCK 50% - AE - 640 × 480 H 01 5KHZ V 60 1HZ Main menu clock adjust

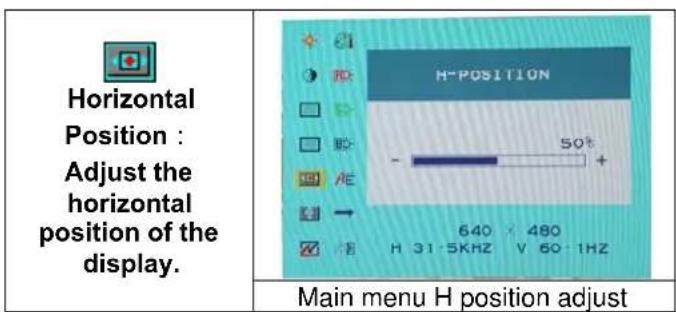

Horizontal Position : Adjust the horizontal position of the display. H-POSITION 50° - 640 X 480 H 31·5KHZ V 60·1HZ Main menu H position adjust

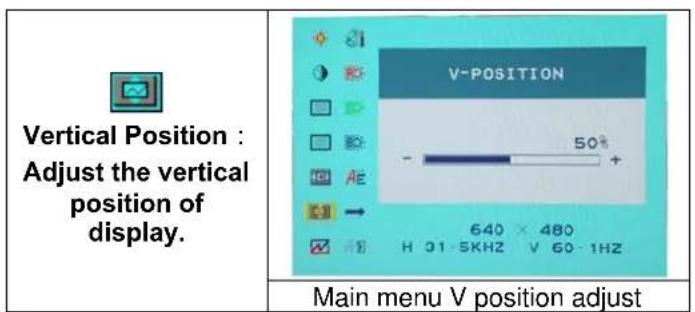

Vertical Position : Adjust the vertical position of display. V-POSITION 50% - 640 × 480 H 31·5KHZ V 60·1HZ Main menu V position adjust

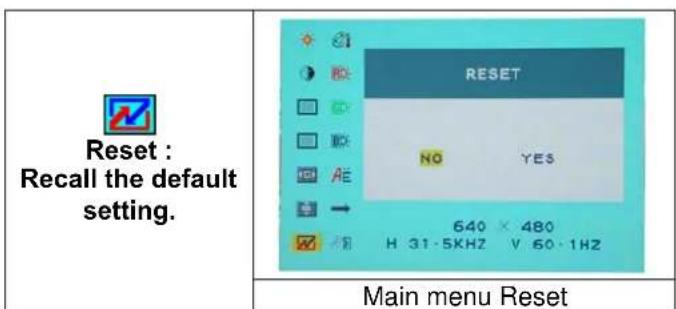

Reset : Recall the default setting. RESET NO YES 640 × 480 H 31·5KHZ V 50·1HZ Main menu Reset

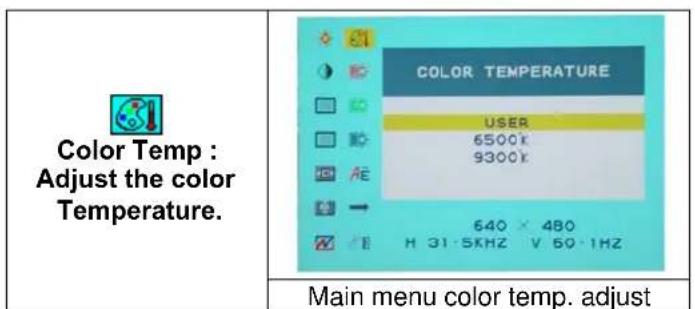

Color Temp : Adjust the color Temperature. COLOR TEMPERATURE USER 6500k 9300k 640 × 480 H 31·5KHZ V 50·1HZ Main menu color temp. adjust

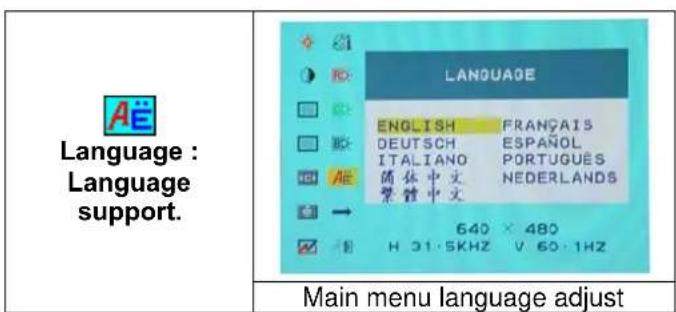

Language : Language support. LANGUAGE ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO PORTUGUÈS 简体中文 NEDERLANDS 繁體中文 640 × 480 H 31·SKHZ V 60·1HZ Main menu language adjust

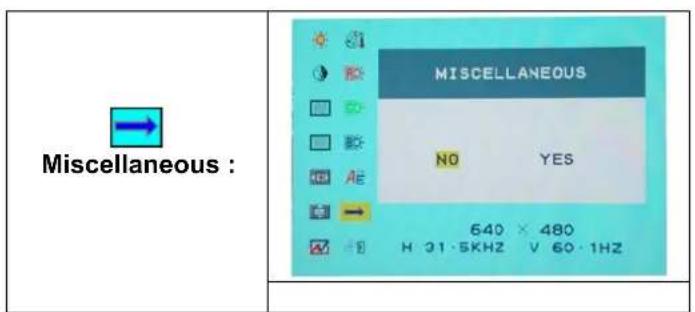

Miscellaneous : MISCELLANEOUS NO YES 640 × 480 H 31·5KHZ V 60·1HZ

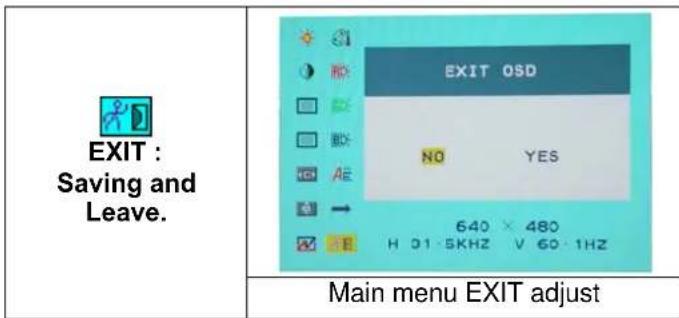

EXIT : Saving and Leave. EXIT OSD NO YES 640 × 480 H 31·5KHZ V 60·1HZ Main menu EXIT adjust

Miscellaneous

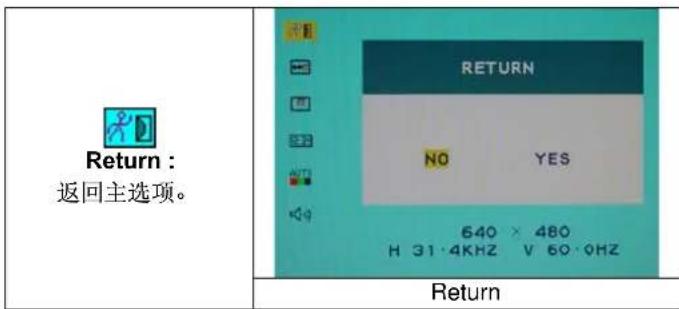

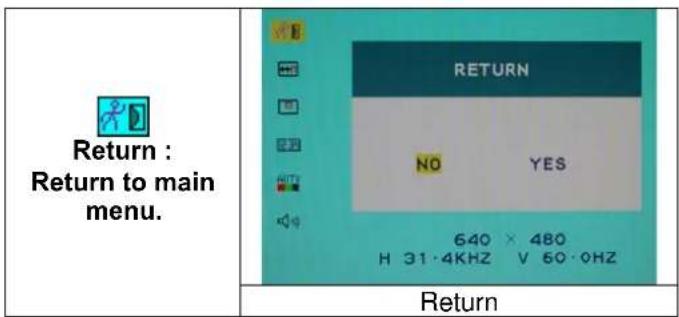

Return : Return to main menu. RETURN NO YES 640 × 480 H 31·4KHZ V 60·0HZ Return

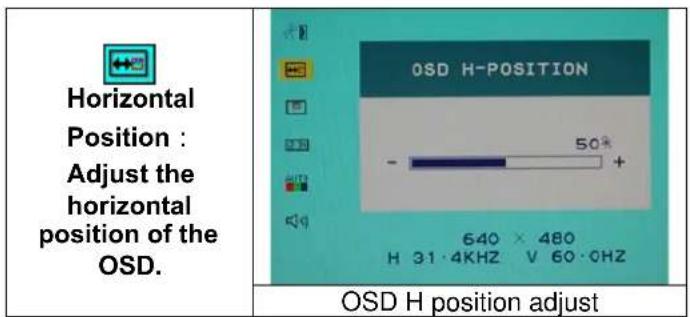

Horizontal Position : Adjust the horizontal position of the OSD. OSD H-POSITION 50° - 640 × 480 H 31·4KHZ V 60·0HZ OSD H position adjust

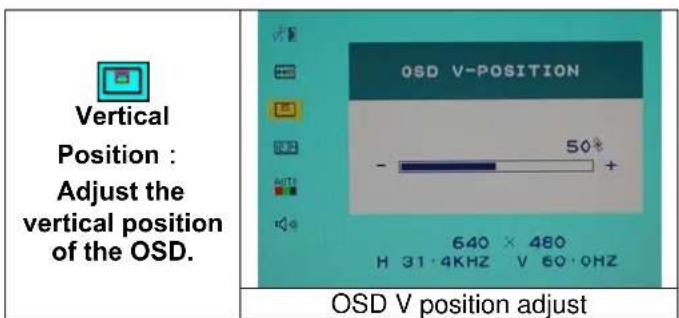

Vertical Position : Adjust the vertical position of the OSD. OSD V-POSITION 50% 640 × 480 H 31·4KHZ V 60·0HZ OSD V position adjust

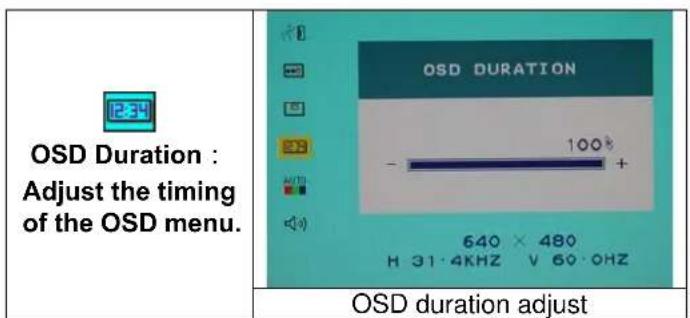

OSD Duration : Adjust the timing of the OSD menu. OSD DURATION 100% + 640 × 480 H 31·4KHZ V 60·0HZ OSD duration adjust

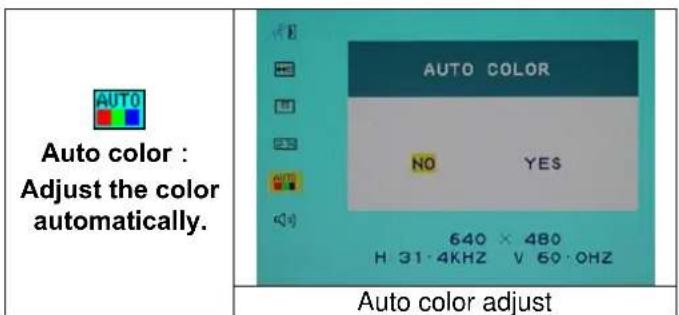

Auto color : Adjust the color automatically. AUTO COLOR NO YES 640 × 480 H 31·4KHZ V 60·0HZ Auto color adjust

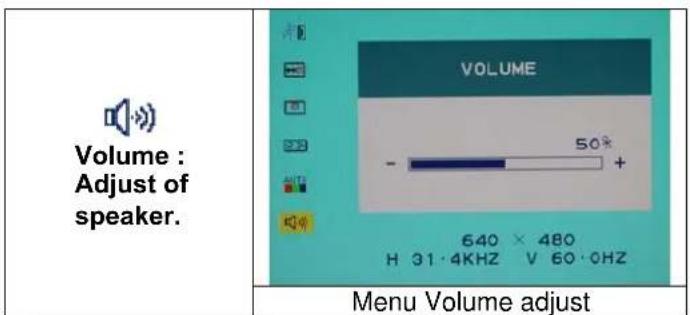

Volume : Adjust of speaker. VOLUME - 50% 640 × 480 H 31·4KHZ V 60·0HZ Menu Volume adjust

Incoming Display Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640X350	31.475	70.100
640X480	31.469	59.940
640X480	37.500	75.000
720X400	31.469	70.087
800X600	37.879	60.317
800X600	46.875	75.000
1024X768	48.363	60.004
1024X768	60.023	75.029
1280X1024	63.981	60.020
1280X1024	79.976	75.024

1. We offer you 10 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

Specification

LCD Panel Type	Viewing AngleContrast RatioBrightnessResponse Time(Tr+Tf)Display ColorsMax ResolutionPixel Pitch	17.0” TFT Active Matrix LCD DisplayH:140°, V:130°500 : 1 (Typical)300 cd/m2 (Typical)16 ms16.7M colors1280X1024(SXGA)0.264mm(H)x0.264mm(V)
Input Signals RGB Analog	*DVI*	Video Level:0.7Vp-p(75Ω)Sync TTL with 75Ω internal pull-up resistorsFrequency FH:30~80KHzF V:56~75 HzSupport digital RGB signal with TMDS signaling type
Compatibility PC Up to 1280X1024@75Hz(Non-interlaced)
Connector RGB Analog	DVI*AudioPower	D-sub 15-pinsDVI-D*Stereo Phone Jack12V/DC Power Jack
Power Voltage	ConsumptionPower saving mode	100-240V, 50/60Hz(universal) via external AC AdapterActive < 48 Watt MaxStandby < 3 Watt
Internal Speaker 2Wx2(Stereo)
User Interface	LED Indicator	Active - BlueStandby - Blue FlashOff - Turn off
Operating Condition	TemperatureAir Humidity	5°C~40°C20% ~ 80% R.H.
Dimensions(W x H x D)	Physical	400mm(W) x 390mm(H) x 155mm (D)
Net Weight	3.3 Kg
DDC	DDC1/DDC2B Compliant
Power Management		VESA DPMS, EPA Energy Star
Regulation(Certifications)	CE, FCC, TUV, BSMI

* DVI function is optional.

開始

目錄....12

顯示器前後視圖....13

包装....14

警示....14

硬體安裝....15

主要功能鍵....16

功能鍵介紹....16

清潔要點....17

注意事項....17

簡易故障排除....17

OSD 視控模式....18-19

支援顯示模式....20

產品規格表 21

Line drawing of a flat-screen computer monitor with no text or symbols

Architectural floor plan showing room layout with furniture and structural elements (no text or labels)

包装

Technical diagram of a mechanical or electrical component with numbered parts labeled ①, ②, and ⑤.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

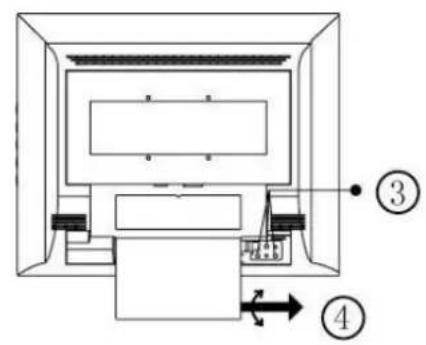

【1】推

【2】 轉軸蓋

【3】轉軸鏢絲

【4】轉動並拉出底座

【5】 底座

顯示器控制

主要功能鍵

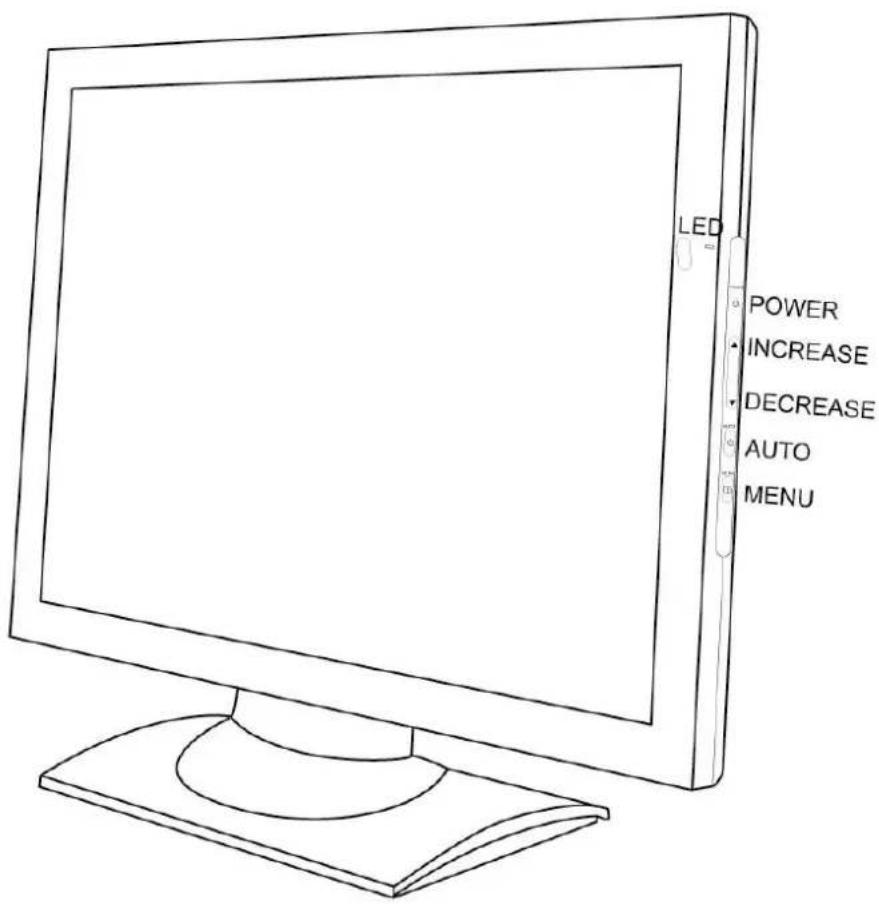

LED POWER INCREASE DECREASE AUTO MENU

功能鍵介紹

Line drawing of a flat-screen computer monitor with a small cup on the base (no text or symbols)

Architectural floor plan showing room layout with furniture and structural elements (no text or labels)

包装

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Miscellaneous : (其它)

Line drawing of a flat-screen computer monitor with no text or symbols

Top-down architectural floor plan of a modern room with two walls, a central rectangular chamber, and a double door (no text or symbols)

Déballage

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

[1] Poussée

Hardwareinstallation....45

Line drawing of a flat-screen computer monitor with no text or symbols

Architectural floor plan showing room layout with furniture and structural elements (no text or labels)

Auspacken

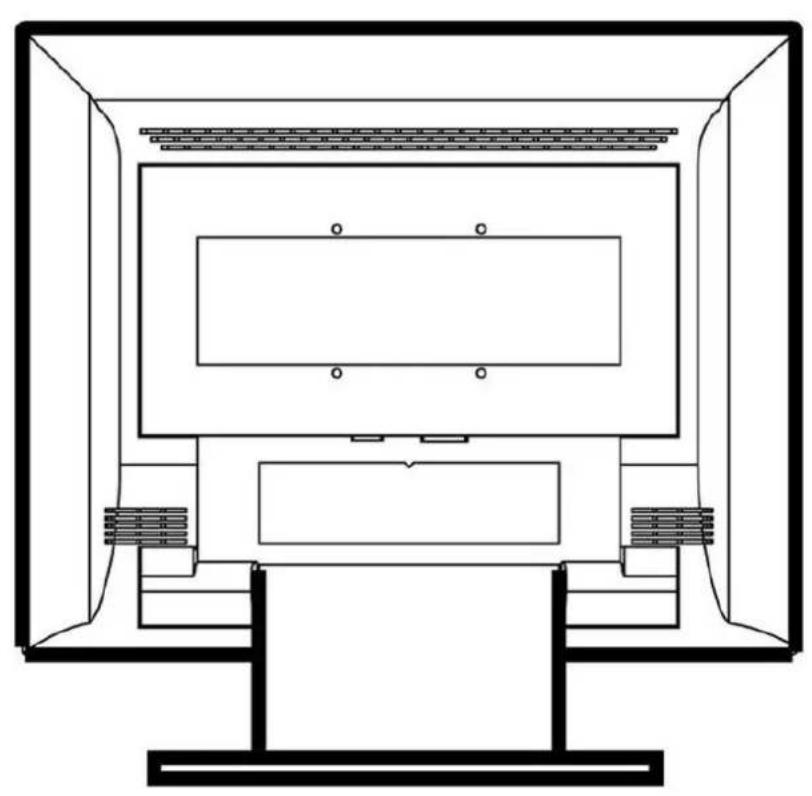

Hardwareinstallation

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a device with labeled components and directional arrows indicating movement or flow.

Simple line drawing of a computer monitor with blank screen and base (no text or symbols)

Architectural floor plan showing room layout with furniture and structural elements (no text or labels)

Disimballaggio

Line drawing of a flat-screen computer monitor with a blank screen and a small base (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

[1] Spinta
[2] Copertura Della Cerniera
[3] Vite Del Perno

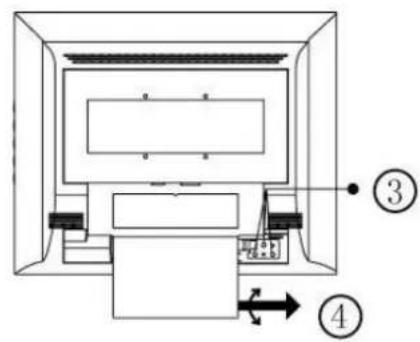

[4] Giri & Tiri La Base
【5】 Base

Line drawing of a computer monitor with blank screen and base (no text or symbols)

Top-down architectural floor plan of a modern room with furniture and structural elements (no text or labels)

Desempacar

Technical diagram of a mechanical or electrical component with numbered parts labeled ①, ②, and ⑤.

Technical diagram of a mechanical device with numbered components and directional arrows indicating movement or flow.

Line drawing of a flat-screen computer monitor with no text or symbols

Architectural floor plan showing room layout with furniture and structural elements (no text or labels)

Unpacking

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating movement or flow.

【1】Duw
【2】 De Dekking van de scharnier
【3】 De Schroef van de spil

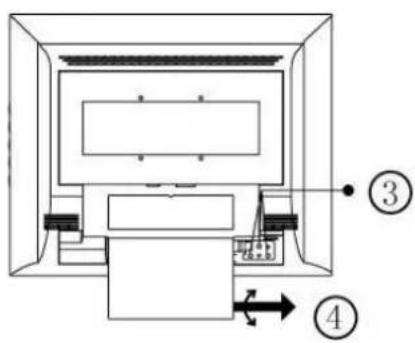

【4】 De Basis van de draai & van de Trekkracht
【5】Basis

Monitor aanpassen

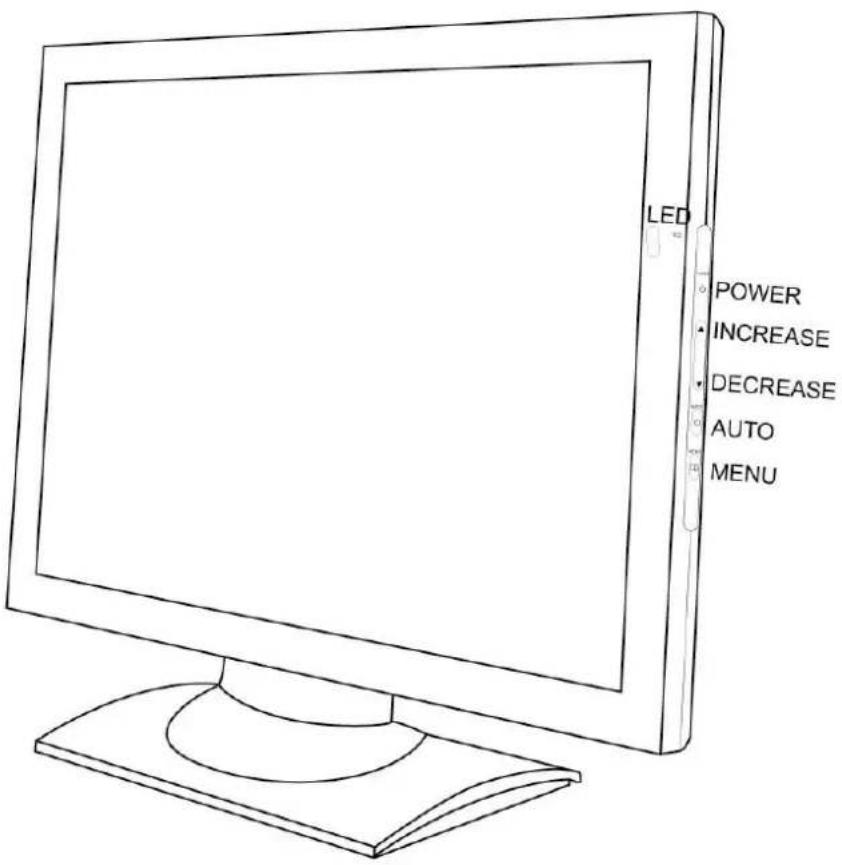

Menu controle knop

LED POWER INCREASE DECREASE AUTO MENU

Toets inleiding

Line drawing of a flat-screen computer monitor with no text or symbols

Top-down architectural floor plan of a modern room with furniture and structural elements (no text or labels)

Desembalando

Simple line drawing of a flat-screen computer monitor with no text or symbols

Univ15 pinos externoD-sub(RGB Análogo)cabo de sinal input

Cabo de Força

Adaptador Universal AC Externo(100-240V, 50/60Hz)

Conector de Audio

Manual do Usuário

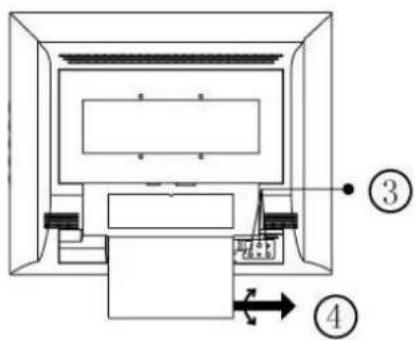

Cuidados

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating movement or flow.
