USER MANUAL L1931WS DGM

19" Wide Screen LCD Monitor

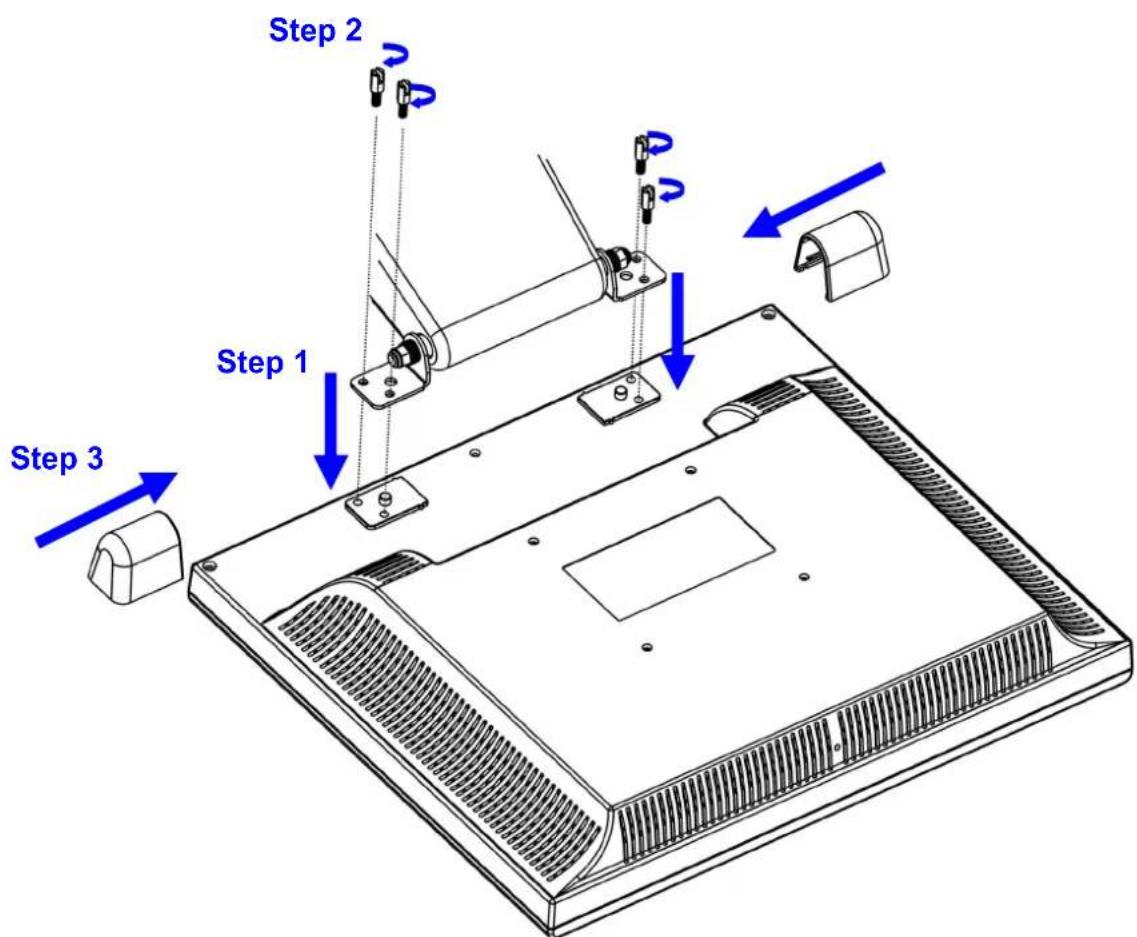

Attaching the Base to the Monitor

English 2
繁體中交 8
简體中文 14
Francais 20
Deutsch 26
Italiano 32
Espanol 38
Portugues 44
Dutch 50

Notice. 3
Safety Information. 3
Precaution 3
Package Contents. 3
Hardware Installation. 4
Control Buttons. 4
OSD (On-Screen Display) Menu Mode. 5
Troubleshooting. 6
Supported Timing. 6
Specification. 7

Notice

• All Information in this manual may change from time to time without prior notice.
  To ensure safety operation of this product, please read the following menu carefully before using this product.

Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 19" TFT LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable
5. DVI Cord
6. User's Manual
7. Warranty Card

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

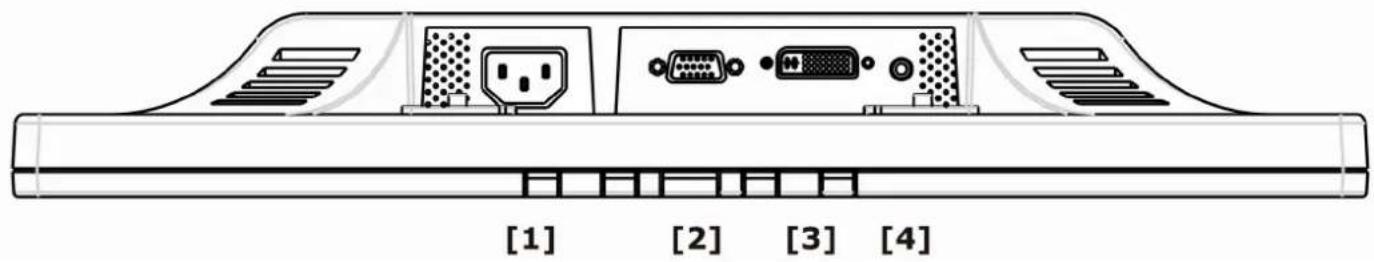

Input

【1】AC Input : This is for connecting the power cable.
【2】VGA PORT : This can be connected with the D-Sub 15 pin signal Cable.
【3】DVI port : This can be connected with the DVI signal Cable.
【4】Audio In : This can be connected to the PC audio-out connector of sound resource.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust <-> ", "Adjust <+> ". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)

A Function Select Button: This button allows you to select the control functions up in the OSD. Hotkey: Press this button to apply the monitor setting automatically. Menu (Function)
M Function Select Button: This button allows you to select the control functions down in the OSD. Hotkey: Press this button to get a pop-up OSD menu.

#

Power: Turn the LCD power on and off. When the power is on, the light is showing green, Stand by will be orange.

• Adjust < - > : Decrease the option value in the OSD menu.
• Adjust < + > : Increase the option value in the OSD menu.

OSD (On-Screen Display) Menu Mode

1. Please adjust your Speaker Volume via your PC computer Speaker Volume control icon.
2. Please note that Sound will continue to play when your monitor is off, to turn off please turn off your PC computer or mute the Speaker Volume control icon.
3. Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

BRIGHTNESS	Adjust the brightness of the display.
CONTRAST	Adjust the difference between light and dark area.
PHASE	Adjust the phase of PLL.
CLOCK	Adjust the frequency of the PLL.
H-POSITION	Adjust the horizontal position of the display.
V-POSITION	Adjust the vertical position of display.
RESET	Recall the default setting.
COLOR TEMPERATURE	Adjust the color temperature.
RED	Adjust the Red color temperature.
GREEN	Adjust the Green color temperature.
BLUE	Adjust the Blue color temperature.
LANGUAGE	Select the display language of the OSD Menu.
MISCELLANEOUS	“No” will take you to the exit menu. “Yes” will bring you to the sub menus of the Miscellaneous menu.
EXIT OSD	Saving and Leave.

MISCELLANEOUS

RETURN	Return to main menu.
OSD H-POSITION	Adjust the horizontal position of the OSD.
OSD V-POSITION	Adjust the vertical position of the OSD.
OSD DURATION	Adjust the timing of the OSD menu.
AUTO COLOR	Adjust the color automatically.
SOURCE	Select input Video source: VGA or DVI

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1.Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Item Standards Resolution			DotClock(MHz)	VerticalScanningFrequency(Hz)	HorizontalScanningFrequency(KHz)	Sync Polarityor composite sync (H/V)	OperatingMode
1	VGA	640x480	25.18	59.94	31.47		-/-
2	VESA	640x480	31.50	72.81		37.86	-/-
3	VESA	640x480	31.50	75.00		37.50	-/-
4	VESA	800x600	36.00	56.25		35.16	+/+
5	SVGA	800x600	40.00	60.32	37.88	+/+	A/D
6	VESA	800x600	50.00	72.19		48.08	+/+
7	VESA	800x600	49.50	75.00		46.88	+/+
8	VGA	720x400	28.32	70.09	31.47	-/+	A
9	XGA	1024x768	65.00	60.00	48.36	-/-
10	XGA	1024x768	75.00	70.07		56.48	-/-
11	XGA	1024x768	78.75	75.03		60.02	+/+
12	WXGA	1280x800	83.46	60.000	49.680	-/-	A/D
13	WXGA	1280x800	107.21	75.000	62.625	-/-	A/D
14	WXGA	1440x900	106.47	60.000	55.920	-/-	A/D

A = Analog Mode; D = Digital Mode
If the input timing is closed to one of the above, generally it can be displayed well by optimum adjusting.

Specification

LCD Panel	Type	19.0" TFT Active Matrix LCD Display
	Viewing Angle	H:150°, V:150°
	Contrast Ratio	500:1 (Typical)
	Brightness	300 cd/m2 (Typical)
	Response Time(Tr+Tf)	8 ms
	Display Colors	16.2M colors
	Max Resolution	1440X900(WXGA)
	Pixel Pitch	0.285mm(H)x0.285mm(V)
Input Signals	VGA	VGA compatible analog RGB Composite sync supported
	DVI	DDWG compliant Single Link TMDS Digital Visual Interface (DVI)
Compatibility	PC Up to 1440X900@60Hz	(Non-interlaced)
Connector	VGA	D-sub 15-pins
	DVI	DVI-D
	Audio	Stereo Phone Jack
	Power	A/C Input
Power	Voltage	Built-in universal power supply: 100-240 VAC, 50/60 Hz
	Consumption	Active < 48 Watt Max.
	Power saving mode	Standby < 3 Watt
Internal Speaker	Speaker x 2
User Interface	LED Indicator Active	Green
		Standby - Orange
Operating Condition	Temperature	Operating:5°C to 40°C
	Humidity	20% ~ 80% R.H.
Dimensions	Physical 436.9mm(W) x 377	.9mm(H) x 161mm(D)
Net Weight		4 Kg
Tilt Angle		-5° dip and 20° elevation
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)	UL/CUL, FCC, CE
