USER MANUAL PEEM 1536 Pattfield

Pattfield® ERGO TOOLS

GB Electric Lawn Mower 1500 W

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1


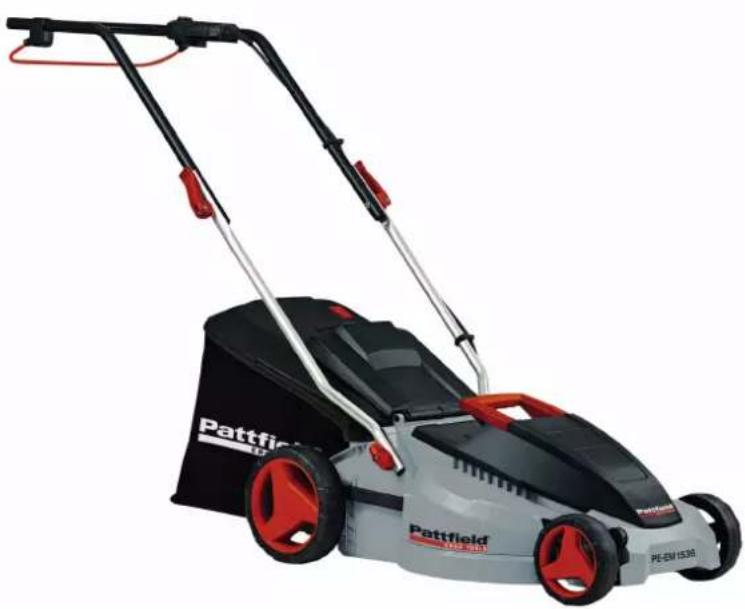

Pattfield lawn mower with black and red wheels, no visible text or symbols on the motor body

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 2

-2-

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1


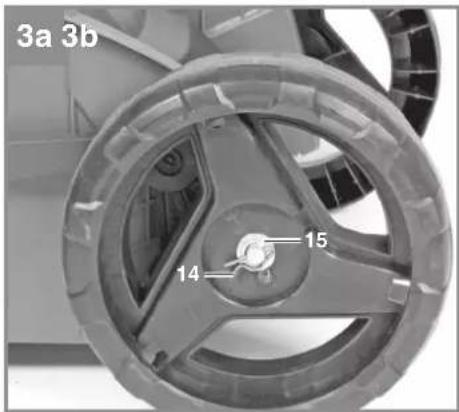

3a 3b 14 15

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 2


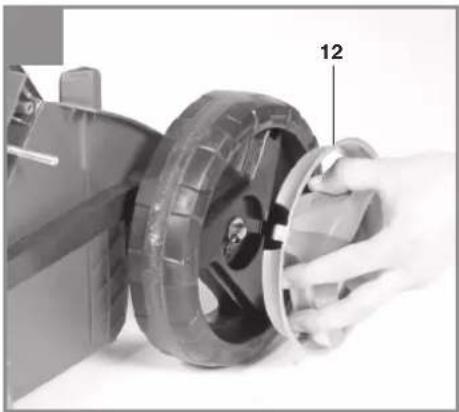

Close-up of a hand operating a car tire with a numbered component (12), no visible text or symbols on the object itself.

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 3


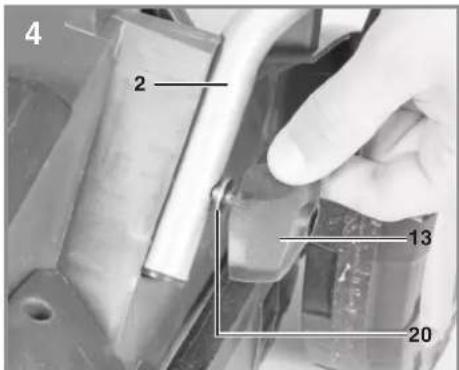

4 2 13 20

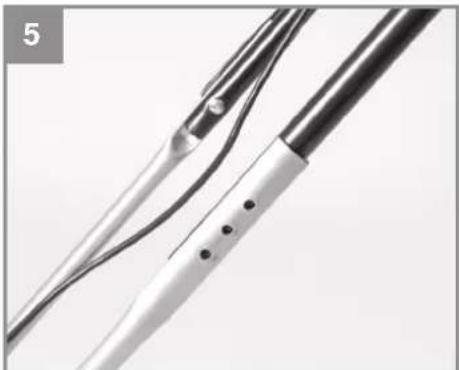

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 4


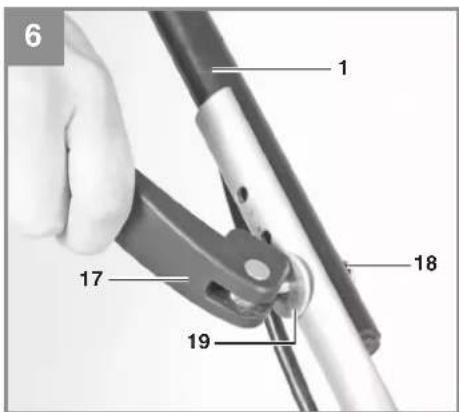

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 5

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 6


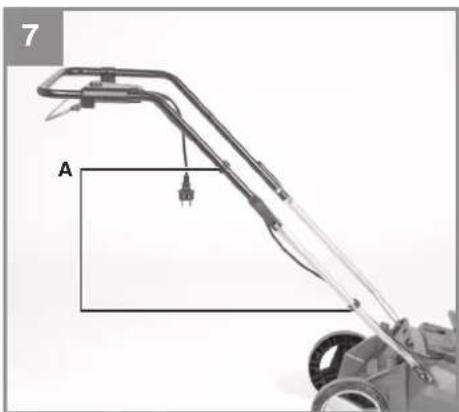

Mechanical device with attached bracket and labeled section A (no text or symbols on the device itself)

-3-

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1


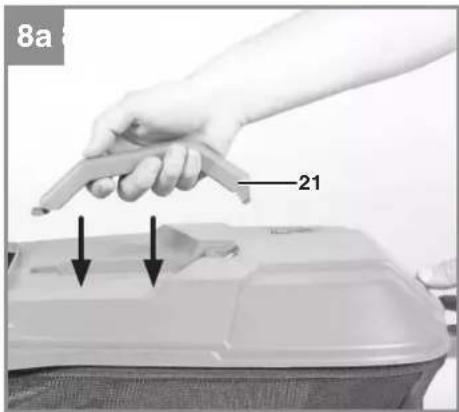

8a 21

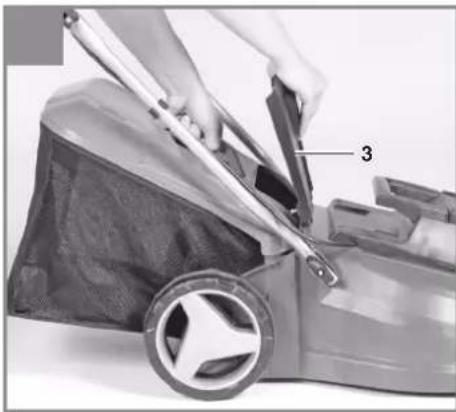

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 2

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 3

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 4


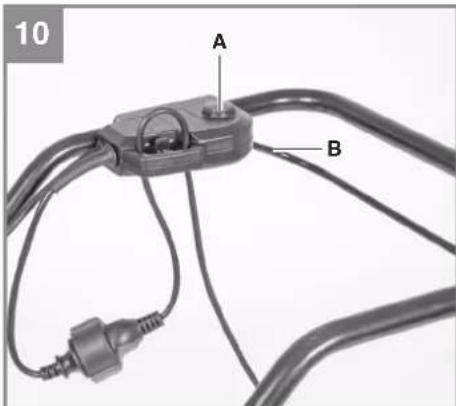

10 A B

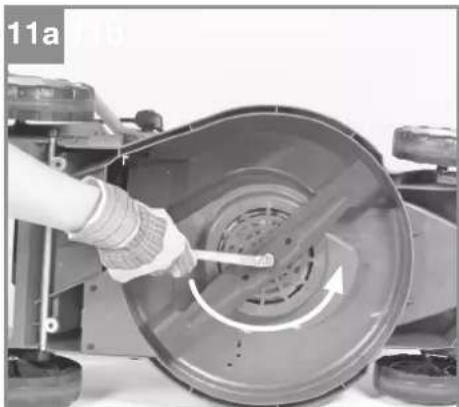

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 5

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 6

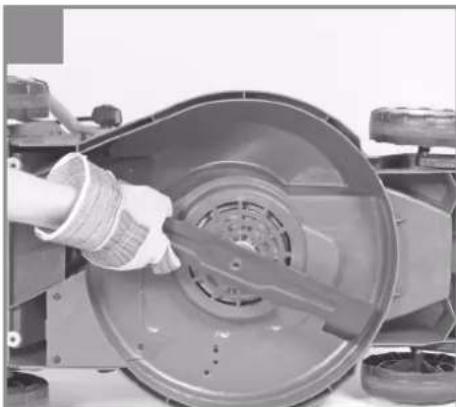


Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 2

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 3

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 4

Pattfield® ERGO TOOLS

Inhaltsverzeichnis

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

aus der Verpackung.

Pattfield® ERGO TOOLS

4. Technische Daten

Pattfield® ERGO TOOLS

6. Bedienung

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Nur für EU-Länder

Pattfield® ERGO TOOLS

Sommaire

Pattfield® ERGO TOOLS

Danger!

Pattfield® ERGO TOOLS

Prudence!

Risques résiduels

Pattfield® ERGO TOOLS

6. Commande

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

13. Informations service après-vente

Pattfield® ERGO TOOLS

14. Bon de garantie

Chère cliente, cher client,

Pattfield® ERGO TOOLS

Indice

Pattfield® ERGO TOOLS

Pericolo!

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Inhoudsopgave

Pattfield® ERGO TOOLS

Gevaar!

Pattfield® ERGO TOOLS

WAARSCHUWINGSINSTRUCTIES:

Pattfield® ERGO TOOLS

Voorzichtig!

Restrisico's

Pattfield® ERGO TOOLS

8.3 Onderhoud

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

13. Service-informatie

Pattfield® ERGO TOOLS

14. Garantiebewijs

Geachte klant,

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

4. Tekniska data

Nätspänning 220-240 V \~ 50 Hz

Pattfield® ERGO TOOLS

Obs!

Kvarstående risker

Pattfield® ERGO TOOLS

nedför slänten.

Pattfield® ERGO TOOLS

8.3 Underhåll

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

13. Serviceinformation

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Nebezpečí!

Pattfield® ERGO TOOLS

(jsou-li k dispozici).

Pattfield® ERGO TOOLS

Nebezpečí!

Hluk a vibrace

Pattfield® ERGO TOOLS

Elektrická přípojka

Pattfield® ERGO TOOLS

6. Obsluha

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Jen pro země EU

Pattfield® ERGO TOOLS

14.Záruční list

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Pattfield® ERGO TOOLS

Vibrácia na držadle a_h : 4,5 m/s²

Faktor neistoty K: 1,5 m/s²

Trieda ochrany:....II/回

Hmotnost: 10 kg

Nebezpečenstvo!

Hlučnosť a vibrácie

Hodnoty hluku a vibrácií boli určené podl'a noriem EN ISO 3744:1995, EN ISO 11201:1995 a EN ISO 20643:2005.

Obmedzte tvorbu hluku a vibráciu na minimum!

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Len pre krajiny EÚ

Pattfield® ERGO TOOLS

14.Záručný list

Pattfield® ERGO TOOLS

Cuprins

Pattfield® ERGO TOOLS

Pericol!

Pattfield® ERGO TOOLS

special copii sau animale.

Pattfield® ERGO TOOLS

Nivelul garantat al puterii sonore L_WA : 96 dB(A)

Vibratia pe bara de protectie ah: 4,5 m/s²

Pattfield® ERGO TOOLS

8.3 Întreținerea

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

13.Informatii de service

Pattfield® ERGO TOOLS

Safety regulations
Layout and items supplied
Proper use
Technical data
Before starting the equipment
Operation
Replacing the power cable
Cleaning, maintenance and ordering of spare parts
Disposal and recycling
Storage
Troubleshooting
EC Declaration of Conformity
Service information
Warranty certifi cate

Pattfield® ERGO TOOLS

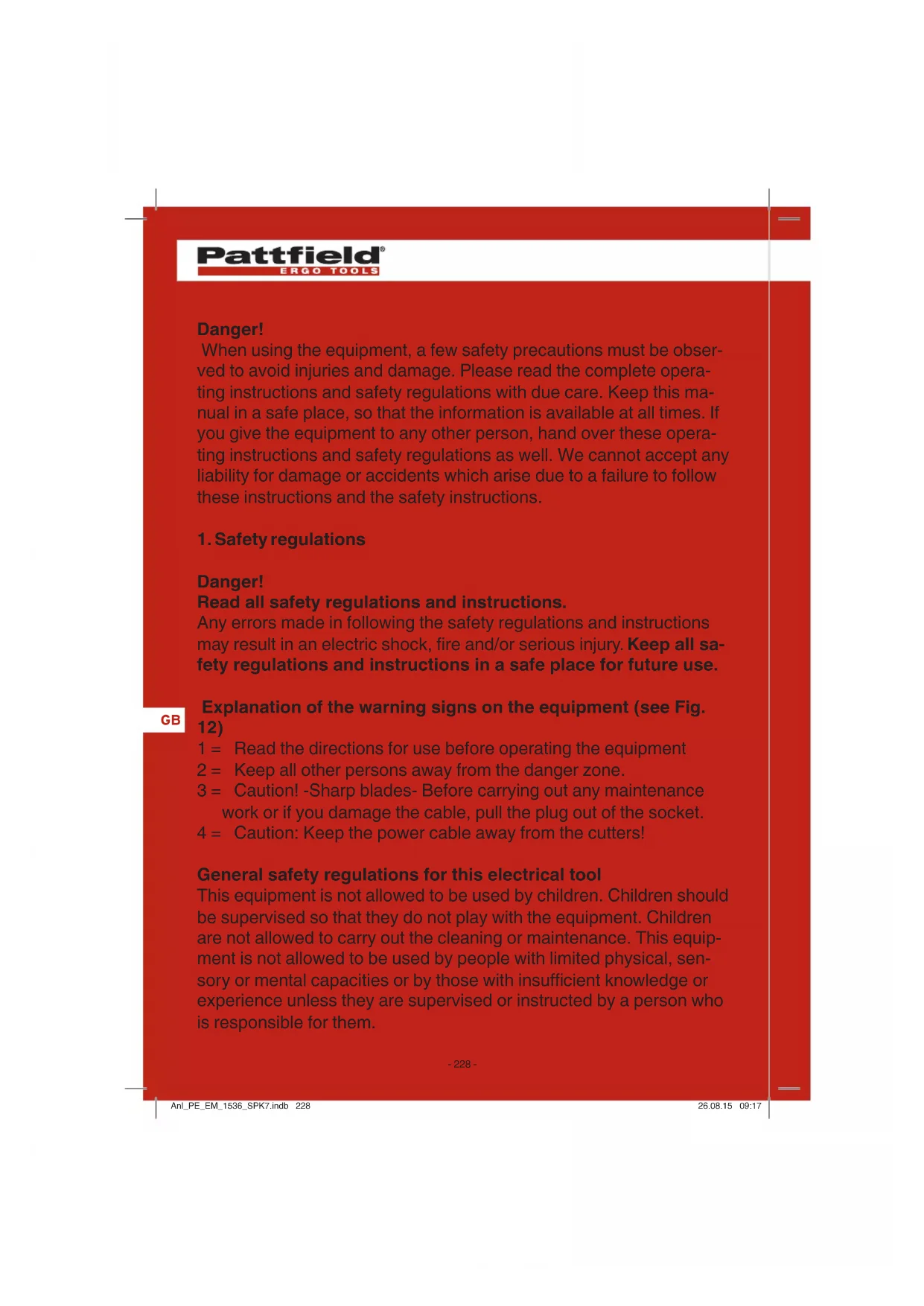

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

Explanation of the warning signs on the equipment (see Fig. 12)

1 = Read the directions for use before operating the equipment
2 = Keep all other persons away from the danger zone.
3 = Caution! -Sharp blades- Before carrying out any maintenance work or if you damage the cable, pull the plug out of the socket.
4 = Caution: Keep the power cable away from the cutters!

General safety regulations for this electrical tool

This equipment is not allowed to be used by children. Children should be supervised so that they do not play with the equipment. Children are not allowed to carry out the cleaning or maintenance. This equipment is not allowed to be used by people with limited physical, sensory or mental capacities or by those with insufficient knowledge or experience unless they are supervised or instructed by a person who is responsible for them.

Pattfield®

ERGO TOOLS

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Safety instructions for hand mower

Before use, check the mains cable and extension cable for signs of damage and aging.
If the cable is damaged during operation, disconnect it immediately from the power supply.
Check the machine for signs of damage before use. Repairs may only be carried out by our service workshop. If unusual vibrations occur during use, switch the machine off immediately and pull the plug. Check the cutters and clean them if necessary. If the machine continues to vibrate, switch it off, disconnect it from the mains supply and send it to our service workshop.
The machine must not be tipped whilst it is being started. Both hands must be on the handle when you start the machine.
Worn parts may only be replaced by our service workshop. If necessary contact the service address provided.

WARNINGS

Do not use the mower if the connection cable is damaged or worn.
Do not use a damaged cable to connect the machine to the mains supply and do not touch a damaged cable whilst it is connected to the mains. A damaged cable can result in contact with live parts.
Do not touch the cutters until the machine has been disconnected from the mains and the cutters have reached a complete standstill.
Keep extension cables away from the cutters. The cutters can damage the cables and result in contact with live parts.
Break the connection with the mains supply (in other words pull the plug out of the socket):
whenever you leave the machine unattended;
before released a blocked cutter;

Pattfield® ERGO TOOLS

before inspecting or cleaning and before working on the machine;
if a foreign body has been struck;
whenever the machine starts to vibrate oddly.

- Carefully read the instructions for how to operate the machine safely.

- We recommend that the machine is only connected to a power supply protected by means of an earth-leakage circuit breaker (RCD) with a maximum trip current of 30 mA.

How to use electrically powered lawn mowers safely Training

a) Read the directions with due care. Familiarize yourself with the operator controls and proper operation of the machine.
b) Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for the user.
c) Never mow in the direct vicinity of persons - especially children - or animals.
d) Always keep in mind that the operator or user of the equipment is responsible for accidents involving other persons and/or their property.

Preliminary measures

a) Always wear sturdy, non-slip footwear and long trousers when using the machine. Never use the machine barefoot or in sandals. Avoid wearing loosely fitting clothes or clothing with hanging belts or cords.
b) Check the ground on which the equipment will be used and remove all objects that could be caught up or violently flung out.
c) Before using the scythe, visually inspect it to ensure that the blade, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To prevent any im-

Pattfield®

ERGO TOOLS

balance, replace worn out or damaged blades and mounting bolts as a set only (if applicable). Worn or damaged cutting tools must be replaced.

d) Before use, check the power cable and extension cable for signs of damage and wear. If the cable is damaged during operation, disconnect it immediately from the power supply. DO NOT TOUCH THE CABLE BEFORE IT IS DISCONNECTED. Do not use the equipment if the cable is worn or damaged.
e) Remember that if the machine has several cutting tools, the movement of one cutting tool may result in the other cutting tools starting to rotate.

Handling

a) Only mow in broad daylight or in well-lit conditions.
b) Do not use the machine on wet grass.
c) Always maintain good footing on inclines.
d) Only operate the machine at a walking pace.
e) Always mow across hills i.e. never straight up or straight down.
f) Be particularly careful when you change direction on a slope.
g) Do not mow on overly steep inclines.
h) Always be extra careful when turning the mower around and when pulling it towards you.
i) Switch the mower off, pull the plug and wait until the cutters have reached a complete standstill if you need to tip the mower over, transport it over surfaces other than grass and if the mower has to be moved from and to the area you wish to mow.
j) Never use the lawn mower if the guards are damaged or without the attached guards, e.g. defl ectors and/or grass catching devices.
k) Use the ON/OFF switch carefully as described in the manufacturer's instructions. Make sure that your feet are far enough away from the mower blade!
I) The lawn mower should not be tilted when the motor is switch on

Pattfield® ERGO TOOLS

unless it has to be raised for starting purposes. In this case, tilt it as little as absolutely necessary and only raise the side opposite to that of the user.

m) Do not switch on the mower if you are positioned in front of the chute.
n) Never move your hands or feet toward or under any rotating parts. Keep clear of the chute opening at all times.
o) Never lift or carry a lawn mower with the engine running.
p) Switch off the motor and pull the plug out of the socket. Make sure that all moving parts have reached a complete standstill:
- before you dislodge any blockages or clogs in the chute.
- before carrying out any checks, cleaning, maintenance or other work on the lawn mower.
- if you have struck a foreign object. Examine the mower for signs of damage and carry out any necessary repairs before restarting and continuing to work with the mower.
- if the lawn mower begins to experience exceptionally strong vibrations, immediately switch it off and check it.

- Search for damage.

Repair the damaged parts as required.
Make sure that all nuts, bolts and screws are fastened securely.

q) Switch off the mower and pull the plug whenever you leave the mower.

Maintenance and storage

a) Make sure that all nuts, bolts and screws are tightened securely and that the machine is in safe working condition.
b) Allow the mower to cool before you put it into an enclosed area.
c) To avoid the risk of fire, keep the motor housing and ventilation slots clear of grass, leaves, oil and grease.
d) Routinely check the grass basket for signs of wear and impaired functionality.
e) For your own safety, have worn or damaged parts replaced without delay.

Pattfield®

ERGO TOOLS

f) Take care not to jam your fingers between moving cutting tools and stationary parts of the equipment while you are adjusting the equipment.
g) While you are carrying out maintenance work on the cutting tools, remember that the cutting tools can still be moved even if the power source has been switched off.
h) For your own safety, replace worn or damaged parts without delay. Use only original spare parts and original accessories.

Pattfield® ERGO TOOLS

2. Layout and items supplied

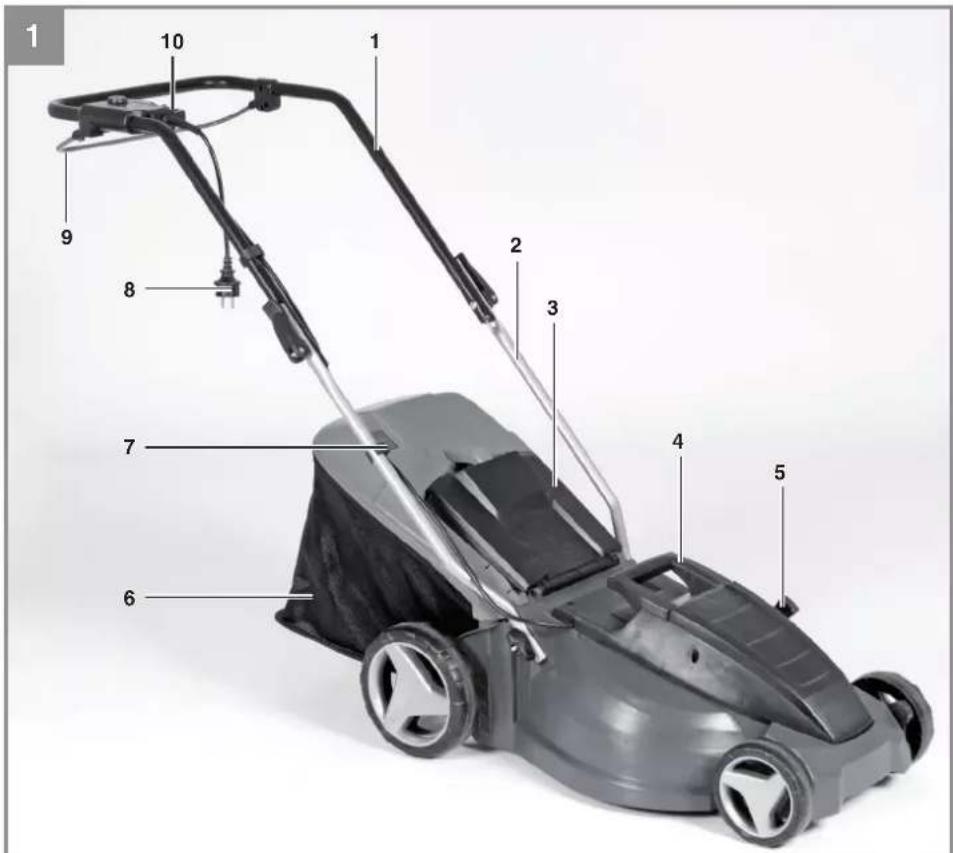

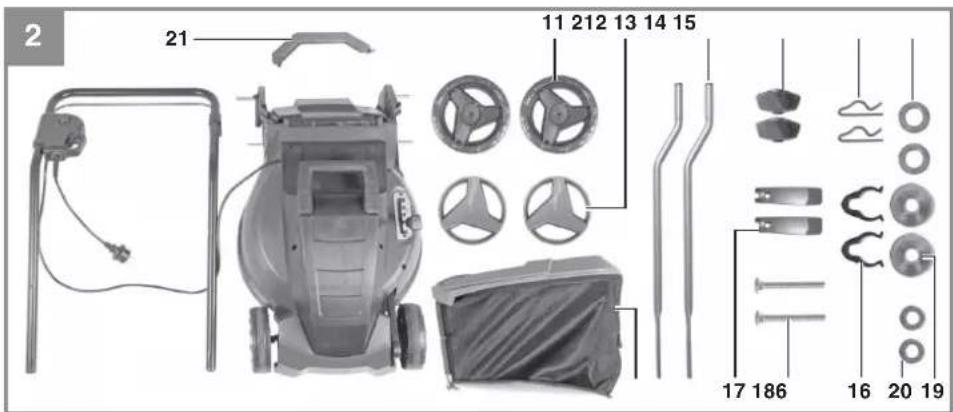

2.1 Layout (Fig. 1/2)

Top push bar
Bottom push bar
Ejector fl ap
Carry-handle
Lever for cutting height adjustment
Grass basket
Filling level indicator
Power plug
On/Off switch
Cable strain-relief
Rearwheels
Wheel caps
Wing nuts for bottom push bar
Split pin
Washers for wheels
Cable clips
Fastening screws for top push bar
Washers for top push bar
Washers for bottom push bar
Grass box handle
Nuts for top push bar with quick clamping function

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

- Open the packaging and take out the equipment with care.

- Remove the packaging material and any packaging and/or trans-

Pattfield® ERGO TOOLS

portation braces (if available).

Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Electric lawn mower
- Grass basket
• Original operating instructions
- Safetyinstructions

3. Proper use

The lawn mower is intended for private use, i.e. for use in home and gardening environments.

Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the equipment is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn mower may not be used as a power cultivator to level out high areas such as molehills.

Pattfield® ERGO TOOLS

For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind, unless they have been expressly permitted by the manufacturer.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 220-240 V \~ 50Hz

Power consumption: 1500 W

Motor speed: 3400 min ^-1

Cutting width: 36 cm

Cutting height adjustment: 25-65 mm; 5 levels

Grass basket capacity: 38 liters

L_pA sound pressure level: 81.7 dB(A)

K_pA uncertainty: 3 dB(A)

L_WA sound power level measured: 94.9 dB(A)

K_WA uncertainty: 3 dB(A)

L_WA sound power level guaranteed: 96 dB(A)

Vibration at the handlebars a_h : 4.5 m/s²

K uncertainty: 1.5 m/s²

Protection class: ....II回

Weight: 10 kg

Pattfield® ERGO TOOLS

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with the standards EN ISO 3744:1995, EN ISO 11201:1995 and EN ISO 20643:2005.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
• Wear protective gloves.
Limit your working time

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

Lung damage if no suitable protective dust mask is used.
Damage to hearing if no suitable ear protection is used.
Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Pattfield® ERGO TOOLS

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

The lawn mower is delivered unassembled. The complete push bar and the grass basket must be assembled before using the lawn mower. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the equipment.

Fitting the wheels (Fig. 3a and b)

Take a rear wheel (Fig. 2/Item 11) and push it onto the axle as shown in Fig. 3a. Then slide a washer (Fig. 2/Item 15) onto the axle and fasten all parts with the supplied split pin (Fig. 2/Item 14) as shown in Fig. 3a. Finally, press the wheel cap (Fig. 2/Item 12) onto the wheel as shown in Fig. 3b. Proceed in exactly the same way on the other side.

Mounting the push bar (Fig. 4 to 7).

Mount a bottom push bar (Fig. 2/Item 2) onto the screw provided for it and secure everything with a wing nut (Fig. 2/Item 13) as shown in Fig. 4. Proceed in the same way on the other side. When you fit the top push bar you can decide the height of the push bar by selecting the appropriate fastening hole (Fig. 5). Finally, secure the top push bar to the bottom push bar as shown in Fig. 6. Now you can attach the motor cable to the push bar (Fig. 7/Item A) using the cable clips (Fig. 2/Item 16).

Pattfield® ERGO TOOLS

Mounting the grass basket (see Figs. 8a and b)

Press the grass box handle (Fig. 8a/Item 21) into the grass basket as shown in Fig. 8a. Before you fit the grass basket you must ensure that the motor is switched off and the blade is not rotating. Lift the ejector flap (Fig. 8b/Item 3) with one hand. With the other hand, hold the grass basket by the handle and hook it in from above (Fig. 8b).

Filling level indicator of the grass collector

The grass collector is equipped with a filling level indicator (Fig. 1/7) which is opened by the airflow that the lawn mower generates during operation. If the flap closes during mowing, the grass collecting device is full and must be emptied. To ensure the proper functioning of the filling level indicator, the holes under the flap must always be kept clean and passable.

Adjusting the cutting height Important!

Adjust the cutting height only when the motor is switched off and the power cable has been disconnected.

Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imbalance, replace blunt and/or damaged blades. To carry out this check, first switch off the motor and pull out the power plug.

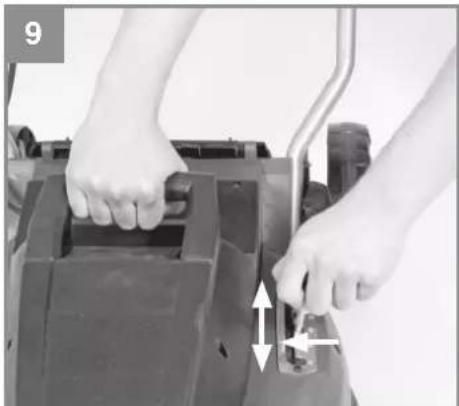

The cutting height is adjusted as follows (see Fig. 9):

Push the lever inwards.
Set the lever to the desired cutting height.
Release the lever and check that it is securely seated in the lock.

Reading off the cutting height

The cutting height can be set between 25-66 mm in 5 intervals, and can be read off on the scale.

Pattfield® ERGO TOOLS

Power supply

The lawn mower can be connected to any light socket-outlet with a 220-240 Volt alternating current. However, the socket outlet must have an earthing contact protected by a 16 A circuit breaker. Additionally, a residual current device (RCD) circuit-breaker with max. 30 mA must be used!

Power cable for the device

Please only use power cables that are not damaged. The total length of the power cable should not exceed 50 meters; going beyond this distance will reduce the power output of the electric motor. The power cable must have a cross-section of 3 x 1.5 mm. The insulating sheath of lawn aerator power cables is frequently damaged.

Some of the causes for this are:

• Cuts caused by driving over the cable.
- Pinching when the power cable is dragged under doors and pulled through windows.
• Cracking due to old age of the insulation.
- Kinking by improperly fastening or guiding the power cable.

GB

The power cables must, at the very minimum, be of type HO5RN-F and 3-stranded. The cable type must be printed somewhere on the power cable. Only purchase power cables that are marked! Plugs and socket couplers for the power cables must be made from rubber and splash-proof. There is a limit to how long power cables can be. Longer power cables require larger conductor cross-sections. Power cables and connecting lines must be regularly checked for damage. Ensure that the lines are switched off before checking them. Completely unwind the power cable. Also check power cable entry points, plugs and socket couplers for kinks.

Pattfield® ERGO TOOLS

6. Operation

Connect the plug (Fig. 1/Item 8) to an extension cable. It is imperative to secure the extension cable with the cable grip as shown in Fig. 10.

Caution!

To prevent the machine switching on accidentally, the lawn mower is equipped with a safety lock-off (Fig. 10/Item A) which must be pressed before the switching bar (Fig. 10/Item B) can be activated. The lawn mower switches itself off when the switching bar is released. Repeat this process several times so that you are sure that the machine functions properly. Before you perform any repair or maintenance work on the equipment, ensure that the blade is not rotating and that the power supply is disconnected.

Caution! Never open the chute fl ap when the grass bag has been detached (to be emptied) and the motor is still running. A rotating blade can cause serious injuries!

Always carefully fasten the chute flap and grass basket. Switch off the engine before emptying the grass basket.

Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers.

Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees.

Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Pattfield® ERGO TOOLS

Tips for proper mowing

It is recommended that you overlap the mowing swaths.

Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow.

Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes.

How frequently you should mow your lawn is determined primarily by the speed at which the grass grows. In the main growing season (May - June) you will probably need to mow the lawn twice a week, otherwise just once a week. The cutting height should be between 4 - 6cm and the amount of growth before mowing again should be 4 - 5cm. If the grass is allowed to grow somewhat longer for whatever reason, do not make the mistake of cutting it back to the normal height in one go. This will harm the lawn. Never cut it back by more than half the height in one go.

Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more difficult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass.

GB

Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards.

Select the cutting height according to the length of the grass. Make several passes so that no more than 4cm of grass are cut at one time.

Switch off the motor before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the motor has been switched off. Never attempt to manually stop the blade. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, im-

Pattfield® ERGO TOOLS

mediately switch off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged.

Lay the power cable on the ground in loops in front of the power outlet. Mow away from the power outlet and cable, making sure that the power cable always trails in the mowed grass so that the lawn mower does not travel over the cable.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket. Important! Before taking off the grass basket, switch off the motor and wait until the blade has come to a stop.

To take off the grass basket, use one hand to lift up the chute flap and the other to grab onto the basket handle. Remove the basket. For safety reasons, the chute flap automatically falls down after removing the grass basket and closes off the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approximately 1m.

Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suitable tools such as a brush or a hand broom.

In order to ensure that the majority of grass clippings are picked up, the inside of both the grass basket and especially the net must be cleaned after each use.

Reattach the grass basket only when the motor is switched off and the blade has stopped.

Lift up the chute flap with one hand and, holding the grass basket by its handle with the other hand, hang in the basket from the top.

Pattfield® ERGO TOOLS

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
We recommend that you clean the device immediately each time you have finished using it.
Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

Danger! The carbon brushes should not be rep laced by anyone but a qualified electrician.

Pattfield® ERGO TOOLS

8.3 Maintenance

- Worn out or damaged blades, blade mounts, and bolts should be replaced as a set by an authorized professional in order to keep the equipment in balance.

- Do not clean the lawn mower with running water, particularly with high-pressure water. Ensure that all mounting components (i.e. screws, bolts, nuts etc.) are always tightened so that the equipment can be safely operated at all times.

• Frequently check the grass catch assembly for signs of wear.

- Replace excessively worn or damaged parts immediately.

• Store your lawn mower in a dry room.

- In order to ensure that you enjoy the equipment for many years to come, all screwed parts, as well as the wheels and axles, should be cleaned and lubricated.

- Keeping your lawn mower in good condition not only ensures a long lifespan and high performance, but also enables the equipment to thoroughly cut your grass with minimal effort. For best results, clean the lawn mower with a brush or rag. Do not use any solvents or water to remove dirt.

- The blade is subjected to more wear and tear than any other component. Therefore, routinely check the condition of the blade and make sure that it is tightly fastened. If the blade is completely worn out, it must be immediately replaced or ground sharp again. An excessively vibrating mower means that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced.

- There are no parts inside the equipment which require additional maintenance.

Pattfield® ERGO TOOLS

8.4 Replacing the blade

For safety reasons, we recommend having the blade replaced by an authorized professional. Important! Wear work gloves! Only replace the blade with a genuine Einhell replacement blade, as this will ensure top performance and safety under all conditions.

Carry out the following steps to change the blade:

Undo the fastening screw (see Fig. 11a).
Remove the blade and replace with a new one.
When fitting the blade, make sure it is installed in the right direction. The blade's air vanes must project into the motor compartment (see Fig. 11b). The dome mounts must be aligned with the punch holes in the blade.
Then retighten the fastening screw with the universal wrench. The tightening torque should be approx. 25 Nm.

At the end of the season, perform a general inspection of the lawn mower and remove any grass and dirt which may have accumulated. At the start of each season, ensure that you check the condition of the blade. If repairs are necessary, please contact our customer service center. Use only genuine spare parts.

8.5 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

Current prices and information are available on request at your Hornbach store.

Spare blade art. no.: 34.054.30

Pattfield® ERGO TOOLS

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10.Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

Troubleshooting

Fault	Possible causes	Remedies
Themotor fails to start	a) The capacitor is defectiveb) There is no electricity at the plugc) The cable is defectived) The combined switch/ plug is defectivee) The connectors have become separated from the motor or the capacitorf) The mower is standing in high grassg) The mower housing is clogged	a) The mower housing is clogged. Have repaired by the Customer Service Centerb) Check the cable and the fusec) Check the cabled) Have repaired by the Customer Service Centere) Have repaired by the Customer Service Centerf) Start in low grass or on an area that has already been mowed; change the cutting height if necessaryg) Clean the housing so that the blade moves freely
Themotor performance drops	a) The grass is too high or too dampb) The mower housing is cloggedc) The blade is severely worn	a) Correct the cutting heightb) Clean the housingc) Replace the blade

Pattfield® ERGO TOOLS

Fault	Possible causes	Remedies
Cutting is irregular	a) The blade is wornb) Wrong cutting height	a) Replace or resharpen the bladeb) Correct the cutting height

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.

The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is permitted only with the express consent of Hornbach Baumarkt AG.

Subject to technical changes

12. EC Declaration of Conformity

EC Declaration of Conformity

in accordance with the EC Machinery Directive 2006/42/EC and the Noise Emission of Outdoor Equipment Directive 2000/14/EC (+2005/88/EC)

We hereby declare that the machine identified below conforms with the basic safety and health requirements of EC Directives 2006/42/EC and 2000/14/EC by virtue of its design and construction in the configuration in which we sell it.

Manufacturer: rHornbach Baumarkt AG

r r r76879 Bornheim, Germany

Description: Electric lawn mower PE-EM 1536

Art. No.: 5599906

EAN: 4006825604740

The following harmonised standards were applied:

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the adherence to the following emissions values:

Measured sound power level: 95,3 dB(A)

Guaranteed sound power level: 96 dB(A)

Notified Body: Intertek Testing & Certification Ltd. (0359)

Pattfield PEEM 1536 - EC Declaration of Conformity - 1

Bornheim, 27/07/2015

tAndreas Back

Head of Quality Management &

Person authorised to compile the technical file

Hornbach Baumarkt AG

H o r n b a c

76879 Bornheim, Germany

Pattfield® ERGO TOOLS

13. Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* V-belt, carbon brushes
Consumables* Blade
Missing parts

* Not necessarily included in the scope of delivery!

In case of defects or faults, please contact your nearest Hornbach store. Describe the fault as precisely as possible and always answer the following questions:

Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

Pattfield® ERGO TOOLS

14.Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as

Pattfield® ERGO TOOLS

sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

Hornbach Baumarkt AG, Hornbachstraße 11, 76879 Bornheim / Germany www.hornbach.com

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Pattfield PEEM 1536 - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Manufactured for HORNBACH-Baumarkt AG

Hornbachstraße 11, 76879 Bornheim / Germany

ED201507
