USER MANUAL PEARM 36 Li Pattfield

Pattfield® ERGO TOOLS

Translation of the Original Instructions Cordless lawn mower 36 V

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1


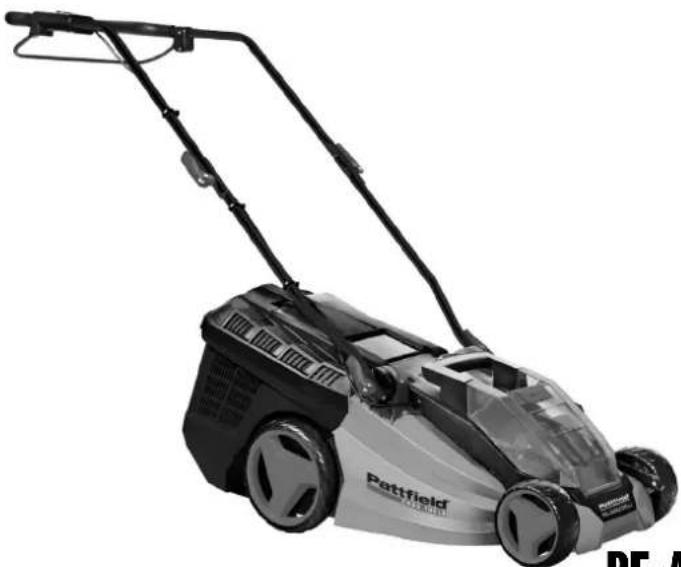

Black and white photo of a Peltfield lawn mower (no visible text or symbols)

PE-ARM 36 Li

Pattfield®

ERGO TOOLS

1
Pattfield PEARM 36 Li - ERGO TOOLS - 1


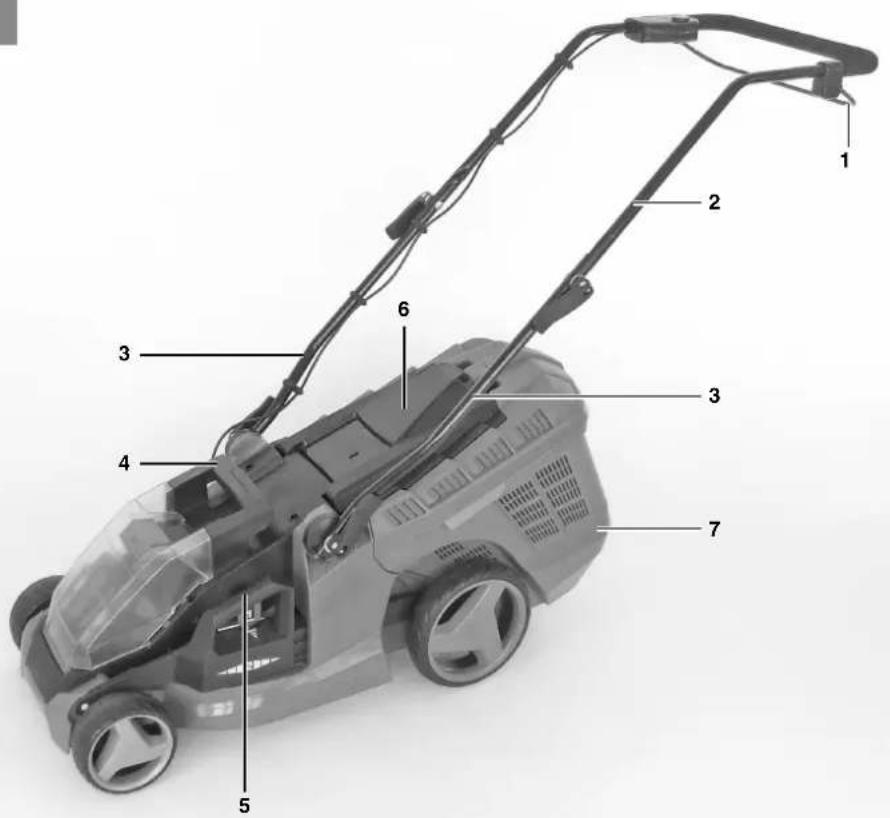

Labeled diagram of a lawn mower with numbered parts for identification

Pattfield PEARM 36 Li - ERGO TOOLS - 2

Pattfield PEARM 36 Li - ERGO TOOLS - 3


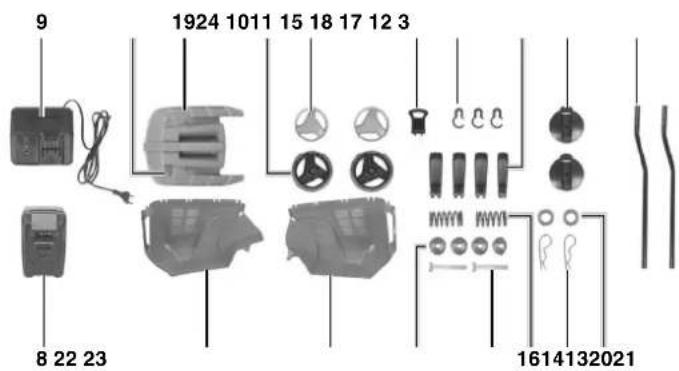

9 1924 1011 15 18 17 12 3 8 22 23 1614132021

-2-

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 2

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 3

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 4

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 5

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 6


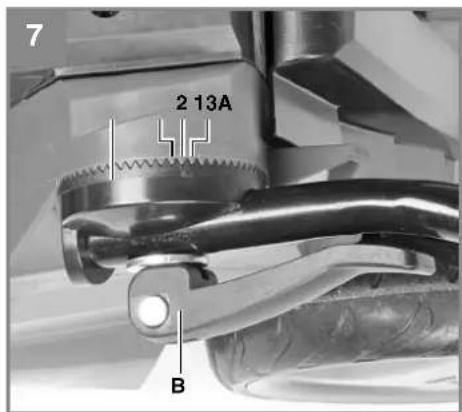

7 2 13A B

-3-

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield PEARM 36 Li - ERGO TOOLS - 2


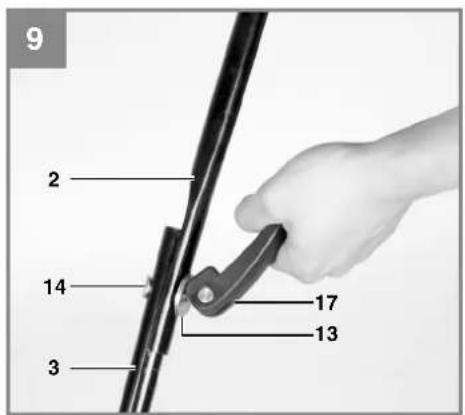

9 2 14 3 17 13

Pattfield PEARM 36 Li - ERGO TOOLS - 3

Pattfield PEARM 36 Li - ERGO TOOLS - 4


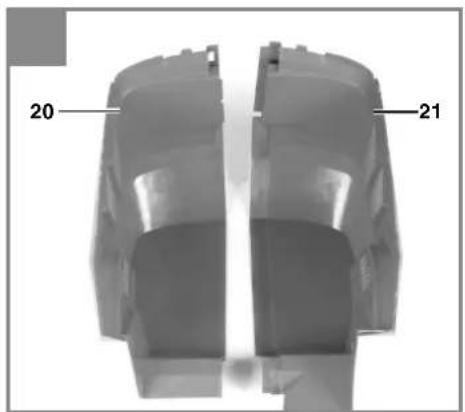

20 21

Pattfield PEARM 36 Li - ERGO TOOLS - 5

Pattfield PEARM 36 Li - ERGO TOOLS - 6

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1


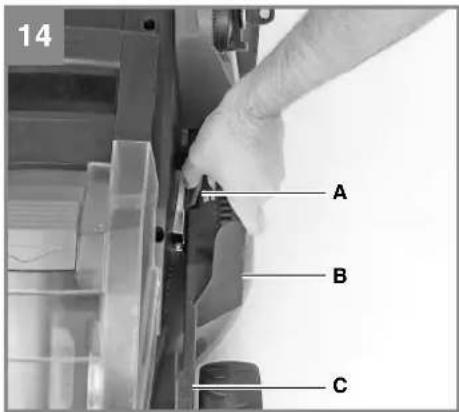

14 A B C

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 2

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 3


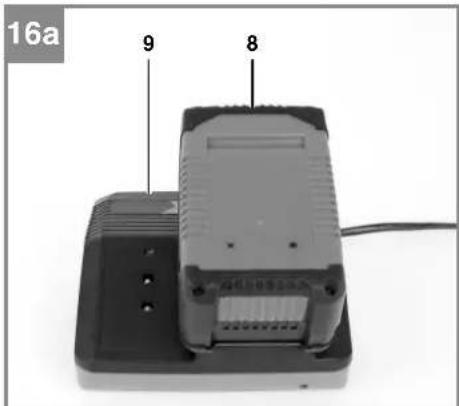

16a 9 8

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 4

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 5

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 6

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield PEARM 36 Li - ERGO TOOLS - 2

Pattfield PEARM 36 Li - ERGO TOOLS - 3

Pattfield PEARM 36 Li - ERGO TOOLS - 4

-6-

Pattfield® ERGO TOOLS

Inhaltsverzeichnis

Pattfield® ERGO TOOLS

Gefahr!

Pattfield® ERGO TOOLS

schine;

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1


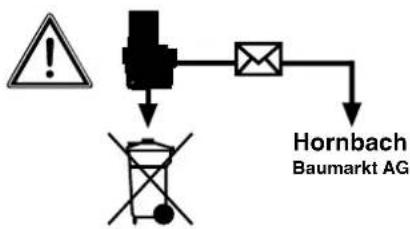

    A["Warning"] --> B["Process Box"]
    B --> C["Exchange"]
    C --> D["Hornbach Baumarkt AG"]

Pattfield® ERGO TOOLS

2.2 Lieferumfang

1x Rasenmäher

2x Akku

2x Ladegerät

Pattfield® ERGO TOOLS

Ausgangsstrom: 3 A

Pattfield® ERGO TOOLS

6. Bedienung

Vorsicht!

Pattfield® ERGO TOOLS

Ersatzmesser: 34.054.85

Pattfield® ERGO TOOLS

Anzeige Ladegerät

Pattfield® ERGO TOOLS

Sommaire

Pattfield® ERGO TOOLS

Danger!

Pattfield® ERGO TOOLS

AVERTISSEMENTS :

Pattfield® ERGO TOOLS

Mesures préalables

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Prudence!

Pattfield® ERGO TOOLS

10. Mise au rebut

Pattfield PEARM 36 Li - Mise au rebut - 1

Pattfield® ERGO TOOLS

12. Bon de garantie

Chère cliente, cher client,

Pattfield® ERGO TOOLS

Indice

Pattfield® ERGO TOOLS

Pericolo!

Pattfield® ERGO TOOLS

AVVERTENZE

Pattfield® ERGO TOOLS

cheggiati al sole.

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

2.2 Elementi forniti

Pattfield® ERGO TOOLS

3. Utilizzo proprio

Pattfield® ERGO TOOLS

livelli da 93,5 a 115,5 cm (Fig. 7/Pos. A).

Avviso!

Pattfield® ERGO TOOLS

Inhoudsopgave

Pattfield® ERGO TOOLS

Gevaar!

Pattfield® ERGO TOOLS

WAARSCHUWINGSINSTRUCTIES:

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

2.2 Leveringsomvang

1x grasmaaier

2x accu

2x lader

Pattfield® ERGO TOOLS

2 of 1 LED(s) branden

Pattfield® ERGO TOOLS

Indicatie lader

Pattfield® ERGO TOOLS

10. Verwijdering

Pattfield PEARM 36 Li - Verwijdering - 1

Pattfield® ERGO TOOLS

Accugazonmaaier PE-ARM 36 Li Laadtoestel PE-Power-X-Charger 18V 30min.

geproduceerd voor:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Duitsland

Pattfield® ERGO TOOLS

12. Garantiebewijs

Geachte klant,

Pattfield® ERGO TOOLS

Fara!

Pattfield® ERGO TOOLS

Anvisningar

Pattfield® ERGO TOOLS

drar den mot dig.

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

4. Tekniska data

Tomgångs-varvtal....3000min -1

Skyddsklass ....III

Vikt 16,9 kg

Klippbredd 36 cm

Pattfield® ERGO TOOLS

Märk!

Pattfield® ERGO TOOLS

nätkabeln innan du gör dessa kontroller.

Pattfield® ERGO TOOLS

Alla lysdioder blinkar:

Pattfield® ERGO TOOLS

Lampor på laddaren

Pattfield® ERGO TOOLS

10.Skrotning

Pattfield PEARM 36 Li - 10.Skrotning - 1

Pattfield® ERGO TOOLS

12. Garantibevis

Bästa kund,

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Nebezpečí!

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

2.2 Rozsah dodávky

1x sekačka

2x Akumulátor

2x nabíječka

Pattfield® ERGO TOOLS

4. Technická data

Pattfield® ERGO TOOLS

Omezte tvorbu hluku a vibrace na minimum!

Pattfield® ERGO TOOLS

Pokyn!

Pattfield® ERGO TOOLS

1 LED bliká:

Akumulátor je prázdný, akumulátor znovu nabijte.

Pattfield® ERGO TOOLS

7. Péče a údržba

Pattfield® ERGO TOOLS

Indikace nabíječky

Pattfield® ERGO TOOLS

Obsah

Pattfield® ERGO TOOLS

Nebezpečenstvo!

Pattfield® ERGO TOOLS

Manipulácia

Pattfield® ERGO TOOLS

rovému prístroju.

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

2.2 Objem dodávky

1x kosačka

2x akumulátor

2x nabíjačka

Pattfield® ERGO TOOLS

nom hospodárstve.

Pattfield® ERGO TOOLS

4. Technické údaje

Otáčky pri vol'nobehu: 3000 min ^-1

Trieda ochrany: ....III

Hmotnost: 16,9 kg

Šírka rezu: 36 cm

Pattfield® ERGO TOOLS

Obmedzte tvorbu hluku a vibráciu na minimum!

Pattfield® ERGO TOOLS

7/pol. A).

Upozornenie!

Pattfield® ERGO TOOLS

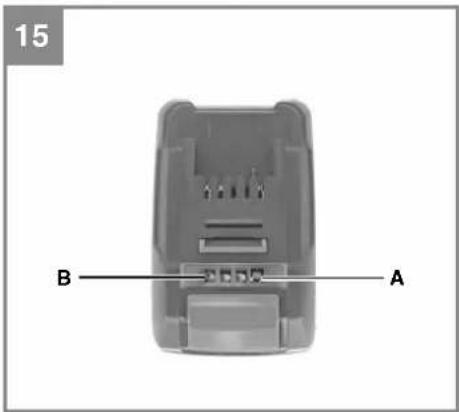

Zobrazenie kapacity akumulátora (obr. 15)

Pattfield® ERGO TOOLS

8. Plán na hl'adanie chýb

Pattfield® ERGO TOOLS

Cuprins

Pattfield® ERGO TOOLS

Pericol!

Pattfield® ERGO TOOLS

Manipulare

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Pattfield® ERGO TOOLS

13.Informatii de service

Pattfield® ERGO TOOLS

Safety regulations
Layout and items supplied
Proper use
Technical data
Before starting the equipment
Operation
Care and maintenance
Troubleshooting
Charger indicator
Disposal
EC Declaration of Conformity
Warranty certifi cate

Pattfield® ERGO TOOLS

Danger!

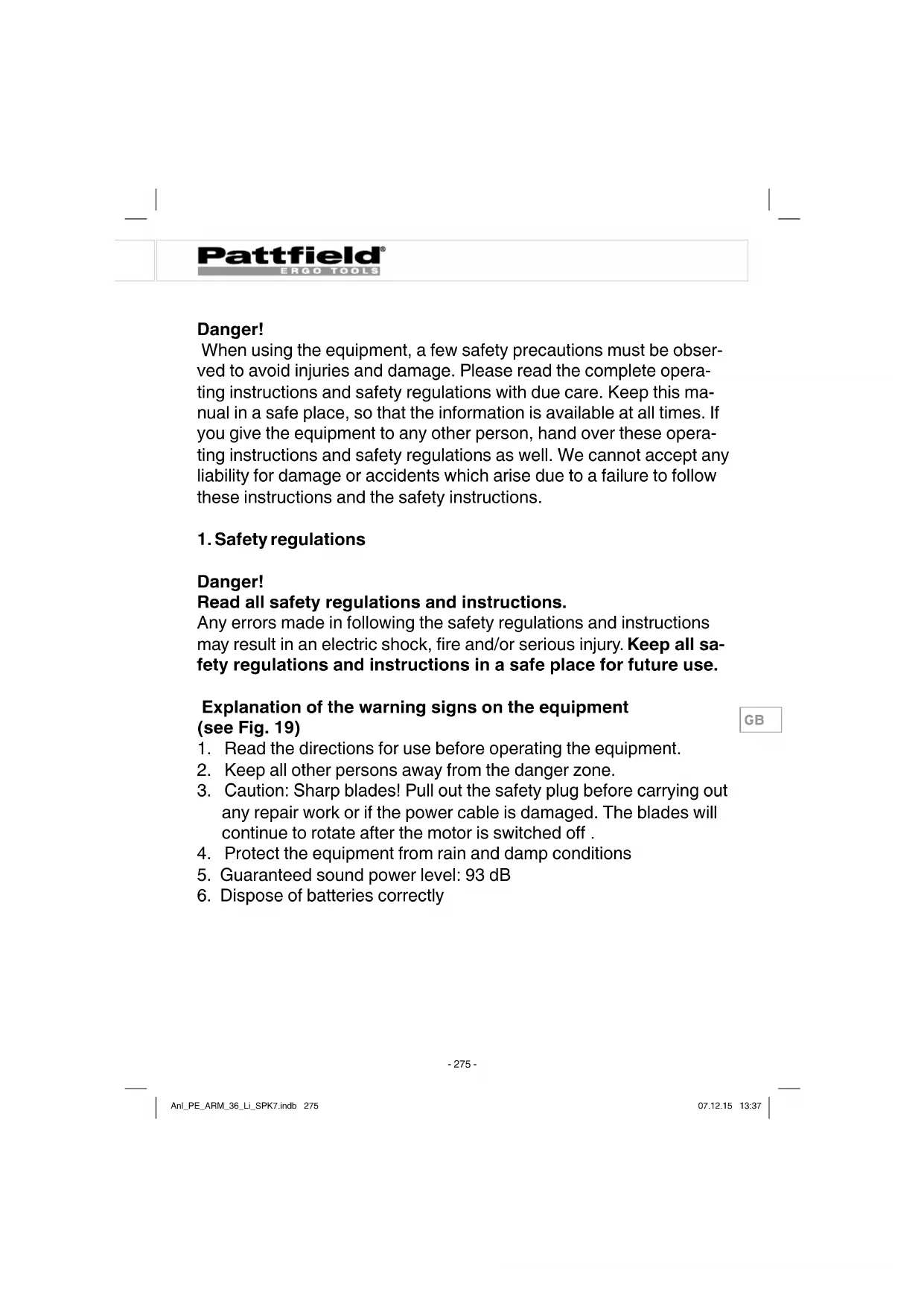

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

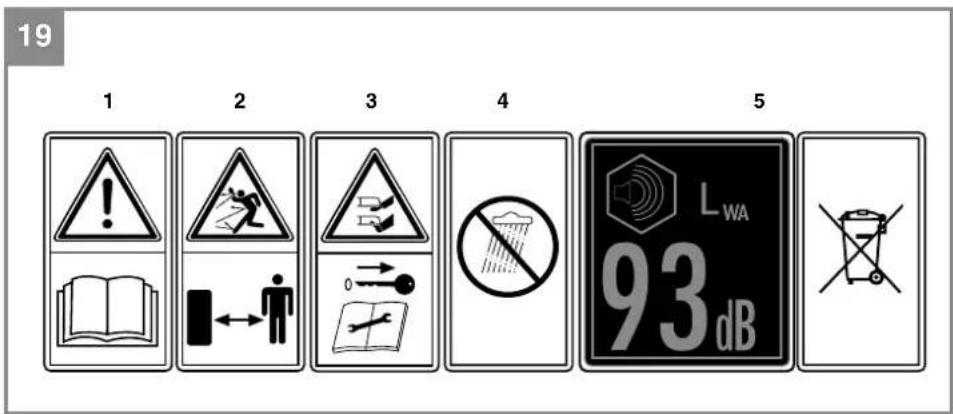

Explanation of the warning signs on the equipment (see Fig. 19)

Read the directions for use before operating the equipment.
Keep all other persons away from the danger zone.
Caution: Sharp blades! Pull out the safety plug before carrying out any repair work or if the power cable is damaged. The blades will continue to rotate after the motor is switched off.
Protect the equipment from rain and damp conditions
Guaranteed sound power level: 93 dB
Dispose of batteries correctly

Pattfield® ERGO TOOLS

General safety regulations for this electrical tool

This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

Safety instructions for hand mower

Before use, check the mains cable and extension cable for signs of damage and aging.
If the cable is damaged during operation, disconnect it immediately from the power supply.
Check the machine for signs of damage before use. Repairs may only be carried out by our service workshop. If unusual vibrations occur during use, switch the machine off immediately and pull the plug. Check the cutters and clean them if necessary. If the machine continues to vibrate, switch it off, disconnect it from the mains supply and send it to our service workshop.
The machine must not be tipped whilst it is being started. Both hands must be on the handle when you start the machine.
Worn parts may only be replaced by our service workshop. If necessary contact the service address provided.

WARNINGS

Do not touch the cutters until the machine has been disconnected from the mains and the cutters have reached a complete standstill.
Break the connection with the mains supply (in other words pull the plug out of the socket):
whenever you leave the machine unattended;
before released a blocked cutter;
before inspecting or cleaning and before working on the machi-

Pattfield® ERGO TOOLS

ne;

if a foreign body has been struck;
whenever the machine starts to vibrate oddly.

- Carefully read the instructions for how to operate the machine safely.

Note

a) Read the directions with due care. Familiarize yourself with the operator controls and proper operation of the machine.
b) Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for the user.
c) Never mow in the direct vicinity of persons - especially children - or animals.
d) Always keep in mind that the operator or user of the equipment is responsible for accidents involving other persons and/or their property.

Preliminary measures

a) Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
b) Check the ground on which the equipment will be used and remove all objects that could be caught up or violently fl ung out.
c) Before using the scythe, visually inspect it to ensure that the blade, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To prevent any imbalance, replace worn out or damaged blades and mounting bolts as a set only (if applicable).
d) Remember that if the machine has several cutting tools, the movement of one cutting tool may result in the other cutting tools starting to rotate.

Pattfield® ERGO TOOLS

Handling

a) Only mow in broad daylight or in well-lit conditions.
b) Do not use the machine on wet grass.
c) Always maintain good footing on inclines.
d) Only operate the machine at a walking pace.
e) Always mow across hills i.e. never straight up or straight down.
f) Be particularly careful when you change direction on a slope.
g) Do not mow on overly steep inclines.
h) Always be extra careful when turning the mower around and when pulling it towards you.
i) Switch the mower off, pull the plug and wait until the cutters have reached a complete standstill if you need to tip the mower over, transport it over surfaces other than grass and if the mower has to be moved from and to the area you wish to mow.
j) Never use the lawn mower if the guards are damaged or without the attached guards, e.g. defl ectors and/or grass catching devices.
k) Use the ON/OFF switch carefully as described in the manufacturer's instructions. Make sure that your feet are far enough away from the mower blade!

I) The lawn mower should not be tilted when the motor is switch on unless it has to be raised for starting purposes. In this case, tilt it as little as absolutely necessary and only raise the side opposite to that of the user.

m) Do not switch on the mower if you are positioned in front of the chute.

n) Never move your hands or feet toward or under any rotating parts. Keep clear of the chute opening at all times.

o) Never lift or carry a lawn mower with the engine running.

p) Switch off the motor and pull the power plug:

before you dislodge any blockages or clogs in the chute.
before carrying out any checks, cleaning, maintenance or other work on the lawn mower.
if you have struck a foreign object. Examine the mower for signs

Pattfield® ERGO TOOLS

of damage and carry out any necessary repairs before restarting and continuing to work with the mower.

- if the lawn mower begins to experience exceptionally strong vibrations, immediately switch it off and check it. - If the lawn mower begins to experience exceptionally strong vibrations, you must check it immediately.

- Search for signs of damage - Carry out the necessary repairs on any damaged parts - Make sure that all nuts, bolts and screws are fastened securely

q) Switch off the mower and pull the plug whenever you leave the mower.

h) For safety reasons, replace worn or damaged parts. Use only original spare parts and original accessories.

Maintenance and storage

a) Make sure that all nuts, bolts and screws are tightened securely and that the machine is in safe working condition.

b) Allow the mower to cool before you put it into an enclosed area.

c) To avoid the risk of fire, keep the motor housing and ventilation slots clear of grass, leaves, oil and grease.

d) Routinely check the grass basket for signs of wear and impaired functionality.

e) For your own safety, have worn or damaged parts replaced without delay.

f) Take care not to jam your fingers between moving blades and stationary parts of the equipment while you are adjusting the equipment.

g) While you are carrying out maintenance work on the blades, remember that the blades can still be moved even if the power source has been switched off.

Pattfield® ERGO TOOLS

CAREFUL HANDLING AND USE OF CORDLESS EQUIPMENT

- Ensure that the equipment is switched off before you insert the battery. Inserting a battery into an electric tool that is switched on can cause accidents.

- Only charge the batteries in chargers that are recommended by the manufacturer. A charger that is designed for a certain type of batteries may pose a fire risk if it is used with other types of batteries.

- Use only the correct batteries in the electric tools. The use of other batteries may result in injuries and a fire risk.

- Keep unused batteries away from paper clips, coins, keys, nails, screws and other metallic objects that could cause a short circuit between the contacts. A short circuit between the battery contacts may cause burns or a fire.

- In case of incorrect use, fluid may escape from the battery. Avoid contact with it. If you touch it by mistake, rinse the affected area with water. If you get the fluid in your eyes, also seek medical advice. Leaking battery fluid can cause skin irritation or burns.

Additional safety instructions

We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries which feature maximum power density, durability and safety. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. These data are then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use.

Safe use can only be guaranteed if undamaged cells are used. Incorrect handling can cause cell damage.

Pattfield® ERGO TOOLS

Important: Analyses confirm that incorrect use and poor care are the main causes of the damage caused by high performance batteries.

Information about the battery

The battery pack supplied with your cordless tool is not charged. The battery pack has to be charged before you use the tool for the first time.
For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
Store the battery pack in a cool place, ideally at 15°C and charged to at least 40%.
Lithium-ion batteries are subject to a natural ageing process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements and therefore pose a safety risk.
Do not throw battery packs into an open fire. There is a risk of explosion!
Do not ignite the battery pack or expose it to fire.
Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partly discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.
Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the battery housing without this overheating actually being apparent externally.
Avoid damage and shocks. Replace batteries which have been dropped from a height of more than one meter or which have been exposed to violent shocks without delay, even if the housing of the battery pack appears to be undamaged. The battery cells

Pattfield® ERGO TOOLS

inside the battery may have suffered serious damage. In this respect, please also read the waste disposal information.

If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equipment for safety reasons. Important. Do not press the ON/OFF switch any more if the protective cut-off has actuated. This may damage the battery pack.
Use only original battery packs. The use of other batteries may result in injuries, explosion and a fire risk.

Information on chargers and the charging process

Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.
Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired without delay by a qualified electrician.
Keep the battery charger, batteries and the cordless tool out of children's reach.
Do not use damaged battery chargers.
Do not use the supplied battery charger to charge other cordless tools.
In heavy use the battery pack will become warm. Allow the battery pack to cool to room temperature before commencing with the charging.
Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and cell damage. Do not leave batteries in the charger for days on end.
Never use or charge batteries if you suspect that the last time they were charged was more than 12 months previously. There is a high probability that the battery pack has already

Pattfield® ERGO TOOLS

suffered dangerous damage (exhaustive discharge).

Charging batteries at a temperature below 10^ C will cause chemical damage to the cell and may cause a fire.
Do not use batteries which have heated during the charging process, as the battery cells may have suffered dangerous damage.
Do not use batteries which have suff ered curvature or deformation during the charging process or which show other non-typical symptoms (gassing, hissing, cracking,...)
Never fully discharge the battery pack (recommended depth of discharge max. 80%) A complete discharge of the battery pack will lead to premature ageing of the battery cells.
Never charge the batteries unsupervised.

Protection from environmental influences

Wear suitable work clothes. Wear safety goggles.
Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage.
Do not use the cordless tool or the battery charger near vapors and infl ammable liquids.
Use the battery charger and cordless tools only in dry conditions and an ambient temperature of 10-40°C.
Do not keep the battery charger in places where the temperature is liable to reach over 40^ C. In particular, do not leave the battery charger in a car that is parked in the sunshine.
Protect batteries from overheating. Overloads, over-charging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries which have been overheated – replace them immediately if possible.
Storage of batteries, battery chargers and cordless tools. Store the charger and your cordless tool only in dry places with an ambient temperature of 10-40°C. Store your lithium-ion battery pack in a cool, dry place at a temperature of 10-20°C. Protect them from humidity and direct sunlight. Only place fully charged

Pattfield® ERGO TOOLS

batteries in storage (charged at least 40%).

Prevent the lithium-ion battery pack from freezing. Battery packs which were stored below 0^ C for more than 60 minutes must be disposed of.
When handling batteries beware of electrostatic charge: Electrostatic discharges cause damage of the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1


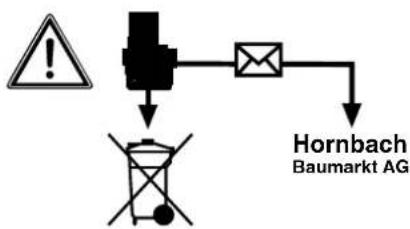

Batteries and cordless electric equipment contain materials that are potentially harmful to the environment. Do not place cordless equipment in your household refuse. If the equipment becomes defective or worn, remove the batteries and take the equipment to your Hornbach store. If the batteries cannot be removed, take the complete cordless equipment. You can then be sure that the equipment will be correctly disposed of by the manufacturer.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

Pattfield® ERGO TOOLS

Pattfield PEARM 36 Li - Pattfield® ERGO TOOLS - 1

Store the battery only in dry rooms with an ambient temperature of +10°C to +40°C. Place only charged batteries in storage (charged at least 40%).

Do not lose these safety instructions

Pattfield® ERGO TOOLS

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

ON/OFF switch
Top push bar
Push bar holder (2x)
Carry handle
Central cutting height adjustment:
Ejector fl ap
Grass basket
Battery
Safety plug
Rear wheel cap (2x)
Rear wheel (2x)
Handlebar mount (2x)
Washer (4x)
Fastening screw for top push bar (2x)
Safety plug
Spring (2x)
Nut for top and bottom push bar (4x) with quick clamping function
Cable clips
Grass basket, top part of the housing
Grass basket, right part of the housing
Grass basket, left part of the housing
Split pin (2x)
Washer (2x)
Level indicator

2.2 Items supplied

1x lawn mower

2x battery pack

2x charger

Pattfield® ERGO TOOLS

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equipment with care.
Remove the packaging material and any packaging and/or transportation braces (if available).
Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

3. Proper use

The lawn mower is intended for private use i.e. for use in home and gardening environments.

Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the equipment is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

Important. Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge

Pattfield® ERGO TOOLS

clippings. Moreover, the lawn mower may not be used as a power cultivator to level out high areas such as molehills.

For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind, unless they have been expressly permitted by the manufacturer.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Idling speed: 3,000 min ^1

Protection class: ....III

Weight: 16.9 kg

Cutting width: 36 cm

Volume of catch bag: 40 liters

L_pA sound pressure level 79.1 dB(A)

K_pA uncertainty 3 dB(A)

Measured sound power level L_WA 89.4 dB(A)

K_WA uncertainty 1.94 dB(A)

Guaranteed sound power level L_WA 93 dB(A)

Vibration at the handlebar: ....≤ 2.5 m/s²

K uncertainty: 0.631 m/s²

Cutting height adjustment: 25-75 mm; 6 levels

Protection type: IP21

Pattfield® ERGO TOOLS

2x Lithium-ion battery

Voltage: 18 V DC

Capacity: 3.0 Ah

(optional 1.5 Ah)

2x Battery charger

Input voltage: 200-250 V \~ 50-60 Hz

Output voltage: 21 V DC

Output current: 3.0 A

Protection class:....II / ☐

Sound and vibration values were measured in accordance with the standards EN ISO 3744:1995, ISO 11094: 1991 und EN ISO 20643:2008.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
• Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
Wear protective gloves.

5. Before starting the equipment

The lawn mower is delivered unassembled. The complete push bar, the rear wheels and the grass basket must be assembled before using the lawn mower. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the equipment.

Pattfield® ERGO TOOLS

Fitting the wheels (Figures 3a, b and 4)

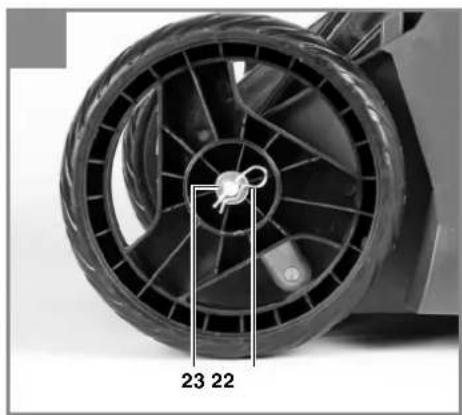

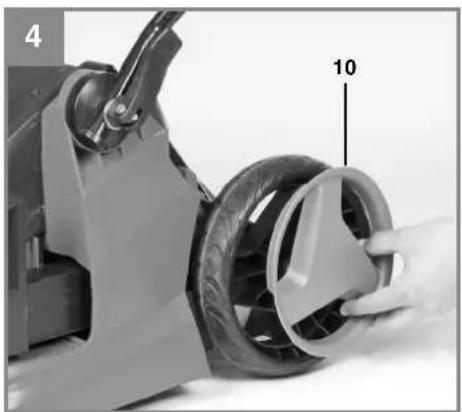

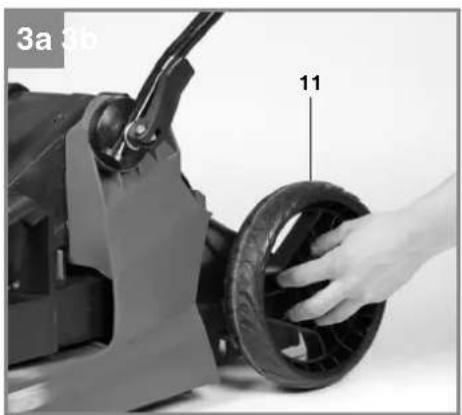

Take the rear wheels (Figure 2/Item11) and mount them on the axle as shown in Figure 3a. Then slide the washer (Figure 2/Item 23) onto the axle and fasten all parts with the supplied split pin (Figure 2/Item 22) as shown in Figure 3b. Finally, press the wheel caps (Figure 2/Item 10) onto the wheels (Figure 4).

Mounting the push bar (Fig. 5 to 10)

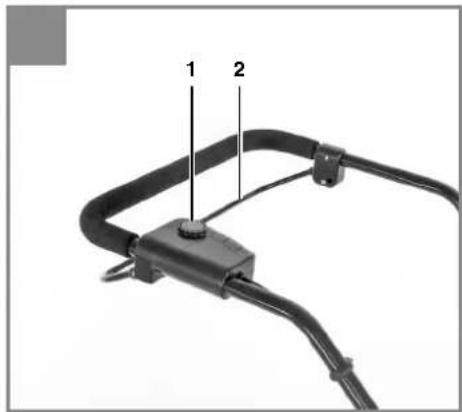

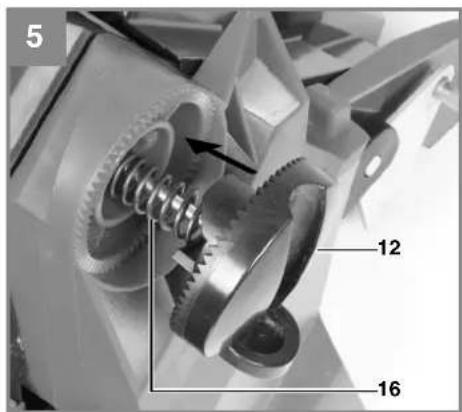

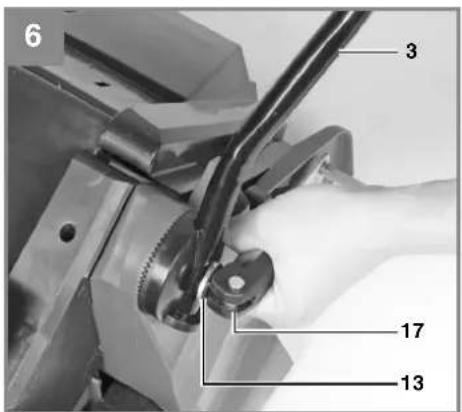

First take the spring (Figure 2/Item 16) and the handlebar mount (Figure 2/Item 12) and mount them on the relevant axle (Figure 5). Now insert the push bar holder (Figure 2/Item 3) into the handlebar mount (Figure 2/Item 12) and secure with the quick clamping function (Figure 2/Item 17) (Figure 6).

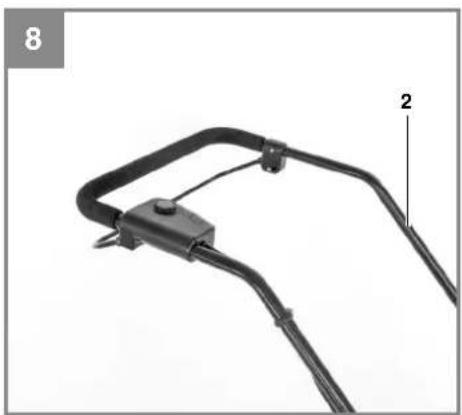

The top push bar (Figure 1/Item 2) must be pushed onto the push bar holders (Figure 2/Item 3) and secured as shown above in Figure 9. Then attach the power cable to the push bar (Fig. 10/Item A) using the cable clips (Fig. 2/Item 18). Now you can select the push bar height in three steps from 93.5 to 115.5 ~cm (Figure 7/Item A).

GB Notice!

The handle height may only be adjusted within the marked range.

- Press in the long handle and secure in the desired position using the quick clamping function (Figure 7/Item B)

Warning!

Always set the identical handle height on both sides.

- Use the cable clips to align the cable in accordance with the long handle (Figure 10/Item A)

Mounting the grass basket (see Figs. 11 to 13)

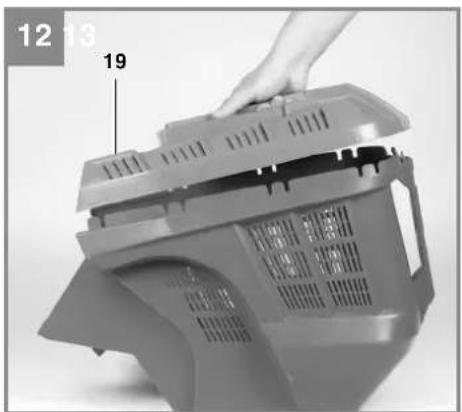

First, plug the left (Fig. 2/Item 21) and right (Fig. 2/Item 20) part of the housing together as shown in Figure 11. Then plug the top part of the housing (Fig. 2/Item 19) onto the already mounted parts (Figure 12). Before you fit the grass basket you must ensure that the motor is

Pattfield® ERGO TOOLS

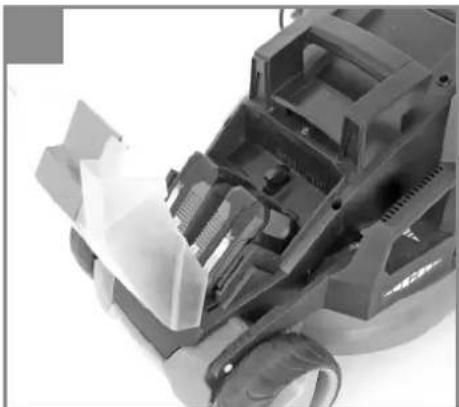

switched off and the blade is not rotating. Lift the ejector flap (Fig. 13 / Item A) with one hand. With the other hand, hold the grass basket by the handle and hook it in from above (Fig. 13).

Filling level indicator of the grass collector

The grass collector is equipped with a filling level indicator (Fig. 2/Item 24) which is opened by the air current that the lawn mower generates during operation. If the flap closes during mowing, the grass collecting device is full and must be emptied. To ensure the proper functioning of the filling level indicator, the holes under the flap must be kept clean and open.

Adjusting the cutting height Warning!

Adjust the cutting height only when the engine is switched off and the power cable has been disconnected.

Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imbalance, replace blunt and/or damaged blades. To carry out this check, first switch off the motor and pull out the power plug.

The cutting height is adjusted as follows (see Fig. 14):

Push the lever (A) outwards.
Set the lever (B) to the desired cutting height.
Release the lever (A) and check that it is securely seated in the lock.

Reading off the cutting height

The cutting height can be set between 25-75 mm in 6 intervals, and can be read off on the scale (Fig. 14/C).

Pattfield® ERGO TOOLS

Charging the battery pack (Fig. 16a)

Take the battery pack out of the equipment. Do this by pressing the side pushlock buttons.
Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (9) into the mains socket outlet. The green LED will then begin to flash.
Insert the battery pack (8) into the battery charger (9).
In section "Charger indicator" you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery fails to charge, please check

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts of the charging unit

GB

If the battery pack still fails to charge, take

the charging unit
• and the battery pack
to your Hornbach store.

To ensure that the battery pack provides long service you should take care to recharge it promptly. Recharging is always necessary when you notice a drop in the performance of your cordless grass lawn mower.

Never fully discharge the battery pack. This will cause it to develop a defect.

Pattfield® ERGO TOOLS

Installing the battery (Fig. 16b-16d)

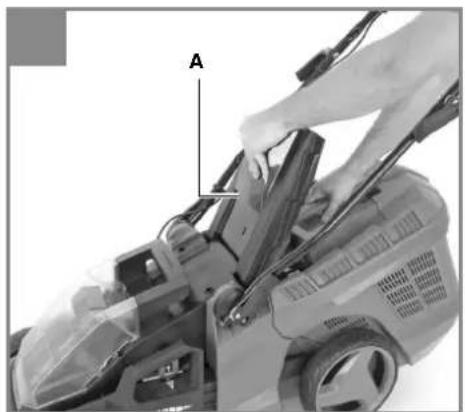

Open the battery cover. This is done by pulling the snap fastener (Fig. 16b/Item A) as shown in Fig. 16b and swinging up the cover. Then insert the two batteries in the mounts as shown in Fig. 16c.

Notice!

Use only batteries which are charged to the same level. Never combine full and half-full batteries. Always charge the two batteries simultaneously.

The equipment's operating time depends on the battery with the lower charge level. The two batteries must always be fully charged before use.

Close the battery cover by swinging it down, and make sure that it latches in place correctly.

Battery capacity indicator (Fig. 15)

Press the switch for the battery capacity indicator (Fig. 15/Item A). The battery capacity indicator (Fig. 15/Item B) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED blinks:

The battery is empty, recharge the battery.

All LEDs blink:

The battery pack has undergone exhaustive discharge and is defective. Do not use or charge a defective battery pack.

Pattfield® ERGO TOOLS

6. Operation

Caution!

The lawn mover is equipped with a safety circuit to prevent unauthorized use. Directly before starting up the lawn mover insert the safety plug (Figure 16e) and remove the safety plug again whenever you interrupt or terminate your work.

Caution!

To prevent the equipment switching on accidentally, the lawn mower is equipped with a safety switch (Fig. 17/Item 1) which must be pressed before the switching bar (Fig. 17/Item 2) can be activated. The lawn mower switches itself off when the switching bar is released. Repeat this process several times so that you are sure that the machine functions properly. Before you perform any repair or maintenance work on the equipment, ensure that the blade is not rotating and that the power supply is disconnected.

GB

Caution! Never open the chute flap when the grass bag has been detached (to be emptied) and the motor is still running. A rotating blade can cause serious injuries!

Always carefully fasten the chute flap and grass basket. Switch off the engine before emptying the grass basket.

Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers.

Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees.

Pattfield® ERGO TOOLS

Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Tips for proper mowing

It is recommended that you overlap the mowing swaths.

Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow.

Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes.

How frequently you should mow your lawn is determined primarily by the speed at which the grass grows. In the main growing season (May - June) you will probably need to mow the lawn twice a week, otherwise just once a week. The cutting height should be between 4 - 6cm and the amount of growth before mowing again should be 4 - 5cm. If the grass is allowed to grow somewhat longer for whatever reason, do not make the mistake of cutting it back to the normal height in one go. This will harm the lawn. Never cut it back by more than half the height in one go.

Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more difficult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass.

Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards.

Select the cutting height according to the length of the grass. Make several passes so that no more than 4cm of grass are cut at one time.

Switch off the motor before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the motor has been switched off . Never attempt to manually stop the

Pattfield® ERGO TOOLS

blade. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket. Important! Before taking off the grass basket, switch off the motor and wait until the blade has come to a stop.

To take off the grass basket, use one hand to lift up the chute flap and the other to grab onto the basket handle. Remove the basket. For safety reasons, the chute flap automatically falls down after removing the grass basket and closes off the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approximately 1m.

GB

Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suitable tools such as a brush or a hand broom.

In order to ensure that the majority of grass clippings are picked up, the inside of both the grass basket and especially the net must be cleaned after each use.

Reattach the grass basket only when the motor is switched off and the blade has stopped.

Lift up the chute flap with one hand and, holding the grass basket by its handle with the other hand, hang in the basket from the top.

Pattfield® ERGO TOOLS

7. Care and maintenance

Always keep the tool clean and dry and protect it from oil and grease.
Wear safety goggles to protect your eyes during cleaning.
Always keep the tool and the air vents clean in order to ensure safe and correct use.
Check the ventilation grilles at the motor and at the On/Off switch for dust and foreign bodies. Remove layers of dust with a soft brush.
If required, use a soft damp rag to wipe the tool housing clean. You can use a mild cleaning agent but no alcohol, petrol or other cleaning agent.
Never use aggressive cleaning agents to clean plastic parts.
Lubricate all moving parts regularly.
Check all fasteners regularly. Vibrations might cause fasteners to become loose in the course of time.
Worn out or damaged blades, blade mounts, and bolts should be replaced as a set by an authorized professional in order to keep the equipment in balance.
Do not clean the lawn mower with running water, particularly with high-pressure water. Ensure that all mounting components (i.e. screws, bolts, nuts etc.) are always tightened so that the equipment can be safely operated at all times.
Frequently check the grass catch assembly for signs of wear.
Replace excessively worn or damaged parts immediately.
• Store your lawn mower in a dry room.
In order to ensure that you enjoy the equipment for many years to come, all screwed parts, as well as the wheels and axles, should be cleaned and lubricated.
Keeping your lawn mower in good condition not only ensures a long lifespan and high performance, but also enables the equipment to thoroughly cut your grass with minimal effort. For best results, clean the lawn mower with a brush or rag. Do not use any

Pattfield® ERGO TOOLS

solvents or water to remove dirt.

- The blade is subjected to more wear and tear than any other component. Therefore, routinely check the condition of the blade and make sure that it is tightly fastened. If the blade is completely worn out, it must be immediately replaced or ground sharp again. An excessively vibrating mower means that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced.

- There are no parts inside the equipment which require additional maintenance.

Replacing the blade

For safety reasons, we recommend having the blade replaced by an authorized professional. Important! Wear work gloves! Only replace the blade with a genuine Einhell replacement blade, as this will ensure top performance and safety under all conditions.

Spare blade: 34.054.85

GB

Carry out the following steps to change the blade:

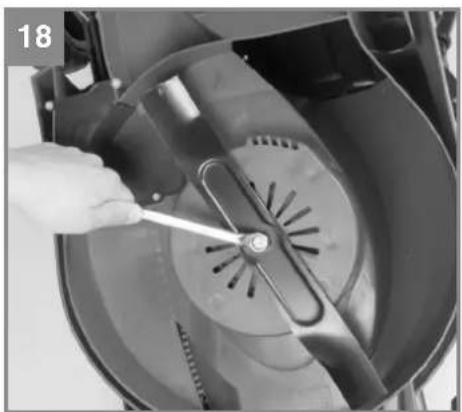

Undo the fastening screw (see Fig. 18).
Remove the blade and replace with a new one.
When fitting the blade, make sure it is installed in the right direction. The blade's air vanes must project into the motor compartment (see Fig. 18). The dome mounts must be aligned with the punch holes in the blade.
Then retighten the fastening screw with the universal wrench. The tightening torque should be approx. 25 Nm.

At the end of the season, perform a general inspection of the lawn mower and remove any grass and dirt which may have accumulated. At the start of each season, ensure that you check the condition of the blade. If repairs are necessary, please contact our customer service center. Use only genuine spare parts.

8. Troubleshooting

Fault	Possible causes	Remedies
The motor fails to start	a) Battery is not correctly insertedb) The connectors have become separated from the motorc) The mower is standing in high grassd) The mower housing is cloggede) Safety switch is not inserted	a) Remove the battery and reinsert (see 5.)b) Have repaired by the Customer Service Centerc) Start in low grass or on an area that has already been mowed; change the cutting height if necessaryd) Clean the housing so that the blade moves freelye) Insert safety switch (see 6.)
Themotor performance drops	a) The grass is too high or too dampb) The mower housing is cloggedc) The blade is severely wornd) Battery performance de-creasing	a) Correct the cutting heightb) Clean the housingc) Replace the bladed) Check the battery performance and charge the battery if necessary (see 6.)
Cutting is irregular	a) The blade is wornb) Wrong cutting height	a) Replace or resharpen the bladeb) Correct the cutting height

Notice! For protection, the motor is equipped with a thermal switch which cuts out when the motor is overloaded and switches on again automatically after a short cooling period

Pattfield® ERGO TOOLS

Charger indicator

Indicator status		Explanations and actions
Red LED	Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery		is 85% charged and ready for use.(Charging time for 1.5 Ah battery: 30 min)(Charging time for 3.0 Ah battery: 60 min)The unit then changes over to gentle charging mode until the battery is fully charged.(Total charging time for 1.5 Ah battery: approx. 40 min)(Total charging time for 3.0 Ah battery: approx. 75 min)Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.

Pattfield®

ERGO TOOLS

Indicator status		Explanations and actions
Red LED	Green LED
Flashing	Off Adapted chargingThe charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge).- The battery pack temperature is outside the ideal range (between 10^ C and 45^ C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing	Flashing FaultCharging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ C).Action:Remove the battery pack and keep it at room temperature (approx. 20^ C) for one day .

Pattfield® ERGO TOOLS

10.Disposal

Pattfield PEARM 36 Li - 10.Disposal - 1

For EU countries only

Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

This consignment contains lithium-ion batteries.

In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is permitted only with the express consent of Hornbach Baumarkt AG.

Subject to technical changes

11. EC Declaration of Conformity

Declaration of Conformity

Pattfield PEARM 36 Li - EC Declaration of Conformity - 1

declare, that the product described

in Technical Data :

Pattfield®

ERGO TOOLS

Cordless lawn mower PE-ARM 36 Li

Charging Unit PE-Power-X-Charger 18V 30min.

Manufactured for:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC

Noise Emission of Outdoor Equipment Directive 2000/14/EC (+2005/88/EC)

EMC Directive 2004/108/EC

and in accordance to the following applicable harmonized standards:

EN 62233:2008

EN 60335-1:2012/A11:2014

EN 60335-2-29: 2004+A2

EN 60335-2-77:2010

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the adherence to the following emissions values:

Measured sound power level: 89.4 dB (A)

Guaranteed sound power level: 93 dB (A)

Notified body for Outdoor Directive

Head of Quality Management &

Person authorised to compile the technical file

Pattfield® ERGO TOOLS

12.Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as

Pattfield® ERGO TOOLS

sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

Hornbach Baumarkt AG, Hornbachstraße 11, 76879 Bornheim / Germany www.hornbach.com

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield®

ERGO TOOLS

Pattfield PEARM 36 Li - ERGO TOOLS - 1

Pattfield® ERGO TOOLS

Manufactured for HORNBACH-Baumarkt AG

Hornbachstraße 11, 76879 Bornheim / Germany

ED201507
