36 V Batteridriven gräsklippare PE-ARM 3336 Li

tillverkad för

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim/Tyskland

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

36 V Akumulátorová kosačka trávy PE-ARM 3336 Li

vyrobená pre:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Nemecko

Pattfield® ERGO TOOLS

36 V Maşină de tuns gazon cu accumulator PE-ARM 3336 Li

fabricat pentru:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Germania

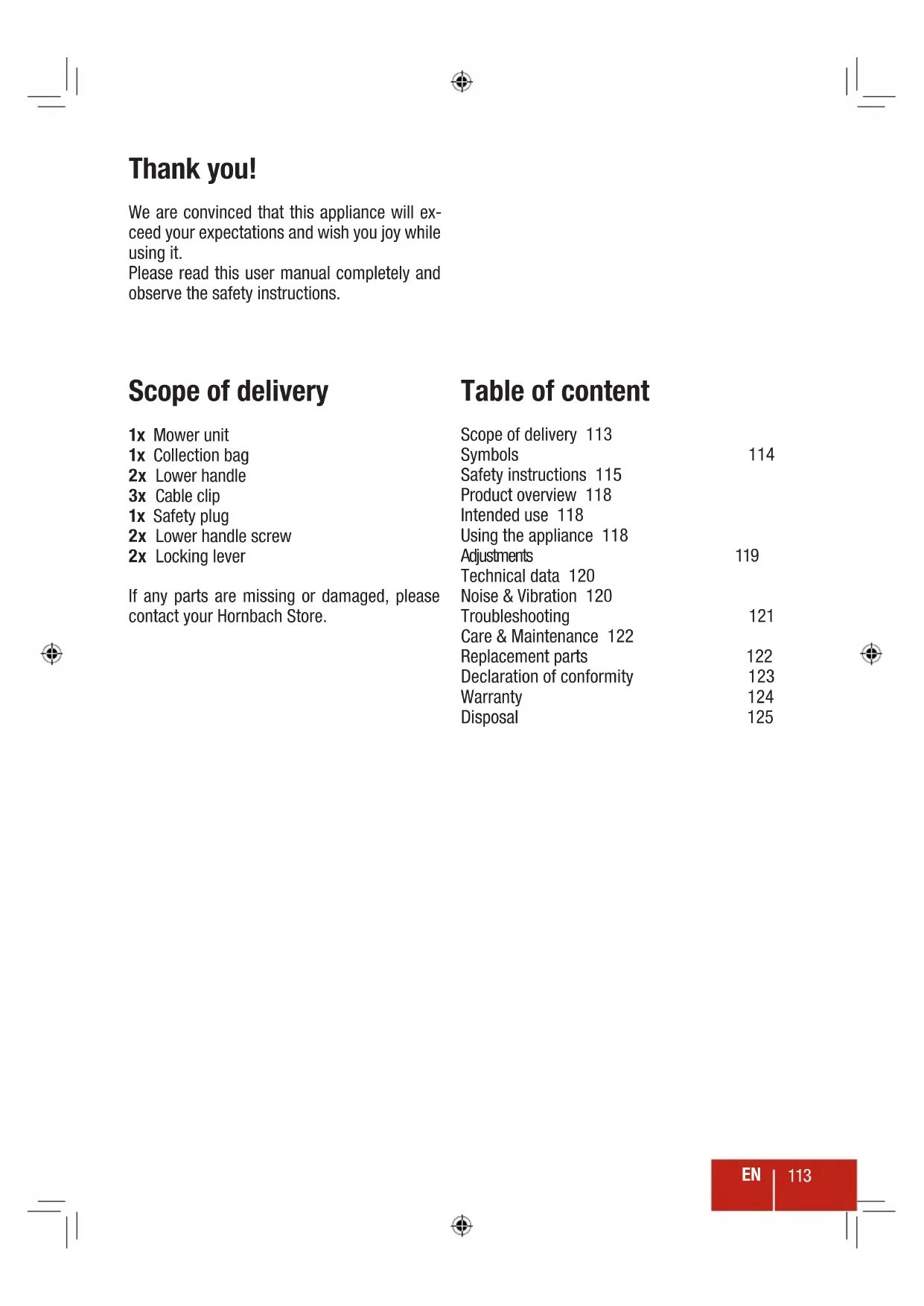

We are convinced that this appliance will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Mower unit
1x Collection bag
2x Lower handle
3x Cable clip
1x Safety plug
2x Lower handle screw
2x Locking lever

If any parts are missing or damaged, please contact your Hornbach Store.

Table of content

Scope of delivery 113

Symbols 114

Safety instructions 115

Product overview 118

Intended use 118

Using the appliance 118

Adjustments 119

Technical data 120

Noise & Vibration 120

Troubleshooting 121

Care & Maintenance 122

Replacement parts 122

Declaration of conformity 123

Warranty 124

Disposal 125

Symbols

Please read this user manual carefully and keep it for further reference.

Warning of accident and injury to persons and serious damage to property.

Wear safety glasses for protection of your eyes.

Wear hearing protection for protection of your ears.

Wear dust mask for protection of your respiratory tract.

Wear protective gloves for protection of your hands.

Wear protective boots for protection of your feet.

Use only batteries which are charged to the same level.

Blade continues to rotate after the machine has been switched off. Wait until all machine components have come to a complete stop, before touching them.

Do not use the appliance in wet or humid conditions for protection of electric shock.

Attention! Read the instruction manual, prior to use.

Keep bystanders away.

Attention! Sharp cutting blades. Prior to maintenance or care, remove the battery and pull out the safety plug.

Guaranteed sound power level.

Safety Instructions

IMPORTANT

READ CAREFULLY BEFORE USE.

KEEP FOR FUTURE REFERENCE.

Safe operating practices for electrically powered lawnmowers

GENERAL

a) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
b) Children should be supervised to ensure that they do not play with the appliance.
c) Only use the product in the manner for the functions described in this user manual.
d) The operator or user is responsible for the use of the product.
e) Never operate the appliance when you are tired, ill or under the influence of alcohol, drugs or medicine.
f) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
g) The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA.

TRAINING

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
c) Never operate the machine while people, especially children, or pets are nearby.
d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

a) While operating the machine always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
b) Thoroughly inspect the area where the machine is to be used and remove all objects which can be thrown by the machine.
c) Before using, always visually inspect to see that the blade, blade bolt and the blade assembly are not worn or damaged. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
d) Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn.

OPERATION

a) Operate the machine only in daylight or in good artificial light.
b) Avoid operating the machine in wet grass.
c) Always be sure of your footing on slopes.
d) Walk, never run.
e) Mow across the face of slopes, never up and down.
f) Exercise extreme caution when changing direction on slopes.
g) Do not mow excessively steep slopes.
h) Use extreme caution when reversing or pulling the machine towards you.
i) Stop the blade(s) if the machine has to be tilted for transportation when crossing surfaces other than grass, and when transporting the machine to and from the area to be used.
j) Never operate the machine with defective guards or shields, or without safety devices, for example deflectors and/or grass collector, in place.

k) Switch on the motor carefully according to instructions and with feet well away from the blade(s).
I) Do not tilt the machine when switching on the motor, except if the machine has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator.
m) Do not start the machine when standing in front of the discharge opening.
n) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
o) Do not transport the machine while the power source is running.
p) Stop the machine, and remove plug from the socket. Make sure that all moving parts have come to a complete stop.
- whenever you leave the machine,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the machine,
- after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine;
if the machine starts to vibrate abnormally (check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
q) Keep the supply flexible cord away from hazardous moving parts to avoid damage and risk of electric shock.
r) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

MAINTENANCE AND STORAGE

a) Keep all nuts, bolts and screws tight to be sure the machine is in safe working condition.
b) Check the grass collector frequently for wear or deterioration.
c) On machines with multi blade, take care as rotating one blade can cause

other blades to rotate

d) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
e) Always allow the machine to cool down before storing
f) When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
g) Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.

ADDITIONAL SAFETY INSTRUCTIONS ON RISKS DUE TO VIBRATION

a) The declared vibration data represents the main applications of the appliance, but different uses of the appliance or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.
b) Additional safety measure shall be taken to protect the user from effects of vibration. Maintain the appliance and its accessories, keep hands warm and organize work patterns and periods.

FOR USE OF BATTERIES

a) Do not open, dismantle, shred or short-circuit batteries. Danger of explosion.
b) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
c) Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
d) Remove batteries when not using the tool for a longer period of time.
e) In case of battery leakage, remove the batteries and clean the battery compartment thoroughly. Avoid contact with skin and eyes.

f) In case of damage and improper use of the battery, Vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.

For safety instructions for the battery charger please refer to the manual of the charger.

For safety instructions for Li-ion batteries please refer to the manual of the battery.

Product overview

1 Safety button
2 Cable clip
3 Safety flap
4 Main handle
5 Battery cover lever
6 Battery cover
7 Wheel
8 Handle
9 On/Off trigger
10 Upper handle
11 Locking lever
12 Lower handle
13 Collection bag
14 Height adjustment lever
15 Lower handle screw
16 Cutting blade

Intended use

The appliance is intended for mowing grass and lawn areas in private outdoor environment, with less than 50 hours of use per year. The appliance is not intended for commercial use.

Any other use (e.g. trimming or mowing of bushes, hedges, climbing plants, roof gardens or balcony boxes, as well as chopping, shredding or cultivating) or modification to the appliance is considered as improper use and could cause considerable dangers.

Using the appliance

Caution! Before start using the appliance, check the blades and fastening elements for damage. Do not use the appliance if it is damaged.

1. The appliance is equipped with a safety switch. In order to switch the appliance on, press and hold the safety button 1, tilt the appliance backwards, pull the on/off trigger 9 and release the safety button 1.
2. Keeping the on/off trigger 9 pulled, wait until the appliance has reached full speed.
3. Place both hands on the upper handle 10, return the appliance back to the ground, and slowly start pushing the appliance forward.
4. Start mowing in parallel lines. For a better result, repeat the process in a 90^ angle.
5. To switch the appliance off, release the on/off trigger 9. Wait until the blade has come to a complete stop before proceeding with further actions.

INSTALL HANDLE

1 Install the lower handle 12 on both sides using the lower handle screws 15. The recess faces to the outside.

Caution! Make sure the appliance is switched off and the batteries are ed.

2 Install the screws form the locking lever 11 to the lower handle 12 on both sides. Slide on the upper handle 10 and the washer onto the screws.

The upper handle 10 can be installed in two positions.

CUTTING HEIGHT

1 Push in the height adjustment lever 14 and move it to the desired cutting depth.

Caution! Make sure the appliance is switched off and the batteries are ed.

CONTROLS

2 In order to switch the appliance on, press and hold the safety button 1, tilt the appliance backwards, pull the on/off trigger 9 and release the safety button 1.

BATTERIES

1 Lift the battery cover 6 and push in two batteries until they click into place.

Caution! Make sure the batteries are always charged to the same

SAFETY PLUG

2 Insert the safety plug directly before starting and remove it when interrupting or terminating the work.

COLLECTION BAG

1 Lift the safety flap 3 and attach the collection bag 13 to the mower.

Caution! Wait until the blade has come to a complete stop before opening the safety flap.

2 If the collection bag 13 is securely attached to the mower, lower the safety flap 3.

Caution! Never run the appliance without collection bag in place.

REPLACING THE BLADE

1 Loosen the fastening screw A and remove the worn blade.

Caution! Switch off and remove the batteries first. Always use protective

2 Observe the rotation direction when replacing the blade. Tighten the fastening screw A.

Warning! The blades should only be replaced by authorized persons.

3 Install the locking levers 11 to the screws. In order to raise or lower the upper handle 10 use the locking levers 11.

Caution! Never use the appliance with open locking levers.

4 Fasten the main cable to the handle with the cable clips 2.

Technical Data

Type Lawn mower

Nominal voltage 36 V

No-load speed ( n_0 ) 3400/min

Max. cutting width 330 mm

Grass bag capacity 30 litres

Cutting heights 25 mm / 35 mm / 45 mm / 55 mm / 65 mm

Protection Class III

Net weight 12.8 kg

Sound pressure level ( L_pA ) 79.4 dB(A) /

	Uncertainty K = 3 dB(A)
Measured sound power level (LWA)	92.05 dB(A) / Uncertainty K = 3 dB(A)
Max. vibration emission (ahw)	≤ 2.5 m/s ^2 Uncertainty K = 1.5 m/s ^2

Please observe the article number on the type plate of the appliance. The trade names of the individual appliance may vary.

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60335 and can be used to compare appliances.

It may be used for a preliminary assessment of exposure.

Warning! The vibration emission during actual use can differ from the declared total value depending on the use of the appliance.

Troubleshooting

Caution! Make sure the appliance is switched off and the batteries are removed. Always wear protective gloves.

Problem Possible cause Solution

Motor does not run	Battery empty Recharge battery
	Unsuitable cutting areas Start on short or already mown grass.
	Blade is blocked Clean discharge chute and housing (blade must rotate freely)
	Safety plug is not connected Connect safety plug
	Battery is not correctly inserted Remove battery and insert again
	Wrong cutting height Set the wheels to the correct cutting height
Motor power drops	Wrong cutting height Set the wheels to the correct cutting height
	Discharge chute is blocked Clean discharge chute and housing (blade must rotate freely)
	Poor and uneven cut Replace the blade (contact service center)
Collection bag is not filled suitably	Unsuitable cutting areas Set the wheels to the correct cutting height
	Poor and uneven cut Replace the blade (contact service center)
	Collection bag is full Empty the collection bag
	Discharge chute is blocked Clean discharge chute and housing (blade must rotate freely)

Care & Maintenance

Caution! Make sure the appliance is switched off and the batteries are

removed.

• Always keep the appliance clean, dry and free of oil or grease.
• Wear safety glasses and gloves to protect your eyes and hands whilst cleaning.
• For safe and proper working, always keep the machine and ventilation slots clean.
• Regularly check for obvious defects and/or damaged components.
• Periodically check all fixings. These could become loose with time due to vibration.
• Check the collection bag regularly for signs of wear.
• The most used part is the blade. Inspect the blades regularly:

- If the blade is worn or blunt, it must be replaced immediately.

- If the appliance starts to vibrate excessively, the blades seem to be unbalanced and must be replaced.

• Replace any worn or damaged parts.
• If the body of the appliance needs cleaning, wipe it with a brush or a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent.
• Never use caustic agents to clean plastic parts.
• Lubricate all moving parts at regular intervals.
• Store the appliance in a dry place.

Replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

Declaration of conformity

CE We declare, that the product described in Technical Data:

Pattfield® ERGO TOOLS

36 V Battery Lawn Mower PE-ARM 3336 Li

manufactured for:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC Outdoor Directive 2000/14/EC EMC Directive 2014/30/EU

and in accordance to the following applicable harmonized standards:

EN 60335-1:2012+A11 EN 60335-2-77:2010 EN 62233:2008 EN 55014-1:2006+A2 EN 55014-2:2015

The conformity with the Machinery Directive is verified by the conformity assessment procedure according to the Directive 2006/42/EC.

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the conformity assessment procedure according to annex VI, and the Directive 2000/14/EC.

Measured sound power level: 92.05 dB(A) Guaranteed sound power level: 96.0 dB(A)

Notified Body: Société Nationale de Certification et d'Homologation 11, route de Luxembourg, L-5230 Sandweile

Notified Body No.: 0499 Cert. No.: SNCH*2000/14*2005/88*2893*00

Andreas Back Head of Quality Management, environment & CSR Person authorised to compile the technical file

This Pattfield item has been produced according to state-of-the-art production methods and is subject to ongoing strict quality control. Hornbach Baumarkt AG, Hornbachstrasse 11, 76879 Bornheim, Germany, guarantees the quality of the machines according to the following terms and conditions.

1. Warranty Period

The warranty period is 3 years. The warranty period starts on the date of purchase. Please retain the original receipt or invoice in order to be able to furnish evidence of the date of purchase.

2. Warranty Scope

The warranty applies exclusively to production or material defects. The warranty applies only in the case of private use of the item.

The warranty does not apply to defects resulting from

• misuse or improper use,
• use of force or external influences,
• damage due to failure to observe the installation instructions or instructions for use,
• connecting to an incorrect grid voltage or current type,
• unprofessional installation,
  • overloading the device,
• use of non-approved attachments or accessories,
• failure to observe the maintenance and safety instructions,
• entry of foreign matter into the device,
• wear and tear due to normal use or
• commercial use.

Furthermore, the warranty does not cover damage to parts subject to wear and tear, which is caused by normal wear and tear. The warranty does not comprise any collateral or consequential damage or possible installation and dismantling costs in the event of a warranty incident.

3. Warranty Services

During the warranty period, the warrantor will inspect the defective item in order to determine whether a warranty incident is on hand. If a warranty incident is on hand, the warrantor will repair or replace the item at his own expense. If the item is no longer available at the time of the warranty incident, the warrantor may replace the item with a similar product. The replaced item or part shall become property of the warrantor.

Warranty services (repair or replacement) do not extend the warranty period. Warranty services do not result in any new warranty.

4. Warranty Claims

For warranty claims, please contact the nearest HORNBACH DIY store.

You can find it at www.hornbach.com.

Warranty claims will only be accepted if the original receipt or invoice is produced.

5. Statutory Rights

The warranty does not restrict your statutory rights regarding warranty and product liability.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
