USER MANUAL Mini Max Argento

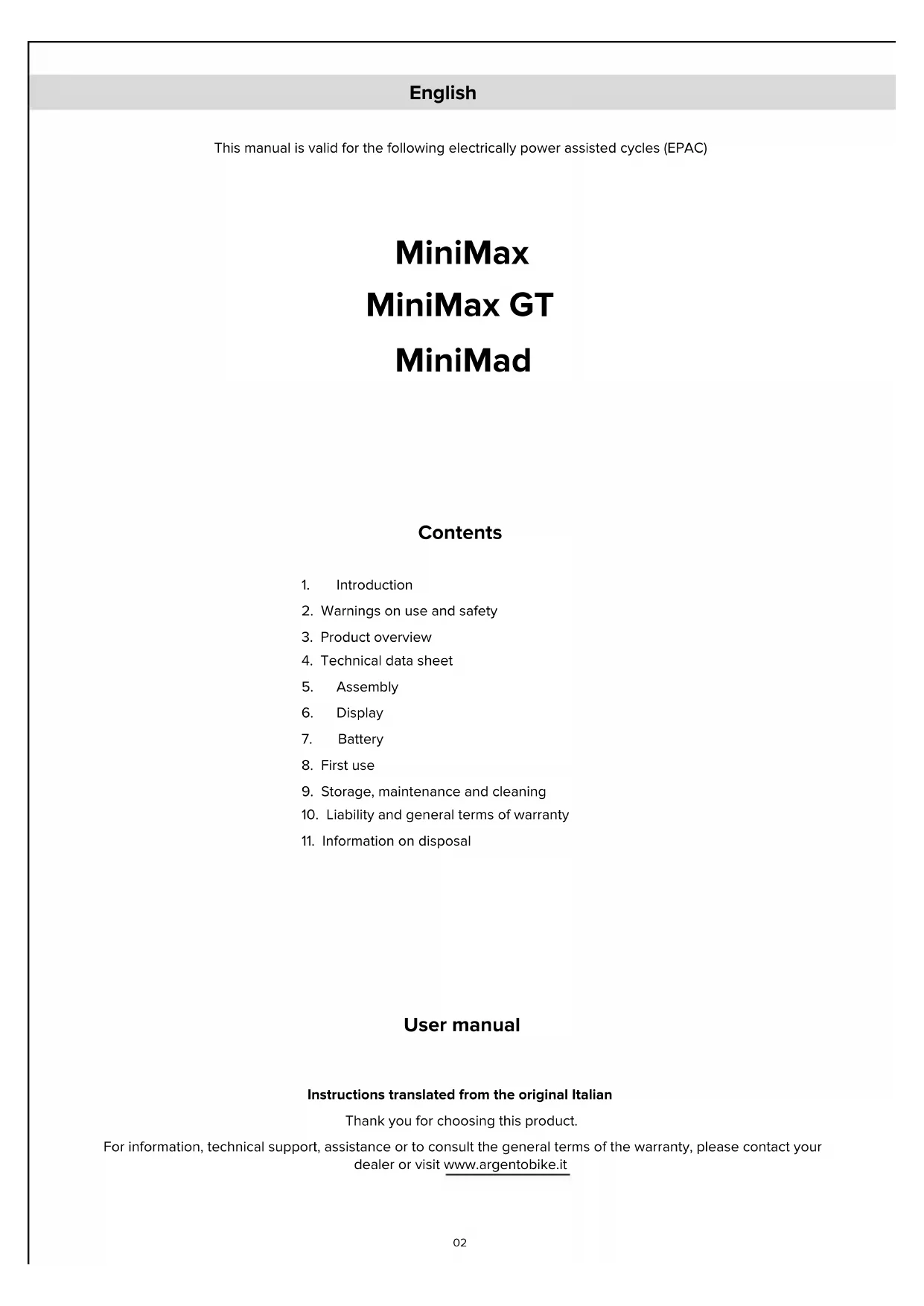

This manual is valid for the following electrically power assisted cycles (EPAC)

MiniMax MiniMax GT MiniMad

Contents

1. Introduction
   2.Warnings on use and safety
2. Product overview
3. Technical data sheet
4. Assembly
5. Display
6. Battery
7. First use
8. Storage, maintenance and cleaning
9. Liability and general terms of warranty
10. Information on disposal

User manual

Instructions translated from the original Italian

Thank you for choosing this product.

For information, technical support, assistance or to consult the general terms of the warranty, please contact your

dealer or visit www.argentobike.it

Overview

This manual is an integral and essential part of the electrically power assisted cycle (EPAC).

Before using the bike for the first time, it is essential that users read, understand and strictly observe the requirements outlined below.

M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:

• the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
• after the purchase, the item is modified or tampered with in all or some of its components.

In the interest of technological development, the manufacturer reserves the right to modify the product in question without prior notice and without automatically updating this manual. For further information and to consult any updated versions of the manual, please visit www.argentobike.it

Support Service

For any problem or request for clarification, please do not hesitate to contact the after-sales service team of your authorised dealer who has expertise and specialist knowledge and access to specific tools and original spare parts.

Legal note for use

Check and observe the highway code and local road regulations in force for cyclists on any restrictions for riders, who may use the product, and on the use of this type of product.

Visual representation of safety warnings

To identify the safety messages in the manual, the following warning symbols will be used which serve to draw the reader's/user's attention in order to ensure that the electrically power assisted cycle is used correctly and safely.

CAUTION

Caution

Highlights the rules to follow to prevent damage to the electrically power assisted cycle and/or prevent hazardous situations from arising.

DANGER

Residual risks

Highlights the presence of hazards that generate residual risks to which the user must pay attention to avoid injury or material damage.

2.Warnings on use and safety

General safety rules

Even if you are already familiar with the use of an electrically power assisted cycle, the instructions given below must be followed and the general guidelines for operating a motorised vehicle must also be observed.

It is important to take the time required to learn the basics of using the bike to avoid serious injury which could occur when first using it. Contact your dealer for advice on how to use the bike correctly or indications on contacting a suitable training organisation.

The company assumes no direct or indirect responsibility arising from misuse of the bike, failure to comply with both the highway code and the instructions in the manual, accidents or disputes caused by failure to comply with regulations or illegal actions.

This product must be used for recreational purposes. It cannot be used by more than one person at a time and must not be used to transport passengers.

Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting objects, towing other vehicles or trailers.

The A-weighted emission sound pressure level at the rider's ear is less than 70 dB(A).

Using the electrically power assisted cycle

All users must have read and understood the instructions and information outlined in the manual.

If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.argentobike.it for technical support.

Risks associated with using the electrically power assisted cycle

Despite the application of safety devices, to ensure safe use of the electrically power assisted cycle, all the safety provisions reported in this manual must be observed.

Always maintain concentration while riding the bike and do not underestimate the residual risks connected with use of the electrically power assisted cycle.

Responsibility

The rider is required to use the electrically power assisted cycle with utmost diligence and in full compliance with the road regulations and all cycling rules in force in the country of use.

It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.

Riders must also ensure that the electrically power assisted cycle is kept clean, in perfect working order and serviced. They must diligently carry out the safety checks which are their responsibility, as well as preserve all the documentation about product maintenance.

Riders must carefully assess any weather conditions which could make it potentially dangerous to use the electrically power assisted cycle.

This product is a vehicle, therefore, the faster is it goes, the longer the braking distance required. We, therefore, recommend moderating your speed and maintaining an adequate braking distance if you are riding in adverse weather conditions and/ or heavy traffic.

The braking distance increases on wet, slippery, muddy or icy roads and the tyre grip decreases significantly with the risk of the wheels skidding and loss of balance compared to dry roads.

It is, therefore, essential to ride the bike with greater care, maintain a suitable speed and safety distance from other vehicles or pedestrians.

Take extra care when riding on unfamiliar roads.

For your safety, we recommend wearing suitable protective equipment (helmet, knee and elbow pads) to protect yourself from any falls or injuries while riding the bike. When allowing others to use the bike, ensure that the rider wears the safety equipment and explain how to operate the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it.

Wear shoes before using the item.

The bike has been designed to allow the load of a maximum overall weight (rider and any load being carried) that does not exceed the value indicated in the product data sheet.

Avoid using the product, under all circumstances, if the total load transported exceeds the recommended weight to avoid the risk of damaging the integrity of the structural and electronic components of the bike.

The electrically power assisted cycle (EPAC), as specified in the provisions of the current reference standard EN 15194, is a means of transport intended to transport one person only.

The transport of a passenger is only permitted within the framework of the regulations in force in the country where it is ridden regarding: the minimum age of the rider, maximum age of the passenger transported, provision of legally approved and authorised passenger transport devices.

It is the user's responsibility to ascertain the suitability of the devices used for passenger transport in terms of construction characteristics, safety systems, anchoring systems and their installation and assembly on the electrically power assisted cycle based on its structure and within the permitted load limits (maximum load supported by the bike and by the luggage rack supplied, if present).

The user is also responsible for the provision and installation of devices used for the transport of objects and animals (e.g. luggage racks, luggage bags, storage baskets, etc.) in compliance with the legally approved and authorised provisions in the country of use and the limitations of the structure within the permitted load limits (maximum load supported by the bike and by the luggage rack supplied, if present).

CAUTION

The installation of accessories and equipment on the bike, not only affect the performance of the bike and how it is used, but can also cause damage if they are unsuitable, thus compromising correct operation and safety conditions during use.

For information on the supply and installation of equipment deemed suitable for the bike, please contact your authorised dealer or specialised operators.

Warnings for users

• The electrically power assisted cycle can only be used by adults and skilled teenagers.
• Do not take alcohol or drugs before riding the electrically power assisted cycle.
• This electrically power assisted cycle model is designed and built for outdoor use on public roads or cycle tracks.
• Do not attempt to make the electrically power assisted cycle exceed the performance levels for which it was designed; do not ride on surfaces with a slope greater than 10% , on uneven and rough ground (bumpy road surfaces, with potholes, depressions, obstacles).
• Never ride the electrically power assisted cycle with any of its parts disassembled.
• Avoid uneven surfaces and obstacles.
• Ride with both hands on the handlebars.
• Before use, replace any worn and/or damaged parts and check that the safety devices are working properly.
• Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.
• Supervise children to make sure they do not play with the product.
• Remove any sharp edges caused by misuse, breakage or damage to the item.
• Pay particular attention when riding the bike near pedestrians and make sure you slow down and signal your presence to avoid frightening them when arriving from behind.
• Assemble the item correctly.

CAUTION

How to use

The electrically power assisted cycle is a bicycle fitted with an auxiliary electric motor that is activated only when the pedals are turned.

The motor does not, therefore, replace the work performed by your leg muscles, but assists them so they work less hard by enabling the electrical and electronic components supplied with the product, i.e. the battery, handlebar controls, sensors and control electronics (control unit).

More specifically, the electric motor is powered by a battery and operated by a unit that controls the delivery of power and additional thrust provided to assist the effort made by the rider's muscles when pedalling based on the real-time reading of values detected by a series of pedal-assist sensors (PAS). These sensors are positioned on the outside of the frame or inside the components and are based on the control parameters entered by the user via the handlebar controls (display).

In accordance with the provisions of European Directive 2002/24/EC, the electric motor supplied with the electrically power assisted cycle, is only activated to assist the user when pedalling and will be disabled upon reaching a speed of 25km / h

The electrically power assisted cycle has been designed and manufactured to be ridden outdoors on public roads and cycling paths, on both tarmacked surfaces and/or ground that is suitable for the specific technical and structural features of the bike.

Any changes to its construction may compromise the behaviour, safety and stability of the electrically power assisted cycle and may cause an accident.

Any other types of use, or any extensions of use beyond the one intended, do not correspond to the intended use attributed by the manufacturer and the latter, therefore, disclaims all liability for any resulting damage.

The autonomy of the battery supplied with the electrically power assisted cycle and, therefore, the relevant distance data estimated in km, may vary significantly depending on the specific mode of use (total load transported, how hard the rider pedals the bike, level of electric pedal assistance detected, how often the rider departs and restarts), the mechanical and electrical conditions of the product (tyre pressure and wear, battery efficiency level) and external influences (slopes and road surface, atmospheric conditions).

Before each use, carefully check that the brakes are working correctly and are not worn; check the tyre pressure, the wear of the wheels and battery charge status.

Regularly check that the tightness of the various elements secured by bolts. The nuts and all the other self-tightening parts can become loose so, these components need to be periodically checked and tightened.

Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the useful life of a component is exceeded, it could break unexpectedly and injure the user. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.

CAUTION

Permitted speed

The maximum allowed legal speed is 25km / h

The control unit has been configured to prevent any change to the maximum speed permitted.

Any changes to the control unit which have not been authorised by the manufacturer will exclude the latter from any liability related to injury caused to persons and/or damage to property, and will invalidate the product's warranty terms and conditions.

DANGER

Risk of injury

Ride at a speed and behave in keeping with your ability; never use the electrically power assisted cycle over 25Km/h as this could cause serious damage and injury to yourself or other people.

CAUTION

Place of use

The electrically power assisted cycle can be used outdoors providing there are no adverse weather conditions (rain, hail, snow, strong wind, etc.).

Maximum permissible temperature: +40^

Minimum permissible temperature: +0^

Maximum permissible humidity: 80%

The bike must be used in a place with a flat, compact, smooth tarmacked surface, with no potholes or depressions and free of obstacles and patches of oil.

The place of use must also be well lit by either natural or artificial light in order to ensure that the route and controls of the electrically power assisted cycle can be viewed correctly (recommended lighting 300 to 500 lux).

Improper use and contraindications

The actions described below, which obviously cannot cover the entire range of potential possibilities of "misuse" of the electrically power assisted cycle, are to be considered strictly prohibited.

It is strictly prohibited to:

• Use the electrically power assisted cycle for uses other than the ones for which it has been manufactured.
• Ride the electrically power assisted cycle if the rider's weight exceeds the permitted limit.
• Use the electrically power assisted cycle under the influence of alcohol or drugs.
• Use the electrically power assisted cycle in areas at a risk of fire, explosions or in places with a corrosive and/or chemically active atmosphere.
• Use the electrically power assisted cycle in adverse weather conditions (heavy rain, hail, snow, strong wind, etc.).
• Use the electrically power assisted cycle in poorly lit areas.
• Ride across or remain on uneven or rough ground (bumpy roads with potholes, depressions, obstacles, etc.) to avoid the risk of falls and injury to the rider and damage to the bike.
• Charge the battery in an environment that is either too hot or insufficiently ventilated.
• Cover the battery while its charging.
• Smoke or use open flames near the charging area.
• Perform any type of maintenance work with the battery connected.
• Insert limbs or fingers between the moving parts of the bike.
• Touch the brakes immediately after use due to high temperatures.
• Allow the electric and electronic components of the electrically power assisted cycle to come into contact with water or other liquids.
• Modify or change the bike and its mechanical and electronic parts in any way to avoid the risk of structural damage, compromising efficiency and causing damage.
  If any manufacturing defects arise or if any unusual noises or faults are detected, do not use the bike and contact your dealer or visit the www.argentobike.it website

Safety devices

It is strictly prohibited to modify or remove the safety devices for the battery, chain or other components installed on the bike, such as the warning and identification plates.

3. Product overview

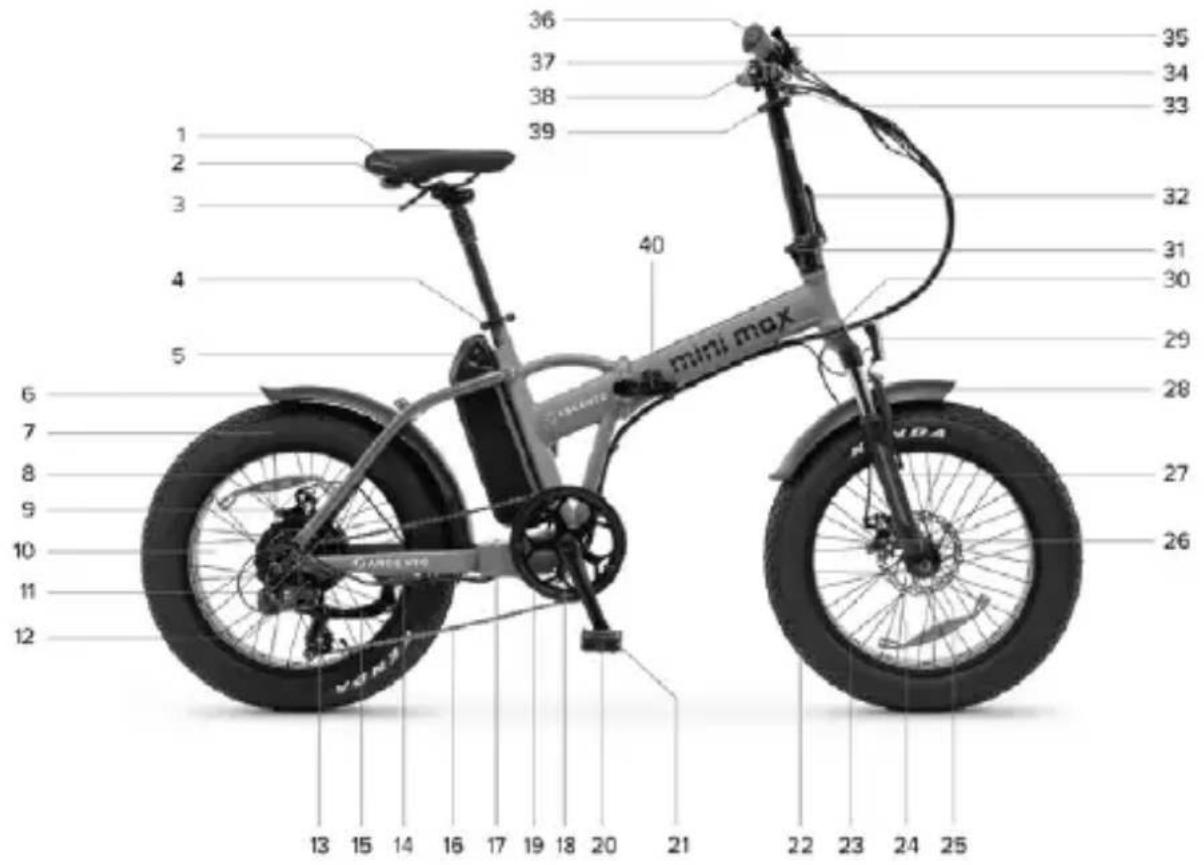

MiniMax

1. Saddle
2. Below saddle rear light
3. Folding seat post
4. Seat post clamp
5. Li-Ion battery
6. Rear mudguard
7. Rear tyre
8. Front wheel rim
9. Rear disc brake
10. Rear wheel
11. Motor
12. 7-Speed cassette
13. Rear gear change - derailleur
14. Motor port
15. Stand (opposite side)
16. Chain
17. Control unit compartment
18. PAS
19. Chainring

20. Crank arm (right side)

21. Folding pedal (right side)

22. Front tyre
23. Front wheel rim
24. Front wheel
25. Pass-through Pin/ Quick Release front wheel
26. Front disc brake
27. Suspension fork
28. Front mudguard
29. Front LED light
30. Frame serial number
31. Handlebar stem lock/unlock lever
32. Telescopic and folding handlebar stem
33. Handlebar attachment
34. Handlebars
35. Rear wheel brake lever (right side)
36. Gear change - indexed control
37. Bell
38. Display
39. Front wheel brake lever (left side)
40. Frame opening/closing mechanism

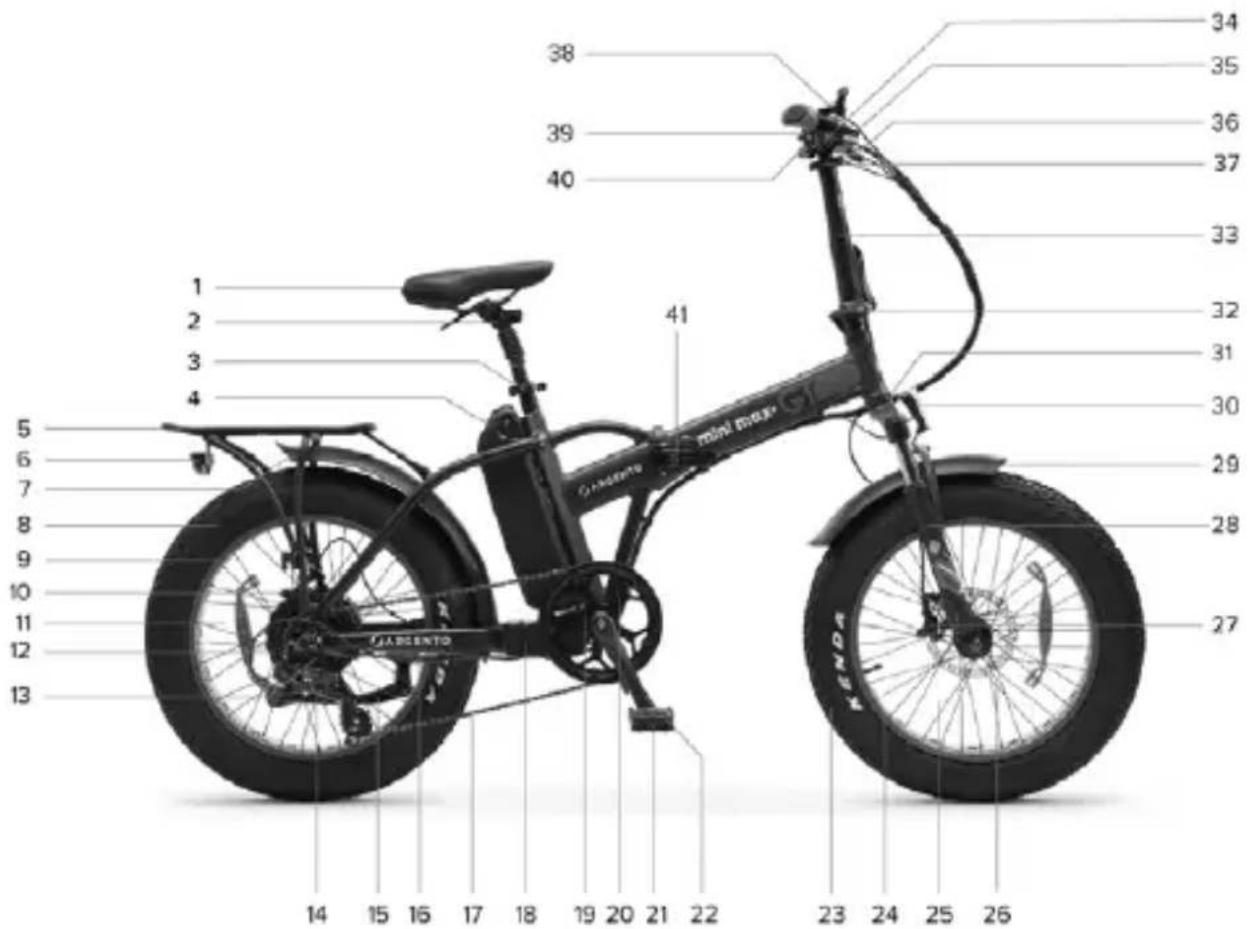

MiniMax GT

1. Saddle
2. Folding seat post
3. Seat post clamp
4. Li-ion battery
5. Rear luggage rack
6. Rear LED light
7. Rear mudguard
8. Rear tyre
9. Front wheel rim
10. Rear disc brake
11. Rear wheel
12. Motor
13. 7-Speed cassette
14. Rear gear change - derailleur
15. Stand (opposite side)
16. Motor port
17. Chain
18. Control unit compartment
19. PAS
20. Chainring

21. Folding pedal (right side)

22. Crank arm (right side)

23. Front tyre
24. Front wheel rim
25. Front wheel
26. Pass-through Pin/ Quick Release front wheel
27. Front disc brake
28. Suspension fork
29. Front mudguard
30. Front LED light
31. Frame serial number
32. Handlebar stem lock/unlock lever
33. Telescopic and folding handlebar stem
34. Handlebars
35. Rear wheel brake lever (right side)
36. Front wheel brake lever (left side)
37. Handlebar attachment
38. Gear change - indexed control
39. Bell
40. Display
41. Frame opening/closing mechanism

MiniMad

1. Saddle
2. Below saddle rear light
3. Folding seat post
4. Seat post clamp
5. Li-ion battery
6. Rear mudguard
7. Rear tyre
8. Front wheel rim
9. Rear disc brake
10. Rear wheel
11. Motor
12. 7-Speed cassette
13. Rear gear change - derailleur
14. Stand (opposite side)
15. Motor port
16. Chain
17. Control unit compartment
18. PAS
19. Crank arm (right side)

20. Folding pedal (right side)

21. Chainring

22. Front tyre
23. Front wheel rim
24. Front wheel
    25.Pass-through pin front wheel
25. Front disc brake
26. Rigid fork
27. Front mudguard
28. Front LED light
29. Frame serial number
30. Handlebar stem lock/unlock lever
31. Telescopic and folding handlebar stem
32. Handlebar attachment
33. Handlebars
34. Rear wheel brake lever (right side)
35. Gear change - indexed control
36. Bell
37. Display
38. Front wheel brake lever (left side)
39. Frame opening/closing mechanism

4. Technical data sheet

Product description Product code EAN code
MiniMax Red	AR-BI-220008 8052679456031
	AR-BI-210004 8052870486639
MiniMax Yellow	AR-BI-220009 8052679456048
	AR-BI-210005 8052870486646
General information

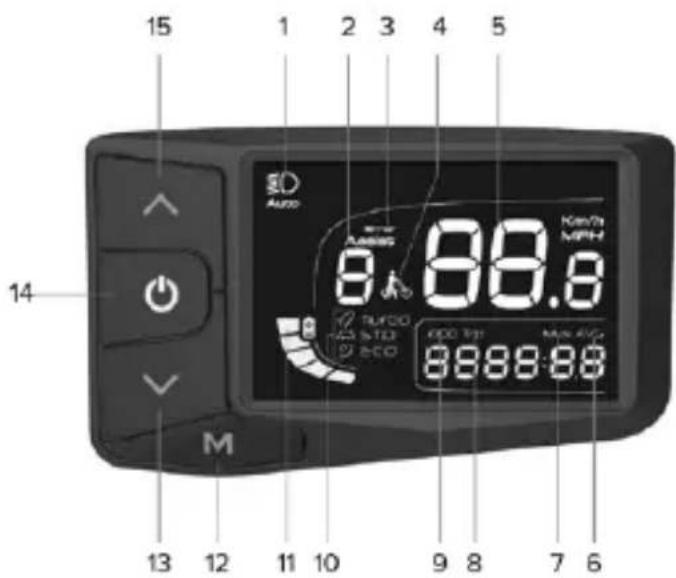

Display LCD - CDC13-BT
Motor Bafang 36V 250W brushless - rear
Battery Li-Ion 36V 10.4Ah 374Wh - external and removable
Brakes Front and rear mechanical disc brakes - brake levers with cut-off sensor
Gear change Shimano 7 gears (1x7) - rear derailleur
Drive chain - 7 speed
Wheels 20" front and rear
Lights Front and rear LEDs
Frame aluminium 6061 - folding

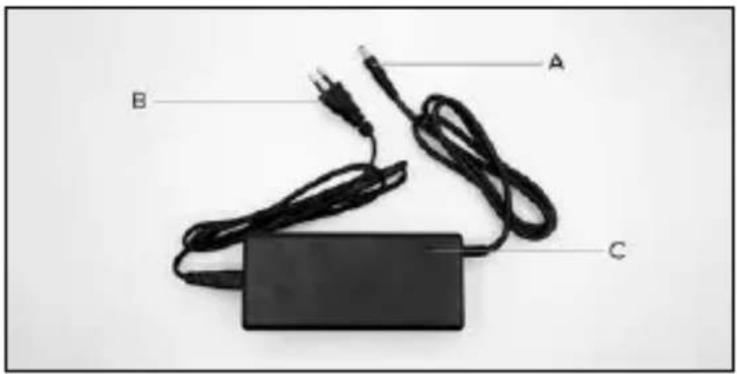

Battery charger Input: AC 100V-240V 1.8A (Max) - Output: DC 42V 2.0A (Max)
Maximum load supported by E-bike 100 kg
Weight of E-bike	26 kg~
Full speed	25km/h

Product description Product code EAN code
MiniMax GT	AR-BI-220010 8052679456055
	AR-BI-210038 8052679456352
General information
Display LCD - CDC13-BT
Motor Bafang 48V 250W brushless - rear
Battery Li-lon 48V 12.8Ah 615Wh - external	and removable
Brakes Front and rear mechanical disc brakes - brake levers with cut-off sensor
Gear change Shimano 7 gears (1x7) - rear derailleur
Drive chain - 7 speed
Wheels 20" front and rear
Lights Front and rear LEDs
Frame aluminium 6061 - folding
Battery charger Input: AC 100V-240V 2.0A (Max) - Output: DC 54.6V 2.0A (Max)
Maximum load supported by E-bike 100 kg
Maximum load supported by luggage rack	15 kg
Weight of E-bike	27 kg~
Full speed	25km/h
Argento E-Bike MiniMad	AR-BI-220014 8052679456093
General information
Display LCD - CDC13-BT
Motor Bafang 36V 250W brushless - rear
Battery Li-lon 36V 10.4Ah 374Wh - external	and removable
Brakes Front and rear mechanical disc brakes - brake levers with cut-off sensor
Gear change Shimano 7 gears (1x7) - rear derailleur
Drive chain - 7 speed
Wheels 20" front and rear
Lights Front and rear LEDs
Frame aluminium 6061 - folding
Battery charger Input: AC 100V-240V 1.8A	(Max) - Output: DC 42V 2.0A (Max)
Maximum load supported by E-bike 100 kg
Weight of E-bike 25 kg~
Full speed 25km/h

5. Assembly

Carefully remove the bike from the packaging* and remove the protective material taking care not to damage the relevant aesthetic parts or force the cables and pre-assembled components.

*The bike must be removed from the packaging by two adults to ensure that it is not damaged and avoid the risk of injury and/or crushing.

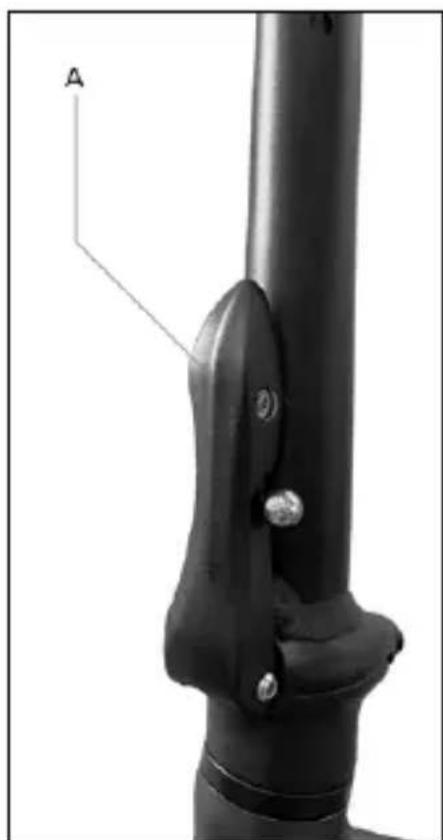

Positioning the handlebar stem

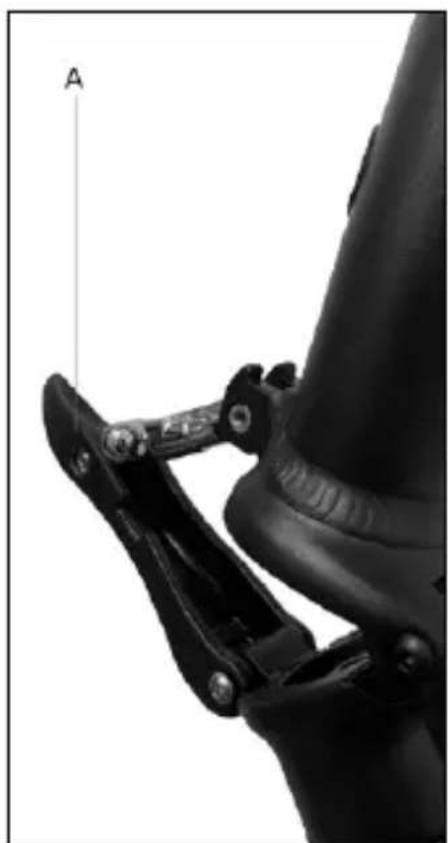

Raise the handlebar stem until it is vertical; tighten the handlebar stem using the locking device indicated by the letter A.

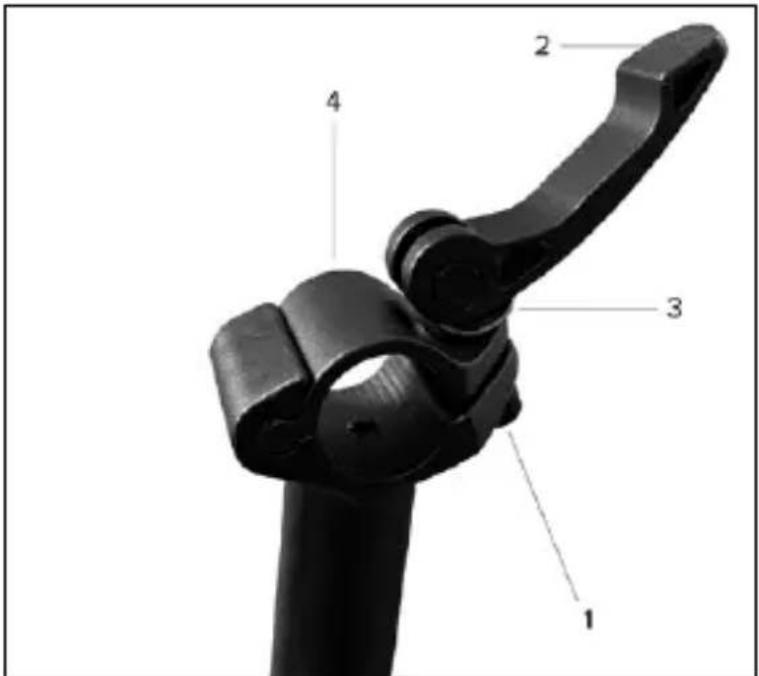

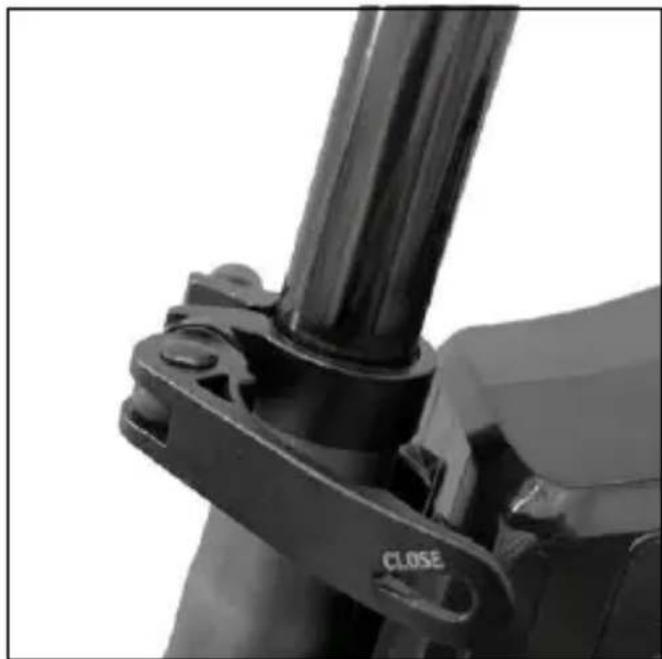

Positioning the handlebars

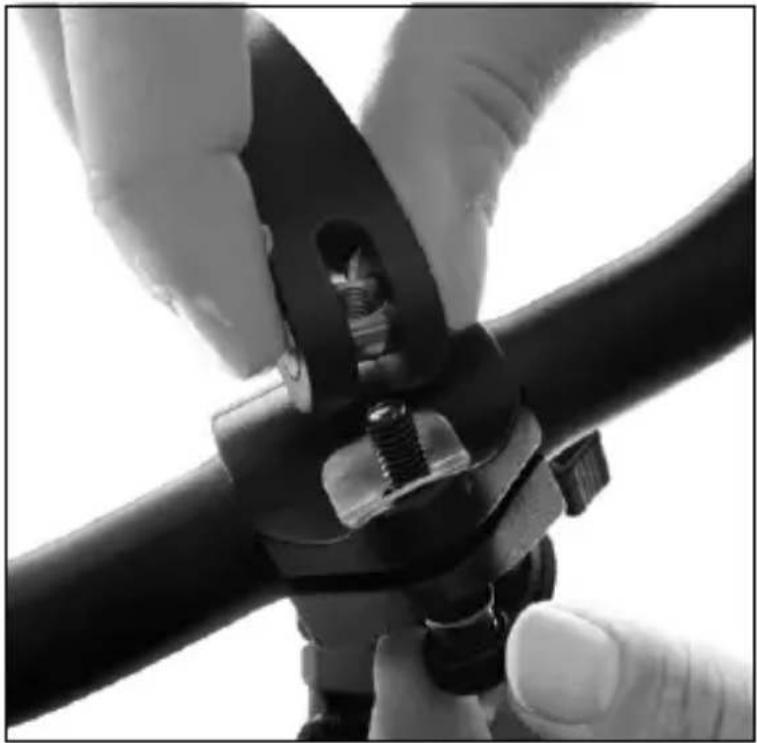

Position the handlebars on the handlebar attachment taking care to centre and adjust them correctly so they slot onto the controls, tightening the handlebar attachment lever (tightening device between the handlebars and handlebar attachment).

Handlebar stem plate assembly/disassembly instructions for handlebar installation/removal (if necessary - optional)

Remove the handlebar stem from the top end of the handlebar attachment as follows:

Remove the screw number 1 and then the lever number 2.

Then proceed to remove the metal plate number 3 and finally remove the metal plate number 4 by sliding it sideways.

Proceed to reassemble the previously removed handlebar attachment plate in the reverse sequence.

Make sure to tighten properly to avoid dangerous situations while riding.

Installing and positioning the seat post

Insert the seat post into the seat tube of the frame and, after positioning the saddle correctly, secure the seat post firmly using the special clamping device (seat post clamp) on the frame.

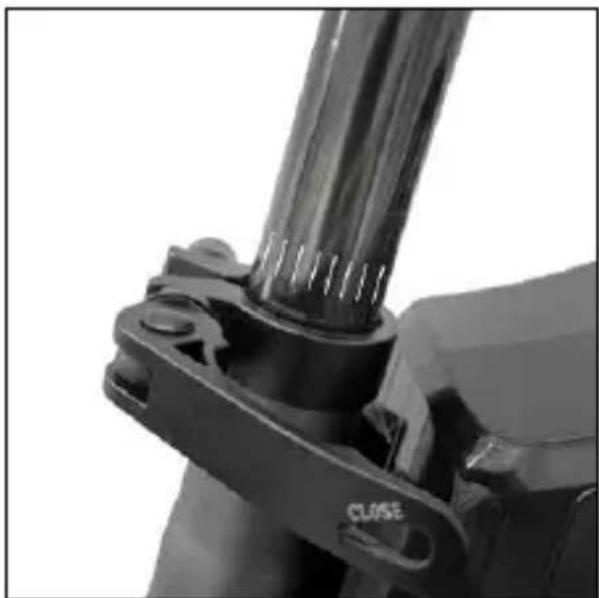

Minimum insertion seat post insertion limit

For structural and safety reasons, it is strictly forbidden, when using the bike, to extract the seat post from the seat tube of the frame beyond the limit indicated on the latter to avoid the risk of causing any structural fractures to the bike and incurring serious injuries.

The seat post is deemed to be correctly and safely positioned inside the seat tube of the frame by inserting it so that no markings and/or graphic indication of the minimum insertion limit can be seen; see:

Correct position

Incorrect position

Installing the pedals

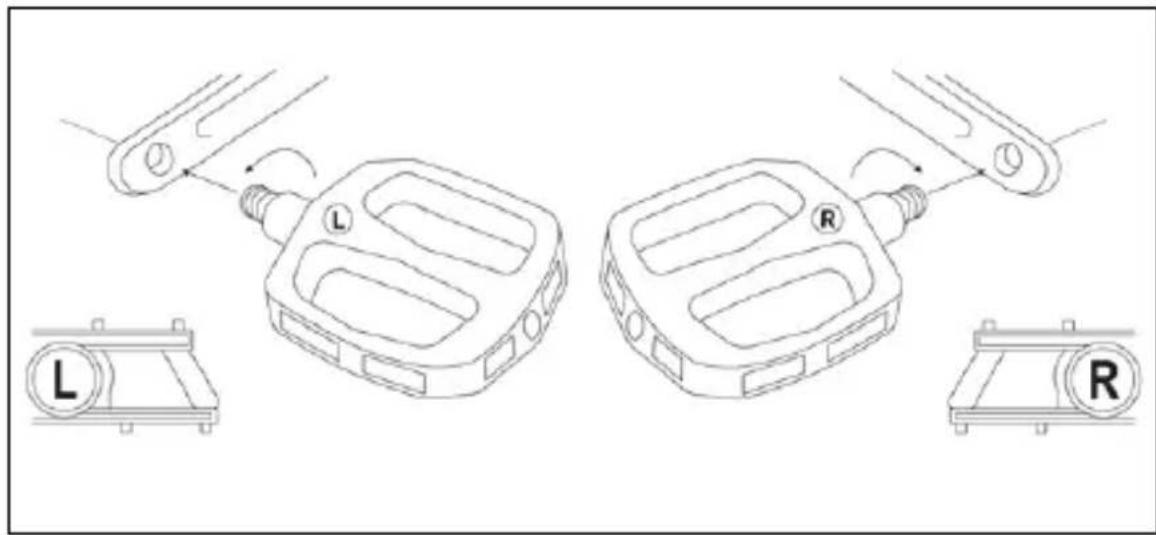

Locate the right pedal (marked with the letter R) and left pedal (marked with the letter L).

Fit the right pedal (R) by inserting the threaded pin of the pedal into the corresponding crank arm on the right side of the bike and screwing it clockwise (turn it towards the front wheel) until it is tightened using a 15mm wrench.

Fit the left pedal (L) by inserting the threaded pin of the pedal into the corresponding crank arm on the left side of the bike and screwing it anticlockwise (turn it towards the front wheel) until it is tightened using a 15mm wrench.

CAUTION

Verify and regularly check that the various bolted elements, fastening screws, quick releases and pass-through pins are correctly tightened, and perform an overall check to ensure that all the parts are in order.

The nuts and all the other self-tightening parts can become loose so, these components need to be periodically checked and tightened.

The recommended tightening torques for fastening the specific parts/components on the bike (e.g. handlebars, handlebar attachment and stem, saddle, saddle clamp, wheels, etc.) can be identified depending on the relevant elements. An average torque of 20Nm can be used for all other fastenings.

Verification of the correct tightening of the parts/components through lever systems (quick release, handlebar attachment, seatpost collar, etc.), in the absence of technically precise indications of the relative values, can be done by testing that the relative part/component being fixed is not mobile and/or unstable if subjected to a vigorous attempt to remove and/or extract (handlebar, seatpost channel, wheels, etc.) and by verifying that the tightening lever has adequate resistance during the closing phase (such as to leave a mark on the palm of the hand used for lever tightening, so-called "imprint on palm") and, after closing, requires a considerable force to be exerted to allow relative opening.

Rear light

The rear LED light is already installed on the electrically power assisted cycle and located as shown in the product overview (Chap. 3) of the corresponding version.

Switching on and off can be done manually using the appropriate button on the light itself.

CAUTION

Battery key set

The electrically power assisted cycle is exclusively equipped with 2 keys uniquely associated with the key lock on the battery installed on the product to enable locking and/or unlocking for extraction and activation (if provided by the version supplied).

CAUTION

All OK check

If, during assembly, you encounter any manufacturing defects, unclear steps or difficulties with assembly, do not ride the electrically power assisted cycle and contact the after-sales service of your authorised dealer or visit the website www. argentobike.it

CAUTION

In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.

For further information and to consult any new versions of the manual, please visit www.argentobike.it

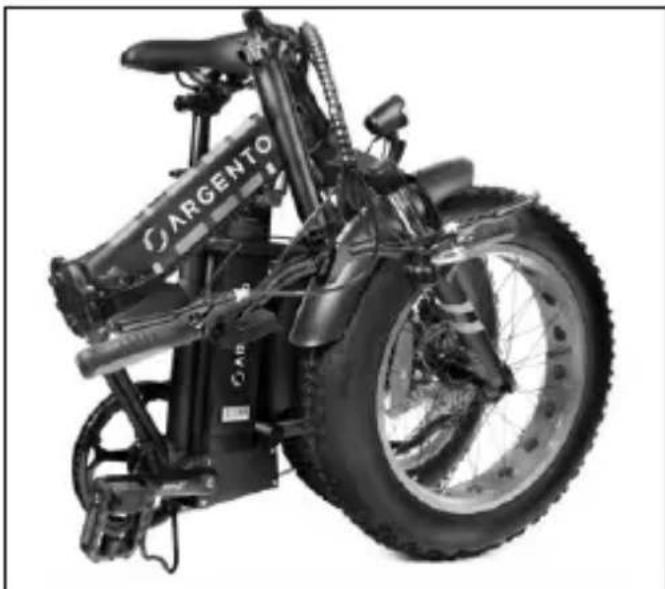

Folding the electrically power assisted cycle

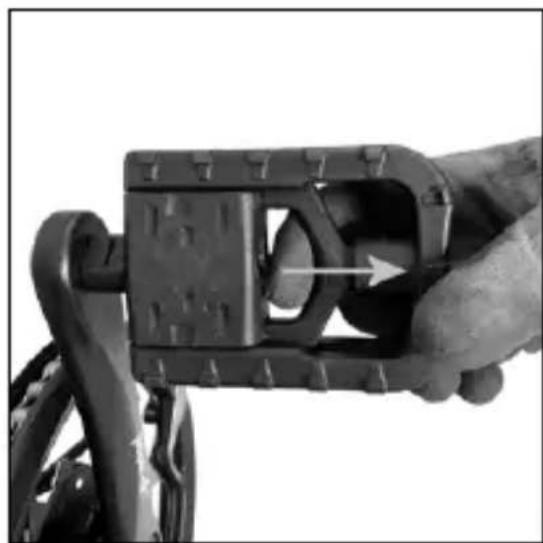

Fold the pedals by operating the release mechanism.

Pedal open

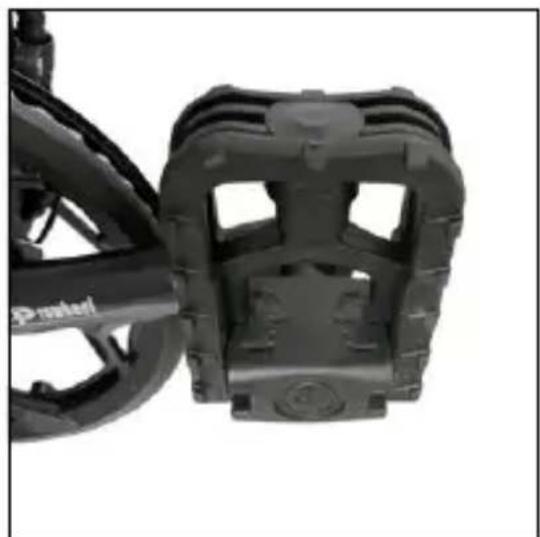

Pedal closed

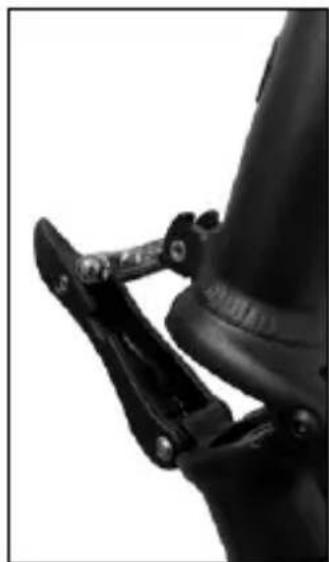

Release the handlebar stem closing mechanism by opening the locking device.

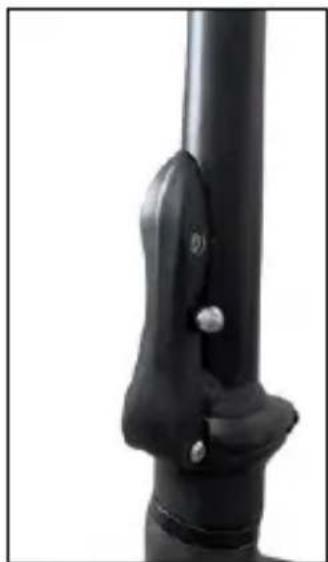

Fold the handlebar stem downwards.

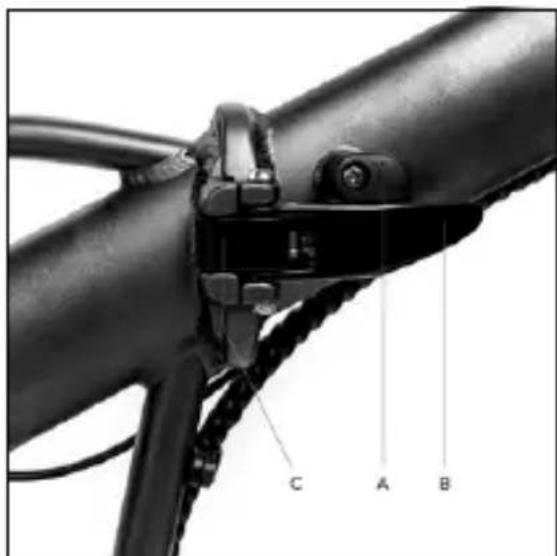

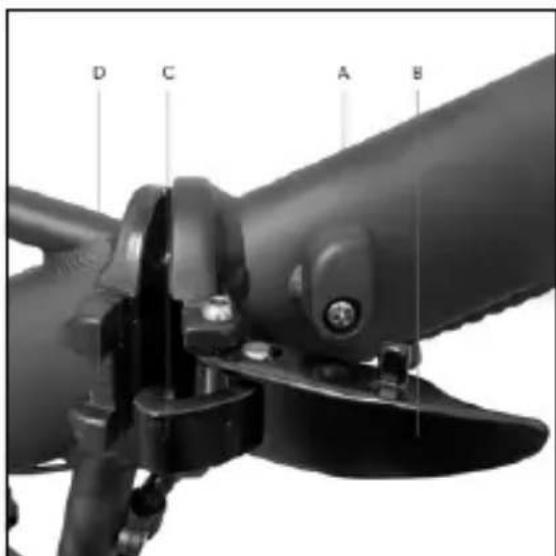

Turn the lever locking device (A) in the frame opening/closing mechanism in an anticlockwise direction. Pull the lever (B) outwards until the locking hook (C) can be extracted from its seat (D).

To open the bike frame, carry out the sequence in reverse.

6. Display

The electrically power assisted cycle has a control device on the handlebar, LCD display, powered by the battery supplied with the bike which controls all the bike's electrical and electronic functions.

- LCD display - CDC13-BT

Overview of controls and symbols

1. Indicator light for light ON
2. Assist: indicator of the assisted pedalling level selected (number)
3. Error: malfunction warning light
4. Indicator light for walk assist mode ON
5. Digital speedometer: indicator light for speed detected during use (Km/H or MPH)
6. AVG: display of average speed data recorded during last use (Km/h or MPH)
7. MAX: display of maximum speed data recorded during the last use (Km/h or MPH)
8. TRIP: display of partial distance travelled (Km or Miles)
9. ODO: display of total distance travelled (Km or Miles)
10. Travel mode corresponding to the selected assisted pedalling level (ECO-STD-Turbo)
11. Indicator light for residual battery charge
12. M: mode button (MODE)
13. Button to vary and/or decrease value (-)
14. ON/OFF button
15. Button to vary and/or increase value (+).

Function description

Display on/off

Press the ON/OFF button for at least 3 seconds to switch the display on or off.

Selecting the assisted pedalling level

Press the relevant button to increase or decrease the level of selected assisted pedalling.

There are between 1 and 5 assisted pedalling levels that can be selected (Assist).

Assist level 1 sets minimum electrical support by the motor (minimum power - ECO mode).

Assist levels 2 and 3 set intermediate electrical support by the motor (minimum power - STD mode).

Assist levels 4 and 5 set maximum electrical support by the motor (maximum power - Turbo mode).

If you select level 0, you exclude electrical assistance from the motor.

Enabling walk assist mode

Set the walk assist level to 0 and then, press and hold the - button to enable the walk assist mode which allows you to activate electric motor assistance up to a maximum speed of 6Km / h

Disable the function by releasing the button.

The walk assist mode must be used in compliance with the regulations in force in the country of use and is only allowed when pushing the electrically power assisted cycle by walking alongside the bicycle and holding the handlebar grips firmly with both hands.

It is strictly prohibited to enable the walk assist mode when you are sitting on the saddle of the electrically power assisted cycle to avoid the danger of injury and the risk of damaging the electrical components of the bike.

Switching the lights on/off

Press the ON/OFF button quickly to turn the front light (and rear light, if applicable) on and off.

Viewing data (AVG - MAX - TRIP - ODO)

The data available on speed (AVG and MAX) and distance (TRIP and ODO) will be displayed alternately and automatically in sequence: AVG - MAX - TRIP - ODO.

The partial usage data (TRIP - AVG - MAX) will automatically reset after the display is turned off.

Indicator light for residual battery charge

The battery charge level is shown on the display screen as a number of dashes between 0 and 5.

If there are 5 dashes, it means that the battery is charged to the maximum percentage defined and detected instantly.

Less dashes are shown to indicate a decrease in the battery charge level available and subsequent autonomy.

The level of the battery charging indicator may fluctuate depending on how the electrically power assisted cycle is being used, for example, when going up a slope, the level displayed can drop rapidly as there is a much higher battery consumption.

The individual dashes indicate the specific battery charge range detected at the time and do not necessarily indicated a percentage of the residual autonomy.

Malfunction indicator light

If a malfunction of the cycle's electrical and/or electronic system is detected, a related warning light will appear on the display screen and an identification Error Code will be simultaneously displayed:

Error Code Malfunction	description
2 Malfunction when using the walk assist mode lever
3 Brake sensor malfunction
4 Control unit malfunction
7 Control unit over temperature
8 High voltage protection (voltage above threshold)
10 Motor malfunction (excessive power consumption)
11 Motor hall sensor malfunction
17 Display-control unit wiring communication malfunction
18 Display-control unit programming communication malfunction
19 Brake sensor malfunction
20 Motor block

Parameter configuration

Press the M button for at least 3 seconds to access the configuration menu and then, quickly press the M button to confirm the data entered and display the next parameter to be configured.

Select the value for the individual parameter by pressing the + or - buttons and confirm by pressing the M button (quickly to access the next parameter).

The sequence of parameters that can be configured is shown below:

P1 - Unit of measurement:

Press the + or - buttons to select the unit of measurement for the speed and travel data on the display:

international metric system (Km/h and Km) or British imperial system (MPH and Miles)

P2 - User password ON/OFF display:

available options = on / off

OFF = selecting "off", confirmed by pressing the M button, excludes the user password request (identification code) to allow the user to access and activate the display and allow full control of all the functions provided for the electrically power assisted cycle.

The display controls and functions will be immediately accessible after pressing the ON button.

ON = selecting "on", confirmed by pressing the M button, enables the configuration parameter which activates the display and access to all the functions included for full control of the electrically power assisted cycle only after entering a user password (identification code).

Display controls and functions, after pressing the ON button, will only be accessible after entering the user password previously set (P3).

P3-User password:

Parameter only displayed after the "ON" option has been selected which allows the user to enable the display access configuration exclusively by entering the password (numeric identification code consisting of 4 digits) previously set and confirmed as follows:

• select the 4 digits which make up the password by pressing the + and - buttons and confirm them individually by pressing the ON/OFF button

• confirm the numeric identification code consisting of 4 numbers by pressing the M button.

0000 - System parameter setting password:

if incorrect data on the speed (Km/h and Km) and distance (MPH and Mile) are shown on the display, contact the after-sales technical support service for assistance: www.argentobike.it/assistenza/

7. Battery

The electrically power assisted cycle starts and powers its electrical and electronic functions following activation of the lithium-ion battery supplied with the product. This is external and removable from the frame, recharged, installed and, if applicable, activated by means of a key or dedicated switch.

Illustrative image of the battery structure and components

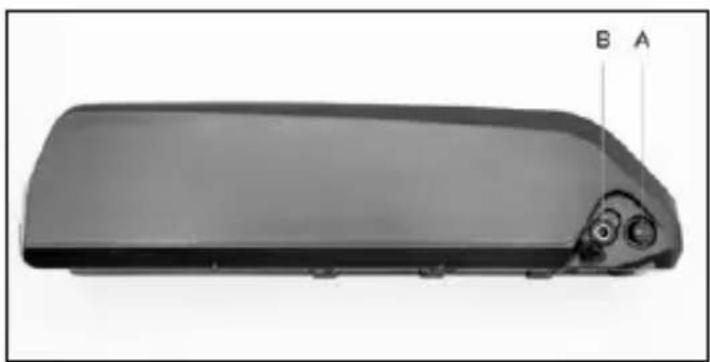

A. Battery activation switch (I= On / O= Off)- where supplied
B. Charging port for battery charger
C. Battery locking/release lock / Battery activation locking/release lock - where supplied

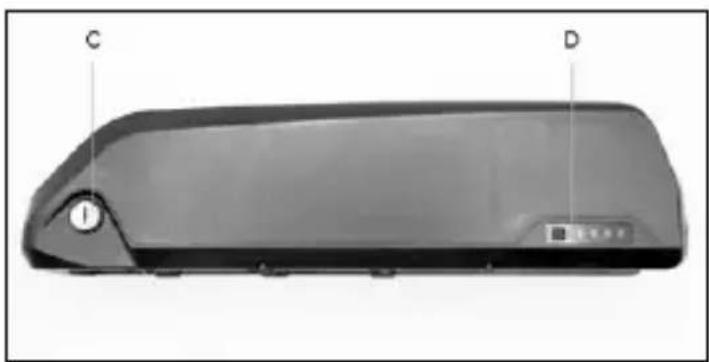

D. Residual battery charge indicator

Battery removal and insertion

The battery can be removed from the cycle to prevent theft, for charging or to be stored under optimal conditions.

Removing the battery:

Insert the key supplied in the lock on the battery. Turn the key counter-clockwise to the unlocking position. Remove the battery from its slot on the frame stem tube sliding it upwards and outwards until it has been completely removed.

Inserting the battery:

Insert the key supplied in the lock on the battery. Turn the key counter-clockwise to the unlocking position. Insert the battery in its slot on the frame stem tube and complete the installation by turning the key clockwise until it is locked.

Check that the battery is correctly installed and secured by trying to pull it out and/or making sure that it is securely fastened to the frame and does not move.

Battery charging

Before using the electrically power assisted cycle for the first time, the battery must be fully charged using the battery charger supplied.

The average time to fully charge the battery, which varies according to the residual charge level of the battery, can be estimated as shown in the sheet below.

We recommend charging the battery with the specific battery charger after each use of the electrically power assisted cycle.

CAUTION

Only use the battery charger provided or an approved model with the same technical specifications, taking care to observe the same methods and precautions of use indicated on the charged or in the manual.

EPAC Battery charger INPUT	Battery charger OUTPUT
MiniMax AC 100V-240V 1.8A	(Max) DC 42V 2.0A (Max)
MiniMax GT AC 100V-240V 1.8A	BA (Max) DC 54.6V 2.0A (Max)
MiniMad AC 100V-240V 1.8A	(Max) DC 42V 2.0A (Max)

Make sure that the electrically power assisted cycle is switched off and the battery is switched off/disabled (if required by the model of battery supplied with the bike).

Make sure that the battery charger, its jack and the charging port of the battery are dry.

Connect the battery charger jack to the battery charging port and then, the mains power socket (230V/50Hz).

There is a red indicator light when the battery is charging. When the indicator light turns green, it signals that the battery charging cycle has been completed.

Disconnect the battery charger jack from the battery charging port and then, the mains power socket.

A. Battery charging jack
B. Power supply jack
C. Battery charging LED indicator light

CAUTION

Using a battery charger that differs from the one supplied, which is not suitable or approved, to charge the e-bike battery may damage it or involve other potential risks.

Never leave the e-bike unsupervised while it is charging.

Do not switch on or ride the e-bike during charging.

Keep out of the reach of children during charging. Do not place anything on top of the battery charger during use; do not allow any liquid or metal to get inside the battery charger.

The battery charger heats up during the battery charging cycle.

Do not charge the battery immediately after use. Allow the battery to cool down before charging it.

The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.

Do not allow the battery to completely discharge to avoid damaging it and causing it to lose efficiency.

Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents).

Charge the battery at regular intervals (at least once every 3-4 weeks), even if the electrically power assisted cycle has not been used for an extended period.

Charge the battery in a dry environment, away from flammable materials (e.g. materials that may burst into flame), preferably at an indoor temperature of 15 - 25^ but never below 0^ or above +45^ .

Carry out regular visual inspection of the charger and charger cables. Do not use the battery charger if it is damaged.

Autonomy and battery duration

The autonomy of the battery supplied with the electrically power assisted cycle and, therefore, the relevant distance data estimated in km, may vary significantly depending on the specific mode of use (total load transported, how hard the rider pedals the bike, level of electric pedal assistance detected, how often the rider departs and restarts), the mechanical and electrical conditions of the product (tyre pressure and wear, battery efficiency level) and external influences (slopes and road surface, atmospheric conditions).

The capacity and performance of the battery will decrease over time due to the electrochemical deterioration of the battery cells.

It is impossible to predict its duration with accuracy, since it depends above all on the type of use and stress to which it is subjected.

To help make the battery last as long as possible, store it in a dry place and away from direct exposure to sunlight and preferably at an internal temperature of 15 - 25^ , but never below 0^ or above +45^ . Charge it, if possible, at room temperature and avoid overcharging or completely discharging it during use. Charge the battery at regular intervals even if you do not use the electrically power assisted cycle for a prolonged period (at least once every 3-4 weeks).

Cold, in general, decreases battery performance. If used during the winter, the battery should be charged and stored at room temperature and inserted in the electrically power assisted cycle only shortly before it is used.

Battery warnings

• The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat.
• Do not dispose of the item or the battery with household waste.
  The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.
• Avoid used, defective and/or non-original batteries of other models or brands.
• Do not leave the battery near fire or heat sources. Fire and explosion hazard.
  Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.
• Do not touch any substances leaking from the battery, as they are deemed hazardous.
• Do not allow children or pets to touch the battery.
• Do not overcharge or short-circuit the battery. Fire and explosion hazard.
• Never leave the battery unattended during recharging. Fire hazard! Never touch the charging socket with metal objects.
• Do not immerse or expose the battery to water, rain or other liquids.
• Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.
• Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.

8. First use

Before using the electrically power assisted cycle, check that the battery is charged and correctly installed, to allow the bike to be started and used efficiently and safely. It is always advisable to carefully check each part, taking care to perform the necessary adjustments of the relevant mechanical components, directly or with the assistance of specialised technicians, see: saddle and seat post adjustment and tightening, handlebar and stem adjustment and tightening, brake adjustment, gearbox adjustment, chain and gear lubrication, wheel check and tyre pressure, general check of the correct tightening of the fastening screws, quick release mechanisms and pass-through pins, as well as a general check that all the parts are in order.

Saddle

The position on the bicycle is very important to ensure the optimal comfort when using the bike, correct pedalling and to avoid any safety problems.

It is, therefore, important that the saddle and the seat post are positioned and adjusted to suit the rider.

The saddle can be adjusted in height, forward position and angle.

To adjust the height of the saddle, the clamp that secures the seat post in the frame must be loosened and either raised or lowered as needed, taking care not to pull it out beyond the limit indicated to avoid the risk of breaking the frame. Once the best position has been found in compliance with the precautions for extracting the seat post, secure it by tightening the relevant clamp until it is correctly tightened to prevent it from moving and/or becoming unstable.

Generally speaking, the best way to adjust the height of the saddle is to check that when your foot is placed on the pedal at its lowest point, your leg is almost completely extended.

To adjust the angle and how far forward the saddle is positioned, loosen the relevant fastening mechanism in the seat post bracket, so you can tilt the saddle and move it forward as desired. Then, tighten the fastening system to avoid any play or movement.

Handlebars

The height and angle of the handlebars can be adjusted by the fastening systems on the handlebar stem and/or handlebar attachment.

To adjust the height of the handlebars, loosen the clamp holding the telescopic handlebar stem in place, allowing it to be pulled out or pushed in to either raise or lower the handlebar until the desired position is set. Secure it by tightening the relevant clamp until it can no longer be moved. In other cases, the height can be adjusted either by loosening the screw that secures the stem inside the fork tube (where present) or by intervening on the joint on the handlebar attachment.

To adjust the angle of the handlebars, loosen the clamp on the stem, rotate the handlebars until the desired position is reached and secure it by tightening the clamp until it can no longer be moved.

Brakes

The braking system installed on the bike includes either mechanical or hydraulic disc brakes which can be applied on the front and rear wheel via the levers on the handlebar, each one of which is fitted with a device (cut-off sensor) which cuts off the thrust of the motor by operating the brake lever to which it is connected.

The brake lever on the right side of the handlebar activates the rear brake and stops the rear wheel whereas the brake lever on the left side of the handlebar activates the front brake and stops the front wheel.

The front and rear brake levers must be positioned and adjusted so they are comfortable to use and favour the natural position of the hand and fingers used to pull them, thus minimising the force and amount of time required to pull the brake lever whilst ensuring that the brake is applied evenly.

Check the operation of the brakes by performing a braking test at low speed (max 6km/h) in an area free of obstacles.

As the brake pads on the callipers become worn and their thickness is reduced, the brake lever will have to be pulled further to exert the same braking force.

If the bike has a mechanical disc braking system, to compensate for this type of wear, the brake cable adjustment ring located behind the corresponding lever will need to be adjusted to restore optimal braking conditions; if the brake pads are very worn, they must be replaced.

If hydraulic disc brakes are present, progressive wear of the pads installed on the relevant callipers, which reduces their thickness, will be automatically compensated for by the valve system supplied with the braking system, guaranteeing the same braking efficiency until the pads are worn out and need replacing.

Gear change and drive

The cable gear change system supplied with the product is indexed and allows you to change the gear ratio and pedal stroke metrics by adjusting the control device on the handlebar, determining the sideways movement of the chain on the corresponding sprocket of the cassette installed on the rear wheel via the derailleur.

Make sure the gear change and its adjustment are correct and that the chain and drive gears are clean and properly lubricated.

Wheels and tyres

Check the correct centring, suitable tensioning of the spokes and correct installation and tightening of the pass-through pins and/or the quick release mechanism of the front wheel (if present).

Check for the presence and correct installation of the reflectors.

Check the condition and state of wear of the tyres. There must not be any cuts, cracks, foreign bodies, unusual swelling, visible inner tube or other damage.

Check the tyre pressure by referring to the specific range of minimum and maximum values shown on the side of the tyre (suitable pressure must be customised according to the weight being carried, the weather conditions and road surface).

Correctly pumped tyres reduce the risk of punctures and deterioration as well as improving the movement of the wheel.

9. Storage, maintenance and cleaning

To ensure and maintain a good level of safety and functionality of the bike, it must be regularly checked and periodically serviced.

Some checks and servicing tasks can be carried out directly by the user or anyone who has basic mechanical skills, ability and access to the right tools.

Other operations require the expertise and specific tools of a qualified operator.

The dealer will be able to provide all the information about the checks which can be carried out directly by the user and suggest which routine maintenance tasks should be periodically carried out based on how frequently the bike is used and the conditions of its use.

All the maintenance operations must be performed with the battery detached and the bike resting on the kickstand.

The different parts that make up the bike are subject to various types of wear from use.

In particular, the following components should be regularly checked and serviced: tyres, wheels, brakes, gears, chain, suspension and frame.

The tread of the tyres installed on the bike is liable to be consumed which can be accentuated by how and where it is used. The rubber of the tyres also tends to harden over time.

The correct pressure of the inner tube in the tyres should be constantly checked to reduce the risk of punctures, limit deterioration and ensure safer use and performance of the bike.

Periodically inspect the state of wear and ageing/deterioration of the tyres and replace the tyres, if necessary, with ones that have the same characteristics.

The correct servicing of the wheels, which become worn through use, means that they must be periodically checked to ensure they are correctly centred and that the tensioning of the spokes is uniform and suitable for the type of rim. The hub bearings should be inspected, cleaned and lubricated or replaced, if necessary.

The integrity of the rims supplied with the bike must be constantly checked to make sure that they are not deformed, cracked or dented and/or show any other signs of corrosion and damage that require them to be replaced for safety reasons.

To ensure that the brakes work correctly, periodically replace the brake pads installed on the callipers when they reach a thickness of no less than 1mm , in addition to regularly checking the state of wear and integrity of the discs.

If the bike is fitted with mechanical disc brakes, the state of wear and tear of the steel cables on the inside the braking system sheaths must be periodically checked and replaced to prevent the risk of breakage.

If the bike is fitted with hydraulic disc brakes and there is a decrease in braking efficiency, the mineral oil in the hydraulic system circuit must be drained and replaced.

The correct functioning of the electrically power assisted cycle transmission is guaranteed by adequate maintenance and adjustment of the relevant components.

The cable gear change system supplied with the product, which undergoes constant stress during use and operation as a result of mechanical tension, may easily lose its adjustment setting. The correct operating conditions of the indexed rear deraillur are guaranteed by adjusting the deraillur (stop screws) and adjusting the gear change cable.

The chain and the relevant drive gears are subject to wear due to use and must be regularly cleaned and lubricated with specific products (drip or spray, dry or wet) adapted to the season and methods of use of the product and periodically replaced in order to guarantee their integrity and ensure they run smoothly and quietly.

Lubricate the parts in question only after they have been properly cleaned and degreased. Then, remove any excess lubricant if oily lubricants have been used.

The front and rear suspensions (where present) cannot be adjusted unless otherwise specified in this manual as they do not require specific maintenance; they only need to be checked to ensure they are working correctly and there is no play.

The linings of the suspensions installed on the bike already include the lubricant (where present) needed to ensure their correct operation and do not, therefore, require additional lubrication.

The bike frame must be inspected regularly to exclude the presence of any signs of cracking and/or so-called "material fatigue" so that any intervention required to reduce and/or eliminate the risk of damage and/or breakage can be promptly performed.

Each part of the fastening mechanisms on the bike should be carefully inspected and a preventive and periodic general check performed of the correct tightening of the self-tightening nuts and fastening screws which may lose their efficiency through use and over time.

CAUTION

All the controls must be checked to ensure they work correctly after every routine maintenance intervention.

Maintenance notes

Every maintenance job must take place with the battery disconnected.

During each maintenance phase operators must be equipped with the necessary accident prevention equipment.

The tools used for maintenance must be suitable and good quality.

Do not use petrol or flammable solvents as cleaning agents but always use non-flammable and non-toxic solvents.

Limit the use of compressed air as much as possible and protect yourself with goggles with side shields.

Never use naked flame as a means of lighting when carrying out checks or maintenance work.

After each maintenance or adjustment job ensure that no tools or foreign bodies remain inside the organs of movement of the assisted pedal bike.

This manual does not include detailed information about disassembly and unscheduled maintenance as these operations must always and exclusively be carried out by the after-sales service team of the authorised dealer.

The after-sales service team is able to provide all the necessary information and respond to any queries in order to care for and keep your electrically power assisted cycle in perfect working condition.

Cleaning

Cleaning the electrically power assisted cycle is not only a matter of decorum, but also allows any defects to be detected immediately.

The battery must be detached and removed in order to wash the bike, preferably using a sponge and/or a soft cloth and water, with the possible addition of a specific neutral detergent and taking particular care when handling the electronic parts.

It is strictly forbidden to aim pressurised water jets at the various electrical parts, the motor, display and battery. After washing, it is important to dry all the washed components, as well as the frame and the braking surfaces of the rims, with a second soft cloth and/or dry everything completely with low pressure compressed air and check that there is no residual moisture on the electrical components.

If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth.

Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage.

DANGER

All the cleaning operations of the electrically power assisted cycle must be performed with the battery removed.

Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.

Preservation and storage

If the electrically power assisted cycle needs to be stored and will not be used for extended periods of time, it must be kept in a dry, cool, closed space, that is ventilated if possible. The following operations should also be carried out:

• Carry out a general cleaning of the electrically power assisted cycle.
• Remove the battery supplied with the electrically power assisted cycle from its seat and, after disabling it using the relevant key or switch (if present), store it in a dry place, away from flammable materials (e.g. materials that could catch fire), preferably at an internal temperature of 15 - 25^ , never lower than 0^ or higher than +45^ . Periodically charge the battery to prevent the voltage level from dropping excessively, causing the risk of damage and loss of efficiency.
• Protect exposed electrical contacts with antioxidant products.
• Grease all surfaces not protected by anti-corrosion paints or treatments.

CAUTION

Do not keep or store the bike outdoors or inside a vehicle for a prolonged period of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.

Lifting

The weight of the electrically power assisted cycle means it must be lifted by two adults taking extra care to avoid the risk of personal harm (crushing and injury) or damage to property (knocks and impacts).

DANGER

Transportation

To ensure the safe transportation of the electrically power assisted cycle inside or outside the vehicle used for transportation (e.g. bicycle rack), remove the battery and any accessories and ensure that the bike is properly secured (with straps or cables) and hooking devices in good condition and installed so the frame, cables and other parts of the product are not damaged. It is the user's responsibility to ascertain the suitability of the equipment used to transport the bike by fitting and installing devices (e.g. bike racks) in accordance with the legal requirements of the country in which it is ridden.

CAUTION

The manufacturer is not liable for any breakages caused by lifting and/or transporting the electrically power assisted cycle after delivery.

10. Liability and general terms of warranty

The rider assumes all liability for any injury when not wearing a helmet or other protective devices.

The driver must respect current local regulations regarding:

1. the minimum age allowed for the driver,
2. restrictions on the types of drivers who can use the product
3. all other regulatory aspects

The driver must always keep the product clean and in a perfect state of efficiency and maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.

M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:

• the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
• following purchase, the item is modified or tampered with in all or some of its components.

In case of malfunction of the product for reasons not attributable to improper behaviour of the driver and in case you want to consult the general terms of warranty, please contact your dealer or visit the website www. argentobike.it

The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in non-compliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.

For example, the following are to be considered excluded from the statutory guarantee regarding products:

• damage caused by impacts, accidental falls or collisions, punctures;
• damage caused by use, exposure or storage in an unsuitable environment (e.g. presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances);
• damage caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components;
  the natural wear and tear of consumable materials: mechanical disc brakes (e.g. pads, callipers, disc, cables), tires, stands, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (stand), wiring cable connectors, grilles and stickers, etc.;
• improper maintenance and/or improper use of the bike battery;
• tampering with and/or forcing parts of the product;
• incorrect or inadequate maintenance or alteration of the product;
• improper use of the product (e.g.: excess load, use in competitions and/or for commercial or rental activities);
• maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
• damage to the products resulting from transport, if carried out by the purchaser;
• damage and/or defects resulting from the use of non-original parts.

We recommend that you consult the most up-to-date version of the warranty terms and conditions available on the website www.argentobike.it/assistenza/

11. Information on disposal

Handling of the electrical or electronic device at the end of its service life (applicable in all European Union countries and in other European systems with separate collection systems)

This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).

By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal.

Recycling materials will help to preserve natural resources.

For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:

• By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where available.
• By taking it to shops selling new electrical and electronic equipment.

Very small WEEE items (with the longest side less than 25cm ) my be deposited here free of charge, while larger WEEE items may be deposited on a 1-for-1 basis, i.e. by depositing an old product when purchasing a new one with the same functions.

Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.

In the event of unlawful disposal of electrical and electronic equipment, specific sanctions may be applied by the laws governing the protection of the environment.

If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.

Handling of spent batteries (applicable in all European Union countries and in other European systems with separate collection systems)

This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.

The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. In the case of products which, for safety, performance or data protection purposes require a fixed connection to an internal battery, this should only be replaced by qualified service personnel.

Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.

For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

No Change in the design of vehicles. No changes in the design of vehicles.

Negativeweverificatie

beschikbare opties = on / off

aolal jlaall bgrgagul gannll .10

jaiy jiyu ologoo .11

puiy

aolull oalssll a>jj

.11110syl

g l eabio 3 g jgally Jdolal jalal bgs Jc Ebl Jjog oJdclssll aJl JloglaJ

www,argentobike.it gagol oJy j

dolc logdo

.(EPAC) 0j jssll awlglly oosg joll aylrgsll a>JwI wI g Ioo J> JU U

.4a y 10g jy g 10gag g a l l o k d l l o gdo sssssssssssssssssssssssssssssss

y

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.1

J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J.

www,argentobike.it gogolj y jy jlll lal jlll

a

aalil jglgag gaglll

oJuswyljIy jgilabglo

a j g j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

.45 1y jg jg jg jg jg jg jg jg jg jg jg jg jg

aJk

/15 1111 1111 1111 1111 1111 1111 1111 11

.0jzaoall aawgwl yodgajll ayjw jy gaoall o

a

.0g 1/9 8j00l jy 0000000000000000000000000000000000000000

a..ol jblol

aalalalalalalalalalalalalalalalalalalalalal

aIg 1yI JrJ .2

aJb aolg

a 1

J 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.

g 100000000000000000000000000000000000000000000

g l g aalw al g aal waaa aal aal aal aal aal aal aal aal aal aal aal aal

.5r

(A) 70 jai gai I J A n jgogall

ojjaaal aawgully oogjol al yjss

.1J 1

a 1

ooaaaogg yodgjall aayy jaiy jaiy aaiy ayaiy jaiy jaiy

g j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.1J111 111 111 111 111 111 111 111

oojzaoa aolgul ydojgall aoljdl aolwly abjoll aacoll jw no Jaa oal eelb

4

Jgswll

yI 1111111111111111111111111111

.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a

aag aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaa

aJ 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

aai aajgjSlyg aaiyI uigall

Jai Jaaa a jai dIg EN 15194 aJrJlJIa JIa JIa Ic JI (EPAC) ojjjJlA aJgJlJydd

.bosolgosa

Jg 1111111111111111111111111111111

glll gagg lglalg daaaall jai

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

.

Jnnnnaaannnnn

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.oojjs

y 3 aolduaow oJzgall aIgdl ydgjll aIyrgkll aIydrn no Jldgall Ie gaaagaaa

山

J 1

.（gglgclzaiyioi gjllcig aabaiolrgc ybjbcbw）agssallrgdaiiaillrgeol01c

S GHS = S HHS + S_ HHS

jcbwJ 1g

.

JUJU

（）

yUJ .

juxuoyl jaoi0slo gao joualoo

yIg aerll lalj Jc yRgol alwll no yjBll jdcll oaiyll cJr g

.

gj c 100

oludwyl ayb

.1wglJ 1yI yI yI gIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIg

g k 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.（sollg）sslllglgwlal，galljdooggolssllglal，aylal

gJ kJ j 1 (PAS) aIwJll JI J I J J J J J J J J J J J J J J J J J J J J J J J J J J J

.（a）dallgoggagll aabwglgdoaaeessssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

2002/24/EC 1g j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

25 1000000000000000000000000000000000000000

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

a aallll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll llll l ll

. 1

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

g2gawall acjwll

aclw/ps25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 10000000000000000000000000000000000000000000000000000000000000000000000000

all sb

aclw/25 25 25 a c j w ojjjwll a wlgjll oogjll a lglg jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl g jl

Jusyj

(1) (2) (3) (4)

4g0°40+:1g2gawal sgaal 0rJd

a1gw0^2c0 = 12 b0

%80:la cgaalall gaaalll a

. 1500 300 jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

olulwglgogawllnolulw

aJrll "s wll oolw" aegoll yloaiu uol kll glll bai jn Jy caii lygall ooi aogall cclj lglb jax. .jjzall awlgjly odgjll

:labò

J 11 J 11 11 11 11 11 11 11 11 11 11 11

AD = 2

jti ojjzall awlgll odg jall aylr jal ald .

gai jjgl gai jgi jrgjrlg jgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgljgl

LgS g/9 JU

aayy yia aaiy yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay yaaay

.

aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaa

20

(....) 1000000000000000000000000000000000000000000000000000000000000000000000

alxwI 1aI alwI aI I bwgio 6:AVG 6.

（clwJgglacw/05）

ALJxWlclalwllgwsallcwrj:MAX7.

(aclwJy Jglaclw/0s)

(10 g,5) aegbaaill jgJlalll 8:TRIP 8.

(jg) aegbaal aJlll aluol:ODO 9.

Jdclalol jol gaiol go gaiol rallg .10

(ECO-STD-Turbo)

aBlll jxssg .11

.3 3 1/1

Juslloxuogua Jusl

.1JdL 0000000000000000000000000000000000000000

.(Assist) 5 g 1 aall jll lal all jlll oclw alg w

(1)

(gwllol lcll yg-g -dall odl) dylall no jolgl bwgqalbgykll acll b3 g2 odcllalg

.（gj 594dclwll

aJgall no ggyll aill buiu daiu 0 gguill jiu

jssll b

jss sss jss ss aagg jaaa jao - jll gll yraaall go bss o 0 ggl sy ll lldy ddoe eae ggs

aclw/6 6 aJUgauu uu Uu

jll jcbaaall gbaa ybr sb aabgll bss

4

a aal lal alal aal o do go aal lal aal blll g r gss s s s s s s s s s s s s s s s s

J

gul g rrrr 1 1 1 1 1 1 1 1 1

:JU

aalal aluswll lblg gby jylyl plao ygo aalall calsgss siae daa oj sb g gall ay blln

JJIJI Jc g aI aI aI aI aI

.（jLw4/3J5oo1JalJC）aIgobjoljjzall

g lgs> g aall jn y ggi 11111111111111111111111111111111111

aJbIa

1 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

JalalalalgoaIbllno gai jauo Jauo

LbIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

11 g/9 aasall gl/g alsssslll lalps

j_i · j

Jl Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n J n

aJd

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.ooJUy dalsioJI

.

Jolgl aalg g elj yll a li no jaoaall bdo jao

aolal lglggl gglg klll glll glll jol oogwlo bbyy ylll glll eclj y gwrall no n aeeell aga Jol jol no 1000000000000000000000000000000000000000000000000000000000

Lj

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.（gjbjbghg jgjgl gjglg jgai jg jg jclj

.

aIg 9

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.

g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g g

.aaolal 1g31420

Jegol Jedalagglgulg yasll g jilac bai

aagglalalllalacjgol gulalllalldssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

aolaiw l gbg zaiil oaiiwl aiSj 8g s juiu

JolaljIg Jd jgl 10000000000000000000000000000000000000000000

J 1 J

g 100000000000000000000000000000000000000000000

Jg

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.4o o g s j l b b a l b d y

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.

.

JkWj 0yao lq no 1uU a y d a y uauu uuuu uuuu uuuu uuuu

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

y

JU 1

.1aJusil jIoo no aagll J 1o IaLswg

J 1

.

. 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 10000000000000000000000000000000000000000000000000

.1111

3 10000000000000000000000000000000000000000

ajjol aaiil slgo oiaowd

aabaaal a, aaiy bai yaiy lglg lglg g, glll llaaaii 1. aaiy aabai gaii

.aa

J 1

a 1

a 100000000000000000000000000000000000000000000000000000000

Jy

g 10000000000000000000000000000000000000000000000000000

:duuull luee 100, jol j d gglg 1gglg 1j kog a

.0jjzall aolglly odgjolld aylglldole lki jai

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.（albjjgl cldwll）cylg（cluoylg

Jai

Jol: Jlll JIe) Igjgl Jai aiaa oaiy jssd ggs 1s Jds, ojjaaal aylgjbl odjgjll Jll Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

.

(1)J:JLJSSJC) 2j jg jg jg jg jg jg jg jg jg jg jg jg jg

1 1

. 1

.

:Jb y aal lal lal lal lal

1

J 2

yJl 3

gglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglgglg

.

:Jjll jglll jolal Joo Joo Joo

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

C E

Declaration of Conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand:ARGENTO E-MOBILITY

Product Model: MiniMax Red - MiniMax Yellow

Description of product: Electric Bike

Rating: Product: DC 36V, 250W

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating

EU Council Directive 2004/108/EC Electromagnetic Compatibility

EU MD 2006/42/EC Machinery Directive

Test Standards :

EN 15194: 2017

Factory name: QBIKEGREEN EVE S.R.L.

Factory address: SAT BOLBOASA, COMUNA BOLBOSI, NR 159

JUDET GORJ ROMANIA (RO)

Date: 16/11/2020

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Manufacturer: Asiabike Industrial Limited

1. Old Galle Road, Henamulla, Panadura, Sri Lanka.

Authorised representative: Platum By MT Distribution srl

Person authorized to compile the technical file: Jigang Guo

Object of the declaration:

Model code	Generic denomination	Trademark	Serial identification number (s) and/or batch number (s)
AR-BI-220008	MiniMax Red	ARGENTO E-MOBILITY	AR1922XXXXX
AR-BI-220009	MiniMax Yellow	ARGENTO E-MOBILITY	AR2022XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

Directive 2006/42/CE on machinery.

Directive 2014/30/EU on the harmonization of the laws of the Member States relating to electromagnetic compatibility.

Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Harmonized standards or other technical specifications applied:

EN ISO 12100:2010 EN 63000:2018
EN 15194:2017

Place of issue

Name, function, signature

Alessandro Summa, CEO

PLATUM.COM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DIRENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P.IVA 04177060375 CF 01119840377 REA BO-236546

C E

Declaration of Conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand:ARGENTO E-MOBILITY

Product Model: MiniMax GT

Description of product: Electric Bike

Rating: Product: DC 36V, 250W

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating

EU Council Directive 2004/108/EC Electromagnetic Compatibility

EU MD 2006/42/EC Machinery Directive

Test Standards :

EN 15194: 2017

Factory name: QBIKEGREEN EVE S.R.L.

Factory address: SAT BOLBOASA, COMUNA BOLBOSI, NR 159 JUDET GORJ ROMANIA (RO)

Date: 16/11/2020

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Manufacturer: Asiabike Industrial Limited

1. Old Galle Road, Henamulla, Panadura, Sri Lanka.

Authorised representative: Platum By MT Distribution srl

Person authorized to compile the technical file: Jigang Guo

Object of the declaration:

Model code	Generic denomination	Trademark	Serial identification number (s) and/or batch number (s)
AR-BI-220010	MiniMax GT	ARGENTO E-MOBILITY	AR2122XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

Directive 2006/42/CE on machinery.

Directive 2014/30/EU on the harmonization of the laws of the Member States relating to electromagnetic compatibility.

Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Harmonized standards or other technical specifications applied:

EN ISO 12100:2010 EN 63000:2018
EN 15194:2017

Place of issue

Name, function, signature

Alessandro Summa, CEO

M.T.DISTRIBUTION SRL

Vaeaaee

4012CATEDEPAEIRENOB0

C. F1aF2 + F1bF3 = 4

PB BC.PB = PC

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Manufacturer: Asiabike Industrial Limited

1. Old Galle Road, Henamulla, Panadura, Sri Lanka.

Authorised representative: Platum By MT Distribution srl

Person authorized to compile the technical file: Jigang Guo

Object of the declaration:

Model code	Generic denomination	Trademark	Serial identification number (s) and/or batch number (s)
AR-BI-220014	MiniMad	ARGENTO E-MOBILITY	AR2522XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

Directive 2006/42/CE on machinery.

Directive 2014/30/EU on the harmonization of the laws of the Member States relating to electromagnetic compatibility.

Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Harmonized standards or other technical specifications applied:

EN ISO 12100:2010 EN 63000:2018
EN 15194:2017

Place of issue

Name, function, signature

Alessandro Summa, CEO

M.T. DISTRIBUTION SRL

Vaegeine 126

4012CATEDEPAEIRENOB0

C. F1aF2 + F1bF3 = 4

PB BC.PB = PC

ATTITUDE ON THE MOVE

argentoemobility.com

Argento e-Mobility

argentoomobility

PLATUM

Shaping urban e-mobility

Imported and distributed by

M.T. Distribution Srl

via Bargellino 10 c/d, 40012
