USER MANUAL SM 6860 GRUNDIG

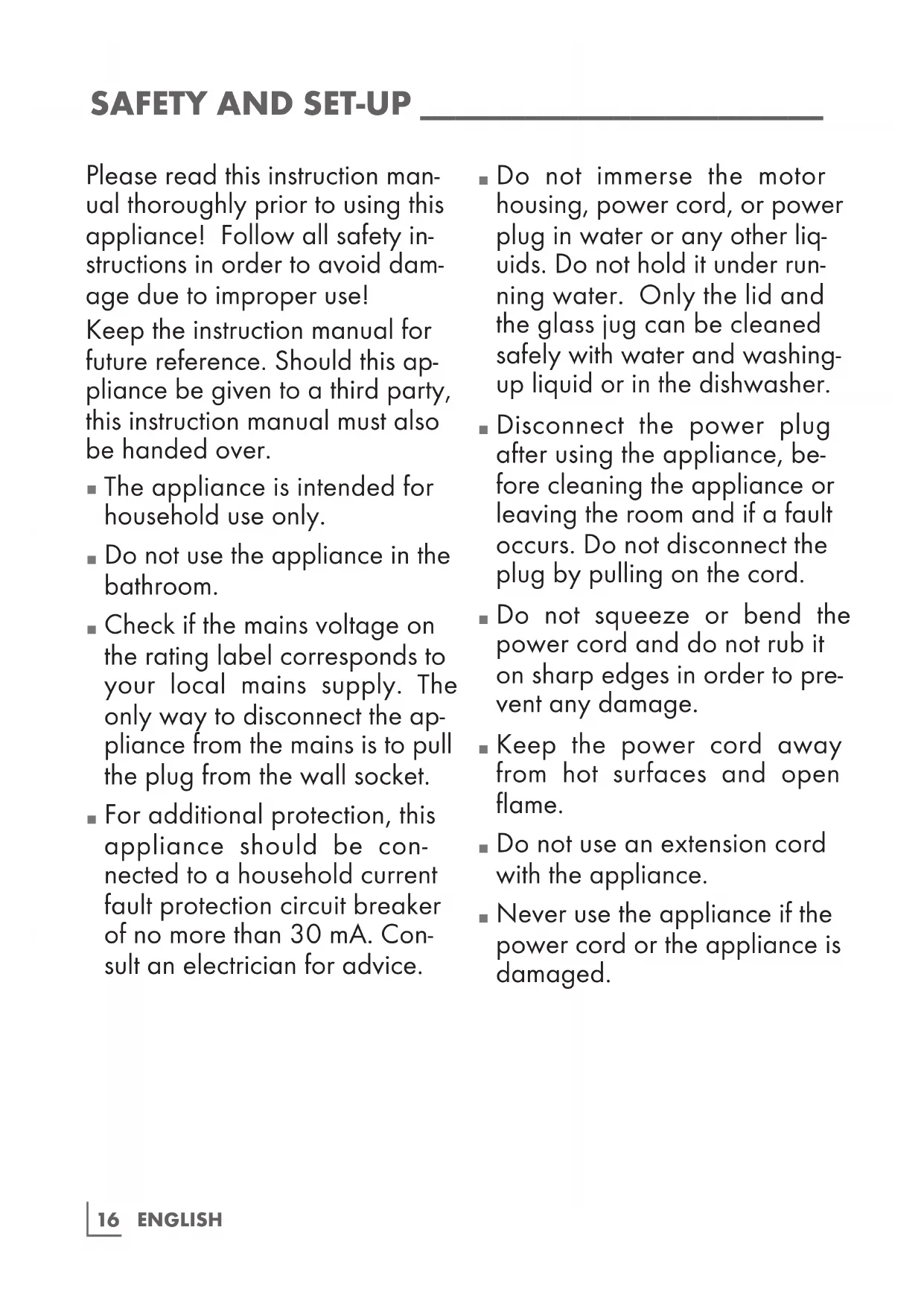

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, this instruction manual must also be handed over.

The appliance is intended for household use only.
- Do not use the appliance in the bathroom.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull the plug from the wall socket.
For additional protection, this appliance should be connected to a household current fault protection circuit breaker of no more than 30mA . Consult an electrician for advice.

• Do not immerse the motor housing, power cord, or power plug in water or any other liquids. Do not hold it under running water. Only the lid and the glass jug can be cleaned safely with water and washing-up liquid or in the dishwasher.
• Disconnect the power plug after using the appliance, before cleaning the appliance or leaving the room and if a fault occurs. Do not disconnect the plug by pulling on the cord.
• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.
• Keep the power cord away from hot surfaces and open flame.
• Do not use an extension cord with the appliance.

• Never use the appliance if the power cord or the appliance is damaged.

• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by an authorised service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
• Keep the appliance and its cord out of reach of children.
  The appliance should not be used by the following persons, including children: those with limited physical, sensory or mental capabilities and also those with a lack of experience and knowledge. This does not apply to the latter if they were instructed in the use of the appliance or if they use it under the supervision of a person responsible for their safety.
  Children should always be supervised to ensure that they do not play with the appliance.

This appliance cannot be used by children.
Before using the appliance for the first time, clean all parts which come into contact with food carefully.
- Never operate or place any part of this appliance on or near hot surfaces such as a gas burner, hotplate or heated oven.
- Do not use the appliance for anything other than its intended use.
- Never use the appliance in or near to combustible or inflammable places and materials.
- Do not use the appliance with damp or wet hands.
Always use the appliance on a stable, flat, clean, dry, and non-slip surface.
Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
- Position the appliance in such a way that the plug is always accessible.

The blade unit is very sharp! Handle the blade unit with utmost care, especially during cleaning, in order to avoid injuries.
- Do not use the appliance if the blade unit is damaged or shows signs of wear.
- Never clean the appliance with your bare hands.
- Never try to use the appliance without the lid.
- Do not attempt to remove the lid until the blades have completely stopped.
A spatula may be used to remove the ingredients from the glass jug. The appliance must be switched off before doing this.
- Never operate the appliance for longer than necessary for processing the food.
- Remove bones and stones from food to prevent the blade unit and the appliance from being damaged.

This appliance is only intended for short periods of use and should only be in continuous use for maximum 1 minute. After use, let the appliance cool down sufficiently.
- Do not crush big pieces of ice cubes with the appliance, crush only small ice cubes.
- Switch off the appliance and disconnect it from mains supply before changing accessories or approaching parts that move in use.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Jug Blender SM 6860.

Please read the following user notes carefully to ensure full enjoyment of your quality GRUNDIG product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous

waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

Controls and parts

See the figure on page 3.

A Measuring cup
Feeding chute
C Lid
D Glass jug
E Jug handle
F Blade unit
G Motor housing
H Control dial
Non-slip feet
J Cable storage coil
Fruit filter

Caution

• Switch off the appliance and disconnect it from supply before changing accessories or approaching parts that move in use.
• Do not remove the blade unit by lifting it from the blades.
  The blade unit is very sharp! Handle the blade unit with utmost care, especially during cleaning, in order to avoid injuries.

Notes

Make sure that the notches on the bottom of the glass jug fit those in the motor housing.
- Add water to ensure the jug blender functions smoothly.
Mix 3 units of hard food and 2 units of water in order to have a smooth jug blender experience. (i.e: 60 gr hard food 40 ml water)

Caution

• Do not put or blend hot food or liquids in the glass jug. If you process soup, make sure that the liquid temperature does not exceed 40^ .
  To process crushed ice, we suggest you to start with three quarters of ice in the jug and add 15 ml of cold potable water.
• Don't try to crush ice without adding water to the jug.
• Never let the jug blender operate while empty (without food).
• Never let the jug blender operate without the glass jug on the motor housing.
• Never move or turn the glass jug after it is properly seated in the place.
  If you want to blend with a higher speed, turn the control dial to the desired speed level (3).
  For short pulses of blending with a high speed, turn the control dial to "P". When you release the control dial, the blender will stop and return to "0" automatically.
  If ingredients are to be added during the blending process, then add them through the opening

in the lid B. To do this, take out the cap/measuring cup A.

• Never run the blender for longer than 1 minute, otherwise it would overheat.
  After running the appliance for 1 minute, let it cool down before using it again.
• Be sure the motor is switched off and has completely stopped before removing the glass jug D from the motor housing G.
• Do not place any utensil (scraper, fork, etc.) in the glass jug while blender is operating.

Cleaning and care

Caution

• Never use petrol, solvents, abrasive cleaners, or metal objects and hard brushes to clean the appliance.
  Never clean the blades with your bare hands.
  Clean the jug blender after each use. Do not let any food remnants harden on and inside the jug blender. This will make it more difficult to clean it later.
• Do not use boiling water. The blade assembly bearings have been designed with a lifetime lubricant; exposure to boiling water may damage these bearings and shorten the life of the blender.

Note

• Do not immerse the motorized base or blade unit in liquid, or place them in the dishwasher. Only the lid, fruit filter and the glass jug may be immersed in water and placed in the dishwasher.

Tips for blending

To add ice cubes to mixtures while the blender is operating, add one cube at a time through the cap A. Wait a few seconds before adding the next ice cube so that the blender can properly blend the ice.
To add food while the blender is operating, remove the cap A and drop the ingredients through the opening. Be sure to cut the food into about 2-5 cm pieces to fit through the opening. Replace the cap A when you have finished adding ingredients.
- When blending solid food, such as raw vegetables, cooked or uncooked meat and fruits always cut them into no larger than 2-5 cm pieces before placing them into the glass jug. Blend no more than 2 cups of these food at a time. This will speed the blending process and reduce wear on the blending blades.
Always place liquid ingredients in the glass jug first, unless a recipe specifically states otherwise.

To blend beverages, place all ingredients in the glass jug at the same time.
Avoid overblending. Usually, you will need to blend for a few seconds.
Overblending may cause food to become mushy.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electri

cal and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Envi

ronment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220 - 240V~, 50-60 Hz

Power: 600 W

Technical and design modifications reserved.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure the appliance is unplugged and completely dry.
Store the appliance in a cool, dry place.
Make sure the appliance is kept out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
