USER MANUAL BL 7680 MBC GRUNDIG

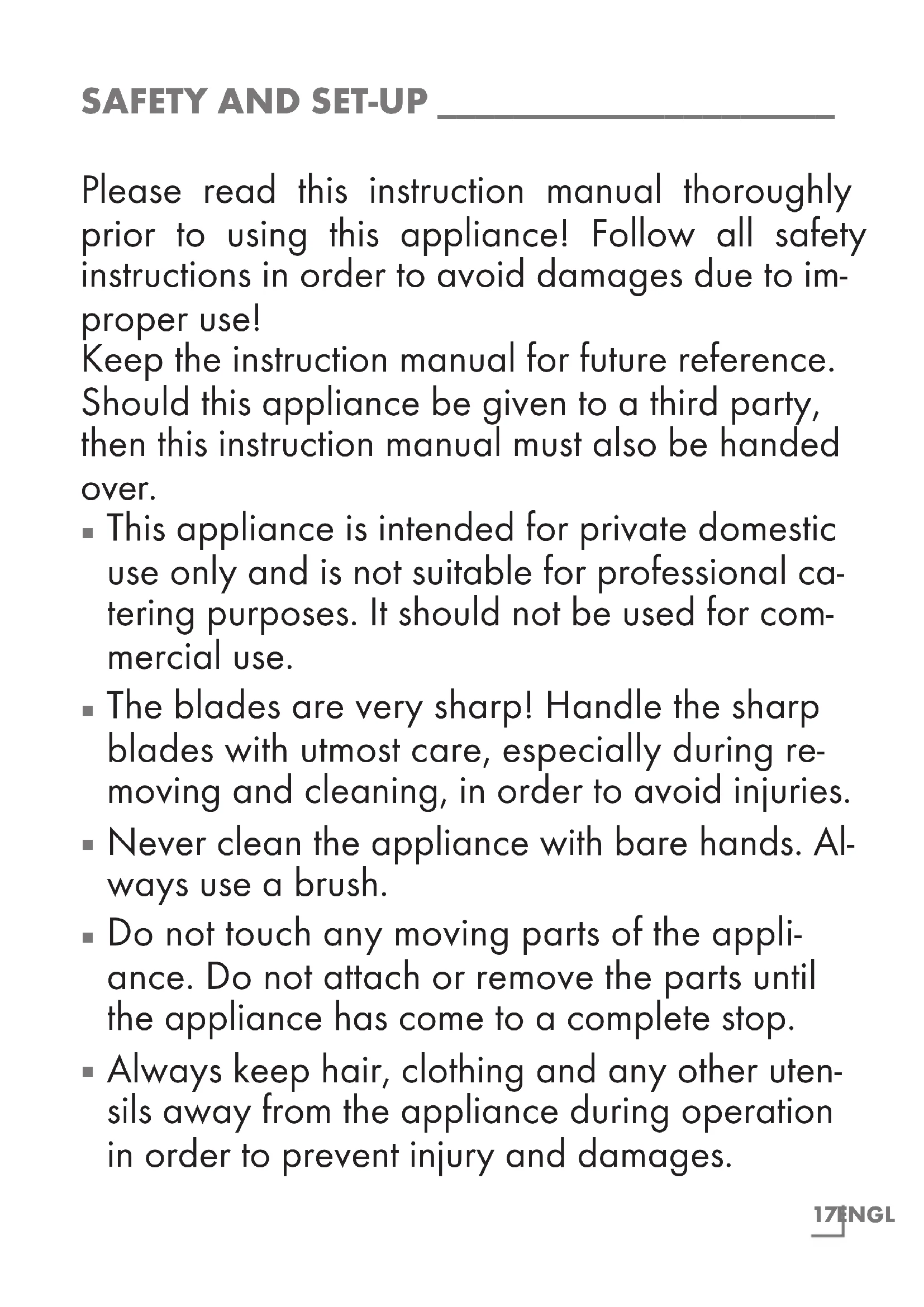

A responsible approach!

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!
Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.
- This appliance is intended for private domestic use only and is not suitable for professional catering purposes. It should not be used for commercial use.
- The blades are very sharp! Handle the sharp blades with utmost care, especially during removing and cleaning, in order to avoid injuries.
- Never clean the appliance with bare hands. Always use a brush.
- Do not touch any moving parts of the appliance. Do not attach or remove the parts until the appliance has come to a complete stop.
- Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
• Do not wrap the power cord around the appliance.
• For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 ~mA . Consult your electrician for advice.
• Do not immerse the appliance, power cord or power plug in water or in other liquids.
• Always pull out the power plug before assembling the appliance, after using the appliance, before disassembling, before cleaning the appliance, before leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.

• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.

• Keep the cord away from hot surfaces and open flames.

• Do not use an extension cord with the appliance.
• Never use the appliance if the power cord or the appliance is damaged.
• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.

• Cleaning and user maintenance shall not be made by children without supervision.

• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance. Cleaning and maintenance works should not be performed by children.

• Keep the appliance and the power cable out of the reach of children.

• This appliance cannot be used by children.

• Do not leave the appliance unattended as long as it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.
  Before using the appliance for the first time, clean all parts which come into contact with food carefully. Please see details in the "Cleaning and Care" section.

• Dry the appliance and all parts before connecting it to the mains supply and before attaching the accessories.

• Do not operate the appliance without ingredients in the measuring beaker or chopping bowl.
• Never place the appliance, attachments, power cord or plug on hot surfaces such as gas or electric burners or hot oven surfaces and never use with hot liquids or food. Let hot food and liquids cool down to min.
• Do not use the appliance for anything other than its intended use.
• Never switch on the appliance for longer than necessary for processing the food.
• Never use the appliance with damp or wet hands.
• Operate the appliance with the delivered parts only.
• The appliance is designed to process common household quantities only.

• Do not use the appliance if the blades are damaged or show signs of wear.

• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.

• Position the appliance in such a way that the plug is always accessible.
• A spatula may be used to remove the food from the measuring beaker and chopping bowl. Make sure that the appliance is switched off before doing this.
• We do not recommend operating the appliance with dry or hard foods or for ice crushing as this may conclude in dull or damaged blades.
• Remove bones and stones from food to prevent the blades and the appliance from being damaged.

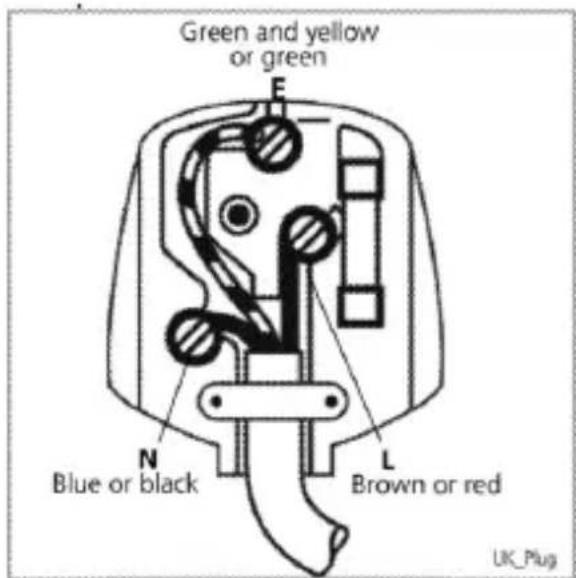

Plug Wiring

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an ASTA approved BS1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover, the plug must not to be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug Fuse covers are availabefrom any good electrical store.

Fiting a different plug
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows:
- Brown cable = L (Live)
Blue cable = N (Neutral)
Green/yellow cable must be connected to ground (E) line
- With the alternative plugs a 13 A fuse must be fitted either in the plug or adaptore or in the main fuse box. If in doubt contact a qualified electrician.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Hand Blender BL 7680 MBC.

Please read the following user notes carefully to ensure full enjoyment of your quality product from GRUNDIG for many years to come.

Controls and parts

See the figure on page 3.

A Speed button
B Start button
C Turbo button
D Motor unit
E Measuring beaker
F Blending attachment
G Scratch protection for pots

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We

also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

Notes

Cut the food into small pieces before processing it with the appliance.
To prevent the ingredients from splashing, do not press the Start button B or Turbo button C until the blending attachment has been immersed in the ingredients.
While using the turbo button all speed indicator LEDs illumina
The processing time for about 100-400 ml of baby food or soup is 20 seconds.
Always switch off the appliance before taking out the processed food.
- Never switch on the appliance for longer than necessary for processing the food.
To prevent overflowing of the mixture do not overfill the measuring beaker E or bowl. Smaller amounts are easier to process.
If you would like to use the blending attachment directly in the pot, first take the pot off the stove to prevent the blending attachment from overheating.

Cleaning and care

Caution

• Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
• Do not touch the blades with your bare hands. The blades are very sharp. Use a brush!
• Never immerse the motor unit or power cord in water or any other liquids and never hold them under running water.

Note

Before using or storing the appliance after cleaning, dry all parts carefully using a soft cloth.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure the appliance is unplugged and completely dry.
Store the appliance in a cool, dry place.
Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply:

220-240 V\~, 50/60 Hz

Power: 850 W

Technical and design modifications reserved.

Please see the cover page of the user manual for initial use, general use and cleaning sections.
