USER MANUAL HE Break R-Go Tools

RGOHBRSWLBL, RGOHEWL, RGOHEWLL

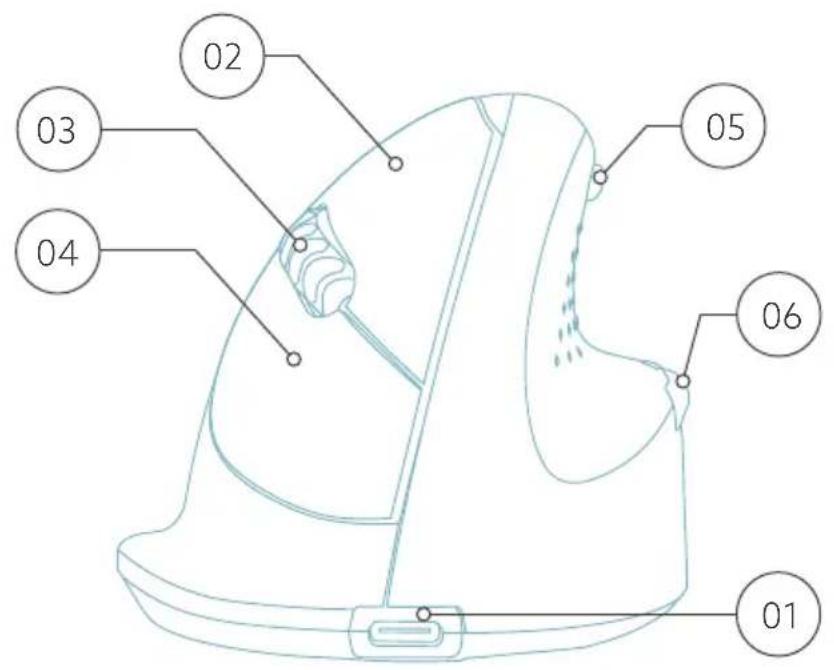

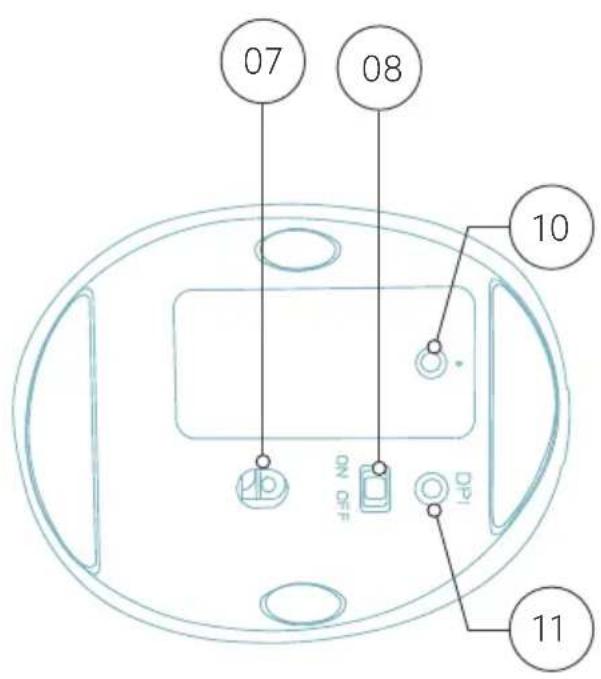

RGOHELAWL, RGOHELELAWL R-Go HE Break English manual p.2 Deutsche Anleitung p.14 Manuel en français p.26 Nederlandse handleiding p.38 Polski podręcznik p.50 Manual en español p.62 Manual em português p.74 Manuale italiano p.86 Svensk manual p.982 small | medium | large Bluetooth connection left | right ergonomic mouse RGOHBRSWLBL, RGOHEWL, RGOHEWLL, RGOHELAWL, RGOHELELAWL R-Go HE Break3 Contents Product overview 5 Setup 5 R-Go Break 11 Maintenance 12 Troubleshooting 134 Congratulations with your purchase! Our ergonomic R-Go HE mouse has a vertical grip that ensures a natural, relaxed position of your hand and wrist. The mouse stimulates movements from the forearm instead of the wrist, which prevents RSI. This comfortable mouse supports your thumb and fingers and is as lightweight as possible, hereby reducing the muscle tension. HE is the way to a healthy life! #stayfit System requirements/Compatibility: Windows XP/Vista/10/11, MacOS For more information about this product, scan the QR code! https://r-go.tools/hewireless_web_en5 Product overview 01 Connection for charging cable 02 Left (primary) button 03 Scroll wheel 04 Right (secondary) button 05 Forward (not for MacOS) 06 Backward (not for MacOS) 07 Sensor 08 On/off button 09 USB cable (for charging only) 10 Pair button 11 DPI button 12 Bluetooth dongle

• Right version is shown in these illustrations

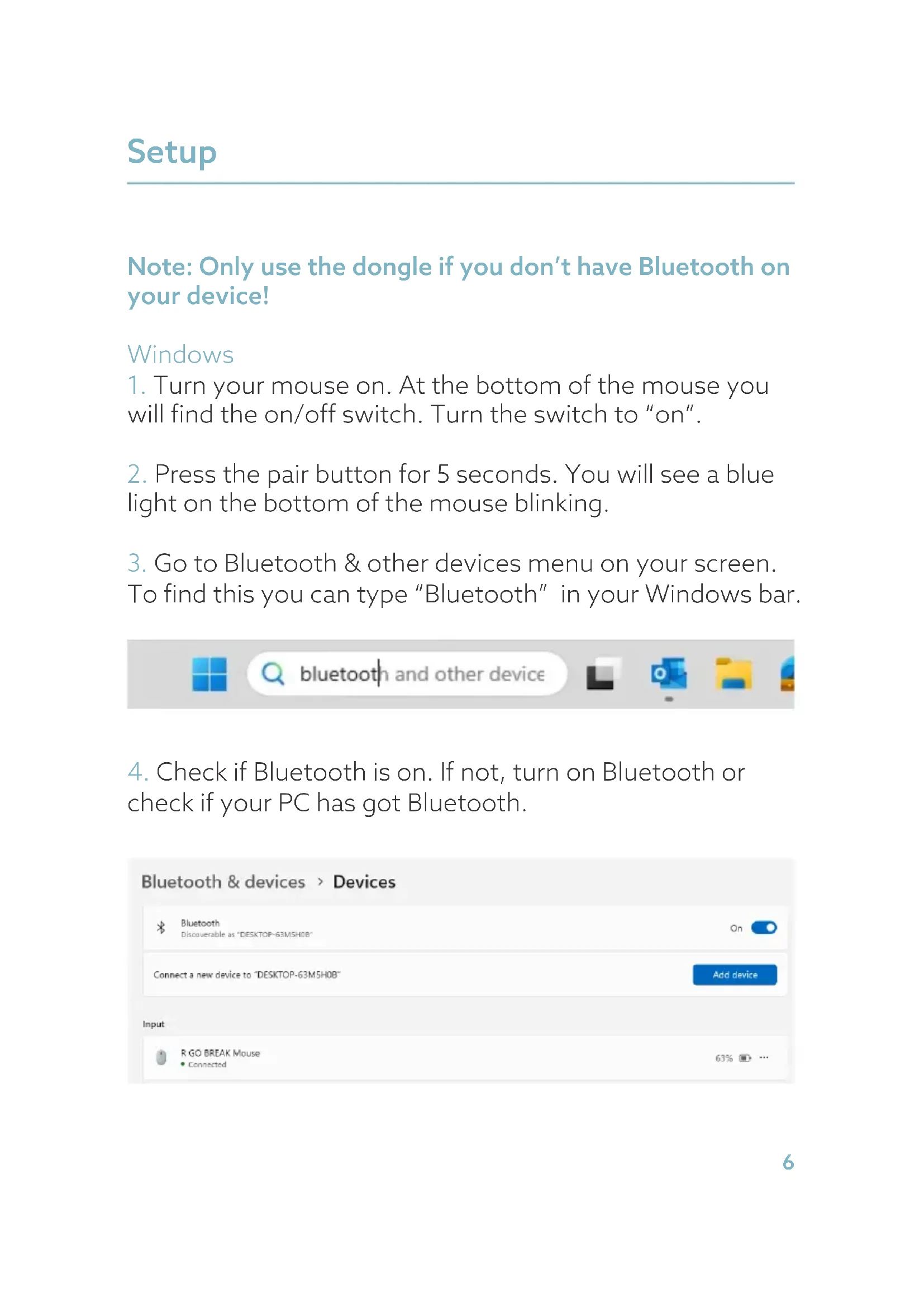

Setup Note: Only use the dongle if you don’t have Bluetooth on your device! Windows

1. Turn your mouse on. At the bottom of the mouse you

will find the on/off switch. Turn the switch to “on”.

2. Press the pair button for 5 seconds. You will see a blue

light on the bottom of the mouse blinking.

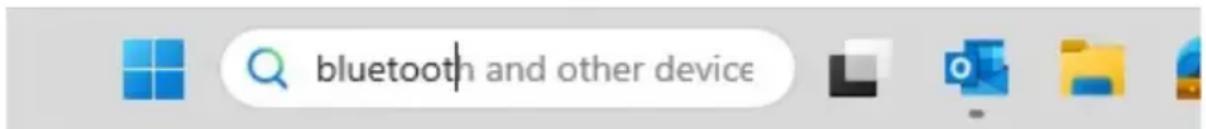

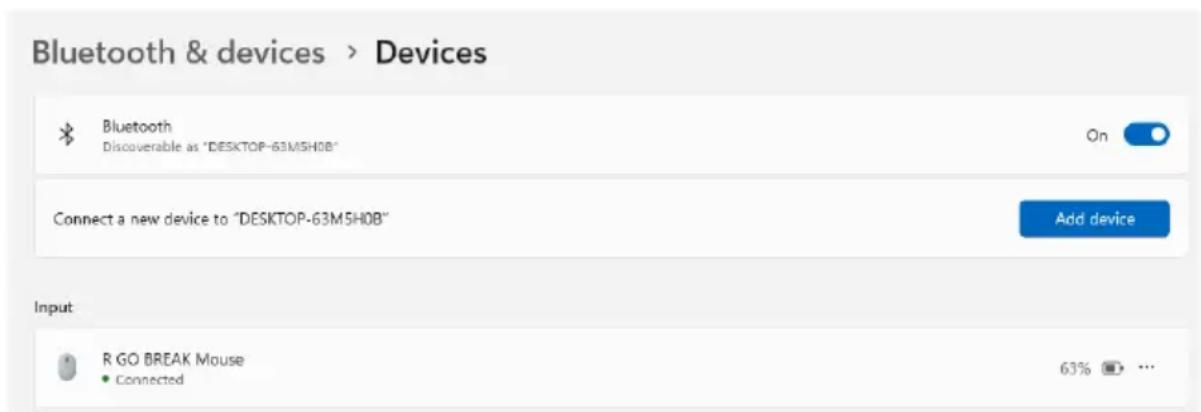

3. Go to Bluetooth & other devices menu on your screen.

To find this you can type “Bluetooth” in your Windows bar.

4. Check if Bluetooth is on. If not, turn on Bluetooth or

check if your PC has got Bluetooth.7 Setup

5. Add device and click on ‘Bluetooth’. Select your mouse.

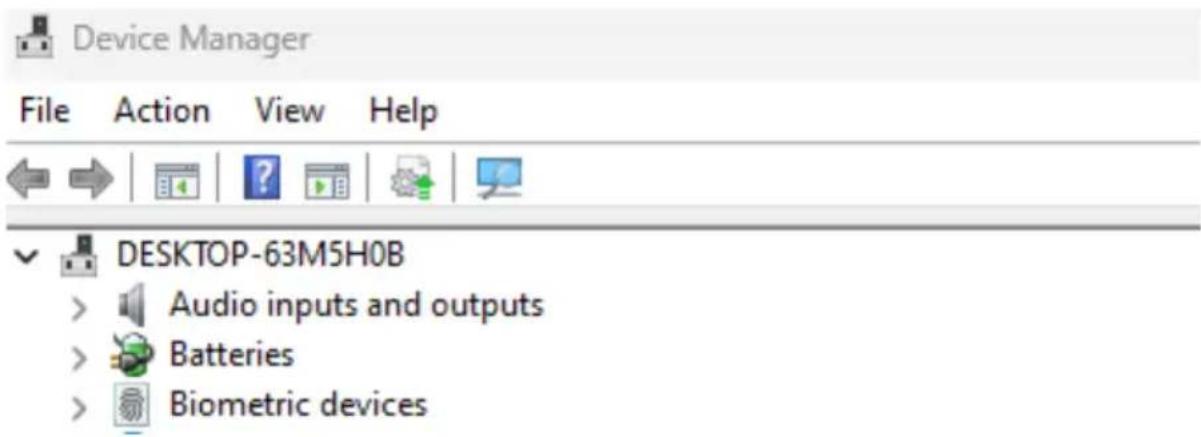

The mouse will connect to your PC/laptop. To check if your PC has got Bluetooth, type ‘device manager’ in the Windows bar at the bottom of your screen.8 Setup You will see the following screen (see picture). When your PC doesn’t have Bluetooth, you won’t find ‘Bluetooth’ in the list. You won’t be able to use Bluetooth devices. Only if you don’t have Bluetooth, you can use the bluetooth DONGLE provided. When you plug the dongle into the PC, ‘Bluetooth’ appears in the device manager. Check that this is OK (and there are no warnings in the form of yellow exclamation marks: solve this first by following Windows’ recommendations). Then reboot the PC and add the mouse as explained from step 5.9 Setup Mac

1. Turn your mouse on. At the bottom of the mouse you

will find the on/off switch. Turn the switch to “on”.

2. Press the pair button for 5 seconds. You will see a blue

light on the bottom of the mouse blinking.

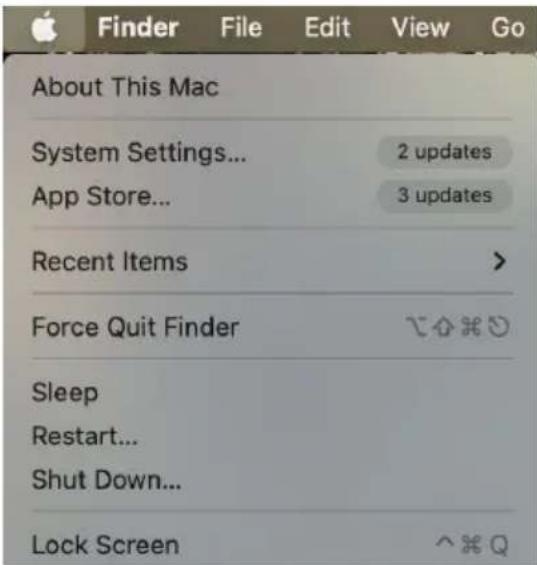

3. Go to Bluetooth on your screen. To find this you click on

the Mac icon in the upper left and go to System settings.10

4. Check if Bluetooth is on. If not, turn on Bluetooth or

check if your PC has Bluetooth. Setup

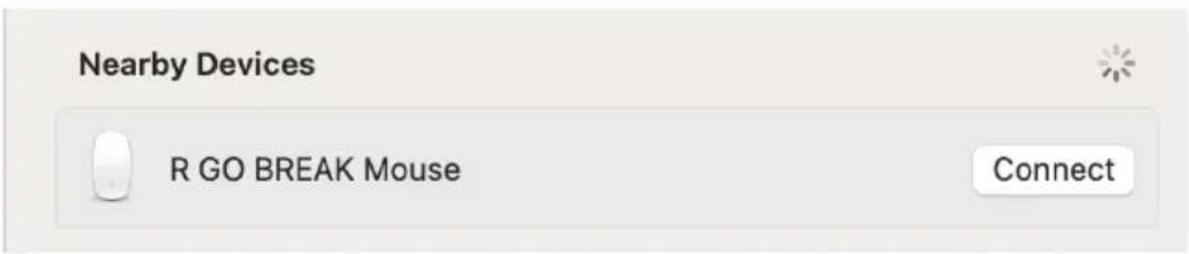

5. Scroll down to ‘Nearby Devices’ and click Connect.11

R-Go Break Download the R-Go Break software at https://r-go.tools/bs The R-Go Break software is compatible with all R-Go HE Break mice and keyboards. It gives you insight into your work behaviour and gives you the possibility to customize your mouse buttons. The R-Go Break is a software tool that helps you to remember to take breaks from your work. As you work, the R-Go Break software controls the LED light on your Break mouse or keyboard. This break indicator changes color, like a traffic light. When the light turns green, it means you are working healthily. Orange indicates that it is time for a short break and red indicates that you have been working too long. This way you receive feedback on your break behavior in a positive way. For more information about the R-Go Break software, scan the QR code! https://r-go.tools/break_web_en12 Maintenance

• Do not bring the mouse in contact with water. Water could damage the electronic parts inside the mouse. To clean the mouse, disconnect the device from your PC. Do not clean the mouse with alcohol or with water and soap. This will damage the coating of the mouse. If you want to clean the mouse, use a water-based damp cloth.

• Do not remove any of the rubber parts on the bottom of the mouse. You will not be able to place them back and your mouse will not move smoothly as before.

• Do not obstruct the laser on the bottom of the mouse.13 Troubleshooting Is your mouse not working properly, or do you experience problems while using it? Please follow the steps mentioned below.

• Check if the mouse is connected properly (page 6-10).

• Click the ‘Pair’ button on the bottom of the mouse to start the pairing process. Check if the device appears on the screen. If it does not appear, restart your computer.
