USER MANUAL SRU3030 PHILIPS

Instructions for use

D Bedienungsanleitung

NL Gebruiksaanwijzing

I Quick, Clean & Easy Setup www.philips.com/urc

Instructions for use

Congratulations on your purchase of the Philips SRU 3030 universal remote control. After installing the remote control you can operate a maximum of 3 different devices with it:TV, DVD player/recorder and VCR. You can find information about how to prepare this remote control for use in the chapter ‘Installing the remote control’.

2. Installing the remote control

Inserting the batteries 1 Press the cover inwards and slide it in the 2 3

direction of the arrow.

Place two AAA type batteries into the battery compartment, as shown. Slide the cover back and click it firmly into place.

Testing the remote control

The remote control has been programmed to operate most Philips devices. Because the SRU 3030 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your device responds to the SRU 3030.The example below (TV) instructs you how to do this.You can repeat the same steps for other devices (DVD player/ recorder and VCR) which you want to operate using the SRU 3030. Example of TV: 1 Turn your TV on manually or use the original remote control. Tune to channel 1. 2 Press the TV key to select TV. Press the key until it lights up. – If the key does not light up, check whether the batteries are properly inserted (see ‘Inserting the batteries’).

Check whether all the keys are working.

For an overview of the keys and their functions see ‘3. Keys and functions’. If the TV responds as it should to all of the key commands the SRU 3030 is ready for use.

Instructions for use

If the device does not respond at all or not to all of the key commands, follow the instructions under ‘Setting the remote control’, or for online setup go to: www.philips.com/urc.

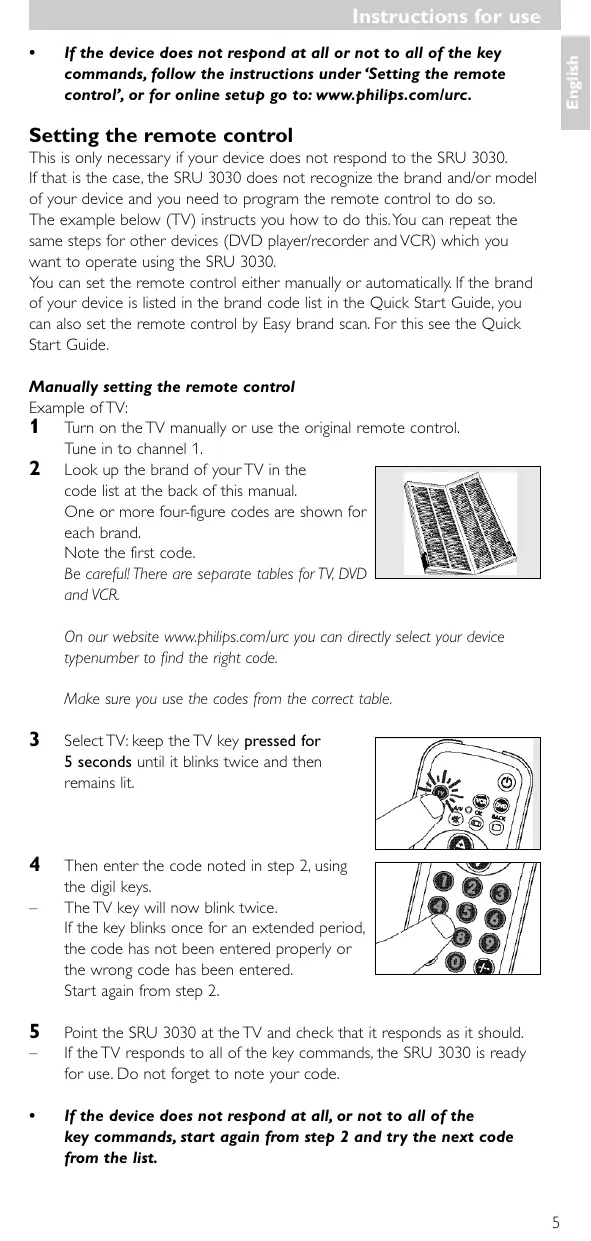

Setting the remote control

This is only necessary if your device does not respond to the SRU 3030. If that is the case, the SRU 3030 does not recognize the brand and/or model of your device and you need to program the remote control to do so. The example below (TV) instructs you how to do this.You can repeat the same steps for other devices (DVD player/recorder and VCR) which you want to operate using the SRU 3030. You can set the remote control either manually or automatically. If the brand of your device is listed in the brand code list in the Quick Start Guide, you can also set the remote control by Easy brand scan. For this see the Quick Start Guide. Manually setting the remote control Example of TV: 1 Turn on the TV manually or use the original remote control. Tune in to channel 1. 2 Look up the brand of your TV in the code list at the back of this manual. One or more four-figure codes are shown for each brand. Note the first code. Be careful! There are separate tables for TV, DVD and VCR. On our website www.philips.com/urc you can directly select your device typenumber to find the right code. Make sure you use the codes from the correct table.

Select TV: keep the TV key pressed for

5 seconds until it blinks twice and then remains lit.

Then enter the code noted in step 2, using the digil keys.

The TV key will now blink twice. If the key blinks once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.

Point the SRU 3030 at the TV and check that it responds as it should.

If the TV responds to all of the key commands, the SRU 3030 is ready for use. Do not forget to note your code. If the device does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

Instructions for use

Automatically setting the remote control

The remote control will now automatically search for the right code for your device. Example of TV: 1 Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1). • If the device is a DVD-player/recorder or video recorder, insert a disk or tape and start playback. 2 Select TV: keep the TV key pressed for 5 seconds until it blinks twice and then remains lit.

Press the Standby key of the SRU 3030 and keep it pressed.

The SRU 3030 now starts emitting all known

‘TV off ’ signals, one by one. Each time a code is sent, the TV key lights up.

When your TV switches off (stand-by), immediately release the Standby key of the SRU 3030.

The SRU 3030 has now found a code that works on your TV. Check if you can operate all functions on your TV with the SRU 3030.

If this is not the case, you can redo the automatic setting.

The SRU 3030 will then search for a code that works better.

After the SRU 3030 has run through all the known codes, the search will stop automatically and the TV key stops blinking.

Automatic programming of a TV takes a maximum of 6 minutes. For DVD and VCR this time is 2 minutes.

3. Keys and functions

The illustration on page 3 gives an overview of all keys and their functions. 1 y Standby. . . . . . . . . switches TV,VCR or DVD on or off. 2 Easy brand scan. . . switches between normal operation mode and Easy brand scan mode (press with pen or paperclip). Also see ‘Quick Start Guide’. 3 MENU / . . . . . . . DVD: - switches the disc menu on and off. - pressed together with SHIFT 6: enters the system menu. TV: - switches teletext on/off. - pressed together with SHIFT 6: opens the TV menu. 6

Instructions for use

A/V / s . . . . . . . . . . . - mutes the sound of the TV.

- pressed together with SHIFT 6: selects external Audio/Video inputs, connected to the SCART connector(s) of your equipment (A/V function). OK / . . . . . . . . . . . TV: - selects wide screen TV (16:9). - pressed together with SHIFT 6: confirms your selection. VCR: opens showview. BACK / . . . . . . . . - jumps back one level in the menu or turns off the menu. - switches text TV off. 4 - VOL + . . . . . . . . . . . - adjusts the TV volume. - pressed together with SHIFT 6: cursor left, right in a menu. 5 Digit keys . . . . . . . . . direct choice of channels and tracks. 6 SHIFT . . . . . . . . . . . . for extra functions. When pressed at the same time as a second key, the second key will get another function. All blue labelled keys can be used together with SHIFT. For example: SHIFT + 2 . . . . . . . . opens electronic TV program guide. SHIFT + . . . . . . . enters TV menu. Try out other combinations with the SHIFT-key on your device in order to find out which functions are available. Only functions featured on the original remote control are available. 7 5 . . . . . . . . . . . . . . . . . TV: red fasttext key. VCR/DVD: searches fast backwards. 2 . . . . . . . . . . . . . . . . . VCR/DVD: starts playback. 6 . . . . . . . . . . . . . . . . . TV: blue fasttext key. VCR/DVD: searches fast forward. 9 . . . . . . . . . . . . . . . . . VCR/DVD: stops playback / recording. TV: green fasttext key. 0 . . . . . . . . . . . . . . . . . VCR/DVD: starts recording. ; . . . . . . . . . . . . . . . . . . TV: yellow fasttext key. VCR/DVD: pause playback / recording. 8 / . . . . . . . . . . . . . . . . selects between one- and two-figure channel numbers. 9 - PROG + . . . . . . . . . - selects a previous or following channel / program. - pressed together with SHIFT 6: cursor up, down in a menu. 0 TV/VCR/DVD . . . . . selects TV, DVD or VCR mode. •

If the device does not respond at all, or not to all of the key commands, follow the instructions under ‘Setting the remote control’. It is possible that you must enter another code for the device.

Instructions for use

4. Extra possibilities

Adjusting device selection (Mode keys) The SRU 3030 is default set for operating TV, DVD or VCR.You can select the device you wish to operate with the TV, DVD and VCR keys. Each key allows operation of one device only. If desired, you can program the keys to select a different kind of device. For example, if you want to operate a second TV. In the following example you will see how to configure the DVD key for a second TV.

Select DVD: keep the DVD key pressed for

5 seconds until it blinks twice and then remains lit.

Then keep keys 1 and 6 on the SRU 3030 pressed simultaneously for 5 seconds, until the DVD key lights up.

Press keys 9, 9 and 2 in that order.

Select TV: keep the TV key pressed for

5 seconds until it blinks twice and then remains lit. The DVD key blinks twice. The DVD key will now allow you to operate your second TV. Program the SRU 3030 to operate the second TV. See ‘Setting the remote control’.

Restoring the original functions of your remote control

1 Keep keys 1 and 6 on the SRU 3030 pressed simultaneously for 5 seconds, until the key of the currently selected mode (TV, DVD or VCR) blinks twice and then remains lit.

Press keys 9, 8 and 1, in that order.

The mode key (TV, DVD or VCR) blinks twice. The SRU 3030 is now reverted back to the state it was when you first took it out of the packaging.

Instructions for use

The device you want to operate does not respond and the mode key

(TV, DVD or VCR) does not blink when you press a key. Replace the old batteries with two new AAA batteries. The device you want to operate does not respond but the mode key (TV, DVD or VCR) does blink when a key is pressed. Point the SRU 3030 at the device and make sure that there are no obstructions between the SRU 3030 and the device. The SRU 3030 does not respond properly to commands. Maybe you are using the wrong code. Try programming the SRU 3030 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. Your brand of device is not in the code list. Try to set the SRU 3030 automatically. See ‘Automatically setting the remote control’. None of the codes works during manual setting of the remote control. If that is the case, follow the instructions under ‘Automatically setting the remote control’.

SETUP CODES FOR VCR R C V VCR Note your codes!

TV Equipment Brand Model number Number of original remote Code

Brand Model number Number of original remote Code

DVD C O D E L I ST Equipment

Brand Model number Number of original remote Code

Quick, Clean & Easy Setup www.philips.com/urc

GB Information to the Consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. F
