1. Getting to know your device

Dear customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage and air.

With kind regards,

Your Beurer team

Why Day & Night?

The Beurer TL 55 "Day&Night" brightlight has a brightlight to start the day full of energy, and a red light which dims in order to help you fall asleep and sleep through more easily in the evening. This double function means that the device actively supports your natural biorhythm and ensures the gentle regulation between day and night.

Why use a brightlight?

When the hours of daylight are noticeably decreased in autumn and people increasingly stay inside, the effects of a lack of light may cumulate. This is often described as "winter depression". The symptoms can present themselves in a number of ways:

• Imbalance • Need for more sleep
• Subdued mood • Loss of appetite
• Lack of energy and listlessness • Difficulty concentrating
• Generally feeling under the weather

The cause of these symptoms is the fact that light, particularly sunlight, is essential for life and has a direct effect upon the human body. Sunlight indirectly controls the production of melatonin, which is only passed to the blood in darkness. This hormone shows your body that it's time to sleep. Therefore in months with less sunshine more melatonin is produced, meaning that it is harder to get up. Your body's functions have powered down. Melatonin production can be stopped if the brightlight is used as soon as you wake up in the morning, so as early as possible; as a result, there is a positive uplift in your mood.

Lack of light also prevents the production of the happy hormone serotonin, which is said to significantly influence our well-being. The application of light yields qualitative changes to hormones and neurotransmitters in the brain that have an effect on our activity levels, our feelings and our well-being. To compensate for such a hormonal imbalance, the brightlight creates a suitable replacement for natural sunlight.

In the medical field, brightlights are used for compensation of the effects of a lack of light. Brightlights simulate daylight over 10,000 lux. The light can influence the human body and be used as a treatment or as a preventative measure. Normal electric light, however, is not sufficient to influence hormonal balance. Because in a well-lit office the illuminance level amounts to just 500 lux.

Why does red light help you sleep?

A restorative night's sleep is of huge importance for our physical and psychological well-being; after all, it is during sleep that we process things such as new experiences and improve our mental and physical fitness. In line with this, healthy, restorative sleep is particularly important; many people have problems getting to sleep or sleeping through, however.

To make falling asleep and sleeping through easier, in addition to the brightlight function, the TL 55 also has a red light which simulates the evening sun. Due to the integrated 30-minute timer, the red light gradually becomes weaker, recreating a natural sunset. The wavelengths of the visible red light act on the retina and nervous system and in so doing calm the body and mind.

Relaxation and recuperation are promoted in this manner, which can help you to fall asleep and sleep through.

Battery

The daylight lamp is operated with the integrated battery. The brightlight is perfect to take on your travels as the integrated chargeable battery conveniently allows you to take it everywhere.

Included in delivery:

• Brightlight
• Stand
• Mains part for charging the battery
• Storage bag
  • These instructions for use

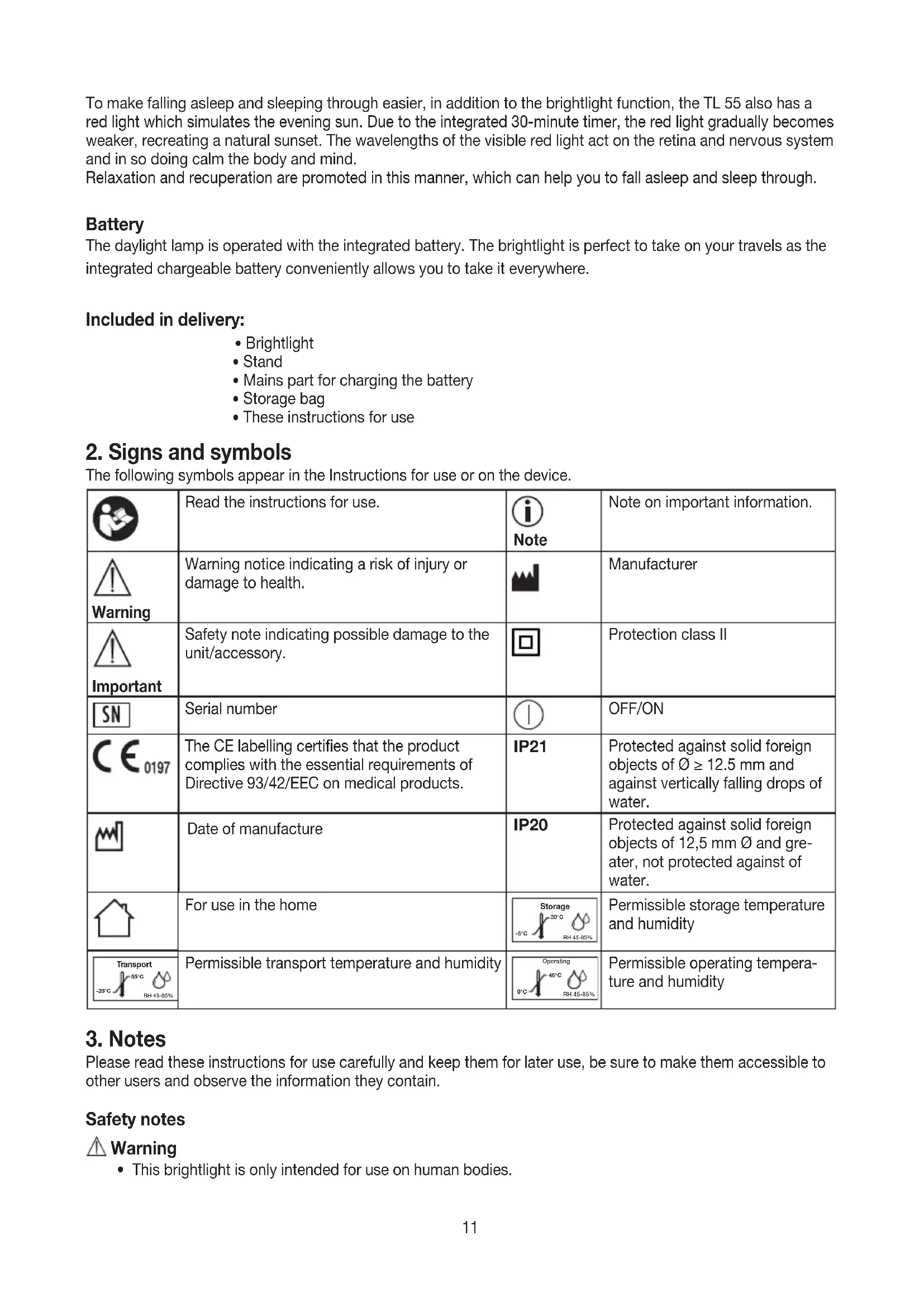

2. Signs and symbols

The following symbols appear in the Instructions for use or on the device.

	Read the instructions for use.	Note	Note on important information.
Warning	Warning notice indicating a risk of injury or damage to health.		Manufacturer
Important	Safety note indicating possible damage to the unit/accessory.		Protection class II
	Serial number		OFF/ON
0197	The CE labelling certifies that the product complies with the essential requirements of Directive 93/42/EEC on medical products.		Protected against solid foreign objects of ≥ 12.5 mm and against vertically falling drops of water.
	Date of manufacture		Protected against solid foreign objects of 12,5 mm and greater, not protected against of water.
	For use in the home		Permissible storage temperature and humidity
	Permissible transport temperature and humidity		Permissible operating temperature and humidity

3. Notes

Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Safety notes

Warning

- This brightlight is only intended for use on human bodies.

- Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

- Ensure that the brightlight is positioned on a stable base.

- The device must only be connected to the mains voltage that is specified on the type plate.

- Never submerge the device in water or other liquids and do not use it in the bathroom.

- It must not be used on people with disabilities, children under 3 years of age or people with reduced sensitivity to heat (e.g. people with skin alternations due to illness), after taking pain relief medication, alcohol or drugs.

- Keep packaging material away from children (risk of suffocation!).

- The device should not be covered, uncovered, or packed and stored when warm.

• Always unplug the mains part and allow the device to cool down before touching it.

- Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

- Ensure that you only insert and remove the mains part with dry hands and that you only press the ON/OFF button with dry hands.

- Keep the mains cable away from hot objects and open flames.

- Protect the device from heavy impact.

- Do not pull the mains part out of the socket using the mains cable.

- Do not use the device if it shows signs of damage or does not function properly. In such cases, contact Customer Services.

- If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

- Disconnection from the power supply network is only guaranteed when the mains part is unplugged.

- Do not use the device in the presence of flammable anaesthetic gas connections with air, oxygen or nitrogen oxide.

- No calibration and no preventive checks or maintenance are to be carried out on this device.

- You cannot repair the device. The device contains no parts that you can repair.

- Do not make any changes to the device without the manufacturer's permission.

- If the device has been changed, thorough tests and checks must be carried out to ensure the continued safety of further use of the device.

- As the patient/user, you can operate all functions of this device.

General notes

Important

- Always consult a doctor before using the device if you are taking medication such as pain relief medication, medication to reduce high blood pressure or antidepressant medication.

- Diabetics and people who suffer from retinal diseases must be examined by an optician before using the device.

- Please do not use the device if you suffer from an eye disease such as cataracts, glaucoma, diseases of the optic nerve or inflammation of the vitreous body.

- If you have health concerns of any kind, consult your GP!

- Remove all packaging material before using the device.

• Light sources are excluded from the guarantee.

- If you have further questions about using our devices, please contact Customer Service.

Repairs

⚠️ Important

- Do not open the device. Do not attempt to repair the device yourself. This can result in serious injury. Failure to comply will result in voiding of the warranty.

- For repairs, please contact Customer Services or an authorised retailer.

Notes on handling rechargeable batteries

- If your skin or eyes come into contact with fluid from a rechargeable battery cell, flush out the affected areas with water and seek medical assistance.

- If the battery leaks, put on protective gloves and clean with a dry cloth.

- Protect batteries from excessive heat and sunlight.

- Risk of explosion! Never throw batteries into a fire.

- Do not disassemble, split or crush the rechargeable batteries.

• Only use chargers specified in the instructions for use.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.
• Fully charge the battery prior to initial use (see Chapter "5. Initial use").
• Do not cover the device with covers, cushions, or similar during charging in order to prevent overheating.
• In order to achieve as long a battery service life as possible, fully charge the battery at least twice per year.

4. Unit description

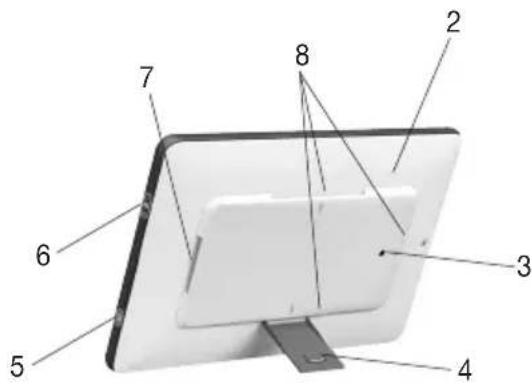

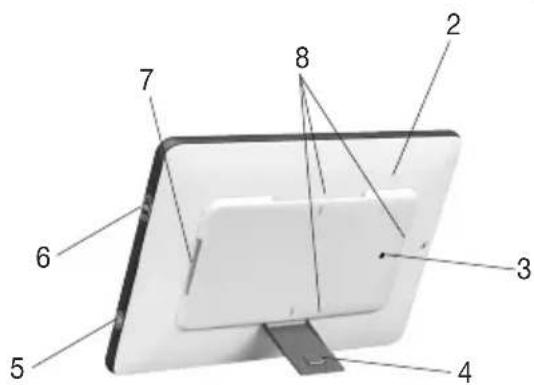

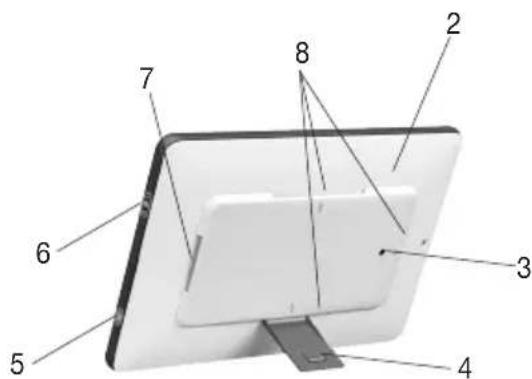

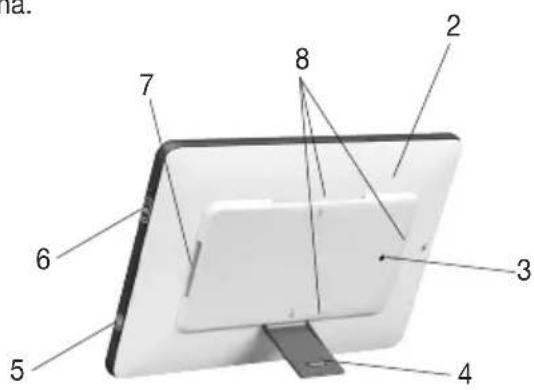

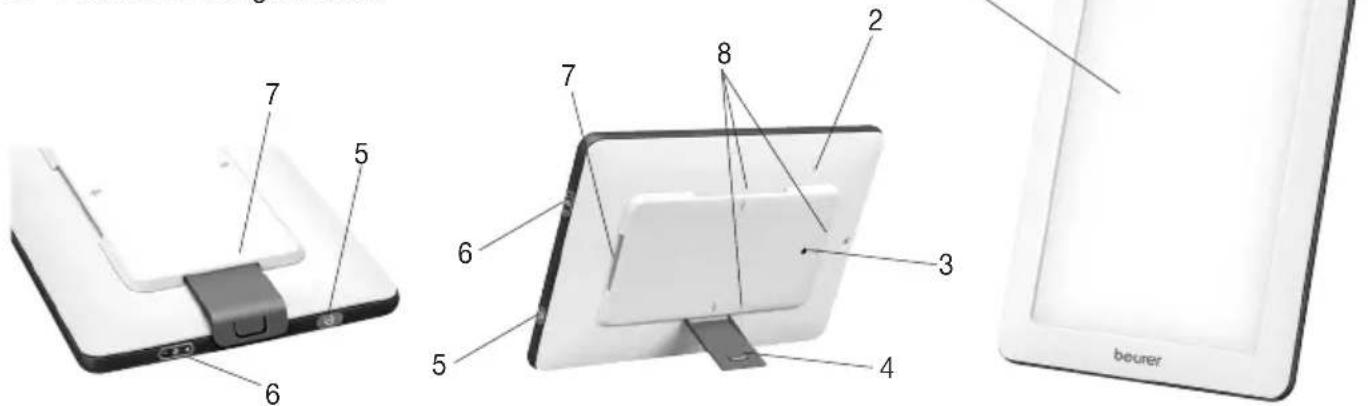

Overview

1. Fluorescent screen
2. Rear of the device housing
3. Mains part connection
4. Stand
5. ON/OFF button
6. Brightness buttons +/-
7. Storage slot for stand
8. Holders for using the stand
9. Fluorescent screen
10. Rear of the device housing
11. Mains part connection
12. Stand
13. ON/OFF button
14. Brightness buttons +/-
15. Storage slot for stand
16. Holders for using the stand

7 5 6 6 5 7 8 2 3 4 beurer

Storage: push the long end of the stand, as shown in the left image, into the device.

Application: attach stand with the short end at a point marked with , as shown on the middle image, for example.

Display

1. Remaining usage time until automatic switch-off (e.g. 10 minutes)
2. Battery light

battery charging	=	“CHG” green
battery needs charging	=	“CHG” red
battery is completely charged	=	“CHG” off

5. Initial use

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any damage or faults on the device, do not use it and contact Customer Services or your supplier.

Positioning the device

Place the device on an even surface. The position should be chosen to ensure a distance of around 10 cm to 50 cm between the user and the device.

Battery use / Charging the battery

In order to use the brightlight with the integrated battery, you must first of all charge it.

• To prevent possible damage to the brightlight, it must only be charged with the mains part included in delivery. The mains part must only be connected to the mains voltage that is specified on the type plate.

• Insert the mains part into the mains part connection on the rear of the brightlight.

• Plug the other end of the mains part into a suitable socket. Fully charge the battery prior to initial use (approx. 2 hours). During charging, the "CHG" display on the brightlight lights up green. When the battery is fully charged, the "CHG" display goes out.

• If you would like to use the brightlight after charging, first of all disconnect the mains part from the socket, and then from the brightlight.
• With the battery completely charged, you can operate the brightlight for over 2 x 30 minutes.

iNote:

• Ensure that there is a mains socket close to the set-up area.

• Arrange the mains cable so that no-one will trip over it.

• Operation

1	Remove the stand from the storage slot on the rear of the device.
2	Clip the short end of the stand into the side. The orientation of the TL55 changes depending on where you attach the stand to the device. The stand can be attached on both the long and short sides, which enables you to use the TL55 both horizontally and vertically.
3 Switching on the lamp► To switch on the red light (light to fall asleep), press the ON/OFF button once.► Press the ON/OFF button twice to switch on the brightlight.Note:The brightlight has an automatic switch-off function. The brightlight/red light switches off automatically after 30 minutes. During the 30 minutes, the red light automatically dims. In contrast, the brightlight illuminates to the same level of brightness for the 30 minutes.
4 Enjoying daylightPosition yourself as close as possible to the light, at a distance of between 10 and 30 cm. You can continue to go about your day-to-day activities during application, including reading, writing, making telephone calls, etc.Keep looking directly into the light for a short period of time as it is absorbed and shows an effect via the eyes/retina. Do not look directly into the light continuously as this may cause over-stimulation of the retina.Use the brightlight as often as you like. However, the treatment is at its most effective if you carry out the light therapy according to the prescribed time period of at least 7 successive days.The most effective time of day for the treatment is in the morning and we recommend that it is used for 2 hours per day.Start with a brief application period and gradually increase the time over the course of a week.In principle,the closer you are to the light source, the shorter the application time.Note:You may experience pain in the eyes and head after the first few applications. This pain should disappear in further sessions as the nervous system becomes accustomed to the new stimuli.Enjoying the red lightPlace the lamp at a distance of between 30 and 50 cm to where you sleep. Try to relax and drift off during usage.The most effective time of day for treatment is in the evening before going to bed.Treatment with the red light is most effective if you carry it out at least 7 days in a row.Keep looking directly into the red light for a short period of time as it is absorbed and shows an effect via the eyes/retina. Do not look directly into the red light continuously as this may cause over-stimulation of the retina.Press the ON/OFF button once. The red light and the LED display (10 , 20 , 30 min) begin to light up. The LED display shows you how long the red light will still illuminate for. The red light has 3 brightness levels and becomes weaker in 10-minute cycles. The red light automatically goes out after 30 minutes. Alternatively, you can switch off the red light at any time by pressing and holding the ON/OFF button.
5 Enjoying the brightlight/red light over a longer periodRepeat the brightlight/red light application on at least 7 consecutive days or for longer depending on your individual needs. You should preferably use the brightlight in the morning, and the red light in the evenings in bed.
6 Switching off the light▸ Press and hold the ON/OFF button for around three seconds. The brightlight switches itself off.▸ Pull the mains plug out of the socket when the battery has been fully charged via the mains part.IMPORTANT!The light remains hot after use. Allow the light to cool down sufficiently before putting it away and/or packing it away.

7. Cleaning and maintaining the device

The device should be cleaned from time to time.

⚠️ Important

• Ensure that no water gets inside the device.
  The device must be switched off, disconnected from the mains and allowed to cool down each time beforecleaning.
• Do not clean the device in a dishwasher.
  Use a slightly damp cloth to clean the device.
• Do not use any abrasive cleaning products and never submerge the device in water.
  Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

8. Storage

If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children.

Follow the storage instructions provided in the “Technical data” chapter. In order to achieve as long a battery service life as possible, fully charge the battery at least twice per year.

9. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

The empty, completely flat rechargeable batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the rechargeable batteries.

10. What if there are problems?

Problem Possible cause Solution
Brightlight/red light does not illuminate	ON/OFF button switched off Switch on the part/charge the battery.	ON/OFF button.
	No electricity Correctly connect the mains part of the battery is faulty. Contact Customer Services or your retailer.
	No electricity The mains part/the battery is faulty. Contact Customer Services or your retailer.
	Service life of the LEDs has been exceeded/LEDs, timer or automatic switch-off faulty	For repairs, please contact Customer Services or an authorised retailer.

11. Technical specifications

Model No. TL 55
Type WL 12
Dimensions (W, H, D) 262 x 173 x 27 mm
Weight 630 g (approx. 750 g with mains part + storage bag)
Light LED
Output max. 16.5 watt
Illuminance up to 10.000 lux
Radiation Radiant power outside of the visible range (infrared and UV) is low enough that no eye or skin damage is anticipated.
Operating conditions 0°C to +45°C, 45 - 85 % relative humidity
Storage conditions	up to 3 months: -20°C to +55°C, 45 - 85 % relative humidity over 3 months: -5°C to +30°C, 45 - 85 % relative humidity
Product classification	External power supply, protection class II, IP21
Colour temperature of the white LEDS	6500 Kelvin
Atmospheric pressure value for storage and operation environment	700~1060 hPa
Expected service life	More than 6000 hours
Battery cycle life	More than 300 charging cycles
Accessories	Mains part, storage bag, stand, instructions for use

Subject to technical changes.
This device meets the requirements of the European Medical Device Directive 93/42/EEC and 2007/47/EC as well as the Medizinproduktegesetz (German Medical Devices Act) (except the red light).
This device complies with European Standard EN60601-1-2 and is subject to particular precautions with regard to electromagnetic compatibility. Please note that portable and mobile HF communication systems may interfere with this unit. More details can be requested from the stated Customer Services address or found at the end of the instructions for use.

12. Mains part

Model No. W-10 For UK plug: W-10UK
Input 100–240 V ~ 50/60 Hz, 0.35 A max.
Output 15 V DC, 1 A, only in conjunction with TL 55
Fuse type T2AL, 250VAC
Protection The device is double-protected.
	Polarity of the DC voltage connection
Classification IP20, protection class II

FRANÇAIS

Sommaire

Remarques relatives aux batteries

Diagram of a device with numbered parts labeled 5, 6, and 7 pointing to different components on the cover.

la. 7 8 2 6 3 5 4

1 beurer

Diagram of a device with numbered parts labeled 5, 6, and 7 pointing to a component on a flat surface.

Labeled diagram of a device with numbered components for identification

1 bourer 3

Diagram of a device with labeled parts, including a beurer and a display panel with numbered annotations.

Diagram of a device with numbered parts labeled 5, 6, and 7 pointing to different components on the cover.

Labeled diagram of a flat-screen monitor with numbered components for identification

1 beurer 2 3

Diagram of a device with numbered parts labeled 5, 6, and 7 pointing to a component on a flat surface.

Labeled diagram of a device with numbered components for identification

1 bourer

Technical Description Concerning Electromagnetic Emission

Table 1: Declaration - electromagnetic emissions

Guidance and manufacturer's declaration - electromagnetic emissions
The model TL55 is intended for use in the electromagnetic environment specified below.The customer or the user should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment – guidance
RF emissionsCISPR 11	Group 1 The models TL55 use RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11	Class B The model TL55 is suitable for used in domestic establishment and in establishment directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2	Class C
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Not applicable

Technical Description Concerning Electromagnetic Emission

Table 1: Declaration - electromagnetic emissions

Guidance and manufacturer's declaration - electromagnetic immunity
The model TL55 is intended for use in the electromagnetic environment specified below.The customer or the user should assure that It is used in such an environment.
Immunity test IEC 60601test level		Compliancelevel	Electromagnetic environment -guidance
Electrostaticdischarge (ESD)IEC 61000-4-2	±6 kV contact±8 kV air	±6 kV contact±8 kV air	Floors should be wood, concreteor ceramic tile. If floors are coveredwith synthetic material, the relativehumidity should be at least 30 %.
Electrical fasttransient/burstIEC 61000-4-4	±2 kV for powersupply lines±1 kV for input/outputlines	±2 kV for powersupply lines	Mains power quality should be thatof a typical commercial or hospitalenvironment.
SurgeIEC 61000-4-5	±1 kV line to line±2 kV line to earth	±2 kV line to earth Mains power quality should be thatof a typical commercial or hospitalenvironment.
Voltage dips,short interruptions and vol-tage variationson power supp-ly input linesIEC 61000-4-11	<5 % UT(>95% dip in UT)for 0.5 cycle40 % UT(60% dip in UT)for 5 cycles70% UT(30% dip in UT)for 25 cycles<5% UT(>95 % dip in UT)for 5 sec	<5 % UT(>95% dip in UT)for 0.5 cycle40 % UT(60% dip in UT)for 5 cycles70% UT(30% dip in UT)for 25 cycles<5% UT(>95 % dip in UT)for 5 sec	Mains power quality should be thatof a typical commercial or hospitalenvironment. If the user of themodel TL55 require continued operation during power mains interruptions, it is recommended that themodel 168 DAYLUX Therapy Lightbe powered from an uninterruptiblepower supply or a battery.
Power frequency (50/60 Hz) magnetic field IEC 61000-4-8	3 A/m Not applicable Not applicable
NOTE U_T is the a.c. mains voltage prior to application of the test level.

Table 3: Guidance & Declaration - electromagnetic immunity concerning Conducted RF & Radiated RF

Guidance and manufacturer's declaration - electromagnetic immunity
The model TL55 is intended for use in the electromagnetic environment specified below.The customer or the user should assure that it is used in such an environment.
Immunity test IEC	60601test level	Compliancelevel	Electromagnetic environment -guidance
Conducted RF IEC61000-4-6Radiated RF IEC61000-4-3	3 Vrms150 kHz to 80 MHz3 V/m80 MHz to 2.5 GHz	3 V3 V/m	Portable and mobile RF communications equipment should be used no closer to any part of the model TL55, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance3Vd=1.2√P 80MHz to 800MHzd=2.3√P 800MHz to 2.5 GHzwhere P is the maximum output power rating of the transmitter In watts (W) according to the transmitter manufacturer and d Is the recommended separation distance in meters (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.bInterference may occur In the vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz end 800 MHz. the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model TL55 is used exceeds the applicable RF compliance level above, the model TL55 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model TL55.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m.

Table 4: Recommended separation distances between portable and mobile RF communications equipment and the model TL55

Recommended separation distances between portable and mobile RF communications equipment and the model TL55
The model TL55 is intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the model TL55 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model TL55 as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz 1.2	80 MHz to 800 MHz 1.2	800 MHz to 2,5 GHz 2.3
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz. the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorpti-on and reflection from structures, objects and people.

Taishan Anson Electrical Appliances Co. Ltd • Dragon Mountain Industrial Estate

Duanfen • Taishan, Guangdong Province, China

Tel.: [phone]

http://ansoninternational.com.hk

Distributed by: BEURER GmbH • Söflinger Str. 218 • 89077 Ulm (Germany)
