USER MANUAL Penguin FELLOWES

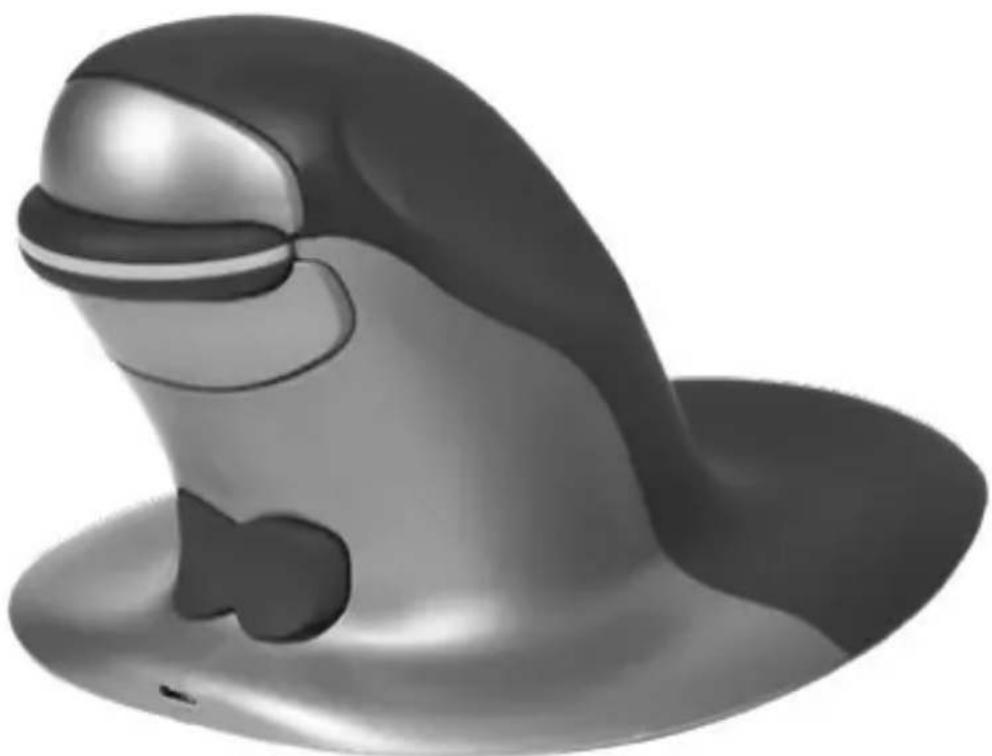

Ambidextrous Vertical Mouse

User GuideUser Guide

www.fellowes.com

Europe Freephone: 00800-1810-1810

Benelux: [phone]

Wireless Penguin SMALL (Code: 100016306)

Wireless Penguin MEDIUM (Code: 100016307)

Wireless Penguin LARGE (Code: 100016308)

Patents Pending, UK Application No.0915129 and Worldwide.

Design Registration Number: EC 001211536

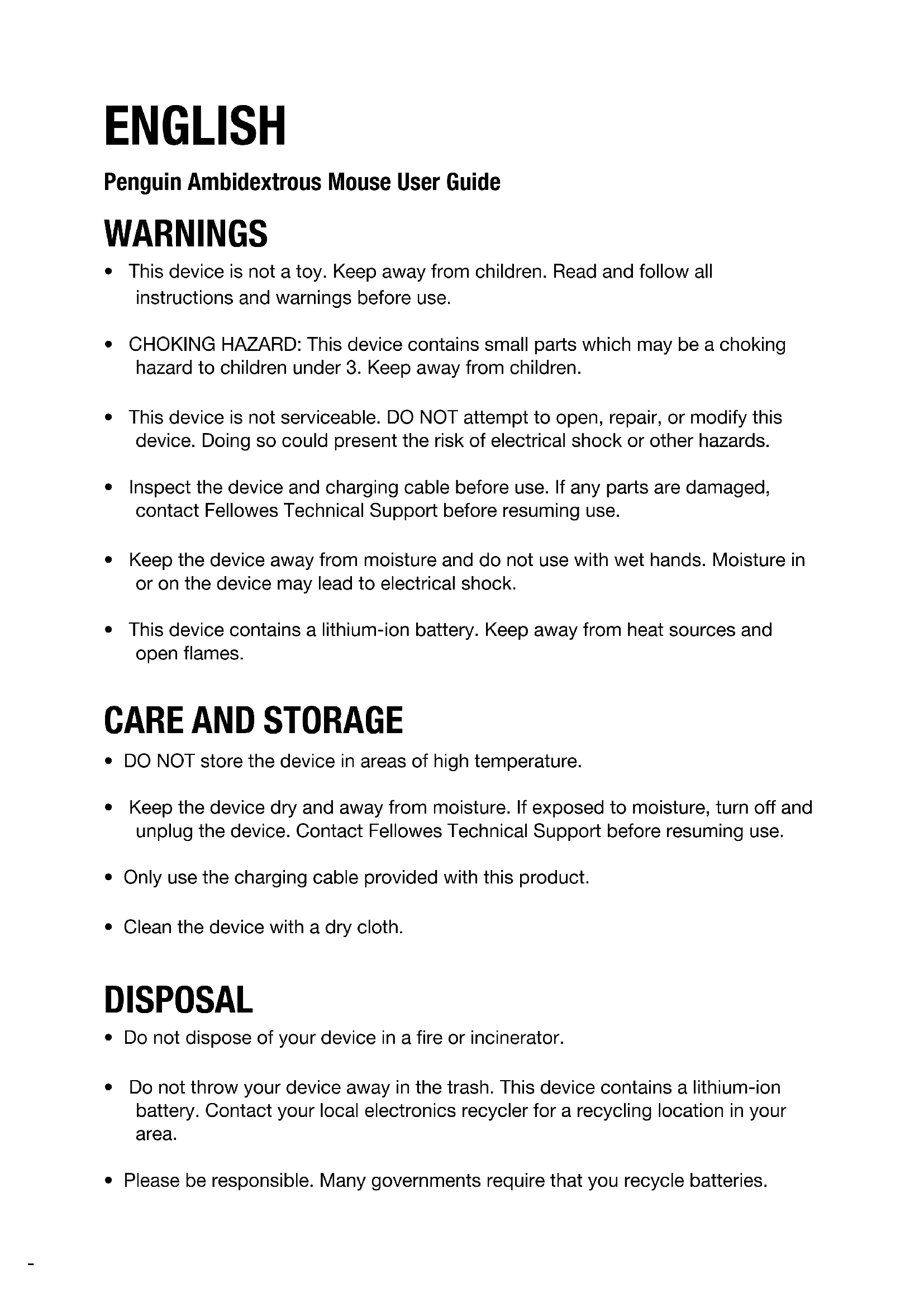

ENGLISH

Penguin Ambidextrous Mouse User Guide

WARNING

• This device is not a toy. Keep away from children. Read and follow all instructions and warnings before use.
• CHOKING HAZARD: This device contains small parts which may be a choking hazard to children under 3. Keep away from children.
• This device is not serviceable. DO NOT attempt to open, repair, or modify this device. Doing so could present the risk of electrical shock or other hazards.
• Inspect the device and charging cable before use. If any parts are damaged, contact Fellowes Technical Support before resuming use.
• Keep the device away from moisture and do not use with wet hands. Moisture in or on the device may lead to electrical shock.
• This device contains a lithium-ion battery. Keep away from heat sources and open flames.

CARE AND STORAGE

• DO NOT store the device in areas of high temperature.
• Keep the device dry and away from moisture. If exposed to moisture, turn off and unplug the device. Contact Fellowes Technical Support before resuming use.
• Only use the charging cable provided with this product.
• Clean the device with a dry cloth.

DISPOSAL

• Do not dispose of your device in a fire or incinerator.
• Do not throw your device away in the trash. This device contains a lithium-ion battery. Contact your local electronics recycler for a recycling location in your area.
• Please be responsible. Many governments require that you recycle batteries.

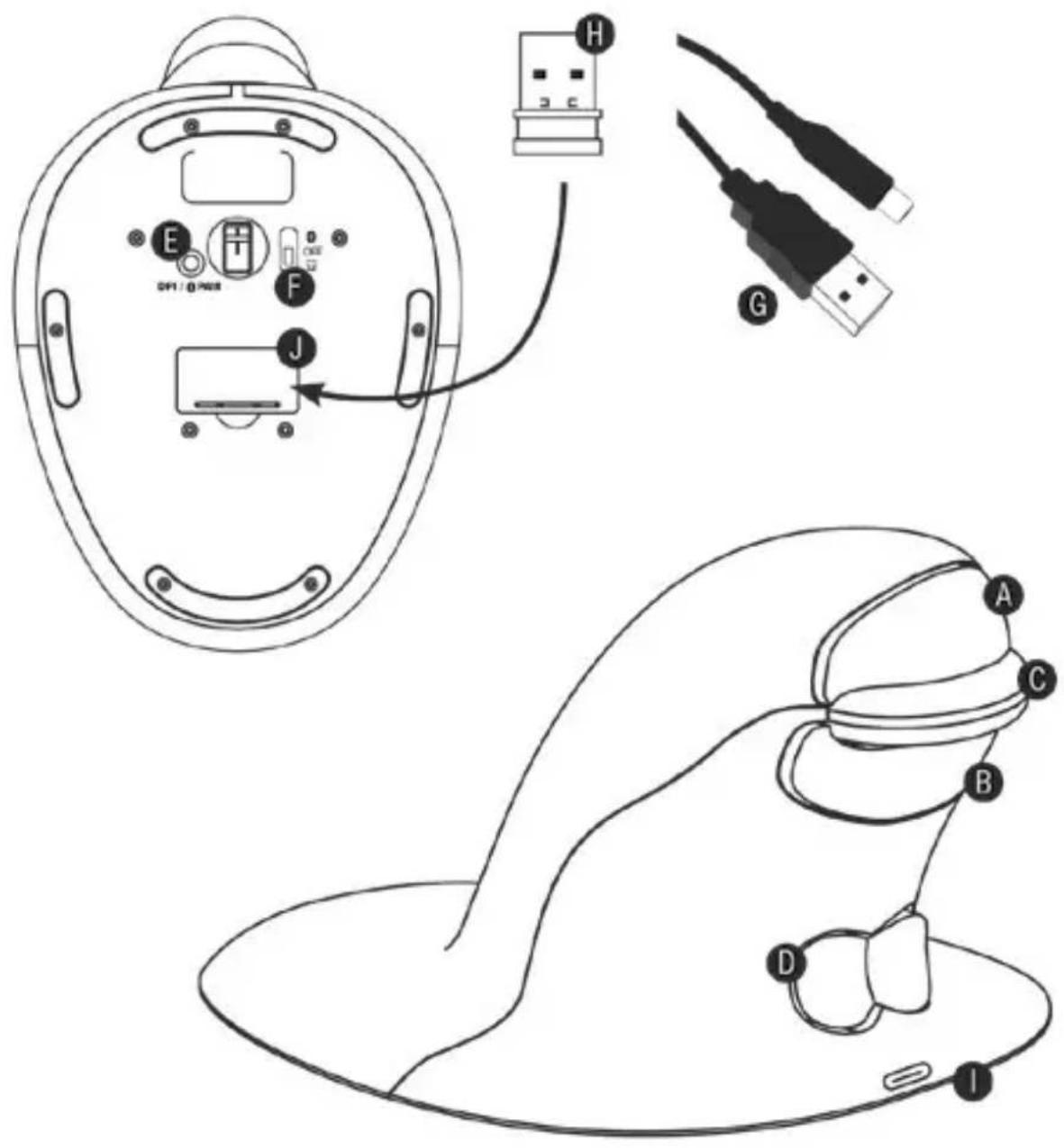

A.Left Click
B. Right Click
C. Scroll Wheel
D. Rocker Switch - 'Bow Tie' (L/R Hand Switch)
E. DPI and Bluetooth Syncing Button

F. Bluetooth/OFF/Wireless Switch
G. USB - USB-C Recharging Cable
H. 1 x USB Micro Receiver
I. Recharging USB-C Port
J. Micro Receiver Dongle Housing

Specifications

Bluetooth® Li-ion rechargeable battery.

Bluetooth® version: 5.0

System Model: GFSK 2.4G&BT

Working Voltage: 3.7V

Working current: 5mA

Battery: 3.7V 500MA

Charging voltage: 5V

Charging current: 200mA

Charging time: Approx. 3 hours

For Wireless operation

The 2.4 GHz USB micro receiver is located inside the housing on the underneath of the Penguin (J).

1. Remove the micro receiver and insert into a spare USB port of your computer or laptop. Wait for a short time for your PC to recognise the penguin mouse.
2. Move switch (F) on the base from 'OFF', downwards to the position. The 'P' logo will flash GREEN briefly.

For Bluetooth® operation

Make sure that your PC is Bluetooth compatible.

To choose Bluetooth operation.

1. Move switch (F) on the base from 'OFF', upwards to Bluetooth®. The 'P' logo will flash BLUE briefly
2. On your computer turn on 'Search for Bluetooth'.
3. Press the DPI/Bluetooth® pair button for 5-10 seconds.
4. On your PC search for "Penguin 3.0 or 5.0 Mouse"
5. Click on "Penguin 3.0 or 5.0 Mouse" and connect.
6. Your Penguin should now be connected via Bluetooth. If not, press 'remove Penguin BT 3.0 or 5.0 Mouse' and repeat same procedure to sync to Bluetooth.

Auto power save

After approximately 20 seconds inactive - Penguin enters power save mode
After approximately 5 minutes - Penguin enters deep sleep mode
Inactive - click any button to reawaken

Note: It is advised to switch to the 'OFF' position if the Penguin is to be transported as this will conserve power.

Rechargeable battery

The Wireless Penguin has an internal rechargeable battery. There may be a certain amount of charge already in the battery.

To fully charge the battery, insert the USB end of the cable (G) into a spare USB port of your computer and the USB-C end of the cable into the front of your mouse (I) see diagram. Refer to the Charging Light Sequence section to indicate the battery level.

Rechargeable battery low power level indicator

Ice Blue light flashing Low battery (approximately 20% charge remaining)

Charging light sequence

When the charging cable is connected, a series of colored lights in the illuminated 'P' logo will indicate different battery levels.

Penguin in ACTIVE mode:

Orange light + flashing ice Blue light Battery charging (below 20% charge)

Orange light + constant Ice Blue light Battery charging (above a 20% charge)

Ice Blue light only Battery fully charged

Penguin in INACTIVE mode:

Orange 'P' light Battery charging

Orange 'P' light turns off once fully charged.

Plug & play

The Penguin Mouse uses Plug & Play technology. No additional software is required.

Right & left handed use

The Penguin is set as a Right Handed mouse by default. To use with your left hand, simply depress the raised section of the rocker switch - 'Bow Tie' (D) at the front of the Penguin. This will adjust the direction of the scroll wheel.

Variable DPI [800-1200-1600-2400] - Pointer Speed

The default setting is 800 DPI. To adjust, press and release the DPI button (E) on the base of the Penguin. The illuminated 'P' logo will flash to indicate the DPI has been changed.

DPI (pointer speed) Number of Flashes Speed

800 DPI 1 'P' Flash Slow

1200 DPI 2 'PP' Flash Medium

1600 DPI 3 'PPP' Flash Fast

2400 DPI 4 'PPPP' Flash Fastest

Precision scroll wheel with auto scroll

As well as a soft touch and feel Precision Scroll Wheel (C), the Penguin Mouse has an Auto Scroll feature. To activate this, click the Scroll Wheel inwards or downwards and the auto scroll is activated. Move the Penguin forwards or backwards to start auto scrolling at the desired speed. Click the scroll wheel again and the Auto Scroll is stopped.

TROUBLESHOOTING GUIDE

Note: USB is found inside compartment on Penguin base.

• Make sure that the Penguin is charged via the USB-C charging cable.

• Make sure the switch on the underside of the base is in 'ON' position - either 'UP' (BLUE) for Bluetooth or 'DOWN' (GREEN) for wireless operation.

• If using wireless, make sure your Penguin's dongle (micro receiver) is firmly plugged in to your computer's USB port.

• If using wireless, try unplugging the Penguin dongle (micro receiver), then plugging it back in again.
• If using Bluetooth, on your PC, remove Bluetooth item (Penguin Mouse) and re-add Bluetooth device again.
• If using wireless, try holding the Penguin close to the sensor for 30 seconds whilst intermittently clicking the top button - it sometimes takes this to get the dongle to recognise the hardware.
• If using wireless, try using a different USB port to connect your Penguin.
• If possible plug it directly into the computer, i.e. not through any monitors/ keyboards/hubs etc.
• If using wireless, remove the USB Dongle and turn 'OFF' the Penguin switch. Reboot your computer. Now re-insert USB dongle, wait 10/15 seconds and turn Penguin switch back 'ON' - in 'DOWN' (GREEN) position.
• Although your Penguin is plug & play, make sure your computer is up to date with the latest drivers / operating software for pointing devices
• Check that the sensor on the underside of the Penguin isn't covered and has a clear line of sight to the surface below. Also check that your Penguin has not been dropped which could dislodge the laser
• Try using the Penguin on a mouse mat / unreflective surface
• Make sure the charging cable is firmly attached into the USB port of your computer and the USB-C end is firmly pushed into the front of the Penguin. The 'P' Logo should light an orange color. Recharge directly via a USB port on your computer NOT via a multi-USB hub.
• Try your Penguin mouse on a different PC/laptop to check if the issue is still present.

IMPORTANT INFORMATION

Health

Long periods of time at your workstation without regular breaks may cause discomfort. Should discomfort persist, see a qualified health professional.

User advice/Maintenance

Try to avoid contact with strong medicated hand creams/sanitizer whilst using the Penguin mouse. Regularly remove dust and dirt build-up from the underneath of your Penguin mouse to ensure a smooth glide movement.

Disclaimer

We make every effort to ensure that the information and procedure in this guide is accurate and complete, no liability can be accepted for any errors or omissions and we reserve the right to make any changes without further notice herein.

Fellowes Penguin Ambidextrous Vertical Mouse 2-Year Limited Warranty

Fellowes, Inc. (the "Company") warrants this product to be free from defects in material and workmanship appearing within two (2) year from the date of the original purchase of the product. If such a defect appears during the warranty period, the Company will (at its sole option) either

repair or replace the defective product with no charge for service or parts or refund the purchase price. The Company may require that the product be returned at the customer's expense to a location designated by Customer Service.

This warranty applies only to the initial retail purchaser and does not cover claims resulting from misuse, failure to follow instructions on installation and use, neglect, use of unauthorized attachments, commercial use, use on a current or voltage other than specified on the product, or unauthorized service during the warranty period on conditions otherwise covered by warranty.

THE DURATION OF ANY IMPLIED WARRANTYES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTYES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED TO THE DURATION OF THIS LIMITED WARRANTY.

UNLESS REQUIRED BY APPLICABLE LAW, THE CUSTOMER'S EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY OR OF ANY OTHER OBLIGATION ARISING BY OPERATION OF LAW OR OTHERWISE SHALL BE LIMITED AS SPECIFIED HEREIN TO REPAIR, REPLACEMENT OR A REFUND OF THE PURCHASE PRICE, AT THE COMPANY'S SOLE OPTION.

UNDER NO CIRCUMSTANCE WILL THE COMPANY, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES, RESELLERS OR THEIR RESPECTIVE OFFICERS, DIRECTORS OR EMPLOYEES OR THOSE PERSONS FOR WHOM THEY ARE BY LAW RESPONSIBLE, BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUBSTAINED IN CONNECTION WITH THE PRODUCT. THE COMPANY AND THESE OTHER PARTIES DO NOT ASSUME OR AUTHORIZE ANY REPRESENTATIVE OR OTHER PERSON TO ASSUME FOR ANY OF THEM ANY OBLIGATION OR LIABILITY OTHER THAN AS IS EXPRESSLY SET FORTH HEREIN.

The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law.

Australia Residents Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits under Fellowes' Warranty are in addition to other rights and remedies under a law in relation to the product.

ANTIMICROBIAL PROTECTION

BioCote® - the antimicrobial brand you can trust.

Based on silver ions BioCote® is proven to offer antimicrobial protection for the expected lifetime of the product.

BioCote® keeps your Penguin Ambidextrous Vertical Mouse fresher and cleaner for longer, protecting against odor causing and staining microbes, such as bacteria and mold.

BioCote® has been proven to reduce bacteria/microbes on products by up to 99.5% in two hours OR 99.99% in 24hrs.

BioCote® tested in a laboratory, proven in real life, antimicrobial quality guaranteed.

BioCote® protected products are quality control checked to the appropriate test standard.

Please Note

BioCote® technology does not protect users or others against disease causing bacteria, germs, viruses or other harmful organisms. This technology is not a substitute for good hygiene and/or cleaning practices.

Fellowes Penguin Ambidextrous Vertical Mouse contains built in biocidal products for the protection against the growth of bacteria which cause mold, odor and product deterioration.

The treated article contains the following biocide:

Silver phosphate glass

FRANÇAIS

Batterie rechargeable Bluetooth® Li-ion

Version Bluetooth® : 5.0

Batterie rechargeable

1200 DPI 2 lampeggi 'PP' Media

1600 DPI 3 lampeggi 'PPP' Velocene

2400 DPI 4 lampeggi 'PPPP' Massima

1600 DPI 3 x knipperen "PPP" Snel

2400 DPI 4 x knipperen "PPP" Snelst

IpeepaKaembI aKKymyTop

BioCote® y6nBaet do 99.5% 6aKTePm/MnKpO6OB Ha npOdykTax B TeueHn 2-x YacOB INI 99,99% B TeueHne 24-x YacOB.

BioCote® npoTeCTnpoBaH B Ia6opaTopuN, NOKa3aI ce6a B peaJIbHOJ JKN3HN, KaueCTBO aHTIMNKpO6HOJ 3aUNTbI rapaHTnPOBaHO.

IpoodykTbI noJ 3aunToB BioCote® npoJn KOHTpOJb KaueCTBa HadJeKaumN CTaHdapTaMn NcblTaHnJ.

06paTnte BHHMaHne

TexHONOrnBioCote He 3aunuaeT noIb3ObaTeJeN OKpykaUoXsOT 60ne3He, Bbl3BaHHbIX 6aKTePnMaMn, MmKpO6aMn, BnpyCaMn Nll NHBIMn BpeHOHOChbIMn opraHn3MaMn. DaHNaT texHONOrnHe 3aMeHReT NaIeKaUe HnIeHNueckne npoUeDyprbl n/nnn YnCTKy.

BepnkaJIbHaMblbIyOBeHXpyK«Penguin»KomnaHnFellowescoepKHT BCTpoEHHbIe 6NoUdHbIe MaTePnAJIbI IJN3aUNTbI OT poCTa 6aKTepn, KOTOpbIE BblBaIOT NOBLeHHe PIIecEHN, HeNPnTHorO 3aNaXaI yxUdUeHne KaueCTBa npOdyKTa.

06pa6oTaHHoe n3dennecodepKNT cneyuOuN 6nouu:

• Cteknlo n3 focphiopnoKncIoro cepe6pa

PORTUGUES

Guia do uso de rato ambidestro Penguin

ADVERTÉNCIAS

This product is classified as Electrical and Electronic Equipment. Should the time come for you to dispose of this product please ensure that you do so in accordance with the European Waste of Electrical and Electronic Equipment (WEEE) Directive and in compliance with local laws relating to this directive.

For more information on the WEEE Directive please visit www.fellowesinternational.com/WEEE

French

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

IC STATEMENT

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

UK Declaration of Conformity

Fellowes Ltd.

Unit 2 Ontario Drive, New Rossington, Doncaster, DN11 0BF, England declares that the product model(s) Penguin® Ambidextrous Vertical Mouse conforms to the requirements of:

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Electromagnetic Compatibility Regulations 2016

Radio Equipment Regulations 2017

The Waste Electrical and Electronic Equipment Regulations 2013

Electrical Equipment (Safety) Regulations 2016

Safety: BS EN 62368-1: 2020/A11:2020

EMC: BS EN 55032: 2015/A11:2020

BS EN 55035:2017/A11:2020

RF & Radio ETSI EN 300 328

ETSI EN 301 489-17

ETSI EN 301 489-1

Year Affixed: 2023

Itasca, Illinois, USA

May 1, 2023

John Fellowes President & CEO

Declaration of Conformity

Fellows Benelux B.V.

Gesworenhoekseweg 3A, 5047 TM Tilburg, The Netherlands declares that the product model(s) Penguin® Ambidextrous Vertical Mouse conforms to the requirements of:

[2011/65/EU + 2015/863/EU] Restriction of Hazardous Substances Directive

[2014/30/EU] Electromagnetic Compatibility Directive

[2014/53/EU] Radio Equipment Directive

[2012/19/EU] Waste on Electrical and Electronic Equipment (WEEE) Directive

[2014/35/EU] Low Voltage Directive

Safety: EN 62368-1: 2020/A11:2020

EMC: EN 55032: 2015/A11:2020

EN 55035:2017/A11:2020

RF & Radio ETSI EN 300 328

ETSI EN 301 489-17

ETSI EN 301 489-1

Year Affixed: 2023

Itasca, Illinois, USA

May 1, 2023

John Fellowes
President & CEO
