KSF 400M - Fan Koenic - Free user manual and instructions

Product type	Pedestal fan
Brand	Koenic
Model	KSF 400M
Blade diameter	40 cm
Adjustable height	Yes, via telescopic tube (adjustment screw)
Weight	Approx. 6.2 kg
Rated voltage	220-240 V~, 50 Hz
Rated power	70 W
Standby consumption	0 W
Noise level	62.7 dB(A)
Maximum air flow	57.78 m³/min
Maximum air speed	2.62 m/s
Service value (SV)	92 (m³/min)/W
Number of speeds	3 (Low, Medium, High)
Oscillation function	Yes (push button)
Adjustable tilt	Yes, manually
Main materials	Plastic, metal
Safety	Safety guard, do not immerse, stable surface
Cleaning	Soft cloth, mild detergent, do not use solvents
Included accessories	Base, telescopic tube, front and rear grilles, blade, screws, nut, hook
Standards	CE, EU 206/2012, IEC 60879, EN 50564, EN 60704

Frequently Asked Questions - KSF 400M Koenic

How to assemble the KSF 400M fan?

Place the weight on the base, fix the telescopic tube with the screws, then pull it to the desired height and tighten the adjustment screw. Remove the screw at the top end of the tube, attach the motor unit and tighten. Mount the rear grille with the nut, slide the blade onto the shaft aligning the screw, then hook the front grille and lock with the screws and nut. Close the clips.

How to clean the fan?

Before any cleaning, turn off and unplug the appliance. Use a soft cloth and possibly a mild detergent. Never immerse the fan in water and do not allow water to enter the motor. Dry all parts thoroughly before reassembling or storing.

What to do if the fan does not turn on?

Check that the plug is properly inserted into a working outlet. Ensure the appliance is fully assembled and the control knob is not set to '0'. If the problem persists, contact an authorized after-sales service.

Can the fan be used outdoors?

No, the appliance is designed only for dry indoor use. Do not use it near water, a pool, or in a damp basement.

How to adjust the height of the fan?

Loosen the height adjustment screw on the telescopic tube, adjust to the desired height, then retighten the screw. Always perform this operation after turning off and unplugging the appliance.

How to activate oscillation?

Press the oscillation button located on the fan body to start the back-and-forth movement. Pull the button again to deactivate oscillation and return to fixed operation.

What safety precautions should be observed?

Never cover the appliance, do not use it without the grille, do not immerse electrical parts in water, and avoid contact with heat sources. Do not leave children unattended and always unplug before any maintenance.

How to store the fan off-season?

First clean it, then store it in a clean, dry, and cool place, out of reach of children and animals. Preferably keep the original packaging to protect it from dust.

The fan makes abnormal noise, what to do?

Check that the grilles are properly closed and the screws are tight. Ensure the blade is not deformed and no object is in contact with the blades. If the noise persists, contact an authorized after-sales service.

Where can I find spare parts for the KSF 400M?

Contact the after-sales service authorized by the manufacturer. Only use accessories or parts recommended by Koenic to avoid any risk of injury or damage.

USER MANUAL KSF 400M Koenic

Modern outdoor fan with a metallic stand and four blades, no visible text or symbols

Deutsch 1-5

3201467 12

Fig.13-18

E-mail:13-24

E4014575 30

M

1. alan 37 42

Vecerands 15 - 48

216479-51

Portugues 55-60

Svenska bl - 66

Torkpe 67 - 72

mtrcn Gngl

MARKS 15947

1)85,461guklat

KSF400M12.12.05(13)

K84001A5_121203AB 157212 4.96 PM

Sicherheitshinweise

Circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a specific part (no text or symbols visible)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Aufstellen

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a white electrical outlet plug with a black plug inserted, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with internal ridges and a curved scale marked in ohms (no text or symbols on the object itself)

Close-up of a metallic cylindrical device with a red arrow pointing to a component (no visible text or symbols)

Close-up of a metallic industrial pipe fitting with a red arrow pointing to a component (no visible text or symbols)

Close-up of a circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion or force, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, surrounded by a mesh grid (no text or symbols visible)

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Εγκατάσταση

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a white electrical outlet plug with a black plug inserted, showing a red arrow pointing to the plug (no text or symbols visible)

1. Συνδέστε το προϊόν.

Λειτουργία

Close-up of a cylindrical object with ribbed texture and a curved scale labeled 0 to 12 (no text or symbols on the object itself)

Close-up of a metallic cylindrical device with a red arrow pointing to a component (no visible text or symbols)

Close-up of a metallic industrial fan or duct with a red arrow pointing to a component (no visible text or symbols)

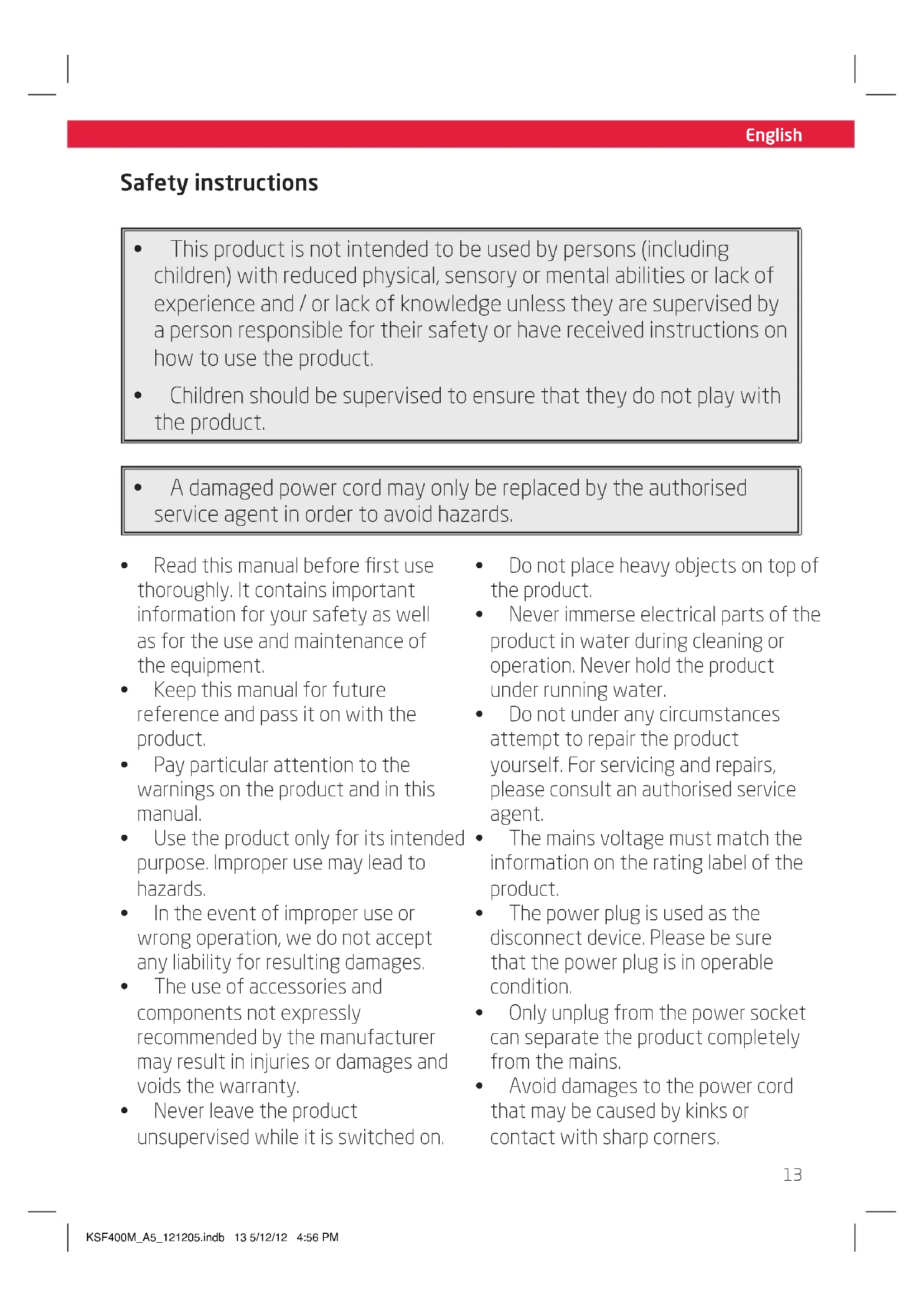

• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.
• Children should be supervised to ensure that they do not play with the product.

- A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.

• Never leave the product unsupervised while it is switched on.

• Do not place heavy objects on top of the product.

• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplug from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

English

Safety instructions

• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product is damaged or if the product is dropped, the product may not be used before it is examined by an authorised service agent.
• Place the product on a flat, sturdy and slip-resistant surface.
• Use this product in dry indoor area only and never outdoors.
• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• Keep this product away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this product from extreme heat and cold as well as from direct sunlight and dust.

• Do not remove the guard or insert any object during operation.

• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

• In order to avoid overheating, do not cover the product.
• Small children, children and older people should not be exposed to cold air currents for a long time.
• Keep product away from loose objects such as plants, curtains, etc.
• The product may only be connected to the mains once it has been completely assembled.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries.

Before first time use

• Carefully take the product and its accessories out of the original packaging.
• Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the product. Return it to your retail outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care

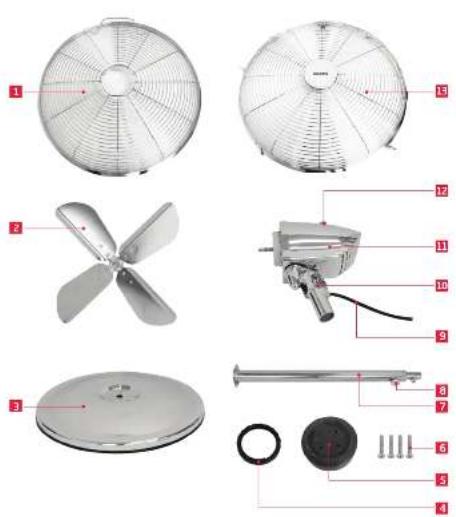

Part list

1 Rear guard
2 Fan blade
3 Base
4 Nut
5 Weight
6 Screws
7 Extension pole
8 Height adjustment screw
9 Supply cord
10 Bracket
11 Fan body
12 Control knob and oscillation knob
13 Front guard

Content

1 x Stand fan
1 x User manual
4 x Screws

Technical data

Rated voltage 220 - 240 V\~, 50 Hz

Rated power 70 W

Fan diameter 40 cm

Weight approx. 6.2 kg

Description Symbol	Value Unit
Maximum fan flow rate	F 57.78 m		3/min
Fan power input P 63.00 W
Service value SV 0.92 (m)			7min)/W
Standby power consumption	P_SB	0.00 W
Fan sound power level	L_WA	62.70 dB(A)
Maximum air velocity	c	2.62 metres/sec
Measurement standard for service value	COMMISSION REGULATION (EU) No 206/2012IEC 60879:1986EN 50564:2011EN 60704-2-7:1998EN 60704-1:2010
Contact details for obtaining more information	Imtron GmbHWankelstraße 5D-85046 Ingolstadt

EN

Assembly

1. Apply the weight to the base.
2. Install the extension pole with the screws.
3. Pull up the extension pole and secure it by tightening the thumb screw.
4. Remove thumb screw from the upper end of the extension pole.
5. Attach the motor unit to the extension pole.
6. Install and tighten the thumb screw to hold the motor unit in place.
7. Install the rear guard with the handle pointing up and fix it with the nut.
8. Slide the fan blade onto the motor shaft, aligning and tightening the screw to the groove.
9. Hook the front guard onto the rear guard.
10. Install the screws and nut to lock the guard. Close the clips.

Caution

The product must not be disassembled during operation, general care, cleaning and user maintenance.

Caution

Never connect the product to the mains when it is not completely assembled.

Close-up of a metallic cylindrical component with four central holes and red arrows pointing to the sides (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion, no visible text or symbols

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Installation

1. Place the base on a stable, level surface.
2. Connect the power plug to a suitable electrical outlet.

Caution

The product may never be operated without the stand or in a horizontal position.

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

1. Place the base on a stable, level surface.

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

1. Plug in the product.

Operation

1. To switch the fan on, rotate the knob to speeds 1-3. To switch fan off, select 0.

0 Switch off

1 Low speed

2 Medium speed

3 High speed

1. Adjust it to the desired angle.
2. Push the oscillation knob to activate oscillation function. Pull knob for normal operation.

Caution

The guard must be completely closed when operating the product. During operation, do not put fingers or other objects in the guard.

Close-up of a mechanical component with a curved scale and measurement markings (no readable text or symbols)

1. Select speed. 2. Adjust desired angle.

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Close-up of a metallic cylindrical device with a red arrow pointing to its side (no visible text or symbols)

1. Activate or deactivate the oscillation function.

Caution

Switch off and disconnect the product before adjusting height or tilting angle.

EN

Cleaning and care

Caution

Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

• Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
  • Dry all parts thoroughly before storage.
• Store the product in a cool, dry and clean place, out of the reach of children and pets.

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for

the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Close-up of a circular mechanical component with four central holes and red arrows pointing to the sides (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Metal pipe joint with a red arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a red arrow indicating a downward motion or force, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Instalación

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a cylindrical mechanical component with internal ridges and a curved scale labeled 'ω' (no text or symbols on the object itself)

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Close-up of a metallic cylindrical device with a red arrow pointing to its side (no visible text or symbols)

Close-up of a circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion or force, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine component with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Installation

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a mechanical component with a curved scale and measurement markings (no readable text or symbols)

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Close-up of a metallic pipe fitting with a red arrow pointing to a component (no text or symbols visible)

Close-up of a circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Üzembe helyezés

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a mechanical component with a curved scale and measurement markings (no readable text or symbols)

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Close-up of a metallic pipe fitting with a red arrow pointing to a component (no text or symbols visible)

Close-up of a circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion or force, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion, no visible text or symbols

Close-up of mechanical components with a red arrow pointing to a component (no visible text or symbols)

Close-up of a metal mesh structure with a diagonal line, no visible text or symbols

Installazione

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

1. Collocare la base su una superficie stabile e piana.

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a mechanical component with a curved scale and measurement markings (no readable text or symbols)

Close-up of a metallic airship or turbine component with a red arrow pointing to a specific part (no text or symbols visible)

Close-up of a metallic fan or duct structure with a red arrow pointing to a specific area (no text or symbols visible)

Circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or fan assembly with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Installatie

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a transparent cylindrical object with a curved scale and a 0.5 degree pointer (no text or symbols on the object itself)

1. Selecteer snelheid. 2. Stel af op de gewenste hoek.

Close-up of a metallic cylindrical device with a red arrow pointing to a component (no visible text or symbols)

Close-up of a metallic industrial pipe or duct with a red arrow pointing to a component (no visible text or symbols)

Close-up of a metallic cylindrical component with four central holes and red arrows pointing to the sides (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small cylindrical feature (no text or symbols visible)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion, surrounded by a wire mesh (no text or symbols)

Close-up of a mechanical component with a red arrow pointing to a metallic part (no visible text or symbols)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Instalacja

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a curved scale marked in ohms (no text or symbols on the object itself)

Close-up of a metallic cylindrical device with a red arrow pointing to a small component (no visible text or symbols)

Ostrzeżenie

Close-up of a metallic pipe fitting with a red arrow pointing to a component (no visible text or symbols)

Circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to its end (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or fan assembly with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, no visible text or symbols.

Close-up of mechanical components with a red arrow pointing to a component (no visible text or symbols)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Instalação

Close-up of a metallic cylindrical object with a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a white electrical outlet plug with a black plug inserted, showing a red arrow pointing to the plug (no text or symbols visible)

1. Ligue o produto.

Funcionamento

Close-up of a cylindrical mechanical component with internal ridges and a curved scale labeled 'ω' (no text or symbols on the object itself)

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

1. Ajuste o ângulo pretendido.

Close-up of a metallic cylindrical device with a red arrow pointing to its side (no visible text or symbols)

Close-up of a metallic cylindrical component with four central holes and red arrows pointing to the sides (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Metal pipe joint with a red arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a red arrow indicating a downward motion or force, no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a small bolt (no visible text or symbols)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow indicating a downward motion, no visible text or symbols

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Installation

Close-up of a metallic cylindrical object with a small protrusion on a smooth surface (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

1. Sätt i nätsladden.

Användning

Close-up of a mechanical component with a curved scale and pointer (no visible text or symbols)

Close-up of a metallic cylindrical device with a red arrow pointing to a component (no visible text or symbols)

Varning

Close-up of a metallic cylindrical component with a red arrow pointing to a feature, no visible text or symbols.

Close-up of a circular mechanical component with four central holes and red arrows pointing to each hole (no text or symbols)

Close-up of a metallic mechanical component with red arrows pointing to features, no visible text or symbols.

Close-up of a metallic mechanical component with red arrows indicating upward and downward motion (no text or symbols)

Close-up of a metallic cylindrical object with a red arrow pointing to it, no visible text or symbols

Close-up of a mechanical component with a red arrow indicating downward motion (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a small cylindrical feature (no text or symbols visible)

Close-up of a mechanical fan or turbine blade with a red arrow pointing to the center (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a circular feature, surrounded by wire mesh (no text or symbols)

Close-up of mechanical components with a red arrow pointing to a metallic part (no text or symbols visible)

Close-up of a curved metal structure with a diagonal line, no visible text or symbols

Montaj

Close-up of a metallic cylindrical object with a small protrusion on a smooth surface (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

1. Ürünü prize takın.

Çalıştırma

Close-up of a mechanical component with a curved scale and measurement markings (no readable text or symbols)

Close-up of a metallic mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Dikkat

Close-up of a metallic cylindrical device with a red arrow pointing to its side (no visible text or symbols)

Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
