Product type	Active Bluetooth speaker with rechargeable battery
Brand	SHARP
Model	Sumobox Pro CPLS200 (CP-LS200)
Mains power	220-240 V AC, 50/60 Hz
Battery	Rechargeable lithium-ion, removable pack (model CP-LSBP1)
Battery life	Up to 8 hours at 50% volume
Charging time	At least 4 hours for a full charge
Bluetooth connectivity	Yes, version unspecified, range unspecified
Audio inputs	2 x combo XLR/TRS (CH1, CH2), 1 x 3.5 mm AUX (CH3), Bluetooth (CH3)
Outputs	1 x USB 5V 1000mA (device charging), 1 x speaker link (input/output)
Channels	3 independent channels (CH1, CH2, CH3)
Controls	Volume, treble, bass, reverb (CH1/CH2), ducking, indoor/outdoor modes
Duo mode (TWS)	Allows pairing two speakers for wireless stereo sound
Wired connection	Via speakON connectors (input/output) for daisy-chaining multiple speakers
Mobile app	Sharp Life (iOS/Android) for remote control
Protection rating	IPX4 (splash resistant and light rain)
Pole mounting	Suitable for standard 35 mm (1-3/8 inch) pole
Included accessories	Power cable, battery pack, 8 corner protectors, hex key, documentation
Optional accessories	Battery pack and adapter (CP-LSBP1), custom grilles, handles
Factory reset	Long press (>10s) on the ducking button

Frequently Asked Questions - Sumobox Pro CPLS200 SHARP

How many devices can I connect simultaneously?

You can connect up to 3 devices: 1 on CH1 (XLR/TRS), 1 on CH2 (XLR/TRS), and 1 on CH3 (Bluetooth or AUX). Note that if a device is connected via AUX on CH3, Bluetooth is disabled.

How to activate Duo mode (TWS)?

Turn on both SumoBox speakers. On the first one, press the Bluetooth/Duo Mode button twice. The LED flashes yellow. Wait for the audio confirmation. The secondary speaker will have a steady yellow LED, the main one a flashing blue LED.

What is the battery life?

You can expect up to 8 hours of playback at 50% volume with a fully charged battery. Recharge it for at least 4 hours.

Can I use the SumoBox outdoors?

Yes, the SumoBox Pro CP-LS200 is rated IPX4, protected against splashes and light rain. Avoid immersion or exposure to heavy rain.

How to reset the device to factory settings?

Press and hold (>10 seconds) the ducking button. A sound confirms the reset, and the LED indicators flash once.

Does the SumoBox have an auto standby mode?

Yes, it automatically goes into standby after 15 minutes without an input signal. You can also manually activate it by pressing and holding (>3s) the Bluetooth/Duo Mode button.

What do the rear panel LEDs mean?

The power LED is steady blue when on, steady red in standby. The Bluetooth LED flashes blue when pairing, steady blue when connected. The ducking LED is steady blue when ducking is enabled, with fast flashes (4x) for indoor mode and slow flashes (2x) for outdoor mode.

Can I customize the appearance of the SumoBox?

Yes, the front grille is removable and can be painted. Custom grilles, corner protectors and handles in special edition will be available.

How to connect the Sharp Life app?

First disconnect any existing Bluetooth device by pressing the Bluetooth/Duo Mode button once. Open the app, click 'Add Device', then follow the on-screen instructions.

What accessories are available separately?

You can purchase an additional battery pack and adapter (model CP-LSBP1), as well as custom grilles, corner protectors and handles.

USER MANUAL Sumobox Pro CPLS200 SHARP

Battery Pack only

Battery Pack only

Battery Pack only

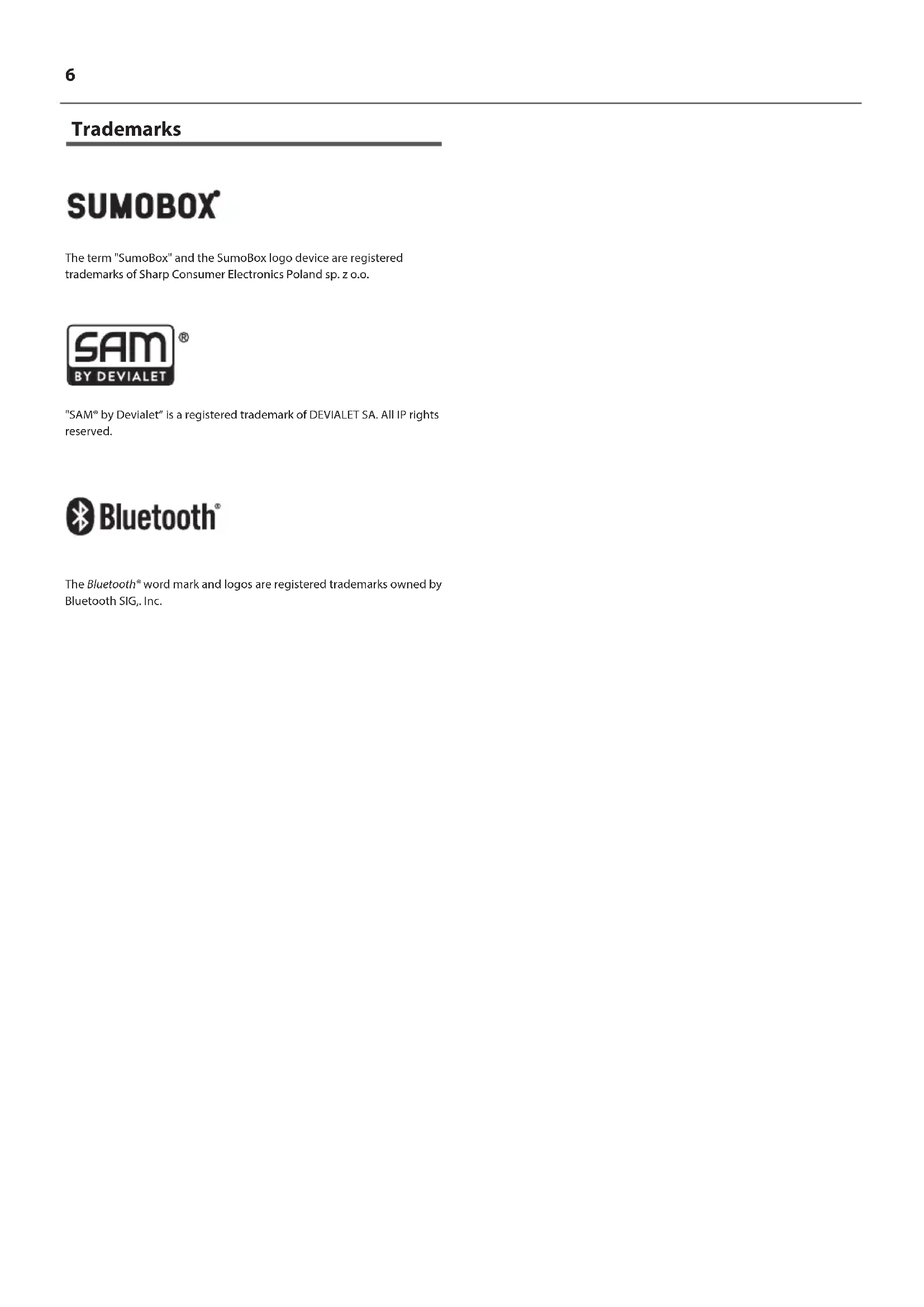

The term "SumoBox" and the SumoBox logo device are registered trademarks of Sharp Consumer Electronics Poland sp. z o.o.

"SAM" by Devialet" is a registered trademark of DEVIALET SA. All IP rights reserved.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG., Inc.

Important safety instructions

Please follow all safety instructions and heed all warnings. Keep this manual for future reference.

This symbol instructs the user to consult the user manual for further safety, operation, and maintenance related information.

This symbol indicates presence of uninsulated "dangerous voltage" within the product and may be of sufficient magnitude as to constitute a risk of electric shock to persons.

Refers to alternating current (AC). This symbol indicates that the rated voltage marked with the symbol is AC voltage.

Refers to class II equipment.

This symbol indicates that this product has a double insulation system and does not require a safety connection to electrical earth (ground).

Precautions

Damage

• Please inspect the unit for damage after unpacking. If it is damaged in any way, do not operate the unit and consult your dealer.

Power connection and accessibility

• Do not handle the power cord with wet hands as it may cause an electric shock. If the power plug does not fit into your outlet, do not force the plug into an electrical socket. Switch off the unit completely before unplugging. Disconnect the power cord if it is not used for a long time. Ensure that the power plug is always easily accessible. Do not attach extension cables.

Power source

• Ensure that the unit is plugged into an AC 220-240V 50/60Hz power outlet. Using higher voltage may cause the unit to malfunction or even catch fire.

Fused moulded power plug (non rewireable) - UK, Malta, Cyprus and Ireland only.

• The power lead on this equipment is supplied with a moulded plug incorporating a 3 Amp fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Power cord protection

• Do not damage the power cord, do not place any heavy objects on it, do not stretch it or bend it. Damage to the power cord can result in fire or electric shock. If the power cord is damaged, it must be replaced. The power cord is not fixed and so can simply be replaced when damaged.

Child safety

• Always follow basic safety precautions when using this product, especially when children are present. Children should be supervised to ensure that they do not play with the product.

Location

• When in use this product should be placed on a flat, stable surface with no part of the main unit overhanging an edge.

Insertion hazards

• Never let anyone push anything into holes, slots or any other openings in the product's casing as this could result in an electric shock.

Heat and operating temperature

• Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Avoid prolonged exposure to direct sunlight.

Naked flames

• To prevent the risk of fire, keep candles or open flames away from this product.

Storms and lightning

• Storms are dangerous for all electric products. If the power is struck by lightning, the product might get damaged, even if it is turned off. You should disconnect all the cables and connectors of the product before a storm.

Maintenance

• Unplug the power cable from the power source before cleaning the product. Use a soft and clean cloth to clean the outside of the unit. Never clean it with chemicals or detergent.

Service and repair

• This product does not contain any parts that are serviceable by the user. Exposing the internal parts inside the device may endanger your life. In case of a fault, contact the manufacturer or authorised service department. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

Caution: Prevention of hearing loss and damage

• SumoBox Pro CP-LS200 is capable of generating excessive sound pressure levels (SPL) sufficient to cause permanent hearing loss or damage. Caution should be taken to avoid prolonged exposure to excessive (>85dB) SPL.

Warning: Special instructions for handling the Lithium-ion battery pack

Follow instructions carefully. This will reduce the risk of explosion, electric shock and possibly serious injury or death.

• Only use approved Sharp power adapter to charge battery pack. Use a power source with the voltage specified on the nameplate of the charger. The charger and battery pack are specifically designed to work together.
• Do not operate the charger with a damaged cord or plug.
• Do not place the battery pack near fire or heat. Exposure to fire or temperature above 60°C may cause the battery pack to explode.
• Do not charge the battery pack in a damp or wet location.
• Do not charge in the presence of flammable liquids or gases.
• Ensure the battery pack is never immersed into water.
• Do not charge in an area of extreme heat (above 40°C) or cold (below 10°C).

It will work best at normal room temperature.

• Do not crush, drop or damage the battery pack.
• Do not use a battery pack or charger that has been dropped or received a sharp blow. Damage to the battery pack may cause the battery pack to explode. Properly dispose of the battery pack immediately by following instructions on how to dispose of battery pack or contact service centre for advice.
• Do not open, modify or attempt to repair a battery pack.
• The battery may give off fumes if it becomes damaged or is used incorrectly.

Ensure the area is well ventilated and seek medical attention should you experience any adverse effects.

• The battery may leak liquid if it becomes damaged or is used incorrectly.

If you come into contact with any liquid from the battery accidentally, rinse off immediately with mild soap and water. If the liquid comes into contact with your eyes, rinse with water and seek medical attention.

• Keep battery pack away from small metal objects to avoid shortening battery terminals.

Disposal of equipment and batteries

Information for users on collection and disposal of old equipment and used batteries:

This product does not contain any parts that are serviceable by the user. The batteries should be removed by an authorized Sharp service centre. Not doing so will invalidate any guarantees and warranties on your device. Dispose of batteries according to local regulations. Do not dispose as household waste or in a fire as they may explode.

This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Cd, Hg and Pb underneath the wheelie bin symbol shows whether the battery contains, cadmium (Cd), mercury (Hg) or lead (Pb).

This symbol on a product means that the product is covered by European Directive 2012/19/EU and must not be disposed of or dumped with your other household waste.

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

CE and UKCA statement

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.
• The full CE text and UKCA declaration of conformity are available at sharpconsumer.eu, enter the download section of your model and choose "Declaration of Conformity".

Introduction

Thank you for purchasing the Sharp SumoBox Pro CP-LS200.

This instruction manual provides details on how to safely setup and operate your SumoBox and explains how to connect to a variety of audio sources.

Please take the time to familiarise yourself with the features.

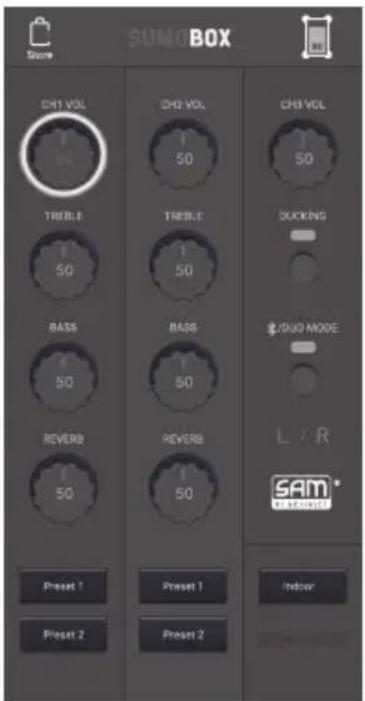

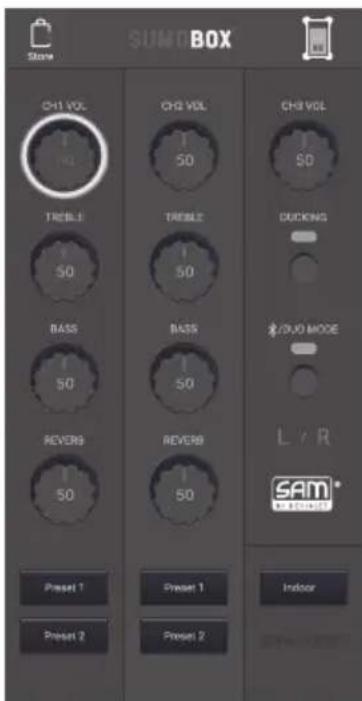

You can also download the dedicated Sharp Life App and take control of your SumoBox remotely.

SHARP Life

app support

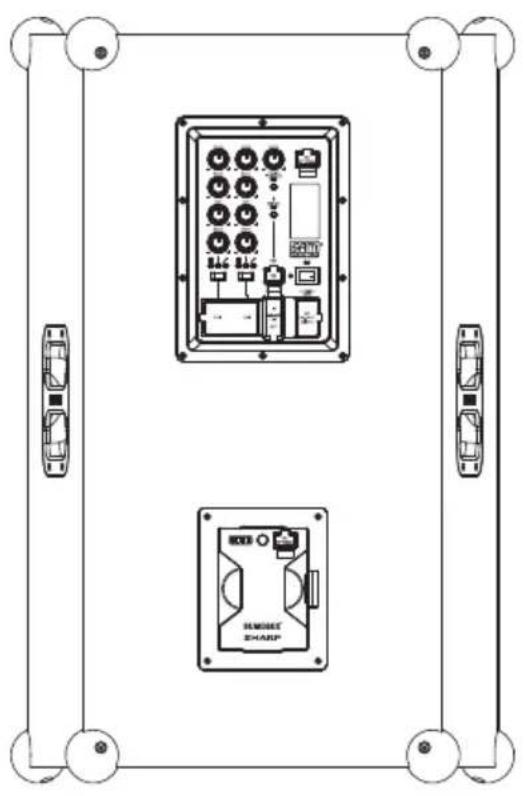

Connections and controls

(Refer to Aon page 2).

1. Volume Control: Adjust the volume of the connected input.
2. Treble Control: Adjust the high tones of the connected instrument or microphone (CH1 and CH2 only).
3. Bass Control: Adjust the low tones of the connected instrument or microphone (CH1 and CH2 only).
4. Reverb Control: Adjust how much reverb is applied to the connected instrument or microphone (CH1 and CH2 only).
5. Input Type: Use the switch to select the input type for CH1 and CH2. The LED indicates the selected device type.
6. XLR/TRS Combi: Connect instruments, guitars (TRS) and microphones (XLR).

Note: The XLR input does not output phantom power.

1. USB Out (DC 5V 1000mA): Allows mobile devices to be charged. Note: This is not intended for USB flash drives to play audio files.
2. Ducking Control: Turns ducking feature ON/OFF. When ON, CH3 audio will be suppressed by CH1 and CH2 audio. Also controls Indoor/Outdoor mode.

Blue (solid) Ducking on
Blue (fast flashes x4) Indoor mode
Blue (slow flashes x2) Outdoor mode

1. Bluetooth / Duo Mode: Turns ON/OFF Bluetooth and Duo Mode functions. See section "Bluetooth and Duo Mode" for more information.

Blue (flashing)	SumoBox is ready to pair to a Bluetooth device.
Blue (solid) SumoBox	is connected to a Bluetooth device.
Yellow (flashing)	SumoBox is looking for another SumoBox to pair with.
Yellow (solid)	SumoBox is paired to another SumoBox and is the secondary unit.
	When connected, the Bluetooth LED on the primary unit will flash until a Bluetooth device is connected.

1. 3.5 mm AUX In: Connect an audio device via a 3.5mm cable. When an AUX device is first connected it will autoswitch from any active Bluetooth connection.
2. Power Switch: Turns the SumoBox ON / OFF.

Blue (solid) Power on
Red (solid) Standby
Red (blinking) Low battery (battery powered only)

1. Speaker Link IN / OUT: Connect additional SumoBoxes.
2. Power In: Connect to the mains power via the supplied power lead. AC 200-240V ~ 50/60Hz

Note: Ensure you use the correct power cable for your region.

1. USB Charging Port (5V 1000mA): Allows mobile devices to be charged.
2. Battery Status LED: Press the button to see the battery Status.
3. Battery clip: Secures the battery pack in place. Push the clip to the right to allow the battery pack to be removed.
4. DC 18V Input: Allows charging of the battery when not installed in the SumoBox.

Note: External charger sold separately with CP-LSBP1.

1. Connection to SumoBox

Box contents

• CP-LS200 SumoBox Pro Power cable Battery pack

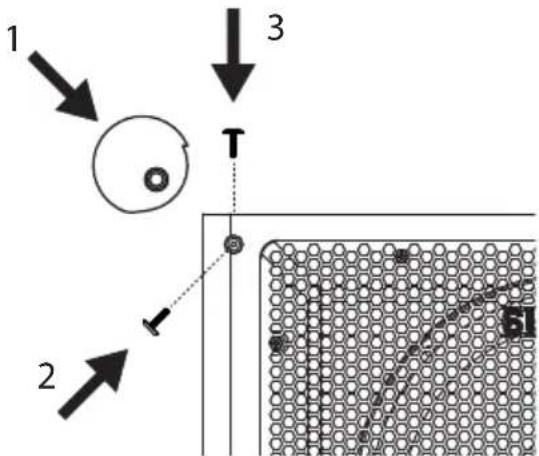

• Corner protectors (x8)
• Hex driver tool
• User documentation

Optional Accessories:

• Battery Pack & Charger (CP-LSPB1) Sold separately.

Initial set up

Before first use, it is recommended to charge the battery pack for a minimum of four hours (or until fully charged). Anytime the battery is installed and the SumoBox is connected to mains power, the battery will charge.

10% - 25%

26% - 50%

51% - 75%

76% - 100%

Turning on the SumoBox

If using SumoBox with instruments:

1. Connect any instruments/microphones to the desired channels.
2. Switch any powered instruments on and ensure they are not sending any signals.

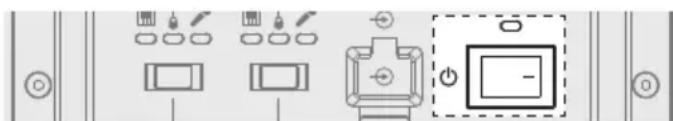

3. Turn on the SumoBox via the power switch. The power LED will turn solid blue to indicate the speaker is on.

If using SumoBox only with Bluetooth

If only using Bluetooth connections, turn the SumoBox on to start connecting.

NOTE:

When turning off the SumoBox, perform these steps in the reverse order.

Connection types

With three channels and a variety of input types, you can connect a wide range of instruments, microphones and other devices.

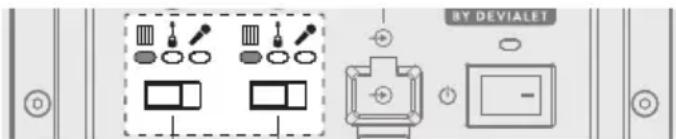

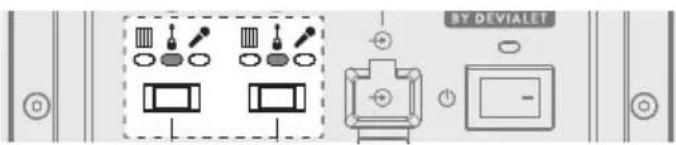

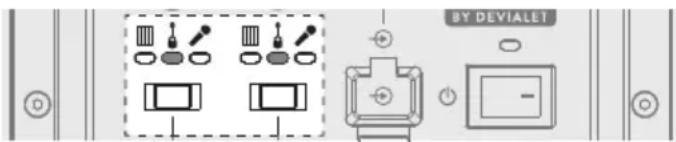

Above the CH1 and CH2 inputs is an input type selector. This adjusts the balance of the connection. Here are some examples.

(Refer to B on page 2).

B: Connect keyboards, guitars or microphones to CH1 and CH2. Select the correct device type on the switch. Use instrument cables for keyboards and guitars, and XLR cables for microphones.

(Refer to on page 2).

C: Bluetooth on CH3. Refer to the section "Bluetooth and Duo Mode" for details on how to connect your Bluetooth enabled device.

(Refer to D on page 3).

D: Aux input (3.5mm) on CH3. Connect analog source devices using the 3.5mm input. Please note that in presence of a device connected via AUX on CH3, Bluetooth is suppressed.

(Refer to E on page 3).

E: You can connect a mixer to CH1 or CH2 to increase the devices connected to SumoBox. Use the "keyboard" setting on the input type selector if you connect a mixer.

Volume, bass, treble & reverb

Volume (CH1, CH2 & CH3)

Adjusts the volume of the channel.

0-Max scale.

Treble (CH1 & CH2 only)

Adjusts the high tone of the connected instrument or microphone. Scale from - to +, with 12 o'clock position as neutral (Min - 0 - Max).

Bass (CH1 & CH2 only)

Adjusts the low tone of the connected instrument or microphone. Scale from - to +, with 12 o'clock position as neutral (Min - 0 - Max).

Reverb (CH1 & CH2 only)

Adjusts how much reverb is applied to the connected instrument or microphone. 0-Max scale.

Ducking mode

The Ducking feature will reduce (duck) CH3's output when input from CH1 or CH2 is detected.

To turn on, press the Ducking Control button once. The LED will be solid blue. Press again to turn off.

Example: You may have a backing track playing on CH3 whilst using a microphone on CH1. The ducking feature means audio playing on CH3 will reduce in volume slightly when you speak into the microphone - giving your voice more space in the mix.

Indoor / Outdoor mode

There are two sound modes; Indoor and Outdoor. To switch between modes, double tap the Ducking Control button (2x within 1 sec).

You can identify which mode SumoBox is in by observing the LED indicator when the mode is changed:

Sound Mode Ducking LED	indicator
Indoor (default) Blue - fast flash x4
Outdoor Blue - slow flash x2

Indoor mode is suitable for when SumoBox is used indoors and is optimised for sound quality.

Outdoor mode is suitable for when SumoBox is used outdoors. When in Outdoor mode, the high and mid range frequencies are boosted. This allows those frequencies to be better heard when in an outdoor environment.

Bluetooth and Duo Mode

You can connect a Bluetooth enabled device to your SumoBox.

SumoBox can also connect to another SumoBox via Duo Mode - True Wireless Stereo (TWS).

Duo Mode is a powerful feature which allows the Bluetooth audio source to be sent to 2 SumoBoxes, one operating as the left stereo channel, the other operating as the right stereo channel. The effect offers a more powerful and immersive stereo sound stage.

Connect via Bluetooth

1. With the SumoBox on, activate your Bluetooth device and select the search mode. "SUMOBOX PRO CP-LS200" will appear on your Bluetooth device list.
2. Select "SUMOBOX PRO CP-LS200". An audio prompt will sound from SumoBox when it has successfully connected.
3. To disconnect, press the Bluetooth / Duo Mode button once. Alternatively, disconnect from the SumoBox on your Bluetooth enabled device.
4. To reconnect the same device, press the Bluetooth / Duo Mode button once on the SumoBox or connect via your Bluetooth enabled device.

NOTE:

The speaker will attempt to automatically connect itself to the last audio output device connected via Bluetooth. If this is not possible, the speaker will enter pairing mode and the Bluetooth LED will flash.

Duo Mode: True Wireless Stereo (TWS)

1. Turn on both SumoBox speakers.
2. On the first SumoBox, double press the Bluetooth / Duo Mode button.
3. The LED will flash yellow and SumoBox will notify it is in pairing mode.
4. Wait for the connection between the two SumoBox to be made.
5. Once connected, both SumoBox will give an audio confirmation. The RIGHT (secondary) SumoBox will have a steady yellow LED and The LEFT (primary) SumoBox will have a flashing blue LED.
6. Adjust the CH3 volume on the first SumoBox to change CH3 volume on both speakers.
7. To disconnect Duo Mode, double press the Bluetooth / Duo Mode button on either SumoBox.
8. Usage example

(Refer to on page 4).

When in Duo Mode you can connect 4x microphones and a Bluetooth device. This is ideal for a conference or presentation.

NOTES:

When in Duo Mode, only the Bluetooth source CH3 from the LEFT (primary) SumoBox will be shared. Input from Mic 1 and Mic 2 on both speakers will remain local to that speaker. It is not possible to connect to the RIGHT (secondary) SumoBox via Bluetooth when Duo Mode is active. If two speakers have already been paired, Duo Mode / TWS will reconnect automatically when both speakers are powered on.

Speaker link

SumoBox can be linked to other SumoBoxes via speaker linking. This is the optimal way to share audio incoming via CH1 and CH2 with another SumoBox.

You can do this in various ways:

1. One way link:

(Refer to F on page 3).

Connect one speaker's OUT socket to another speaker's IN socket.

When in this configuration, the OUT unit will not play any audio connections from the IN unit.

1. Two-way link:

(Refer to G on page 3).

Connect one speaker's OUT socket to another speaker's IN socket, and vice versa.

When in this configuration, the audio on both units is sent to each other.

1. Daisy chain link:

(Refer to H on page 4).

Connect one speaker's OUT socket to another speaker's IN socket, then that speaker's OUT socket to another speaker's IN socket.

When in this configuration, the audio on the first speaker is sent down the chain. You can add as many SumoBox as you want.

1. Two-way link (small band):

(Refer to on page 4).

Using the two-way link, you have 6x inputs where the audio on both units is sent to each other. This is ideal for a small band, for example.

NOTES:

You can daisy chain multiple SumoBox as the speaker link function on SumoBox is an amplified output. Daisy chaining might not work correctly using similar products from other manufacturers as these links may not be amplified.

Sharp Life App

You can download the Sharp Life App onto your smart device. The app allows full control of the SumoBox and also offers some additional features.

To pair the app to the SumoBox, do the following:

1. Initial set up

If you're connecting to the app for the first time, but have previously connected a device to play audio via Bluetooth, you will need to disconnect your Bluetooth device.

To disconnect the Bluetooth connection, press the Bluetooth / Duo Mode button once.

1. On your smart device, open the Sharp Life app. Click on "Add Device". Your device will scan automatically for the SumoBox.
2. Once the SumoBox is found, tap the + symbol to begin the pairing process.

When pairing is complete, tap the device icon and the SumoBox user interface will load.

To download the app, use this QR code to go automatically to the download page or visit: https://www.sharpconsumer.com/sharp-life-app

NOTE:

Only one SumoBox can be connected to the Sharp Life Account at any one time.

A factory reset will clear the memory and allow a new Sharp Life account to be connected.

Factory reset

Long press (>10 seconds) the Ducking button to reset the unit to factory settings. An audio tone will confirm the reset and the panel's back lights will flash once.

Standby mode

You can put SumoBox into standby by long pressing (>3 seconds) the Bluetooth/Duo Mode button.

To quickly power back on, press the Bluetooth/Duo Mode button once.

NOTE:

SumoBox will automatically go into standby mode when no input signal has been detected for more than 15 minutes.

Whilst in App mode, standby is disabled.

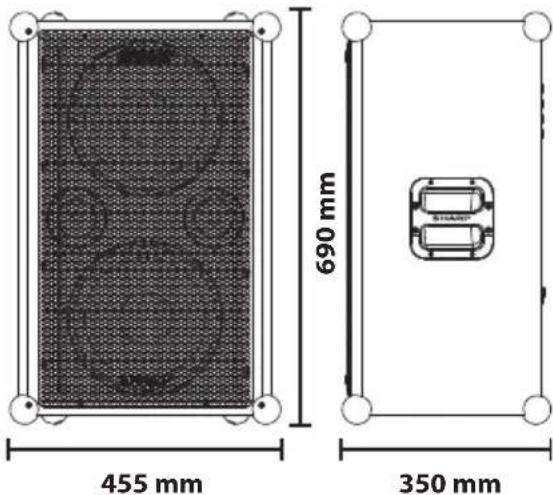

Corner protectors and grille

SumoBox comes with 8x Corner Protectors and 16x screws. Use the included hex driver tool to affix them to each corner.

There are 4 types of corner, each with lettering on the inside surfaces:

Corner Type SumoBox Location
FTL/FBR Front Top	Left or Front Bottom Right
FTR/FBL Front Top	Right or Front Bottom Left
RBL/RTR Rear Bottom	Left or Rear Top Right
RTL/RBR Rear Top Left or Rear Bottom Right

You will need to remove the pre-installed feet from the SumoBox to attach the Corner Protectors.

Each Corner Protector uses 2x screws to attach to the SumoBox as demonstrated:

Step 1 - Remove the screws.

Step 2 - Place the corner protector on the corner of the SumoBox and check for correct fitment.

Step 3 - Using the supplied hex driver tool, screw the corner protector to the SumoBox via the two screw holes. Ensure the holes of the corner protector align with the holes in the SumoBox.

NOTE:

Holes for the corner protectors are only on the front, rear, top and bottom of the SumoBox. No holes exist on the left or right sides.

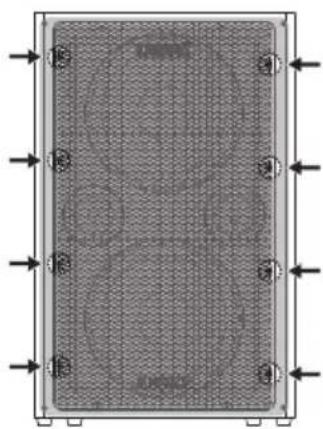

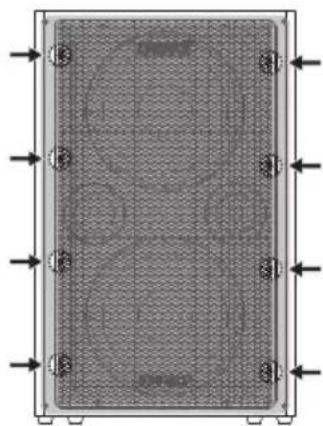

It is also possible to remove the grille using the included hex driver tool. Replacement and special edition customised grilles will be available to purchase separately. Do not use the SumoBox without the grille attached.

Replacement and special edition customised handles will be available to purchase separately.

Positioning the SumoBox

(Refer to X_max^max, M on page 5).

Your SumoBox has protective corners and an angled design. This allows a variety of positions when placed on a solid surface.

You can also mount SumoBox on a Standard 1-3/8 inch (35 mm) speaker mount.

NOTE:

Do NOT use the SumoBox speaker with a tripod/stand that is unstable. SumoBox speakers are only designed for use on a standard 1-3/8 inch (35 mm) post, and the tripod/stand must be capable of supporting a speaker with a minimum weight of 25 kg.

Using a tripod/stand that is not designed to support the weight of the SumoBox speaker can be hazardous and may lead to injury.

SAM by Devialet

SumoBox utilises Devialet's proprietary SAM (Speaker Active Matching) algorithm which delivers improved linearity and enhanced low frequency performance. What this means for the end user is a richer, more detailed, and more powerful bass performance with limited audio distortion – the high-quality speaker drivers are optimised to be at their very best. With SHARP's audio heritage and Devialet managing the tuning of the bass (via SAM), prepare yourself for a best-in-class sound experience!

FAQ's

Q. Can I get additional battery packs?

A. Yes, you can! Additional battery packs are available to purchase separately (model CP-LSBP1). Speak to the retailer from where you purchased your SumoBox.

Q. What do the LEDs on the rear panel mean?

A. Look at this table to understand the information being indicated by the LEDs:

LED Colour Status
Power	Blue (solid) Power On
	Red (solid) Standby
	Off Power Off
Input Type Blue (solid)		Refers to the position of the inut type selector. There are three positions: Instrument, Guitar and Microphone
Bluetooth / Duo Mode	Blue (flashing)	SumoBox is ready to pair to a Bluetooth Device
	Blue (solid)	SumoBox is connected to a Bluetooth Device
	Yellow (flashing)	SumoBox is looking for another SumoBox to pair with in Duo Mode
	Yellow (solid)	SumoBox is paired to another SumoBox in Duo Mode and is the secondary unit (right channel)
Ducking IN/OUTDOOR	Blue (solid) Ducking on
	Blue (fast flashes x4) In	door mode was selected
	Blue (slow flashes x2)	Outdoor mode was selected

Q. How do I disconnect the App?

A. Long press (>10 seconds) the Ducking button to reset the unit to factory settings.

An audio tone will confirm the reset and the panels back lights will flash once.

Q. How many devices can I connect?

A. You have 3 channels which can connect up to 3 devices

1xCH1Input

1xCH2Input

1 x CH3 Input: Bluetooth and/or AUX

Please note that in presence of a device connected via AUX on CH3, Bluetooth is suppressed.

You can increase the number of inputs by adding a mixer to your signal flow. Connect all of your devices to the mixer, and connect the mixer to CH1 or CH2 of the SumoBox, and switch the input type to Instrument.

Q. Can I customise SumoBox?

A. Yes, you can. SumoBox has been designed so the front grille can be removed. Feel free to express yourself by painting the grille into your unique style.

We suggest using spray paints specially made for applying to metal, observing the correct safety instructions when using such paints.

For the best results, use a primer before applying your design and a sealer for after.

Look out for special edition customised accessories (grilles, corner protection and handles) coming soon.

Q. Does SumoBox have a standby mode?

A. Yes, SumoBox can be placed into standby mode by long pressing the Bluetooth / Duo Mode button for 3 seconds.

SumoBox will automatically go into Standby mode when no input signal has been detected for more than 15 minutes. Whilst in App mode, standby is disabled.

Q. How long does the battery last?

A. You can expect up to 8 hours playback at 50% volume from a fully charged battery pack.

Once depleted, recharge the battery for a minimum of four hours.

Q. Can I use SumoBox outdoors?

A. The SumoBox Pro (CP-LS200) has an IPX4 rating, indicating that it has a degree of protection against water ingress. Specifically, it is protected against splashing water from any direction, as well as light rainfall, making it suitable for outdoor use in areas with moderate moisture. It is important to note, however, that the IPX4 rating does not indicate protection against submersion or heavy rain exposure, and proper care should be taken to prevent any damage from occurring under such circumstances.

• Do not damage the power cord, do not place heavy objects on it, do not stretch or bend it. Damage to the power cord may result in a damaged cord.

Child safety

Mode Duo - True Wireless Stereo (TWS).

10% - 25%

26% - 50%

51% - 75%

76% - 100%

Turning on the SumoBox

Volume, bass, treble & reverb

Volume (CH1, CH2 & CH3)

Reverb (only CH1 & CH2)

10% - 25%

26% - 50%

51% - 75%

76% - 100%

To avoid electric shock, do not touch the power cord with wet hands. If the device plug does not fit the outlet, do not force it. Before disconnecting, turn off the device completely. Disconnect the power cord if the device is not used for a long time. Always have free access to the power cord. Do not connect extension cables to it.

Power source

• The device must be connected to a 220-240 V AC outlet, 50/60 Hz. Using a higher voltage may cause malfunction or fire.

Molded plug with fuse (non-removable) — UK, Malta, Cyprus and Ireland only.

The power cord is equipped with a molded plug with a 3 A fuse. The fuse rating is indicated on the plug. In case of replacement, use a fuse of the same rating, approved to BS1362.

Protecting the power cord

Do not damage the power cord. Do not place heavy objects on it, do not stretch or twist it. Damage to the power cord can cause fire or electric shock. If the power cord is damaged,

it must be replaced. The power cord is not user-serviceable, so in case of damage, it must be replaced.

Child safety

During use of the device, always follow basic safety rules, especially in the presence of children. Children should be kept at a distance so they cannot play with the device.

Location

• The device must be installed on a flat, stable surface so that no part of the main unit protrudes beyond the floor.

Danger of fire or introduction of foreign objects

Do not allow anyone, especially children, to insert foreign objects into the ports, slots, or openings in the device housing, as this may lead to electric shock.

Heat sources and operating temperature

Do not install the device near heat sources, such as radiators, heaters, stoves, or other devices (including amplifiers) that produce heat. Do not expose the device to direct sunlight for extended periods.

Open flames

To avoid the risk of fire, do not place open flame sources near the device.

Lightning

Lightning poses a danger to electrical devices. A lightning strike can damage the device even if it is turned off. Before a thunderstorm, disconnect all cables and wires from the device.

Maintenance

Before cleaning the device, unplug the power cord from the power source. Use a soft, dry cloth to clean the external surfaces of the device. Never clean it with chemical or abrasive agents.

Maintenance and repair

WARNING

ELECTRIC SHOCK HAZARD. DO NOT OPEN.

The device does not contain components that the user can service themselves. Contact with some parts inside the device may be dangerous to life. In the event of malfunctions, contact the manufacturer or an authorized service center representative. The manufacturer's warranty does not cover malfunctions resulting from repairs carried out by unauthorized third parties.

Warning: Prevention of hearing loss

The SumoBox Pro CP-LS200 can generate excessive sound pressure (SPL) sufficient to cause permanent hearing damage or hearing loss. To avoid this, avoid prolonged exposure to high SPL (greater than 85 dB).

Warning: Special instructions for using the lithium-ion battery pack

Strictly follow the instructions. This will help reduce the risk of explosion, electric shock, possible serious injury, or death.

• Use the battery charger only with the Sharp-approved power adapter. Use a power source whose voltage matches that indicated on the charger's nameplate. The charger and battery are specifically designed for use together. Do not use the charger with a damaged cord or plug. Do not place the battery pack near fire or heat sources. Exposure to fire or temperatures above 60°C may cause the battery pack to explode. Do not charge the battery pack in a damp or wet place. Do not charge the battery pack in an environment containing flammable liquids or gases.
• Never immerse the battery pack in water.
• Do not charge the battery pack in conditions of extreme high temperature (above 40°C) or low temperature (below 10°C). The device works best at normal room temperature. Do not drop or throw the battery pack; protect it from damage. Do not use the battery pack or charger after a fall or strong impact. Damage to the battery pack may cause it to explode. Immediately dispose of the battery pack properly, following the battery disposal instructions, or contact a service center for advice. Do not open or attempt to repair the battery pack or make any modifications to it. In case of damage or improper use, the battery pack may emit hazardous vapors. Ensure adequate ventilation of the room and seek medical attention if any adverse symptoms occur. In case of damage or improper use, the battery pack may leak. In case of accidental contact with any fluid from the battery pack, immediately rinse it off with mild soap and water. If fluid gets into the eyes, rinse them with water and seek medical attention. Keep the battery pack away from metal objects to avoid short-circuiting the battery terminals.

Charging equipment and batteries

Information for the user regarding the purchase of old equipment and used batteries:

This product does not contain components that the user can service themselves. Batteries must be removed by an authorized Sharp service representative. Otherwise,

the warranty becomes void. Dispose of the battery in accordance with local regulations. Do not dispose of the battery with household waste or in a fire, as it may explode.

This symbol indicates that the battery in this product is subject to Directive 2013/56/EU, which requires disposal together with ordinary household waste. The letters Cd, Hg, and Pb below the wheeled bin symbol indicate the presence of cadmium (Cd), mercury (Hg), and lead (Pb) in the batteries.

This symbol indicates that this product is subject to Directive 2012/19/EU, which prohibits its disposal and export together with ordinary household waste.

These symbols on the product, packaging, and/or accompanying documentation indicate that used electrical and electronic products and batteries must not be disposed of with ordinary household waste. For information on the procedure and possible locations for environmentally safe disposal of these products, household users should contact the retailer where they purchased the product or local authorities.

Declaration of Conformity for CE and UKCA marking:

Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU and the UK Radio Equipment Regulations 2017. For the full text of the Declaration of Conformity for CE and UKCA marking, visit sharpconsumer.eu, open the downloads section for your model, and select the document "Declaration of Conformity".

Introduction

Thank you for purchasing the Sharp SumoBox Pro CP-LS200.

This operating manual contains detailed information on the safe setup and use of the SumoBox, as well as explanations of connections to various audio sources.

Familiarize yourself with the device's features.

You can also download the dedicated Sharp Life app for remote control of the SumoBox.

SHARP Life

app support

Control elements

(see figure on page 2).

1. Volume control: adjusts the volume of the connected input.
2. High-frequency level control: adjusts the high tones of the connected instrument or microphone (only CH1 and CH2).
3. Low-frequency level control: adjusts the low tones of the connected instrument or microphone (only CH1 and CH2).
4. Reverb control: adjusts the reverb of the connected instrument or microphone (only CH1 and CH2).
5. Input type: use the switch to select the input type for CH1 and CH2. The LED indicator shows the selected device type.
6. XLR/TRS Combi: Connect instruments, guitars (TRS) or microphones (XLR). Note: The XLR input does not provide phantom power.
7. USB output (5V DC 1000 mA): Allows charging mobile devices. Note: Not intended for playing audio files from USB drives.
8. Mute control: Turns the mute function on/off. If the function is enabled, the audio of channels CH1 and CH2 is muted, but the audio of channel CH3 is not. It also allows controlling the operating modes of the system in rooms and halls.

10% - 25%

26% - 50%

51% - 75%

76% - 100%

Turning on SumoBox

Using SumoBox with instruments:

1. Connect instruments or microphones to the input channels. 2. Turn on the connected power sources and make sure they are not producing sound. 3. Turn on SumoBox using the power switch. When the device is on, the power LED indicator lights up with a steady blue light.

Using SumoBox only with Bluetooth

To start pairing, turn on the Bluetooth on the SumoBox to establish a connection.

NOTE.

To turn off the SumoBox, perform these steps in reverse order.

Connection types

Thanks to the presence of three channels for different types of inputs, you can connect a multitude of instruments, microphones, and other devices.

The CH1 and CH2 inputs have a switch for selecting the input type. It is intended for adjusting the input signal balance. Some examples are given below.

(See page 2).

B: CONNECTING INSTRUMENTS, GUITARS, AND MICROPHONES TO CH1 AND CH2. Select the appropriate type of device using the switch. Use instrument cables for instruments and guitars, and XLR cables for microphones.

(See page 2).

C: Bluetooth on CH3. More detailed information on connecting devices via Bluetooth is provided in the section "Bluetooth and Duo Modes".

(See page 3).

D: AUX input (3.5 mm) on CH3. Connect analog devices through the 3.5 mm input. Note that when a device is connected via AUX on CH3, the Bluetooth connection is disabled.

(See page 3).

E: You can connect a microphone to CH1 and CH2 to amplify devices connected to the SumoBox. When connecting a microphone, use the settings for acoustic instruments on the

input type selector switch.

Adjustment of high tones of the connected instrument microphone.

Scale -/+ 12 hours (Min-O-Max).

Low frequencies (only CH1 and CH2)

Adjustment of low tones of the connected instrument microphone. Scale -/+ 12 hours (Min-0-Max).

Reverb (only CH1 and CH2)

Setting the reverb of the connected instrument or microphone.

Scale from 0 to Max.

Ducking mode

The ducking function lowers (attenuates) the output signal of CH3 when an input signal is detected on CH1 or CH2.

To enable, press the ducking control button once. The LED lights up with a steady blue light. Press again to disable.

Example: You can play a backing track on channel CH3 while using a microphone on channel CH1. The ducking function means that the volume of the audio playback on channel CH3 is lowered when you speak into the microphone, which enhances your voice in the mix.

Operating mode: indoors / outdoors

There is a speaker for sound reproduction: indoors and outdoors. To switch between the two modes, press and hold the ducking button (2 seconds).

The LED indicator SumoBox indicates the mode switch:

Mode Duo: True Wireless Stereo (TWS)

1. Turn on the SumoBox speakers.
2. On the first SumoBox speaker, press the Bluetooth / Duo mode button twice.

3. The LED indicator will light up in yellow, and the SumoBox will notify about switching to pairing mode.

4. Wait for the connection to be established between the two SumoBox devices.

5. After the connection of the SumoBox speakers, a confirmation sound will be played. The indicator of the right (secondary) SumoBox will glow steady yellow, and the indicator of the left (primary) SumoBox will blink blue.

1. Adjust the volume of the AUX channel on the first SumoBox to change the volume of the AUX channel on both speakers.
2. To disable Duo mode, press the Bluetooth / Duo mode button twice on any SumoBox.

In mono configuration, the output device will not reproduce the audio signal from the input device.

2. Wired connection:

(see figure on page 3).

Connect the output jack of one speaker to the input jack of the other speaker and vice versa.

Both devices will transmit audio to each other.

3. Daisy chain connection:

(See page 4).

Connect the output of one Dynamik to the input of another Dynamik, then the output of that Dynamik to the input of a third Dynamik.

In a daisy chain configuration, audio from the first Dynamik is sequentially passed on. You can add as many Dynamiks as you want.

4. Stereo connection (small range):

(See page 4).

Using a stereo connection, you have two inputs at your disposal, and both devices transmit audio to each other. This is an ideal solution, for example, for a small range.

NOTE.

You can connect several SumoBox devices in series, since the Dynamik connection function on SumoBox ensures an amplified output. Daisy chain connection may work incorrectly when connecting devices from other manufacturers, since in this case the connection amplification is absent.

Sharp Life app

You can download the Sharp Life app onto your smart device.

It allows you to fully control SumoBox and contains additional functions.

To connect the app with SumoBox, perform the following steps:

1. Initial setup

To connect the SumoBox to a Bluetooth device for the first time, you must first disconnect the Bluetooth connection with the device. To disconnect the Bluetooth connection, press the Bluetooth/Duo mode button once. 2. Open the Sharp Life app on your smart device. Find "Add Device". Your device will automatically start searching for SumoBox. 3. After detecting SumoBox, press the + symbol to start the pairing process. After pairing is complete, press the device icon.

to open the user interface of SumoBox.

To download the app, use this QR code or go to: https://www.sharpconsumer.com/sharp-life-app

NOTE.

Only one SumoBox device can be connected to a Sharp Life account at a time.

When restoring factory settings, the account is cleared, after which you can connect another Sharp Life account.

Restoring factory settings

Press and hold (>10 seconds) the button on the right

to reset the device to factory settings.

After the reset is performed, the device will emit a sound signal, and the indicator light will flash once.

Standby mode

By pressing and holding (>3 seconds) the mode button

Bluetooth/Duo, you can switch SumoBox to standby mode.

To quickly turn it on again, press the Bluetooth/Duo mode button once.

NOTE.

SumoBox automatically switches to standby mode if there is no input signal within 60 seconds (15 minutes?). In standby mode, the power is turned off.

Corner guards

The SumoBox kit includes 9 corner guard elements and 16 screws. Use the hex key included in the kit to secure each corner.

There are 4 types of corners, each marked with letters on the inside:

Туся Mezzo Ha	SumoBox
FTL/FBR Bepxнл lebbl cpepei nll nixhni npabbl cpepei nll
FTR/FBL Bepxнл npabbl cpepei nll nixhni npabbl cpepei nll
RBL/RTR HnxxnI lebbl c3aDi nll BepxHni npabbl c3aDi nll
RTL/RBR BepxHni lebbl c3aDi nll nixhni npabbl c3aDi nll

To install the corner guards, you must first remove the SumoBox feet.

Each corner guard element must be screwed onto the SumoBox using screws, as shown in the figure:

Step 1 - Remove the screws.

Step 2 - Install the corner guard on the SumoBox corner and check the fit.

Step 3 - Using the hex key included in the kit, secure the corner guard to the SumoBox through the two holes under the screws. Make sure the holes in the corner guard align with the holes in the SumoBox.

NOTE.

The holes for the corner guards are only on the front, rear, top, and bottom surfaces of the SumoBox. There are no holes on the left and right panels.

The grille can be removed using the hex key included in the kit. Replacement grilles with a custom design can be purchased separately. Do not use the SumoBox without the grille.

Replacement handles and handles with a custom design can be purchased separately.

Installing the SumoBox

(See K, M on page 5).

The SumoBox has a sturdy construction. Thanks to this, it can be mounted in various ways on flat surfaces.

You can also mount the SumoBox on a standard 1-3/8 inch (35 mm) speaker stand.

WARNING.

Do not mount the SumoBox speaker on an unstable stand or tripod. SumoBox speakers are designed only for use on a standard 1-3/8 inch (35 mm) stand, and the stand/tripod must be able to support the speaker's weight of at least 25 kg.

Using a stand/tripod that cannot support the weight of the SumoBox may create a risk of injury.

Q: Can I purchase additional battery packs?

A: Yes, of course! Additional battery packs can be purchased separately (model CB-LSBP1). Contact the retailer from whom you purchased the SumoBox. Q: What do the LED indicators on the rear panel mean? A: Refer to the table below to understand what the LED indicators display:

Q: How long does the device operate on battery power?

A: The expected battery life on a fully charged battery at 50% volume is 8 hours.

After a full discharge, charge the battery for at least four hours.

Q: Can I use the SumoBox outdoors?

A: The SumoBox Pro (CP-LS200) has an IPX4 protection rating, meaning it is protected against splashing water. This rating indicates protection against splashes from any direction, as well as light rain, allowing the speaker to be used outdoors in areas with moderate humidity. However, it should be noted that the IPX4 rating does not guarantee protection against water ingress when submerged or during heavy rain, so appropriate precautions should be taken in such conditions to prevent possible damage.

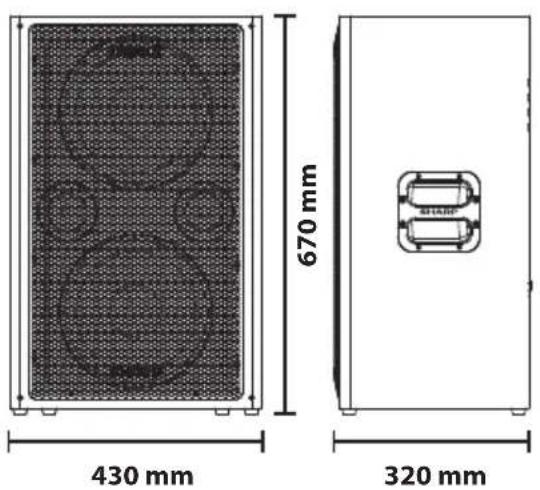

EN	DE	ES	FR	IT
Model	Modell	Modelo	Modèle	Modello
Power supply	Stromversorgung	Fuente de eliminación	Alimentation	Alimentazione:
Rated Power Consumption	Nennleistungsaufnahme	Consumo de potencia nominal	Consommation électrique nominale	Consumo energetico nominale
Standby Power Consumption	Stand-by-Stromverbrauch	Consumo promedio en modo de espera	Consommation électrique en mode veille	Consumo energetico in stand-by
Output Power	Ausgangsstrom	Potencia de salute	Puisance de sortie	Corrente in uscita
Speaker output power level	Lautsprecher-Ausgangsleistung	Nivel de salute del altovoz	Niveau de puissance de sortie des haut-parleurs	Potenza di uscita dell'altoparlante
Frequency response	Frequenzabhängigkeit	Respuesta de Frequencia	Réponse en fréquence	Risposta di frequenza
Battery	Akku	Bateria	Batterie	Bateria
Bluetooth	Bluetooth	Bluetooth	Bluetooth	Bluetooth
Version	Version	Version	Version	Versione
Maximum power transmitted	Maximaler übertragener Strom	Potencia maximala transmitida	Puisance maximale transmise	Potenza massima trasmessa
Frequency bands	Frequenzbänder	Bandas de Frequencia	Bande de fréquences	Bande di frequence
Pairing name	Pairing-Name	Nombre de emparejamento	Nom d'appariement	Nome accoppiamento

14.1 kg

14.5 kg

Stroomvoorziening	Zasilanie	Источник пitaшия	AC 200-240 V ~ 50/60 Hz
Nominal energieverbruik	Znamionowe zužycie energia	НомINALьhoe энероготpeблие	200W
Energieverbruik stand-by	Zužycie energia w trybie czuwania	Знegrпогotpeблие В ресиме ожIDsаня	<0.5W
Uitgangsvermögen	Moc wyjsciowa	Выхоная моцноctь	200W RMS
Uitgangsvermögen luidspreker	Moc wyjsciowa gośników	Выхоная моцноctь гromkorogobорітěя	108 dB (Sound Pressure Level)
Frequentierespons	Reakcja nayszostliwość	Поса вострозspeedу	30Hz-20KHz
Batterij	Bateria	Актулайт	14.8V 5000mAh Lithium-ion battery pack with power bank function and battery level indicator
Bluetooth	Bluetooth	Bluetooth
Versie	Wersja	Версия	V5.0
Maximaal overgedragen vermögen	Maksymalny poziom przekazywanej mocy	Масимальhamоюstь пeredачи	<20 dbm
Frequentiebanden	Pasma szęstotliwość	Частоные дINA附子	2402 MHz ~ 2480 MHz
Koppelnaam	Nazwa urzystzenia stosowana w trybie parowania	Название ри установке соедиения	SUMOBOX PRO CP-LS200

CC

Sharp Consumer Electronics Poland sp. z o.o. Ostaszewo 57B, 87-148 Lysomice, Poland

Made in China

SAU/MAN/0181
