USER MANUAL XParty Street Beat PS949 SHARP

PS-949 Portable Party Speaker1

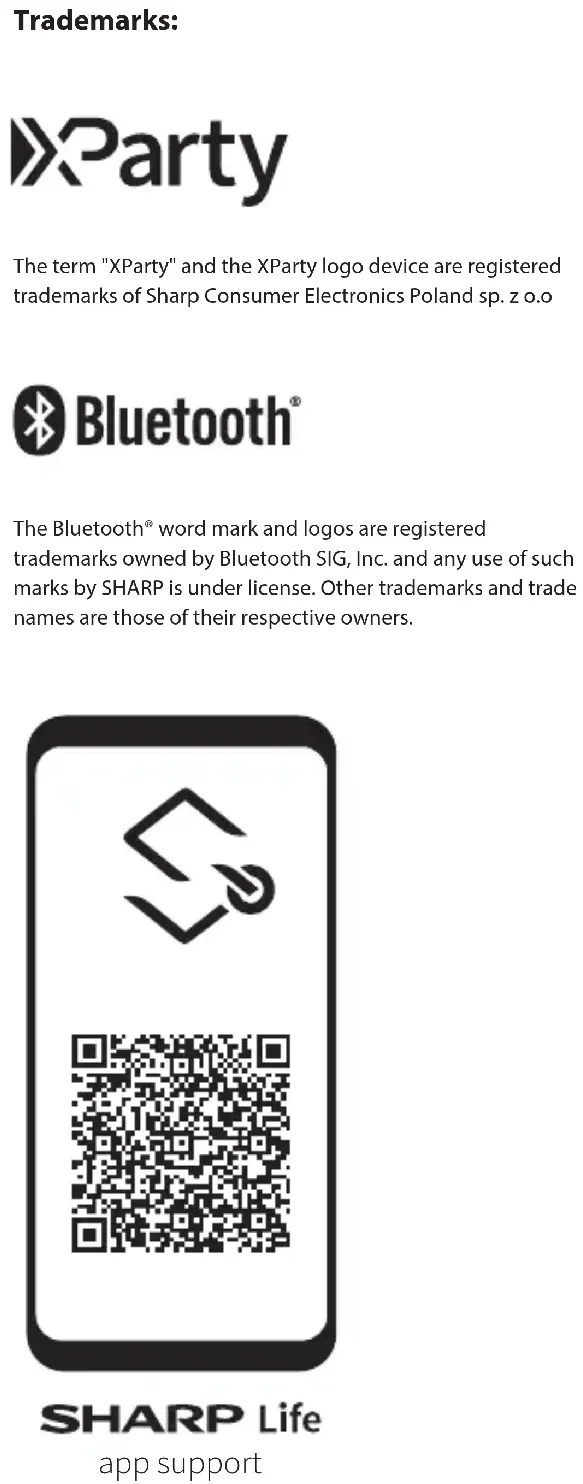

4Trademarks: The term "XParty" and the XParty logo device are registered trademarks of Sharp Consumer Electronics Poland sp. z o.o The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SHARP is under license. Other trademarks and trade names are those of their respective owners. app support3 Important safety instructions Please follow all safety instructions and heed all warnings. Keep this manual for future reference. This symbol instructs the user to consult the user manual for further safety, operation, and maintenance related information.This symbol indicates presence of uninsulated “dangerous voltage” within the product and may be of sucient magnitude as to constitute a risk of electric shock to persons.Refers to alternating current (AC)This symbol indicates that the rated voltage marked with the symbol is AC voltage.Refers to class II equipment. This symbol indicates that this product has a double insulation system and does not require a safety connection to electrical earth (ground). Precautions Damage• Please inspect the unit for damage after unpacking. If it is damaged in any way do not operate the unit and consult your dealer.Power connection and accessibility• Do not handle the power cord with wet hands as it may cause an electric shock. If the power plug does not t into your outlet, do not force the plug into an electrical socket. Switch o the unit completely before unplugging. Disconnect the power cord if it is not used for a long time. Ensure that the power plug is always easily accessible. Do not attach extension cables.Power source• Ensure that the unit is plugged into an AC 100-240V 50/60Hz power outlet. Using higher voltage may cause the unit to malfunction or even catch re.Fused moulded power plug (non rewireable) - UK, Malta, Cyprus and Ireland only.• The power lead on this equipment is supplied with a plug incorporating a 3 Amp fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.Power cord protection• Do not damage the power cord, do not place any heavy objects on it, do not stretch it or bend it. Damage to the power cord can result in re or electric shock. If the power cord is damaged, it must be replaced.Child safety• Always follow basic safety precautions when using this product, especially when children are present. Children should be supervised to ensure that they do not play with the product.Location• When in use this product should be placed on a at, stable surface with no part of the main unit overhanging an edge. Insertion hazards• Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product protecting it from overheating. These openings must not be blocked or covered. Ensure a minimum distance of 5 cm around the product for sucient ventilation. Never let anyone push anything into holes, slots or any other openings in the product’s casing as this could result in an electric shock.Heat and operating temperature• Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. Avoid prolonged exposure to direct sunlight.Naked ames• To prevent the risk of re, keep candles or open ames away from this product.Storms and lightning• Storms are dangerous for all electric products. If the power is struck by lightning, the product might get damaged, even if it is turned o. You should disconnect all the cables and connectors of the product before a storm.Power cable• Do not damage, stretch, bend or place heavy objects on the power cable.Damage• Please inspect the unit for damage after unpacking. If it is damaged in any way do not operate the unit and consult your dealer.Maintenance• Unplug the power cable from the power source before cleaning the product. Use a soft and clean cloth to clean the outside of the unit. Never clean it with chemicals or detergent.Service and repair CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEN• This product does not contain any parts that are serviceable by the user. Exposing the internal parts inside the device may endanger your life. In case of a fault, contact the manufacturer or authorised service department. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties. Caution: Epilepsy warning

• Before using the strobe light, check if nearby persons are vulnerable to rapid ashing light. If present, do not use the strobe light.• Certain people with epilepsy and photo-sensitivity may suer a seizure if exposed to ashing or strobe lighting. Caution: Prevention of hearing loss or damage
• XParty Street Beat PS-949 is capable of generating excessive sound pressure levels (SPL) sucient to cause permanent hearing loss or damage. Caution should be taken to avoid prolonged exposure to excessive (>85dB) SPL. Built-in battery care
• Your product is powered by a built-in rechargeable battery.• The battery can be charged and discharged hundreds of times, but will eventually wear out. CAUTION

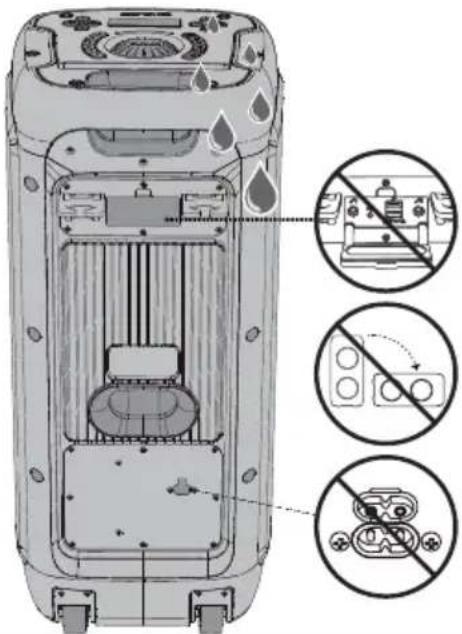

RISK OF ELECTRIC SHOCKDO NOT OPEN

• Unplug the product when not in use.

• Do not leave a fully charged battery connected to a power outlet, it may shorten its lifetime.

• If left unused, a fully charged battery will lose its charge over time.

• Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery.

• Always try to store your device in a cool, moisture-free environment that's less than 32°C.

• If you plan to store your device for longer than six months, charge the battery to 50% every six months to keep it fresh. Store the device at temperatures between 5 °C and 20 °C. Battery warning

• The battery used in this product may present a risk of re or chemical burn if mistreated.

• Do not attempt to open the product to replace the battery, it is not designed to be changed by the user.

• Batteries may explode if damaged.

• Do not expose batteries to high temperatures or excessive radiant heat.

• Do not drop the product or subject to strong physical shock.

• Please dispose of battery pack correctly by following the guidance in this manual (see section “Disposal of equipment and batteries”). Do not throw them into re, do not disassemble them, they could leak or explode. Disposal of equipment and batteries This product does not contain any parts that are serviceable by the user. Electronic products and batteries should not be mixed with general household waste. Household users should contact either the retailer where they purchased this product, or their local government oce for details of where and how they can take these items for environmentally safe recycling. The batteries should be removed by an authorized Sharp service centre and disposed according to local regulations. Do not dispose as household waste or in a re as they may explode. This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Cd, Hg and Pb underneath the wheelie bin symbol shows whether the battery contains, cadmium (Cd), mercury (Hg) or lead (Pb). This symbol on a product means that the product is covered by European Directive 2012/19/EU and must not be disposed of or dumped with your other household waste. These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. CE and UKCA statement

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.

• The full CE text and UKCA declaration of conformity are available at sharpconsumer.eu, enter the download section of your model and choose “Declaration of Conformity“.5 Box contents

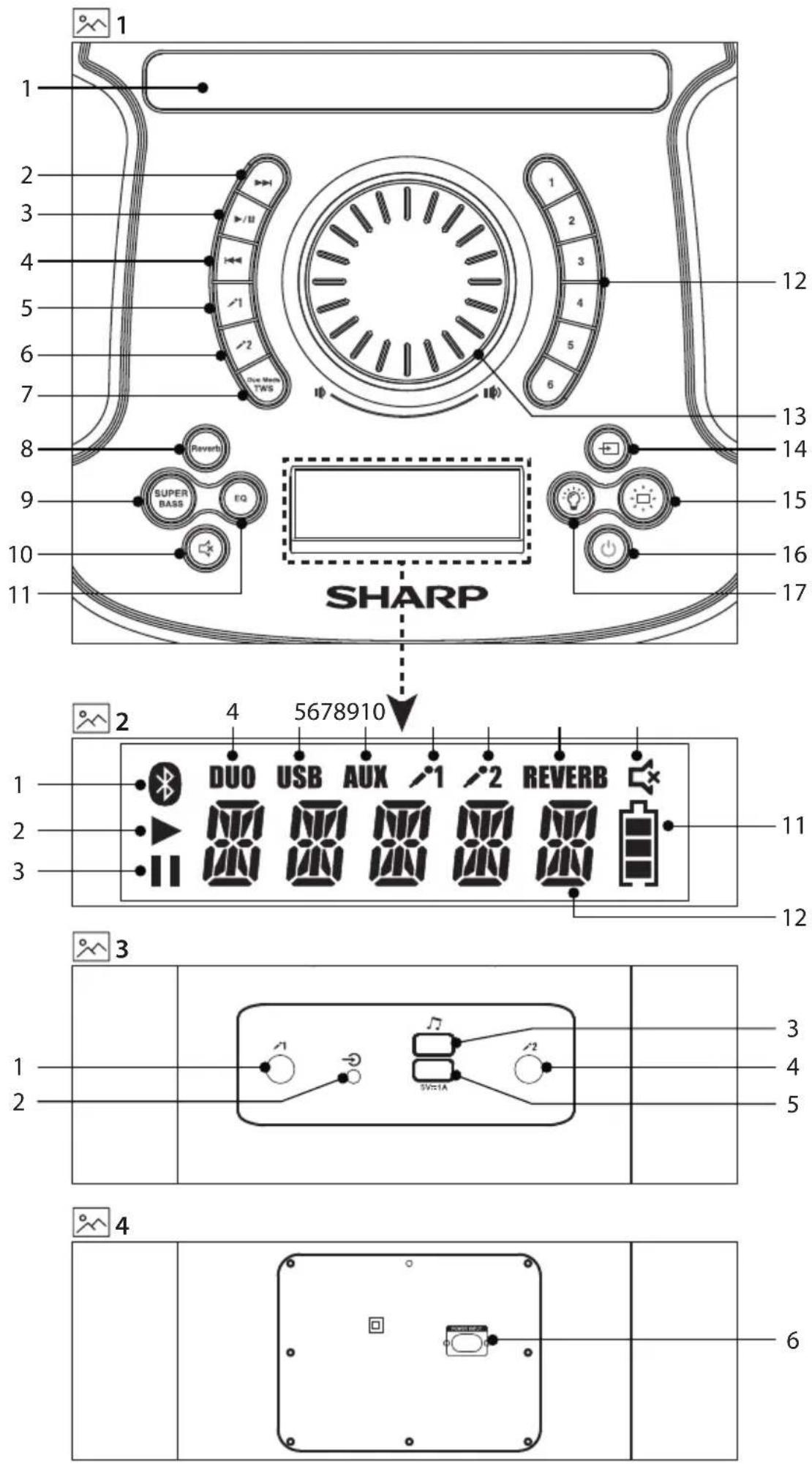

• XParty Street Beat PS-949 Party Speaker

Press the button to skip to the next playing track. Long press to fast forward the current track. Bluetooth and USB only.

Press the button to play or pause the playback. Bluetooth and USB only.

Press the button to skip to the previous playing track. Long press to fast rewind the current track. Bluetooth and USB only.

Press to change input volume for Mic 1. Press to select Mic 1 (for volume adjustment).

Press to change input volume for Mic 2. Press to select Mic 2 (for volume adjustment).

Press to initiate Duo Mode pairing. Long press the button to disconnect the Duo Mode connection.

Press to turn on and cycle reverb on/o options for inputs. Long press to turn o for all inputs. Turn the control knob to change the reverb level. NOTE: ū Applies only for Mic 1 and 2 inputs

Press to boost the bass. Press again to turn o.

Press to mute the sound. Press again to unmute sound.

Press to cycle through preset EQ options. POP, DANCE, ROCK, LIVE, CLUB and FLAT.

Press 1, 2, 3, 4, 5, 6 to play the DJ eect. NOTE: There are 12 eects available on the XParty Street Beat. You can use the Sharp Life App to assign your favourite 6 eects to the button of your choice.

Press to select the mode (Bluetooth

Press to turn the strobe light ON/OFF. Long press to activate the "Strobe Blast" eect for ve seconds.

Long press to turn the power ON/OFF.

LED light eects. Press to cycle through: Rollerz, Glow, Innity, Blink, Club, Prism and Lights Out. NOTE: ū You can use the Sharp Life App to preview and select the light eect. LCD panel (Refer to 2 on page 1).

Displayed when Bluetooth mode is active. Flashes when in Bluetooth Pairing mode.

Displayed when Bluetooth or USB is playing.

Displayed when Bluetooth or USB is paused.

Displayed when Duo Mode is active. Flashes when Duo Mode is pairing.

Displayed when USB mode is active.

Displayed when AUX mode is active.

Displayed when a device is connected to the Mic 1 input. Icon ashes when the reverb eect is turned on for Mic 1.

Displayed when a device is connected to the Mic 2 input. Icon ashes when the reverb eect is turned on for Mic 2.

Displayed when Reverb is set to ON. The Reverb eect is only applied to the MIC inputs.

Displayed when the speaker is muted.

Displays the battery charge level. Flashes when being charged. Does not ash when fully charged.

Displays the parameter value of the operation being conducted. Inputs/Outputs (Refer to 3 and 4 on page 1).

NOTE: ū For USB playback only.

4. Mic 2 - Microphone, Guitar or other 6.3mm TRS input

5. USB charging port (5V/1A)

NOTE: ū For charging compatible devices only.

6. AC power input (100-240V ~ 50/60Hz)

Using your XParty Street Beat Power connection / charging the speaker This speaker uses a built-in Lithium-ion battery pack. Before using it, charge the battery by connecting the power cable and charge the speaker for a minimum of four hours. Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back of the speaker. Connect the power cable to the ~AC power input of the speaker and then insert the plug in to a mains power socket. The LCD panel will indicate the party speaker is charging with a ashing battery icon. When the battery is full, the battery icon will stop ashing and show three segments. 67 – 100% 34 – 66% 11 – 33% ≤10% Phone/tablet holder (Refer to 1, point 1). The XParty Street Beat has a holder in which to securely place a mobile device. Ensure any device placed is secured by positioning as deeply into the holder as possible. NOTE: ū If your mobile device is not held securely please do not use the holder. Sharp will not be held responsible for any damage caused to devices as a result of using the holder. Power On Long press the button for 2 seconds to turn on. To turn the speaker o, long press the button for 2 seconds. Volume and Mute control To adjust the volume of the party speaker, turn the Control Knob clockwise to increase the volume and anti-clockwise to decrease the volume. The LCD display shows the current volume: 0-30 NOTE: ū The Control Knob default action is volume control To mute all audio output, press the on the control panel. To unmute, press again or rotate the Control Knob. Bluetooth mode Before you stream music over Bluetooth, you rst need to pair your Bluetooth enabled device to the speaker. NOTES: ū The operational range between this speaker and a Bluetooth device is approximately 10 metres (without any object between the Bluetooth device and the speaker). ū Any obstacle between this speaker and a Bluetooth device can reduce the operational range. ū Before you connect a Bluetooth device to this speaker, ensure you know the capabilities of the device. ū Compatibility with all Bluetooth devices is not guaranteed. ū If the connection is lost, follow the instructions below to pair your device to the speaker again.

1. With the unit powered on, press the

button on the unit to select Bluetooth mode. <BLUETOOTH> will scroll across the LCD Display and the Bluetooth icon will ash.

2. Activate your Bluetooth device and select the search mode. “XParty

PS-949” will appear on your Bluetooth device list.

3. Select “XParty PS-949“. An audio prompt will sound when it has been

successfully connected.

4. After successful connection, the display will briey show <PAUSE>.

NOTE: ū The speaker will attempt to automatically connect itself to the last audio output device connected via Bluetooth. If this is not possible, the speaker sends its device identication via Bluetooth and the Bluetooth icon will ash on the display.

5. To disconnect an active Bluetooth connection, press the

button to switch to another mode, or press and hold the when on Bluetooth mode. Wirelessly stream music via Bluetooth In Bluetooth mode, you can wirelessly stream audio through the party speaker. Use the controls on your paired Bluetooth device as well as those on the speaker. Controls available:

Press to skip forward to the next track. Long press to fast forward.

Short press to play/pause.

Press to skip backwards to the previous track. Long press to fast rewind. NOTE: ū If the party speaker is inactive for 15 minutes, or no audio signal is being received, the party speaker will power down. Duo Mode: True Wireless Stereo (TWS) This allows for two XParty Street Beat speakers to be connected together as left and right stereo speakers. The rst connected speaker is the primary one (LEFT CHANNEL) and the other will be the secondary (RIGHT CHANNEL). To begin the pairing process, proceed as follows:

1. Power on both XParty Street Beat speakers. Ensure that there are no

existing Bluetooth connections on both speakers.

2. Press the TWS button on the top panel of the rst speaker. This

should be the speaker you want as the LEFT CHANNEL. The display will show <PAIR> and the DUO icon will ash.

3. Press the TWS button on the second speaker. This should be the

speaker you want as the RIGHT CHANNEL.

4. The two speakers will pair with each other automatically within a

few seconds. Once successfully paired, the rst speaker will display <LEFT CHANNEL> and the second speaker will display <RIGHT CHANNEL>. This conrms that the two units are in Duo Mode.

5. In TWS mode, only the LEFT CHANNEL speaker can be connected to

via your Bluetooth device. NOTES: ū After pressing the TWS button on the rst unit, you will have 25 seconds to press the TWS button on the the second unit. If you are not able to achieve this, the rst unit will exit TWS pairing mode. Pressing TWS after this time7 on the second unit will begin the process again but the second unit will be the LEFT CHANNEL. ū If two speakers have already been paired, Duo Mode / TWS will reconnect automatically when both speakers are powered on. ū When in Duo Mode, only the Bluetooth from the LEFT CHANNEL will be shared. Input from Mic 1 and Mic 2 on both speakers will remain local to that speaker. ū AUX is not available on the RIGHT CHANNEL ū Controls shared between speakers in Duo Mode are: Volume control Play and Skipping Disco Lights Strobe Lights

Super Bass Power ON/OFF ū To disconnect from another speaker in Duo Mode / TWS, press and hold the TWS Button. This will disconnect the paired speaker and also the paired Bluetooth Device. Press and hold the TWS button again to reconnect all devices. ū The maximum distance between two speakers is 10 metres. AUX mode The XParty Street Beat can be used to listen to audio from external devices.

1. Connect an auxiliary audio device to the unit via the 3.5mm Audio

3. Play and control music on the source audio device.

NOTES: ū In Duo Mode, only the LEFT CHANNEL speaker can be connected to via your AUX device for playback. ū Audio played on the left channel will not play on the right channel whilst in Duo Mode. Mic/Guitar operation The XParty Street Beat can support two microphones, guitars or other 6.3mm TRS audio inputs.

• Before connecting a device to Mic 1 or Mic 2, ensure the volume on the XParty Street Beat is low.

• This will avoid any sudden feedback or loud noise from the speaker when, for example, turning on the microphone or if the volume on the guitar is set to high.

• Whilst using microphones, ensure there is adequate distance between the microphones and the speaker to avoid feedback. Using a microphone, guitar or other audio input

1. Plug the 6.3 mm jack into the Mic 1 or 2 socket. If you have another

device, insert this into the remaining socket.

2. To control the speakers output volume of the devices, press the

corresponding or button on the control panel and rotate the Control Knob to adjust the volume until you reach the desired output level. Reverb You can add a reverb eect to devices connected to Mic 1 or Mic 2 inputs and adjust how much of the eect is applied.

1. To turn reverb on for Mic 1, short press (<1 second) the reverb

button. The icon will ash on the LCD display.

2. Turn the Control Knob to adjust the reverb level from <RB000> to

3. To turn reverb on for both Mic 1 and Mic 2 inputs, short press (<1

second) the reverb button 2 times in a row. The and icons will ash on the LCD display.

4. To turn reverb o, long press (>2 seconds) the reverb button.

NOTES: ū The reverb eect is only applied to the Mic inputs and is set at 50% as default. ū If the reverb level % value was changed and then reverb turned o, the value will be saved. ū If reverb is turned on for both Mic 1 and 2, the level of eect is the same for both inputs. USB mode and charging functions (Refer to 3 , 4 on page 1). The speaker can support USB playback and charging. USB playback

1. Insert the USB device into USB input that has the

3. The stored music will start playing. You can use the

and buttons to control playback. USB charging

1. Mobile devices can be charged via the USB charging port (5V, 1A).

NOTES: ū All compatible audio les will play automatically. ū Files are played in order based on their folder locations and in alpha- numeric order. ū If you want to play les in a specic order, ensure your les are in the root folder. Make sure the le name begins with the number in the order you want the les to play in. ū The maximum USB ash disk size is 128GB. Disks greater in capacity will not work. ū When playing back audio via USB, ensure you connect your USB device to the USB input that has the symbol. ū When charging a device, ensure you connect the device to the USB Charging port (5V, 1A). ū In Duo Mode, only the LEFT CHANNEL speaker can be connected to your USB device for playback. ū Audio played on the left channel will not play on the right channel whilst in Duo Mode. EQ, Super Bass, Disco lights and DJ FX Adjust the EQ You can adjust the EQ of the speaker with pre-loaded equalizer settings for popular music types.

1. Press the EQ button repeatedly to select the EQ eect:

POP, DANCE, ROCK, LIVE, CLUB and FLAT. The LCD display will show the selected EQ. NOTES: ū In Duo Mode You can adjust the EQ using the EQ button on either the LEFT or RIGHT unit. ū To get the best results and if available, make sure your source device has the EQ set to "at" or "o". Not all devices have EQ. Super Bass You can enhance the bass performance with the Super Bass function. Press the SUPER BASS button to turn on, <BASS ON> will be displayed on the LCD display. To turn o, press SUPER BASS again, <BASS OFF> will be displayed on the LCD display. Disco lights You can adjust the light eect of the speaker unit.

button repeatedly to select the light eect: ROLLERZ, GLOW, INFINITY, BLINK, CLUB, PRISM and LIGHTS OUT. TheEN LCD display will show the selected eect. You can preview each disco light within the Sharp Life App. Strobe light

button to turn on the strobe light. Press again to turn

2. Press and hold the

button to enable a 5-second strobe blast. NOTE: ū In Duo Mode you can adjust the disco light and strobe light using either the LEFT or RIGHT unit. EPILEPSY WARNING

• Before using the strobe light, please check if nearby persons are vulnerable to rapid ashing light. If present, do not use the strobe light.

• Certain people with epilepsy and photo-sensitivity may suer a seizure if exposed to ashing or strobe lighting. DJ FX Buttons 1-6 allow you to quickly play a variety of DJ eects. The DJ eects can be activated whilst the party speaker is in any mode. There are 12 eects loaded into the XParty Street Beat. You can use the Sharp Life App to assign any eect to the button of your choice. For more information about app control, please read the section below titled "Sharp Life App" Using your unit outdoors The XParty Street Beat can be used outdoors with its IPX4 rated splash resistance. Sharp Life App You can download the Sharp Life App onto your smart device. The app allows full control of the XParty Street Beat. You can play any of the 12 DJ FX and assign your favourites to the control panels buttons (1 to 6), change or preview the disco lights, change the source input or even control the volume. To pair the app to the XParty Street Beat, do the following:

If you're connecting to the app for the rst time, but have previously connected a device to play audio via Bluetooth, you will need to disconnect your Bluetooth device. To disconnect the Bluetooth connection, press and hold the button when on Bluetooth source.

2. Scan the QR code below to download the app. The app is compatible

with most iOS and Android systems.

3. Once downloaded, open the app and register an account (if not

4. Once registered, return to the home screen. Click on “Add Device”.

Your device will scan automatically for the XParty Street Beat.

5. Once the XParty Street Beat is found, tap the + symbol to begin the

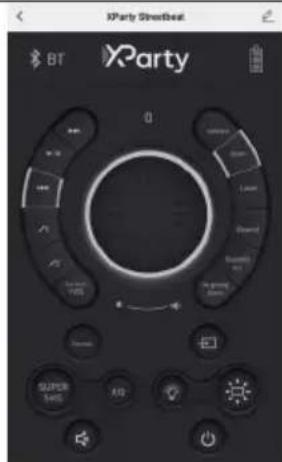

pairing process. When pairing is complete, tap the device icon and the XParty Street Beat interface will load. The interface mirrors the top panel of the XParty Street Beat whilst allowing access to additional features. To assign a new DJ FX to the physical buttons, for example:

1. Press and hold one of the DJ FX buttons on the app.

2. Select from the pop up list a DJ FX you would like to add to the

3. The selected DJ FX is now assigned to that button.
