USER MANUAL ge90s Petromax

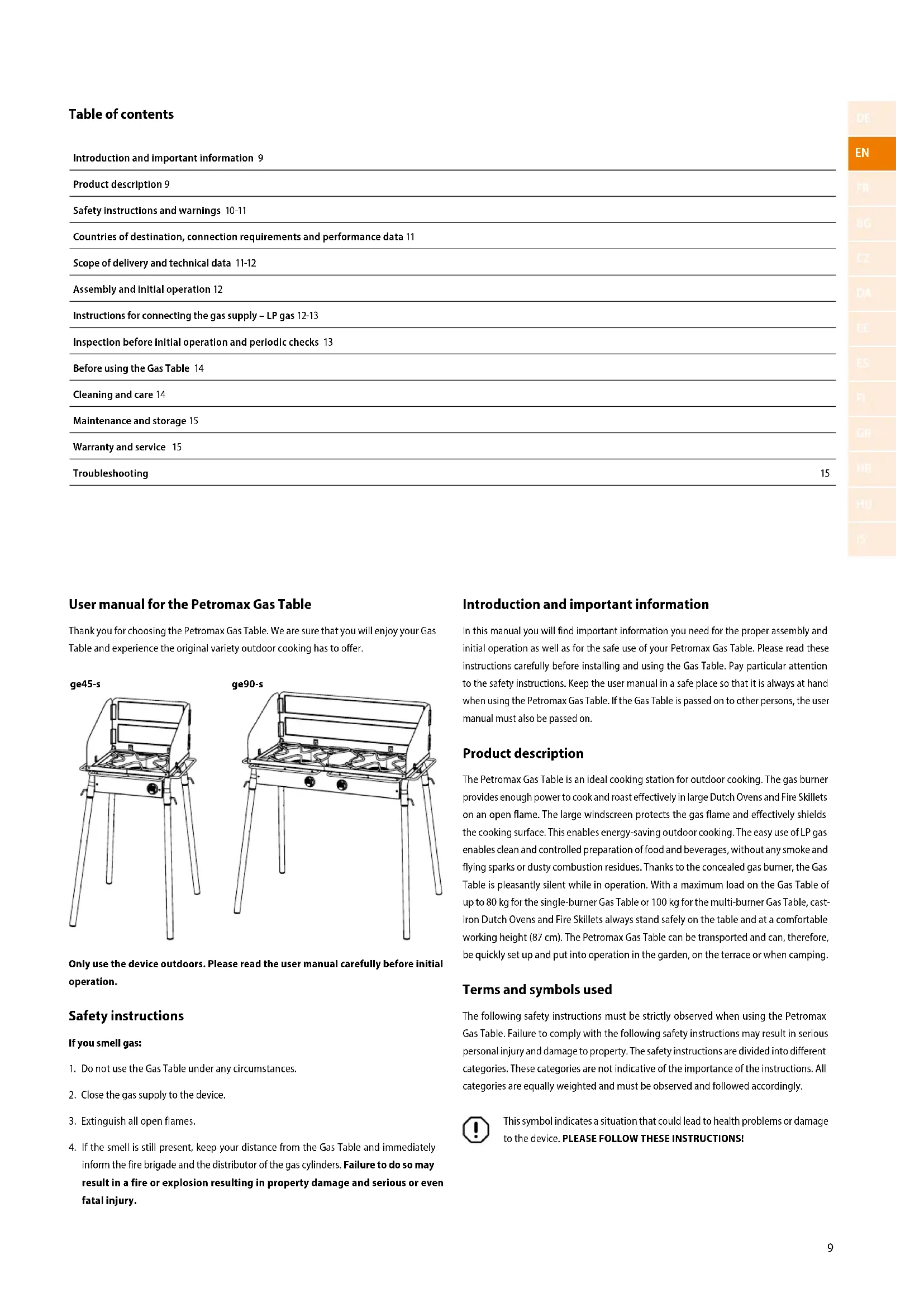

Table of contents Introduction and important information 9 Product description 9 Safety instructions and warnings 10 -11 Countries of destination, connection requirements and performance data 11 Scope of delivery and technical data 11-12 Assembly and initial operation 12 Instructions for connecting the gas supply – LP gas 12-13 Inspection before initial operation and periodic checks 13 Before using the Gas Table 14 Cleaning and care 14 Maintenance and storage 15 Warranty and service 15 Troubleshooting 15 User manual for the Petromax Gas Table Thank you for choosing the Petromax Gas Table. We are sure that you will enjoy your Gas Table and experience the original variety outdoor cooking has to offer. Only use the device outdoors. Please read the user manual carefully before initial operation. Safety instructions If you smell gas:

1. Do not use the Gas Table under any circumstances.

2. Close the gas supply to the device.

If the smell is still present, keep your distance from the Gas Table and immediately inform the fire brigade and the distributor of the gas cylinders. Failure to do so may result in a fire or explosion resulting in property damage and serious or even fatal injury. Introduction and important information In this manual you will find important information you need for the proper assembly and initial operation as well as for the safe use of your Petromax Gas Table. Please read these instructions carefully before installing and using the Gas Table. Pay particular attention to the safety instructions. Keep the user manual in a safe place so that it is always at hand when using the Petromax Gas Table. If the Gas Table is passed on to other persons, the user manual must also be passed on. Product description The Petromax Gas Table is an ideal cooking station for outdoor cooking. The gas burner provides enough power to cook and roast effectively in large Dutch Ovens and Fire Skillets on an open flame. The large windscreen protects the gas flame and effectively shields the cooking surface. This enables energy-saving outdoor cooking. The easy use of LP gas enables clean and controlled preparation of food and beverages, without any smoke and flying sparks or dusty combustion residues. Thanks to the concealed gas burner, the Gas Table is pleasantly silent while in operation. With a maximum load on the Gas Table of up to 80kg for the single-burner Gas Table or 100kg for the multi-burner Gas Table, cast- iron Dutch Ovens and Fire Skillets always stand safely on the table and at a comfortable working height (87cm). The Petromax Gas Table can be transported and can, therefore, be quickly set up and put into operation in the garden, on the terrace or when camping. Terms and symbols used The following safety instructions must be strictly observed when using the Petromax Gas Table. Failure to comply with the following safety instructions may result in serious personal injury and damage to property. The safety instructions are divided into different categories. These categories are not indicative of the importance of the instructions. All categories are equally weighted and must be observed and followed accordingly. This symbol indicates a situation that could lead to health problems or damage to the device. PLEASE FOLLOW THESE INSTRUCTIONS! ge45-s ge90-s1010

q Safety instructions and warnings General safety instructions and warnings q Your Petromax Gas Table must not be used by children. All parts of the Gas Table become very hot during use. Always keep children and animals away from the Gas Table, especially while it is in use! q Never leave your Gas Table unattended when in use! q The Gas Table is not a heater and must not be used as such! q This Gas Table is not intended for commercial use!

Do not use the Gas Table until all parts have been properly assembled and connected!

Always handle your Petromax Gas Table with care. The Gas Table becomes hot when in use. Never leave the Gas Table unattended during operation and never move it when it is in use or hot!

Consumption of alcohol and/or prescripted or non-prescripted medication may impair the ability of the user to assemble the Gas Table properly and use it safely. Therefore, people who are under the influence of alcohol and/or prescripted or non-prescripted medication should not use the Gas Table!

Always have functional fire extinguishing agents ready in proximity of the Gas Table! q Do not use your Gas Table when it is damaged or if hoses, parts, etc. are damaged. Never repair any damage yourself, instead contact your retailer or the manufacturer! q Do not use the Gas Table during rain or strong wind! Safety instructions and warnings regarding installation site and operation q Only use the Petromax Gas Table outdoors in a well-ventilated place. Under no circum- stances may it be used in indoors. Do not use the Gas Table in a garage, hut, shelter or other enclosed places!

The Gas Table is not a built-in unit. Do not install the Gas Table in a slide-in construction or in a cabinet. Failure to comply may cause fire or explosion, resulting in damage to property and/or serious or even fatal injuries to persons! q Never use the Petromax Gas Table in the boot of a vehicle or in an estate car, mini-van, minibus, off-road vehicle or caravan! q Do not use the Gas Table on boats or in/on other means of transport!

When in use, the Gas Table must stand on an even, stable surface and away from any flammable materials. On soft ground the legs can sink in, so that the table cannot stand upright anymore! q Ensure proper assembly as well as proper initial operation. To do this, always follow the steps described in this manual. See the sections on assembly and initial operation as well as the instructions for connecting the gas supply – LP gas. Never conduct any structural changes to the Gas Table. These can cause accidents. You will also lose all warranty and guarantee claims. Failure to comply may cause fire or explosion, resulting in property damage and/or serious or even fatal injury to persons and animals.

Never lean over the Gas Table when cooking. Always wear appropriate clothing. Long, wide sleeves can quickly catch fire. q Danger of injury! Always use only one piece of cookware per gas burner.

The Gas Table and all its parts become very hot when used. Use heat-resistant gloves when using the Gas Table. We recommend the Petromax Aramid Pro 300 Gloves. q If oil or grease is used, you should always have adequate fire extinguishing agents (powder fire extinguisher, fire blanket) available nearby the Gas Table. q If a fire breaks out, bring yourself and all other persons to a safe distance from the Gas Table and alert the fire brigade immediately!

Never attempt to extinguish an oil or grease fire with water. Failure to comply may result in a fire, explosion or flash fire, resulting in property damage and serious or even fatal injury. q The diameter of your cookware for the Gas Table should measure no less than 15cm and no more than 35cm. q The single-burner Gas Table may be loaded with max. 80kg, the multi-burner Gas Table with max. 100kg.

If it starts to rain while using the Gas Table, it must be completely switched off immediately. Never attempt to move the device. Safety instructions and warnings for handling gas and cleaning the Gas Table q Only use standardised gas cylinders for the Petromax Gas Table.

Do not store spare or unconnected gas cylinders under or near the Gas Table or within 3m of the Gas Table.

Do not store and/or use petrol or other flammable liquids or substances within 8m of your Gas Table. q Do not place flammable objects on or near the Gas Table. q No flammable materials (dry plants, wood, paper, grass, etc.) may be placed within a radius of 60cm above, below, behind or to the side of the Gas Table. q The use of natural gas to operate the Gas Table is not permitted. Converting the Gas Table for use with natural gas and attempting to use natural gas with this Gas Table are dangerous and lead to the loss of all warranty and guarantee claims.

If the burner goes out during operation, close all gas valves. Wait five minutes before you relight the burner. Please refer to the section Before using the Gas Table in this manual. q If a grease fire occurs, set all burners to "OFF" [•] and close the gas cylinder. Always keep a powder fire extinguisher and/or fire blanket ready for emergencies.

After longer storage or longer periods of non-use, check the Petromax Gas Table before use for gas leaks and for clogging of the burner. The appropriate instruc- tions for this can be found in the section Inspection before initial operation and periodic checks. q Never search for gas leaks with an open flame. q Never operate your Petromax Gas Table if a gas connection is leaking. q If the Gas Table is not being used, close the cylinder valve and disconnect the gas cylinder. Store the gas cylinder in a well-ventilated place outdoors or in a semi-open shelter. q Make sure that there are no ignition sources nearby when changing gas cylinders.

Always protect the gas hose from excessive heat. Keep it away from any heat source. q Make sure that the gas cylinder is only changed or connected outdoors and at a safe distance to ignition sources. q A dented and/or rusty gas cylinder can cause hazards. Never use gas cylinders with damaged valves.

There is always a residual amount of gas even in an almost empty gas cylinder. Therefore, transport and store an empty gas cylinder with the same care as a full gas cylinder. Only transport a gas cylinder with the cylinder valve closed, the valve sealing cap screwed on or, in the case of cylinders without a protective sleeve, with the protective valve cap on. Only store the cylinder in a vehicle for immediate transport and ensure cross-ventilation throughout this time.

Under no circumstances should you attempt to disassemble the gas regulator or any other installation parts of the gas hose while the Gas Table is in use. q Do not move the gas cylinder while the Gas Table is in use. q Only use an officially approved gas hose and pressure reducer.1111

q The gas hose must be no longer than 1.5m.

Clean your Petromax Gas Table regularly. Please refer to the information in the section Cleaning and care. q When cleaning valves or burners, do not pierce nozzles or connections with foreign objects as this could cause damage. Countries of destination, connection requirements and performance data Countries of destination Device category, nozzle identification Bulgaria, Denmark, Estonia, Finland, Iceland, Lithuania, Latvia, Malta, Netherlands, Norway, Romania, Sweden, Slovakia, Slovenia, Spain, Hungary, Czech Republic, Turkey, Cyprus, Croatia

B/P (30), 115 butane, propane and their mixtures 30 mbar, 5 kW, 383.4 g/h, ge45-s-30 butane, propane and their mixtures 30 mbar, 10 kW, 766.8 g/h, ge90-s-30 Andorra, Belgium, France, Greece, United Kingdom of Great Britain and Northern Ireland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Portugal, San Marino, Switzerland

P (50), 110 propane, 50 mbar, 5 kW, 371.0 g/h, ge45-s propane, 50 mbar, 10 kW, 742.0 g/h, ge90-s Gas type, connection pressure, performance, consumption, reference Scope of delivery and technical data Scope of delivery Upon unpacking, check that all parts of the Gas Table are included in the box. The following parts are included in the scope of delivery: Petromax Single-Burner Gas Table:

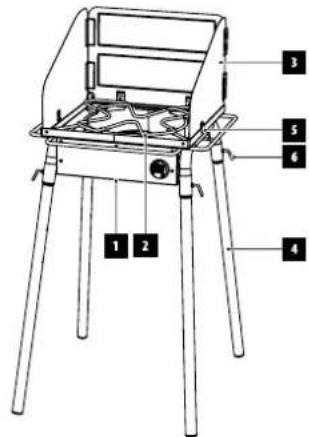

2. 1 cooking stand (removable)

5. 4 wing screws for windshield

6. 4 clamping levers for support legs

7. 1 adapter for connection set (pressure regulator and hose)

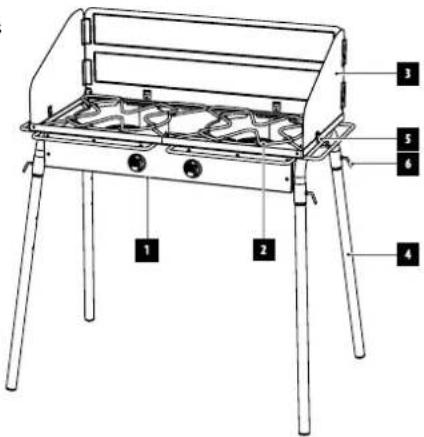

2. 2 cooking stands (removable)

5. 4 wing screws for windshield

6. 4 clamping levers for support legs

7. 1 adapter for connection set (pressure regulator and hose)

Technical data Model ge45-s, ge45-s-30, ge45-s-37 ge90-s, ge90-s-30, ge90-s-37-s H x W x D 115.6 x 57.7 x 67.7 cm 115.6 x 102.7 x 67.7 cm Material Steel, powder-coated Steel, powder-coated Material cooking stand Stainless steel Stainless steel Weight 13.3kg 20.5 kg Number of gas burners 1 2 Dimensions per cooking zone approx. 45 x 45cm approx. 45 x 45cm Load capacity (max.) 80 kg 100 kg Windscreen height (rear) 28 cm 28 cm Material thickness of windscreen 2 mm 2 mm Length support legs 77.2 cm 77.2 cm Diameter support legs 3.2 cm 3.2 cm Device category and gas type see table "Countries of destination, connection requirements and performance data” see table "Countries of destination, connection requirements and performance data” Connection pressure see table "Countries of destination, connection requirements and performance data” see table "Countries of destination, connection requirements and performance data” Assembly and initial operation Do not operate your Petromax Gas Table if parts of it are defective or missing. It is impor- tant to observe all the instructions in the section Safety instructions and warnings in this manual.

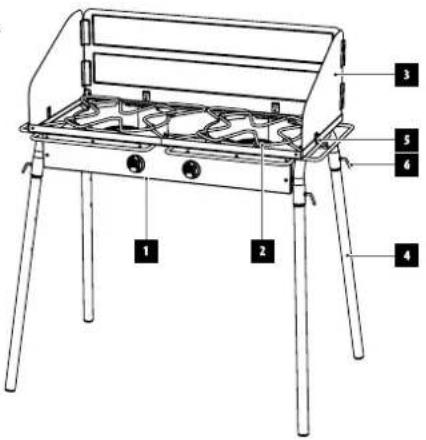

Insert the support legs into the slots of the Gas Table, tighten them using the clamping levers and set up the Gas Table (Caution: the support legs can be inserted into the Gas Table at different angles). Make sure that you choose an even, stable and fireproof surface. Otherwise the long legs of the Gas Table could sink into the ground, making the table stand unevenly. The Gas Table can also be used without support legs.

2. If you want to use your Gas Table with a windscreen, place the windscreen with the

hinges facing outwards and tighten it with the wing screws. Note: The tables can be assembled and disassembled as often as required and stowed for transport or storage.

3. Now connect the gas cylinder as explained in the following section Connecting the

gas cylinder in this manual. Then you may cook and roast outdoors on your Petromax Gas Table using Dutch Oven, Fire Skillet or similar cookware. Instructions for connecting the gas supply – LP gas Only approved gas may be used for the Petromax Gas Table. Important information about the gas cylinder The cylinder must always be installed, transported and stored upright. The gas cylinder must never be dropped or handled carelessly. Never store the cylinder in a place exposed to direct sunlight or in a place where the temperature could exceed 51°C (no longer touchable by hand). Do not leave the gas cylinder in the car on warm days. See the section Tips for safe handling of LP gas. Non-observance of the safety instructions can lead to a fire, which in turn can cause material damage and serious or even fatal injuries. NEVER store spare or unconnected gas cylinders under or near your Gas Table. Non-compliance or neglect of this rule may result in property damage, fire and/or serious or fatal injury. Tips for safe handling of LP gas

• LP gas is a petrochemical product such as fuel and natural gas. It is gaseous at normal temperatures and when pressurised. Under a certain pressure, e.g. in a gas cylinder, the gas is liquid. When the pressure is reduced, the liquid evaporates immediately and becomes gaseous.

• LP gas has a similar odour to natural gas due to an added odorous substance. Always pay attention to this smell so that you can detect escaping gas in time.

LP gas is heavier than air. Outflowing gas can collect in lower areas and therefore does not spread.

• The cylinder must always be installed, transported and stored upright.

• Gas cylinders must not be dropped and must always be handled with care.

• Never store the gas cylinder in a place exposed to direct sunlight, or in a place where the temperature could exceed 51°C (no longer touchable by hand). Do not leave the gas cylinder in the car or in the blazing sun on warm days.

• Handle empty gas cylinders with the same care as full cylinders. Even if there is only a residual amount of gas in the gas cylinder, it is still pressurised gas in the cylinder. Always close the valve on the gas cylinder first before you disconnect the cylinder from the Gas Table.

Do not use damaged gas cylinders. Dented or rusty gas cylinders or gas cylinders with damaged valves are a hazard and must be replaced immediately with new cylinders.

• The hose connection on the gas cylinder must be checked for leaks each time the gas cylinder is (re)connected to the Gas Table. Perform this check whenever the gas cylinder is replaced. Important safety measures before connecting the Gas Table Follow the steps below before connecting the gas cylinder to the Petromax Gas Table.

1. Before connecting the gas cylinder, make sure that there are no sources of ignition

and/or open fire in immediate vicinity.

2. Make sure that it is the correct gas cylinder with the correct gas cylinder valve.

Make sure that the valve of the gas cylinder is closed (valve is closed by turning it clockwise)1313

Make sure that the gas hose is not longer than 1.5m and has a suitable pressure regulator.

5. Make sure that all parts are without defects and that the gas hose does not exhibit any

cracks, kinks or braising.

Make sure that your Gas Table is completely switched off and that all valves are closed. Connecting the gas cylinder Only use standardised gas cylinders for the Petromax Gas Table. NEVER store spare or unconnected gas cylinders under or near of Petromax Gas Table. Before connecting the gas cylinder, make sure that the valve of the gas cylinder is closed. Make sure that your pressure regulator complies with the legal requirements applicable in your area. Follow the steps below to connect the gas cylinder to the Gas Table.

1. Screw the supplied adapter to the gas connection of the Gas Table.

2. Install your separately purchased connection set. It is imperative that you follow the

instruction manual and in particular the safety instructions of the respective manuf- acturer.

Make sure that the gas hose is not kinked and does not have any defects such as porous or charred areas.

Do not switch on the Gas Table before you have checked the gas connection for possible leaks. Please refer to the section Checking for leaks. Refilling the gas cylinder We recommend that you have the gas cylinder for your Gas Table refilled or replaced before the cylinder is completely empty. Take the gas cylinder to a specialised retailer for refilling or replacement. Removing the gas cylinder A) First close the gas supply by turning off the gas cylinder valve. Then close the gas supply using the control knob on the Gas Table to prevent possible deflagration. B) Disconnect all valves and the hose with the pressure regulator from the gas cylinder. C) Replace the empty gas cylinder with a new one at a specialised retailer. Inspection before initial operation and periodic checks Perform a visual inspection of your Gas Table and check for leaks before each use. We recommend a functional test of the burner before the first use and after every cleaning of the burner, ideally by a qualified person and at least every two years.

1. Visual inspection

When performing a visual inspection, always make sure that the gas cylinder has been set up correctly. This includes adhering to the safety instructions and correct connection (see section Instructions for connecting the gas supply – LP gas and subsequent sections.) You should also make sure that the gas hose and the pressure regulator comply with the latest safety and testing regulations and are not older than ten years.

Make sure that your Gas Table is completely switched off. You should always check for gas leaks after disconnecting and then recon- necting gas-conducting parts such as the gas hose, pressure regulator or gas cylinder. Check for leaks even if your Gas Table has been pre-assembled by the retailer. Never ignite the gas burners when checking for leaks. Never check for gas leaks with an open flame. Before checking for leaks, make sure that there are no sparks or naked flames in immediate vicinity. Sparks or naked flames can cause an explosion that can lead to material damage and/or serious or even fatal injuries. Every two years, a qualified person should check the device for proper func- tioning and safety since ageing can cause gas-conducting parts to leak. Follow the steps below to check the connections for gas leaks: For this you will need a gas cylinder, a soap solution, and a cloth to apply the solution. You can also use a suitable foam-forming leak detection agent from a specialised retailer. A) Mix soap or dishwashing liquid or have a leak detection agent at hand. B) Open the gas bottle valve by turning the hand wheel counter-clockwise. C) Check for leaks by moisturising the connections with the soap solution or the leak detection spray. In case of bubble formation or if a bubble increases you have detected a leak. Proceed as follows if you detect one or more leaks Proceed as follows if you detect one or more leaks:

If you detect a leak at a connecting point, tighten the connection by hand (recommen- ded) and check for leaks again with a soap solution or leak detection spray.

If there is still a leak after retightening the connection, turn off the gas. DO NOT CONTINUE TO USE THE GAS TABLE!

3. Use a damp cloth to remove any soap solution or leak detection spray from the con-

4. Then remove any remaining moisture on the parts of the Gas Table with a dry cloth.

Contact your local retailer. You can find the contact details of our retailers on our website at www.petromax.de Proceed as follows if you do not detect any gas leak

1. Turn off the gas supply at the gas cylinder after you have finished checking for leaks.

2. Use a damp cloth to remove any soap solution or leak detection spray from the con-

3. Then remove any remaining moisture on the parts of the Gas Table with a dry cloth.

4. Use the Gas Table according to the instruction manual.

3. Functional test of the burner

We recommend a functional test of the burner by a qualified person before the first use and after every cleaning of the burner. While the functional test of the burner is being carried out, the flame must be observed. The flame may only be visible in the area intended for this purpose on the gas burner. Should flames be visible in areas other than those mentioned here, turn off the Gas Table immediately and turn off the gas cylinder. The following flame patterns may indicate a possible defect:

• The flame is too small or soot is formed. If the flame pattern of your burner is not correct, it should be adjusted accordingly during the functional test. This you cannot do yourself. For safety reasons, it must be carried out by a qualified person. Appearance of a correct flame pattern:

• Even flames extending from all burner openings.

• The flames neither stretch nor collapse.

• The flames are bluish with a yellow tip.1414

• Turn on the gas supply of the cooking zone.

• Check that the burner has ignited evenly and that the flame burns evenly. Wear appropriate clothing when usingthe Gas Table. Long, wide sleeves can easily catch fire. Do not lean over the Gas Table when it is in use. When lighting the Gas Table, keep your face, body and clothing at least 30 cm away from the ignition openings. If after several attempts the ignition of the gas burner does not work either manually or by using the control knob, contact your retailer or our customer service. Switching off the gas burner and disconnecting the gas cylinder Follow the steps below if you want to turn off the Gas Table:

• Turn off the gas supply at the fuel valve of the gas cylinder by closing the gas valve. As soon as the flame on the burner goes out, turn the gas burner control knob to the "OFF" position [•] and let the Gas Table cool down completely. We recommend a waiting period of at least 30 minutes. Disconnect the gas cylinder properly from the Gas Table. The primary air setting of the gas burner is pre-set and screwed in place. Do not under any circumstances make changes to the primary air setting. This may only be done by a qualified person in the event of a defect. The gas nozzle is an essential part of the ignition system. You are not allowed to remove or change it by yourself. In case of a possible defect, replacement is only permitted by a qualified person. Cleaning and care Do not clean the Gas Table when it is in operation or still connected to the gas cylinder. Only clean the Gas Table when it has cooled down completely. Do not clean the Gas Table with oven cleaner, abrasive cleaners (kitchen cleaners), cleaners with citrus ingredients or other aggressive or even flammable cleaning agents. Do not use scouring sponges for cleaning. Especially the coated surfaces of the Gas Table are very sensitive. Do not immerse the Gas Table in water. You can clean all parts of the Petromax Gas Table from food residues and dirt using standard cleaning agents (e.g. dishwashing detergent, all-purpose / neutral cleaner, etc.). Coated surfaces of the Gas Table must always be cleaned particularly carefully. Follow the steps below to clean the Gas Table. Switch off the Petromax Gas Table completely and wait until it has fully cooled down.

1. Disconnect the Gas Table properly from the gas cylinder.

Care fully r emove grea se and oth er residu es from t he surface s of the Gas Table as we ll as from t he windscreen with warm soapy water and a lint-free cloth and wipe with clean water.

3. Remove moisture residues completely with a dry cloth.

4. We recommend that you clean the gas burners at least once a year using a standard

pipe cleaner. Before using the Gas Table Check the hose for kinks, cracks, porous areas, wear or cuts before each use of the Gas Table. If you notice any damage to the hose, even seemingly minor damage, do not use the Gas Table. Only replace the hose with an approved replacement hose with a suitable pressure reducer. If you have any questions, please contact your local retailer. You can find the contact details of our retailers on our website at www.petromax.de Using the Gas Table with an integrated piezo igniter Before you use the cooking zones of the Gas Table, follow all the steps in the sections Assembly and initial operation and Instructions for connecting the gas supply – LP gas properly and read and understand the safety instructions. Follow the steps below to ignite one of the gas burners of the Gas Table and use it for cooking. Always ignite one cooking zone after the other (never light both at the same time!)

Do not yet place any Dutch Ovens, Skillets or other cookware on the switched-off cooking zone.

• Open the gas valve of the gas cylinder.

• Press the control knob in the "OFF" [•] position and turn it to the left to "Ignition" [ ]. The gas supply is now open and gas flows into the burner. Keep the knob pressed and turn it further left to "MAX" [ ]. You will hear a click and at the same time the ignition will spark. Keep the control knob pressed for approx. 5 seconds, otherwise the flame monitor will cut the gas supply and the ignition process will be interrupted. When you release the knob, the flame should burn.

• If the ignition process was not successful, repeat the process.

• If the flame goes out (e.g. due to wind), the valve closes automatically, and the gas supply is stopped. This flame monitoring ensures safety when using the Petromax Gas Table.

• Turn the control knob of the cooking zone you want to use to the "MIN" [ ] position to check the flame size.

At the "MAX" position [ ] the flame should be large. At the "MIN" position [ ] the flame should be small. The flame should burn evenly in any position. If the flame flutters, follow the instructions in the Troubleshooting section or contact your local retailer or our customer service.

• Place fire Dutch Ovens or Fire Skillets on the cooking zone to start preparing food.

• Observe the minimum and maximum cookware diameter of 15cm and 35cm respec- tively. Do not use cookware with a larger or smaller diameter. Use the control knob to regulate the size of the flame and thus the desired output for the cooking zone. If the ignition of the gas burner does not work after several attempts using the control knob, contact your retailer or customer service. Do not lean over the Gas Table when it is in use. When lighting the Gas Table, keep your face, body and clothing at least 30cm away from the ignition openings. If the Gas Table should tip over during operation or if objects in immedi- ate vicinity catch fire, shut off the gas supply IMMEDIATELY. To do this, you must close the gas cylinder valve and the gas supply control knob on the device. Manual ignition of the gas burner

• Make sure that the controller is in the "OFF" [•] position.

• Open the valve of the gas cylinder as explained in the instructions for the gas cylinder and the regulator.

• If you want to use a match, we recommend that you use an extra-long match. Ignite it and hold it directly near the ignition openings of the gas burner.1515

Maintenance and storage Store the Gas Table out of reach of children and animals at all times. Do not store the Gas Table with a gas cylinder attached. The Gas Table should always be kept dry and out of reach of children and animals. Clean the Gas Table before each stowing away of food remains and dirt. Follow the steps below to store the Gas Table after use.

1. Ensure that the Gas Table is completely cooled and free of coarse impurities.

2. Make sure that all control knobs are in the "OFF" [•] position.

Make sure that the Gas Table is disconnected from the gas cylinder and that the cylinder is closed.

Place the Gas Table in a dry and weatherproof place. Suitable locations for this purpose include garden houses, garages and the like.

5. Cover the Gas Table well to protect it from dust.

6. If possible, store the cooking support of your Gas Table separately or wrap it well to

7. Store the gas cylinder in a cool, frost-proof and dry place. Store the gas cylinder in a

well-ventilated place, not in cellars or near sinks, drains or shafts. Warranty and service Warranty When used properly a warranty period of two years will apply to your Petromax Gas Table from the date of purchase. This does not include wearing parts. If your Gas Table does not function satisfactorily due to a defect in the material or manufacturing, you are entitled to a warranty repair. Please contact your retailer for this purpose. Service If you have any questions or need additional information, please let us know. You can contact our support team by e-mail at service@petromax.de You will find Petromax products suitable for your Petromax Gas Table online at www. petromax.de Troubleshooting Problem Possible solution The Gas Table wobbles or falls over The support legs can be inserted into the Gas Table at different angles. This will help you to prevent the Gas Table from wobbling or falling over. Make sure that the ground is stable, even and fireproof. The gas cylinder cannot be connected Check whether the gas cylinder/pressure reducer used meet the national connection requirements. One or more burners do not ignite Close the gas supply and wait a few minutes until the gas that has already escaped has evaporated. Try igniting the burner again. Try to ignite the burner manually with a match or similar. Incorrectly adjusted electrode of the piezo igniter may be the cause. Check whether the gas cylinder valve is open. Check for leaks. Check whether the gas valve on your Gas Table is open. Contact your retailer or our customer service to request a repair. Gas cylinder is (almost) empty Check whether the gas cylinder is (almost) empty. Replace the gas cylinder with a new one. I can smell gas Close the gas supply at the gas cylinder and let the device cool down. Check whether all connections are tight (leakage test). Burner exhibits very small flame Check that you are using the correct pressure reducer. Check whether your gas cylinder is still sufficiently filled. Check whether gas is escaping at other points (leakage test.) Check whether the gas path is blocked (e.g. by a dirty burner or a kinked hose.) Burner exhibits very large flame Check that you are using the correct pressure reducer. Contact your retailer, our customer service or a gas spe- cialist. If a problem occurs that you cannot solve by one of the methods listed here, please contact your local retailer or our customer service. General contact information can be found on our website at www.petromax.de
