USER MANUAL Bot L10 Pro DREAME

Robot Vacuum and Mop User Manual Read this manual carefully before use and keep it for future reference.

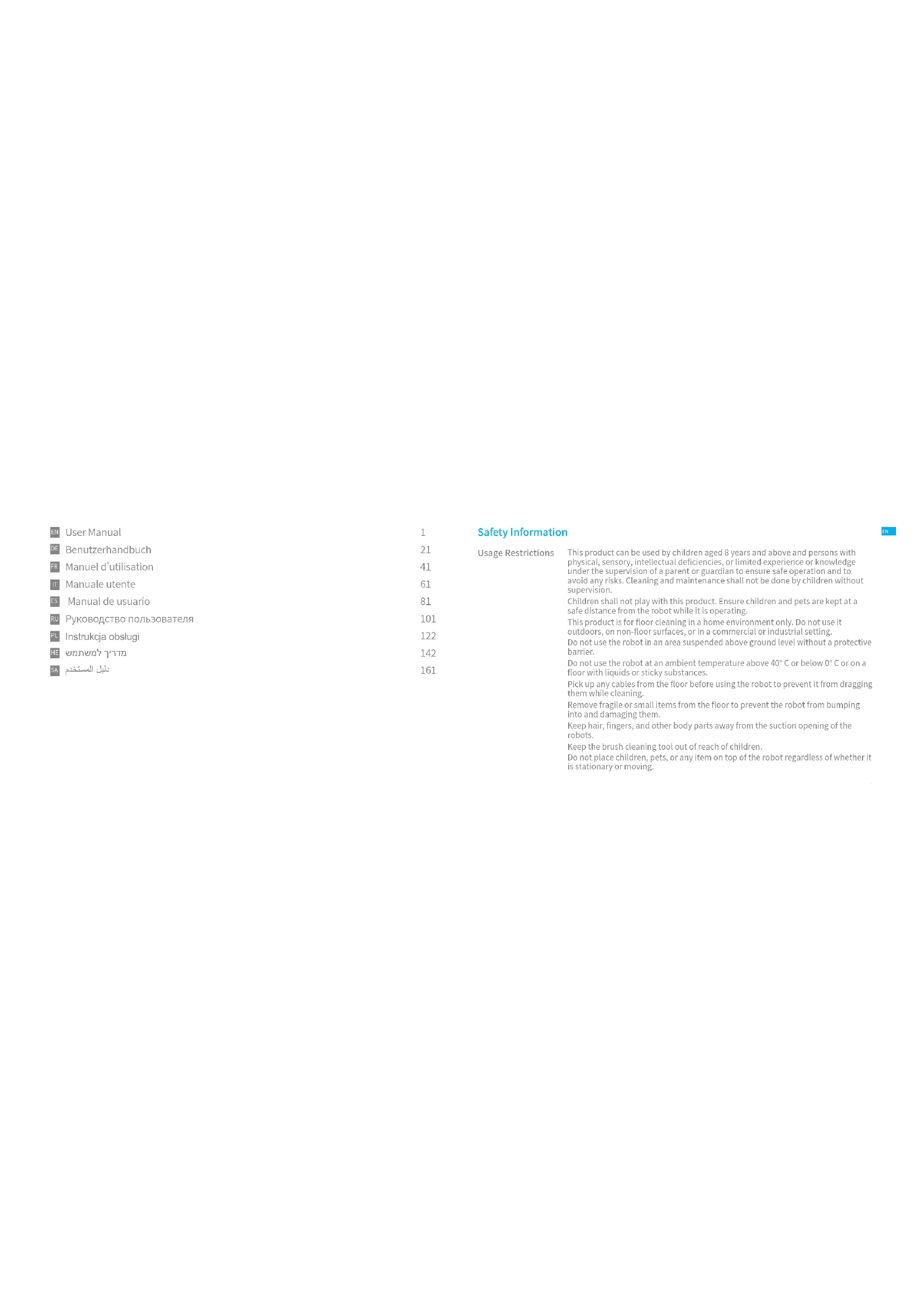

Usage Restrictions S a f e t y I n f o r m a t i o n This product can be used by children aged 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be done by children without supervision. Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot while it is operating. This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting. Do not use the robot in an area suspended above ground level without a protective barrier. Do not use the robot at an ambient temperature above 40° C or below 0° C or on a floor with liquids or sticky substances. Pick up any cables from the floor before using the robot to prevent it from dragging them while cleaning. Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them. Keep hair, fingers, and other body parts away from the suction opening of the robots. Keep the brush cleaning tool out of reach of children. Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving. User Manual Benutzerhandbuch Manuel d'utilisation Manuale utente Manual de usuario Руководство пользовател

Usage Restrictions Batteries and Charging S a f e t y I n f o r m a t i o n S a f e t y I n f o r m a t i o n Do not use any third-party battery, charger, or charging dock. Use only with RCS0 supply unit. Do not attempt to disassemble, repair, or modify the battery or charging dock on your own. Do not place the charging dock near a heat source. Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts. Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility. If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service. Make sure the robot is turned off when being transported and kept in its original packaging if possible. If the robot will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery. This product contains batteries that can only be replaced by qualified technicians or after-sales service. Do not use the robot to clean any burning objects. Do not vacuum hard or sharp objects. Make sure the robot is turned off and the charging dock is unplugged before cleaning or performing maintenance. Do not wipe any part of the product using a wet cloth or liquids. Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product. Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLS5L is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com4 5

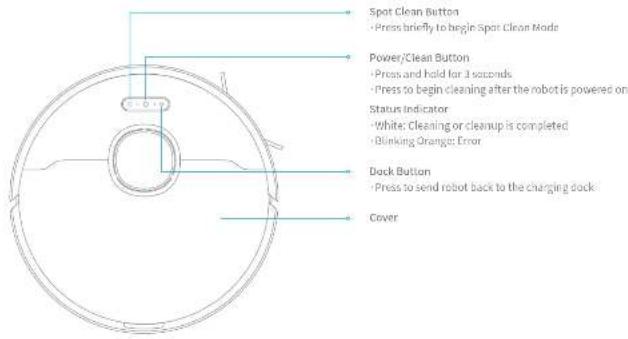

Accessories Product Overview Note: The illustrations in this manual are for reference only. Please refer to the actual product. Charging Dock Water Tank Side Brush Cleaning Tool Power Cord Mop Pad Robot Product Overview Spot Clean Button

• Press brie󽗊y to begin Spot Clean Mode Power/Clean Button

• Press and hold for 3 seconds

• Press to begin cleaning after the robot is powered on Status Indicator

• White: Cleaning or cleanup is completed

• Blinking Orange: Error Dock Button

• Press to send robot back to the charging dock Cover6 7

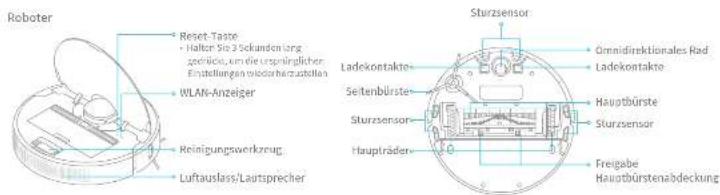

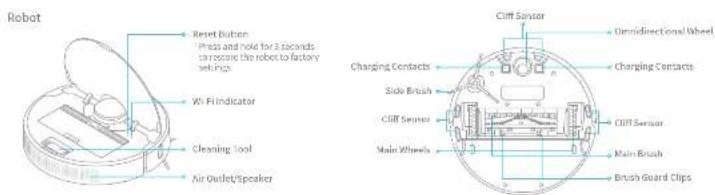

Wi-Fi Indicator Cleaning Tool Air Outlet/Speaker LDS Laser Sensor Collision Bu󽗈er High Precision 3D Edge Sensor Cli󽗈 Sensor Cli󽗈 Sensor Cli󽗈 Sensor Main Wheels Main Brush Charging Contacts Brush Guard Clips Omnidirectional Wheel Side Brush Charging Contacts Press and hold for 3 seconds to restore the robot to factory settings Dust Bin Mopping Module Charging Dock Product Overview Water Inlet Water Tank Mop Pad Attaching Area Filter Bin Cover Bin Clip Signaling Area Charging Contacts Power Port Water Tank Release Clip （3D Obstacle Avoidance Sensor ）8 9

Clearing Home Environment To improve the working e󽗋ciency of your robot, put away any loose cords (including the power cord of the charging dock), rags, slippers, toys, etc. Open the door of the room to be cleaned, and put the furniture in its proper place to make more space. To prevent the robot from not recognizing the area to be cleaned, do not stand in the front of the robot, threshold, hall way, or narrow places. Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure safe and smooth operation of the robot.

1. Remove the protective matter

3. Place the charging dock on the level ground against the

wall and connect it to a power outlet

4. Place the robot onto the charging dock to recharge. The

robot will turn on automatically and begin recharging Preparation Before Use Note:

• Fully charge is recommended before 󽗉rst-time use.

• Do not install the mopping module while charging. Be extra careful with the wet mop as it can damage the 󽗊oor. Note: Install the side brush until it clicks into place. ＞ 1.5 m ＞ 0.5 m＞ 0.5 m Battery Level Indicator• White: Battery level is more than 15% • Orange: Battery level is less than 15%
• Keep the immediate area 1.5m in front of the charger and 0.5m to both sides of the charging dock clear of objects.

• To ensure you can connect to the robot with your phone well, make sure the robot and charging dock are within the range of Wi-Fi.

• Do not place the charging dock in an area with direct sunlight or where other objects might block the signal, as this may hinder the robot from returning to the charging dock. Note:10 11

This product works with the Mi Home/Xiaomi Home app. * Use the Mi Home/Xiaomi Home app to control your device and to interact with other smart home devices. Connecting with Mi Home/Xiaomi Home App Open the Mi Home/Xiaomi Home app, and tap " " in the upper right. Then tap " " in the top right corner, scan the QR code, add "Dreame Bot L10 Pro", and follow the prompts to 󽗉nish the connection.

• Only 2.4GHz Wi-Fi is supported.

• The version of the app might have been updated, please follow the instructions based on the current app version. Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the device again.

1. Download the Mi Home/Xiaomi Home App 3. Reset Wi-Fi

Scan the QR code to download and install the app. You will be directed to the connection setup page if the app has been installed already. Alternatively, search “Mi Home/Xiaomi Home” in the app store to download and install it. Simultaneously press and hold the buttons and until you hear a voice say, “Waiting for the network con󽗉guration.” Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully reset. Wi-Fi Indicator

• Blinking slowly: To be connected

• Blinking quickly: Connecting

• On: Wi-Fi connected Note:

1. Turn On/O󽗈 3. Cleaning Mode

How to Use Press and hold the button for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is in standby mode. To turn o󽗈 the robot, press and hold the button for 3 seconds when the robot is not moving. Turning o󽗈 the robot will end the current cleaning task. Dreame Bot L10 Pro has four cleaning modes: Quiet, Standard, Strong and Turbo. The default mode is Standard. You can specify the cleaning mode in the Mi Home/Xiaomi Home app. Press the button brie󽗊y to turn on the robot. Upon activation, the robot will accurately map out a route, methodically clean along the edges and walls, then 󽗉nish by cleaning each room in an S-shaped pattern to ensure a thorough job.

4. Pausing/Sleep Mode

Pausing: Press any button to pause the robot during cleaning. Sleep Mode: The robot will automatically enter Sleep Mode after 10 minutes of inactivity, then the power and charging indicators will go o󽗈. To wake up the robot, press any button.

• The robot will turn o󽗈 automatically if left in Sleep Mode for more than 12 hours.

• When the robot is paused, placing it onto the charging dock will end the

• current cleaning task. Note:

5. Do Not Disturb Mode

Do Not Disturb Mode prevents the robot from automatically starting cleaning tasks, and the power indicator remains o󽗈. You can enable Do Not Disturb Mode or modify its hours in the app. (The mode is on by default from 22:00 to 08:00.)

• Scheduled cleaning tasks will still be carried out during the DND period.

• The robot will continue cleaning after the DND period ends. Note:

• Before a cleaning task, make sure the robot is fully charged and starts from the charging dock. Do not move the charging dock while the robot is cleaning.

• If the battery is too low, the robot will automatically return to the dock to charge. It will resume un󽗉nished cleaning tasks after charging to the necessary battery level. (The breakpoint continuous cleaning function must be enabled on the app in advance.) Note:12 13

6. Spot Clean mode 7. Scheduled Cleaning

How to Use When the robot is paused or in Standby Mode, press and hold the button for 3 seconds to start Spot Clean Mode. In this mode, it will clean a square-shaped area of 1.5 ×1.5 meters directly around the robot. When the spot cleaning is done, the robot will automatically return to its original location and power o󽗈. You can schedule cleaning time in the Mi Home/Xiaomi Home app. The robot will automatically start cleaning at the designated time and then return to the charging dock to recharge when the cleaning is done. Note: Activating Spot Clean Mode will end the current cleaning task of the robot.

8. Additional App Functions

The app can be used to enable more functions such as selected room cleaning, zone cleaning, forbidden area / virtual wall, etc.

• Follow the instructions on the app interface to use more functions.

• The version of the app might have been updated; please follow the instructions based in the current app version. Note:

9. Use the Mopping Function

How to Use It is recommended that all 󽗊oors are vacuumed at least three times before the 󽗉rst mopping session to achieve a better cleaning e󽗈ect.

1) Dampen the mop pad and wring out excess water. Slide the pad all

the way into the slot of the water tank until it is securely in place.

3) Align the mopping module as indicated by the arrow, then slide it

into the back of the robot until it clicks into place. Press the button or use the Mi Home/Xiaomi Home app to start cleaning.

2) Open the water tank lid, 󽗉ll the tank with water, then securely

4) Press the two side clips inwards and slide the water tank

backwards to separate it from the robot.

• It is not recommended to use the mopping function on carpets.

• Use the app to adjust the water 󽗊ow as required. Note: Do not use detergent or disinfectant. Note: When the robot is charging or not in use, remove the mopping module, pour out all the remaining water in the tank, and clean the mop pad to prevent mildew or odor. Click Click Note:14 15

Clean the Dust Bin and Filter Routine Maintenance

2. Open the dust bin cover as indicated by the diagram.

3. Remove the 󽗉lter and tap its basket gently.

4. Rinse the dust bin and 󽗉lter with water until they are clean.

Thoroughly dry the 󽗉lter before re-installing. Note: Do not attempt to clean the 󽗉lter with a brush or 󽗉nger.

• Only clean water should be used to clean the 󽗉lter. Do not use detergent.

• Before using, keep it in a well-ventilated or cool place. Note: Clean the Mopping Module Routine Maintenance

1. Press the two release clips on the side of water tank, remove the

mopping module and pull the mop pad o󽗈 the mopping module.

3. Clean the mop pad with water only and leave to air dry before re-

2. Pour out the water in the tank. Clean with water only and leave to

air dry before re-installing.

4. If slow water 󽗊ow occurs, or the volume is not well-distributed,

please clean the air hole in the cover of the water tank. Note: Do not expose the tank to the sun directly.

• Remove the pad from the mopping module before cleaning it, and make sure dirty water does not 󽗊ow back into the water outlet to avoid clogging.

• For optimal performance, it is recommended to replace the mop pad every 3 to 6 months. Note:16 17

Clean the Main Brush Clean the Side Brush Clean the Main Wheel / Omnidirectional Wheel Routine Maintenance Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot. Pull out the side brushes and use the included cleaning tool to remove any hair tangled on the brush. Pull out the brush cover as shown in the diagram. Use the included cleaning tool to remove any hairs tangled in the brush. Note: Do not pull out the hair excessively to avoid damaging the main brush when the hair is tightly tangled in the main brush. Note: Use a tool such as a small screwdriver to separate the axle and the tire. Clean the LDS Laser Sensor/Edge Sensor Clean the Charging ContactClean the High Precision 3D Clean the Cli󽗈 Sensor Routine Maintenance Note: Wet cloths can damage sensitive elements within the robot and charging dock. Please use dry rags for cleaning. If the robot stops responding or cannot be turned o󽗈, press and hold down the button for 10 seconds to forcefully turn it o󽗈. Then press and hold the button for 3 seconds to turn the robot on. The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it o󽗈 and put it away. To prevent damage from over-discharging, the robot should be recharged at least once every three months. Robot Restarting Battery18 19

Problem Type Robot does not turn on Robot does not recharge Robot does not return to charging dock Robot is making a strange noise Robot no longer cleans e󽗋ciently or leaves dust behind Robot cannot connect to Wi-Fi Robot does not perform scheduled cleaning Robot is malfunctioning Solution Battery level is low. Recharge the robot at the charging dock, then try again. The ambient temperature is too low (below 0° C) or too high (above 40° C). The operating temperature of the robot is 0° C to 40° C. The charging dock is not receiving power. Please con󽗉rm that both ends of the power cord are plugged in correctly. Poor contact. Clean the charging contacts of the charging dock and the robot. There are too many obstructions around the charging dock. Place the charging dock in a more open area. Please clean the dock's signaling area. The dust bin is full. Please clean it. The 󽗉lter is blocked. Please clean it. A foreign object is caught in the main brush. Please clean it. There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Mi Home/Xiaomi Home app, then try reconnecting. Location permission is not open. Please ensure the location permission on the Mi Home/Xiaomi Home app is enabled. Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage. 5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi. The username or password of Wi-Fi is incorrect. Please enter the correct username and password. The robot has low battery. Scheduled cleaning will not start unless the robot has been recharged in time. A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove any debris. Turn o󽗈 the robot and then reactivate it. FAQ Problem Type Does leaving the robot on the charging dock consume power if it is already fully charged? No water comes out of the mopping module, or only a little bit comes out Robot doesn't resume cleaning after charging Robot doesn't return to charging dock after being moved Solution Leaving the robot on the charging dock after it's fully charged consumes very little electricity and helps maintain optimal battery performance. Con󽗉rm that the water tank is 󽗉lled with water, and clean the mop pad if necessary. Clean the mop if it becomes dirty. Make sure the mop pad is installed correctly according to the user manual. Clean the blowhole on the top of the water tank. Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the charging dock, it might not be able to automatically return on its own, in which case you need to manually place the robot onto the charging dock. Make sure the robot is not set to Do Not Disturb Mode, which will prevent it from resuming cleaning. The robot does not resume cleaning when it is manually recharged or placed onto the charging dock. FAQ20

Battery Rated Input Wireless Connectivity Operation Frequency Wireless Connectivity Rated Output Rated Voltage Rated Power Speci󽗉cations Robot Charging Dock Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user. WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.21
