USER MANUAL MSE8001 Meister Craft
Oscillations mains/bras
Sciage de panneau aggloméré a_h,B:26,68m / s^2 Sciage de panneau aggloméré a_h,WB:25,33~m / s^2
Incertitude de mesure K:1,5 m/s2.

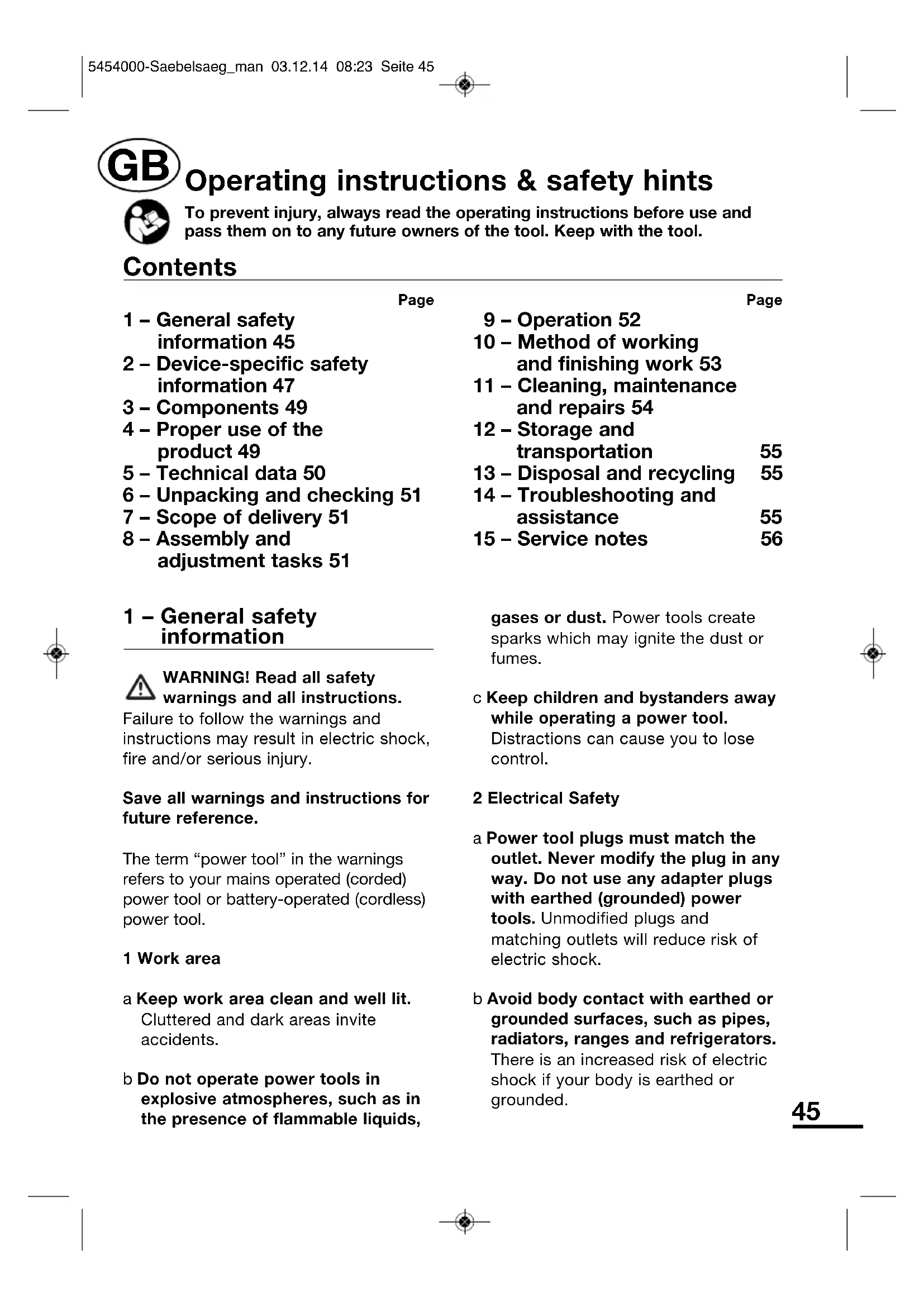

Operating instructions & safety hints
To prevent injury, always read the operating instructions before use and pass them on to any future owners of the tool. Keep with the tool.
Contents
Page
1 - General safety information 45
2 - Device-specific safety information 47
3 - Components 49
4 - Proper use of the product 49
5 - Technical data 50
6 - Unpacking and checking 51
7 - Scope of delivery 51
8 - Assembly and adjustment tasks 51
Page
9 - Operation 52
10 - Method of working and finishing work 53
11 - Cleaning, maintenance and repairs 54
12 - Storage and transportation 55
13 - Disposal and recycling 55
14 - Troubleshooting and assistance 55
15-Service notes 56
1 - General safety information
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
1 Work area
a Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2 Electrical Safety
a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock.
3 Personal safety
a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Prevent unintentional starting. Ensure the switch is in the off
position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g Keep the handles dry, clean and free from oil and grease. Greasy, oily handles are slippery and will lead to a loss of control.
h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
4 Power tool use and care
a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5 Service
a Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2 - Device-specific safety information
- Hold the machine only by the insulated handle surfaces when carrying out tasks during which it is possible that the tool inserts will come across hidden power cables or its own cable. Contact with a cable that carries power can subject the metal parts of the machine to current and lead to electrical shock.
- Only use sharp, undamaged saw blades. Cracked, bent or dull saw blades should be replaced immediately.
- Match the tool inserts and stroke rate to the material. Pay attention to even feed.
- The machine should only be operated with the saw shoe (8) mounted. When working, the saw shoe should always rest against the work piece.
Always start the machine before introducing it to the work piece. - Do not process material that contains asbestos. When working with any other materials containing fibres, use dust protection masks and dust extraction systems.
- When machines are used outdoors, they must be connected via a residual current circuit breaker. Extension cable and plug must be approved for use outdoors.
-
Do not brake the saw blade by applying pressure to the sides.
-
Secure the work piece to prevent it from slipping by using tensioning mechanisms.
Make sure that cables always lead away behind the work place. - During operation, always guide the machine with both hands and take a firm stand.
- Never expose the machine to the rain.
The machine should never be allowed to get wet and should not be operated in a damp environment. - Prior to each use, check the machine, cable and plug. Have damages eliminated by a specialist. Only plug the plug into the socket when the machine is switched off.
- When carrying out work in which dust is generated, wear a face mask and goggles - do not smoke and avoid open flames.
- When using saw blades and handling rough materials, wear gloves. Wear protective gloves to prevent injuring yourself on sharp cutting edges when changing the saw blade.
-
If the machine is passed on to a third-party, these operating instructions should also be included.
-
Before carrying out any work on the machine, always pull the plug out of the socket.
- Do not leave a tool wrench engaged.
- Observe the general safety instructions when operating power tools.
Meaning of the symbols
WARNING - Read the operating instructions to minimise the risk of injury.
Voluntary "geprüfte Sicherheit" (tested safety) seal of quality
This character symbolises that this machine complies with Protection class II. This means that the machine is equipped with a reinforced or double insulation between the power circuit and the output voltage or metal housing.
CE stands for "Conformité Européenne", which means that it meets EU directives. By applying the CE logo, the manufacturer confirms that this power tool corresponds to the applicable European directives.
Important! Wear safety goggles!
Important! Wear hearing protectors!
Do not dispose of the power tool with the household waste!
Rapid saw blade replacement
LED working light
Cable length
Suitable for use with wood
Suitable for use with metal
3 - Components
1 Gripping surface
2 Locking button for rotating handle
3 Adjusting wheel for stroke rate preselection function
4 On/Off switch
5 Locking switch for continuous operation
6 H a n d l e
7 L o c k
7a Saw blade holder
8 Saw shoe, adjustable
9 LED work light
10 Locking lever for saw shoe adjustment (Figure 3)
11 Saw blades
4 - Proper use of the product
Sawing in wood, metal and plastics. Only use suitable tool inserts and observe the relevant manufacturer specifications. Any other type of use is inappropriate. The machine is designed for household, not commercial use. The machine may not be used as a permanent installation.
This machine may not be used by people (including children) with limited physical, sensory or mental capacities, with a lack of experience and/or without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with how to operate the machine. Children should be supervised to ensure that they do not play with the machine.
CAUTION! Improper use, modifications to the machine and the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!
Improper use of the product
All applications with the machine that are not listed in the chapter "Proper use" are considered improper use.
This power tool is not suitable for cutting down trees.
Uses for which the power tool is not designed may cause hazard and injury. Do not use accessories that are not intended specifically for this power tool.
Just because you are able to attach an accessory to your power tool does not guarantee it is safe to use.
The permitted stroke rate of the tool insert must be at least as high as the highest value specified on the power tool. Accessories that turn faster than is permitted may break and fly away.
There is a risk of injury. The user of the machine is liable for all property and
personal damages occurring as the result of incorrect use.
If other or non-original components are used with the machine, the manufacturer guarantee is voided.
Remaining risks:
The operating instructions for this power tool contain comprehensive instructions for safely handling power tools. However, every power tool has certain remaining risks which cannot be completely excluded by the protective mechanisms on the device.
Always operate power tools with necessary care.
Remaining risks may be, for example:
- Touching moving parts or tools.
- Injury caused by flying work pieces or work piece parts.
- Risk of fire caused by insufficient ventilation of the motor.
- Adverse effects on hearing caused by working without hearing protection.
Safe work depends on the operator's familiarity with handling the given power tool! Appropriate knowledge of the machinery and careful behaviour when working help minimise the remaining risks.
Warning! During operation, this power tool generates an electromagnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend that persons with a medical
implant consult their doctor and the manufacturer of the medical implant before using the power tool.
5 - Technical data
Technical data
| Nominal voltage/ Nominal frequency 230 V~/50 Hz | |
| Power consumption 800 W | |
| Idle revolutions n | 0 = 0-2800 min-1 |
| Saw stroke 28 mm | |
| Cutting depth | |
| - Wood maximum 180 mm | |
| - Steel maximum 10 mm | |
| Weight ca. 2.5 kg | |
| Cable | 300 |
| Protection class II | ☐ |
We reserve the right to make technical changes.
Measured values determined in accordance with EN 60745-1, EN 60745-2-11.
The specified vibration emission value was determined when carrying out surface grinding. When used for other applications, the vibration emission value may deviate. The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one electrical tool with another.
The specified vibration emission value can also be used for an introductory evaluation of the influence.
CAUTION! The vibration emission value may fluctuate from the specified value during use of the power tool. These fluctuations will depend on the way in which the power tool is used.
Safety measures must be taken in order to protect the operator. As a result, the evaluation of the influence must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the power tool is switched off and times in which it is switched on, but is running without load.)
CAUTION! A certain amount of noise is unavoidable when using this machine. Therefore, carry out noise-intensive work during permitted times. Maintain any quiet periods and limit the duration of your work to the absolute minimum.
CAUTION! The effects of noise may cause damage to hearing. Therefore, only work with suitable hearing protectors. People in the vicinity should also wear suitable hearing protectors.
6 - Unpacking and checking
Check the parts supplied
- Open the packaging and take the machine out carefully.
- Remove the packaging material as well as the packaging and transport safety mechanisms (if present).
- Check whether the scope of delivery is complete.
- Check the sabre saw and accessory parts for transportation damage.
- Keep the packaging until the guarantee period has expired, if possible.
Caution! The machine and packaging material are not toys. Children may not play with plastic bags, foil or small parts! There is a risk of swallowing and suffocation!
7 - Scope of delivery
- Sabre saws
- 3 saw blades for wood
1 saw blade for metal - Operating instructions
- Guarantee certificate
8 - Assembly and adjustment tasks
CAUTION! Before carrying out any work on the machine, always pull the plug out of the socket!
Changing the saw blade (Figure 2/2a)
CAUTION! Disconnect the power before each saw blade change!
CAUTION! Wear protective gloves when changing the saw blade. Risk of cutting and burns.
Remove saw dust from the saw blade holder (7a). Rotate the lock (7) of the saw blade holder (7a) as far as it will go to the right and hold in this position. Pull saw blade out of saw blade holder in accordance with Figure 2. Insert the new saw blade as far as it will go into the saw blade holder. Release the lock (7) and check saw blade for firm seating. Repeat the procedure if necessary.
The saw blade holder is designed to accommodate ordinary accessories with a holding shaft for sabre saws.
Electronic stroke rate control/stroke rate pre-selection function
To saw material properly, rotate the adjusting wheel for stroke rate preselection (3) (Figure 1b) and set a suitable stroke rate (0 - 2800min^-1) using the On/Off switch. The adjustment wheel also serves to implement continuous adjustments of the stroke rate during operation.
Reducing the stroke rate Increasing the stroke rate
Setting the saw shoe (Figure 3)
CAUTION! Pull the plug before carrying out any work on the machine!
Press the locking lever for the saw shoe (10) down and slide saw shoe (8) lengthwise to the required position. Tighten the locking lever again. To adapt
or to provide a safe rest for various materials, the angle of the saw shoe can also be modified.
Setting the saw position (Figure 5)
CAUTION! Pull the plug before carrying out any work on the machine!
The saw can be set to one of three positions (0^, + / - 90^) . To change the saw position, push the locking button (2) in the direction of the arrow. Rotate the handle (1) to bring the saw shoe (8) to the desired position. Allow the locking button (2) to engage.
LED work light (Figure 6)
When the plug is in the socket, the LED work light (9) is lit to provide better vision and to enable safe work in darker areas (Figure 6). The LED work light goes out when the plug is pulled out of the socket.
CAUTION! LED work light! Do not look directly into the beam of light, because this may result in damage to the eyes.
9 - Operation
Switching on
Press the On/Off switch (4).
The saw starts with a low stroke rate. With stronger pressure on the switch (4), the stroke rate increases to the previously set value.
Switch the machine off to change the stroke rate using the adjusting wheel (3) (Figure 1b).
Switching off
Release the On/Off switch (4) and wait for the machine to come to a standstill.
Switching on continuous operation
Push the On/Off switch (4) as far as it will go, press the locking button for continuous operation (5) (Figure 1b) and then release the On/Off switch (4).
The machine starts at the previously set stroke rate.
Switch the machine off to change the stroke rate using the adjusting wheel (3) (Figure 1b).
Switching off continuous operation
Release lock by pressing the On/Off switch (4). Release the On/Off switch (4) and wait for the machine to come to a standstill.
10 - Method of working and finishing work
Adapt the saw blade and stroke rate to the respective material being used. Remove any foreign objects from the work piece.
We recommend carrying out test cuts on waste materials in order to determine the machine settings required.
CAUTION! Observe the safety instructions!
CAUTION! Before cutting, use a clamping mechanism to prevent work piece from slipping!
When processing materials, pay attention to maximum cutting depth specifications!
Switch the machine on, and move it towards the work piece to be processed. Place the saw shoe (8) on the surface of the work piece and saw the material with even pressure and feed. If the saw blade jams, turn the machine off immediately. Use a suitable tool to open up the cut a little and remove the machine. When you have finished working, switch off the machine and only set it down when it has come to a complete standstill.
CAUTION! After working with a low stroke rate for a long period of time, operate in idle at maximum revolutions for about three minutes to let the machine cool down! When doing so, pay attention to ensure that the machine and saw blade do not cause risks.
CAUTION! When sawing metal, steel in particular, take regular cooling breaks for inserting the saw blade or applying cutting grease on the blade! This will increase the durability and edge retention of the blade considerably.
Sawing without pilot hole (Figure 4)
If you have to cut into the centre of the work piece and it is not possible to drill a hole: Release the saw shoe, push all the way back and lock. With the saw blade in a tipped machine position and the machine running, carefully guide it across the work piece (a). As soon as the work piece has been sawn through, continue working with the machine in the normal position (b).
CAUTION! This method should only be used with short saw blades and in soft materials, such as soft wood or insulation materials.
Finishing work
- Switch the machine off.
- Unplug the machine from the power supply.
- Allow the machine to cool down sufficiently.
- Prior to cleaning, maintenance or storage, remove the inserted tools.
11 - Cleaning, maintenance and repairs
Cleaning
Caution! Switch the machine off, pull the power plug from the power supply and allow the machine to cool down before carrying out any inspection, maintenance or cleaning work!
- Keep the machine and the ventilation slots clean to ensure safe and correct operation.
- Check regularly to make sure that dust and foreign bodies are not caught in the openings close to the motor and around the On/Off switch. Use a soft brush to remove collected dust. Wear goggles when cleaning.
-
Clean the machine housing with a soft, damp cloth. You can use a mild cleaning agent but make sure it is one without alcohol, benzene or other cleaner.
-
Never use a solvent to clean plastic parts.
- Lubricate all moving parts regularly.
Maintenance
- Check the machine and accessory parts (e.g. tool inserts) before and after each use for wear and damages. If necessary, replace with new ones in accordance with the descriptions in these operating instructions. When doing so, pay attention to the technical requirements.
- Check all fixtures regularly. These may become loose over time due to the vibrations.
- If the power cable of this machine is damaged, it may only be replaced by the manufacturer, their customer service department or a similarly qualified person, in order to prevent risks.
List of replacement parts
The following parts may be purchased from the customer service department: Saw shoe, adjustable (8)
Caution! After carrying out any cleaning or maintenance work, make sure that all protective mechanisms, if present, are correctly replaced and securely attached! Never use the machine without protective mechanisms!
Repairs
Inside the machine there are no parts that can be repaired by the user. Consult a qualified specialist to have the machine checked and repaired.
12 - Storage and transportation
Storage
- Clean the machine as described above.
- Store the machine and its parts in a dry place, free from frost.
- Always store the machine out of the reach of children. The ideal storage temperature is 10 to 30^ .
- We recommend storing the machine in its original packaging or covering with a suitable cloth to protect it from dust.
NOTE! Before using the machine again, check the machine for any signs of wear or damage according to these operating instructions.
Transport
- Switch the machine off and unplug it from the power supply before transporting.
- Attach any transport protection mechanisms, if available.
- Always carry the machine by the intended handles/gripping surfaces.
- Protect the machine against damages and strong vibrations that may occur, in particular, when transporting in a vehicle.
- Secure the machine to prevent it slipping or tipping.
13 - Disposal and recycling
CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be
collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environ mentally-friendly recycling.
Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.
14 - Troubleshooting and assistance
The sabre saw has no power
- Check the plug connection.
Saw blade comes loose
- Saw blade was not fitted correctly. Insert the saw blade as far as it will go into the tensioning mechanism.
- Quick tensioning mechanism is not returned to the starting position. Insert the saw blade as far as it will go into the tensioning mechanism and manually press the lever into the correct position.
Sabre saw is not sawing straight.
- Too much pressure is being exerted on the sabre saw.
-
The setting of the sabre saw is wrong for the material to be sawn. Check the speed.
-
The saw blade is twisted or blunt.
Change the saw blade.
In the event of any other faults and errors, consult the customer service mentioned in the guarantee documentation.
15 - Service notes
- Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
- Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
- Meister devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
- A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please
enclose the guarantee document and the proof of purchase.
- In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.
PLEASE NOTE! Opening of the device invalidates the guarantee claim!
IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.
- Pack the device well or use the original packaging in order to avoid transit damage.
- Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
15 - Service-instructions
m = 311
LED calisma Iambasi (Sekil 6)
EC-Declaration of Conformity
EG-Verklaring van overeenstemming
The following product ...
... is herewith declared to conform with the following guidelines:
