USER MANUAL RG 9640 SEVERIN

GB Instructions for use

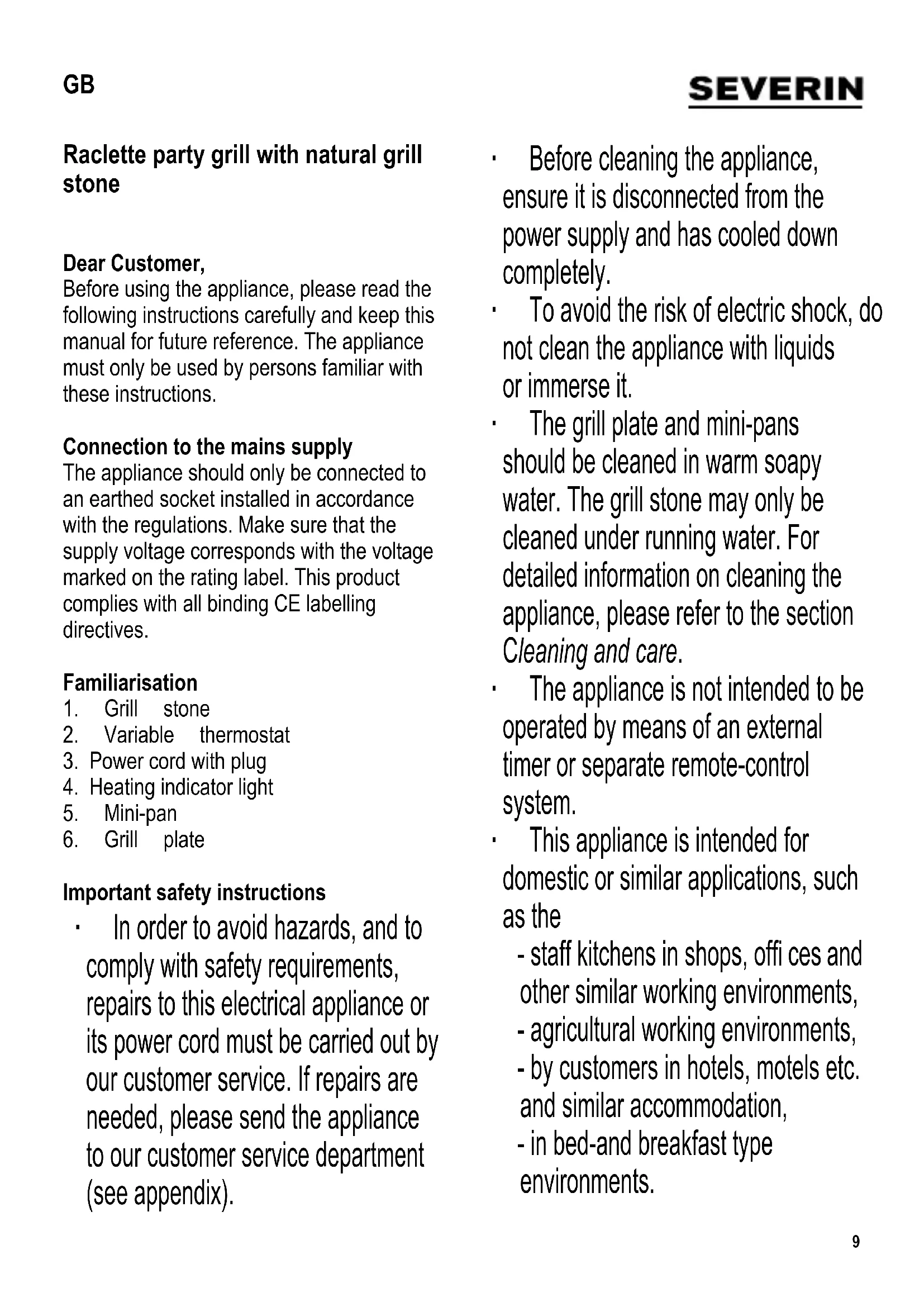

Raclette party grill with natural grill stone 9

FR Mode d'emploi

Raclette party grill with natural grill stone

Dear Customer,

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Grill stone
2. Variable thermostat
3. Power cord with plug
4. Heating indicator light
5. Mini-pan
6. Grill plate

Important safety instructions

In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
- The grill plate and mini-pans should be cleaned in warm soapy water. The grill stone may only be cleaned under running water. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,
• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may only be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  Children must not be permitted to play with the appliance.
  Children must only be permitted to carry out any cleaning or maintenance work on the appliance if they are supervised and at least 8 years of age.
  The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.
• Before the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any faults or defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used:

even invisible damage may have adverse effects on the operational safety of the appliance.

• Do not allow the power cord to touch any hot part of the appliance.
• Caution: Danger of burns. The housing surfaces, grill areas and mini-pans become hot during use.
  Do not leave the appliance unattended while in use.
  During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no infl ammable materials are stored near it.
  Before use, the grill stone and grill plate must be positioned on top of the appliance, above the heating element.

• Caution: Do not operate the appliance outdoors.
  Always remove the plug from the wall socket

• after use,

• in case of any malfunction, and

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• This appliance should only be used with the attachments provided by the manufacturer.
• Always allow the appliance sufficient time to cool down before removing the grill stone and grill plate, and before cleaning or storing the unit.
  No responsibility will be accepted if damage results from improper use, or if

these instructions are not complied with.

How to use your grill

Before first use

Remove any packing materials completely. Before switching on the appliance for the first time, clean the grill stone, grill plate and minipans with a damp cloth.

We recommend that you heat up the appliance and the pans for about 10 minutes, without any food, to eliminate the smell typically encountered when first switching on a grill. A small amount of smoke may also be noticeable, so the room may have to be ventilated during this period.

Grill stone

• Fit the stone to the appliance above the heating element, with the polished side up. Ensure that the recesses on the underside of the stone fit over the rails of the frame in such a way that the stone cannot move.
• Caution: avoid placing a cold stone onto a hot element.
• The stone can be used for cooking vegetables, sliced meat or fish etc. as required.
  It is entirely composed of natural material and small cracks resulting from natural expansion and contraction during heating and cooling, as well as a change to a darker colour, are normal and have no detrimental effects.
• Do not place any frozen food or items containing vinegar (such as pickled gherkins or mustard) on the stone.

Grill plate

• Before the appliance is switched on,

position the plate on top of the appliance over the heating element with the ribbed side up.

• The recesses on the underside must fit over the guide rails of the frame. Now move the grill plate slightly sideways to lock it, observing the markings on the plate.
  The grill plate can be used for cooking vegetables, meat or fish.

Variable thermostat

• The variable thermostat controls the operating time of the heating element, with the yellow indicator light showing its current operating status.

Heating element on = indicator light on Heating element off = indicator light off

• When melting cheese or grilling, the maximum setting should be used (thermostat control all the way to the right).
• Simply to keep food warm, the thermostat should be adjusted to a lower setting (thermostat control further to the left).
• Turn the thermostat all the way to the left and unplug the appliance from the mains after use.

Operation

• Place the grill plate and grill stone onto the unit as described above.
• Insert the plug into a suitable wall socket and turn the thermostat all the way to the right.
  After a pre-heating time of about 10 minutes, the grill plate is ready for use, but the stone requires a pre-heating time of around 40 minutes.
• Place the food to be cooked on the grill stone and plate. We recommend first

applying a light coat of oil to the plate and sprinkling a little salt on the stone to prevent sticking.

• Put the raclette cheese into the mini-pans and place them into the appliance under the heating element; then leave them until the cheese has melted.
• Warning: Do not place empty mini-pans in the appliance while it is switched on, but leave them on a heat-resistant surface.
• Turn the thermostat all the way to the left and unplug the appliance from the mains after use.

How to prepare raclette cheese

Use about 200 to 300 grams of suitable cheese per person. Cut the cheese into slices about 3 to 5mm thick and put them into the mini-pans. It is preferable to use original raclette cheese but any other fast-melting cheese is also suitable.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of the mini-pans and the grill plate, use only non-abrasive utensils.

Cleaning and care

Before cleaning the appliance, always make sure that the plug has been removed from the wall socket and allow the appliance to cool down completely.
- To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
- Do not use abrasives or harsh cleaning solutions.
Wipe the outer surfaces of the grill with a

clean damp cloth.

Before the stone is removed for cleaning, ensure it has cooled down completely.
Clean the stone with a synthetic sponge under running water without detergent.
Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the stone in water.
Take the grill plate off and clean it in warm soapy water; dry thoroughly with a soft cloth afterwards.
Clean the mini-pans in warm soapy water and dry them thoroughly afterwards.
These parts are not dish-washer safe.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This

guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
