Technical Features	Details
Device type	Fondue, raclette and wok appliance
Power	1200 W
Capacity	For 8 people
Cooking surface material	Non-stick coating
Included accessories	8 spatulas, 8 pans, 1 wok
Dimensions	Approximately 40 x 25 x 10 cm
Weight	Approximately 2.5 kg
Usage	Ideal for convivial meals, easy to use
Maintenance	Pans and spatulas are dishwasher safe
Safety	Overheat protection
General information	Versatile appliance, suitable for evenings with friends or family

Frequently Asked Questions - RG 2675 SEVERIN

How to use the SEVERIN RG 2675 fondue appliance?

To use the fondue appliance, start by heating the pot by adding cheese or chocolate and melting it over low heat. Make sure to stir regularly to prevent sticking.

How to clean the SEVERIN RG 2675 appliance after use?

Wait for the appliance to cool down, then unplug it. Removable parts can be washed by hand with warm water and soap. Do not immerse the appliance in water.

Can the SEVERIN RG 2675 appliance be used for wok cooking?

Yes, the SEVERIN RG 2675 appliance is designed to be used as a wok. Make sure to use a little oil and preheat the wok before adding ingredients.

What type of cheese is recommended for fondue with the SEVERIN RG 2675?

It is recommended to use a blend of cheeses such as Gruyère and Emmental to obtain a creamy and tasty fondue.

What is the capacity of the SEVERIN RG 2675 appliance?

The SEVERIN RG 2675 appliance has a capacity sufficient to serve about 4 to 6 people, ideal for family or friends meals.

Is there a warranty for the SEVERIN RG 2675 appliance?

Yes, the SEVERIN RG 2675 appliance is generally covered by a two-year warranty. Check the warranty conditions provided with your product.

How to adjust the temperature of the SEVERIN RG 2675 appliance?

The appliance is equipped with an adjustable thermostat. You can adjust the temperature by turning the control knob located on the front of the appliance.

Can I use the SEVERIN RG 2675 appliance outdoors?

The SEVERIN RG 2675 appliance is designed for indoor use. It is recommended not to use it outdoors due to risks of moisture and electrical accidents.

What to do if the SEVERIN RG 2675 appliance does not heat?

First check that the appliance is properly plugged in and that the outlet works. If the problem persists, it is advisable to contact customer service for assistance.

USER MANUAL RG 2675 SEVERIN

Technical diagram of a microwave oven with labeled parts including top, front, side, and internal components.

D

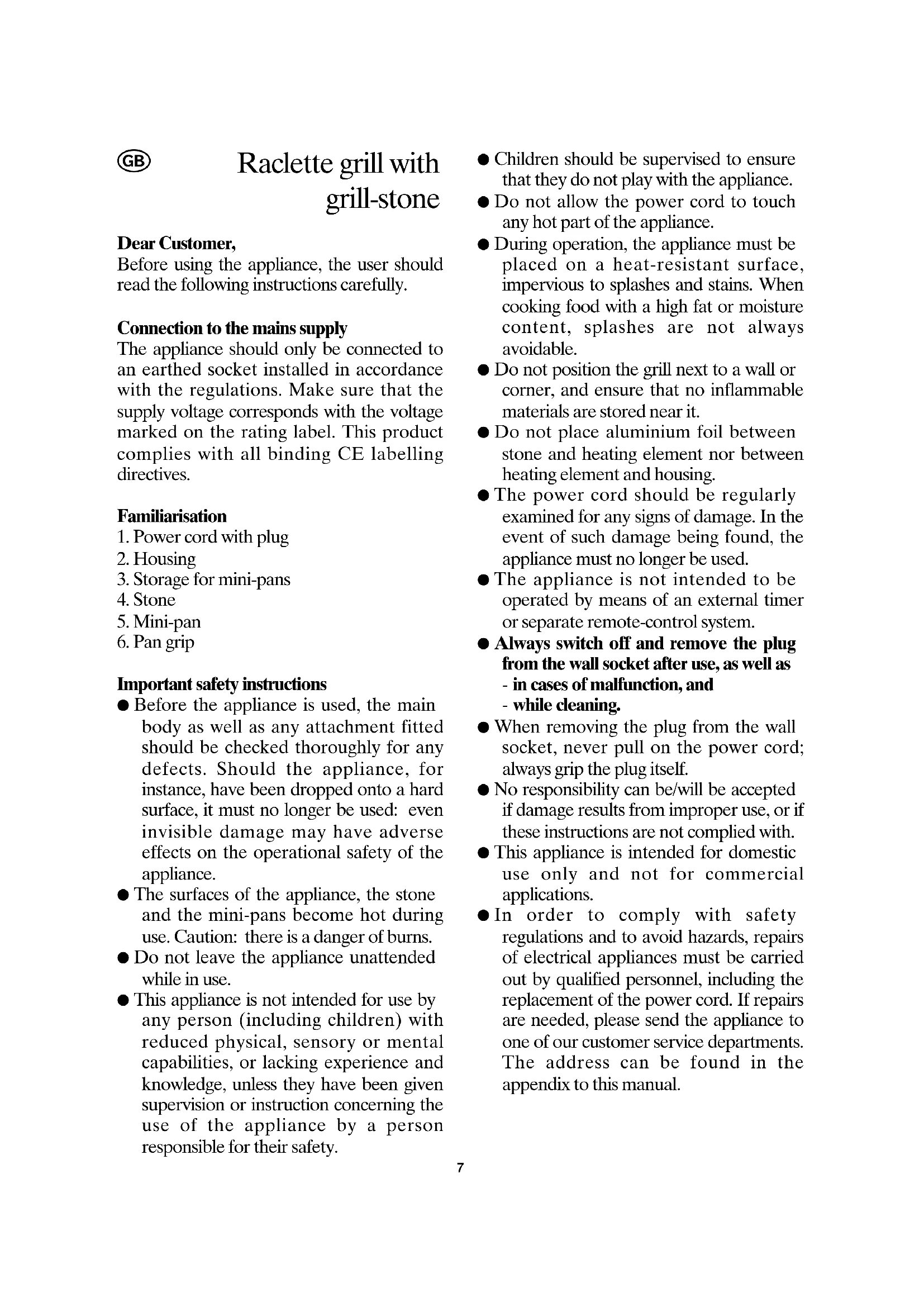

Raclette grill with grill-stone

Dear Customer,

Before using the appliance, the user should read the following instructions carefully.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Power cord with plug
2. Housing
3. Storage for mini-pans
4. Stone
5. Mini-pan
6. Pan grip

Important safety instructions

• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
  ● The surfaces of the appliance, the stone and the mini-pans become hot during use. Caution: there is a danger of burns.
• Do not leave the appliance unattended while in use.
  ● This appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.
- Do not allow the power cord to touch any hot part of the appliance.
● During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.
- Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
- Do not place aluminium foil between stone and heating element nor between heating element and housing.
● The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
● The appliance is not intended to be operated by means of an external timer or separate remote-control system.
● Always switch off and remove the plug from the wall socket after use, as well as - in cases of malfunction, and - while cleaning.
- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
- No responsibility can be/will be accepted if damage results from improper use, or if these instructions are not complied with.
● This appliance is intended for domestic use only and not for commercial applications.
- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.

How to use your grill

Before using the appliance for the first time

Slide the pan grips on to the handles until they lock in place.

Before using the grill for the first time, clean the mini-pans with a damp cloth. The stone should be cleaned with a synthetic sponge (but without the use of any detergent) under running water. Wipe thoroughly dry afterwards with a soft cloth.

Before using the appliance for the first time, we recommend you allow it to heat up for 10 minutes without any food. This will lessen the smell typically encountered when first switching on a new grill (a slight smell and a little smoke may still be emitted - ensure sufficient ventilation).

Storage for mini-pans

The mini-pan storage slots are located in the base of the appliance. Al-low the pans to cool down before pushing them into the slots.

Stone

● Fit the stone on to the appliance over the heating element, with the polished side up. Caution: avoid placing a cold stone on to a hot element.

• The stone can be used for cooking vegetables, sliced meat or fish etc. as required.
• This stone is made of natural material. Small cracks resulting from natural expansion and contraction during heating and cooling, as well as a change to a darker colour, are normal and have no detrimental effects.
• Do not place any frozen food or items containing vinegar (such as pickled gherkins or mustard) on the stone.
• Do not let the appliance remain on for more than 30 minutes unless there is food on the stone.

Operation

- Connect the grill to the mains supply and allow the appliance to pre-heat. The pre-heating time for the stone is 25 - 30 minutes, while 10 minutes is sufficient for the raclette grill.

• The stone should be lightly greased with a small amount of oil or fat specifically intended for frying, which may be safely heated to high temperatures.
• If the stone is being used, put the food on top.
• Put the raclette cheese into the mini-pans. Place the mini-pans into the appliance underneath the heating element, and leave them in place until the cheese has melted.

Caution: do not place empty mini-pans into the appliance while it is switched on.

- When grilling is completed, remove the plug from the wall socket.

How to prepare raclette cheese

Use about 200 to 300 grammes per person of a suitable soft cheese. Cut the cheese into 3 to 5 mm slices and put them into the minipans. Cheeses such as original raclette, Tilsit or Appenzell are the most suitable, but any other fast-melting cheese can also be used. Remember that with the overhead heat the cheese will melt quite quickly.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the surface of the stone as well as to the coating of the minipans, do not use any abrasive, sharp or pointed utensils.
• When grilling larger quantities of food, the accumulated fat should be carefully removed from time to time.

General care and cleaning

● Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
● To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

• Do not use abrasives, harsh cleaning solutions.
• The exterior of the appliance may be cleaned with a damp, lint-free cloth.
• Before the stone is removed for cleaning, ensure it has completely cooled down. Clean the stone with a synthetic sponge under running water without the use of any detergent. Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the stone in water.
• The mini-pans should be cleaned in warm soapy water and dried thoroughly afterwards.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Narva: CENTRALSERVICE,

Tallinna 6A, tel: [phone]

Haapsalu: Teco KM OÜ,

Jalaka 1A, tel: [phone]

Pikk 1B, tel: [phone]

Philippos Business Center

Agias Anastasias & Laertou, Pilea

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Iran

IRAN-SEVERIN CO.

Bahar Administration and

Commercial Center

No. 668, 7th Floor, Ave.

South Bahar

TEHRAN - IRAN

Tel.: [phone]

e-mail: [e-mail]

Internet: www.iranseverin.com

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800240279

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

F.A. Kettaneh

P.O. Box 485

Amman, 11118, Jordan

Tel: [phone]

e-mail: [e-mail]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga,

Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

[e-mail]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building,

Dora

P.O.Box 70611

Antelias, Lebanon

Telephone [phone], Fax 01

253535

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

Serbia and Montenegro

tel: [phone]

tel: [phone]

fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Finland

Oy Harry Marcell Ab

Rälssitie 6, PL 63

01511 Vantaa

Puh 0207 599 860

Fax [phone]

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Fax: [phone]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Stand: 01.2009

SEVERIN

I/M No.: 8159.0000
