Technical specifications	BLACK & DECKER BDCIM18 cordless screwdriver, 18V voltage, maximum torque of 30 Nm, variable speed, 1/2\" (13 mm) chuck.
Usage	Ideal for screwing and unscrewing in various materials such as wood, metal, and plastic.
Maintenance and repair	Regularly check the condition of the battery and the chuck. Clean the device after use to extend its lifespan.
Safety	Wear protective glasses during use. Do not use the device in damp environments.
General information	Lightweight for easy handling, compatible with other tools in the BLACK & DECKER 18V range.

Frequently Asked Questions - BDCIM18 BLACK & DECKER

How do I charge the battery of the BLACK & DECKER BDCIM18 screwdriver?

To charge the battery, insert it into the supplied charger and plug it into an electrical outlet. The indicator light will turn on to signal that charging is in progress.

What should I do if the screwdriver does not start?

Check that the battery is properly charged and inserted. Also make sure the safety switch is in the 'ON' position.

How do I change the screwdriver bit?

To change the bit, pull the chuck to unlock it, remove the used bit, and insert the new bit. Release the chuck to lock it.

What type of screws can be used with the BLACK & DECKER BDCIM18?

The screwdriver is designed to use hex head screws, wood screws, and metal screws, in sizes appropriate for the screwdriver's capacity.

How do I adjust the tightening torque?

To adjust the torque, turn the adjustment ring located just above the chuck until you reach the desired torque level.

What should I do if the screwdriver overheats during use?

If the screwdriver overheats, stop using it immediately and let it cool down for at least 15 minutes before using it again.

How do I maintain the BLACK & DECKER BDCIM18 screwdriver?

To maintain your screwdriver, regularly clean the chuck and the surface of the device with a soft cloth. Avoid letting dust or debris accumulate.

Is the screwdriver protected against overloads?

Yes, the BLACK & DECKER BDCIM18 is equipped with an overload protection system that stops the tool in case of overheating or overload.

Can the screwdriver be used for drilling?

The BLACK & DECKER BDCIM18 is primarily designed for screwing. For drilling, it is recommended to use a suitable drill.

Where can I find spare parts for my screwdriver?

Spare parts for the BLACK & DECKER BDCIM18 can be ordered from authorized dealers or directly on the BLACK & DECKER website.

USER MANUAL BDCIM18 BLACK & DECKER

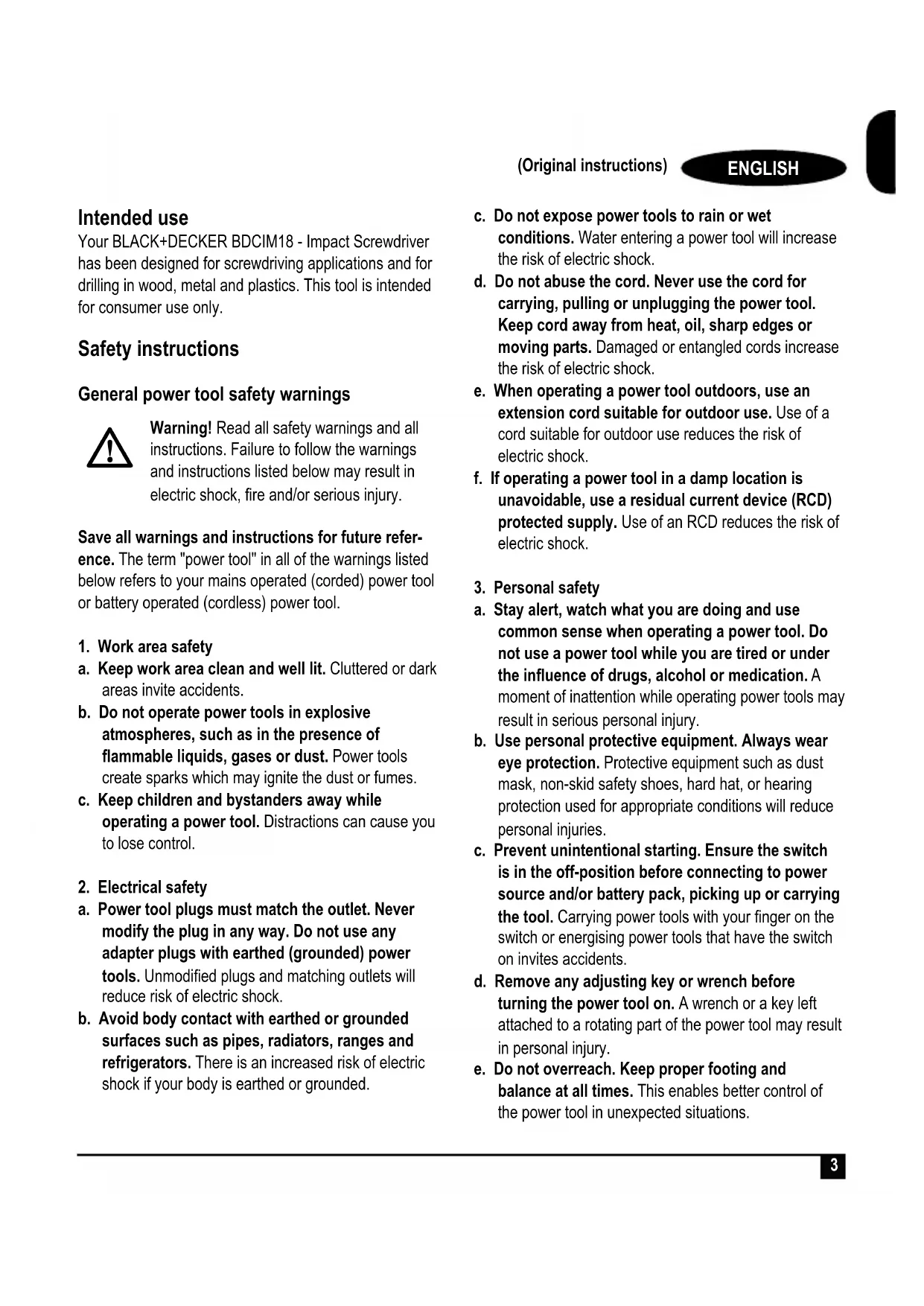

Your BLACK+DECKER BDCIM18 - Impact Screwdriver has been designed for screwdriving applications and for drilling in wood, metal and plastics. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety
   a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
   a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

ENGLISH

(Original instructions)

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

1. Battery tool use and care
   a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
   b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
   c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
   d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

2. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Additional safety warnings for impact wrenches

Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Warning! Impact wrenches are not torque wrenches. Do not use this tool for tightening fasteners to specified torques. An independent, calibrated torque measurement device such as a torque wrench should be used when under tightened or over tightened fasteners can lead to the failure of the joint.

Safety of others

This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

Injuries caused by touching any rotating/moving parts.
Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

ENGLISH

(Original instructions)

Labels on tool

The following symbols are shown on the tool along with the date code:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Additional safety instructions for batteries and chargers (Not provided with the tool)

Batteries

Never attempt to open for any reason.
Do not expose the battery to water.
Do not store in locations where the temperature may exceed 40^ .
Charge only at ambient temperatures between 10^ and 40^ .
Charge only using the charger provided with the tool.
When disposing of batteries, follow the instructions given in the section "Protecting the environment".

Do not attempt to charge damaged batteries.

Chargers

Use your BLACK+DECKER charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.

The charger is intended for indoor use only.

Read the instruction manual before use.

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

Features

This tool includes some or all of the following features.

1. Variable speed switch
2. Forward/reverse slider
3. Chuck collar
4. Quick release chuck
5. LED Work light
6. Bit holder
7. Charger (where supplied)
8. Battery (where supplied)
9. Battery release button

Assembly

Warning! Before assembly, remove the battery from the tool.

Fitting and removing the battery (fig. B)

To fit the battery (8), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
To remove the battery (8), push the battery release button (9) while at the same time pulling the battery out of the receptacle.

Fitting and removing a drill bit or screwdriver bit (fig. C)

This tool is fitted with a quick release chuck to allow for an easy exchange of bits.

Fitting a drill bit or screwdriver bit

Grasp the chuck collar (3) and pull away from the front of the tool.

Insert the bit shaft (10) and release the chuck collar (3).
The bit is locked in place.

Removing a drill bit or screwdriver bit

Grasp the chuck collar (3) and pull away from the front of the tool.
Remove the bit (10) and release the chuck collar (3).

Bit holder

A bit holder (6) slot is built into the area on the top of the tool.

Use

Warning! Let the tool work at its own pace. Do not overload.

Charging the battery (fig. A)

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 10^ or above 40^ . Recommended charging temperature: approx. 24^ .

Note: The charger will not charge a battery if the cell temperature is below approximately 10^ or above 40^ .

The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

To charge the battery (8), insert it into the charger (7). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
Plug in the charger and switch on at the mains.

The green charging indicator will blink indicating the battery is being charged.

The charge is complete when the green charging indicator switches to continuously on. The charger and the battery can be left connected indefinitely. The green charging indicator will switch on as the charger occasionally tops up the battery charge.

Charge discharged batteries within 1 week. Battery life will be greatly diminished if stored in a discharged state.

Leaving the battery in the charger

The charger and battery pack can be left connected with the green charging indicator glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

Variable speed switch on/off (fig. D)

To switch the tool on, press the variable speed switch (1).
To switch the tool off, release the variable speed switch (1).

Note: Your tool is equipped with a brake. The chuck will stop as soon as the variable speed switch is fully released.

The variable speed switch (1) enables you to select the best speed for a particular application.
The more you press the variable speed switch (1), the faster the tool will operate.
- The more you press the variable speed switch (1), the faster the tool will operate.
Use lower speeds for starting holes without a centre punch, dtilling in metals or plastics, or driving screws.

Note: Continuous use in variable speed mode is not recommended. It may damage the switch and should be avoided.

Selecting the direction of rotation (fig. D)

For drilling and for tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counterclockwise) rotation.

To select forward rotation, release the variable speed switch (1) depress the forward/reverse slider (2) on the right hand side of the tool.
To select reverse rotation, release the variable speed switch (1) depress the forward/reverse slider (2) on the left hand side of the tool.

ENGLISH

(Original instructions)

To lock the tool, set the forward/reverse slider (2) into the centre position.

When changing the position of the forward/reverse slider (2), make sure the variable speed switch (1) is released.

Note: The first time the tool is run after changing the direction of rotation, you may hear a click on startup up. This is normal and does not indicate a problem with the tool.

Note: The impacting noise that the tool makes is normal and does not indicate a problem with the tool.

LED Work light (fig. E)

The LED work light (5) is located above the variable speed switch (1).
The LED work light (5) will be activated when the variable speed switch (1) is pressed.

Note: The LED work light is for lighting the immediated work surface and is not intended to be used as a torch.

Drilling/screwdriving

Select forward or reverse rotation using the forward/ reverse slider (2).
To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the variable speed switch (1).
To switch the tool off, release the variable speed switch (1).

Hints for optimum use

Drilling

Always apply a light pressure in a straight line with the drill bit.
Just before the drill tip breaks through the other side of the workpiece, decrease pressure on the tool.
Use a block of wood to back up workpieces that may splinter.
Use spade bits when drilling large diameter holes in wood.
Use HSS drill bits when drilling in metal.
Use masonry bits when drilling in soft masonry.
Use a lubricant when drilling metals other than cast iron and brass.

Make an indentation using a centre punch at the centre of the hole to be drilled in order to improve accuracy.

Screwdriving

Always use the correct type and size of screwdriver bit.
If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
Always hold the tool and screwdriver bit in a straight line with the screw

Maintenance

Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.

Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Regularly open the chuck and tap it to remove any dust from the interior.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again.

Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Batteries

There are no user servicable parts inside.

At the end of your products life return the whole unit to your service agent or to a local recycling station to have the battery recycled. Do not throw the unit out with household waste.

Technical data

		BDCIM18 (H1)
Voltage V	DC	18
No-load speed Min	-1	0-3000
Max. torque Nm 155
Chuck capacity mm 6
Weight kg 1.0

Charger 905902** Type 2 905998** Type 1
Input voltage V AC		100-240 230
Output voltage V DC		8-20	18
Current mA		400 1
Approx. charge time Hours		3 - 5	1 - 5

Battery		BL1518 BL2018		BL4018
Voltage	VAC	18	18	18	18
Capacity	Ah	1.5	2.0	4.0	4.0
Type		Li-Ion	Li-Ion	Li-Ion	Li-Ion

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 94 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 105 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Screwdriving with impact (ah, IS) 18.1 m/s2, uncertainty (K) 1.5 m/s2

EC declaration of conformity

MACHINERY DIRECTIVE

BDCMI18 - Impact Screwdriver

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN 60745-1, EN 60745-2-2

These products also comply with Directive 2004/108/ EC (until 19/04/2016) 2014/30/EU (from 20/04/2016) and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of

the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of

Black & Decker.

R. Laverick

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

18/09/2015

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Großbritannien

18/09/2015

Garantie

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Royaume-Uni

18/09/2015

Garantie

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Regno Unito

18/09/2015

Garanzia

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Verenigd Koninklijk

18/09/2015

Garantie

Black & Decker Europa, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Reino Unido

18/09/2015

Garantía

Director de Engenharia

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

Reino Unido

18/09/2015

PORTUGUES

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

18/09/2015

Garanti

Andre former for risiko

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannia

18/09/2015

Garanti

Black & Decker er trygg på kvaliteten av produitene sine og tilbyr en enestående garanti. Denne garantierklæringenkommen i tillegg til dine lovbestemte rettigheter og er ikke i konflikt medppe. Garantien er gyldig i EU- og EFTA-medlemsstatene.

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

18/09/2015

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

NaVToE va KpataTe to epyaaleio kai tn mUtn Tou KaTaOaβiδou eEuθεia ypaum n Tn βida

Suvtnpnon

To BLACK+DECKER 1 OXeOIAOTei, ETOI WOTe va AIEIOUpyei yia MEyAIO XPOVIKO dIoAOTnma U TIV EALxioT NduVAn OuvtnpOnn. H aDIAeTTN kAI KAVOTIOINTIKN AEIToupyia Egaptatai ATo Tn OwTn FPOVTIDa Tou epyaEoiu KAI Tov TAKTIKO KaBapioMo tou.

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Hvωμενo Baσιλειο

18/09/2015

Eyyúnon

H Black & Decker éivai σiyoupn γia tny tiotiŋta twv
TpioviTvW Tnc kai πapexi Egaipetikn Eyyunon. H
Tapouaa ypaattn Eyyunon aTtoteλe i popoθeTo δikaiωma
Oac kai δev zηmuwεi ta vóμia δikaiwμata oac. H
Eyyunon IOxue I EVTOS nC ETTIKpATEiAc TWV KpatwV MeλwV
Tnc EupwTaikns Evwons kai nC EupwTaikns Zwvn
Eλeuθepwv Suvaalaywv.
