USER MANUAL CareStyle 7 IS 7144 BRAUN
Type 12870010
Register your product
www.braunhousehold.com/register
CareStyle 7143/7144
CareStyle 7155/7156
Steam generator iron
| Deutsch | 6 |
| English | 12 |
| Français | 18 |
| Español | 24 |
| Português | 30 |
| Italiano | 36 |
| Nederlands | 42 |
| Dansk | 48 |
| Norsk | 54 |
| Svenska | 60 |
| Suomi | 66 |
| Polski | 72 |
| Český | 78 |
| Slovenský | 84 |
| Magyar | 90 |
| Hrvatski | 96 |
| Slovenski | 102 |
| Türkçe | 108 |
| Română (RO/MD) 114 |
| Ελληνικά | 120 |
| Κασακ, | 126 |
| Русский | 133 |
| Українська | 140 |
| عری | 150 |
De'Longhi Braun Household GmbH
3
B
temp. ok
IS 7144
eco
eco
eco
IS 7156
eco
iCare
turbo
C
D
Deutsch
Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy the new Braun appliance.
Before use
Please read instructions carefully and completely before using the appliance.
Caution
Caution: Hot surfaces! Electric g stations combine high tem-ures and hot steam that could b burns.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- During operation and cool-down the appliance and its mains cord shall be kept out of reach of children under 8 years.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Always unplug the station/iron before filling with water.
- The appliance must be used and rested on a stable surface.
- During ironing pauses, place the iron upright on its heel rest or on the iron rest. Ensure that the heel rest is placed on a stable surface.
- The iron must not be left unattended while it is connected to the supply mains.
- Do not open the boiler during ironing.
- During use, the pressurised apertures must not be opened for filling, descaling, rinsing or inspection.
- The appliance must not to be used if it has dropped, if there are visible signs of damage or if it is leaking. Regularly check the cords for damages.
- Never immerse the unit in water or other liquids.
- This appliance is designed for household use only and for processing normal household quantities.
- Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.
- The cords should never come in contact with hot objects, the soleplate, water and sharp edges.
- Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance and that you are using an earthed socket.
- When using an extension cord watch out that it is in good condition, has a plug with an earth connection and corresponds with the power rating of the appliance (16A).
- The soleplate and the iron rest can reach very high temperatures that could lead to burns. Do not touch them.
- Choking hazard. The appliance might contain small parts. Some of those small parts might be required to get disassembled during cleaning and maintenance operations. Handle with care and keep small parts out of reach of children.
- Important: Keep all packaging (plastic bags, polystyrene foam) away from children.
Description
Steam Generator Iron
1 Display
2 On/Off button
3 Calc clean system button
4 Settings (eco, iCare, turbo)
5 Iron rest
6 Water tank
7 Power cord
8 Closure
9 Transparent cover
10 Lock system
Iron
11 Temperature control LED
12 Steam button
13 Precision shot button
14 Double cord
15 Heel rest
Intended use
The appliance must be used only for ironing garments which are suitable for ironing according to the care label. In addition the appliance can be used for refreshing. Never iron or dampen garments while wearing them.
Before fi rst use
Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate).
When steam is ready for the first time we recommend to iron for a few minutes over a rag to avoid manufacturing residues can dirty your garments.
(A) Filling the water tank
- Make sure that the appliance is switched off and the system is unplugged.
- Remove the water tank (6).
-
Fill the water tank with tap water, taking care not to exceed the “max” level but at least up to the mark “min” otherwise the appliance will not be ready to start steam ironing. If you have extremely hard water, we recommend that you use a mixture of 50 % tap water and 50 % distilled water.
-
Never use distilled water exclusively. Do not add any additives (e.g. starch). Do not use condensation water from a tumble dryer.
- Insert the water tank.
- Place the appliance on a stable, level surface.
Note: If you use fi ltering devices or in-house permanent descaler, make absolutely sure the water obtained is neutral ph.
Water reserve function
- When the water level is becoming low, the icon
starts flashing. At this stage it is possible to continue steam ironing for about 10-15 minutes.
- When the icon turns permanently on, it becomes necessary to refi ll the tank. At the same time, the temperature control LED (11) is fl ashing and the icon related to the selected setting (4) turns off.
- To continue steam ironing, refi ll the water tank (A).

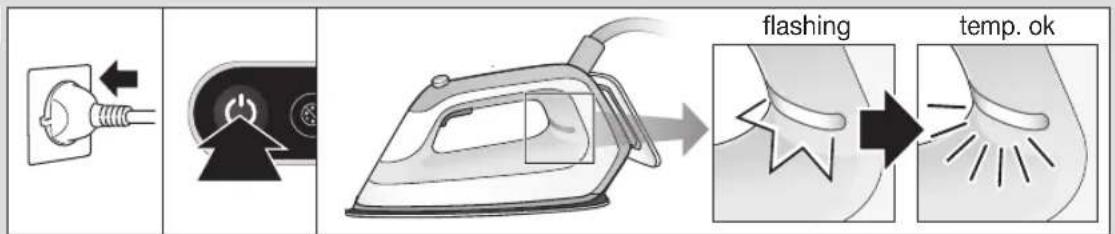

(B) Start into operation
Before start ironing follow the garment care label instructions carefully. Fabrics with this symbol are not ironable.
- Place the iron on the iron rest (5) or on its heel rest (15), unwind completely the cord, plug in the appliance and press the On/ Off button (2).
- Select the setting (4) most suitable for the garments to be ironed.
- The requested setting can be chosen by pressing the corresponding button (eco, iCare or turbo). To switch from one setting to another press the dedicated button.
- The iron will start to heat up and the temperature control LED (11) on the iron will flash. Once the temperature is reached, the temperature control LED is permanently on.
- The related icon for the setting in the display (1) will start to flash. When steam is ready the icon turns permanently on.

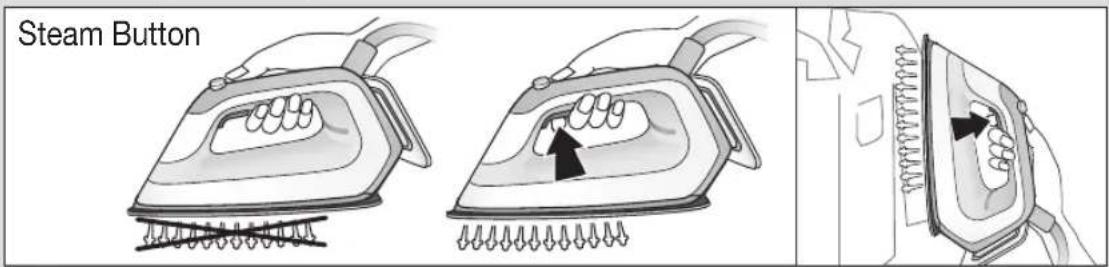

Steam ironing
Press the steam button (12) or the precision shot button (13).
Double trigger
Press the steam button (12) or the precision shot button (13) twice in quick succession within 1 second. There will be a continuous steam emission for a few seconds.
Press the steam button or the precision shot button once again during steam emission to stop the function.
Dry ironing
Iron without pressing the steam button (12) or the precision shot button (13). Please note that after
10 minutes of dry ironing, the iron switches to the auto-off mode.
Vertical steam
The iron can also be used for steaming hanging clothes (B). Hold the iron in a vertical position, tilted slightly forwards. Press repeatedly the steam button (12) or the precision shot button (13) while moving the iron from top to the bottom.
Steam is very hot: never iron or dampen garment while wearing them.
3D soleplate
The unique round shape of the 3D soleplate ensures best gliding results on difficult parts (e.g. buttons, pockets etc.)
Settings

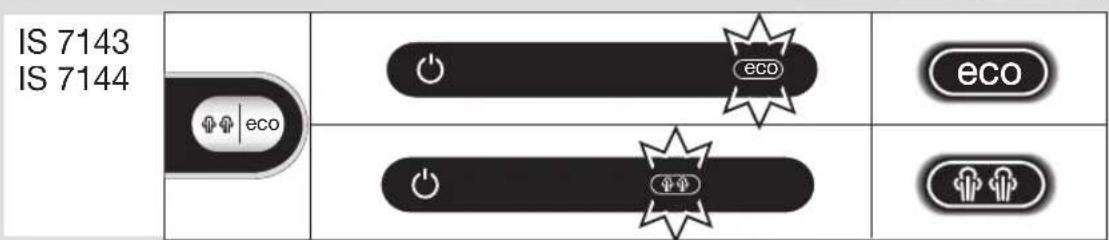

CareStyle 7143, 7144
The iCare setting is automatically chosen when the appliance is switched on for the first time. From 2nd switch on, it will be set to the last setting chosen.
The iCare setting is suggested for garments like wool, polyester and cotton/linen.
The eco setting eco is suggested for most delicate garments like synthetics, silk and blended fabrics for which you need less steam. This setting allows less power consumption.

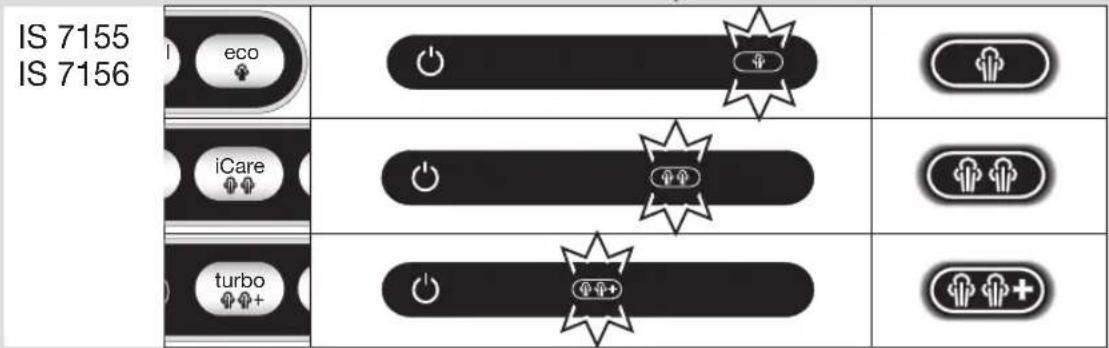

CareStyle 7155, 7156
eco eco
It is suggested for most delicate garments like synthetics, silk and blended fabrics. This setting allows less power consumption.
iCare
It is suggested for garments like wool, polyester and cotton.
turbo
It is suggested for garments that need more powerful steam, like thick cotton/linen and jeans. This setting can also be used to refresh and hygienize garments that were in the closet before dressing.
Note: Do not use the hygienize function on people and pets.
When the appliance is switched on, it will always be set to the iCare setting, independently on the last setting chosen.
14
For best results
Before start ironing follow the garment care label instructions carefully.
• Always iron black and dark garments inside out to avoid getting a sheen on the fabrics from the iron.
- When ironing a shirt, start with the more difficult parts like collar, cuff links and sleeves. Then iron the bigger parts like front and back, so you can prevent wrinkling the bigger parts when you are ironing the other parts.
- When you iron a collar, start on its underside and work from the outside (the pointy end) inwards. Turn over and repeat. Fold down the collar and press the edge for a more crisp finish.
- When ironing garments with imprints, applications or even more sensitive fabric parts (i.e. embroidery), turn them inside out and, if necessary, lay a cotton cloth between the iron and the fabric. This way you avoid damage and get the volume of fabric designs that are not to be ironed flat.
- When ironing woolen garments, we recommend pressing sequentially the precision shot button (13) without placing the iron on the garment. This will avoid shiny effects on the fabric.
- In order to prevent new creases while ironing with steam make sure that the garment shows no residual moisture before going on ironing other parts of it.

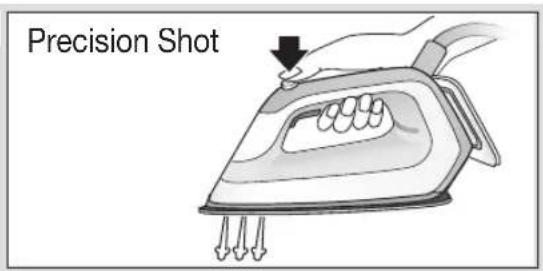

(C) Precision shot
- Press the precision shot button (13) completely down.
- Steam will come out of the tip area of the soleplate only.
• To stop this function release the button.
- If you do not press it down completely, some steam may also come out from the rear steam holes in the soleplate.

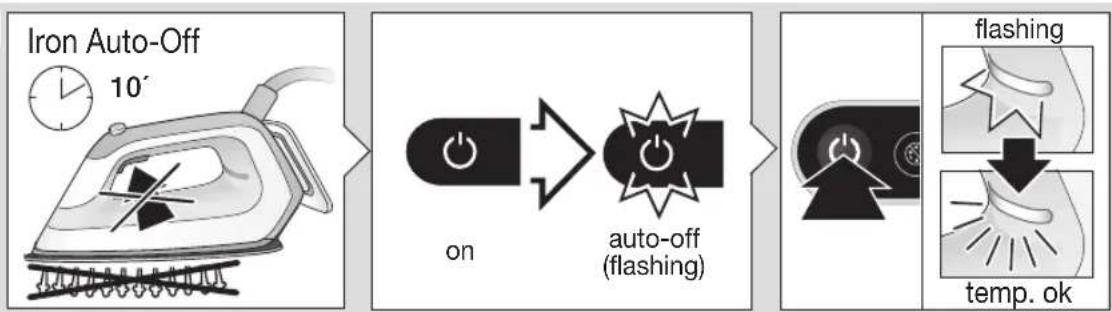

(D) Iron auto-off
This function is activated if after 10 minutes there has been no steam emission.
- When the iron is in the auto-off mode, the icon ⏻ is flashing and the temperature control LED (11) is off. The iron will turn off to reduce power consumption.
- To turn the iron on again, the On/Off button (2) has to be pressed. Before start ironing again wait until the temperature control LED and the related icon for the setting in the display (1) are permanently on.
After ironing / storage
- Press the On/Off button (2) to turn off the appliance.
- Unplug and let the appliance cool down before storing.
• Empty the water tank.
- Lock the iron.
(E) Lock system
The appliance is equipped with a lock system for convenient transportation and easy storage. It is possible to lift and carry the appliance on the handle of the locked iron.
Note: Before transportation make sure the iron is properly locked and the water tank is empty.
- Place the soleplate into the recess on the iron mat.
- To lock the iron push the slider (10) (easy lock) toward the iron until you hear a "click".
- To unlock the iron push down the button on the slider (easy lock). The iron will be released.
(F) Descaling
Never open or touch the closure (8) when the appliance is hot and/or plugged in.
To maintain optimum performance, the system needs to be decalcified after every 15 litres of water consumption (about 8 complete refi IIs).
Do not use any chemicals, additives or descaler to rinse the boiler.
The icon 🟢 is flashing.
a. Switch off (2) and unplug the appliance. Unlock the iron and remove it from the iron rest. Wait until the appliance has cooled down (minimum 2.5 hours).
b. Empty the water tank.
c. Place the appliance on the edge of the sink and open the transparent cover (9).
d. Turn the closure (8) anticlockwise to open it.
e. Let the water flow into the sink.
f. Turn the appliance slightly in an inclined position to empty the boiler completely.
g. When no more water comes out of the appliance screw the closure to close the boiler and close the transparent cover.
h. After having finished the descaling procedure, plug in and switch on.
i. Press the calc clean system button (3) for 2 seconds to reset.
If the appliance is switched off without descaling, the icon will start to flash again when it is next switched on.
Note: Because of the different water composition by using an installed in-house permanent descaler, it is recommended to descale the system after every 4 complete refi lls or at least once per month. Please note that in this case the icon for descaling will not automatically start flashing.
(G) Care and Cleaning
- Before cleaning, always make sure that the appliance is switched off, unplugged and has cooled down completely.
- To clean the soleplate it is suggested to use a damp cloth.
- To clean the soft material on the handle and the high glossy surface use a damp cloth only.
- Never use chemicals, vinegar or scouring pads (eg. sponges with coarse nylon fabrics etc).
Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.
For UK Only
Guarantee Information
All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.
In the unlikely event of a breakdown you have access to professional help from our team simply by calling: 02392 392333
For service in the Republic of Ireland please call: 012475471
Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;
• We are promptly informed of the defect.
- The product is used and maintained in accordance with the User Instructions.
- The appliance has not been altered in any way or subjected to misuse or repair by a person
other than an authorised service agent for Braun Household.
- No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
- Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
- The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.
Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.
Braun Household, New Lane, Havant, Hampshire PO9 2NH
www.braunhousehold.co.uk
Thank You for choosing Braun. We are confident that you will get excellent service from this product.
TO IMPROVE YOUR EXPERIENCE
Register now at www.braunhousehold.co.uk
By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.
Troubleshooting guide
| PROBLEM CAUSE REMEDY | | |
| The appliance does not switch on. | The appliance is not plugged into a mains socket. | Make sure the appliance is correctly connected and press the On/Off button. |
| Steam comes out under the base unit. | The “max” pressure safety system has opened. | Turn the appliance off immediately and contact an authorised Braun Customer Service. |
| There are some water drops from the holes in the bottom of the soleplate. | Water has condensed inside the tubes because steam is being used for the first time, or has not been used for some time. | Press the steam button several times away from the ironing board. This will eliminate cold water from the steam circuit. |
| Brown coloured fluid leaks from the soleplate. | Chemical water softeners or additives have been poured into the water tank. | Never pour products into the water tank. Clean the soleplate with a damp cloth and rinse the boiler. |
| The first time the appliance is turned on, you notice smoke or smell. | Some parts have been treated with sealer/lubricant which evaporates the first time the iron heats up. | This is normal and will stop when you have used the iron a few times. If the smoke/smell is still present after turning off the appliance, contact an authorised Braun Customer Service. |
| The appliance emits an intermittent noise associated with vibrations. | Water is being pumped into the boiler. | This is normal and no action is needed. |
| The appliance emits a continuous noise associated with vibrations. | System error. | Unplug the appliance from the mains and contact an authorised Braun Customer Service. |
| The closure is difficult to unscrew. | Lime scale has made the closure difficult to open. | Turn the cap forcefully. To avoid the problem, rinse system frequently. |
| The boiler is still under pressure. | Never open the closure if the boiler is still under pressure or hot. Wait at least 2.5 hours before opening the closure. |
| After refilling the water tank, the light does not reset. | The water float does not work appropriately. | Empty the water tank, rinse out and refill. |
| The water tank is not positioned correctly. | Position the water tank correctly. |
| All LEDs are flashing. System error. | | Unplug the appliance, plug it in again and press On/Off button. If this problem is still present, turn the appliance off immediately, unplug and contact an authorised Braun Customer Service. |
| Steam icon is permanently on, but there is no steam emission from the soleplate. | Water tank float is locked or the water tank is not correctly inserted. | Turn off and unplug the appliance. Remove and empty the water tank, rinse out and refill. Insert the water tank.Switch on the appliance and wait until the device is ready to use. Press the steam button and wait until steam comes out.Keep the steam button pressed for 10 seconds of steam emission then release the steam button. |
| Steam or water comes out from the closure. | The closure is not tightened properly. | Switch off the appliance, unplug and let it cool down (for at least 2,5 hours).Unscrew the closure and screw it back on the appliance properly.Note: Some water can escape when you unscrew the closure |
| The double cord gets hot during use. | This is normal. It is caused due to the steam passing through the cord during ironing. | Place the double cord on the opposite side so that you cannot touch the cord during ironing. |
Français
