Feature	Details
Product type	Food processor
Bowl capacity	3 liters
Power	750 W
Functions	Chop, slice, grate, knead, blend
Included accessories	Cutting discs, stainless steel knife, mixing bowl
Dimensions	25 x 24 x 40 cm
Weight	3.5 kg
Bowl material	Plastic
Ease of cleaning	Dishwasher-safe parts
Safety	Lid locking system, non-slip feet
Warranty	2 years

Frequently Asked Questions - Multipro Compact FDM307SS KENWOOD

How do I assemble the KENWOOD Multipro Compact FDM307SS?

To assemble the KENWOOD Multipro Compact, place the bowl on the base, then secure the lid ensuring it is properly locked. Add the necessary accessories according to the tasks you want to perform.

How do I clean the KENWOOD Multipro Compact FDM307SS?

Disassemble all accessories and wash them with warm soapy water. The bowl and plastic accessories can also be washed in the dishwasher. Wipe the base with a damp cloth.

The robot won\'t start, what should I do?

Check that the bowl is correctly installed and that the lid is properly locked. Also ensure the device is plugged into a working outlet.

How do I adjust the speed of the KENWOOD Multipro Compact?

Use the speed control knob located on the control panel to adjust the speed according to your needs. Start at a low speed to avoid splashing.

Can I use the robot to chop meat?

Yes, the KENWOOD Multipro Compact is equipped with a chopping accessory that allows you to chop meat. Make sure to cut the meat into small pieces before adding them to the bowl.

How do I prevent ingredients from sticking to the bowl?

To prevent ingredients from sticking, you can add a little oil or water, depending on the recipe. Also, be careful not to overload the bowl.

The robot makes noise, is this normal?

A certain level of noise is normal during use. However, if the noise seems excessive or unusual, check that all accessories are properly attached and in good condition.

Where can I find spare parts for my KENWOOD Multipro Compact?

Spare parts can be purchased on the official KENWOOD website or from authorized dealers. Also check local appliance stores.

How do I store the KENWOOD Multipro Compact FDM307SS?

Store the robot in a dry and cool place. If possible, keep all accessories inside the bowl to save space and avoid losing them.

The robot has a strange smell, what should I do?

It is normal for the robot to have a slight smell during first use. If the smell persists, clean all accessories thoroughly and make sure they are completely dry before storing.

USER MANUAL Multipro Compact FDM307SS KENWOOD

TYPE: FDM30

English 2 - 12

Nederlands	13	-
Français	25	-
Deutsch	38	-
Italiano	51	-	(
Português 63 - 75
Español	76	-
Dansk	89	-	9
Svenska	100	-
Norsk	112	-	1
Suomi	123	-	-
Türkçe	134	-
Česky	145	-	1
Magyar	157	-
Polski	169	-	1
Ελληνικά	182	-
Slovenčina	196	-	207
Українська	208	-	220
عربي	٢٣١ - ٢٢١

Technical diagram of a kitchen appliance with numbered parts and directional arrows indicating assembly steps

10A Plastic blender C - s a 4 b c d e 5 6 10B Glass blender f e 8 d c 7 b a 9

Standard attachments 11 12 13 14 15 16

D - optional attachments 17 18 19 20 21 22 23

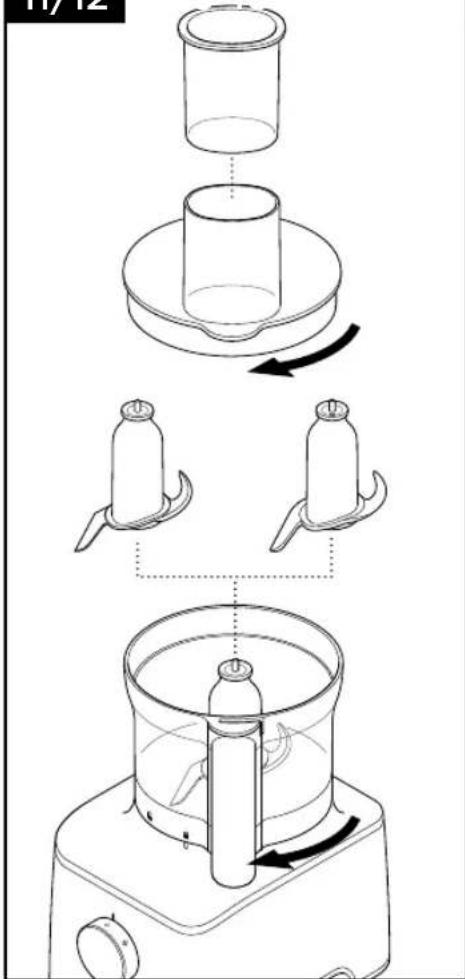

11/12


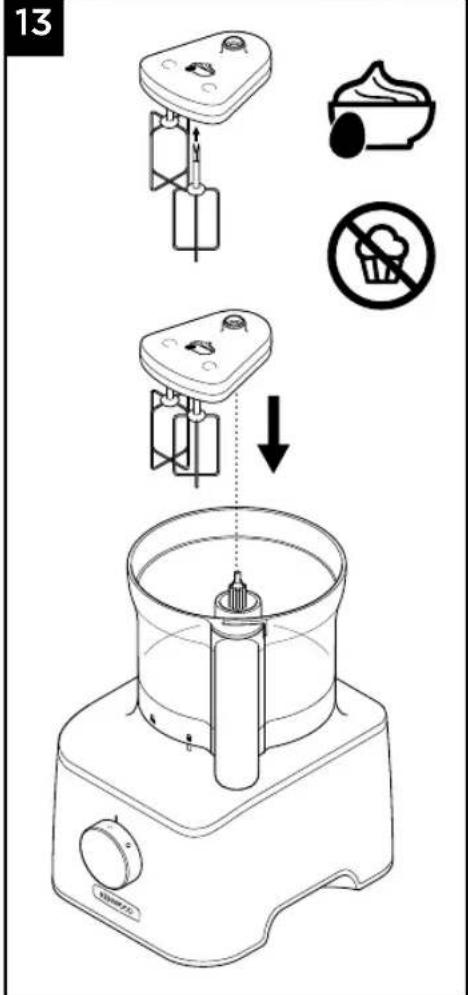

13 ↓

17

a b

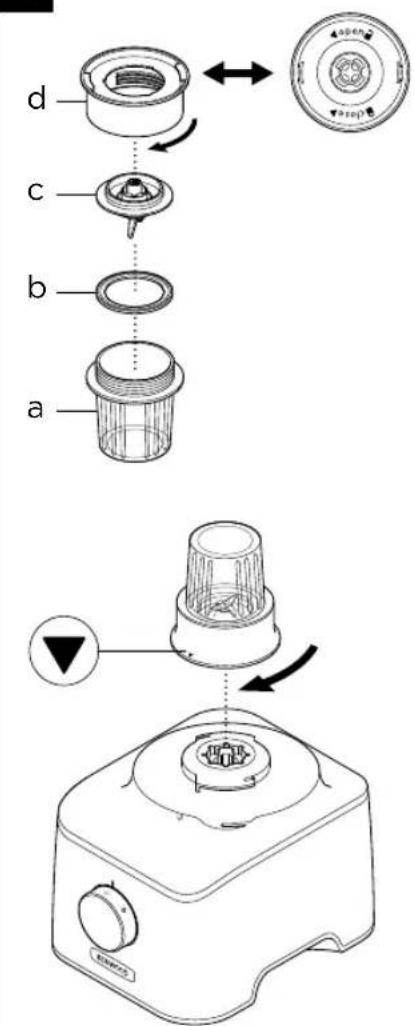

18

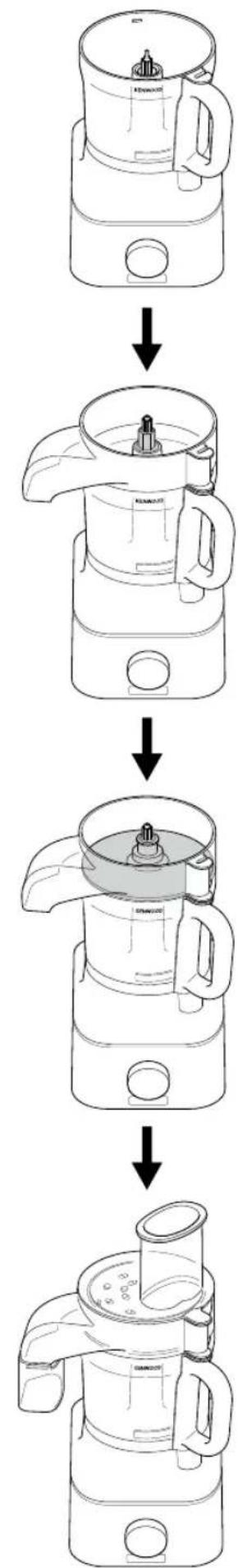

Technical diagram showing a multi-step assembly of a kitchen appliance with labeled parts and directional arrows indicating process flow.

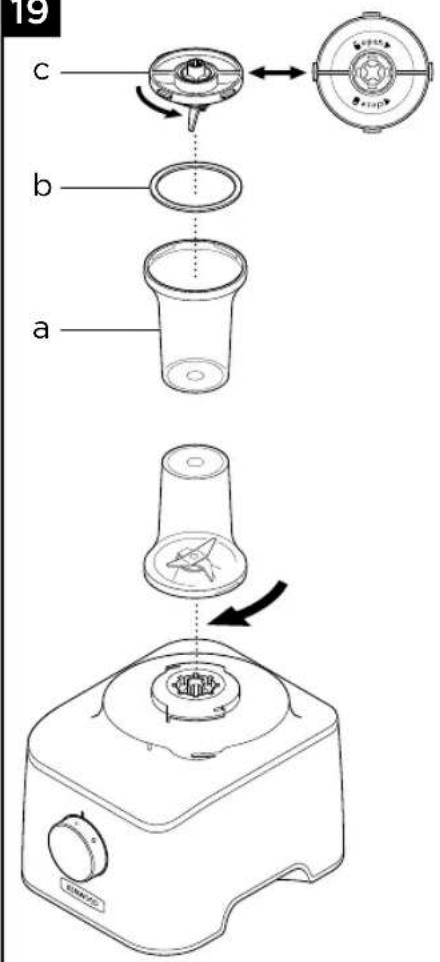

19

19 c b a

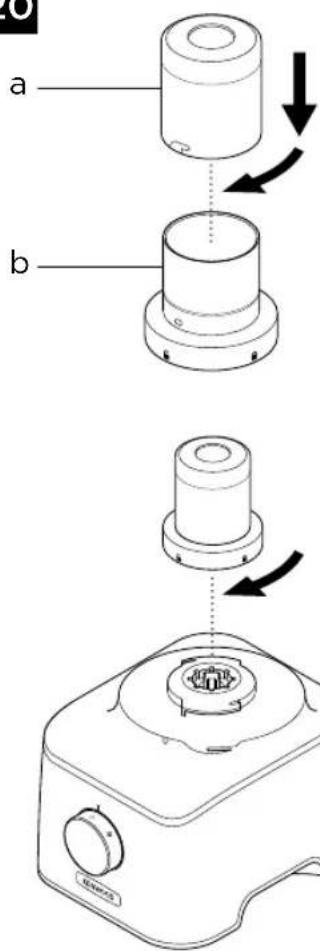

20

a b

a b c d e f

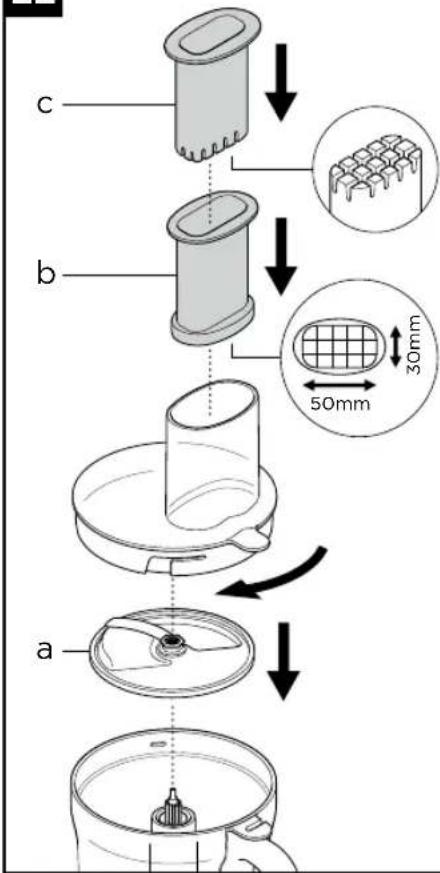

22

c b a 30mm 50mm

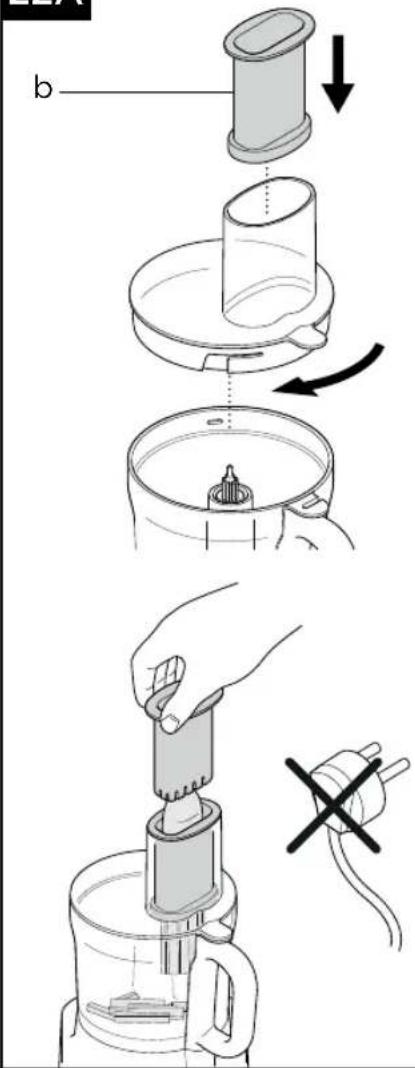

22A

b b x

23

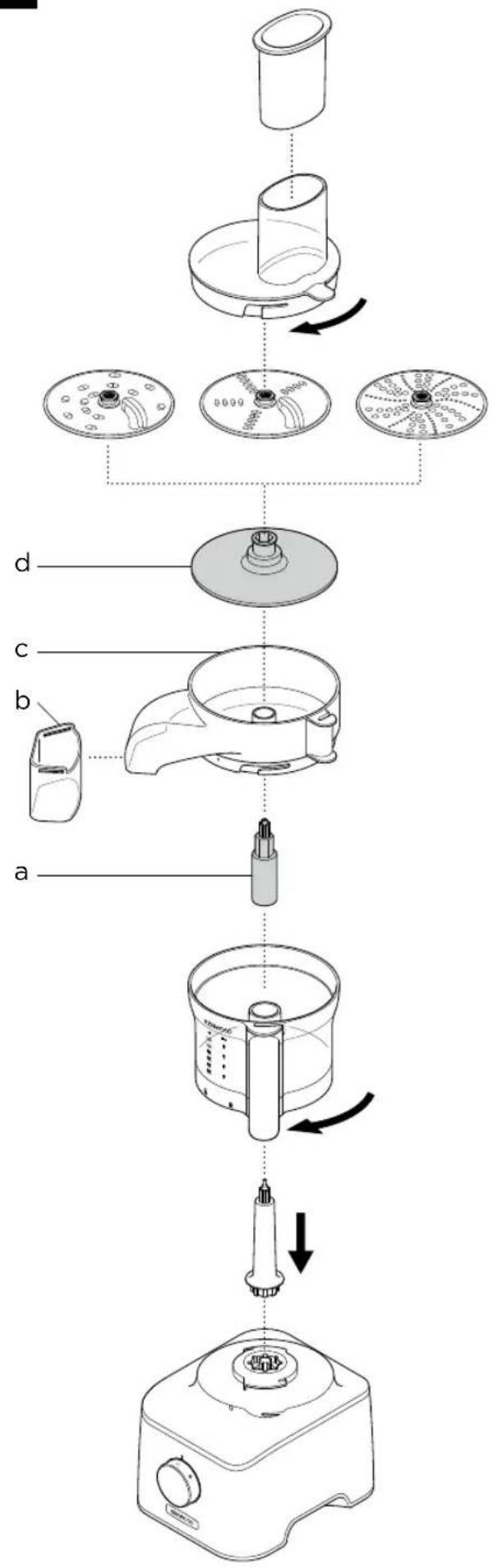

Exploded view diagram of a kitchen appliance with labeled parts including blender, fan, and blender.


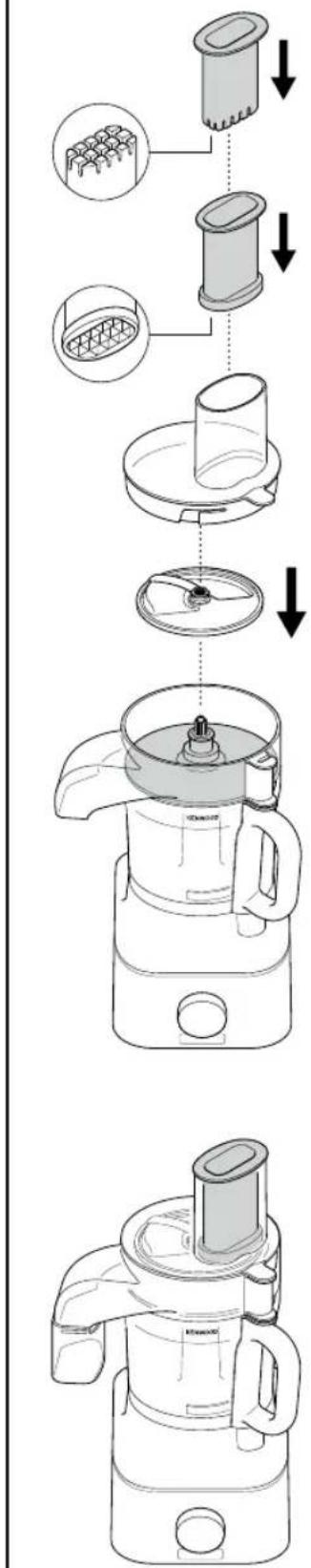

23+22

24

English

Safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard.

- DO NOT touch the sharp blades. The blades and discs are very sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, when handling the sharp cutting blades, emptying the bowl and during cleaning.

• DO NOT process hot ingredients.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to sudden steaming.

- Never leave the appliance unattended when it is operating.

- Do not exceed the maximum capacities stated in the recommended usage chart.

- Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.

Function/Attachment Maximum Operation Time		Rest Period Between Operations
Blender 60 secs		Unplug the appliance and allow to cool down for 15 minutes
Heavy mixtures in the bowl (e.g. Dough)	60 secs
Mini Chopper/Mill 30 secs
Grinding Mill 60 secs

- Do not lift or carry the processor by the handle - or the handle may break resulting in injury.

- Always remove the knife blade before pouring contents from the bowl.

- Keep hands and utensils out of the processor bowl and blender goblet whilst connected to the power supply. If food needs to be pushed down use a suitable utensil such as a spatula.

- Always switch off the appliance and disconnect from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Never use your fingers to push food down the feed tube. Always use the pusher supplied.

- Never fit the blade assembly to the power unit without the goblet or mill jar/lid fitted.

- CAUTION: Before removing the lid from the bowl, blender or mill from the power unit:

○ switch off;
- wait until the attachment/blades have completely stopped;
- be careful not to unscrew the blender goblet or mill jar from the blade assembly.

- Do not use the lid to operate the processor, always use the on/off speed control.

- This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.

- Never use an unauthorised attachment.

- Never use a damaged appliance. Get it checked or repaired: see ‘Service and Customer Care’.

- Never let the power unit, cord or plug get wet.

- Do not let excess cord hang over the edge of a table or worktop or touch hot surfaces.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

- Misuse of your processor, blender or mill can result in injury.

- The maximum rating is based on the mini chopper/mill attachment that draws the greatest load. Other attachments may draw less power.

Blender

• DO NOT process hot ingredients.

- SCALD RISK: Hot ingredients must be allowed to cool to room temperature before placing in the goblet or before blending.

- Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.

- Only operate the blender with the lid in place.

- Only use the goblet with the blade assembly supplied.

- Never run the blender empty.

- Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

Mill Attachments

• Never fit the blade assembly to the power unit without the jar/ lid fitted.
• Never unscrew the jar/lid while the mill is fitted to your appliance.
• Do not touch the sharp blades – Keep the blade assembly away from children.
• Never remove the mill until the blades have completely stopped.
• The appliance will not work if the mill is incorrectly fitted.
• Do not process hot ingredients in the mill allow to cool down to room temperature before processing.

Mini Chopper/Mill

- The processing of spices is not recommended as they may damage the plastic parts.

Grinding Mill

- Do not process dried turmeric root as it is too hard and may damage the blades.

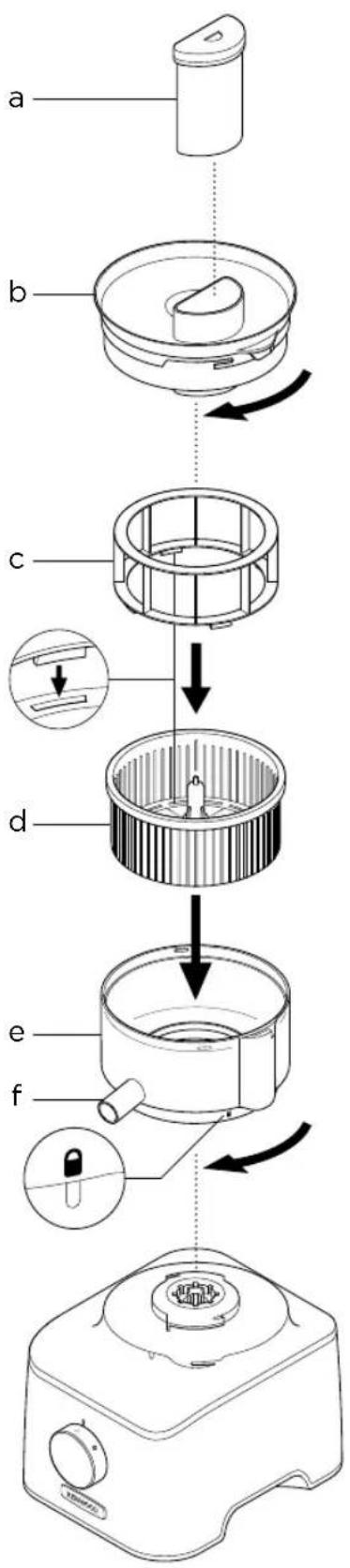

Juice extractor

• Do not use the juicer if the filter is damaged.
• The cutting blades on the base of the filter drum are very sharp, take care when handling and cleaning the drum.
• Only use the pusher supplied. Never put your fingers in the feed tube. Unplug before unblocking the feed tube.
• Before removing the lid, switch off and wait for the filter to stop.

Express Dice/Express Serve Attachment and Discs

- The cutting grid and discs are very sharp; handle with care when fitting, removing and cleaning. Always hold by the finger grip away from the cutting edge when handling the sharp cutting blades, emptying the bowl and during cleaning.

- Never use your fingers to push food down the feed tube. Only use the pusher supplied.

- Do not use excessive force to push food down the feed tube - you could damage your attachment.

- Before removing the lid, switch off wait until the cutting disc has completely stopped.

• Avoid contact with moving parts. Keep fingers out of the food outlet opening.
• Do not operate when using the Dicer or Discs without the slinger plate fitted. If the slinger plate is not fitted food will

clog under the plate and not exit the food outlet, resulting in damage to your attachment.

- The citrus juicer is not designed to be used with the Express Serve. Always use the citrus juicer with the main bowl.

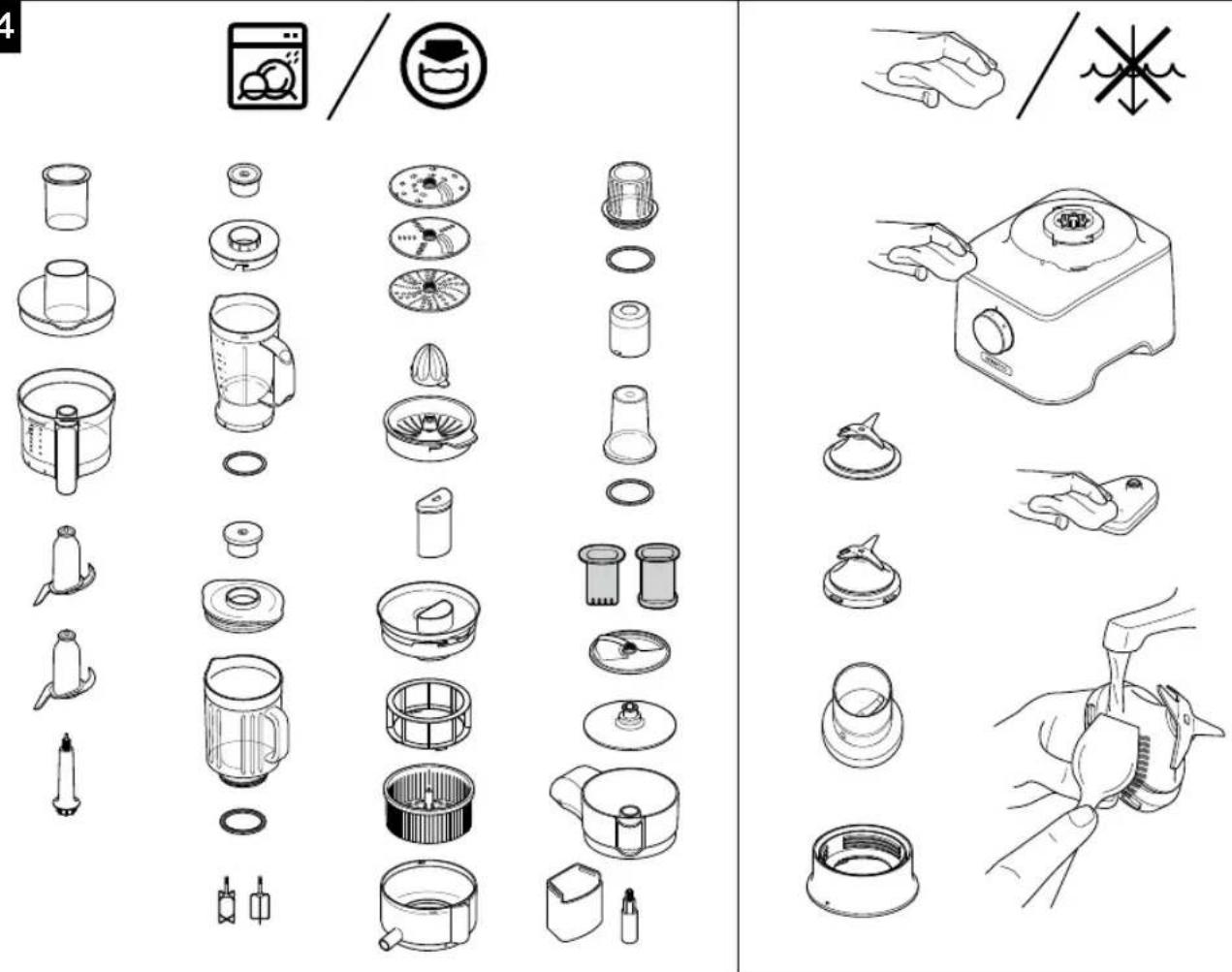

Cleaning

• Wipe the power unit and whisk drive head with a damp cloth, then dry. Ensure that the interlock area ⑧ is clear of food debris.
• Do not immerse the power unit, blade assemblies or whisk drive head in water.
• The bowl, lid, pusher and all attachment/tool apart from the blade assemblies and whisk drive head are suitable for both handwashing and dishwashing.
• The blade assemblies should be brushed clean and rinsed under running water.

Before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your appliance.
- This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Before using for the first time

1 Remove the plastic blade covers from the knife blade. Take care the blades are very sharp. These covers should be discarded as they are to protect the blade during manufacture and transit only.

2 Wash the parts see 'Care and Cleaning'.

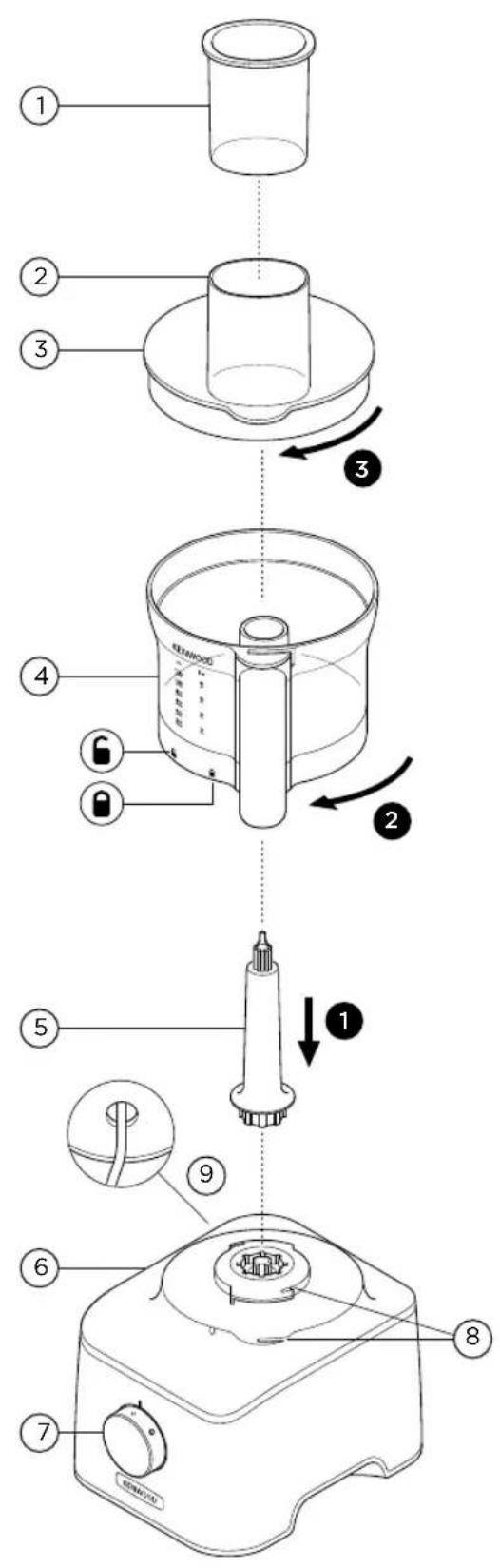

Key

Processor

① Pusher
② Feed tube
③ Lid
④ Bowl
⑤ Detachable drive shaft
⑥ Power unit
⑦ Speed/pulse control
⑧ Safety interlocks
⑨ Cord storage (at back)

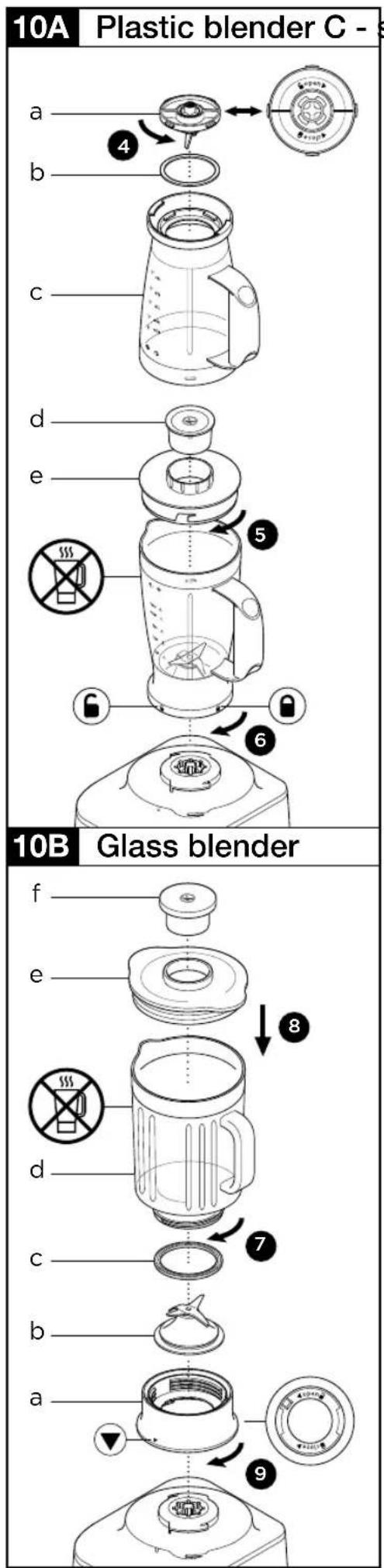

10A Plastic Blender (if supplied)

a Blade assembly
b Sealing ring
C Goblet
d Filler cap
e Lid

10B Glass Blender (if supplied)

a Blade unit
b Blade base
C Sealing ring
d Goblet
e Lid
f Filler cap

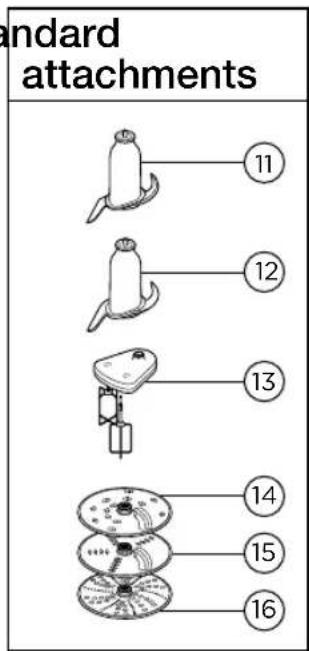

C Standard Attachments

⑪ Knife blade
⑫ Dough tool
⑬ Dual whisk

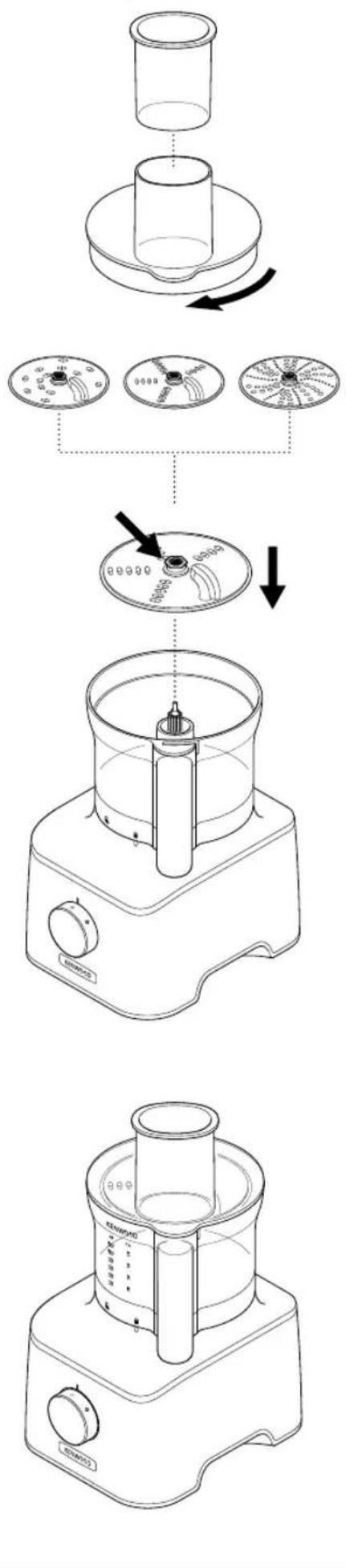

⑭ 4mm slicing/grating disc
⑮ 2mm slicing/grating disc
⑯ Extra fine grating disc

Attachments

Not all of the attachments listed below may be included with your food processor. Attachments are dependent upon the model variant. Visit www.kenwoodworld.com for information on how to buy an attachment not included in pack.

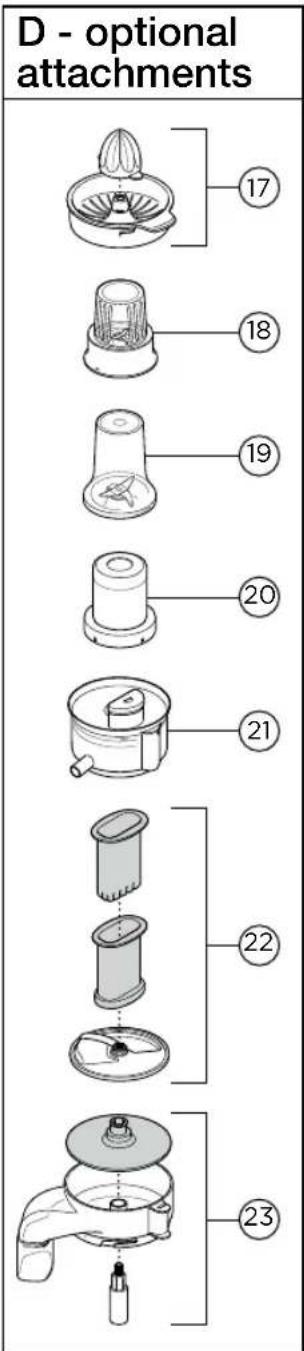

D Optional Attachments

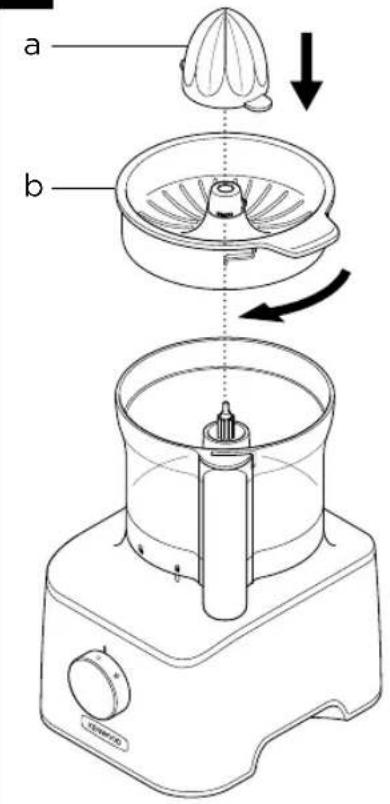

⑰ Citrus juicer (if supplied)
18 Glass mini chopper/mill (if supplied)
19 Plastic mini chopper/mill (if supplied)
⑳ Grinding mill (if supplied)
⑳ Juice extractor (if supplied)
②2 Express Dice (if supplied)
23 Express Serve (if supplied)

To Use Your Food Processor

Illustrations ① - ③

1 Fit the detachable drive shaft onto the power unit.
2 Then fit the bowl by aligning the ☐ on the bowl with the ☐ on the power unit, turn clockwise until it locks ☐.
3 Fit an attachment over the bowl drive shaft.
- Always fit the bowl and attachment onto the processor before adding ingredients.
4 Fit the lid - ensuring the top of the drive shaft/tool locates into the centre of the lid.
- Do not use the lid to operate the processor, always use the on/off speed control.
5 Plug in, switch on and select a speed. (Refer to the recommended usage chart).
- The processor will not operate if the bowl or lid are not fitted correctly into the interlock. Check that the feed tube and bowl handle are situated to the right front hand corner.
- Use the pulse (P) for short bursts. The pulse will operate for as long as the control is held in position.
6 Reverse the above procedure to remove the lid, attachments and bowl.
- Always switch off and unplug before removing the lid.

Important

- Your processor is not suitable for crushing or grinding coffee beans, or converting granulated sugar to caster sugar.

- When adding almond essence or flavouring to mixtures avoid contact with the plastic as this may result in permanent marking.

Using The Attachments

Refer to recommended usage chart for each attachment.

10A Plastic Blender (if supplied)

To Use Your Blender

Illustrations ④ - ⑥

1 Fit the sealing ring into the blade assembly - ensuring the seal is located correctly in the grooved area.
- Leaking will occur if the seal is damaged or incorrectly fitted.
2 Hold the underside of the blade assembly and insert the blades into the goblet - turn anti-clockwise until it is secure. Refer to the graphics on the underside of the blade assembly as follows:

6 - Unlocked position
- Locked position

3 Put your ingredients into the goblet.
4 Fit the lid onto the goblet and turn clockwise until it clicks. Fit the filler cap.
5 Place the blender onto the power unit, align the ☐ on the blender with the ☐ on the power unit and turn clockwise to lock

- The appliance will not operate if the blender is incorrectly fitted to the interlock.

10B Glass Blender (if supplied)

To Use Your Blender

Illustrations ⑦ - ⑨

1 Fit the sealing ring into the blade unit - ensuring the seal is located correctly in the grooved area.
2 Clip the blade unit into the base.

- Leaking will occur if the seal is damaged or incorrectly fitted.

3 Screw the goblet onto the blade assembly. Refer to the graphics on the underside of the blade unit as follows:

• Unlocked position
• Locked position

4 Put your ingredients into the goblet.

5 Fit the lid to the goblet and push down to secure. Fit the filler cap.
6 Place the blender onto the power unit, align the ▼ on the blender with the ▲ on the power unit and turn clockwise to lock.

- The appliance will not operate if the blender is incorrectly fitted to the interlock.

Hints and Tips

• When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.
• Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.
• The processing of spices is not recommended as they may damage the plastic parts.
• To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

11 Knife Blade

Follow the instructions under 'to use your food processor'.

Hints and Tips

• For coarser textures use the pulse control.
• Cut food such as meat, bread, vegetables into cubes approximately 2cm.
• Biscuits should be broken into pieces and added down the feed tube whilst the appliance is running.
  • Take care not to over-process.
• When making pastry use fat straight from the fridge cut into 2cm cubes.
• For best results when processing sticky fruit/ingredients such as dates, use 'Pulse' first to break down the ingredients and then continue processing on maximum speed.

12 Dough Tool

Use for yeasted dough mixes.

Follow the instructions under 'to use your food processor'.

Hints and Tips

• Do not process for longer than 60 seconds.
• Place the dry ingredients in the bowl and add the liquid down the feed tube whilst the appliance is running. Process until a smooth elastic ball of dough is formed.
• Re-knead by hand only. Re-kneading in the bowl is not recommended as it may cause the processor to become unstable.

13 Dual Whisk

Using The Whisk

1 Fit the drive shaft and bowl onto the power unit.
2 Push each beater securely into the drive head.
3 Fit the whisk by carefully turning until it drops over the drive shaft.
4 Add the ingredients.
5 Fit the lid - ensuring the end of the shaft locates into the centre of the lid.

Hints and Tips Important

Use for light mixes only such as egg whites and cream.

The whisk is not suitable for making all in one cake mixes as these mixes are too heavy and will damage it. Always use the knife blade.

• Best results are obtained when the eggs are at room temperature.
• Ensure the bowl and whisks are clean and free from grease before whisking.

14 - 16 Discs

To Use The Cutting Discs

1 Fit the drive shaft and bowl onto the power unit.
2 Holding by the centre grip, place the disc onto the drive shaft with the appropriate side uppermost.
3 Fit the lid.
4 Put the food in the feed tube.
5 Switch on and push down evenly with the pusher ① - never put your fingers in the feed tube.

Hints and Tips

• Use fresh ingredients
• Do not cut food too small. Fill the width of the feed tube fairly full. This prevents the food from slipping sideways during processing.
• When slicing or grating: food placed upright comes out shorter than food placed horizontally.
• There will always be a small amount of waste on the disc or in the bowl after processing.

17 Citrus Juicer (if supplied)

a Cone
b Sieve

To use the citrus juicer

1 Fit the drive shaft and bowl onto the power unit.
2 Fit the sieve into the bowl - ensuring the sieve handle is locked into position directly over the bowl handle.
3 Place the cone over the drive shaft turning until it drops all the way down.
4 Cut the fruit in half. Then switch on and press the fruit onto the cone.
- The citrus juicer will not operate if the sieve is not locked correctly.

Hints and Tips

• For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing.
• To help with juice extraction move the fruit from side to side when juicing.
• When juicing large quantities, empty the sieve regularly to prevent the build up of pulp and seeds.

18 Glass Mini Chopper/Mill (if supplied)

a Jar
b Sealing ring
C Blade unit
d Blade base

1 Put the ingredients into the jar.
2 Fit the sealing ring into the blade assembly.
3 Clip the blade unit into the base.
4 Turn the blade assembly upside down. Lower it into the jar, blades down.
5 Screw the blade assembly onto the jar until finger tight. Refer to the graphics on the underside of the blade assembly as follows:

6 - Unlocked position
- Locked position

6 Place the mill onto the power unit, align the ▼ on the mill with the ▲ on the power unit and turn clockwise to lock.

7 Select Maximum speed or use the pulse (P).

19 Plastic Mini Chopper/Mill (if supplied)

a Jar
b Sealing ring
C Blade assembly

1 Put the ingredients into the jar.
2 Fit the sealing ring into the blade assembly.
3 Turn the blade assembly upside down. Lower it into the jar, blades down.
4 Screw the blade assembly onto the jar until finger tight. Refer to the graphics on the underside of the blade assembly as follows:

6 - Unlocked position
- Locked position

5 Place the mill onto the power unit, align the ▼ on the mill with the ▲ on the power unit and turn clockwise to lock.

6 Select Maximum speed or use the pulse (P).

Hints and Tips

• Baby food/purée - allow cooked food to cool down to room temperature before processing in the mill.
• For best results the main bowl is recommended when chopping herbs.

20 Grinding Mill (if supplied)

a Mill lid
b Grinding mill blade assembly

1 Place your ingredients into the blade assembly.

2 Fit the lid and turn clockwise to lock.

3 Place the mill onto the power unit and turn clockwise to lock.

4 Select maximum speed or use the pulse (P).

Hints and Tips

• For optimum performance when processing spices do not process more than 50g at a time.
• Whole spices retain their flavour for a much longer time than ground spices so it is best to grind a small quantity fresh at a time to retain the flavour.
• To release the maximum flavour and essential oils whole spices are best roasted prior to milling.
• Do not process dried turmeric root in the mill as it is too hard and may damage the blades.
• Cut ginger and coconut into small pieces before processing.
• For best results the main bowl is recommended when chopping herbs.

21 Juice Extractor (if supplied)

a Pusher
b Juicer lid
C Pulp remover
d Filter drum
e Bowl
f Juicing spout

To use the juice extractor

1 Fit the juicer bowl to the power unit, turn clockwise until it locks - the spout should be situated to the left side when the bowl is fitted correctly.
2 Place the pulp remover into the filter drum - ensuring the tabs locate with the slots in the bottom of the drum.
3 Fit the filter drum
4 Fit the attachment lid - turn clockwise until it locks. Your juicer will not operate if the bowl or lid are not fitted correctly into the Interlock.
5 Place a suitable glass or jug under the juice outlet.
6 Cut the food to fit the feed tube.
7 Switch on and push down evenly with the pusher - never put your fingers in the feed tube. Process fully before adding more.

- After adding the last piece, let the juicer run for a further 30 seconds to extract all the juice from the filter drum.

important

- If the juicer starts to vibrate, switch off and empty the pulp from the drum. The juicer vibrates if the pulp becomes unevenly distributed.

- Some very hard foods may make your juicer slow down or stop. If this happens switch off and unblock the filter.

- Switch off and clear the pulp collector regularly during use.

Hints and Tips

- Before processing remove stones and pips (eg pepper, melon, plum) and tough skins (e.g. melon, pineapple). You do not need to peel or core apples and pears.

- Use firm, fresh fruit and vegetables.

22 Express Dice (if supplied)

a Dicing disc

b Dicing grid

C Dicing pusher

Important

- The dicing disc is designed only to be used with the dicing attachment.

- The dicing pusher should only be used with the dicing grid. Using it without the dicing grid fitted will result in damage to the bottom of the pusher.

To use the Express Dice

1 Fit the drive shaft and bowl onto the power unit.

2 Add the dicing disc and fit the lid.

3 Fit the dicing grid into the feed tube.

4 Switch on and use the dicing pusher to process food items through the dicing grid.

Hints and Tips

- To assist with processing place both hands on top of the pusher and press down firmly.

- For best results, use raw fresh fruit and vegetables.

- To prevent the food from jamming do not pack the food tightly in the feed tube - ideally the food should be cut no larger than:

50 × 30mm

• If the food is too hard to push through the grid cook for approximately 10-15 minutes, then allow to cool in a refrigerator before processing.
  • Always remove hard skins, stones, pips and seeds etc., from food before processing.

Note:

• Due to the various sizes and shapes of foods, the diced results will contain some misshapen pieces, this is normal.
• Foods such as cheese, ham, and chorizo will clog in the grid so are not recommended for use with this attachment.

Cleaning the grid

Use the end of the pusher to dislodge any food which may become trapped in the dicing grid.

22A The Express Dice can also be used to produce French fries, crudités and batons.

1 Fit the dicing grid without the dicing disc.
2 Then manually push the food through the grid without switching the appliance on.

23 Express Serve (if supplied)

a Express serve drive shaft
b Extension chute
C Base
d Slinger plate

1 Fit the drive shaft and bowl onto the power unit.
2 Fit the small drive shaft to the main shaft - the Express serve will not operate unless fitted.
3 Fit the required attachment/disc - do not apply excessive force. Refer to the Discs and Express Dice sections for further information, hints and tips.
4 Fit the lid.

Use in conjunction with the following:

14-15-16

22

Important - Dicer and Discs

- If the food is not exiting the food outlet, switch off and check that food is not clogging under the disc and the slinger plate is fitted. Clear any trapped food before continuing to process.

Care and Cleaning

• Always switch off and unplug before cleaning.
- Handle the blade and cutting discs with care - they are extremely sharp.

- Some foods may discolour the plastic. This is perfectly normal and will not harm the plastic or affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the discolouration.

Power Unit

- Wipe with a damp cloth, then dry. Ensure that the interlock area ⑧ is clear of food debris.

• Do not immerse the power unit in water.
• Store excess cord in the storage area at the back of the power unit ⑨.

Cleaning Instructions - Refer to the relevant illustration 24.

Service and Customer Care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the 'Troubleshooting Guide' section in the manual or visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
• Designed and engineered by Kenwood in the UK.
• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Recommended Usage Chart

Do not operate your appliance for longer than the times specified below without a rest period.

Do not exceed the maximum capacities stated in the chart below.

Processing continuously for longer periods can damage your appliance.

Processing information supplied is for guidance only and will vary depending on the exact recipe and ingredients being processed.

Do not process hot ingredients

Tool/ Attachment	Function
	All in one cake mixes 2 10 1.2kg total			weight
	Pastry - rubbing fat into flour Adding water to combine pastry ingredients	21 - 2	1010 - 20	300g flour weight
	Chopping fish and lean meat Pâtés and terrines	2 10 - 30	400g max	lean beef
	Chopping vegetables P 5 - 10 100 - 250g
	Chopping nuts 2 30 - 60			100g - 200g
	Herbs 2 20 - 30 30-50g
	Mayonnaise	2 60 - 80	4 egg yolks
	Pureeing soft fruit, cooked fruit and vegetables	2 10 - 30	500g
	Egg whites 2 60 - 120 2 - 6 (200g)
	Whipping cream (Processing times may vary, depending on fat content of cream)	2 60 - 120 250-500ml
	Yeasted mixes 2 60 340g flour			weight 550g total weight
	Grating and slicing firm food items - cheese, carrots, potatoes and foods of a similar texture	2	-	Do not fill above the maximum 1.2L marked on the bowl
	Slicing softer food items - cucumbers and tomatoes	1	-
	Grates Parmesan cheese 2 -
	Use to squeeze the juice from citrus fruits e.g.oranges, lemons, limes and grapefruits.	1	-	-
	Cold liquids and drinks (Add ice/frozen ingredients to goblet last)	2 30 - 60		1.2 litre
	Milkshake/Cold milk based mixtures 2 15 - 30 1 litre
	Ice crushing P 30 - 40 6 ice cubes			(125g)
	Batter mix (Add liquid ingredients first)	1↓2	10↓50	1 litre
	Nuts	2 10 - 30	50g
	Coffee beans	2 30	50g
	Uncooked meat (beef steak) cut into 2cm cubes	P	5	70g
	Processing spices Black peppercorns, cardamom seeds, cumin seeds, coriander seeds and fennel seeds	2	30 - 60	50g
	Grinding coffee beans	2		50g
	Chopping nuts	P	-	50g
	Processing garlic cloves, fresh chillies and root ginger	P	-	30g
	Fresh coconut	2/P	30 - 60	40g
	Fruit and vegetables	2 60 - 120	600g
	Use to cut a variety of foods such as carrot, courgette, cucumber, beetroot and apples into cubes.	2	-	Do not fill above the maximum capacity marked on the bowl
	Use to cut a variety of foods into French Fries and crudités such as potato, carrot, courgette and cucumber.	Manual

Troubleshooting Guide
Problem Cause Solution
The processor will not operate.	No Power.Bowl not fitted to power unit correctly.Bowl lid not locked on correctly.	Check processor is plugged in.Check bowl is located correctly and the handle is situated towards the right front hand corner.Check that the lid interlock is located correctly into the handle area.The processor will not work if the bowl and lid are fitted Incorrectly.If none of the above check the fuse/circuit breaker in your home.
	Detachable drive shaft 5not fitted to power unit.	Fit the detachable drive shaft 5onto the power unit before fitting the bowl. The bowl tools and attachments will not operate unless the drive shaft is fitted.
Blender or mill will not operate.	Blender or mill not locked on correctly.Blender or mill not assembled correctly.	The blender or mill will not operate if fitted incorrectly to the interlock.Check blade assembly is fully tightened into the goblet/jar.
Processor stops during processing	Processor overloaded/maximum capacities exceeded.Lid unlocked.	Check maximum capacities stated in the recommended usage chart.Check lid is locked correctly.
Blender or multi mill leaking from blade assembly base.	Seal missingSeal incorrectly fittedSeal damaged.	Check seal is fitted correctly and not damaged. To obtain a replacement seal see 'Service and customer care'.
Unit unstable/heavy vibrations and movement.	Sticky fruit/ingredients such as dates being processed.Speed selected too low.	For best results use 'Pulse' first to break down the ingredients and then continue processing on maximum speed.
Poor performance of tools/attachments	Refer to hints in relevant 'Using the attachment' section. Check attachments are assembled correctly.

Nederlands

Hachoir/moulin compact

Technical line drawings of mechanical components, including circular parts and a cylindrical component (no text or symbols)

Three circular diagrams showing mechanical components with no visible text or symbols

22

Technical line drawings of mechanical components, including circular parts and a cylindrical component (no text or symbols)

Two technical diagrams showing circular components and a cylindrical device, labeled 14-15-16 and 22 respectively (no text or symbols on the devices themselves)

Technical line drawings of mechanical components, including circular parts and a cylindrical component (no text or symbols)

Nasadka Express Dice/Express Serve i tarcze

Technical line drawings of mechanical components, including circular parts and a cylindrical component (no text or symbols)

Technical line drawings of circular components and a cylindrical device, no text or symbols present

Line drawing of a bowl and a cylindrical container (no text or symbols)
