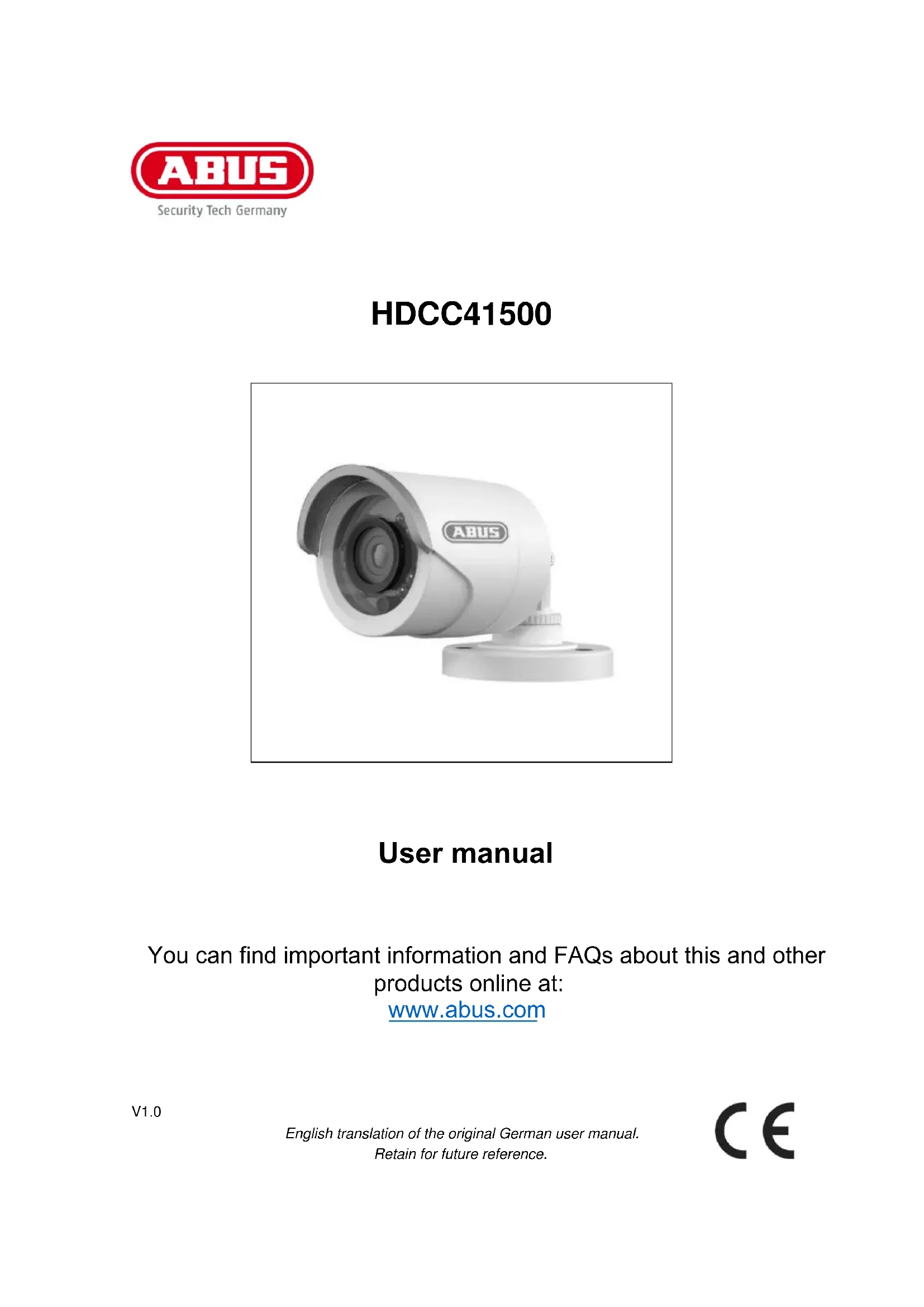

USER MANUAL HDCC41500 ABUS

This user guide contains important information on starting operation and using the device. Make sure that this user guide is handed over when the product is given to other persons. Keep this user guide to consult later. A list of contents with the corresponding page number can be found in the index on page 18.

You can find important information and FAQs about this and other products online at: www.abus.com

V1.0 English translation of the original German user manual. Retain for future reference.15 English Introduction Dear Customer, Thank you for purchasing this product. This device complies with the requirements of the applicable EU directives. The declaration of conformity can be obtained from: ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing GERMANY To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual. Please read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information. All company names and product descriptions are trademarks of the corresponding owner. All rights reserved. If you have any questions, please contact your specialist installation contractor or specialist dealer.

Data storage is subject to national data privacy guidelines.

Disclaimer This user manual has been produced with the greatest of care. Should you discover any omissions or inaccuracies, please contact us in writing at the address provided above. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No guarantee is made for the contents of this document.16 English Explanation of symbols

The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).

The triangular warning symbol indicates important notes in this user manual which must be observed.

This symbol indicates special tips and notes on the operation of the device.

All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.

We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully: There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee/warranty. The product may be damaged if it is dropped, even from a low height. Install the device so that the image sensor is not exposed to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user manual. The device is designed for indoor and outdoor use (IP66). Avoid the following adverse conditions during operation: Extreme heat or cold Direct sunlight Dust or flammable gases, vapours or solvents Strong vibrations Strong magnetic fields (e.g. next to machines or loudspeakers) The camera must not be installed on unstable surfaces. General safety information: Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with. The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons. Do not insert any objects into the device through the openings. Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products. Please pay attention to the safety information and user manuals for the other connected devices. Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage. Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).17 English Safety information

1. Power supply: Power supply unit 100–240 V AC, 50/60 Hz / 12 V DC, 1 A (included in the scope

of delivery). Only operate this device through a power source which supplies the mains power specified on the type plate. If you are unsure of the available power supply, contact your utility company. Disconnect the device from the power supply before carrying out maintenance or installation work.

Avoid overloading electrical sockets, extension cables and adapters, as this can result in fire or electric shock.

The use of surveillance equipment may be forbidden or regulated by law in some countries. Before using this equipment, ensure that all of your surveillance activities are completely legal. Warnings Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

Do not modify or manipulate the power cable or plug. Do not bend or twist the power cable. Do not pull the cable when disconnecting the device from the power – always take hold of the plug. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

2. Follow these instructions. Non-compliance with these instructions could lead to electric shock:

Never open the housing or power supply unit. Do not insert any metallic or flammable objects into the device. Use surge protection to prevent damage caused by overvoltage (e.g. in electrical storms).

3. Disconnect defective devices from the power immediately and contact your specialist dealer.

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installations puts both you and others at risk. Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Unpacking the device Handle the device with extreme care when unpacking it.

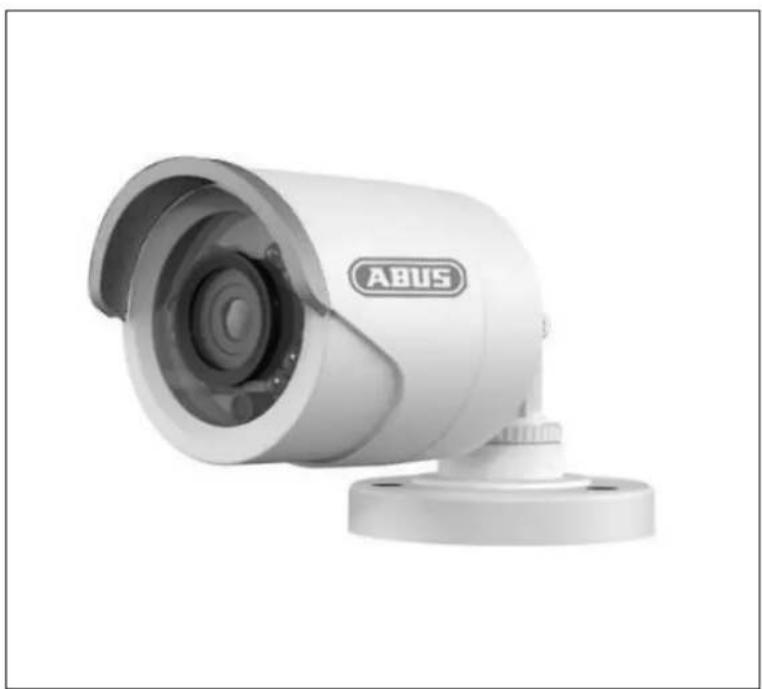

This camera is designed for both daytime and night-time use. Since it has protection class IP66, it can used both inside and outside. The day & night outdoor camera is equipped with a high-quality image sensor. It provides video images in HD resolution. The output signal is provided in HD-TVI format. This allows the use of a conventional coaxial cable for signal transmission. It is used for video surveillance in conjunction with recording devices or surveillance monitors compatible with HD-TVI.

2. Scope of delivery

Analogue HD 720p outdoor camera including mounting material Power supply unit including EU, Australian and UK adapters 12 V DC/1 A

3. Features and functions

Detailed high resolution (thanks to 1280 x 720 pixels at 25 frames per second) Sturdy weatherproof camera housing (IP66) With 24 IR LEDs for night vision, up to approx. 10 m range Noise reduction (DNR) for clear images even at low light levels Automatic day/night switching Can be mounted on ceilings and walls Including 1 x 30 m combined video cable (video signal + power supply) Plug-and-play installation and connection using a BNC connector, including for existing analogue cables20 English

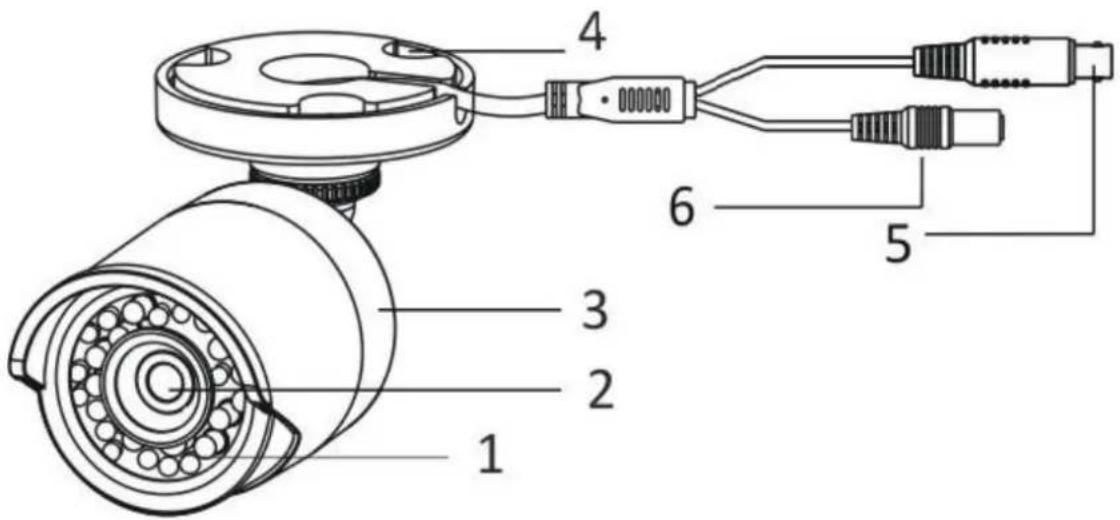

Camera housing with sun shade

Power supply connection (5.5 x 2.1 mm, barrel connector)21 English

5. Mounting/installation

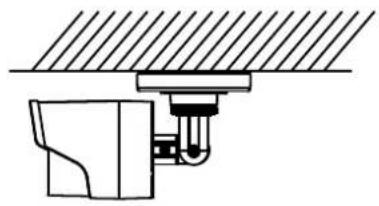

5.1. Mounting the camera

IMPORTANT! The camera must be disconnected from the power supply during installation.

Use screw anchors and screws that are appropriate to the surface to fix the camera in place. Drill appropriately sized holes for the screw anchors used. An opening is provided on the base plate of the camera mount for cabling at the side.

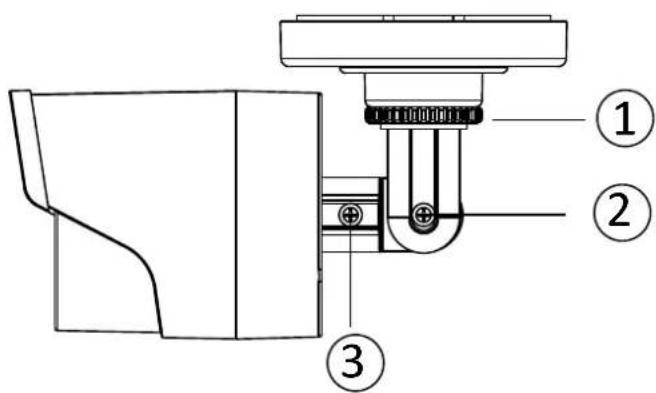

5.2. Orientation of the camera Carefully loosen the three fixing screws (see images (1), (2), (3)). Then orient the camera as required.

Do not forget to tighten up the fixing screws again.

The internal cable routing will also be rotated when the fixing screw (3) is rotated. The camera should therefore not be rotated repeatedly in the same direction otherwise the internal cables may be damaged.

English 5.3. Power supply

IMPORTANT! Before starting installation, ensure that the mains voltage and the rated voltage of the camera are identical.

(1) Video signal (BNC) (2) Power supply 12 V DC (5.5 x 2.1 mm)

The cameras have a 12 V DC power supply. Ensure correct polarity when connecting. A power supply unit (round plug, 5.5 mm x 2.1 mm) is provided for the connection. 5.4. Connecting the video cable In order to transmit the HD-TVI video signal from the camera to an HD-TVI recorder, an RG59 type coaxial cable with BNC connector (male) must be connected to the connection labelled 'TVI'. The cable length to the next device must not exceed 500 m (RG6) or 300 m (RG59).

To ensure optimum quality of the HD-TVI signal transmission, it is important that the cable is neither kinked nor crushed at any point, and that its radius is adequate (min. bending radius 6 cm). Damage to the cable or porosity as a result of ageing can have a negative impact on the quality of the signal or image (e.g. shadowing around the edges).

6. Maintenance and cleaning

6.1. Maintenance Regularly check the technical safety of the product, e.g. check the housing for damage. If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use. It is likely that safe operation is no longer possible in the event that: the device shows signs of visible damage the device no longer works correctly

Please note: You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product to check. Never open it.

6.2. Cleaning Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Do not allow any liquids to enter the device. Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discolouration).

Important: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserve natural resources and ensure that all the provisions for protecting health and the environment are observed when recycling the product.24 English

Connections Video signal (BNC), power supply (DC) Resolution 720p Operating temperature -20°C–50°C Image sensor 1/3 inch progressive scan CMOS Pixels (effective) 1280 (H) x 720 (V) Frame rate 25 fps (PAL)/30 fps (NTSC) Electronic shutter regulation 1/25 s to 1/50,000 s Backlight compensation Yes Weight 400 g Horizontal angle of view 76.88° IR LEDs

Minimum illumination (B/W)

0.01 Lux (image integration on)

Minimum illumination (IR) 0 Lux Lens

Protection class IP 66 Power supply 12 V DC ± 10% Power consumption Max. 300 mA (max. 3.5 W) Day/night switching Electromechanical IR cut filter Video system HD-TVI

The IR range is strongly dependent on the environmental conditions. If the area in the camera's field of view reflects poorly or if there are no objects within the max. illumination range, the brightness of the video image at night may be too low. This will result in poor usability of the video image.

In addition, when installing the camera it must be ensured that no objects are located in close proximity to the camera's field of view (e.g. roof gutter or wall). These objects can reflect back the IR light, resulting in circular fading on the video image in the opposite direction to the object.HDCC41500

Imprint These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher. The operating instructions reflect the current technical specifications at the time of print. We reserve the right to change the technical or physical specifications.

© Copyright 09/2015 by ABUS Security-Center
