9565CVL - Garden shredder MAKITA - Free user manual and instructions

Brand	Makita
Model	9565CVL
Category	Grinder / Sander
Disc type	Abrasive disc (125 mm) or depressed center wheel
Arbor thread	M14
No load speed	2000 - 6800 rpm (adjustable in 5 positions)
Overall length	311 mm
Net weight	1.8 kg
Power supply	Single phase, mains voltage (double insulated, no earth connection)
Electronic functions	Soft start, constant speed control, overload protection
Usage	Sanding (abrasive disc) or grinding (depressed center wheel)
Maintenance	Clean the cooling vents regularly; have repairs done at a Makita service center
Safety	Mandatory use of protective equipment (eyes, hearing, mask); use the protective guard for grinding
Included accessories	Side handle, lock nut wrench

Frequently Asked Questions - 9565CVL MAKITA

How to install the abrasive disc on the Makita 9565CVL?

Make sure the tool is unplugged. Screw the pad onto the arbor while pressing the shaft lock. Attach the disc to the pad ensuring the edges match perfectly.

How to adjust the rotation speed?

Turn the speed adjustment dial (from 1 to 5). Number 5 corresponds to the highest speed (6800 rpm). Use a speed suitable for the work.

Can I use the tool for grinding?

Yes, but you must remove the upper cover and attach the protective guard. Use a depressed center wheel and tighten the nut with the wrench.

What to do in case of overload?

The tool stops automatically thanks to the overload protector. Once the load returns to normal, the tool restarts automatically. Avoid excessive pressure.

How to maintain the tool?

Before any intervention, unplug the tool. Clean the cooling vents regularly with a non-metallic object. Have repairs done at an authorized Makita service center.

What types of discs can I use?

Use 125 mm abrasive discs for sanding or depressed center wheels for grinding. The maximum disc speed must be higher than 6800 rpm.

How to change the wheel?

Unplug the tool. Press the lock button. Use the wrench to loosen the nut, remove the used wheel, install the new one, and tighten the nut.

Is it necessary to wear protective gear?

Yes, always wear safety glasses and a dust mask. Also use ear protectors and gloves if necessary.

How to use the soft start function?

The soft start is automatic. It eliminates the shock at startup. No special operation is required.

What to do if the disc does not spin?

Check that the tool is plugged in and the switch is in the on position. Make sure the lock lever is not engaged. If the problem persists, contact after-sales service.

USER MANUAL 9565CVL MAKITA

The following show the symbols used for the tool. Be sure that you understand their meaning before use.

Symboles

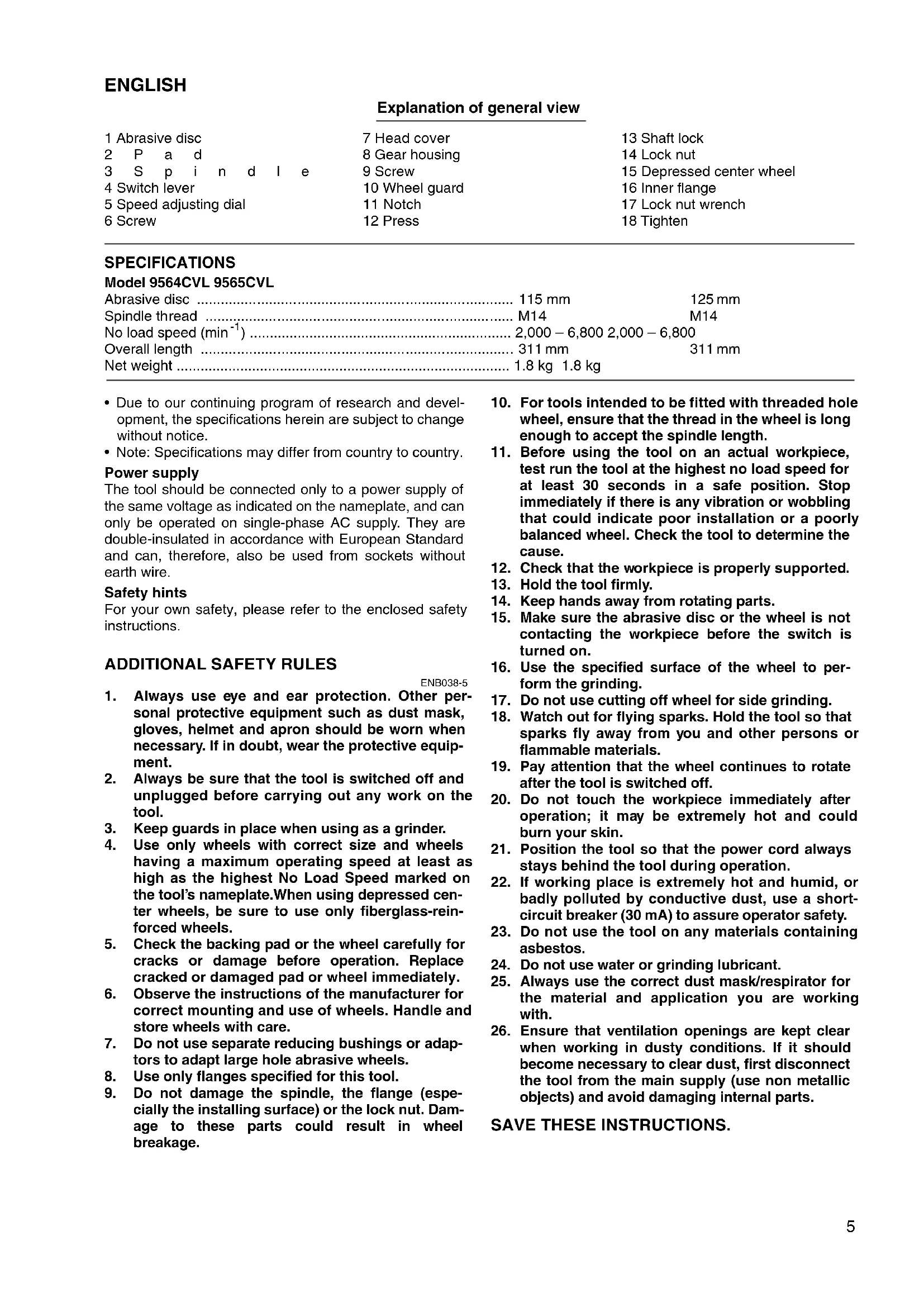

Explanation of general view

1 Abrasive disc	7 Head cover	13 Shaft lock
2 P a d	8 Gear housing	14 Lock nut
3 S p i n d l e	9 Screw	15 Depressed center wheel
4 Switch lever	10 Wheel guard	16 Inner flange
5 Speed adjusting dial	11 Notch	17 Lock nut wrench
6 Screw	12 Press	18 Tighten

SPECIFICATIONS

Model 9564CVL 9565CVL

Abrasive disc	115 mm	125 mm
Spindle thread	M14	M14
No load speed (min-1)	2,000 - 6,800	2,000 - 6,800
Overall length	311 mm	311 mm
Net weight	1.8 kg	1.8 kg

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
  Note: Specifications may differ from country to country.

Power supply

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire.

Safety hints

For your own safety, please refer to the enclosed safety instructions.

ADDITIONAL SAFETY RULES

ENB038-5

1. Always use eye and ear protection. Other personal protective equipment such as dust mask, gloves, helmet and apron should be worn when necessary. If in doubt, wear the protective equipment.
2. Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.
3. Keep guards in place when using as a grinder.
4. Use only wheels with correct size and wheels having a maximum operating speed at least as high as the highest No Load Speed marked on the tool's nameplate.When using depressed center wheels, be sure to use only fiberglass-reinforced wheels.
5. Check the backing pad or the wheel carefully for cracks or damage before operation. Replace cracked or damaged pad or wheel immediately.
6. Observe the instructions of the manufacturer for correct mounting and use of wheels. Handle and store wheels with care.
7. Do not use separate reducing bushings or adaptors to adapt large hole abrasive wheels.
8. Use only flanges specified for this tool.

9. Do not damage the spindle, the flange (especially the installing surface) or the lock nut. Damage to these parts could result in wheel breakage.

10. For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

11. Before using the tool on an actual workpiece, test run the tool at the highest no load speed for at least 30 seconds in a safe position. Stop immediately if there is any vibration or wobbling that could indicate poor installation or a poorly balanced wheel. Check the tool to determine the cause.
12. Check that the workpiece is properly supported.
13. Hold the tool firmly.
14. Keep hands away from rotating parts.
15. Make sure the abrasive disc or the wheel is not contacting the workpiece before the switch is turned on.
16. Use the specified surface of the wheel to perform the grinding.
17. Do not use cutting off wheel for side grinding.
18. Watch out for flying sparks. Hold the tool so that sparks fly away from you and other persons or flammable materials.
19. Pay attention that the wheel continues to rotate after the tool is switched off.
20. Do not touch the workpiece immediately after operation; it may be extremely hot and could burn your skin.
21. Position the tool so that the power cord always stays behind the tool during operation.
22. If working place is extremely hot and humid, or badly polluted by conductive dust, use a short-circuit breaker (30 mA) to assure operator safety.
23. Do not use the tool on any materials containing asbestos.
24. Do not use water or grinding lubricant.
25. Always use the correct dust mask/respirator for the material and application you are working with.
26. Ensure that ventilation openings are kept clear when working in dusty conditions. If it should become necessary to clear dust, first disconnect the tool from the main supply (use non metallic objects) and avoid damaging internal parts.

SAVE THESE INSTRUCTIONS.

OPERATING INSTRUCTIONS

Installing side grip (auxiliary handle) (Fig. 1 & 2)

Important:

Always be sure that the tool is switched off and unplugged before installing or removing the side grip.

Remove one of the screws which secure gear housing and head cover.

Screw the side grip on the tool securely. The side grip can be installed on either side of the tool. Always be sure that the side grip is installed securely.

Installing and removing abrasive disc (Fig. 3 & 4)

CAUTION:

Always be sure that the tool is switched off and unplugged before removing or installing accessories.

Installing abrasive disc

Remove all dirt or foreign matter from the pad.

Screw the pad onto the spindle pressing the shaft lock. Attach the disc to the pad carefully while so that the edges of disc and pad overlap each other without protruding.

Removing abrasive disc

Remove the paper from the pad by pulling up from its edge.

Switch action (Fig. 5)

CAUTION:

Before plugging in the tool, always check to see that the switch actuates properly and returns to the "OFF" position when the side of the switch lever is depressed.

To start the tool, slide the switch lever to "I" position.

For continuous operation, depress the front of the switch lever and then slide to "I" position as above. The switch is locked on the position for continuous operation. To stop the tool from the locked position, slide the switch lever to "O" position by depressing the rear of the switch lever.

Speed adjusting dial (Fig. 6)

The rotating speed can be changed by turning the speed adjusting dial to a given number setting from 1 to 5.

Higher speed is obtained when the dial is turned in the direction of number 5. And lower speed is obtained when it is turned in the direction of number 1. Refer to the table below for the relationship between the number settings on the dial and the approximate rotating speed.

Number min	-1 (R.P.M.)
1	2
2	3
3	4
4	6
5 6,800

CAUTION:

• If the tool is operated continuously at low speeds for a long time, the motor will get overloaded and heated up.
• The speed adjusting dial can be turned only as far as 5 and back to 1. Do not force it past 5 or 1, or the speed adjusting function may no longer work.

The tools equipped with electronic function are easy to operate because of the following features.

• Constant speed control Electronic speed control for obtaining constant speed. Possible to get fine finish, because the rotating speed is kept constant even under load condition.
• Soft start feature Safety and soft start because of suppressed starting shock.
  Overload protector When the tool would be employed over the admissible load, it will stop automatically to protect the motor and wheel. When the load will come to the admissible level again, the tool can be started automatically.

Sanding operation (Fig. 7)

CAUTION:

Always wear safety glasses or a face shield during operation.

In general, keep the abrasive disc at an angle of about 15^ to the workpiece surface.

Apply slight pressure only. Excessive pressure will result in poor performance and premature wear to the abrasive disc.

CAUTION:

Never run the tool without the abrasive disc. You may seriously damage the pad.

IF USED AS A GRINDER

Removing head cover (Fig. 8 & 9)

CAUTION:

Always be sure that the tool is switched off and unplugged before removing or installing the accessories.

Installing or changing accessories with the tool plugged in could cause serious injury.

Remove the head cover by loosening the screw.

Pull off the head cover while pulling out its corners.

Installing wheel guard (Fig. 10)

Important:

Always be sure that the tool is switched off and unplugged before installing or removing the wheel guard.

When installing a depressed center wheel or an abrasive cut-off wheel, always use a wheel guard. Mount the wheel guard with the tab on the wheel guard band aligned with the notch on the bearing box. Then rotate the wheel guard 180 degrees counterclockwise. Be sure to tighten the screw securely.

Installing side grip (auxiliary handle) (Fig. 11)

Important:

Always be sure that the tool is switched off and unplugged before installing or removing the side grip.

Always install the side grip on the tool securely before operation. The side grip can be installed on either side of the tool, whichever is convenient and keeps the guard properly positioned. Always hold the tool's switch handle and the side grip firmly with both hands during operation.

Shaft lock (Fig. 12)

Press the shaft lock to prevent spindle rotation when installing or removing accessories.

CAUTION:

Never actuate the shaft lock when the spindle is moving. The tool may be damaged.

Installing or removing depressed center wheel (Fig. 13 & 14)

Important:

Always be sure that the tool is switched off and unplugged before installing or removing the wheel.

Mount the inner flange onto the spindle. Fit the wheel on over the inner flange and screw the lock nut onto the spindle.

To tighten the lock nut, press the shaft lock firmly so that the spindle cannot revolve, then use the lock nut wrench and securely tighten clockwise. To remove the wheel, follow the installation procedure in reverse.

Operation (Fig. 15)

CAUTION:

After operation, always switch off the tool and wait until the wheel has come to a complete stop before putting the tool down.

Hold the tool firmly with both hands. Turn the tool on and then apply the wheel or disc to the workpiece. In general, keep the edge of the wheel or disc at an angle of about 15^ - 30^ to the workpiece surface. During the break-in period with a new wheel, do not work the tool in the B direction or it will cut into the workpiece. Once the edge of the wheel has been rounded off by use, the wheel may be worked in both A and B directions.

WARNING:

• It should never be necessary to force the tool. The weight of the tool applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage.

• Continued use of a worn-out wheel may result in wheel explosion and serious personal injury.

MAINTENANCE

CAUTION:

Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Repair and maintenance

The tool and its opening vents for cooling air have to be always kept clean. When foreign matters (dust etc.) enter such parts, they have to be removed. Clean regularly depending on how much dust has been made and entered tool.

When head cover is installed on the tool, remove it with referring to "Removing head cover".

To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

Descriptif

1 Disque abrasif

EC-DECLARATION OF CONFORMITY

The undersigned, Yasuhiko Kanzaki, authorized by

Makita Corporation, 3-11-8 Sumiyoshi-Cho, Anjo, Aichi 446-8502 Japan declares that this product

(Serial No.: series production)

manufactured by Makita Corporation in Japan is in compliance with the following standards or standardized documents,

HD400, EN50144, EN55014, EN61000

in accordance with Council Directives, 73/23/EEC, 89/336/EEC and 98/37/EC.

ITALIANO

HD400, EN50144, EN55014, EN61000.

NEDERLANDS

EG-VERKLARING VAN CONFORMITEIT

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

PORTUGUES

DECLARACAO DE CONFORMIDADE DA CE

de accordo com as directivas 73/23/CEE, 89/336/CEE e 98/37/CE do Conselho.

DANSK

EU-DEKLARATION OM KONFORMITET

Undertegnede, Yasuhiko Kanzaki, med fuldmagt fra Makita Corporation, 3-11-8 Sumiyoshi-Cho, Anjo, Aichi 446-8502 Japan, erklærhermed, at dette produit (Lobenummer: serieproduktion)

(AuEwAp: npaywyn oipac)

kataokvuao evo ano tv Etaipexia Makita otnv Ianwvia, piokei o eouphiwa u ta akoloutheta npotuna n tunonoi eva yypaa,

HD400, EN50144, EN55014, EN61000 v a TIC OOnyicTou SuBouloiou, 73/23/EEC,89/336/EEC kal 98/37/KE.

Yasuhiro KanzakiCE 2000

Director Direktor

Direktor J

Direktor u v n

h t a j a

MAKITA INTERNATIONAL EUROPE LTD.

Michigan Drive, Tongwell, Milton Keynes,

Bucks MK15 8JD, ENGLAND

ENGLISH

Noise and Vibration of Model 9564CVL/9565CVL

The typical A-weighted noise levels are

sound pressure level: 86 dB (A)

sound power level: 99 dB (A)

Wear ear protection.

The typical weighted root mean square acceleration value is 5m / s^2

FRANÇAISE
