USER MANUAL JDIF906E5 JUNO

Technical diagram showing mechanical assembly with rotating components and a 10a label (no readable text or symbols)

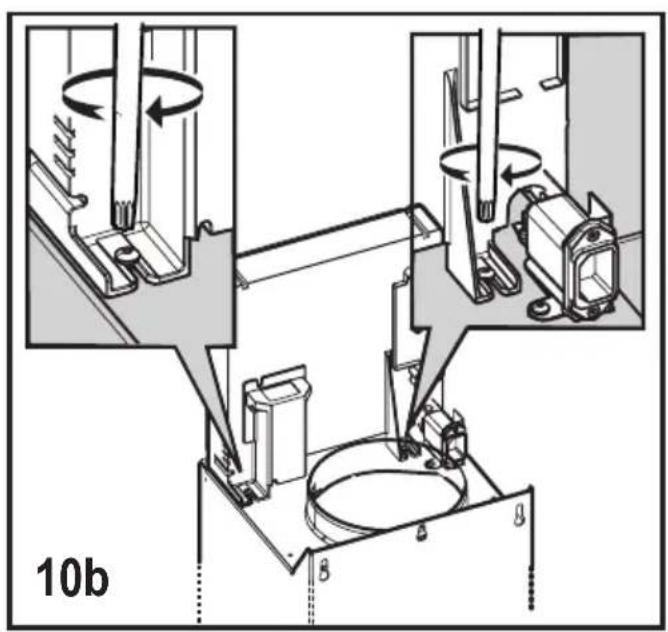

10b

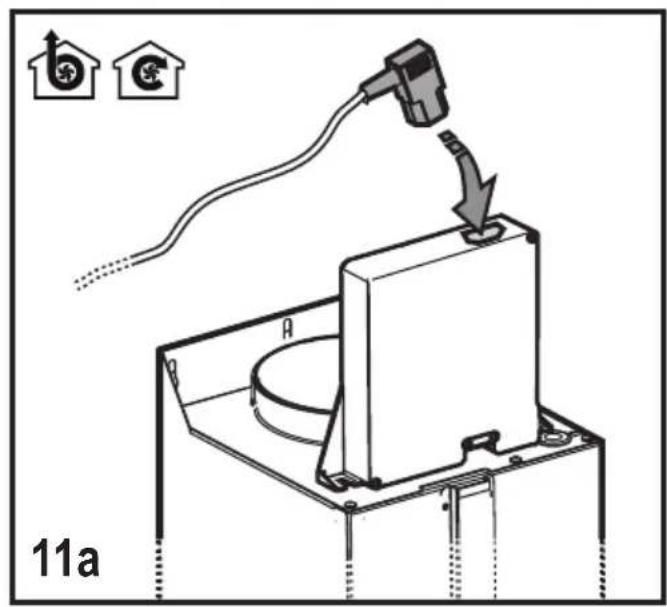

11a

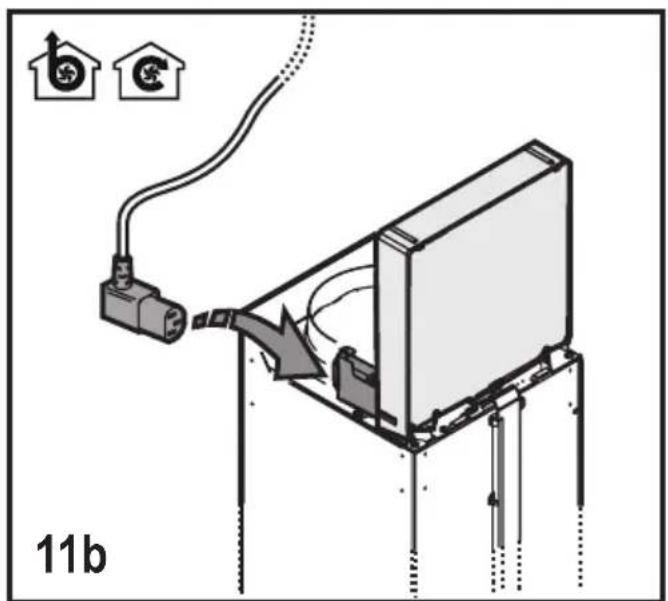

11b

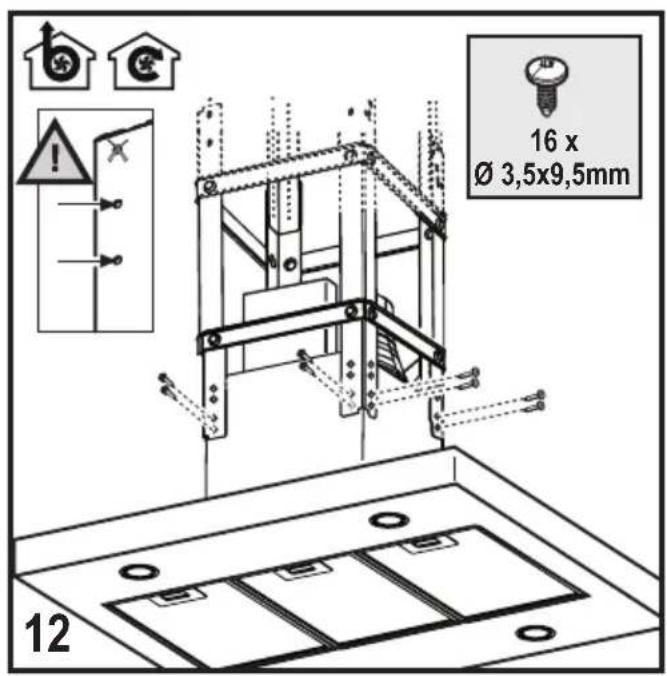

16 x Ø 3,5x9,5mm 12

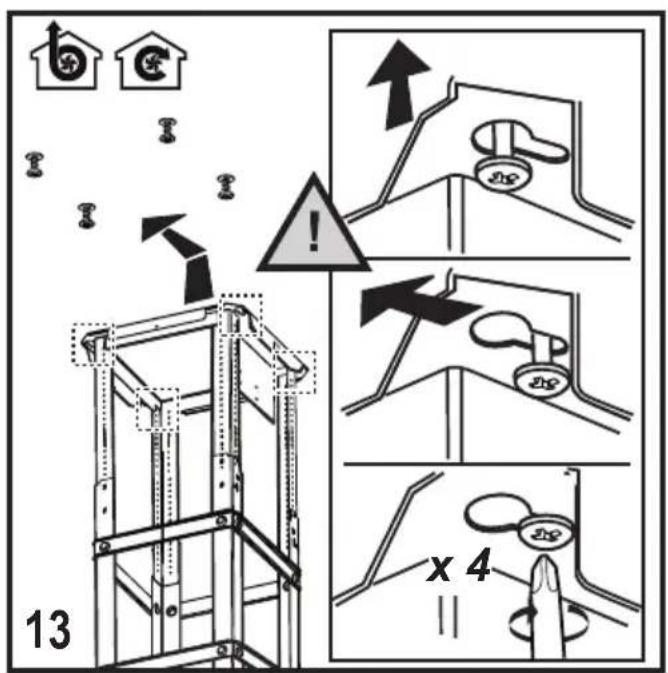

13 x 4

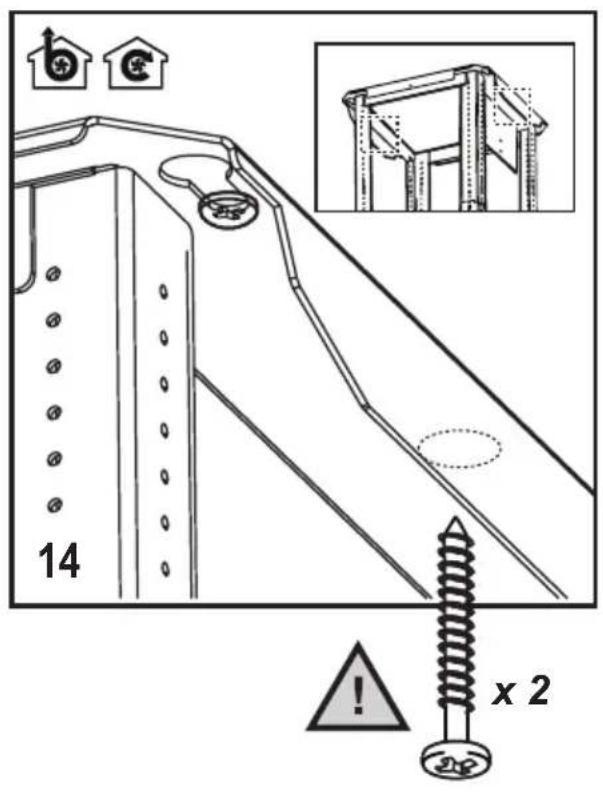

14 x 2

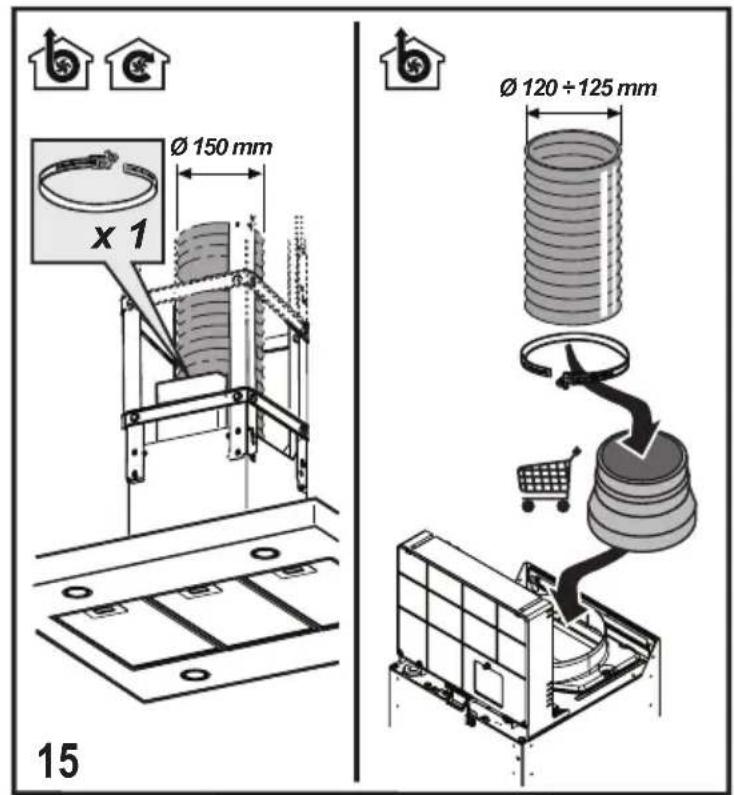

Ø 150 mm x 1 Ø 120 ÷ 125 mm 15

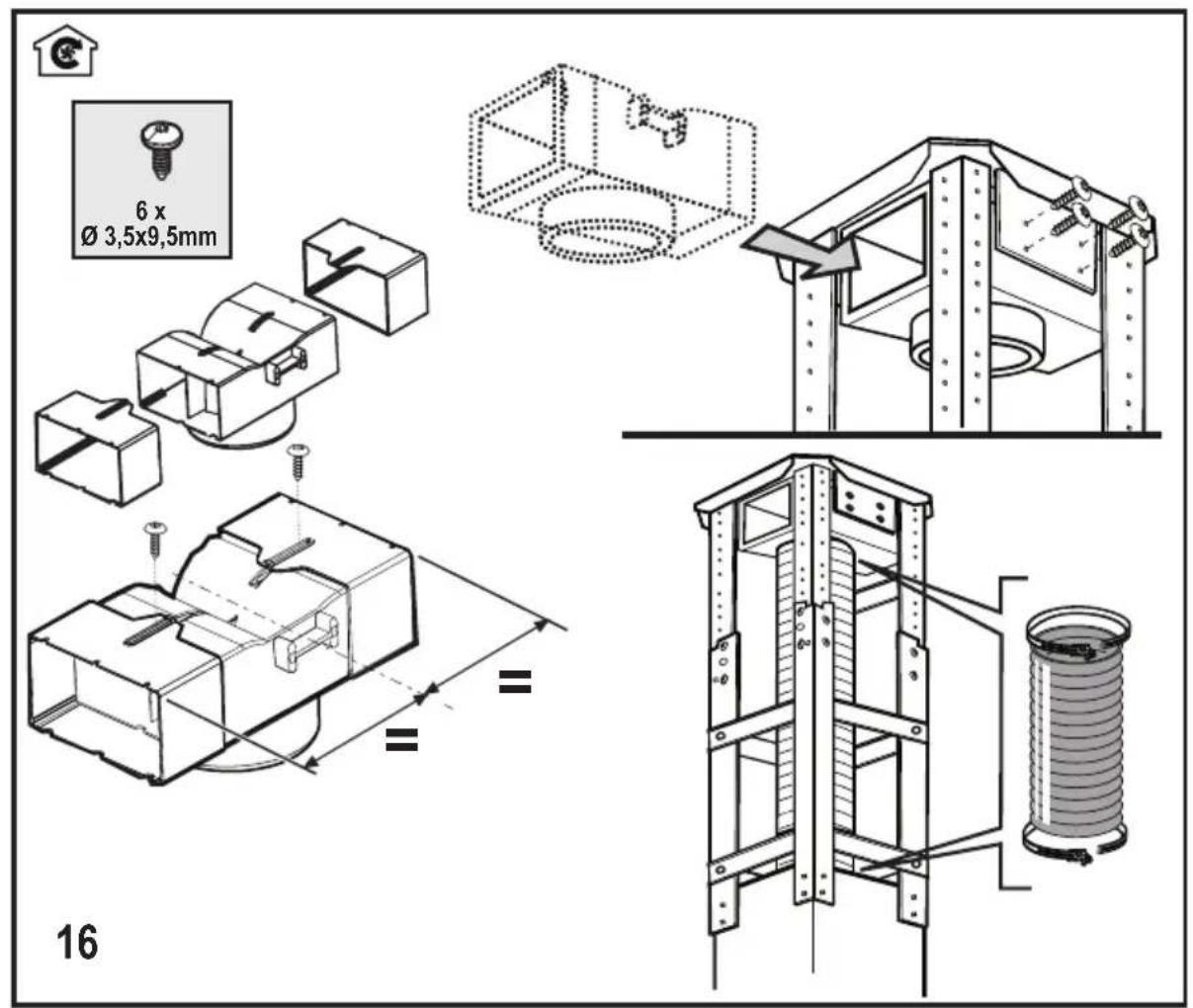

6 x Ø 3,5x9,5mm 16

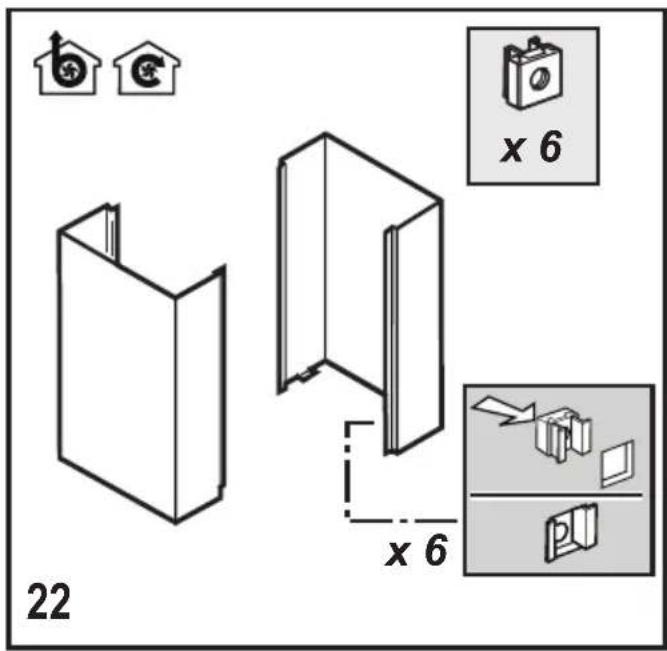

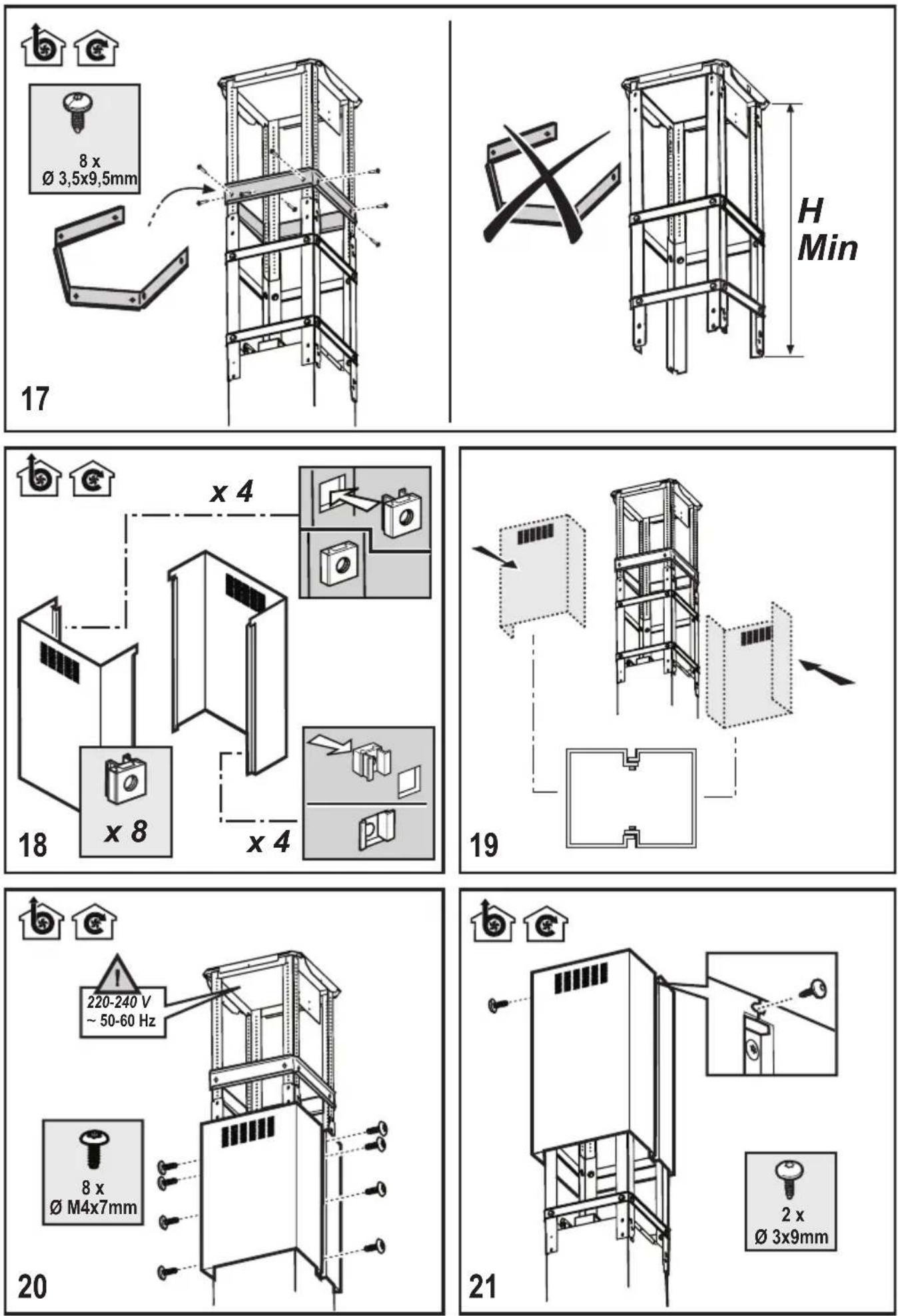

22 x 6 x 6

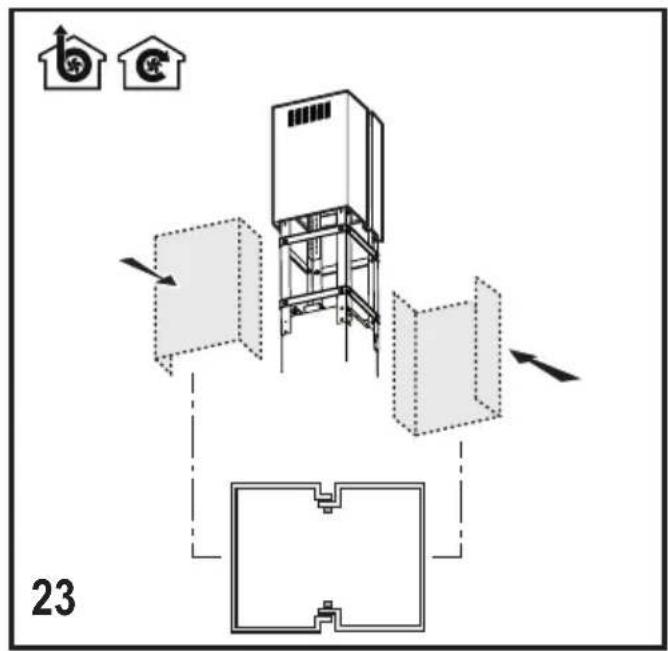

23

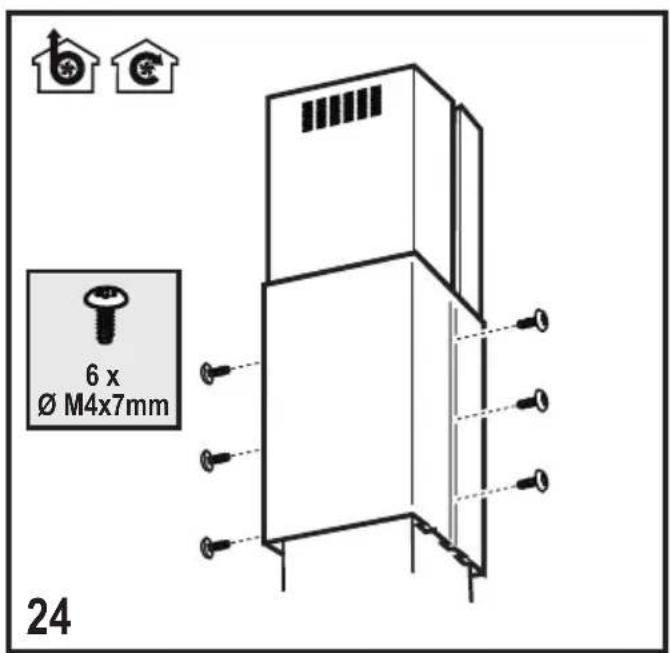

6 x Ø M4x7mm 24

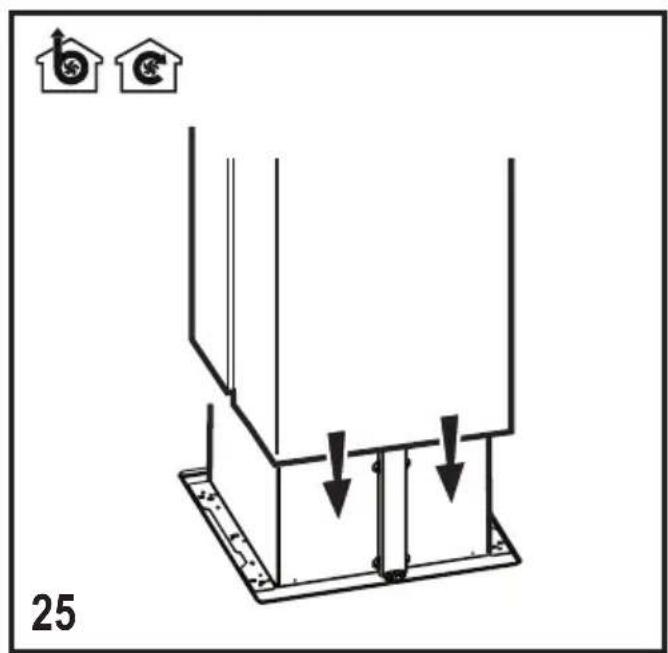

25

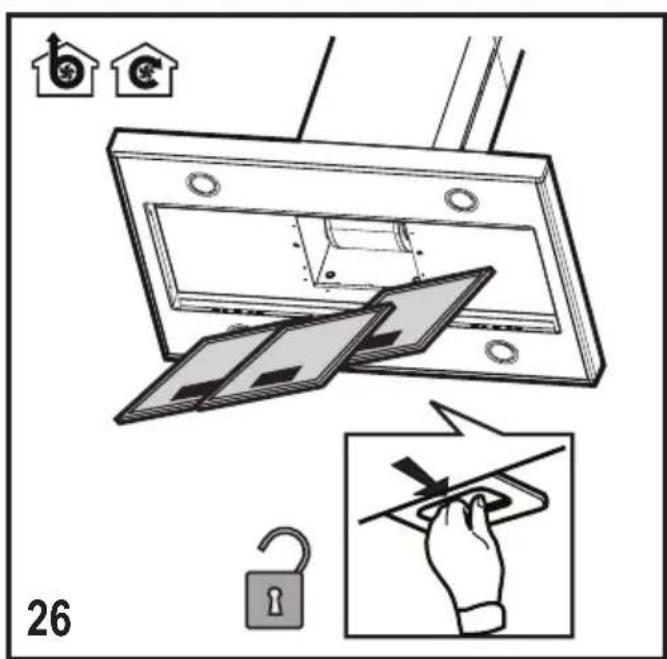

26

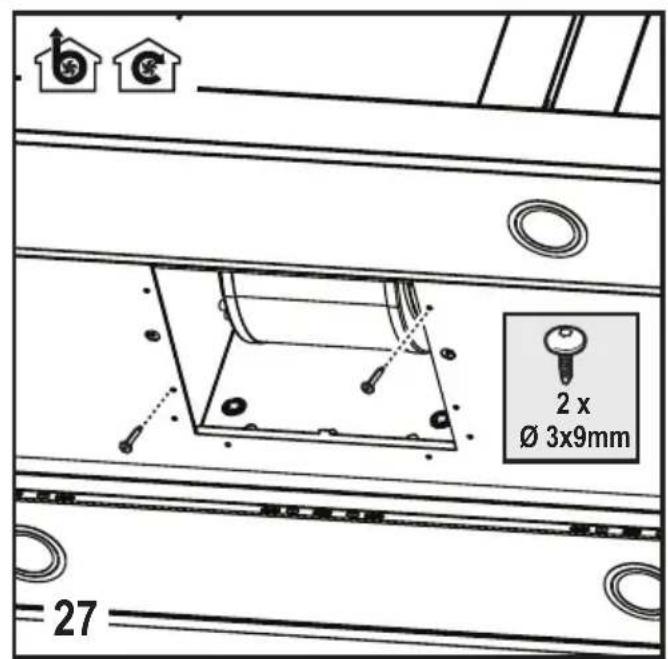

2 x Ø 3x9mm = 27

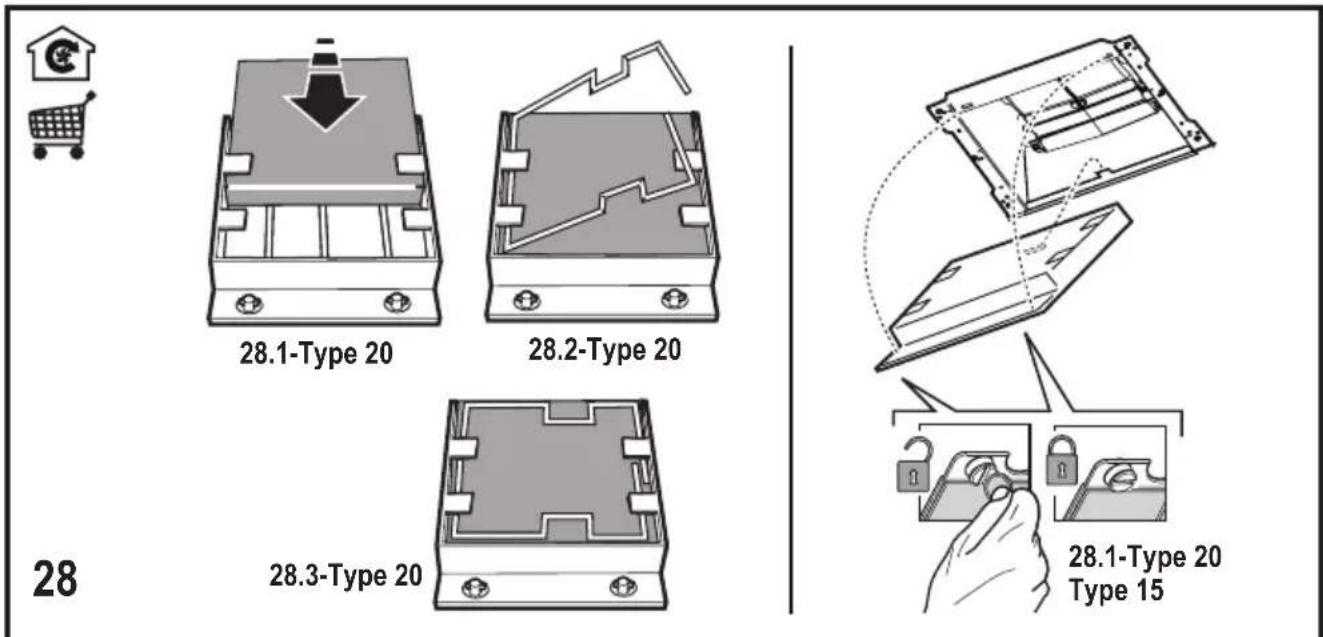

28.1-Type 20 28.2-Type 20 28.3-Type 20 28.1-Type 20 Type 15

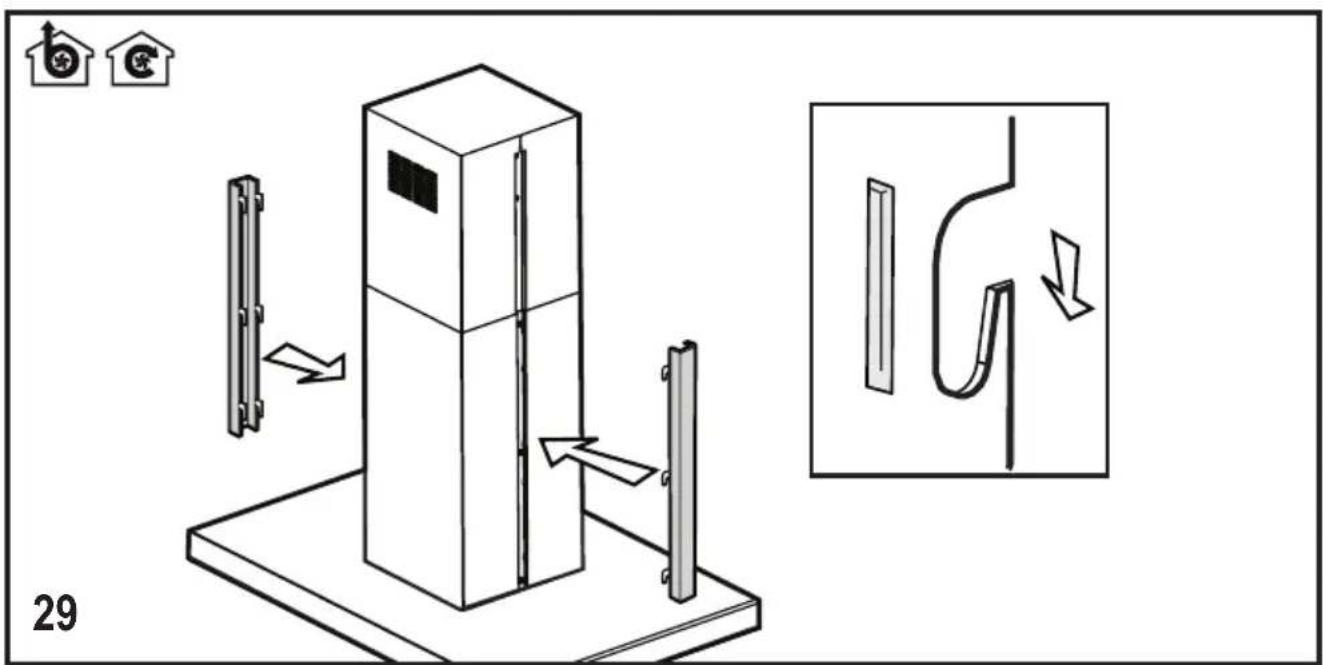

Diagram illustrating a door lock mechanism with labeled components and directional arrows, including a magnified inset showing internal structure.

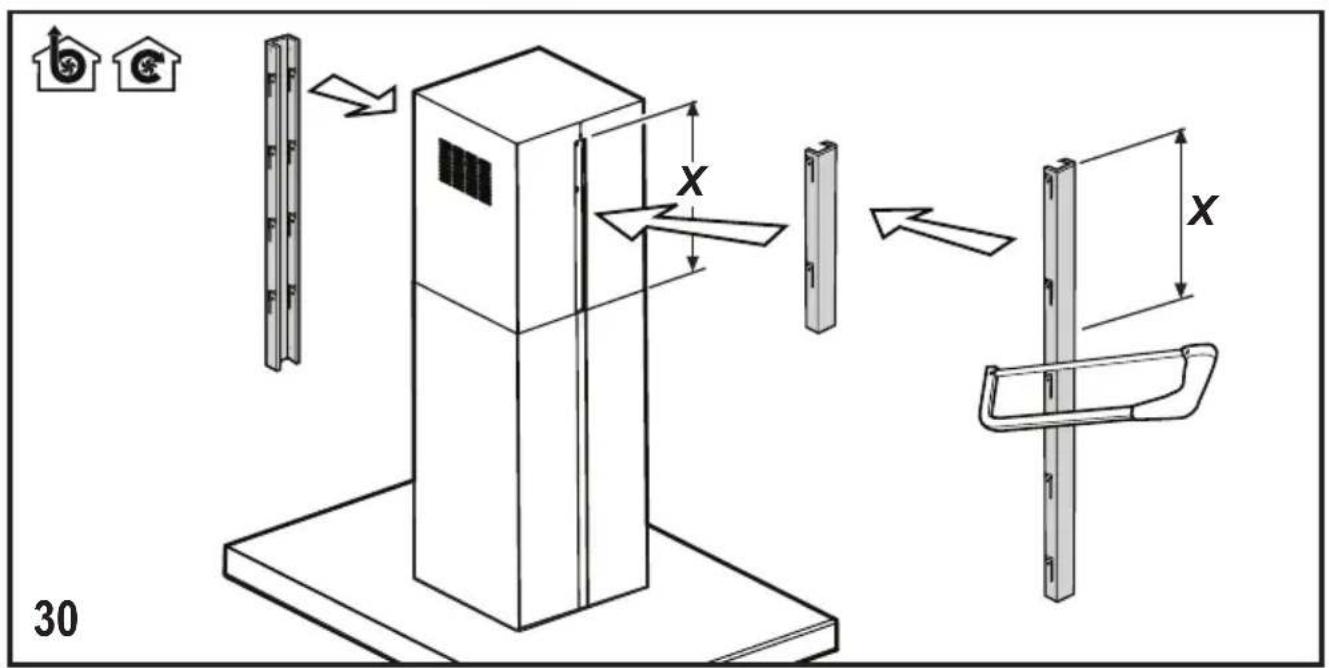

30

Diagram illustrating a smart home security system with lock, padlock, and home icons, showing device placement and lock mechanism.

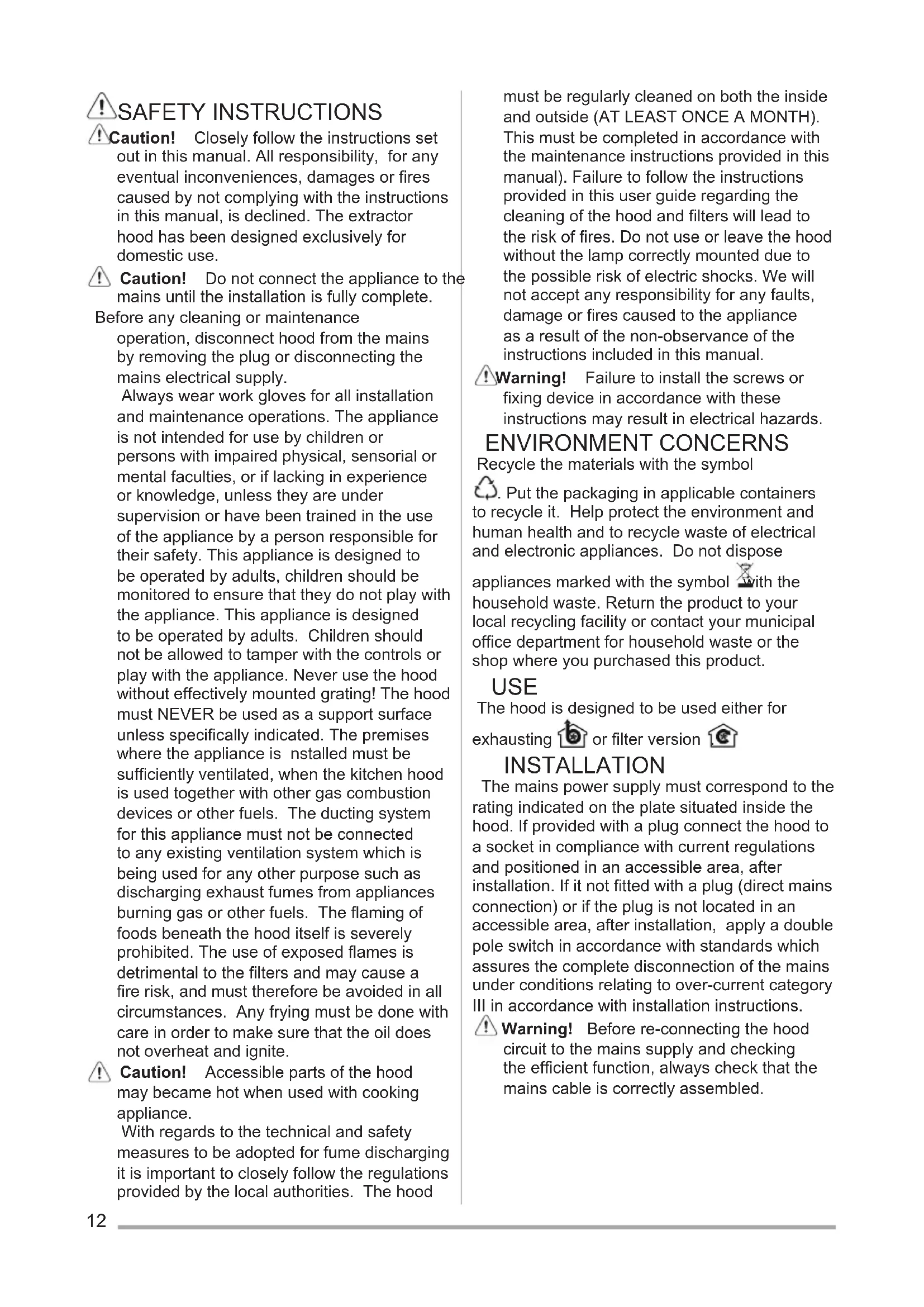

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood

must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting 📋 or filter version 🌐

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

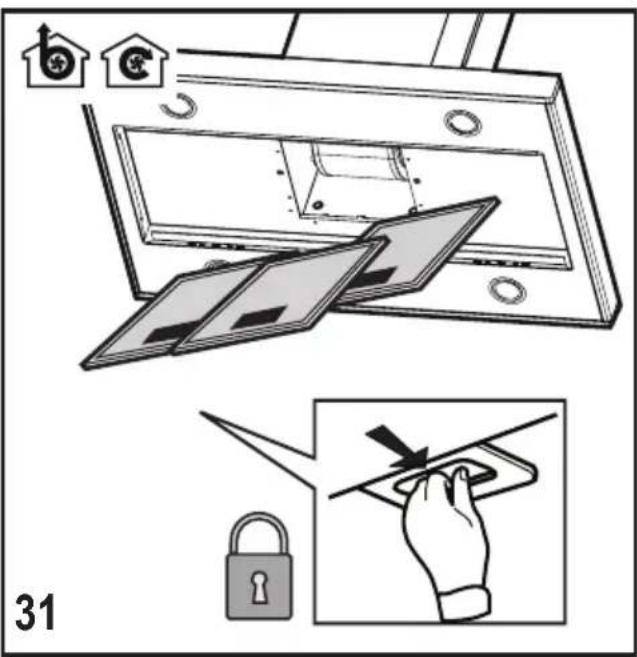

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Charcoal filter - Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

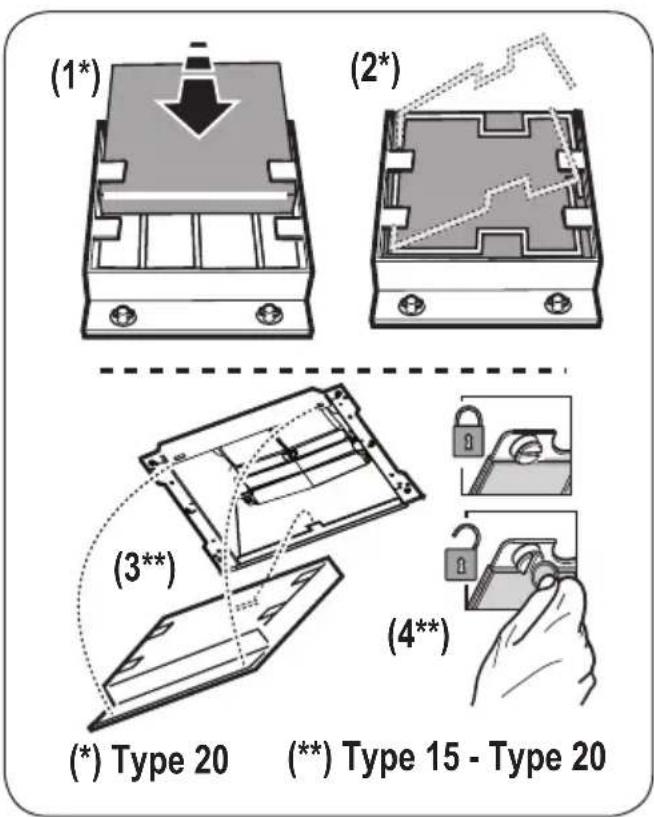

Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

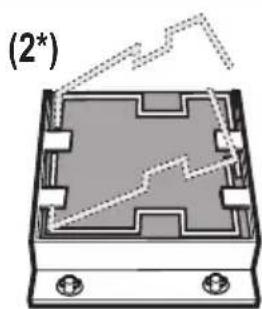

(1*) (2*) (3**) (4**) (*) Type 20 (**) Type 15 - Type 20

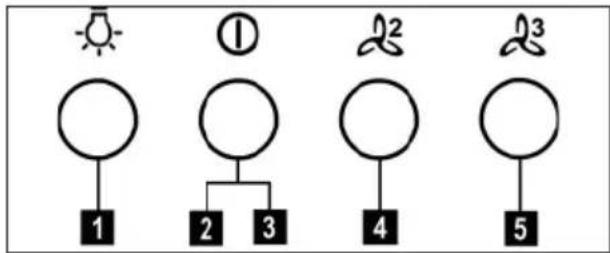

CONTROLS

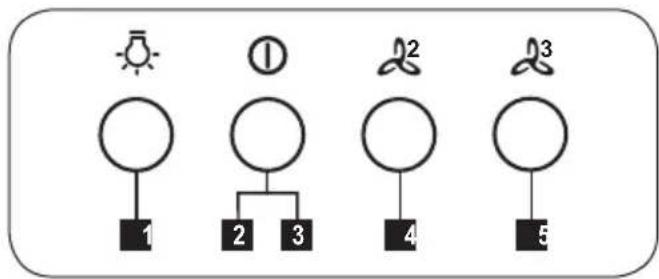

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1. ON/OFF lighting
2. OFF motors
3. • 1. • 1. Minimum suction power (3.), medium (4.), maximum (5.)

LIGHTING

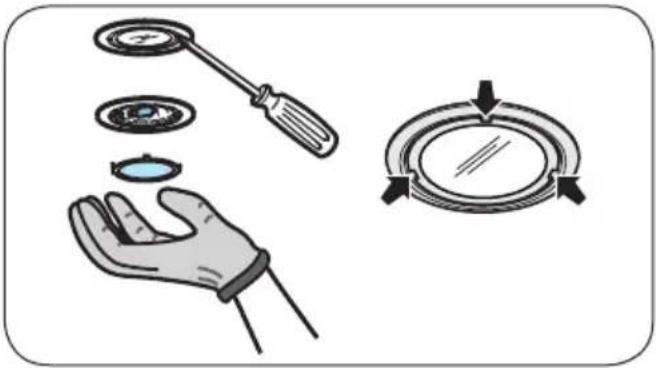

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

Illustration of a hand holding a screwdriver, a magnifying glass, and a circular dial with arrows indicating rotation (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass and circular components nearby (no text or symbols)

⚠ CONSIGNES DE SÉCURITÉ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with mounting holes and internal circuit lines (no text or symbols)

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

COMMANDES

Illustration of a hand holding a compass and a circular dial with arrows indicating rotation (no text or symbols)

⚠️ VEILIGHEIDSVOORSCHRIF-TEN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

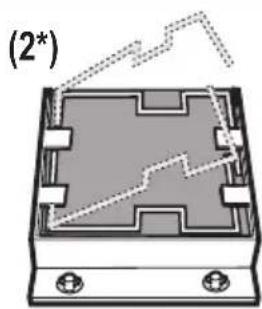

Type 20 LONG LIFE - Wasbaar koolstofffilter

Illustration of a hand holding a screwdriver, with a magnified view showing the screen and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with mounting holes and internal circuit lines (no text or symbols)

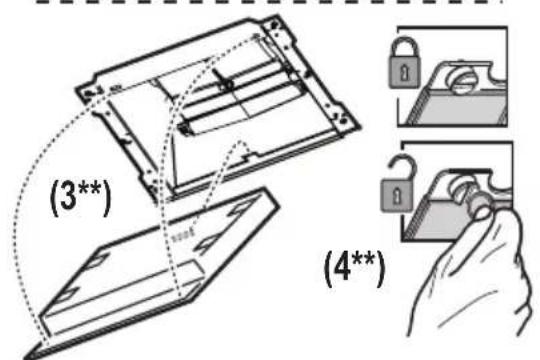

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

MANDOS

Illustration of a hand holding a circular device with a screwdriver and a compass-like dial (no text or symbols)

1! INSTRUÇÕES DE SEGURANÇA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Type 20 LONG LIFE - Filtro de carvão acrivolavável

Illustration of a hand holding a screwdriver, with a magnifying glass and directional arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration showing a hand holding a screwdriver, a magnifying glass, and a circular dial with arrows indicating rotation (no text or symbols)

⚠️ SÄKERHETSFÖRESKRIFTER

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Kolfilter - Type 20 LONG LIFE - Aktivt kolfilter som kan rengöras

Illustration of a hand holding a screwdriver, with a magnified view of the dial and a pointer indicating direction (no text or symbols)

⚠️SIKKERHETSANVISNINGER

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Type 20 LONG LIFE - Vaskbart aktivt kullfilter

Diagram of a device casing with internal components and mounting holes, labeled (2*), showing no readable text or symbols.

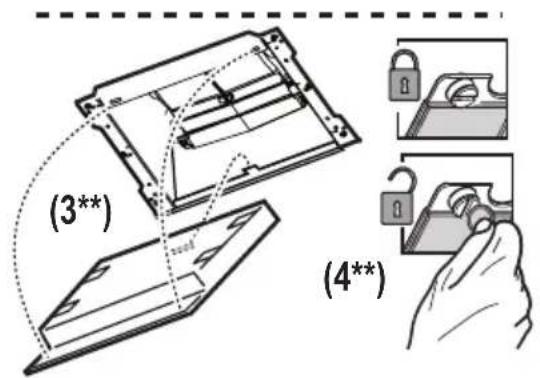

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

KONTROLLER

Illustration of a hand holding a screwdriver, with a magnifying glass and a circular dial (no text or symbols)

!TURVALLISUUSOHJEET

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and base plate (no text or symbols)

Diagram of a device casing with internal components and a dashed line indicating a path or connection (no text or symbols)

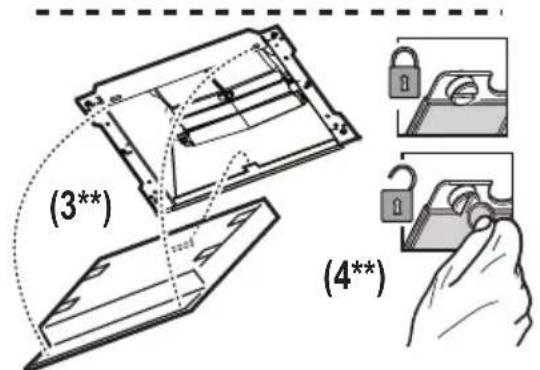

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

OHJAIMET

Illustration of a hand holding a screwdriver, with a magnified view of the dial and arrows indicating motion (no text or symbols)

⚠️SIKKERHEDSANVISNINGER

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass inspecting the interior (no text or symbols)

УКАЗАНИЯ ПО

БЕЗОПАСНОСТИ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass inspecting the interior (no text or symbols)

OHUTUSJUHISED

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

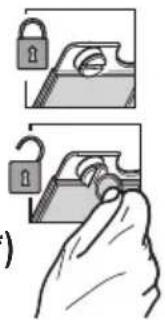

Type 20 LONG LIFE - Pestav aktiivsöefilter

Diagram of a device casing with internal components and a dashed line indicating a trajectory (no text or symbols)

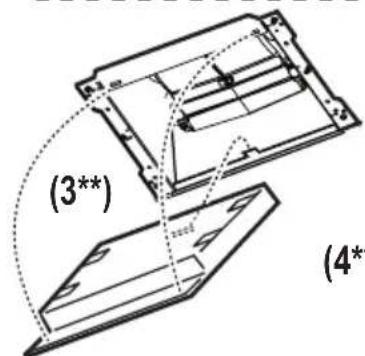

(3**) (4*)

Diagram showing two hand gestures: one with a padlock and lock, the other with an open padlock and lock.

(*) Type 20
(**) Type 15 - Type 20

JUHIKUD

Illustration of a hand holding a screwdriver, with a magnifying glass and circular dial nearby (no text or symbols)

DROŠĪBAS NORĀDĪJUMI

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass and directional arrows indicating motion (no text or symbols)

SAUGOS INSTRUKCIJA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Type 20 LONG LIFE - Plaunamas aktyviosios anglies filtras

Illustration of a hand holding a screwdriver, with a magnified view of the dial and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass and a small blue object nearby (no text or symbols)

BIZTONSÁGI ELŐÍRÁSOK

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

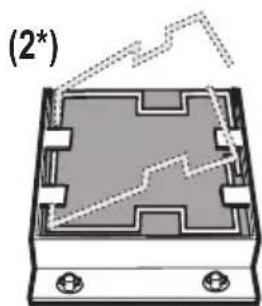

Diagram of a device casing with internal components and a dashed line indicating a trajectory (no text or symbols)

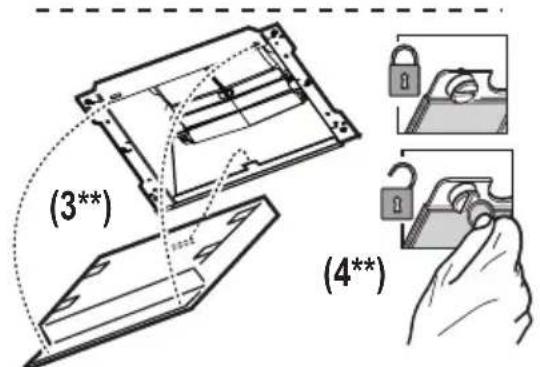

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

KEZELŐSZERVEK

Illustration of a hand holding a small circular component, with a screwdriver and a circular dial indicator (no text or symbols)

BEZPEČNOSTNÍ POKYNY

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and mounting holes, labeled (2*), showing no readable text or symbols.

(3**) (4**)

(*) Type 20 (**) Type 15 - Type 20

PŘÍKAZY

Illustration of a hand holding a screwdriver, a magnifying glass with arrows indicating rotation (no text or symbols)

BEZPEČNOSTNÉ POKYNY

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Type 20 LONG LIFE - Aktívno uhlíkový filter umývatel'ný

Diagram of a mechanical component with a downward arrow and base plate (no text or symbols)

Diagram of a rectangular electronic component with internal circuitry and mounting holes, labeled (2*), showing no readable text or symbols.

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

OVLÁDAČE

Illustration of a hand holding a screwdriver, with a magnifying glass and a circular dial on the right (no text or symbols)

INSTRUCTIUNI PRIVIND

SIGURANTA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Type 20 LONG LIFE - Filtru cu carbon activ lavabil

Illustration of a hand holding a screwdriver, eye, and circular dial with directional arrows (no text or symbols)

⚠️ WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA

Illustration of a hand holding a tool with a bracket and arrow, no text or symbols present

Illustration of a hand holding a screwdriver, a close-up of the eye, and a circular compass with arrows indicating rotation (no text or symbols)

SIGURNOSNE UPUTE

Pozor! Strogo se pridržavajte uputstava koje donosi ovaj priručnik. Otklanjamo bilo kakvu odgovornost za eventualne nezgode, smetnje ili požar na aparatu koji proizlaze iz nepoštivanja uputstava koje donosi ovaj priručnik. Kuhinjska napa je projektirana isključivo za kućansku uporabu.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass and a circular dial (no text or symbols)

VARNOSTNA NAVODILA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

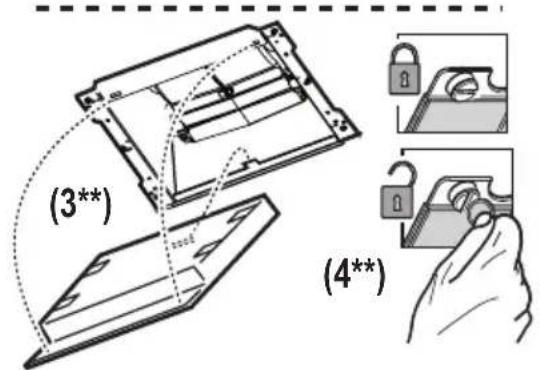

Type 20 LONG LIFE - Pralni filter z aktivnim ogljem

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and a dashed line indicating a trajectory (no text or symbols)

(3**) (4**)

(*) Type 20 (**) Type 15 - Type 20

UPRAVLJALNI GUMBI

Illustration of a hand holding a screwdriver, with a magnifying glass and a circular dial (no text or symbols)

ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, a magnifying glass with arrows indicating direction (no text or symbols)

GÜVENLIK TALIMATLARI

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

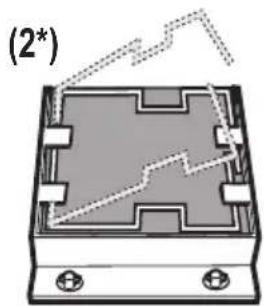

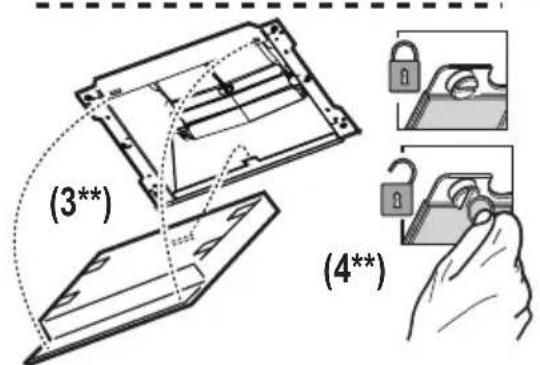

Type 20 LONG LIFE - Yıkanabilir aktif karbon filtre

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a rectangular electronic component with internal circuitry and mounting holes, labeled (2*), showing no readable text or symbols.

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

KONTROLLER

Illustration of a hand holding a screwdriver, with a magnifying glass and a circular dial (no text or symbols)

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram of a device casing with internal components and mounting holes, labeled (2*), showing no readable text or symbols.

(3**) (4**)

(*) Type 20 (**) Type 15 - Type 20

УПРАВЛЕНИЯ

Illustration of a hand holding a screwdriver, with a magnifying glass inspecting the interior (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass inspecting the interior (no text or symbols)

БЕЗБЕДНОСНИ ИНСТРУКЦИИ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnifying glass inspecting the interior (no text or symbols)

UDHËZIME PËR SIGURINË

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration of a hand holding a screwdriver, with a magnified view of the dial and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a rectangular electronic component with internal structure and mounting holes, labeled (2*), showing no readable text or symbols.

(3**) (4**)

(*) Type 20
(**) Type 15 - Type 20

КОМАНДЕ

Illustration of a hand holding a screwdriver, with a magnifying glass and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a screwdriver, a small circular component, and a circular dial indicator (no text or symbols)

Illustration of a hand holding a tool with a metal bracket and a triangular pointer (no text or symbols)

اع-eventات بینیة

لسلامة.

Four icon buttons representing different consumer goods: washing machine, washing machine with gear, shopping cart with tools, and shopping cart (no text or symbols)

CE
