JDF603E9 - Range hood JUNO - Free user manual and instructions

Product type	Cooker hood
Brand	Juno
Model	JDF603E9
Installation	Extracting or recirculating
Power supply	220-240 V, 50/60 Hz
Number of speeds	3 speeds + stop
Lighting	Bulb E14, 4W, Ø35 mm
Minimum distance from hob	65 cm
Grease filter	Washable every 2 months
Carbon filter	Replace every 4 months
Insulation class	II (if symbol ®) otherwise earthed
Use	Above domestic cookers
Extraction type	Exhaust pipe (extracting version) or recirculation (filtering version)
Safety	Disconnect before maintenance, do not flambé under the hood
Exterior cleaning	Damp cloth and mild detergent
Interior cleaning	Denatured alcohol
ILCOS D code of the bulb	DRBB/F-4-220-E14-37/105

Frequently Asked Questions - JDF603E9 JUNO

How to install the hood in extracting version?

To install the hood in extracting version, connect the exhaust pipe to an external duct. Maintain a minimum distance of 65 cm between the hood and the hob. The extracted air must not be directed into a duct used for exhausting fumes from other appliances.

How to clean the grease filters?

Wash the grease filters with a mild detergent by hand or in the dishwasher. If washed in the dishwasher, any discoloration does not affect efficiency. Clean them at least every 2 months.

How often to replace the carbon filter?

The activated carbon filter must be replaced every 4 months, or more often with heavy use. It cannot be cleaned and is non-renewable.

Which bulb to use for lighting?

Use a bulb type E14, 4W, diameter 35 mm. The ILCOS D code is DRBB/F-4-220-E14-37/105. Before replacing, disconnect the hood and ensure the bulb has cooled down.

What to do if the hood does not work?

Check the power supply (plug, fuse). Make sure the hood is properly plugged in. If the problem persists, contact technical support.

The hood is noisy, what to do?

Check that the filters are not clogged and clean them if necessary. Ensure the hood is correctly installed and the mounting screws are tight. An abnormal noise may indicate a mechanical problem.

What distance between the hood and the hob?

The minimum distance between the saucepan support surface and the lower part of the hood is 65 cm. If the hob instructions specify a greater distance, follow that.

Can I use the hood without a carbon filter?

In recirculating version, the carbon filter is essential to recycle the air. In extracting version, you can use the hood without a carbon filter because the air is exhausted outside.

How to connect the hood electrically?

Check that the voltage matches the rating plate. The hood must be plugged into a socket with earth connection, unless it bears the ® symbol (class II). If the cable is damaged, have it replaced by a professional.

Where to find spare parts?

Contact the JUNO technical support service or an authorized dealer. For bulbs and filters, check the references indicated in the manual.

USER MANUAL JDF603E9 JUNO

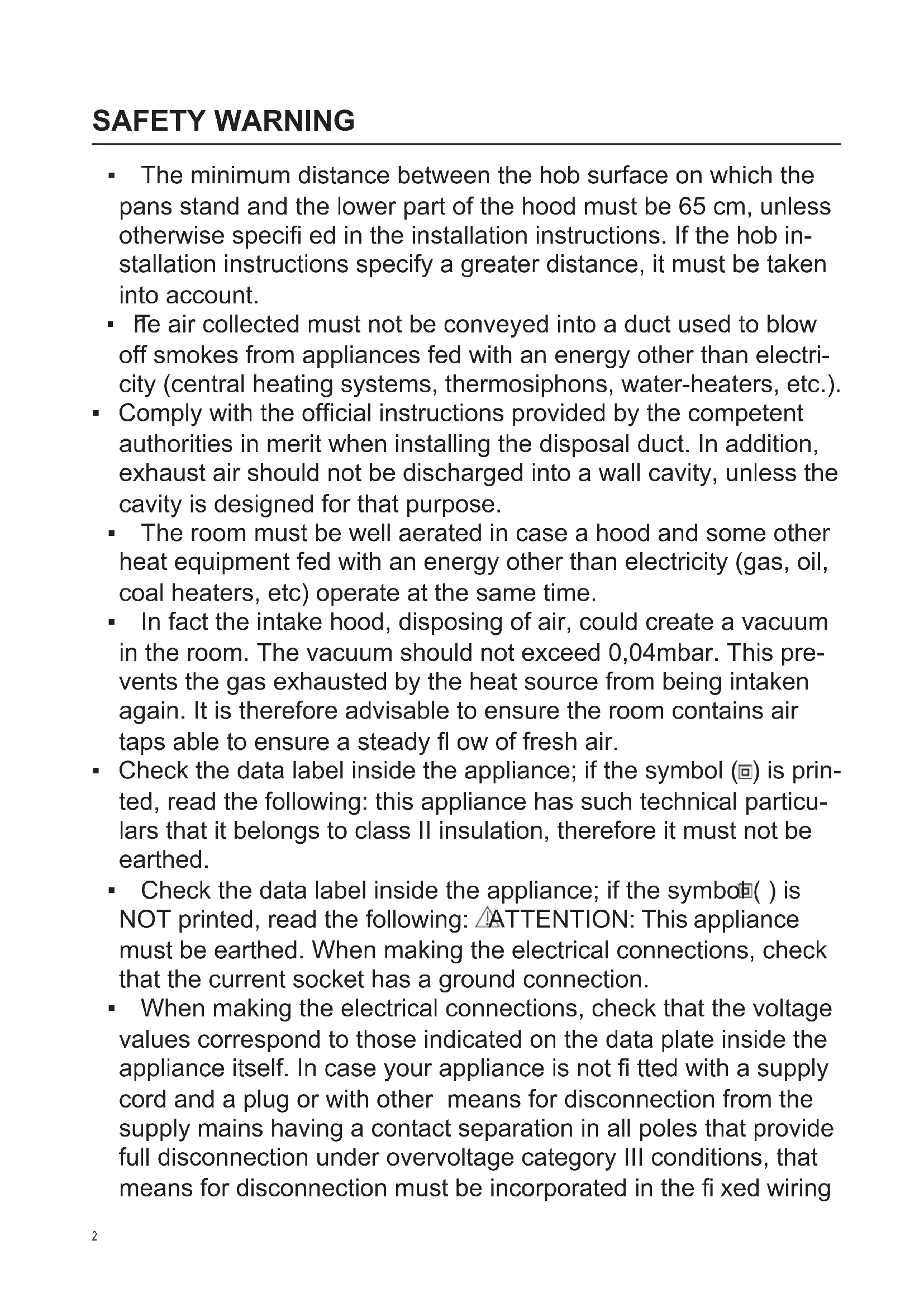

• The minimum distance between the hob surface on which the pans stand and the lower part of the hood must be 65~cm , unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.

• He air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).

• Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.

• The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.

• In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.

• Check the data label inside the appliance; if the symbol (□) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.

• Check the data label inside the appliance; if the symbol() is NOT printed, read the following: ATTENTION: This appliance must be earthed. When making the electrical connections, check that the current socket has a ground connection.

• When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not fi tted with a supply cord and a plug or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, that means for disconnection must be incorporated in the fi xed wiring

in accordance with the wiring rules. If your unit features a power lead and plug, position this so the plug is accessible.

• Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• The appliance must be installed by a qualified person in compliance with the instructions provided.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Avoid using materials which could cause spurts of flame (flambrees) near the appliance.

• Do not flambé under the range hood.

• When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.

• To avoid possible risks of fire always comply with the indicated instructions when cleaning grease fi iters and when removing grease deposits from the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Caution: accessible parts may become hot when used with cooking appliances.

• This kitchen hood is intended for installation in domestic kitchens above cooktops, cooking devices and similar kitchen equipment.

USE

Filtering or ducting version?

• The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed.
• For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version.

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

MAINTENANCE

Thorough servicing guarantees correct and long-lasting operation.

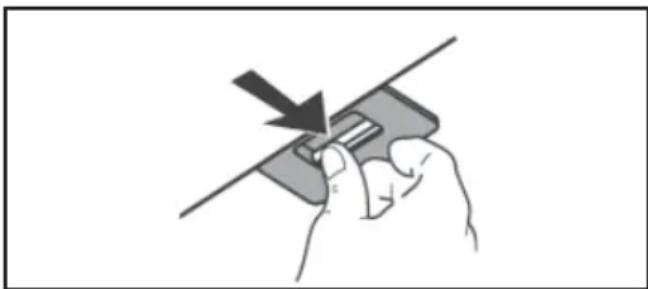

- Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abra

sive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

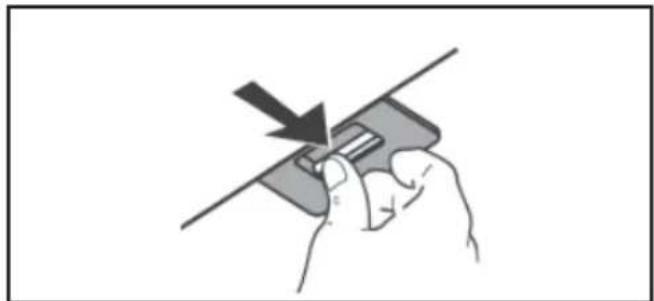

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.
- Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

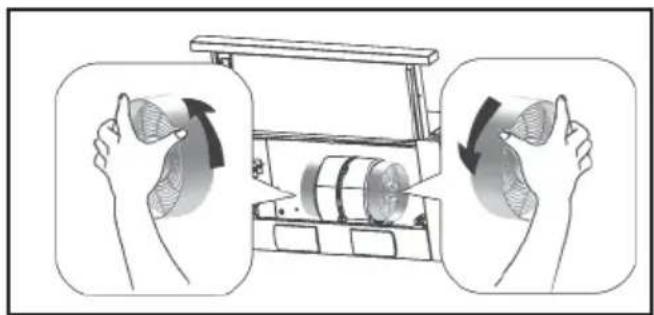

• The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

CONTROLS

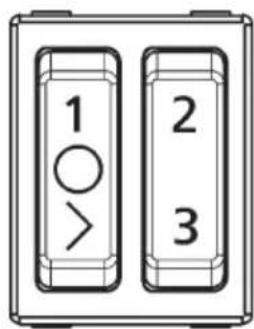

1: first speed motor.
0:OFF motor.
> + 2 : second speed motor.
> + 3 : third speed motor.

The opening/closing of the telescopic slide regulates the Lights On/OFF.

LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs

ensure they are cooled down.

Replace it with lamps of the same type (Ø35, E14, 4W).

ILCOSDcode:DRBB/F-4-220-E14-37/105

• BbITJkKa OUnIaet BO3dYx N BbI6paCbIBaET erO HapyKyupe3 BbITJXHyU Tpy6y.

ΦnIbTpuyouni TnI
- BbITJkKa OUnIaET BO3dYX IN BO3BpaIaET OUnIeHHbI IN BO3dYX B IOMeIeHne.

yXoI

IpaBnIbHaKaHcEpBaZnIa
OBeCneHT HaJIeJaUeE n
DOJIroCpOuHoe
fYHKUHOHropOBaHne
yCTpO'CTBa.

OuNTka yCTpOInCTBa OT
KIPA DOJXHbI PPOIN3BOINTBcA
JIepNOIDnueCKN, B 3aBNCIMOCTN
OT INHTEHCNBHOCTNI
NcNoJIb3OBaHnY (no KpaIHei
Mepe, Odn pa3 BV Tpr Meca).
N36eaiTe npImeHnY
UcTAAx CpeDCTB, KOtOpbIE
Copejkat Koppo3IOHHbIe
n a6pa3INBhIe BeIeCTBa.
ДЯ OUnCTKN IaKIpOBaHNbIX
IOBepxHOCTe NcNoJIb3yIITe
TpIKNy, CMOueHHyU B
TeIIOB BoDe n DeHaTypaTe.
ДЯ OUnCTKN BHeIHNX
IOBepxHOCTe N3 CTaII, MeDN
IINI NaTuHb Bbl BceIda DoJXHbI
NcNoJIb3OBaTb CneIaNbHO

IpeHa3HaeHHbIe IJIa 3TOI0
IPOdYKtBI, COOTBETCTByUOuNe
INHcTpyKcII N IpeHa3HaueHnIO.
IJIa OUnCTKn BHyTpEnHnx
IOBepXHOCTe INCNoIb3yITe
TpIKNy IJI N UeTKy, CMOueHHyIO B
DeHaTypaTe.

• Chstka KnpoylaBnBaIOx PhIbTPOB. OuHCTNTB CBa3N CnCNoJIb3OBAHNEM, NO KpaHEn Mepe, KaKdIe 2 Mecya, YTO6ExKaTb PnCKa BO3HnKHOBeHnA noJapa.
  MbITb HeItpaIbHbIM MOIOUIM CpeDCTBOM BpyHyIO IINB NocydomoEeyHO MaUNHe. B cIyuae INcNoJIb3OBaHnI NOcydOMoeHoi MaUNHb BO3MOxHO OBeCuBeuBaHne 0nIbTPOB, KOTOpoe He BnIeT Ha IX 0yHKUHOHaJIbHOCTb.

• Φильър Дереванно улг He NOДхОДИТ Для OчNTК, He MoKet 6bIb OБновпeн, a DoJxKeH 3aMeHЯТьСРпбИЗИТЕЛВНО Кждьe 4 Mecra ИСПОЛьЗOBAHИ NЛNЧаSe B CJIyuaN INHTEHCBHORO IСПОЛьЗOBAHИ.

OPRAHbI UNPABJIECHNIA

NoB'3aHnX 3 npncTroeM. DITn He NOBHHI 6aBNTnCra npncTroeM. DITn He NOBHHI 6e3 HaJIy 3diNCHOBaTu YnCTKy i KOHcePBAciIO.

3aMeHeTe CO CBeTnIKN OJ NCT TnI (Ø35, E14, 4W).

ILCOS D code: DRBB/F-4-220-E14-37/105
