JDWK907S6 - Basket JUNO - Free user manual and instructions

Brand	Juno
Model	JDWK907S6
Product type	Extractor hood
Use	Domestic, elimination of kitchen odors
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 speeds + timed intensive mode (5 min)
Delayed shutdown	Yes, 5 minutes
Lighting	Integrated, replacement by after-sales service
Minimum distance from hob	650 mm (or more according to gas hob instructions)
Grease filter	Dishwasher safe, clean every 2 months
Charcoal filter	Not washable, replace every 4 months
Exterior maintenance	Damp cloth and neutral detergent
Insulation class	Class I (earth connection mandatory)
All-pole disconnection	Yes, switch with opening ≥ 3 mm
Exhaust duct diameter	Minimum 120 mm
Repairability	Spare parts available via after-sales service
Power cord replacement	By manufacturer or authorized after-sales service
Manual	96 pages, free download in several languages

Frequently Asked Questions - JDWK907S6 JUNO

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm between the hob and the hood. If the gas hob instructions specify a greater distance, that must be respected.

How to clean the grease filters?

The grease filters must be cleaned every 2 months (or more often with heavy use). They can be washed in the dishwasher or by hand with a neutral detergent.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable or regenerable. It should be replaced approximately every 4 months of operation, or more frequently with intensive use.

What to do if the power cord is damaged?

Do not use the hood. Replacement must be carried out exclusively by the manufacturer or an authorized after-sales service to avoid any risk of accident.

Can I use the hood with a gas cooker?

Yes, but you must ensure sufficient ventilation of the room to prevent the return of combustion gases. The negative pressure must not exceed 0.04 mbar.

How to activate the delayed shutdown (delay)?

Press and hold the corresponding button (Delay) to activate automatic shutdown after 5 minutes. The speed icon flashes. To deactivate, press the speed button or turn off the motor.

Why doesn't the hood turn on?

Check that the hood is plugged in and the main switch is in the on position. If the problem persists, the cord or an internal component may be defective; contact after-sales service.

How to replace the hood lighting?

Replacement of the lighting must be carried out by an authorized after-sales service. Do not attempt to do it yourself.

Can the hood operate without an external exhaust duct?

Yes, in recirculation mode with a charcoal filter. In this case, the hood draws in and filters the air before returning it to the room.

What are the available speeds?

The hood has 3 speeds (first, second, and third) plus a timed intensive mode (5 minutes) for heavy smoke emissions.

USER MANUAL JDWK907S6 JUNO

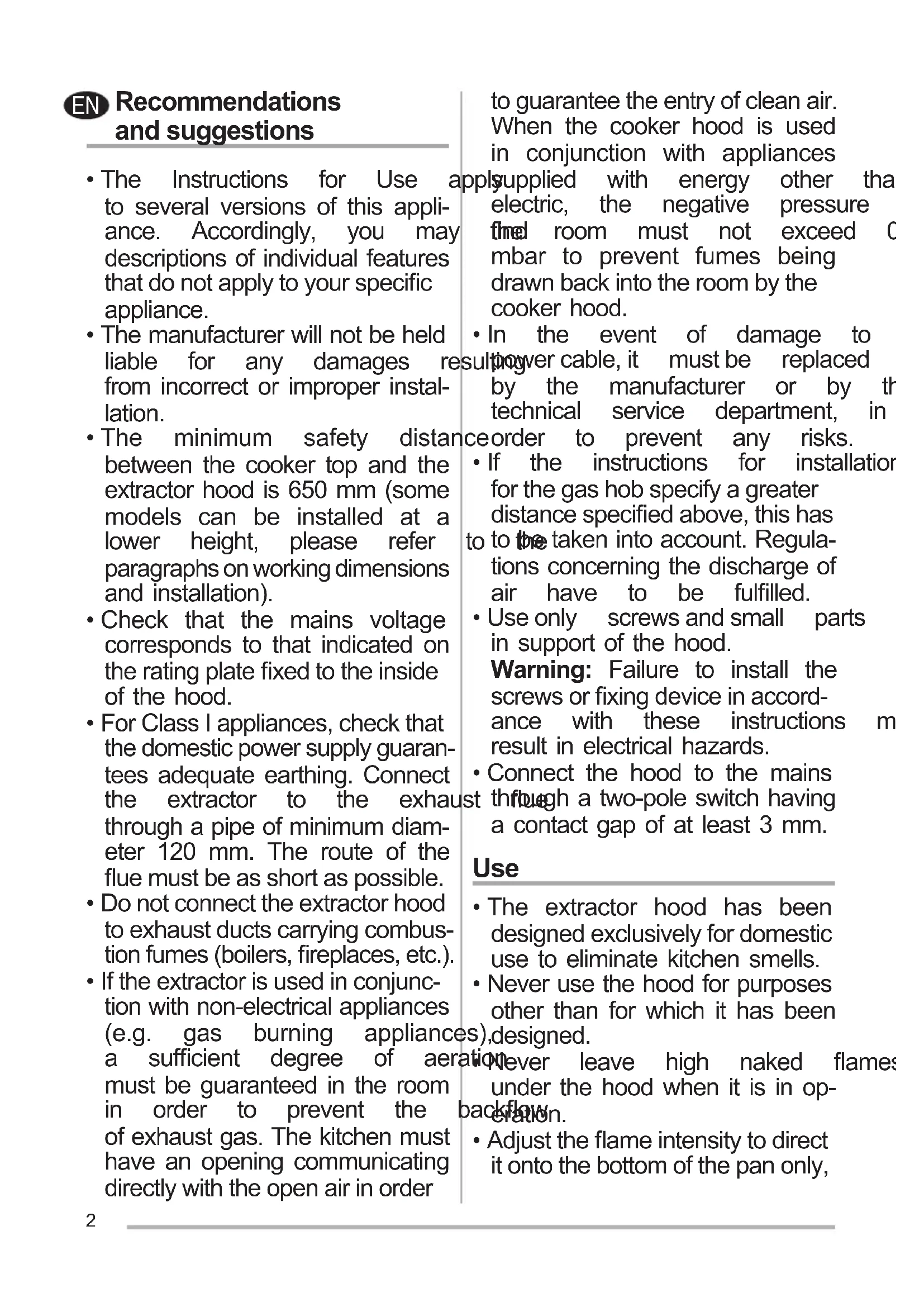

Recommendations and suggestions

• The Instructions for Use a to several versions of this appliance. Accordingly, you may descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages from incorrect or improper installation.
• The minimum safety dista between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliance a sufficient degree of aer must be guaranteed in the room in order to prevent the of exhaust gas. The kitchen must have an opening communicating directly with the open air in order

to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure fitted room must not exceed 1 cmbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to a liftover cable, it must be replaced by the manufacturer or by the technical service department, in ceorder to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions m result in electrical hazards.

• Connect the hood to the mains port through a two-pole switch having a contact gap of at least 3mm .

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been s),designed.

rationever leave high naked flames under the hood when it is in op- backfowon.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be osly monitored during use: overheated oil can burst into fla
• Do not flambe under the hood; risk of fire.
• This appliance can be used children aged from 8 years above and persons with reduced physical, sensory or mental pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under the hazards involved. Children shall not play with the applicant Cleaning and user maintenance shall not be made by chi without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated

household waste. Instead it be handed over to the applicable collection point for the re of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inapp waste handling of this product. For more detailed information about recycling of this product,

contact your local city office, your household waste disposal service continue shop where you purchased the product.

esSwitch off or unplug the appliancerange the mains supply before carryingout anymaintenance w

Clean and/or replace the Filters. After the specified time p (Fire hazard).

ca- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently tanfor particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently if particularly heavy usage, and can be washed in a dishwasher

shall

Vcling

• Clean the hood using a damp cloth and a neutral liquid detergent.

please

Controls

Button Function
A	Turns the lighting system or off at maximum intensity, by pressure. Lights can be switch on and off at every speed.
	DelaySuitable to complete elimination of residual odours. Long preactivates the automatic switch - off with a 5 minutes delay. It can be activated at every speed. When active, the icon of the speed is can be disabled pressing the speed button, turning the motor off.
B	Brief pressure. Turns the suction motor on and off at speed one.
C	Brief pressure. Turns the suction motor on and off at speed two.
D	Brief pressure. Turns the suction motor on at speed three. Press a second time to activate INTENSIVE speed, which is timed to run minutes, after which the hood turn off automatically. This function is suitable to deal with maximum levels of cooking fumes. Press button D again to deactivate INTENSIVE mode and turn the motor off.

and

brief

a

ssure:

blinking. It

6

will

Lighting

• For replacement contact technical support ("To purchase contact technical support").
