Brand	Zanussi
Model	ZHC62652XA
Product type	Extractor or recirculation cooker hood
Installation type	Extraction version with external venting or recirculation version with internal recycling
Extraction powers	3 speeds: minimum, medium, maximum
Lighting	LED system, lifespan up to 10 times longer than traditional bulbs, 90% energy saving
Grease filter	Washable once a month, by hand or in dishwasher (gentle cycle)
Activated carbon filter	Non-washable, replace after 4 months max
Minimum installation distance	50 cm for electric hobs, 65 cm for gas or mixed hobs
Power supply	220-240 V, standard frequency (check rating plate)
Main material	Stainless steel (common estimate)
Power cable length	Approximately 1.5 m (standard estimate)
Net weight	Approximately 10 kg (estimate for 60 cm hood)
Width	60 cm (estimate based on model)
Maintenance and cleaning	Clean exterior with a damp cloth and mild detergent; do not use alcohol or abrasives
Safety	Disconnect before maintenance; do not flambé under the hood; use work gloves; do not use without grid
Use with other appliances	Ensure adequate ventilation when used with gas or other fuel-burning appliances
Available spare parts	Filters (grease and carbon), LED lamps, motor (via after-sales service)
Repairability	Approved technical support for replacement of internal parts
Environmental protection	Recycling of packaging and end-of-life appliances via local centers
Controls	Control panel with ON/OFF switch for lights and motor, speed selector (3 positions)
Recommended use	Turn on 5 minutes before cooking and let run 15 minutes after
Warranty	2 years (statutory warranty, subject to compliance with instructions)

Frequently Asked Questions - ZHC62652XA ZANUSSI

What installation types are possible for the Zanussi ZHC62652XA hood?

The hood can be installed in extraction version with external venting or in recirculation version with internal recycling using an activated carbon filter.

What is the minimum distance between the hood and the hob?

The minimum distance is 50 cm for electric hobs and 65 cm for gas or mixed hobs. Always respect the distance indicated in your cooking appliance manual if it is greater.

How to clean the grease filter?

The grease filter must be cleaned at least once a month. You can wash it by hand with a non-aggressive detergent or in the dishwasher at low temperature and short cycle. Possible discoloration does not affect its efficiency.

When should the activated carbon filter be replaced?

The activated carbon filter is non-washable and must be replaced after 4 months maximum. The frequency may vary depending on use and cleaning of the grease filter.

How to maintain the exterior of the hood?

Use a damp cloth with neutral liquid detergent. Never use alcohol, abrasive products, or solvents. Clean the interior and exterior regularly.

What to do in case of LED lighting failure?

The LED lamps are integrated and must be replaced by the technical support service. Do not look directly at the LED light.

Is it possible to use the hood without filters?

No, the hood should never be operated without the grid and filters properly installed. This poses a risk of fire and electric shock.

Can I flambé food under the hood?

No, it is strictly forbidden to flambé food under the hood. Open flames can damage filters and cause a fire.

Which extraction power to use in case of heavy steam?

Use maximum extraction power (speed 5) in case of high concentration of cooking vapors. It is advisable to turn on the hood 5 minutes before and leave it running 15 minutes after cooking.

How to ensure safe electrical installation?

Check that the voltage matches the rating plate (usually 220-240 V). Use a compliant wall socket or a standardized circuit breaker allowing complete disconnection. Do not use multi-sockets.

USER MANUAL ZHC62652XA ZANUSSI

1. Lights ON/OFF
2. Motor OFF

3.-4.-5. Minimum (3.), medium (4.), maximum (5.) suction power.

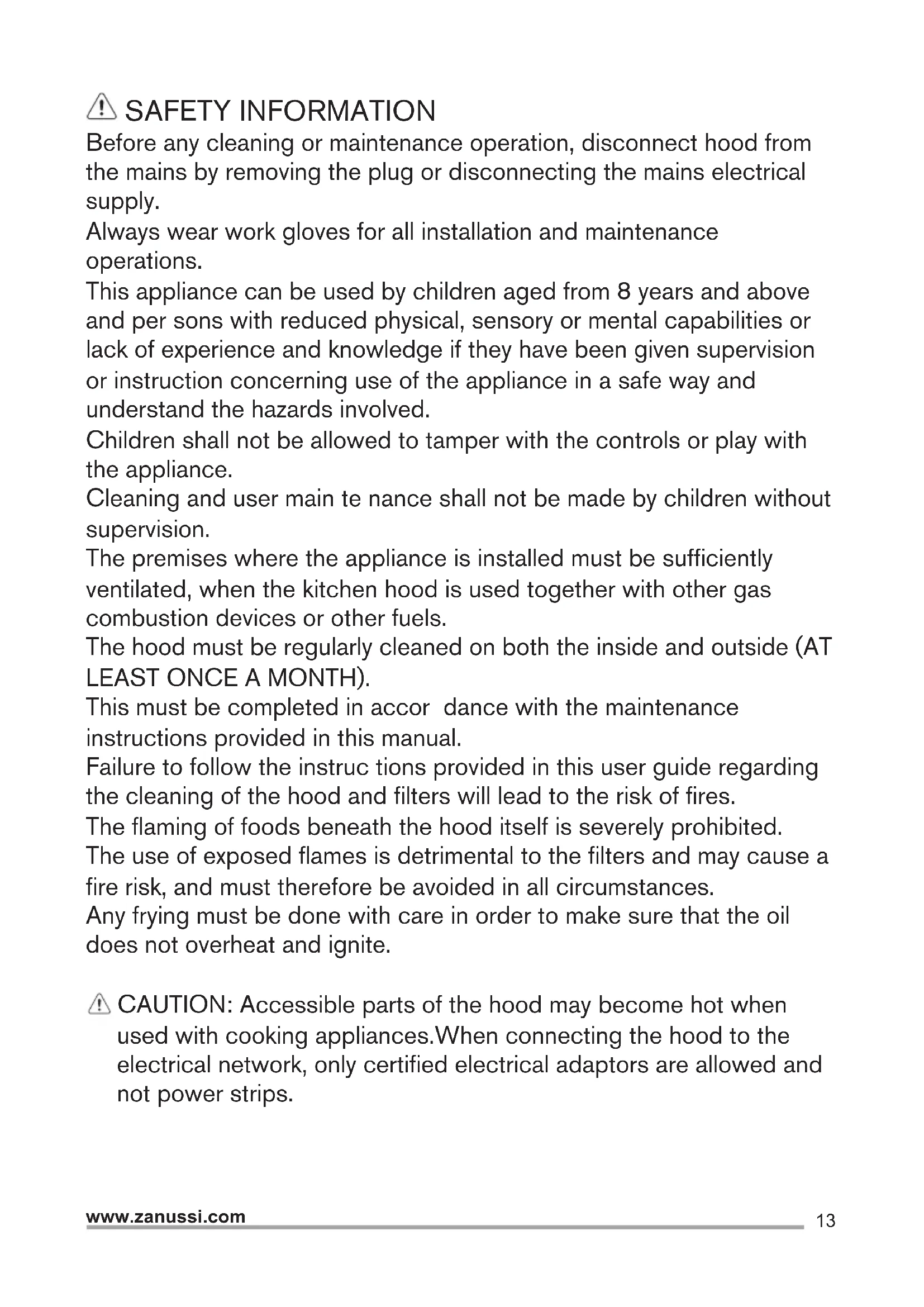

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual.

Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

SAFETY INSTRUCTIONS

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Place packaging in applicable containers to recycle it. Help protect the environment and human health, and recycle waste from electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility, or contact your municipal office for household waste, or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting or filter version.

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

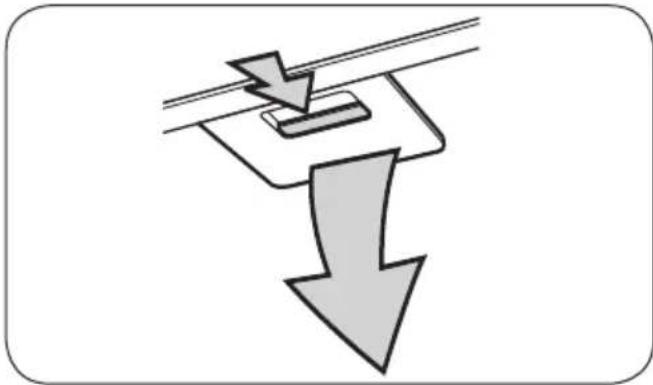

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

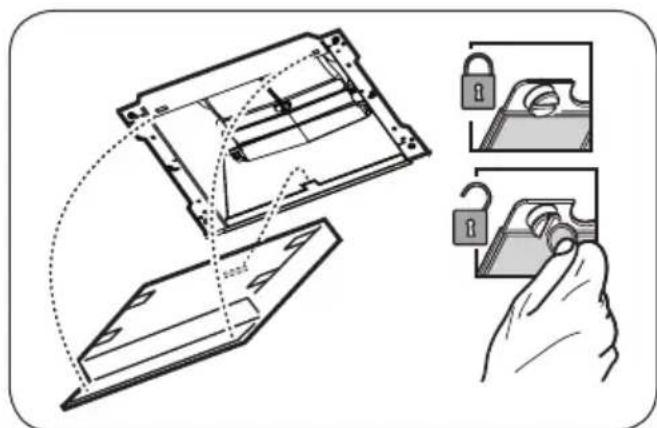

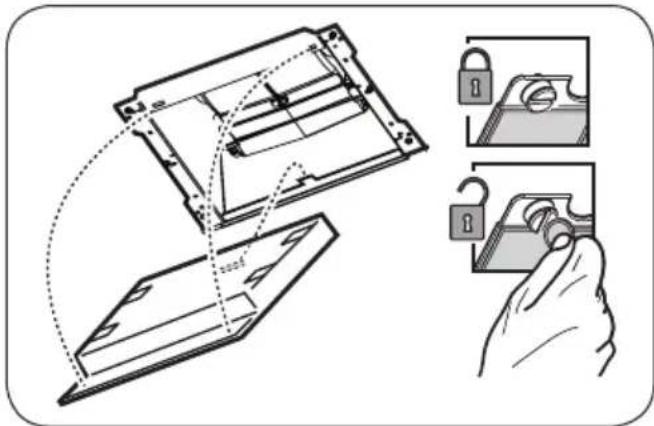

Non-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case, it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

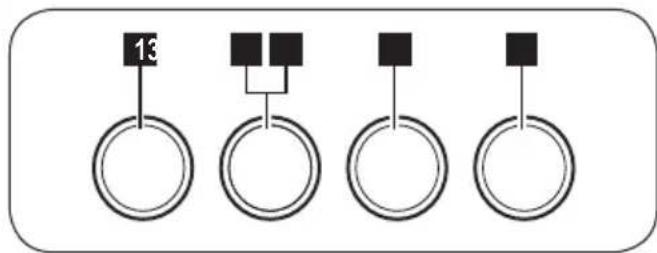

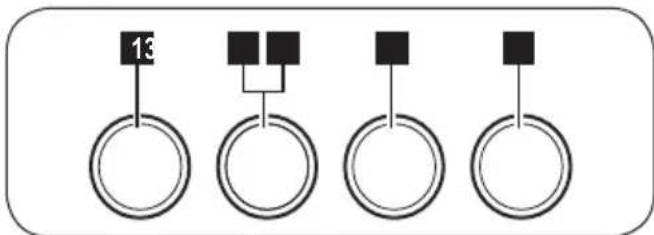

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting
2. OFF motors

3.-4.-5. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.

SAFETY INFORMATION

Warning! Do not connect the appliance to the electrical supply until the installation is fully completed.

Regarding technical measures and safety conditions for flue gas evacuation, it is necessary to strictly comply with the laws established by local authorities. The exhaust air must not be discharged into a flue used for exhausting fumes from appliances burning gas or other fuels. Do not use or leave the hood

without properly installed lamps, as this may lead to electric shock. Never use the hood without a properly installed filter! The hood should never be used as a support surface, unless such use is explicitly indicated. Use only the screws supplied with the product, or if they are not included, purchase screws of the correct type. Use the correct screw length as specified in the installation instructions. In case of doubt, contact an authorized service center or other qualified personnel.

Warning! Failure to install the screws and fixing devices in accordance with these instructions may result in electrical hazards.

ENVIRONMENTAL PROTECTION

Materials marked with the symbol should be recycled. Dispose of the packaging in the appropriate containers for recycling. By participating in the recycling of old electrical appliances, you help protect the environment and human health. Do not dispose of

household appliances marked with the symbol with household waste. Take the product to your local recycling facility or contact your municipal authority.

USE

The hood is designed for use in

ducting mode (external exhaust) or recirculation mode (internal recirculation).

INSTALLATION

The mains voltage must correspond to the voltage indicated on the data plate located inside the appliance. If the hood is equipped with a plug, connect the hood to a compliant socket, which must be installed in an accessible location, even after installation. If the hood is not equipped with a plug (direct connection to the mains), or if the socket is not accessible after installation, use a suitable two-pole switch that ensures complete disconnection from the mains under overvoltage category III conditions, in accordance with installation instructions.

Warning! Before connecting the hood to the electrical supply, check that the power cable is correctly installed.

The distance between the lower edge of the hood and the hob surface must be at least 50 cm for electric hobs, and at least 65 cm for gas or combined hobs. If the installation instructions for the gas hob specify a greater distance, take that into account.

MAINTENANCE

Warning! Before performing any cleaning or maintenance operation, disconnect the hood from the electrical supply by unplugging it or switching off the main switch. The hood must be cleaned frequently both inside and outside (at least with the same frequency as the filter maintenance). For cleaning, use a special cloth moistened with neutral liquid detergent. Do not use products containing abrasive materials. DO NOT USE ABRASIVE PRODUCTS!

Warning! Failure to follow the cleaning instructions and filter replacement may lead to a risk of fire. Therefore, we recommend following the instructions provided. The manufacturer disclaims any liability for possible damage to the motor or fires resulting from improper maintenance or failure to follow the above warnings.

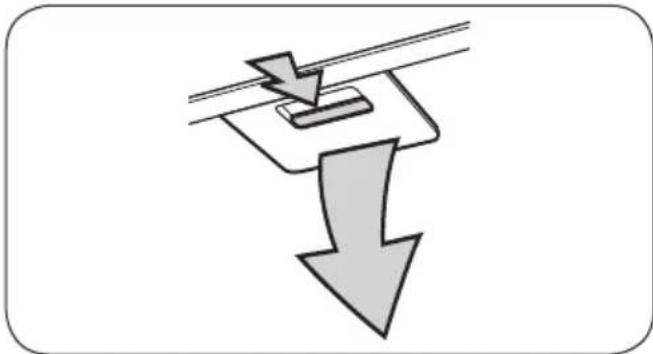

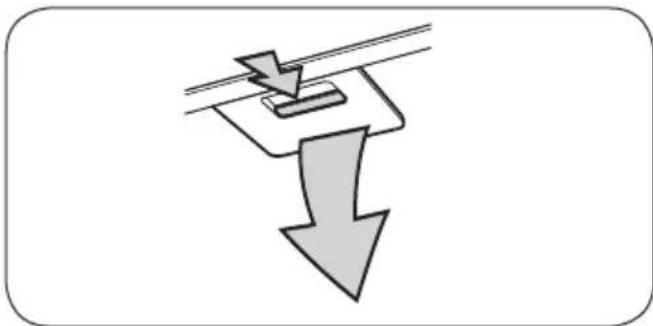

Grease filter - The filter should be washed monthly with neutral detergents, by hand or in the dishwasher at low temperature and in a short cycle. Washing in the dishwasher may cause slight discoloration of the grease filter, but its filtering characteristics remain absolutely unchanged.

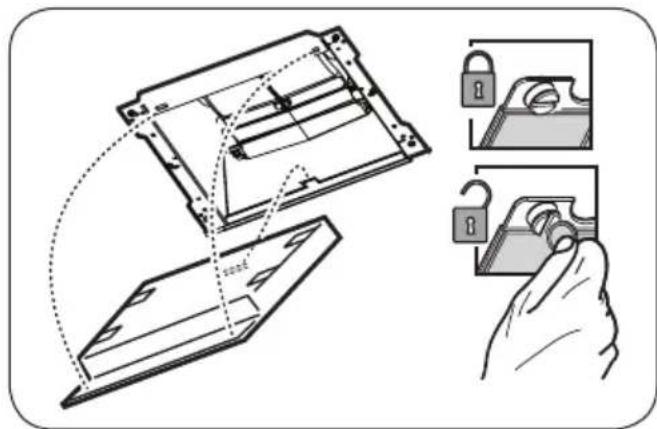

CHARCOAL FILTER

The saturation of the charcoal filter occurs after a more or less prolonged period of use, depending on the type of cooking and the frequency of grease filter cleaning. In any case, replace the cartridge at least every 4 months.

The charcoal filter cannot be washed or regenerated.

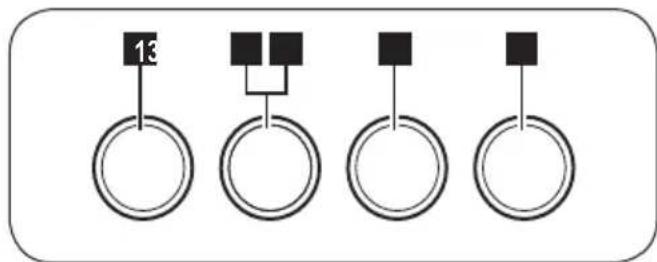

CONTROLS

The hood is equipped with a control panel for adjusting the speed of the extraction fan and switching on the light for illuminating the cooking surface.

1. Light on/off

1. Motor on/off

3.-4.-5. Extraction speed: minimum (3.), medium (4.), maximum (5.). Use the intensive extraction mode in case of particularly high concentration of cooking vapors. We recommend turning on the hood 5 minutes before starting to cook and leaving it on for 15 minutes after the cooking process is finished.

LIGHTING

The hood is equipped with LED lighting.

LED bulbs provide optimal illumination, and their service life is 10 times longer than that of incandescent bulbs, and will save 90% of electrical energy.

Warning! Protect your eyes and do not look directly at the switched-on halogen lamp.

For replacement of the light bulb, contact the technical service department.

GUVENLIK BILGILERI

J 1 J 1 J 1 J 1 J 1 J 1

aagaae aee eae ae aee

aallll llll 111 111 111

SAFETY INFORMATION

DO NOT USE ALCOHOL!

1. ON/OFF light
2. OFF motors

3.-4.-5.Min.3.middel 4.max.5 extraction power.

Use the correct length for the screws which are identified in the Installation Guide.

ENVIRONMENTAL PROBLEMS

Recycle materials with the symbol. Place the packaging in the recycling containers if available. Help protect the environment and people's health and recycle waste from electrical and electronic equipment. Do not dispose of equipment marked with the symbol in household waste. Return the product to a local recycling point or contact the municipal office.

USE

The hood is designed to be used in the version

SAFETY INFORMATION

Before cleaning or maintenance, disconnect the appliance from the mains by unplugging it or switching off the main switch. When performing cleaning or maintenance, wear protective gloves. The appliance can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they have been given supervision or instruction concerning safe use and understand the hazards involved. Children shall not play with the appliance.

Cleaning and maintenance must not be carried out by children without supervision. The appliance is equipped with a ventilation system. When the hood is used simultaneously with other gas or fuel-burning appliances, ensure adequate ventilation. The hood must be cleaned both externally and internally (at least every two months), following the maintenance instructions in this manual. Failure to clean the hood and replace the filters poses a fire risk. Strictly forbidden is the use of open flames under the hood. The use of an open flame is dangerous for the filters and may cause a fire, so it must be avoided. Cooking with hot oil must be done under supervision, as overheated oil may ignite.

Warning! When the hob is operating, accessible parts of the hood may become hot.

To replace the lamps, use only those specified in the "Lamp replacement/Maintenance" section, as indicated in this manual.

Warning! Do not connect the appliance to the mains until installation is completely finished.

When connecting the hood to the electrical mains, the use of certified electrical adapters is permitted; the use of electrical contacts in the socket is not permitted.

SAFETY INSTRUCTIONS

This concerns the technical dimensions and safety measures that must be taken for the discharge of flue gases. We recommend that you strictly follow the rules set out in the regulations of the competent local authorities.

The extracted air must not be discharged into flues used for exhaust fumes from appliances burning gas or other fuels.

Never use the vacuum cleaner without the filter properly installed, as there is a risk of electric shock.

Never use the vacuum cleaner without the correctly mounted grille!

The vacuum cleaner must never be used without the filter, unless this is specifically indicated.

For installation, use only the fixing bolts supplied with the device, or if there are such, purchase suitable bolts. Use bolts with a suitable thread, as indicated in the installation instructions. In case of doubt, consult an authorized technical service for qualified personnel.

WARNING! Incorrect installation of the bolt mechanisms for fixing in accordance with these instructions may lead to a risk of electric shock.

PROTECTION OF THE ENVIRONMENT

Recycle materials with the symbol

Place the packaging in the appropriate recycling containers.

Help protect the environment and human health, as well as the recycling of waste from electrical and electronic devices. Do not dispose of the device marked with the

symbol, together with household waste. Return the device to a local recycling point or contact your municipal service.

USE

The active charcoal filter

The active charcoal filter becomes saturated after approximately a certain period of use, depending on the type of cooking. How often you need to replace the filter. In any case, it is necessary to replace the active charcoal filter every four months or when the filter saturation indicator shows that it is necessary.

It cannot be reused.

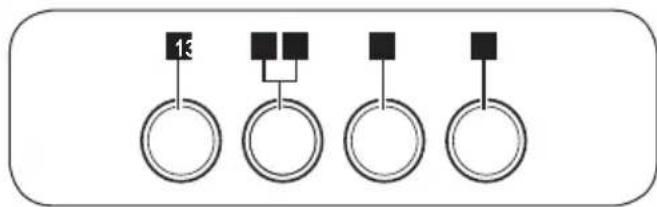

CONTROL

The appliance is equipped with a control panel with the possibility to regulate the suction speed and to pre-set the lighting of the cooking surface.

1. ON/OFF of the lights 2. Switching off (OFF) the motor 3.-4.-5. Suction power: minimum (3.), medium (4.), maximum (5.).

If a lot of steam is produced during cooking, switch to the maximum operating mode.

It is recommended to switch on the extractor 5 minutes before you start cooking and to leave it running for about 15 minutes after you have finished.

LIGHTING DEVICE

The extractor is equipped with a lighting system with LED lights.

The LED lights guarantee optimal illumination, up to 10 times more powerful than traditional bulbs, and allow 90% energy savings.

Attention! Do not look directly at the LED light!

For any issues, contact the technical service.

SAFETY INFORMATION

Before cleaning or maintenance operations, disconnect the extractor from the electrical mains by removing the plug or switching off the main switch. For installation and maintenance operations, use work gloves.

This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance.

Cleaning and maintenance must not be performed by children without supervision. The room must be sufficiently ventilated when the kitchen extractor is used together with appliances that burn gas or other fuels.

The extractor must be cleaned regularly both internally and externally (at least once a month). In any case, it is necessary to follow the maintenance instructions given in this manual.

This device must be kept away from the aspirator and the filter to avoid fire risk.

It is strictly forbidden to use the aspirator to filter food. Using an open flame is harmful to the filter and may cause a fire risk. Therefore, this must be avoided in all circumstances.

Every time you use it, you must carefully check to prevent overheating of the oil and flaming.

Attention! When the cooking plate is in operation

the parts of the aspirator may become hot. For replacing the lamp, use only the type of lamp specified in the section on maintenance/replacement of the lamp in this manual.

Attention! Do not connect the device to the electrical power supply until the installation is completely finished.

When connecting the aspirator to the electrical network, only certified electrical adapters are allowed; extension cords are not allowed.

SAFETY INSTRUCTIONS

Regarding the technical and safety measures for use, it is important to follow the rules given by the local authorities. The extracted air must not be discharged into an active flue used for fumes from appliances that burn gas or other fuels. Do not use the aspirator without a properly installed filter due to the risk of electric shock. Never use the aspirator if the filter is not properly installed! The aspirator must never be used as a support surface unless it is precisely indicated. Use only the screws provided with the product for mounting, or if not provided, use the correct type of screws. Use the correct length for the screws as indicated in the mounting section. In case of doubt, consult the authorized technical support center or qualified personnel.

ATTENTION! Incorrect mounting of the screws for fastening may lead to a risk of electric shock.

ENVIRONMENTAL PROTECTION

Recycle the materials with the symbol. Dispose of the packaging in appropriate containers for recycling. Help protect the environment and human health by recycling waste from electrical and electronic appliances. Do not dispose of the appliances with household waste. Return the product to your local collection point for recycling or contact your local municipal waste service.

USE

The aspirator can be used in the version with external air extraction, or in the version with recirculation of the air through the charcoal filter.

INSTALLATION

The appliance must be connected to the power supply in accordance with the ratings shown on the rating plate for the characteristics specified inside the aspirator. If the appliance is supplied with a plug, connect it to the socket in accordance with the wiring diagrams and position the plug in an accessible place after installation. If it is not supplied with a plug (direct connection to the electrical supply) or if the plug is not positioned in an accessible place, after installation, apply a bipolar switch in accordance with the standards that ensure complete disconnection of the electrical supply under conditions of overvoltage category III, in accordance with the installation instructions.

Warning! Before (re)connecting the appliance to the electrical supply and checking its functionality, always check that the power cord is correctly installed.

The minimum distance between the hob surface and the bottom of the cooker hood for gas appliances must not be less than 50 cm for electric cookers and 65 cm for gas or combined cookers.

If the installation instructions for the gas appliances specify a greater distance, this must be respected.

MAINTENANCE

Warning! Before any cleaning or maintenance operation, disconnect the appliance from the electrical mains by pulling the power plug or by switching off the household circuit breaker.

The appliance must be cleaned regularly (at least with the same frequency with which the grease filters are maintained) both internally and externally. For cleaning, use a cloth dampened with neutral detergent. Do not use abrasive products. DO NOT USE

ALCOHOL! Warning! If the instructions regarding the cleaning of the appliance and the replacement of the filters are not followed, there is a risk of fire. It is recommended to follow the instructions provided. We decline any responsibility for possible damage to the motor or fire caused by improper maintenance or failure to follow the instructions.

GREASE FILTER - METALLIC. The grease filter should be cleaned monthly with neutral detergents, preferably in a dishwasher at low temperatures and in a short cycle. By washing in a dishwasher, the metallic grease filter may lose its shiny appearance, but its filtering characteristics are not changed.

Filter with activated carbon: it cannot be washed.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case, it is necessary to replace it at least

every 4 months. It cannot be washed or regenerated.

CONTROL

The appliance is operated with the control panel with speed regulator for suction and regulator for lighting of the hob surface.

1. ON/OFF light
2. OFF MOTOR

3.-4.-5. Motor speed selection: minimum (3.), medium (4.), maximum (5.).

Use the highest speed in case of high concentration of steam in the room. We recommend turning on the extraction 5 minutes before starting to cook and leaving it to run for about 15 minutes after finishing cooking.

LIGHTING UNIT

The hood is equipped with a lighting system based on LED technology.

LED lights guarantee optimal illumination, last about 10 times longer than traditional bulbs and allow energy savings of up to 90%.

Warning! Do not look directly into the LED light.

For replacement, contact the technical support service.

SAFETY INFORMATION

Before any operation, cleaning or maintenance, disconnect the hood from the electrical supply by removing the plug or switching off the main switch in the house.

Always wear protective gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The room must be sufficiently ventilated when the kitchen hood is used together with other gas or other fuel-burning appliances.

The hood must be cleaned regularly, inside and out (at least once a month). However, it is necessary to follow the maintenance instructions given in this manual. Failure to follow the instructions for cleaning the hood and for replacing and cleaning the filters may cause a fire.

It is strictly forbidden to cook food over an open flame under the hood. The use of an open flame is harmful to the filters and may cause a fire, so it must be avoided in any case. Cooking must be done under supervision to avoid overheated oil catching fire.

!Caution! Before plugging the device into the power outlet, the aspirator may become very hot.

For replacing the cartridge, use the cartridge type specified in the Maintenance / Cartridge Replacement chapter of this manual.

!Caution! Do not connect the device to the power outlet until the installation is completely finished.
