USER MANUAL BDPC10USB BLACK & DECKER

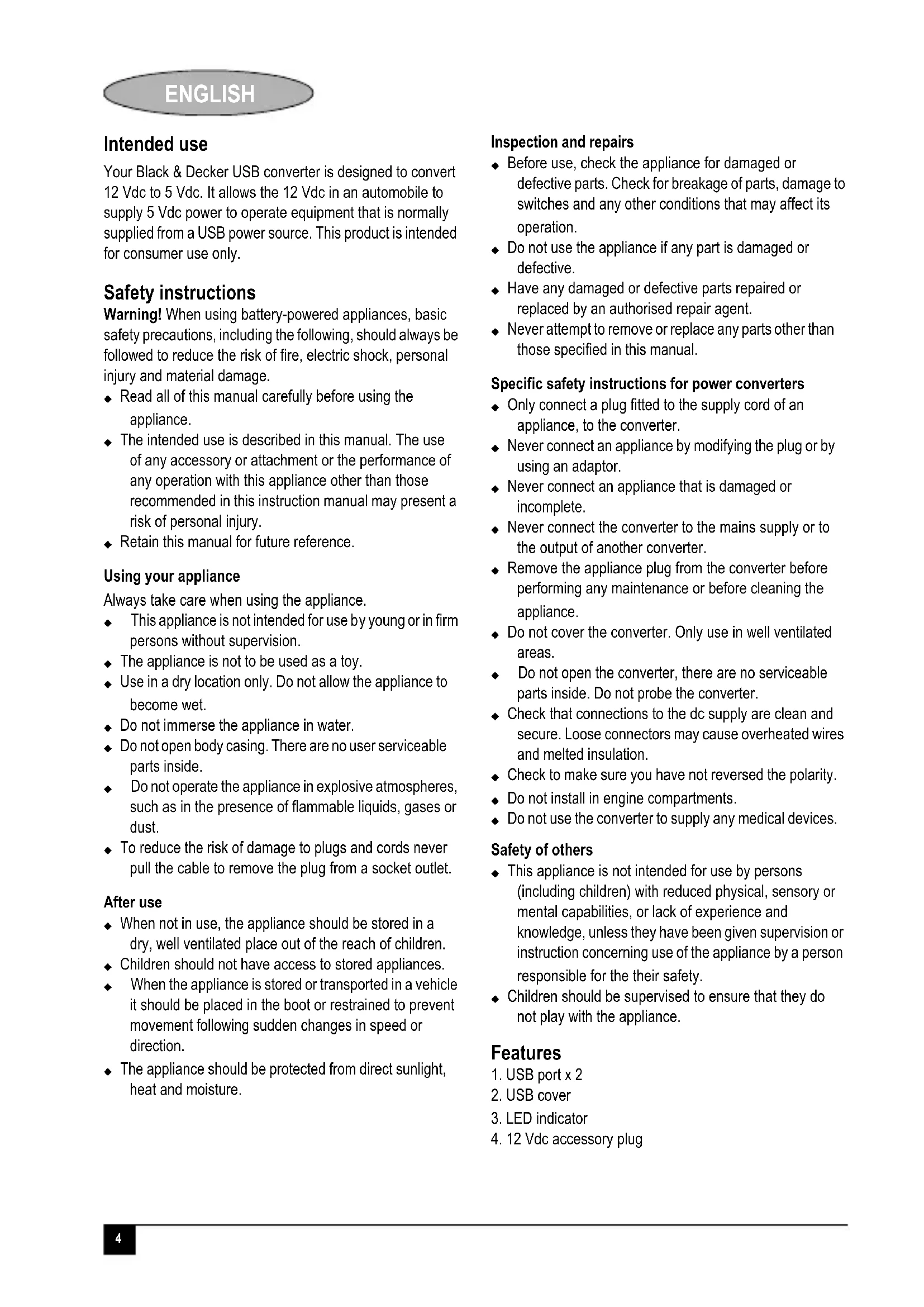

English (Original instructions) 4

Your Black & Decker USB converter is designed to convert 12 Vdc to 5 Vdc. It allows the 12 Vdc in an automobile to supply 5 Vdc power to operate equipment that is normally supplied from a USB power source. This product is intended for consumer use only.

Safety instructions

Warning! When using battery-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Read all of this manual carefully before using the appliance.
The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
Retain this manual for future reference.

Using your appliance

Always take care when using the appliance.

This appliance is not intended for use by young or in firm persons without supervision.
The appliance is not to be used as a toy.
Use in a dry location only. Do not allow the appliance to become wet.
Do not immerse the appliance in water.
Do not open body casing. There are no user serviceable parts inside.
Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
To reduce the risk of damage to plugs and cords never pull the cable to remove the plug from a socket outlet.

After use

• When not in use, the appliance should be stored in a dry, well ventilated place out of the reach of children.
  Children should not have access to stored appliances.
• When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.
  The appliance should be protected from direct sunlight, heat and moisture.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
  Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.

Specific safety instructions for power converters

• Only connect a plug fitted to the supply cord of an appliance, to the converter.
• Never connect an appliance by modifying the plug or by using an adaptor.
• Never connect an appliance that is damaged or incomplete.
• Never connect the converter to the mains supply or to the output of another converter.
  Remove the appliance plug from the converter before performing any maintenance or before cleaning the appliance.
• Do not cover the converter. Only use in well ventilated areas.
  Do not open the converter, there are no serviceable parts inside. Do not probe the converter.
  Check that connections to the dc supply are clean and secure. Loose connectors may cause overheated wires and melted insulation.
• Check to make sure you have not reversed the polarity.
  Do not install in engine compartments.
  Do not use the converter to supply any medical devices.

Safety of others

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for the their safety.
Children should be supervised to ensure that they do not play with the appliance.

Features

1. USB port x 2
2. USB cover
3. LED indicator
   4.12 Vdc accessory plug

Operating instructions

Power source requirements

The power source must provide 12 Vdc and must be able to supply the necessary current to operate the load.

Warning! The power converter must be connected only to batteries with a nominal output voltage of 12 Volts. The appliance will not operate from a 6 Volt battery and will sustain permanent damage if connected to a 24 Volt battery.

Connection to a power source.

The power converter comes equipped with a 12 Vdc accessory plug (4) for connection to a dc power source.

Connecting to a power source using the 12 Vdc accessory plug (fig. A - C)

The tip of the plug is positive (+) and the side contact is negative (-) .

Unfold the 12 Vdc accessory plug (4) from the body of the stick to one of the 5 preset positions.
Connect the power converter to the power source by inserting the 12 Vdc accessory plug (4) firmly into the accessory outlet of a vehicle or other dc power source.
The green LED (3) will light when a good connection is made.
- Lift the USB cover (2) to allow access to one or both of the USB ports (1).
Plug the USB connector from the equipment you wish to operate into the USB port (1) and run the appliance as normal.

Note: Some data cables provided by your mobile phone manufacturer do not support charging from a standard USB outlet. Check with your mobile phone manufacturer for a suitable charging cable.

Note: You can operate two USB devices simultaneously.

Warning! Do not use with positive ground electrical systems, (i.e older vehicles).

Warning! A reverse polarity connection will result in a blown fuse and may cause permanent damage to the power converter.

The power converter may be used whether or not the vehicles engine is running. However, the power converter may not operate while the engine is starting because the battery voltage can drop substantially during cranking.

Warning! Loose connectors may cause overheated wires and melted insulation. Check to make sure you have not reversed the polarity. Damage due to reversed polarity is not covered by our guarantee.

Protective features of the power converter

Your appliance monitors the following potentially hazardous conditions:

Low voltage protection. This condition is not harmful to the appliance but could damage the power source.
The appliance will automatically shut down when the input voltage drops to 10.5 + / - 0.5Vdc . The charger will automatically reset when the voltage improves to 11.5V
- Short circuit protection. A reverse polarity or short circuit condition may cause external or internal fuses to open and may cause irreversible damage to the appliance. Take extra care to insure a correct polarity connection.
Overload protection. The power inverter will automatically shut down when the continuous load exceeds the rated wattage. When the overload is removed, reset the appliance by removing the 12 Vdc accessory plug and re-insert the 12 vdc accessory plug.

Hints for optimum use

For best results, the appliance should be placed on a flat and/or solid surface. The appliance should only be used in locations that meet the following criteria:

• DRY - Do not allow water or other liquids to come into contact with the appliance.
  COOL - The surrounding air temperature should be between 4^ and 40^ (39°F and 105°F). Ideally between 15^ and 25^ (60°F and 80°F). Keep the appliance away from direct sunlight, when possible.
  WELL VENTILATED - Keep the area surrounding the appliance clear to ensure free air circulation.
  Do not place items on or over the appliance during operation. The appliance will shut down if the internal temperature gets too hot.
  SAFE - Do not use the appliance near flammable materials or in any locations that may accumulate flammable fumes or gases. This is an electrical appliance that can briefly spark when electrical connections are made or broken.

Troubleshooting

If the green LED indicator (3) is not lit:

• Check that all the dc connections are connected correctly.
• Check the tightness of the dc connections.

Note: Make sure that your accessory outlet is live. You may need to turn the ignition key to the accessory position.

If the red LED indicator (3) is lit, one of the following conditions has occurred:

Low voltage protection.

ENGLISH

Short circuit protection.
Overload protection.
Disconnect the appliance (if applicable).

Remove the 12 Vdc accessory plug, correct the fault and reinsert the 12 vdc accessory plug.

Maintenance

Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper care and regular cleaning.

Warning! Before performing any maintenance or cleaning on the appliance, unplug the appliance.

From time to time wipe the appliance with a damp cloth. Do not use any abrasive or solvent-based cleaner. Do not immerse the appliance in water.

Replacing the fuse in the vehicle dc accessory plug

Remove the cap by turning it counter clockwise.
Remove the cap and centre pin.
Remove the fuse.
Fit a new fuse of the same type and size (1.6 A).
Refit the cap and centre pin.
- Tighten the cap by turning clockwise onto the plug.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

BDPC10USB H1

Input voltage Vdc 12

Output voltage Vdc 5

Output current mA 500

Power output W 5

Weight g 50

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes.
The product has been subjected to misuse or neglect.
The product has sustained damage through foreign objects, substances or accidents.
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk.
