Product type	Cordless hand vacuum
Brand	Black & Decker
Model	HNV115J62
Power source	Rechargeable lithium-ion battery pack
Charger input voltage	120 V ~ 60 Hz
Initial charging time	at least 10 hours
Filter type	Washable and reusable filter
Filter replacement interval	Every 6 to 9 months
Replacement filter part number	EVF100
Dust bowl capacity	Approximately 0.5 L (estimate)
Intended use	Household only, dry debris pickup
Cleaning of dust bowl and filters	With warm soapy water, dry before reuse
Appliance maintenance	Damp cloth with mild detergent, do not immerse
Safety features	On/off switch, auto shut-off when released
Warranty	2-year limited (household use)
Weight	Approximately 1.5 kg (estimate)
Dimensions (H x W x D)	Approximately 30 x 15 x 10 cm (estimate)

Frequently Asked Questions - HNV115J62 BLACK & DECKER

How to charge the battery for the first time?

Before first use, charge the battery pack for at least 10 hours by plugging the included charger into a standard 120 V outlet. You can leave the appliance plugged in indefinitely.

Can I use the vacuum without the filter?

No, never use the appliance without the filters. Optimal suction requires clean and properly installed filters.

How to clean the dust bowl and filters?

Wash the dust bowl and filters with warm soapy water. Ensure they are completely dry before reinstalling.

How often should the filters be replaced?

Filters should be replaced every 6 to 9 months or when worn or damaged. Use replacement filter EVF100.

What is the charger voltage?

The charger operates on a standard 120 V ~ 60 Hz electrical outlet.

Can I use the vacuum to pick up liquids?

No, the appliance is designed only for dry debris. Do not pick up flammable liquids or hot materials.

What to do if the vacuum stops working?

Check the battery charge and ensure the filters are not clogged. If the problem persists, contact an authorized BLACK+DECKER service center.

How to optimize suction power?

Clean the filters regularly during use and do not fill the dust bowl beyond the inlet chute.

Where can I buy replacement filters?

Replacement filters (part no. EVF100) are available at BLACK+DECKER retailers or online.

What is the warranty coverage?

The appliance has a 2-year limited warranty for household use, covering material and manufacturing defects. It does not cover abuse or unauthorized repairs.

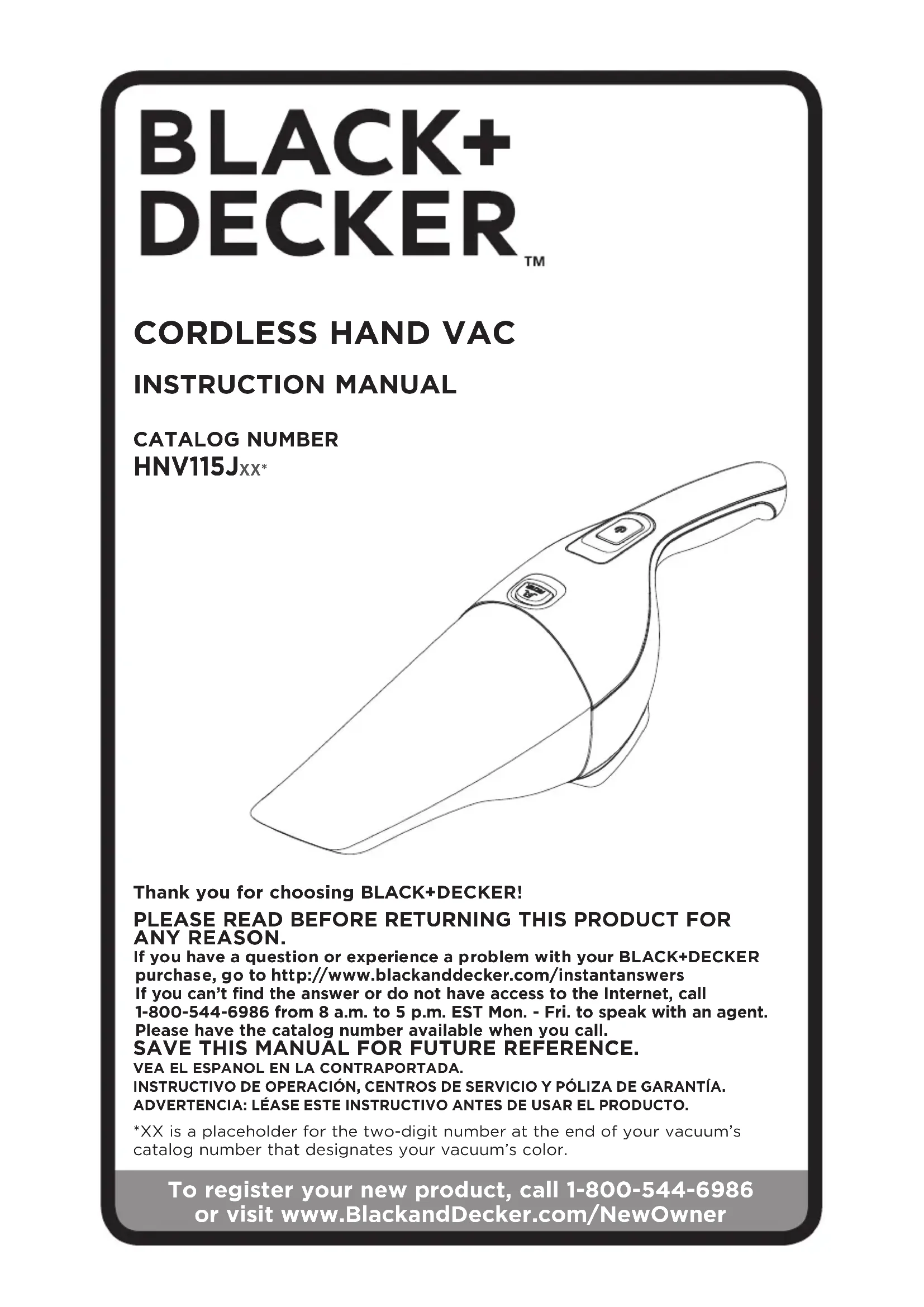

USER MANUAL HNV115J62 BLACK & DECKER

Line drawing of a handheld device with two buttons and a handle (no text or symbols)

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

VEA EL ESPANOL EN LA CONTRAPORTADA.

*XX is a placeholder for the two-digit number at the end of your vacuum's catalog number that designates your vacuum's color.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

⚠️ DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
⚠️ CAUTION: Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or mod er ate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

⚠ WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
⚠ WARNING: Some household dust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.
⚠ WARNING: To reduce the risk of fire, electrical shock or injury:

• WARNING: To reduce the risk of electric shock – Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do

not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filter in place.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• This appliance is intended for household use only and not for commercial or industrial use.
• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging base in water or other liquid.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filter as debris inside the unit can be disturbed.

ADDITIONAL SAFETY WARNINGS

a) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
b) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
c) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
d) Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause explosion.
e) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

WARNING:

Do not

attempt to modify or repair the appliance

SAVE THESE INSTRUCTIONS

Symbols

- The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts

A......amperes

Hz......hertz

W......watts

min......minutes

\~ or AC.....alternating current

or DC .direct current

n_0 ......no load speed

Class I Construction (grounded)

earthing terminal

⚠️ ......safety alert symbol

☐ ....Class II Construction (double insulated)

.../min or rpm...revolutions or reciprocation per minute

FUCTIONAL DESCRIPTION

1. On/off switch
2. Bowl release button
3. Dust bowl

Technical diagram of a handheld device with numbered components labeled 1, 2, and 3.

Charging the battery

WARNING:

For use

only with the supplied charger.

• Before first use, the battery must be charged for at least 10 hours.
• Plug the jack plug of the charger into the charging socket of the tool as shown in Figure A. Plug the charger into any standard 120 Volt 60 Hz electrical outlet.

NOTE: While charging, the charger may become warm. This is normal and does not indicate a problem. The appliance can be left connected to the charger indefinitely.

⚠ WARNING: Do not charge the battery at ambient temperatures below 50 °F or above 104 °F.

Diagram of a car's cable connector with a black arrow pointing to the cable (no text or symbols present)

Switching On - Figure B

- To switch the appliance on, depress the on/off button (1). Once the button is released the vacuum will turn off.

B

Dry pick up

• For everyday spills of dry material.
• Do not fill the dust bowl (3) beyond the end of the intake chute.

Optimizing the suction force

In order to keep the suction force optimised, the filter must be cleared regularly during use.

EMPTYING AND CLEANING THE PRODUCT.

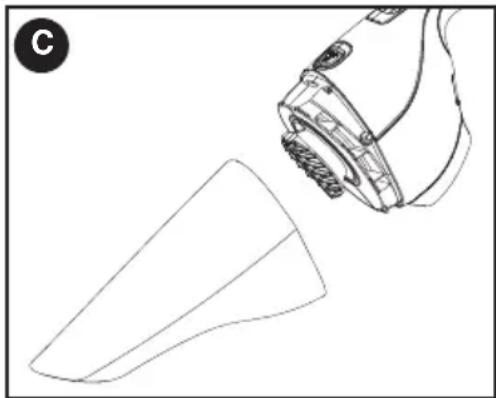

Removing the dust bowl and filter - Figures C & D

⚠ WARNING: The filter is reusable and should be cleaned regularly.

- Press the bowl release button (2) and pull the dust bowl (3) straight off as shown in Figure C.

Line drawing of a hand washing machine with a separate triangular component (no text or symbols)

• While holding the dust bowl over a bin or sink, pull out the filter (8) to empty the contents as shown in Figure D.
• To replace the dust bowl, push it back onto the handle until it clicks firmly into place.

⚠ WARNING: Never use the appliance without the filter. Optimum dust collection will only be achieved with a clean filter.

Diagram of a device with two connected parts, one showing directional arrows (no text or symbols)

Cleaning the dust bowl and filter

• The dust bowl and filter can be washed in warm soapy water.
• Make sure the filter and the dust bowl are dry before re-fitting.

Replacing the filter

The filter should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filter (catalog number EVF100) are available from your BLACK+DECKER dealer.

MAINTENANCE

Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the vac; never immerse any part of the vac into a liquid.

⚠ WARNING: Make sure the vacuum is completely dry before using it.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

The RBRC™ Seal

The RBRC® (Rechargeable Battery Recycling Corp oration) Seal on the lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative. Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc.

Accessories

Recommended accessories for use with your appliance are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

⚠ WARNING: The use of any accessory not recommended for use with this appliance could be hazardous.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

FREE WARNING LABEL

REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.
