New Phalanx 302A - Subwoofer HECO - Free user manual and instructions

Product Type	Active subwoofer
Brand	Heco
Model	New Phalanx 302A
Configuration	Active subwoofer with passive radiator
Speaker	30 cm (12 inch) woofer
Passive radiator	30 cm (12 inch)
RMS output power	250 Watts
Maximum output power	400 Watts
Frequency response	18 - 150 Hz
Adjustable crossover frequency	50 - 150 Hz
Phase adjustment	0° to 180°
Bass EQ adjustment	0 - 6 dB at 35 Hz
Dimensions (W x H x D)	380 x 442 x 435 mm
Power supply	Mains, selector 230 V / 120 V
Fuse	Type indicated on amplifier
Standby consumption	Auto mode: automatic standby
Inputs	Low level line (RCA)
Included accessories	Power cable
Speaker warranty	5 years
Amplifier warranty	2 years
Cleaning	Mild household cleaner
Operating temperature	10°C to 40°C

Frequently Asked Questions - New Phalanx 302A HECO

What is the power of the Heco New Phalanx 302A?

The RMS power is 250 Watts, with a maximum power of 400 Watts.

How to connect the subwoofer to an amplifier?

Use a dedicated subwoofer output (RCA) from your AV receiver or a low-level output for stereo operation. Connect the cable to the Line In of the subwoofer.

What is the ideal crossover frequency for this subwoofer?

The crossover frequency is adjustable from 50 to 150 Hz. For floorstanding speakers, set between 50 and 100 Hz; for bookshelf speakers, between 50 and 150 Hz.

How to adjust the volume of the subwoofer?

First set the volume of the amplifier to the center position. Set the subwoofer volume to minimum, then gradually increase to your liking while playing music.

What does the AUTO mode on the mode switch mean?

In AUTO mode, the subwoofer automatically turns on when it receives a signal and goes into standby after a few minutes without signal. The LED is green when operating, red in standby.

How to adjust the phase of the subwoofer?

In general, leave the phase at 0°. If the subwoofer is far from the main speakers or if the room has specific acoustics, you can adjust between 0° and 180° for a more natural sound.

What maintenance is required for the subwoofer?

Clean the surfaces with a mild household cleaner. Never use furniture polish or chemical solvents.

What safety precautions should be taken?

Do not open the enclosure (risk of electric shock). Avoid water splashes. Leave at least 5 cm of space around the subwoofer for ventilation. Unplug during thunderstorms or prolonged non-use.

What is the warranty of the Heco New Phalanx 302A?

Heco offers 5 years warranty on speakers and 2 years on the built-in amplifier, from the date of purchase by the first owner.

What accessories are included with the subwoofer?

The subwoofer comes with a power cable. No audio cable is provided.

USER MANUAL New Phalanx 302A HECO

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

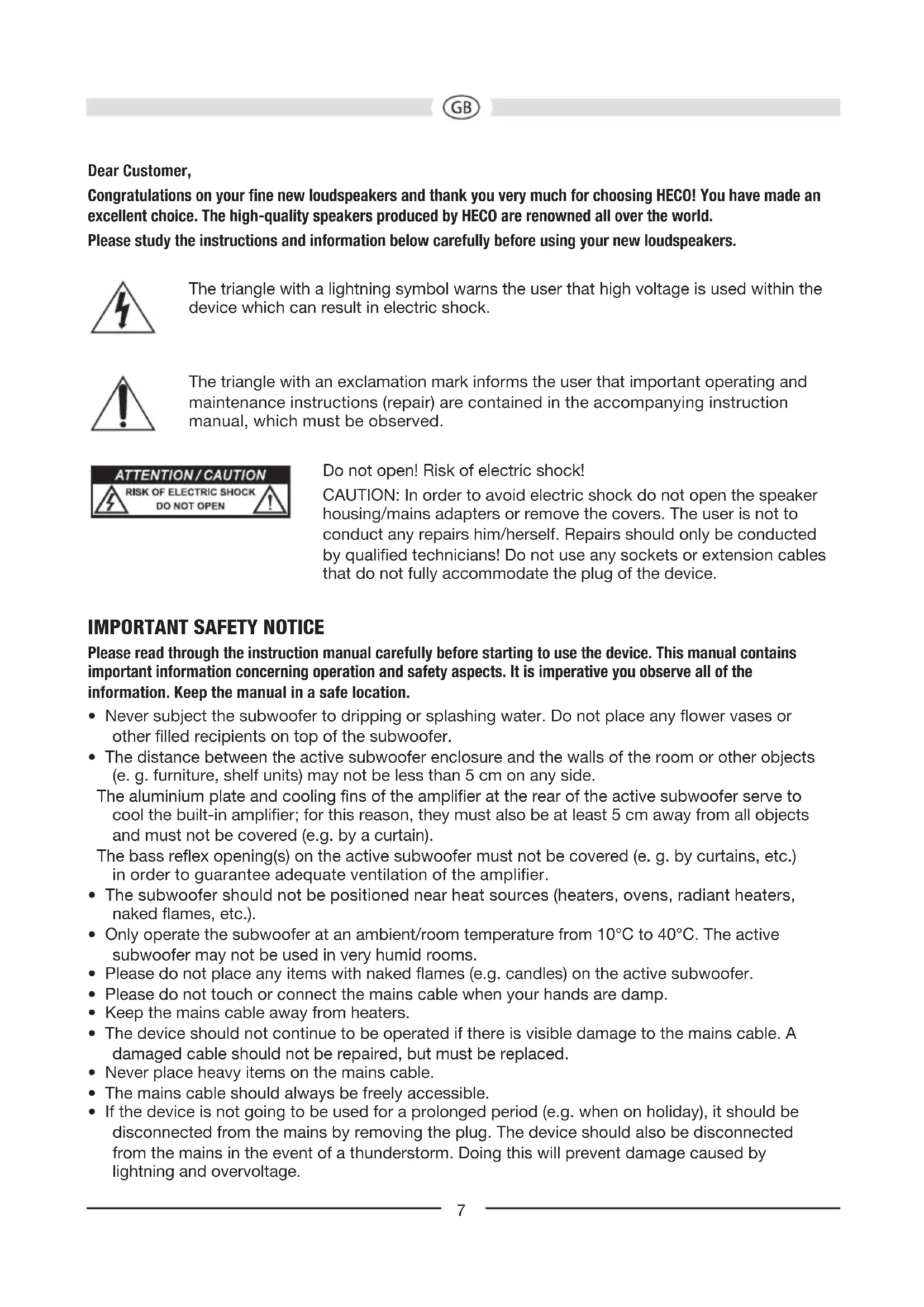

Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

Do not open! Risk of electric shock!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

IMPORTANT SAFETY NOTICE

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

• Never subject the subwoofer to dripping or splashing water. Do not place any flower vases or other filled recipients on top of the subwoofer.
• The distance between the active subwoofer enclosure and the walls of the room or other objects (e.g. furniture, shelf units) may not be less than 5cm on any side.

The aluminium plate and cooling fins of the amplifier at the rear of the active subwoofer serve to cool the built-in amplifier; for this reason, they must also be at least 5cm away from all objects and must not be covered (e.g. by a curtain).

The bass reflex opening(s) on the active subwoofer must not be covered (e. g. by curtains, etc.) in order to guarantee adequate ventilation of the amplifier.

• The subwoofer should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.).
• Only operate the subwoofer at an ambient/room temperature from 10^ to 40^ . The active subwoofer may not be used in very humid rooms.
• Please do not place any items with naked flames (e.g. candles) on the active subwoofer.
• Please do not touch or connect the mains cable when your hands are damp.
• Keep the mains cable away from heaters.
• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.
• Never place heavy items on the mains cable.
• The mains cable should always be freely accessible.

• If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.

• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.

• Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

POSITIONING

The frequency range reproduced by the subwoofer cannot be pinpointed by the human ear. That's why positioning generally doesn't present any problems. However, it is preferable to place the speaker close to the front loudspeaker in front of the listening position. You should also make sure that the distance from the sides and from the rear to items and walls is at least 20 centimetres as otherwise bass reproduction may be impaired.

THE SUBWOOFER'S OPERATING ELEMENTS (FIG. 1)

Mains connection (11), mains-voltage switch (8)

The subwoofer is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable. The voltage selector has been set at the factory to 230 V for operation in Europe.

Warning: Connecting the subwoofer to a 230 V mains outlet while the voltage selector is set to 120 V will lead to immediate destruction of the amplifier!

Operating mode switch (6), operating state LED (5), power switch (9)

	Power switch ON Power switch OFF
Operating mode switch ON	Subwoofer is in permanent operation, the LED is green.Favourable setting for the reproduction of programmes with long quiet passages (this prevents the subwoofer from switching off unintentionally).	The subwoofer is switched off, LED is off.This is the setting for when subwoofer isn't used over long periods.
Operating mode AUTO	The automatic switching on/off is activated (recommended setting).The subwoofer switches on automatically when it receives a signal from the receiver, the LED turns green.It automatically switches to standby after receiving no signals for some minutes, the LED turns red.

Line inputs (7)

For connecting to level outputs on a receiver/amplifier (stereo mode), see Fig. 2.

For connecting to an AV receiver with low-level subwoofer output, see Fig. 3.

Level control (1)

This control is used to set the bass volume according to your preferences. Proceed as follows::

1. Set the bass control of your amplifier into its centre (linear) position.
2. Important: Set the level control to its left stop (lowest volume).
3. Now, play back some music and set the volume control of the amplifier to the desired level.
4. Set the subwoofer level control to the desired bass level.

Cross-over frequency control (2)

Used to set the upper limit of the subwoofer operating range. The cross-over frequency should be set to 50 to 150Hz when the system is used in combination with shelf loudspeakers or 50 to 100Hz when used with stand loudspeakers.

Phase control (3)

In normal use the phase control should be set to 0^ . However, in rare cases it may be advantageous to vary the phase to between 0^ and 180^ (e.g. if the subwoofer is far away from the front satellites or in the event of unfa-vourable acoustics in the room). Generally speaking: the setting where the lower base tone area has a more natu-ral sound is the correct one.

Bass EQ control (4)

The low bass range level at around 35 Hz (New Phalanx 302A)/40 Hz (New Phalanx 202A) may be varied by 0 - 6 dB with this control. Which makes adapting low bass sounds to the room as well as to personal taste easy.

Fuse (10)

Only use a fuse with the parameters indicated inside the triangle next to the fuse holder, on the rear of the amplifier.

MAINTENANCE

The surface is best cleaned with a mild household cleaner. On no account use furniture polish or similar products.

SPECIFICATIONS

New Phalanx 302A New Phalanx 202A

Configuration: Powered compact subwoofer Powered compact subwoofer

Fitted with: 30 cm woofer,

30 cm bass radiator

20 cm woofer,

20 cm bass radiator

Output power RMS/Max.: 250 / 400 watts 220 / 350 watts

Frequency range: 18 - 150 Hz 20 - 150 Hz

Cross-over frequency: 50 - 150Hz ,adjustable 50 - 150Hz ,adjustable

Dimensions (WxHxD): 380 x 442 x 435 mm 270 x 285 x 305 mm

Accessories: mains cable

mains cable

Subject to technical change.

Très cher client,

COMPOSITION DU SUBWOOFER (FIG. 1)

Uitrusting 30 cm woofer

20 cm woofer

30 cm bass radiator

20 cm bass radiator

Uitgangsvermogen RMS/max.: 350 / 400 Watt 220 / 350 Watt

Frequentiebereik: 18 - 150 Hz 20 - 150 Hz

Con然是, we can find a way to do this. We can use the formula 12 to solve the problem.

Regulador de fases (3)

Components: 30 cm woofer

• 6pbI3ramN BOdbI. Kpome TOrO, Ha ca6BycpeH N B KOe Cnyae He cJeDyET CTaBNTb Ba3bl IIN DpyrHe COcyDbI, HAnOpJIHeHHbIe XnIDKOCTbIO.
  PacctoHne OT kaxdoi CTopoHbI KOpnyca AKTNBHO ca6Bypepa Do CTeH KOMHaTbI INn Dpynx oBeKToB (HapnPmep, MebeN, CTeJIaKeJ) DOJXHO COCTABNtB He MeHee 5 CM.

AnomnneBa nactHa noxnaJaIOupepepa ycnnteHa, paonnoXeHHbIe Ha 3aHne Yactn aKTHBHO rcbByepa, npEHa3HaueHbI dNr OxnaXeHn BCTpoEHORo ycJIHTeI. I03tomy OHn TaKxe DoJXhbl 6bITb paCNOXeHbI Ha pacCTOHN He MeHee 5 CM OT BCEx oBeKToB. IVx HeJIb3HaKpbIBaTb (HaPnPmep, 3aHaBeCKoJ).

OTBepCTne(-) bass reflex aktubhoro ca6byepa He doJXHO 6bITb npNKpbITo KaKIMN-1n60 IpeDMeTaMn (HaNP., 3aHaBeCmN, rapdHAmN) dnn oBeCneueHn DOCTaTOUHOB BENTINrYcNJNTeJI.

• AKTINBHyI Ca6Byep HeJIb3y yCTaHaBnBaTb prdOM C nCTOHTHKAMn TeJa (HarpeBaTeJN, Neu, 3JIeKTPOKaMHbl, OTKpbIToE IIaMa).

-3Kcnpnyatpyte yctpoNCTBO TOnbko npT TemnepaType OkpykaIOUe CpeDbI/B NOMEueHIN B Dnana3OHe OT 10°C Do 40°C. AKTNBbI Ca6ByΦep HeNb3A NCNoB3OBaTb B NOMEueHINX C NOBblSeHOB BnaJxHOCTbIO.
He cTaBbTe Ha aKTnBbI Ca6Byeep npeMeTbi, ABLRAUHcNCTOuHNKAMN OTKpbIToro ORHa (HaPmep, CBeun).
He doTpaHbTaBcRdo CeTeBOrKa6eIry He noKJIouaTb eO BnaXhbIMn DYkAmN.
- Ceteboi Ka6eIb DOJKeH HaxoINTbcra Ha DOCTaTOUHOM paCCTOHRN OT OTOINTEHBIX np60OB.
- Ecni Ha ceteBOM Ka6eJe 6dyT O6hApyKeHb IOBpeXJDeHn, 3KcNpyATnpoBaTb yCTpoCTBO 60nbue HeIb3r. NOBpeXJDeHHb K6eBb peMOHTnpoBaTb HeIb3r, eO HvXHO 3aMeHNTb.
- HN B KOEM Cnyae He Knaactb Ha ceTeBOJ Kaebj TjaKJIbe PpeDMetbl.
- CeteBaBnIka Bcerda DoJXHa 6bItb CBO6OdHO IOCTynHO.
- Ecnn np6op dIInTeBHOe BpeMn (HaNP., B OTnyCke) He nCNOJb3yeTcA, CNe dyET OTcoEHNHTb cTeBOI wTeKeP OT cETn NITAHN. Pnp6op cJeDyET TAKKe OTcoEINHATb OT cETN NITAHN BO BpeM rpo3bl. Tem camblm ppeOToBpaauaetcra NobpeKdHne OT ydapa MOHHei NOBbIeHHORo HnPaXKeHn.
He nCnoJb3yIte YnCTaIe CpeIcTba IIN XmMueckne paCTBOpNTeJI, TaK KaK OHN MOrytIOBpeIITb NOBepxHOCTb.
- PemOHThbI pa60Tb I DOJXHbI BcerDa BbINOHTbcr KBaJIINΦnIupOBaHHbIMN CneUaJIInCTamN, TaK KaK nHaue MOKeT BO3HNKHyTb ONaCHOe BbICOKoe HapJxHeHne IIN dpyrHe BNdbI ONaCHOCTn.

YCTAHOBKA

YeNoBueeCKoe yxo He MoXeT ONpeDeHnTB MeCTOHaxOXJDeHne B NOMEuEHN BOCnpON3BODMORO
ca6Bypepom YacToTHoro DnaNa3OHa, NO3OMy UcTaHOBka, B O6UeM, He PpeCTaBnReT
co6o np6bEmbl. Ho pacnoLoXeHne nepeMeCTOM CnyuAnHn B6ln3N fpoHTaIbHbIX
rPOMKOrOBOpNTeJe IABnTeCBA Cc JKe 60nee 6laRopnA rTHbIM. Kpome TOro Bby DoJxHbI CNeDITb
3a Tem, YTO6bl paCCToHHe K PpeMetam n CTehAM COCTaBnILO CO CTOPoHbI - He MeHee 20 cm, a
c3aDN - He MeHee 20 cm, INaHe BocpnOn3BeHne Hn3Knx TOHOB MoXeT 6bITb HapUSeHo.

3JIEMEHTbI YNPABJIEHnRA CABBYΦEPA (PNCYHOK 1)

IopdkloueHne K 3JeKtpocetn (11), nepeKlOuateJIb HanpJxKeHHa CETn (8)

Tak KaK peB ndTo cAbBypepe co BCTpoeHHbIM ycHnITeJem, erO Heo6xOdmo NOdkIouHTb KJIHN 3JeKTPocETn C NOMOsbIO npINIOXeHHORO CnIOBORO Ka6JIa. IpeekNIOUaTeJB CeTeBOrHO npRJaXeHHYcTaHaBJIbAeTcH Na 3aBOde-N3ROTOBNTeJe Ha 230 B dIy npImHeHHB Ebponecknx CTpaHax.

Oueh Baxho: IopKluoyehne ca6Bypepa B noLoxehnn 120 B K cetn c hapjxeHem 230 B Hen36exHo npBODNT K pa3pyuSeHIO BCTpoEHoro ycJnteIa!

IpeeknioateB peXmOB (6), HndkaTOp peXmOB (5), BbIKIOaTeB nTaHnA (9)

	ВыкlioочаелNBПТАнг - ON	ВыкlioочаелNBПТАнг OFF
Пereкlioочаелpeхимов - ON	Сабвфер pa60taeВ в рpoДOLжпельHom рexимe, CBETODIOД CBETNTСЯ 3eЛeHbIM CBETOM. БlaогриHTнайНастюкдя ВОспponЗБЕDEня прогамСДЛNTeьнblIM TИХIMN nasscaЖамN (пpeДOTВрашaTeСНЕРEDnAmpeHnOe OTKПчЕнe ca6Bvфepa).	СабвферВыкlioочeN,СbeToДIOДВыКлЮчeH
Пereкlioочаелpeхимов - AUTO	АВТOMATИЧЕСКOE BKNLOЧЕнe/ВыкlioЧЕнeakTNIB3INPOBAHO (peKOMeHdUeMbI pexkIM).Кak только са6вфер поluаeТ сигнал OT pecИВера,ON BKNLOЧAETСЯ АВТOMATИЧЕСКИ, CBETODIOД CBETNTСЯ 3eЛeHbIM CBETO.EсNi сигнал на са6вфер бolyше He потураeT,ON чepeЗ HeCKOLьКМнHyT АВТOMATИCHeСКINpepeKIIJOYaETCSВ PEXIM rOTOBHOCTH, CBETODIOДrOPIT KpacHBIM.	ЕсNi устpoйСТВОHe ИСпОлььЗУЕТСДЛNTeьнhoeВрем,TOСл徳уET ВыбразВЗTOTВарпанТНастюкNi

JIINHeHbIe BXOaBI (7)

ДяpoДКIOUeHЯ BbIXOOB Hn3KOrO ypOBHЯ pecuBepa/ycunnteTЯ (CTepeo-pexM) CMOTpn pucyHOK 2.

Дя подклоченя K AV-pecnBepc BbIXOOM Hn3KOro ypoBHa ca6Bypep cmoTpnpuc.3.

Perynatop ypOBn (1)

C nmoaio 3Toro peryIaTopa moXHO yCTaHOBNTb rpOMKocTB B dnaNa3OHe Hn3Knx YacTOT corlacho Baewmy keJahHIO cneDyUoMm o6pa30M:

1. PeryIaTOp ypoBHa Hn3Knx YactOT ycJIInTeY npUBeCTN B cpeJHHe noIOKeHne (JINH.)
2. OueHb BaXHo: PeryIaTOp ypoBHa NOBepHyTb Do JeBOrO ynopa (camaa Hn3Kaar rpomKoCTb).
3. BkIIOHTb My3bIKy n C NOMOUIpo peryIaTopa ycINITeIN NOBICNTb rPOMKoCTb DO XeJaEMORO yPOBHa.
4. C nOmoIbIpoIpyIaIopAp yPoBHaYcTaHOBnTb yPoBeHb Hn3Knx YacTOT Ha JxEJaemyI rPOMKOCTb.

PerynTop pa3dienlntelbHoi yacToTbI (2)

C nOMOuIIO 3TOrOppeRyIHTopapeKOMeHdyem yCTaHOBnTB caMyo BbICOKyo qACTOTy,Ha KOTopoIc6Byep moKet pa6oTaTb.B KOMbHaun C rPOMKOrOBOpnteJHMn dJI NOLOK, qACTOTy peKOMeHdyETcraYCTaHOBnTB Ha 50r -150r,ecnn Jxep PnIMeHOTcAINHAMNKdJI NOnA,TopeKOMeHdyETcraYCTaHOBka Ha 50r -100r.

Φa3operyJrTop (3)

O6bIuH Oa3OperyIaTOp DoJxeh CToaTb Ha 0°. OdHaKo, B peKnx CnyaIax, 6OJIe CEnecoO6pa3HbIM MoKeT Oka3aTbCBAbpHpOBKa pa3bl MeJxdy 0° n 180° (HaNPmEp, npi 6OJIbwo OTdaJIeHHocTI ca6Bypepa ot pOHTaJIbHbIX CaTeJIITOB IIN npi He6laRopnA rTHbIX aKyCTnueckNX CBOIcTBax NOMEseHn). YHNBepcaJIbHbIM ABJIeTCr npaBnIO: PpaBnIbHOI NO3NcIeN JABJIeTCr Ta, npi KOToPOH HIXHNI DnaIa3OH OCHOBbIX TOHOB 3ByHIT Han6OJIe ECTECTBEHNO.

PeryJrTop Bass EQ (4)

KoHcHpyaun: aKTHBbI ca6Byeep aKTHBbI ca6Byeep

KoMnJIeKtau3 30 cm woofer

30 cm bass radiator

20 cm woofer

20 cm bass radiator

BbIXoHnHa MoUHocTb RMS/MaKc.: 250/400 BaTT 220/350 BaTT

Congratulations! You have made a wise selection in becoming the owner of a HECO HiFi equipment. Due to high quality HECO HiFi products have earned an excellent reputation through the western world. And this high quality standard enables a 5-years warranty for HECO HiFi speakers and a 2-years warranty for HECO HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your HECO HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition the quality control card has been filled out and enclosed with the component your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force.
6. Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us.
7. Consequential damages to other equipments.
8. Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos felicitations!

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

StraBe/Street

PLZ, Ort/City

Land/Country

Kaufdatum/buying date

No warranty without receipt!

HECO®

Lise-Meitner-Str. 9 • D-50259 Pulheim • Germany
Tel. [phone] / 807 - 0 • Fax [phone] / 807 - 399
Internet: http://www.heco-audio.de
