Product type	Bluetooth headset with receiver and transmitter mode
Brand	Samsung
Model	EO-RG920A
Operating modes	Receiving and transmitting
Wireless connectivity	Bluetooth 2.4 GHz, range up to 10 meters
Bluetooth profiles	HFP, A2DP, AVRCP
Supported audio codec	aptX Low Latency (transmitter mode with a single device)
Multipoint connection	Up to 2 devices simultaneously
Battery life	Approximately 8 hours (depending on usage)
Charging time	Approximately 2 hours
Battery level indicator	Tricolor LED: red (<30%), yellow (30-60%), green (>60%)
Weight	Approximately 30 g
Box contents	Level Link device, earphones, USB cable, audio cable, quick start guide
Main functions	Call control, multimedia play/pause, volume, S Voice, fast forward/rewind
Audio input/output	3.5 mm audio jack for earphones or audio cable
Care and cleaning	Clean with a soft, dry cloth; avoid liquids
Safety	Caution: risk of strangulation if earphones wrap around the neck; use only Samsung-approved accessories
Repairability and spare parts	Battery not user-replaceable; contact a Samsung service center for replacement
General information	Manufactured by Samsung; compatible with most Bluetooth devices; CE compliance

Frequently Asked Questions - EORG920A SAMSUNG

How to pair the Samsung Level Link in receiver mode with a smartphone?

Slide the mode switch to the left (receiver mode) on the device. Then press and hold the Multifunction button for about 3 seconds until the LED flashes red, green, and blue. On your smartphone, enable Bluetooth and search for devices. Select Samsung Level Link from the list. Earphones can be plugged into the audio jack.

How to use transmitter mode to stream sound from a TV to a Bluetooth headset?

Slide the mode switch to the right (transmitter mode). Press and hold the Multifunction button for 3 seconds to enter pairing mode. Place the Level Link within 30 cm of the Bluetooth headset, then pair it via Bluetooth. Then connect the audio cable to the audio jack of the Level Link and to the audio output of the TV. Note: synchronization issues may occur; preferably use a TV compatible with aptX Low Latency.

What to do if the battery does not charge?

Make sure the USB cable is properly connected to the device and to a Samsung-approved charger. If the problem persists, try another cable or charger. If the battery is completely discharged, let it charge for a few minutes before turning on the device. If nothing works, contact a Samsung service center for battery replacement.

Can I connect the Level Link to two devices at the same time?

Yes, the Level Link can connect to two Bluetooth devices simultaneously in receiver or transmitter mode. To add a second device, follow the same pairing procedure as for the first. Note that in transmitter mode with two audio devices, the aptX Low Latency codec is not supported, which may cause audio-video desynchronization.

How to check the battery level of the Level Link?

Simultaneously press and hold the volume up (+) and Multifunction buttons for 1 second. The LED flashes three times: red (less than 30%), yellow (30-60%), or green (more than 60%).

The sound is out of sync with the video on my TV. What to do?

In transmitter mode, synchronization issues may occur. Use a TV compatible with the aptX Low Latency codec. If you are using two Bluetooth headsets simultaneously, the codec is not supported; try connecting only one. You can also reduce the distance between the Level Link and the TV.

Can I use the Level Link with my TV wirelessly?

Yes, in transmitter mode. You must connect the Level Link to the TV via an audio cable (3.5 mm jack) and then stream the sound to a paired Bluetooth headset. Make sure the TV has an audio output and that the volume is set correctly to avoid background noise.

How to reset Bluetooth connection data of the Level Link?

Press and hold the Multifunction button for 3 seconds to enter pairing mode. Then simultaneously press and hold the REW, FF, and Multifunction buttons for 3 seconds. The connection information will be cleared. You will need to re-pair the device with your peripherals.

The microphone does not work during calls. What to check?

Make sure nothing obstructs the built-in microphone (located on the device). Check that the device is worn correctly, with the microphone near your mouth. Adjust the volume of the connected device. If the problem persists, disconnect and reconnect the Level Link via Bluetooth.

How to clean the Samsung Level Link?

Use a soft, dry cloth to clean the device. Do not use chemicals or liquids. Store the device in a dry place and avoid exposure to extreme temperatures. For the earphones, wipe them with a slightly damp cloth and allow them to air dry.

USER MANUAL EORG920A SAMSUNG

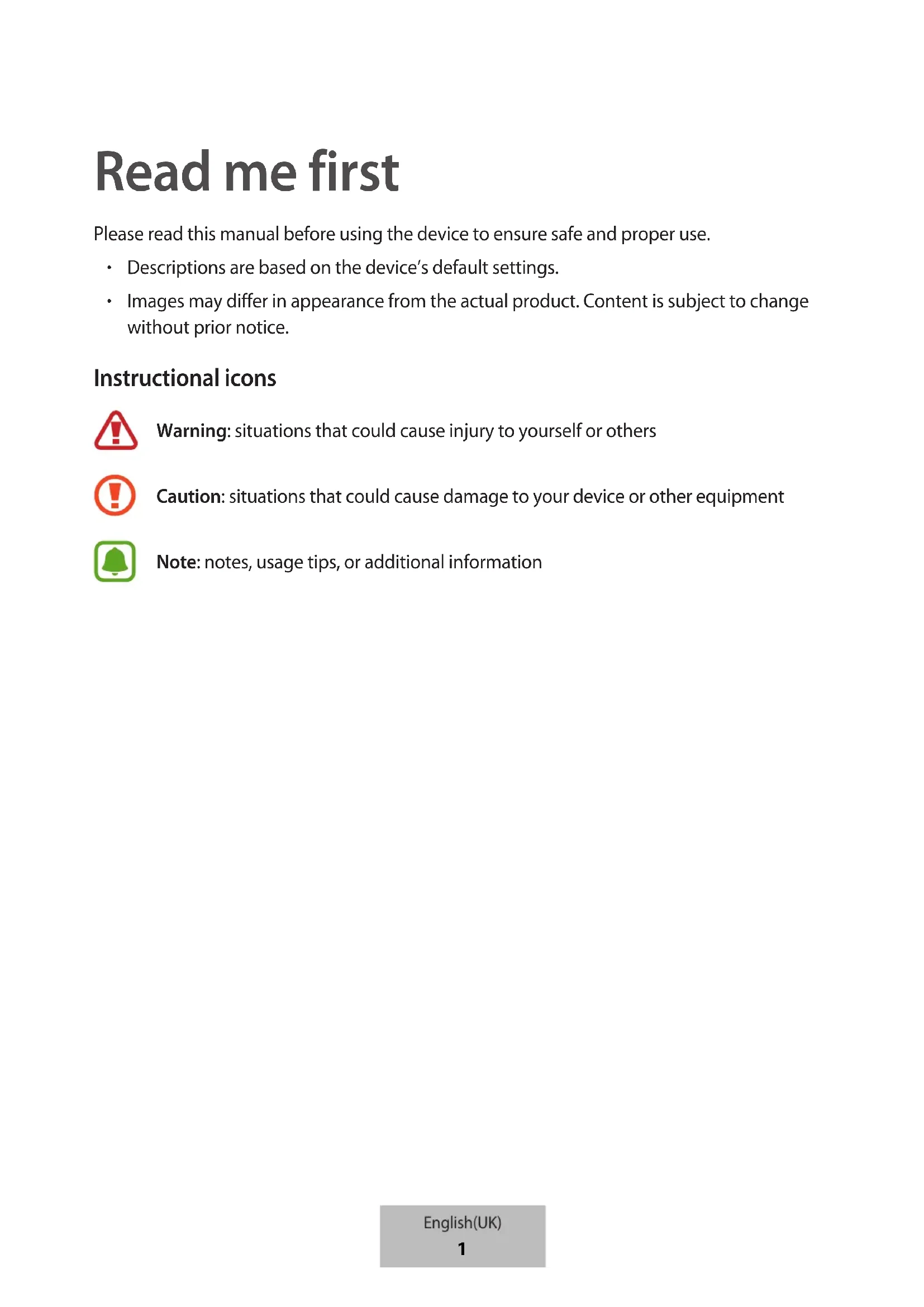

Please read this manual before using the device to ensure safe and proper use.

• Descriptions are based on the device's default settings.
• Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

Getting started

About Level Link

The Level Link supports receiving mode and sending mode. In receiving mode, you can connect earphones to the Level Link and use it as a Bluetooth headset for Bluetooth-enabled devices, such as smartphones or tablets. In sending mode, you can use the device as a dongle that connects to computers, TVs, Bluetooth headsets, and more.

In receiving mode, you can use the following features:

• Launching S Voice
  • Receiving or ending calls
  • Controlling multimedia files

In sending mode, you can play sound of the connected multimedia device.

Package contents

Check the product box for the following items:

• Device
• Earphones
• USB cable
• Audio cable
• Quick start guide

- The items supplied with the device and any available accessories may vary depending on the region or service provider.

- The supplied items are designed only for this device and may not be compatible with other devices.

• Appearances and specifications are subject to change without prior notice.

- You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

- Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

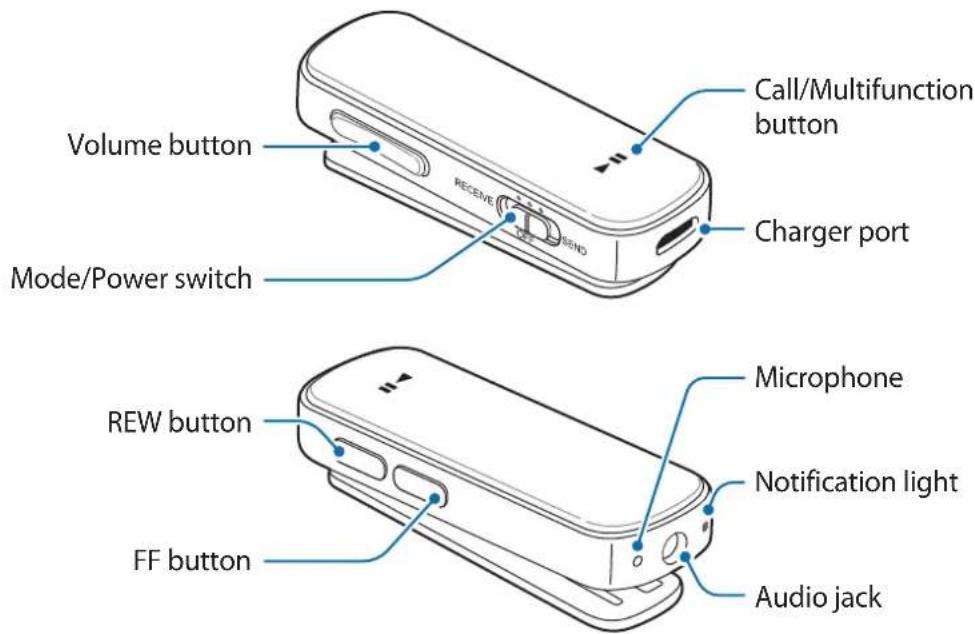

Device layout

Volume button Mode/Power switch Call/Multifunction button Charger port REW button FF button Microphone Notification light Audio jack

Buttons and functions

Name Function
Mode/Power switch	Slide left to activate receiving mode and slide right to activate sending mode.Slide to OFF to turn off the device.
Call/Multifunction button	In receiving mode, press and hold for 1 second to launch S Voice.In receiving mode, press to answer or end a call.In receiving mode, press and hold to reject a call.In receiving mode, press and hold to transfer calls from the Level Link to your other device, or vice versa.In receiving mode, press to play or stop multimedia files.In receiving mode or sending mode, press and hold for 3 seconds to enter Bluetooth pairing mode.
Volume button	In receiving mode, press to adjust the volume during a call.In receiving mode, press to adjust the volume while playing multimedia files.
REW button / FF buttons	In receiving mode, press to play the previous or next multimedia file during playback.In receiving mode, press and hold to rewind or fast forward a multimedia file during playback.

Status indicator

Status Colour
Bluetooth pairing mode	• Flashing red, green, and blue
Power on or activate modes	• Flashing blue 3 times
Power off	• Flashing red 3 times
Incoming call	• Flashing blue

Charging the battery

Charge the battery before using the Level Link for the first time or when the Level Link has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the headset.

If the battery is completely discharged, the headset cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the headset.

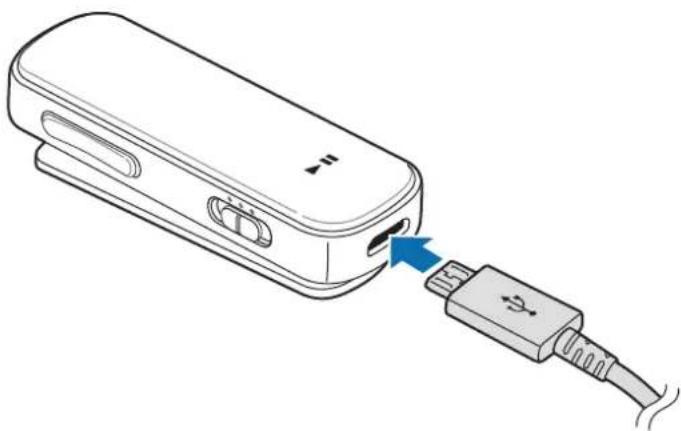

Connect the device to a computer or the USB power adaptor via the USB cable.

Line drawing of a USB connector with a blue arrow pointing to the connector (no text or symbols present)

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

• The device can be used while it is charging, but it may take longer to fully charge the battery.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Checking the battery level

Simultaneously press and hold the Volume up button and the Multifunction button for 1 second. The notification light flashes three times in different colours according to the charging status.

Status Colour
Less than 30%	• Red
30-60%	• Yellow
More than 60%	• Green

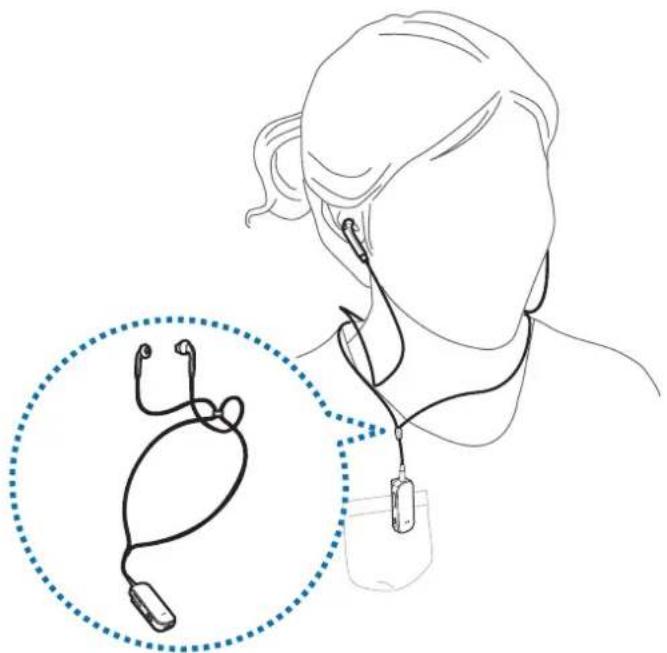

Wearing the device and earphones

Connect the supplied earphones to the Level Link and wear them around your neck.

1 Plug the earphones into the audio jack of the Level Link.
2 Adjust the earphone clip form a loop large enough to fit your head through.

3 Clip the Level Link on your clothes.
4 Wear the earphones around your neck and plug in the earbuds.

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Use caution when using this device with wired earphones. You may choke if the earphones wrap around your neck.

Turning the device on and off

• : Activate receiving mode.
• : Activate sending mode.
• :Turn off the device.

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Using the device

Bluetooth

About Bluetooth

Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

Notices for using Bluetooth

• To avoid problems when connecting your device to another device, place the devices close to each other.
• Ensure that your device and the other Bluetooth device are within the Bluetooth connection range (10 m). The distance may vary depending on the environment the devices are used in.
• Ensure that there are no obstacles between the headset and a connected device, including human bodies, walls, corners, or fences.
• Do not touch the Bluetooth antenna of a connected device.
• Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.
• Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with the headset.
• Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes).

Connecting to other devices

Sound quality and usage range between the Level Link and connected audio devices may vary depending on the Bluetooth-enabled audio devices.

Connecting in receiving mode

You can receive incoming calls or listen to music when your Level Link is connected to Bluetooth-enabled devices. When you turn on the Level Link for the first time, it enters Bluetooth pairing mode.

• When pairing the Level Link with other devices via Bluetooth for the first time, the Level Link automatically connects to the paired devices. If the Level Link fails to connect, it enters Bluetooth pairing mode.
• The Level Link can store device information for up to eight devices. If the Level Link has been connected to more than one device, it connects to the most recently paired device.

1 Level Link Slide the Mode switch to the left to activate receiving mode.
2 Level Link Press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
3 Other device Activate the Bluetooth feature and search for Bluetooth devices.

For more information, refer to the other device's user manual.

4 Other device Tap Samsung Level Link from the list.

Galaxy Hoffer Samsung Level Link

5 Level Link Connect the earphones to the Level Link.

Or, connect the Level Link to the auxiliary input jack of an audio output device via an audio cable.

In this mode, if you connect the Level Link via an audio cable to a TV or computer's audio output jack, your Level Link may be damaged.

Connecting in sending mode

Connect your device to a multimedia player, via the audio cable. You can listen to multimedia files via another audio device, such as a Bluetooth headset. When you turn on the Level Link for the first time, it enters Bluetooth pairing mode.

• When pairing the Level Link with other devices via Bluetooth for the first time, the Level Link automatically connects to the paired devices. If the Level Link fails to connect, it enters Bluetooth pairing mode.
• The Level Link can store device information for up to eight devices. If the Level Link has been connected to more than one device, it connects to the most recently paired device.

1 Level Link Slide the Mode switch to the right to activate sending mode.
2 Level Link Press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
3 Level Link Place your Level Link within 30 cm of the paired audio device.

The Level Link and the audio device are now connected via Bluetooth. If the connection fails, turn off the audio device and turn it on again. Then, repeat the steps above.

4 Plug the audio cable into the audio jack of the Level Link. Then, plug the other end of the audio cable into the audio output jack of the multimedia player.

• The method for connecting via Bluetooth may vary depending on the connected devices. For more information, refer to the user manual of the connected device.
• When the Level Link is connected to a TV in sending mode, lipsync problems may occur. It is recommended to connect the Level Link to a TV that supports the aptX low-latency codec.
• When using the Level Link with a multimedia player, turn down the multimedia player's volume before unplugging the audio cable to prevent sudden, loud sounds.
• You may experience drops in volume or noise depending on the connected multimedia player's volume. To avoid this, appropriately adjust the multimedia player's sound.

Connecting additional devices

In receiving mode or sending mode, your Level Link can connect to up to two devices via Bluetooth.

1 In receiving mode or in sending mode, connect your Level Link to the first device.

2 Connect the Level Link to a second device via Bluetooth using the connection method used for the first device.

• In receiving mode, if the Level Link does not appear in the detected devices list, press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
• In sending mode, the Level Link supports the aptX low-latency codec when it is connected to one audio device. If two audio devices are simultaneously connected to the Level Link, the aptX codec is not supported and video and audio output may not be synchronised.
• In sending mode, the usage range between the Level Link and other devices may be reduced.

Reconnecting or disconnecting from other devices

Reconnecting the devices

When your Level Link is disconnected from the audio device due to the distance between the devices, bring the devices closer together and press the Multifunction button to pair them again. Or, you can use the Bluetooth menu on the audio device to pair the devices.

Disconnecting the devices

To disconnect the Level Link from the audio device, turn off your device or unpair the devices. If you connected the two devices via an audio cable, unplug the cable from both devices.

Using receiving and sending modes

In receiving mode, you can launch S Voice, answer incoming calls, or play multimedia files. In this mode, use your Level Link with earphones, or connect the Level Link to an audio device via an audio cable.

In sending mode, you can listen to audio from the multimedia player via the connected audio device.

• Available features may vary depending on the device you connect to. Some features may not be available if the Level Link is simultaneously connected to two devices.
• Some features are available only when the Level Link connects to a device via the Hands-Free Profile (HFP).
• The microphone's location varies depending on how you are wearing the Level Link. The position of the Level Link may affect to sound quality during calls.

Launching S Voice

Press the Multifunction button for 1 second. If the connected device support S Voice, you can use the app via the Level Link.

Answering and rejecting calls

Answering a call

Press the Call button to answer calls made to the connected device.

Rejecting a call

Press and hold the Call button to reject calls made to the connected device.

Using options during a call

Adjusting the volume

During a call, press the Volume button to adjust the volume.

Switching sound output

Press and hold the Call button to transfer calls from the Level Link to the connected device. This feature may not be available depending on the connected device.

Ending a call

Press the Call button to end a call.

Playing multimedia files

Play multimedia files in receiving or sending mode. Available features may vary depending on the mode being used.

Playing and stopping a multimedia file

Press the Multifunction button to play the most recent multimedia file on the connected device.

Press the Multifunction button to pause playback. To resume playback, press the Multifunction button again.

Skipping to the previous or next multimedia file

Press the REW button or the FF button to skip to the previous or the next file during playback.

Rewinding or fast forwarding the multimedia file

Press and hold the REW button or FF button to rewind or fast forward the file during playback.

Adjusting the volume

Press the Volume button to adjust the volume.

• When the Level Link is connected to two devices, you can play multimedia files from either device. To play a multimedia file from a different device, pause playback from the other device first.
• When you play a multimedia file from one device, you can still answer calls from the other device.
• If there are differences in the output power of the audio cable and the connected audio device in sending mode, the sound volume on the Level Link may vary.

Performing a data reset

When your Level Link is connected to a device via Bluetooth, the Level Link's information, such as Bluetooth address and device type, is stored on the connected device. To delete the Level Link's connection information, press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode. Then, press and hold the REW, FF, and Multifunction buttons simultaneously for 3 seconds.

Appendix

Troubleshooting

Before contacting a Samsung Service Centre, please attempt the following solutions. Some situations may not apply to your device.

Your device does not turn on

When the battery is completely discharged, your device will not turn on. Charge the battery completely before turning on the device.

The battery does not charge properly (For Samsung-approved chargers)

• Ensure that the charger is connected properly.
• Visit a Samsung Service Centre and have the battery replaced.

Another Bluetooth device cannot locate your device

• Ensure that your device is in Bluetooth pairing mode.
• Reset the device and search for Bluetooth devices.
• Ensure that your device and the other Bluetooth device are within the Bluetooth connection range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Centre.

Another Bluetooth device is not located

• Ensure that the device you wish to connect with supports the Bluetooth wireless feature.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

Bluetooth connect is often disconnected

• If there are obstacles between the devices, the operating distance may be reduced.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• When using the device with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the device in environments with fewer wireless devices present.

You cannot hear others speaking

• Adjust the device volume.
• Adjust the volume on the connected device when you cannot hear sounds on your device at full volume.

Sound echoes during a call

Adjust the volume by pressing the Volume button or move to another area.

Others cannot hear you speaking on a call

• Ensure that you are not covering the built-in microphone.
• Ensure that the microphone is close to your mouth.

Audio quality is poor

• Wireless network services may be disabled due to issues with the service provider's network. Ensure to keep the device away from electromagnetic waves.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

The device works differently as described in the manual

• Available functions may differ depending on the connected device.
- Some features cannot be used when two devices are connected with the device at the same time.

The battery depletes faster than when first purchased

• When you expose the device or the battery to very cold or very hot temperatures, the useful charge may be reduced.
  • The battery is consumable and the useful charge will get shorter over time.

Removing the battery (non-removable type)

• These instructions are only for your service provider or an authorised repair agent.
- Damage or faults caused by the unauthorised removal of the battery are not covered by the warranty.
- To remove or replace the battery, contact your service provider or an authorised repair agent.

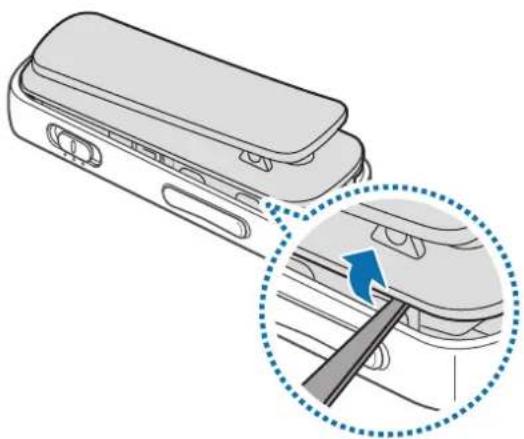

1 Insert a thin, flat tool into the gap between the cover and the device's body. Then, use the tool to pry them apart as shown in the image below.

Diagram showing a car interior with a magnified view of the door handle and a blue arrow indicating direction (no text or symbols present)

Take care when inserting the tool to avoid damaging the device's internal components.

2 When the cover is separated, put it aside.

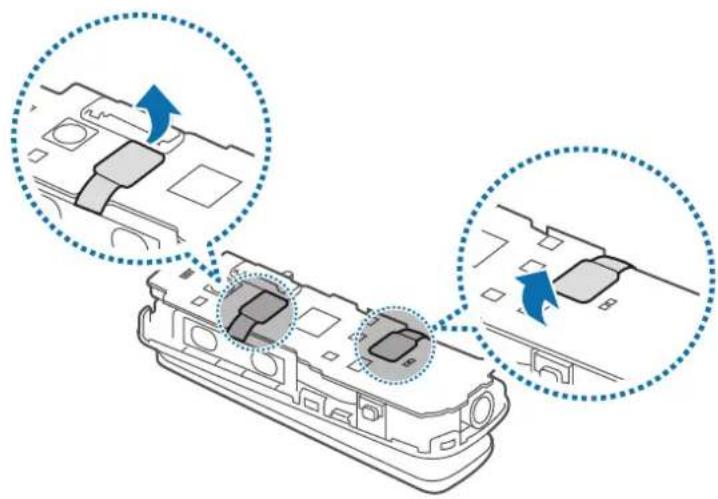

3 Disconnect the battery connectors.

Diagram showing two views of a car body panel with arrows indicating movement or assembly (no text or symbols present)

4 Remove the circuit board by detaching it from the device's body and place it face down on a flat surface.

Technical illustration of a mechanical component with no visible text or symbols

5 Press down on the charging port and pull the battery upwards to free it from the circuit board.

Diagram of a device with a blue arrow pointing to a component, showing no text or symbols.

Appendix

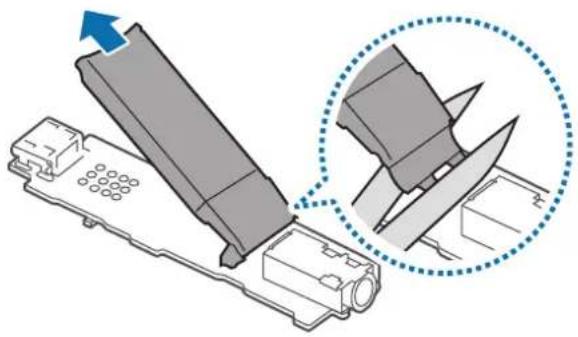

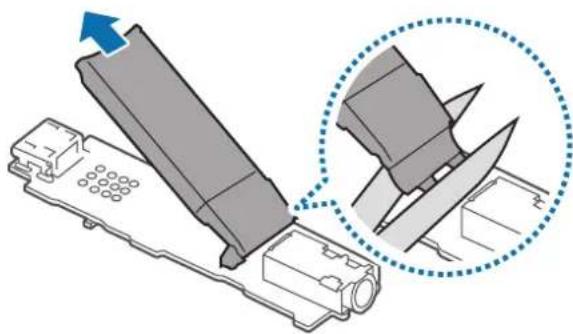

6 Pull the battery away from the circuit board and cut the connections where shown in the image below.

Diagram showing a device with a handle and a close-up of its blade assembly (no text or symbols present)

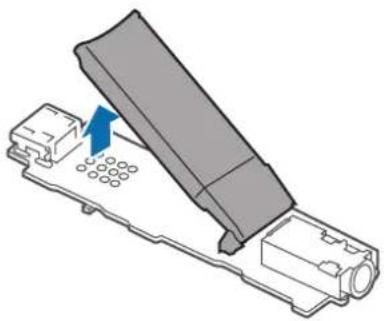

7 Remove the battery.

Copyright

Copyright © 2015 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- Bluetooth ^ is a registered trademark of Bluetooth SIG, Inc. worldwide.
• All other trademarks and copyrights are the property of their respective owners.

Line drawing of a USB cable connector inserted into a device (no text or symbols)

Line drawing of a person wearing earphones and holding a medical device (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a vehicle engine compartment with blue arrows indicating direction of movement (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Annexe

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Retirez la batterie.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a device casing with internal components, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Anhang

Diagram showing a device being inserted into a housing, with an inset close-up highlighting the component (no text or symbols present)

Blackbushe Business Park,

Saxony Way, Yateley, Hampshire,

GU46 6GG, UK

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram showing a car interior with a magnified view of the handle and arrow indicating direction (no text or symbols present)

Diagram showing two views of a device casing with internal compartments, each marked with blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Appendice

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Rappresentante UE

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device (no text or symbols)

Diagram showing a car interior with a magnified view of the door handle and arrow indicating rotation (no text or symbols present)

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Apéndice

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Representante UE

Copyright © 2015 Samsung Electronics

Line drawing of a USB cable connector inserted into a device (no text or symbols)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram showing a car interior with a magnified view of the door handle and arrow indicating rotation (no text or symbols present)

Diagram showing two views of a device casing with internal components, each marked with blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a mechanical component with a blue arrow indicating a specific part (no text or symbols present)

Függelék

Diagram showing a device being inserted into a housing, with an inset close-up of the component (no text or symbols present)

Blackbushe Business Park,

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a blue arrow pointing to the handle (no text or symbols present)

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow indicating a component or operation, no text or symbols present

Dodatek

Diagram showing a device being inserted into a housing, with an inset close-up highlighting the component (no text or symbols present)

7 Wyjmij baterię.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Diagram showing a car interior with a magnified view of the handle and arrow indicating direction (no text or symbols present)

Diagram showing two views of a vehicle engine compartment with blue arrows indicating direction of movement (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Anexă

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Scoateți bateria.

Declaratie de conformitate

Datele produsului

Pentru următoarele

Produs: Cheie Bluetooth

Model: EO-RG920

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Representant UE

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device component with a blue arrow indicating a specific part (no text or symbols present)

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Представител на EC

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Pri umetanju alata vodite računa da ne oštetite unutrašnje dijelove uređaja.

2 Kad ste odvojili poklopac odložite ga sa strane.

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

4 Odvojite tiskanu pločicu od kućišta uređaja, izvadite ju i položite licem prema dolje na ravnu površinu.

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Dodatak

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Uklonite bateriju.

Izjava o sukladnosti

Pojedinosti o proizvodu

Za sljedeći

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Predstavnik EU

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Nepravilno priključivanje punjača može da dovede do ozbiljnih oštećenja uređaja. Sva šteta nastala nepravilnim korišćenjem nije pokrivena garancijom.

- Uređaj može da se koristi dok se puni, ali će se tako produžiti vreme do napunjenosti baterije.

- Dok ga punite, uređaj može da se zagreje. Ovo je uobičajeno i ne bi trebalo da utiče na životni vek ili rad uređaja. Ukoliko se baterija zagreje više od uobičajenog, punjač može da prekine punjenje.

- Ako se uređaj ne puni na odgovarajući način, odnesite uređaj i punjač u servisni centar kompanije Samsung.

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing the lever mechanism (no text or symbols)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

4 Uklonite štampanu ploču tako što ćete je odvojiti od tela uređaja i stavite je licem nadole na ravnu površinu.

Technical line drawing of a mechanical component with no visible text or symbols

5 Pritisnite priključak za punjenje i povucite bateriju nagore kako biste je odvojili od štampane ploče.

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Dodatak

6 Izvucite bateriju sa štampane ploče i presecite veze gde je prikazano na slici u nastavku.

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Uklonite bateriju.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Predstavnik za EU

(mesto i datum izdavanja) (ime i potpis ovlašćene osobe)

* Ovo nije adresa Samsung servisnog centra. Adresu ili broj telefona Samsung servisnog centra potražite garantnoj kartici ili se obratite prodavcu kod kojeg ste kupili proizvod.

Autorska prava

Copyright © 2015 Samsung Electronics

Ovaj priručnik je zaštićen međunarodnim zakonima o autorskim pravima.

Nijedan deo ovog priručnika se ne sme reprodukovati, distribuirati, prevoditi niti prenositi ni u jednom obliku niti bilo kojim putem, elektronskim niti mehaničkim, što podrazumeva fotokopiranje, snimanje i skladištenje u okviru bilo kog skladišta informacija i sistema za preuzimanje, bez prethodne dozvole kompanije Samsung Electronics u pisanom obliku.

Trgovačke marke

• SAMSUNG i SAMSUNG logotip su registrovane trgovačke marke kompanije Samsung Electronics.
• Bluetooth® je registrovana trgovačka marka kompanije Bluetooth SIG, Inc. širom sveta.
• Sve ostale trgovačke marke i autorska prava su vlasništvo njihovih vlasnika.

Leia primeiro

Line drawing of a device with an attached USB cable and a blue arrow pointing to the cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a blue arrow pointing to the handle (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Índice

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Retire a bateria.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Representante UE

Copyright © 2015 Samsung Electronics

Este manual está protegido pelas leis internacionais de copyright.

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device (no text or symbols)

Diagram of a car interior showing a handle and seat, with a magnified inset highlighting the mechanical component (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

5 Uzspiediet uz uzlādes porta un pavelciet akumulatoru uz augšu, lai atbrīvotu to no mikroshēmas plates.

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Pielikums

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Iznemiet akumulatoru.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Sholdough

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical illustration of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Priedas

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / ES atstovas

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing the lever mechanism (no text or symbols)

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

Technical illustration of a mechanical component with no visible text or symbols

3D diagram of a device component with a blue arrow indicating a specific part (no text or symbols present)

Lisa

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Eemaldage aku.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / EL-i volinik

Copyright © 2015 Samsung Electronics

Line drawing of a USB cable connector with an open port, showing no text or symbols

Line drawing of a person wearing earphones and holding a medical device (no text or symbols)

Diagram showing a car interior with a magnified view of the door handle and arrow indicating direction (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Bijlage

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / EU-vertegenwoordiger

Copyright © 2015 Samsung Electronics

Line drawing of a device with an attached USB cable and a blue arrow pointing to the cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Diagram showing a device being inserted into a device with a magnified inset highlighting the blade structure (no text or symbols present)

7 Ta bort batteriet.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / EU-representant

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Hvis du kobler til laderen feil, kan dette føre til alvorlige skader på enheten. Skader som er forårsaket av feil bruk, dekkes ikke av garantien.

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Ta ut batteriet.

Samsvarserklæring

Produktdetaljer

For følgende

Produkt : Bluetooth-dongle

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / EU-representant

Copyright © 2015 Samsung Electronics

Line drawing of a device with an attached USB cable and a blue arrow pointing to the cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing the blade being inserted (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Liite

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Irrota akku.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a tool interacting with the door (no text or symbols present)

Diagram showing two views of a device casing with internal compartments and blue arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Appendiks

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Fjern batteriet.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Line drawing of a USB connector with a blue arrow pointing to the cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing a blue arrow pointing to the handle (no text or symbols present)

Diagram showing two views of a device casing with internal components, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Παράρτημα

Diagram showing a device being inserted into a housing, with an inset close-up highlighting the component (no text or symbols present)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing the blade being inserted (no text or symbols present)

Diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols present)

Technical illustration of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Dodatek

Diagram showing a device being processed with a magnified view of the blade assembly (no text or symbols present)

7 Odstranite baterijo.

Izjava o skladnosti

Informacije o izdelku

Za naslednji

Izdelek : Ključ Bluetooth

Model(e): EO-RG920

Deklaracija in veljavni standardi

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Line drawing of a device with an attached USB cable and a blue arrow pointing to the cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Diagram of a car door handle with a magnified inset showing the blade being inserted (no text or symbols present)

Diagram showing two views of a mechanical component with internal compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

3D diagram of a device with a blue arrow pointing to a component, showing internal structure without any text or symbols.

Ek

Diagram showing a device being processed with a magnified view of the component (no text or symbols present)

7 Pili çıkartın.

Telif hakkı © 2015 Samsung Electronics

Line drawing of a device with an attached USB cable and a blue arrow indicating the connection point (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / Представитель EC

© Samsung Electronics, 2015.

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with a magnified inset showing the stethoscope (no text or symbols)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

© Samsung Electronics, 2015

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2015.01.27 Stephen Colclough / EO өкілі

Copyright © 2015 Samsung Electronics

Please read this manual before using the device to ensure safe and proper use.

• Descriptions are based on the device's default settings.
• Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

Getting started

About Level Link

The Level Link supports receiving mode and sending mode. In receiving mode, you can connect earphones to the Level Link and use it as a Bluetooth headset for Bluetooth-enabled devices, such as smartphones or tablets. In sending mode, you can use the device as a dongle that connects to computers, TVs, Bluetooth headsets, and more.

In receiving mode, you can use the following features:

• Launching S Voice
  • Receiving or ending calls
  • Controlling multimedia files

In sending mode, you can play sound of the connected multimedia device.

Package contents

Check the product box for the following items:

• Device
• Earphones
• USB cable
• Audio cable
• Quick start guide

- The items supplied with the device and any available accessories may vary depending on the region or service provider.

- The supplied items are designed only for this device and may not be compatible with other devices.

• Appearances and specifications are subject to change without prior notice.

- You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

- Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Device layout

Volume button Mode/Power switch Call/Multifunction button Multipurpose jack REW button FF button Microphone Notification light Audio jack

Buttons and functions

Name Function
Mode/Power switch	Slide left to activate receiving mode and slide right to activate sending mode.Slide to OFF to turn off the device.
Call/Multifunction button	In receiving mode, press and hold for 1 second to launch S Voice.In receiving mode, press to answer or end a call.In receiving mode, press and hold to reject a call.In receiving mode, press and hold to transfer calls from the Level Link to your other device, or vice versa.In receiving mode, press to play or stop multimedia files.In receiving mode or sending mode, press and hold for 3 seconds to enter Bluetooth pairing mode.
Volume button	In receiving mode, press to adjust the volume during a call.In receiving mode, press to adjust the volume while playing multimedia files.
REW button / FF buttons	In receiving mode, press to play the previous or next multimedia file during playback.In receiving mode, press and hold to rewind or fast forward a multimedia file during playback.

Status indicator

Status Color
Bluetooth pairing mode	• Flashing red, green, and blue
Power on or activate modes	• Flashing blue 3 times
Power off	• Flashing red 3 times
Incoming call	• Flashing blue

Charging the battery

Charge the battery before using the Level Link for the first time or when the Level Link has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the headset.

If the battery is completely discharged, the headset cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the headset.

Connect the device to a computer or the USB power adapter via the USB cable.

Line drawing of a device with an attached USB cable and a blue arrow pointing to the cable (no text or symbols present)

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

• The device can be used while it is charging, but it may take longer to fully charge the battery.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• If the device is not charging properly, take the device and the charger to a Samsung Service Center.

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Checking the battery level

Simultaneously press and hold the Volume up button and the Multifunction button for 1 second. The notification light flashes three times in different colors according to the charging status.

Status Color
Less than 30%	• Red
30-60%	• Yellow
More than 60%	• Green

Wearing the device and earphones

Connect the supplied earphones to the Level Link and wear them around your neck.

1 Plug the earphones into the audio jack of the Level Link.
2 Adjust the earphone clip form a loop large enough to fit your head through.

3 Clip the Level Link on your clothes.
4 Wear the earphones around your neck and plug in the earbuds.

Line drawing of a person wearing earphones and a stethoscope, with a magnified inset showing the device (no text or symbols)

Use caution when using this device with wired earphones. You may choke if the earphones wrap around your neck.

Turning the device on and off

• : Activate receiving mode.
• : Activate sending mode.
• Turn off the device.

Follow all posted warnings and directions from authorized personnel in areas where the use of wireless devices is restricted, such as airplanes and hospitals.

Using the device

Bluetooth

About Bluetooth

Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to various devices over short distances. It can connect and exchange data with other Bluetooth enabled devices, such as mobile devices, computers, printers, and other digital home appliances, without connecting via cables.

Notices for using Bluetooth

• To avoid problems when connecting your device to another device, place the devices close to each other.
• Ensure that your device and the other Bluetooth device are within the Bluetooth connection range (10 m). The distance may vary depending on the environment the devices are used in.
• Ensure that there are no obstacles between the headset and a connected device, including human bodies, walls, corners, or fences.
• Do not touch the Bluetooth antenna of a connected device.
• Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products.
• Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with the headset.
• Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes).

Connecting to other devices

Sound quality and usage range between the Level Link and connected audio devices may vary depending on the Bluetooth-enabled audio devices.

Connecting in receiving mode

You can receive incoming calls or listen to music when your Level Link is connected to Bluetooth-enabled devices. When you turn on the Level Link for the first time, it enters Bluetooth pairing mode.

• When pairing the Level Link with other devices via Bluetooth for the first time, the Level Link automatically connects to the paired devices. If the Level Link fails to connect, it enters Bluetooth pairing mode.
• The Level Link can store device information for up to eight devices. If the Level Link has been connected to more than one device, it connects to the most recently paired device.

1 Level Link Slide the Mode switch to the left to activate receiving mode.
2 Level Link Press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
3 Other device Activate the Bluetooth feature and search for Bluetooth devices.

For more information, refer to the other device's user manual.

4 Other device Tap Samsung Level Link from the list.

Samsung Level Link

5 Level Link Connect the earphones to the Level Link.

Or, connect the Level Link to the auxiliary input jack of an audio output device via an audio cable.

In this mode, if you connect the Level Link via an audio cable to a TV or computer's audio output jack, your Level Link may be damaged.

Connecting in sending mode

Connect your device to a multimedia player, via the audio cable. You can listen to multimedia files via another audio device, such as a Bluetooth headset. When you turn on the Level Link for the first time, it enters Bluetooth pairing mode.

• When pairing the Level Link with other devices via Bluetooth for the first time, the Level Link automatically connects to the paired devices. If the Level Link fails to connect, it enters Bluetooth pairing mode.
• The Level Link can store device information for up to eight devices. If the Level Link has been connected to more than one device, it connects to the most recently paired device.

1 Level Link Slide the Mode switch to the right to activate sending mode.
2 Level Link Press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
3 Level Link Place your Level Link within 30 cm of the paired audio device.

The Level Link and the audio device are now connected via Bluetooth. If the connection fails, turn off the audio device and turn it on again. Then, repeat the steps above.

4 Plug the audio cable into the audio jack of the Level Link. Then, plug the other end of the audio cable into the audio output jack of the multimedia player.

• The method for connecting via Bluetooth may vary depending on the connected devices. For more information, refer to the user manual of the connected device.
• When the Level Link is connected to a TV in sending mode, lipsync problems may occur. It is recommended to connect the Level Link to a TV that supports the aptX low-latency codec.
• When using the Level Link with a multimedia player, turn down the multimedia player's volume before unplugging the audio cable to prevent sudden, loud sounds.
• You may experience drops in volume or noise depending on the connected multimedia player's volume. To avoid this, appropriately adjust the multimedia player's sound.

Connecting additional devices

In receiving mode or sending mode, your Level Link can connect to up to two devices via Bluetooth.

1 In receiving mode or in sending mode, connect your Level Link to the first device.

2 Connect the Level Link to a second device via Bluetooth using the connection method used for the first device.

• In receiving mode, if the Level Link does not appear in the detected devices list, press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode.
• In sending mode, the Level Link supports the aptX low-latency codec when it is connected to one audio device. If two audio devices are simultaneously connected to the Level Link, the aptX codec is not supported and video and audio output may not be synchronized.
• In sending mode, the usage range between the Level Link and other devices may be reduced.

Reconnecting or disconnecting from other devices

Reconnecting the devices

When your Level Link is disconnected from the audio device due to the distance between the devices, bring the devices closer together and press the Multifunction button to pair them again. Or, you can use the Bluetooth menu on the audio device to pair the devices.

Disconnecting the devices

To disconnect the Level Link from the audio device, turn off your device or unpair the devices. If you connected the two devices via an audio cable, unplug the cable from both devices.

Using receiving and sending modes

In receiving mode, you can launch S Voice, answer incoming calls, or play multimedia files. In this mode, use your Level Link with earphones, or connect the Level Link to an audio device via an audio cable.

In sending mode, you can listen to audio from the multimedia player via the connected audio device.

• Available features may vary depending on the device you connect to. Some features may not be available if the Level Link is simultaneously connected to two devices.
• Some features are available only when the Level Link connects to a device via the Hands-Free Profile (HFP).
• The microphone's location varies depending on how you are wearing the Level Link. The position of the Level Link may affect to sound quality during calls.

Launching S Voice

Press the Multifunction button for 1 second. If the connected device support S Voice, you can use the app via the Level Link.

Answering and rejecting calls

Answering a call

Press the Call button to answer calls made to the connected device.

Rejecting a call

Press and hold the Call button to reject calls made to the connected device.

Using options during a call

Adjusting the volume

During a call, press the Volume button to adjust the volume.

Switching sound output

Press and hold the Call button to transfer calls from the Level Link to the connected device. This feature may not be available depending on the connected device.

Ending a call

Press the Call button to end a call.

Playing multimedia files

Play multimedia files in receiving or sending mode. Available features may vary depending on the mode being used.

Playing and stopping a multimedia file

Press the Multifunction button to play the most recent multimedia file on the connected device.

Press the Multifunction button to pause playback. To resume playback, press the Multifunction button again.

Skipping to the previous or next multimedia file

Press the REW button or the FF button to skip to the previous or the next file during playback.

Rewinding or fast forwarding the multimedia file

Press and hold the REW button or FF button to rewind or fast forward the file during playback.

Adjusting the volume

Press the Volume button to adjust the volume.

• When the Level Link is connected to two devices, you can play multimedia files from either device. To play a multimedia file from a different device, pause playback from the other device first.
• When you play a multimedia file from one device, you can still answer calls from the other device.
• If there are differences in the output power of the audio cable and the connected audio device in sending mode, the sound volume on the Level Link may vary.

Performing a data reset

When your Level Link is connected to a device via Bluetooth, the Level Link's information, such as Bluetooth address and device type, is stored on the connected device. To delete the Level Link's connection information, press and hold the Multifunction button for about 3 seconds to enter Bluetooth pairing mode. Then, press and hold the REW, FF, and Multifunction buttons simultaneously for 3 seconds.

Troubleshooting

Before contacting a Samsung Service Center, please attempt the following solutions. Some situations may not apply to your device.

Your device does not turn on

When the battery is completely discharged, your device will not turn on. Charge the battery completely before turning on the device.

The battery does not charge properly (For Samsung-approved chargers)

• Ensure that the charger is connected properly.
• Visit a Samsung Service Center and have the battery replaced.

Another Bluetooth device cannot locate your device

• Ensure that your device is in Bluetooth pairing mode.
• Reset the device and search for Bluetooth devices.
• Ensure that your device and the other Bluetooth device are within the Bluetooth connection range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Center.

Another Bluetooth device is not located

• Ensure that the device you wish to connect with supports the Bluetooth wireless feature.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

Bluetooth connect is often disconnected

• If there are obstacles between the devices, the operating distance may be reduced.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).
• When using the device with other Bluetooth devices, the connection may be affected by electromagnetic waves. Use the device in environments with fewer wireless devices present.

You cannot hear others speaking

• Adjust the device volume.
• Adjust the volume on the connected device when you cannot hear sounds on your device at full volume.

Sound echoes during a call

Adjust the volume by pressing the Volume button or move to another area.

Others cannot hear you speaking on a call

• Ensure that you are not covering the built-in microphone.
• Ensure that the microphone is close to your mouth.

Audio quality is poor

• Wireless network services may be disabled due to issues with the service provider's network. Ensure to keep the device away from electromagnetic waves.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

The device works differently as described in the manual

• Available functions may differ depending on the connected device.
- Some features cannot be used when two devices are connected with the device at the same time.

The battery depletes faster than when first purchased

• When you expose the device or the battery to very cold or very hot temperatures, the useful charge may be reduced.
• The battery is consumable and the useful charge will get shorter over time.

Copyright

Copyright © 2015 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- Bluetooth ^ is a registered trademark of Bluetooth SIG, Inc. worldwide.
• All other trademarks and copyrights are the property of their respective owners.

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with a magnified inset showing the same device (no text or symbols present)

Copyright © 2015 Samsung Electronics

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with a magnified inset showing the stethoscope (no text or symbols)

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

版權 © 2015 Samsung Electronics

本手册受國際版權法保護。

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device, with a magnified inset showing the stethoscope (no text or symbols)

Copyright © 2015 Samsung Electronics

本手册受國際版權法保護。

Line drawing of a USB cable connector inserted into a device (no text or symbols)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

© Samsung Electronics, 2015.

Line drawing of a device with a USB cable inserted into a port, showing no text or symbols.

Line drawing of a person wearing earphones and holding a medical device, with an inset showing a stethoscope (no text or symbols)

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones and holding a medical device (no text or symbols)

الloon的なحالة

• Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic• Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • Domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • domestic• Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Dominican • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Domestic • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam• Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam •Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Diam • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham• Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham • Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dam •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham•Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham • Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dhan •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham /Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dham •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan•Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan • Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dhan •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban•Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban •Dban • Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dthan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan∗•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan.•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhian•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan’•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan‘•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan'•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan·Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•O.Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•DHan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan•Dhan<|content_end|>

شحن البطارية

Line drawing of a USB device with a blue arrow pointing to its cable (no text or symbols present)

Line drawing of a person wearing earphones and holding a device, with an inset showing a stethoscope (no text or symbols)

Line drawing of a USB device with a blue arrow pointing to its connector (no text or symbols present)

Line drawing of a person wearing earphones with a magnified inset showing the ear structure (no text or symbols)

Copyright © 2015 Samsung Electronics
