USER MANUAL HM6000 SAMSUNG

Englsih....1

Français 29

Italiano 58

Ελληνικά 88

Nederlands 122

Contents

Getting started

Your headset overview....4

Button functions....5

Charging the headset....6

Wearing the headset....8

Using your headset

Turning the headset on or off 10

Turning the indicator light on or off 10

Using the voice command and voice prompts....11

Pairing and connecting the headset....15

Using call functions 19

Resetting the headset....22

Appendix

Frequently asked questions....23

Warranty and parts replacement....25

Specifications....26

Correct disposal of this product....27

Correct disposal of batteries in this product....28

Please read this manual before operating your headset, and keep it for future reference. Graphics used in this manual are for illustration purposes. The actual products may vary.

Copyright

Copyright © 2011 Samsung Electronics

This user manual is protected under international copyright laws.

No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics.
• Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. More information about Bluetooth is available at www.bluetooth.com
• All other trademarks and copyrights are the property of their respective owners.

Safety information

To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device.

• Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle.
• Do not disassemble, modify, or repair your device. Any changes or modifications to your device can void your manufacturer's warranty. If your device needs servicing, take your device to a Samsung Service Centre.
• Do not bite or suck the device. Children or animals can choke on small parts.
• Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 5 °C to 35 °C. Extreme temperatures can damage the device and reduce the charging capacity and life of your device and battery.
• Do not use your device while it is charging or touch your device with wet hands.
• Keep your device dry. Humidity and liquids may damage the parts or electronic circuits in your device. Water damage to your device can void your manufacturer's warranty.
• Do not use your device outdoor during a thunderstorm. Doing so may result in electric shock or device malfunction.

Getting started

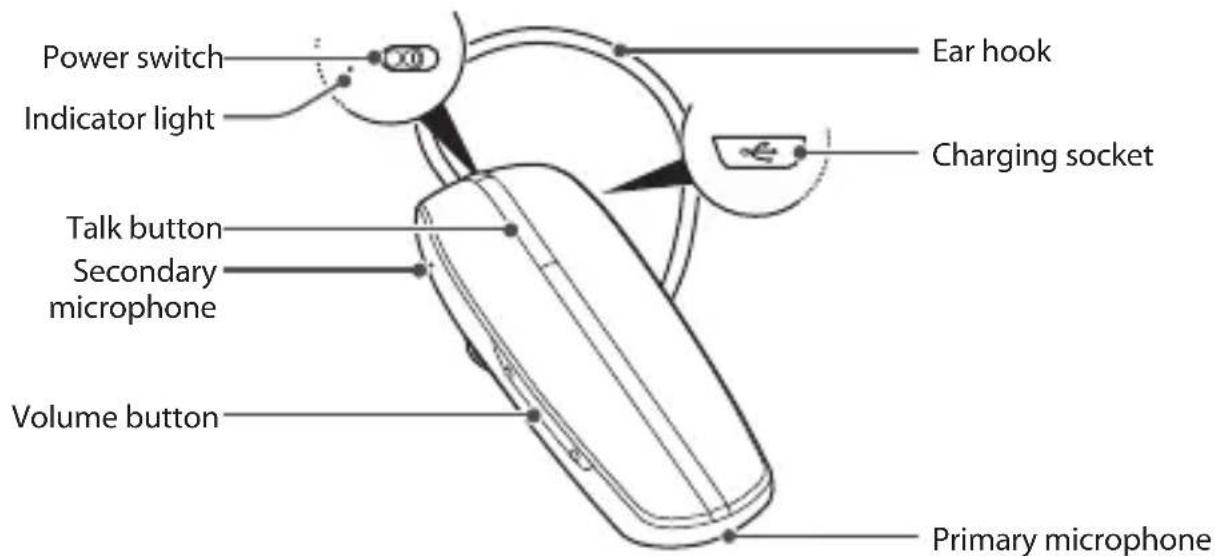

Your headset overview

Power switch Indicator light Talk button Secondary microphone Volume button Ear hook Charging socket Primary microphone

Make sure you have the following items: headset, travel adapter, ear hook, ear rubbers and user manual. The supplied items may vary.

Button functions

Button Function
	Power switch	Slide to turn the headset on or off.
	Talk	Press and hold for 3 seconds to enter Pairing mode. • Press to answer or end a call. • Press and hold to reject an incoming call. • Press and hold to place a call on hold. • Press and hold to switch between calls.
	Volume	Press to adjust the volume. • Press and hold to turn the microphone on or off during a • call.

Charging the headset

This headset has a rechargeable internal battery which is non-removable. Make sure the headset is fully charged before using it for the first time.

Use only Samsung-approved chargers. Unauthorised or Non-Samsung chargers could cause damage to the headset or in extreme circumstances an explosion, it could also invalidate any warranty on the product.

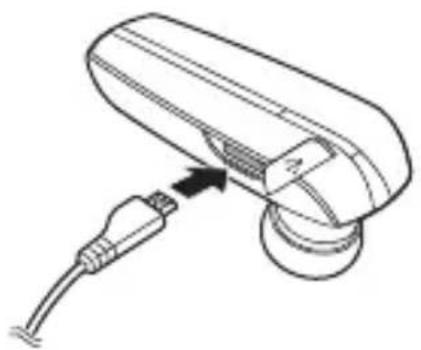

1 Connect the travel adapter to the charging socket on the headset.
2 Plug the travel adapter in to the wall outlet. During charging, the indicator light will turn red. If charging does not begin, unplug the travel adapter and plug it in again.
3 When the headset is fully charged, the red indicator light changes to blue. Unplug the travel adapter from the wall outlet and the headset.

Line drawing of a device with a cable and connector, no text or symbols present

- Repeatedly charging and discharging of the headset, over time will cause the battery performance to diminish. This is normal for all rechargeable batteries.

- Never make or receive calls while charging, always disconnect your headset from the charger and answer the call.

- To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

Checking the battery level

To check the battery level, press and hold the Volume down button and the Talk button at the same time. Depending on the battery level, the indicator light flashes 5 times in one of the following colours:

Battery level Indicator light colour
Above 80%	Blue
80 ~20%	Violet
Below 20% Red

When the headset battery is low

The headset indicator light flashes red and you can hear beeps. If the headset powers off during a call, the call will be automatically transferred to the phone.

Wearing the headset

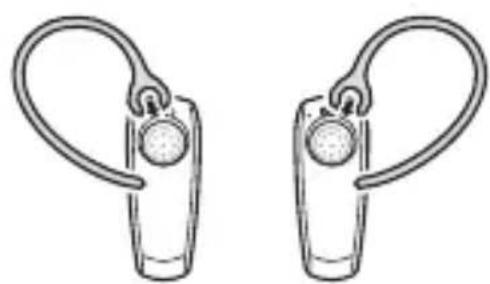

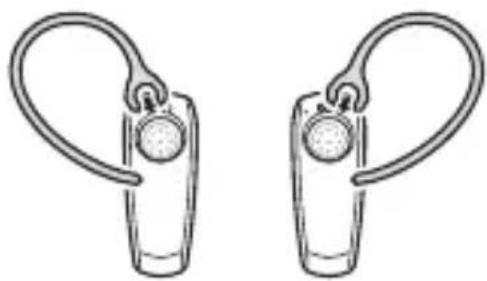

Depending on which ear you are going to wear the headset, simply adjust the ear hook accordingly.

Line drawing of a person's head and shoulders, showing facial features including hair bun and eye (no text or symbols)

Simple line drawing of a handheld device with a loop handle and a circular button (no text or symbols)

Left

Simple line drawing of a handheld device with a circular button and curved handle (no text or symbols)

Right

You can also use the optional ear rubbers instead of the ear hook. Remove the earpiece cover and attach the ear rubber. Then, rotate the ear rubber left or right slightly depending on which ear you are going to wear the headset.

Using your headset

This section explains how to turn the headset on or off, pair and connect the headset to the phone, and use various functions.

• Activated functions and features may differ depending on the phone type.
• Some devices, especially those that are not tested or approved by the Bluetooth Special Interest Group (SIG), may be incompatible with your headset.

To ensure you get the best performance from your headset

• Keep the distance between your headset and device as small as possible and avoid placing your body or other objects in the signals path.
• If you usually use your mobile phone with your right hand, wear the headset on your right ear.
• Covering your headset or device could effect its performance so keep contact to a minimum.

Turning the headset on or off

To turn the headset on

Slide the Power switch on (red background covered), the blue indicator light flashes 4 times.

Turning the Headset on for the first time, it will automatically enter pairing mode for approx 3 minutes. For more information, see page 15.

To turn the headset off

Slide the Power switch off (red background uncovered), the indicator light flashes blue and red then turns off.

Turning the indicator light on or off

The Headset status light is there to show you the current status of your headset, but if it bothers you at night, you can turn it off.

- Press and hold both Volume buttons simultaneously to turn the indicator light on or off.

You cannot switch the indicator of while in pairing mode.

- The indicator light will always work when the headset is turned on or off, when a call is received, in Pairing mode and when the battery is low.

Using the voice command and voice prompts

Voice prompts will inform you about the current status of the headset and usage instructions. You can also control your headset using your voice but to do so you must ensure the voice prompt feature is turned on.

Turning the voice prompts on or off

To turn the voice prompts on

In Pairing mode, press and hold the Volume up button for 3 seconds. You will hear "Voice prompts on". To enter Pairing mode, see page 15.

To turn the voice prompts off

In Pairing mode, press and hold the Volume down button for 3 seconds. You will hear "Voice prompts off".

Changing the language

The headset provides the following languages: English, French and German. The default setting is English.

- In Pairing mode, press and hold both Volume buttons simultaneously to select a language.

Using the voice command

1 Press and hold the Talk button.
2 Wait until the headset asks you to "Say a command".
3 Say one of the voice commands loudly and clearly.

• To stop the whole process of voice command, press the Talk button again during the listening period. Then you will hear "Cancelled".
• If you say a command with a low tone of voice or don't say any command within 5 seconds, you will hear "Say it again" the first time and then "Cancelled" if nothing is said the second time. If you hear "Say it again", please say a command clearly and in a louder voice.
  If you still hear "Cancelled", press the Talk button again.

Your headset may inadvertently recognise voice commands from background sounds that are louder than your voice.

- You can not use voice commands while listening to music with your headset.

List of voice commands

Action Command
To cancel the Voice Command “Cancel”
To enter pairing mode “Pair”
To redial the last number dialed on the primary phone	“Redial”
To answer or reject a call after you hear “Incoming call. Say Answer or Ignore”	“Answer”, “Yes” or “Ignore”, “No”
To turn off the headset	“Power off” After saying “Power off”, you will hear “Are you sure to power off?” Say “Yes” to turn off the headset or “No” to cancel it.

List of voice prompts

Status Voice prompt
When you turn the headset on or off	"Power on" or "Power off"
When you select a language for the voice prompt	"selected"
When you enter Pairing mode	"Ready to pair. Go to phone or computer Bluetooth menu. Enter 0000, if required"
When you turn the voice prompt on or off	"Voice prompts on" or "Voice prompts off"
When you turn Multi-point feature on or off	"Multi-point on" or "Multi-point off"
When you connect the headset to the devices	"Device connected" or "Two devices connected"
When you disconnect the headset from a device	"Device disconnected"
When a call comes in	"Incoming call. Say Answer or Ignore"
When you reject or end a call	"Call terminated"
When you check the battery level	"Headset battery level is high" or "Headset battery level is medium" or "Headset battery level is low"

Pairing and connecting the headset

Pairing means a unique and encrypted wireless connection between two Bluetooth devices when they agree to communicate with each other.

In Pairing mode, two devices should be placed close enough.

Pairing and connecting the headset with a phone

1 Enter Pairing mode. (The blue indicator light stays lit and stays for 3 minutes.) Press and hold the Talk button for 3 seconds.
2 Activate the Bluetooth feature on your phone and search for the headset (see your phone's user manual).
3 Select the headset (HM6000) from the list of devices found by your phone.
4 If requested, enter the Bluetooth PIN 0000 (4 zeros) to pair and connect the headset to your phone. Once pairing is completed, the headset will attempt to reconnect each time you turn it on.

• Your headset supports the Simple Pairing feature which allows the headset to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.
• If your phone supports A2DP (Advanced Audio Distribution Profile), you can also listen to music with your headset.

Pairing via the Active pairing feature

With the Active pairing feature, your headset automatically looks for a Bluetooth device within range and tries to make a connection with it.

Make sure the phone's Bluetooth visibility option is set on.

- In Pairing mode, press and hold the Talk button on the headset. The indicator light colour changes to violet from blue.

- The Bluetooth phone you want to connect with must not be paired with other devices. If the phone is already connected to another device, end the connection and restart the Active pairing feature.

This feature may not be supported on some devices.

- When the headset pairs with your phone, a connection is made through the Hands-Free Profile. To make a connection through another profile, check the phone's user manual on how to pair the Bluetooth device.

Connecting with two Bluetooth phones

With the Multi-point feature activated, your headset can be connected to 2 Bluetooth phones at the same time.

To turn Multi-point feature on

In Pairing mode, press and hold the Volume up button. The blue indicator light flashes twice.

To turn Multi-point feature off

In Pairing mode, press and hold the Volume down button. The red indicator light flashes twice.

1 After connecting with the first Bluetooth phone, enter Pairing mode again.
2 Activate the Bluetooth feature on the second Bluetooth phone and search for the headset.
3 Select the headset (HM6000) from the list of devices found by the second Bluetooth phone.
4 If requested, enter the Bluetooth PIN 0000 (4 zeros) to connect the headset to the second Bluetooth phone.
5 Reconnect to the headset from the first Bluetooth phone.

Some phones may not be able to connect as a second Bluetooth phone.

Connecting the headset with a music device

You can also pair and connect your headset with a music device such as an MP3 player. The process of connecting to a music device is the same as for connecting with a phone. When connected to both devices (phone and music device) you can make or receive a call on the phone while listening to music from the music device.

You cannot control playback using your headset.

- If your headset is already connected with the A2DP (Advanced Audio Distribution Profile), you cannot connect with another music device.

Reconnecting the headset

If the connection is lost while in use:

To reconnect to the paired phone (HFP)

- Press the Talk button on the headset or use the Bluetooth menu on your phone.

To reconnect to the paired music device (A2DP)

- Press and hold the Volume up button on the headset or use the Bluetooth menu on your music device.

When the headset is paired with a phone, it will attempt to automatically reconnect each time you turn it on. If the Multi-point feature is activated, your headset will attempt to reconnect to the two most recently connected devices. This feature may not be supported on some devices.

Disconnecting the headset

Turn off the headset or use the Bluetooth menu on your phone.

Using call functions

Available call functions may differ from phone to phone.

• For better sound quality during a call, avoid covering the secondary microphone.
• Some functions are only available when using the Hands-Free profile.

Making a call

Redialling the latest number

To redial the last number dialed on the primary phone:

• Press the Talk button.
  To redial the last number dialed on the secondary phone:
• Press the Talk button twice.

Some phones open the call log list on the first press of the Talk button. Press the Talk button again to dial the selected number.

Dialling a number by voice

With the Voice prompts turned off, press and hold the Talk button.

This function is only available on the primary phone.

Answering a call

Press the Talk button to answer a call when a call comes in.

Rejecting a call

Press and hold the Talk button to reject a call when a call comes in.

- If you receive calls on both connected phones at the same time you can only answer or reject the call on the primary phone. When you are listening to music, the music stops during a call.

Ending a call

Press the Talk button to end a call.

Options available during a call

You can use the following functions during a call.

Adjusting the volume

Press the Volume up or down button to adjust the volume.

You will hear a beep when the volume level of the headset reaches it's lowest or highest level.

Muting the microphone

Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on.

Transferring a call from the phone to the headset

Press the Talk button on the headset to transfer a call from the phone to the headset.

Placing a call on hold

Press and hold the Talk button to place the current call on hold.

Answering a second call

• Press the Talk button to end the first call and answer a second call.
• Press and hold the Talk button to place the first call on hold and answer a second call. To switch between the current call and the held call, press and hold the Talk button.

Resetting the headset

When the headset is paired with a device, it automatically saves connection and feature settings, such as the Bluetooth address or device type of the mobile phone.

If you want to reset the connection settings in the headset:

- In Pairing mode, press and hold Volume up, Volume down and the Talk button at the same time for 3 seconds. The headset will turn on automatically.

When you reset the headset, all connection settings in the headset will be deleted and the connection with your phone will be lost. In order to use the headset, you will have to pair it again.

Appendix

Frequently asked questions

Will my headset work with laptops, PCs, and PDAs?	Your headset will work with devices that support your headset's Bluetooth version and profiles. For specifications, see page 26.
Why do I hear static or interference while on a call?	Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves.
Will my headset interfere with my car's electronics, radio, or computer?	Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.
Can other Bluetooth phone users hear my conversation?	When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.
Why do I hear an echo while on a call?	Adjust the headset volume, or move to another area and try again.
How do I clean my headset?	Wipe it with a soft dry cloth.
The headset does not fully charge.	The headset and the travel adapter may not have been connected properly.Separate the headset from the travel adapter, reconnect, and charge the headset.
I cannot use all the features described in the manual.	Available features may vary depending on the connected device. If your headset is connected to two devices at once, some features may be unavailable.

Warranty and parts replacement

Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.

If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.

The warranty is limited to the original purchaser.

• A copy of your receipt or other proof of purchase is required for a proper warranty service.
• The warranty is void if the product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties.
• Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories.
• Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty.

Specifications

Item Specifications and description
Bluetooth version 3.0
Support profile Headset Profile, Hands-Free Profile, Advanced Audio Distribution Profile
Operating range Up to 10 metres
Standby time Up to 240 hours*
Talk time Up to 6 hours*
Play time Up to 4.5 hours*
Charging time Approximately 2 hours

* Depending on the phone type and usage, the actual time may vary.

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

This product is RoHS compliant.

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery.

Declaration of Conformity

Samsung Electronics declares that this device complies with the essential requirements and relevant provisions of Directive 1999/5/EC.

Go to www.samsung.com/mobile_doc to view the Declaration of Conformity.

Table des matières

Avant de démarrer

Copyright © 2011 Samsung Electronics

Line drawing of a handheld device with a cable inserted, showing a connector or connector (no text or symbols present)

Line drawing of a person's head in profile view, showing hairpin and facial features (no text or symbols)

Simple line drawing of a handheld device with a loop handle and a circular button (no text or symbols)

Gauche

Simple line drawing of a handheld device with a circular button and curved handle (no text or symbols)

Droite

Copyright © 2011 Samsung Electronics

Diagram of a device with an attached cable and connector, showing no text or symbols

Line drawing of a person's head in profile view, showing hair styling and facial features (no text or symbols)

Two identical handbags with circular earbuds and handles, no text or symbols present

Sinistra Destra

Line drawing of a handheld device with a cable and connector, no text or symbols present

Line drawing of a person's head and shoulders in profile view (no text or symbols)

Two identical line drawings of a handheld electronic device with a circular head and loop (no text or symbols)

Αριστερά Δεξιά

Specificaties....149

Diagram of a handheld device with an attached cable and connector, showing no text or symbols

Line drawing of a person's head in profile view, showing hair styling and facial features (no text or symbols)

Two identical line drawings of a pair of earbuds with circular earbuds and loop handles (no text or symbols)

Links Rechts
