USER MANUAL Cuddle & Bubble CHICCO

Illustration of a baby care basin with adjustable seats and legs (no text or symbols)

chicco®

A A6 A7 A2 A5 A1 A4 A3

Technical diagram of a mechanical device with labeled parts B1 and B2, showing internal components and wiring.

C C4 C3 C1 C2

Simple line drawing of a four-legged flat stool with handles, no text or symbols present

2 CLICK

3 = = = = =

Illustration of hands holding a medical device with a red directional arrow indicating movement (no text or symbols)

5 CLACK

6 CLACK

Instructional diagram showing a hand using a tool to adjust a box with red arrows indicating downward movement.

Illustration of a hand placing a purple object into a blue chair frame with a red arrow indicating motion (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat area (no text or symbols)

10

11 2 2 1

Diagram of a human head with a highlighted circular region and directional arrows, no text or symbols present

12

Illustration of a baby table with open lid and side table, showing red arrows indicating movement (no text or symbols)

13A CLICK

13B CLICK

Illustration of a medical procedure on a patient's abdomen, showing hand placement and tool (no text or symbols)

Illustration of hands applying a medical or surgical tool to a patient's arm (no text or symbols visible)

Illustration of a baby care table with adjustable seats and a backrest (no text or symbols)

Illustration of a four-legged outdoor table with legs and chairs, no text or symbols present

18

Illustration of a baby crib with a bucket and a matching basin, no text or symbols present

20 NO OK

Illustration of a medical device with tubing and a valve, showing fluid flow direction (no text or symbols)

22 MAX LEVEL

Illustration of a medical device with a red circle highlighting a specific area, no text or symbols present

Close-up of a curved surface with a circular inset showing a blue object, labeled with number 24 in red (no text or symbols on the main subject)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a baby bottle holder with a hand holding a baby bottle, no text or symbols present

Illustration of a medical or rehabilitation device with a red dotted circle highlighting a specific area (no text or symbols present)

Illustration of a baby table with a seat and legs, no text or symbols present

28A CLICK

Illustration of a portable table with a handle and seat, no text or symbols present

Illustration of a portable toilet with a seat and handle, showing red arrows indicating movement or pressure points (no text or symbols)

31

32

33

Illustration of a purple cylindrical device with three legs and a handle, no text or symbols present

35

Mechanical component diagram showing two vertical rods with circular ends and a magnified inset highlighting a specific part (no text or symbols present)

Illustration of a baby care chair with a flat top and seat, no text or symbols present

Illustration of a baby seat with a tray and seatbelt, no text or symbols present

CUDDLE & BUBBLE

IMPORTANTE: CONSERVARE PER RIFERIMENTI FUTURI - LEGGERE ATTENTAMENTE.

ATTENZIONE: PRIMA DELL'U-SO RIMUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLA-STICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFE-ZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

INTRODUZIONE

are a mano in acqua fredda

Non candeggiare

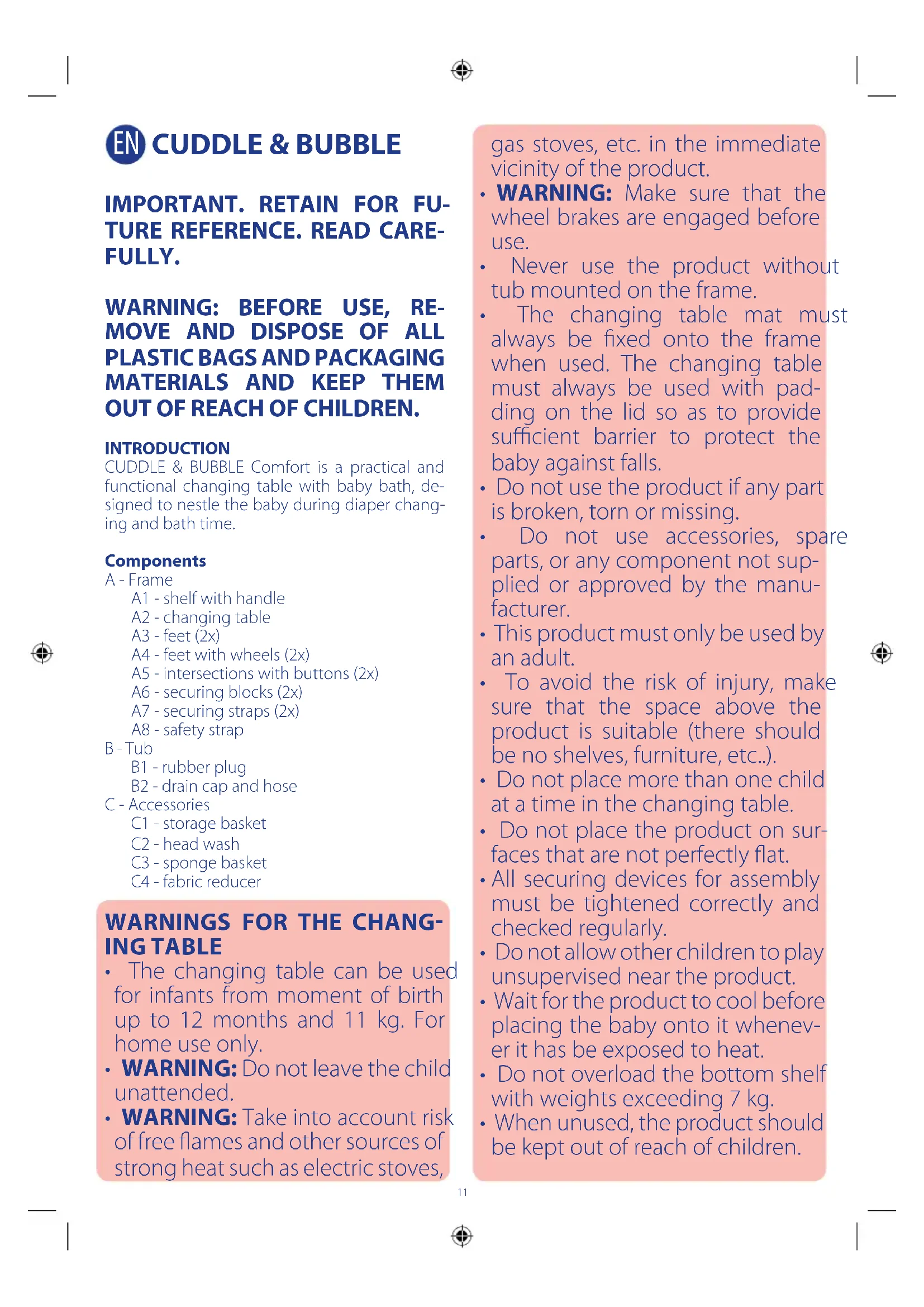

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

INTRODUCTION

CUDDLE & BUBBLE Comfort is a practical and functional changing table with baby bath, designed to nestle the baby during diaper changing and bath time.

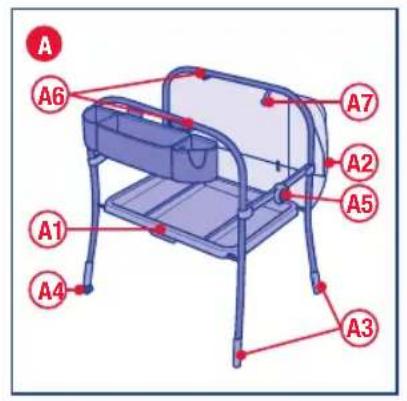

Components

A - Frame

A1 - shelf with handle

A2 - changing table

A3 - feet (2x)

A4 - feet with wheels (2x)

A5 - intersections with buttons (2x)

A6 - securing blocks (2x)

A7 - securing straps (2x)

A8 - safety strap

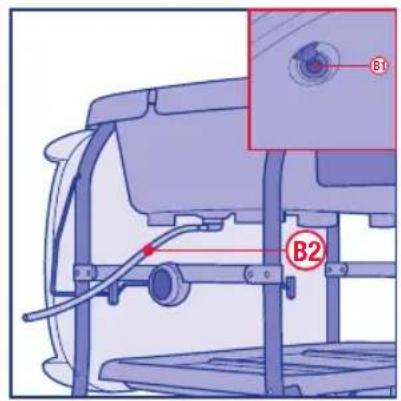

B - Tub

B1 - rubber plug

B2 - drain cap and hose

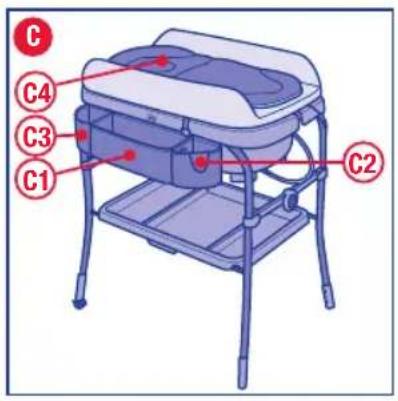

C - Accessories

C1 - storage basket

C2 - head wash

C3 - sponge basket

C4 - fabric reducer

WARNINGS FOR THE CHANG- ING TABLE

• The changing table can be used for infants from moment of birth up to 12 months and 11 kg. For home use only.
• WARNING: Do not leave the child unattended.
• WARNING: Take into account risk of free flames and other sources of strong heat such as electric stoves,

gas stoves, etc. in the immediate vicinity of the product.

• WARNING: Make sure that the wheel brakes are engaged before use.
• Never use the product without tub mounted on the frame.
• The changing table mat must always be fixed onto the frame when used. The changing table must always be used with padding on the lid so as to provide sufficient barrier to protect the baby against falls.
• Do not use the product if any part is broken, torn or missing.
• Do not use accessories, spare parts, or any component not supplied or approved by the manufacturer.
• This product must only be used by an adult.
• To avoid the risk of injury, make sure that the space above the product is suitable (there should be no shelves, furniture, etc..).
• Do not place more than one child at a time in the changing table.
• Do not place the product on surfaces that are not perfectly flat.
• All securing devices for assembly must be tightened correctly and checked regularly.
• Do not allow other children to play unsupervised near the product.
• Wait for the product to cool before placing the baby onto it whenever it has been exposed to heat.
• Do not overload the bottom shelf with weights exceeding 7 kg.
• When unused, the product should be kept out of reach of children.

USING THE CHANGING TABLE Assembly

• The boxed product is already partially assembled and the following instructions must be performed to complete it:

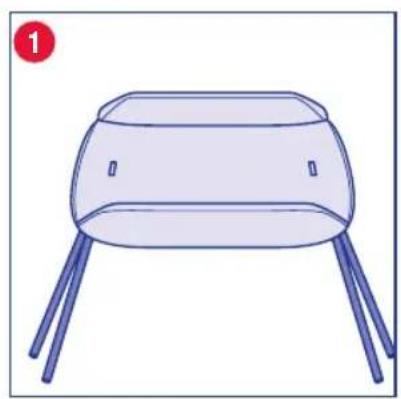

• Place frame A still packaged onto the floor horizontally (fig. 1).

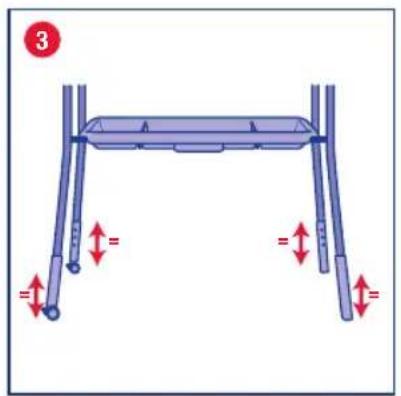

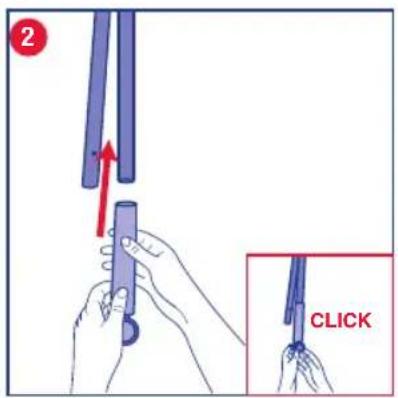

• Install the 4 feet A3 and A4 (fig. 2). All feet can be adjusted at 3 heights.

WARNING: To ensure the stability of the product, make sure all the feet are mounted at the same height, checking for proper engagement of the pins into the holes on the legs (fig. 3).

WARNING: the two feet with the wheels A4 must be installed on the same side of the product.

1. At this point, position the frame A upright, grasp the two upper tubes and push them in the opposite direction to open the product (Fig. 4).

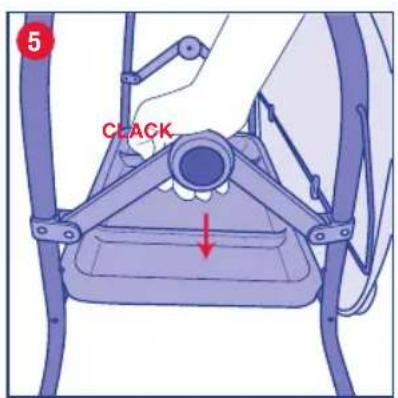

2. Pry down on both the intersections A5 until you hear the engagement click (fig. 5).

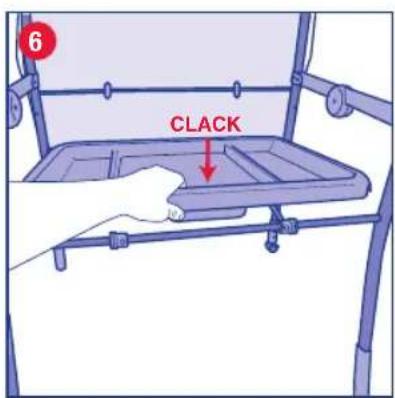

3. Push the shelf A1 downwards by placing your hand over the centre handle until fully engaging it on the frame cross tube (fig. 6).
4. Install the storage basket C1 at the centre of the front upper tubular frame, lining up the two pins of basket C1 with the holes in the tubular (fig. 7).

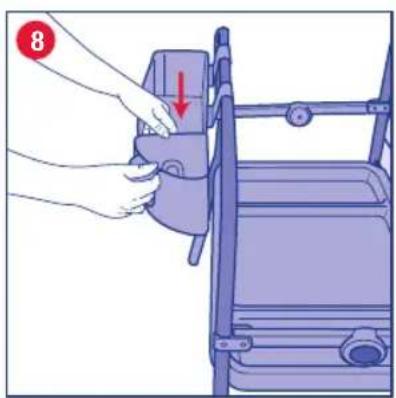

5. At this point hang the head wash C2 to the right of the storage basket C1, by sliding it vertically downwards into the guide (fig. 8).

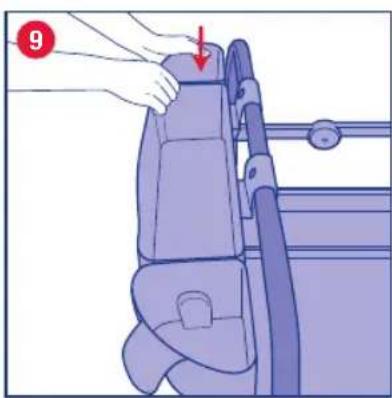

6. Hook the sponge basket C3 to the left of the storage basket C1 by sliding it vertically downwards into the guide (fig. 9).

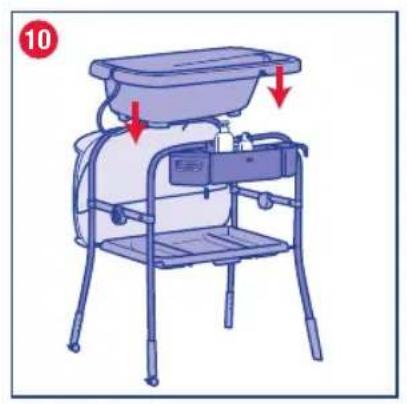

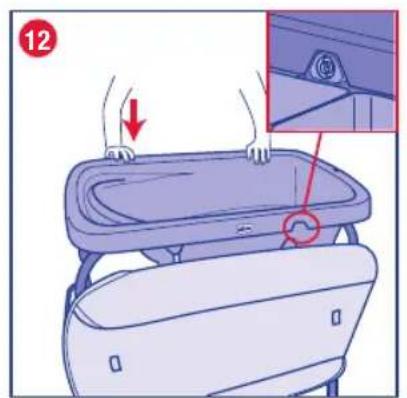

7. Install the tub B onto the frame A, aligning the side slots on the tub with the fixing blocks (fig. 10-12). Complete the assembly of the tub by inserting the rubber plug B1 in the relevant slot and pressing the base of the plug (fig.11) while rotating it in the relevant hole (fig. 11A).

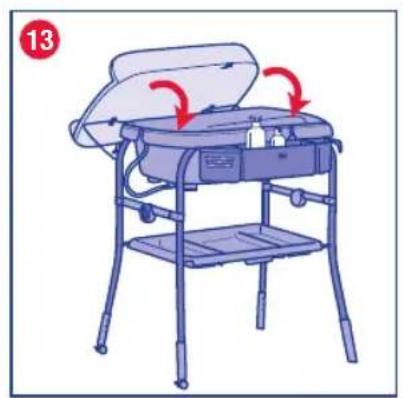

8. Complete assembly by lifting the changing table A2 and turning it to position it onto the tub B (fig. 13).

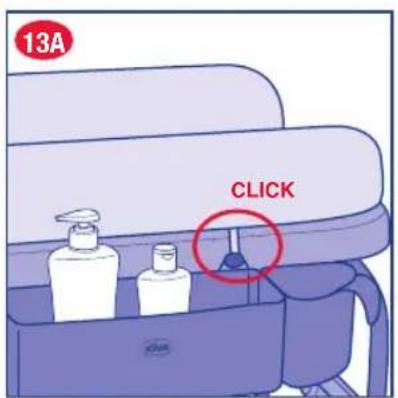

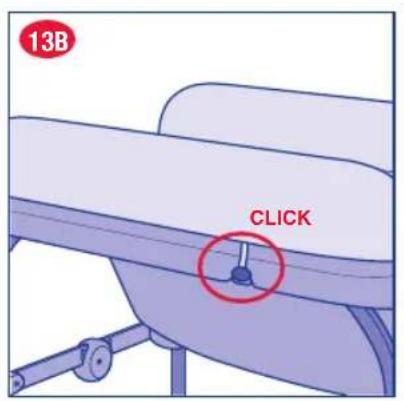

WARNING: to prevent inadvertent rotation of the changing table A2, make sure that the securing straps A7 correctly engage clamps A6 through the release buttons until you hear a click (fig. 13A - 13B).

Using the reducers

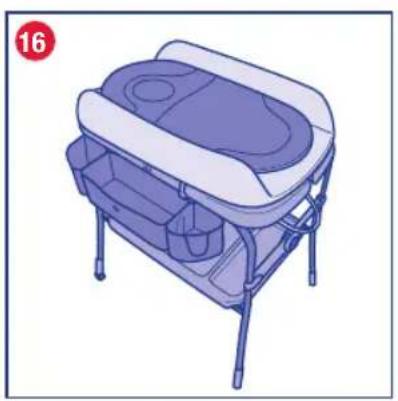

To ensure maximum comfort and ergonomics of the changing table for use in the first months of a child's life, use the reducer in padded fabric C4 supplied (Fig. 16).

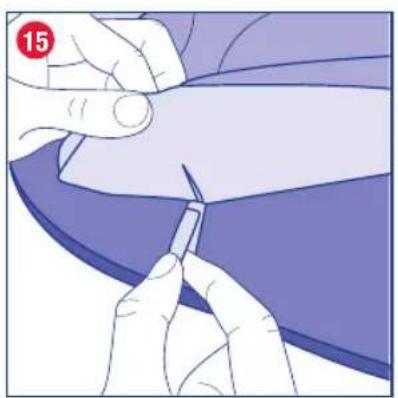

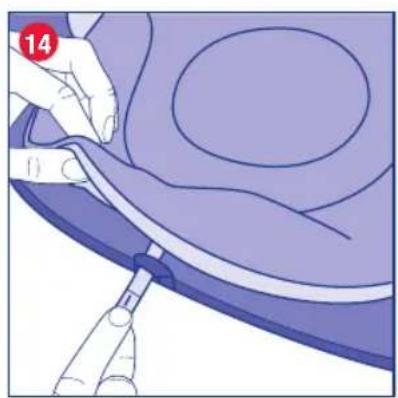

The reducer C4 can be removed or secured to changing table A2 through the holes and velcro

found on product (fig. 14-15).

WARNING BATH TUB IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

• WARNING - DROWNING HAZARD.
• WARNING: Children have drowned while bathing.
• WARNING: Children can drown in as little as 2 cm of water in a very short time.
• WARNING: Always remain in contact with your child during bathing.
• WARNING: Never leave your baby unattended in the bath, even for a few moments. If you need to leave the room, take the baby with you.
• WARNING: This product shall not be used on antiskid surfaces.
• Age of use allowed: From birth up to 12 months and 11 kg. For domestic use only.
  • Babies and young children are at risk of drowning when being bathed.
• Never use this product on an elevated surface not intended for this product (for example a table or edges of the adult bath tub).
• When use in configuration not stand alone: Use ONLY with the changing unit frame sold together with this product.
  • To prevent burns from hot water, place the product in such a way as

to prevent access of the child to hot water supply.

- Before bathing the baby, check that the water temperature is correct with a thermometer.

• Always check the stability of the product before use. Always place the product on a flat surface that is sufficient to support it.

• Always make sure that the product is resting on a flat, dry and stable surface.

- Do not use the product if any component is broken or missing.

- Do not use replacement parts or accessories other than those approved by the manufacturer.

- This bath tub can be used alone or on the changing unit frame up to when the child tries to stand up by itself.

• Always check the attachment and stability of the bath tub on changing unit frame.

- Mix the water to avoid hotter or cold areas.

• Only an adult may wash the baby.

- Never turn the child on its stomach inside the tub.

- Before filling the tub with water, make sure that the plug is seated properly.

- Fill the tub up to the MAX level indicated by the line. It is dangerous to exceed the maximum filling level of the tub.

- Do not leave objects in the tub when bathing.

- When using the tub make sure that the plug has been fitted correctly.

• Before placing the child in the wa-

ter for the bath, make sure that the changing table is always secured in place from the side of the frame.

• The use of the tub is allowed with only one child at a time.
- Do not have any electrical appliances or electrical cables near the product.
- When not in use, keep the product away from children.

USING THE WASH TUB

The tub B supplied can be used as follows:

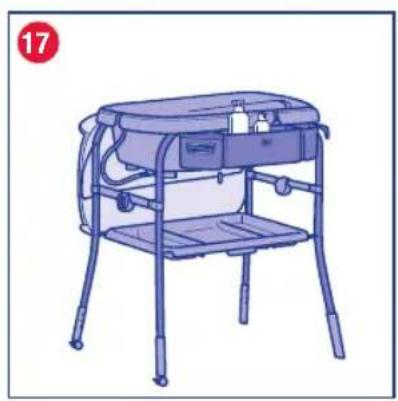

• Installed on the frame A (fig. 17).

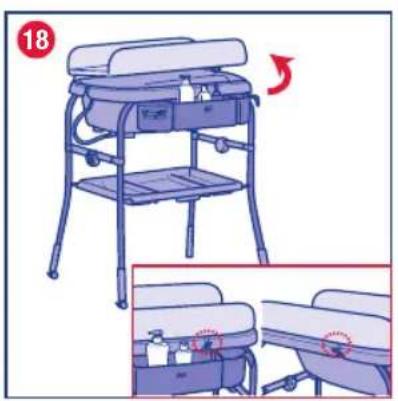

• To access the tub B turn the changing table A2 over on its back side (fig. 18).
- Before use, fasten the safety strap A8 to the fastening block A6 (fig. 28A).

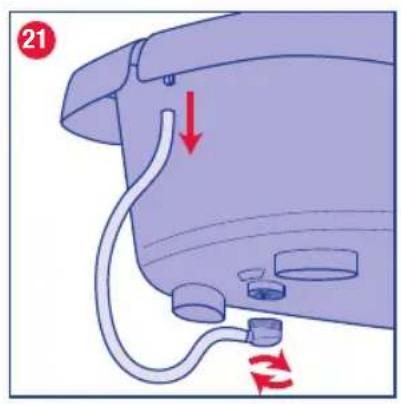

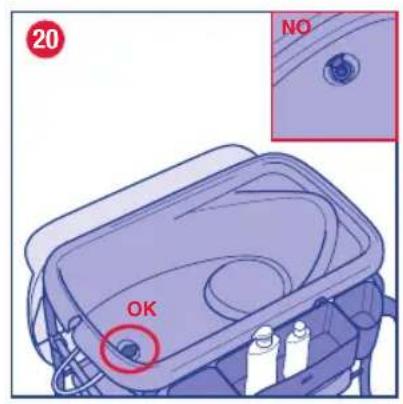

- Before filling the tub B, make sure that the plug B1 is correctly closed (fig. 20).

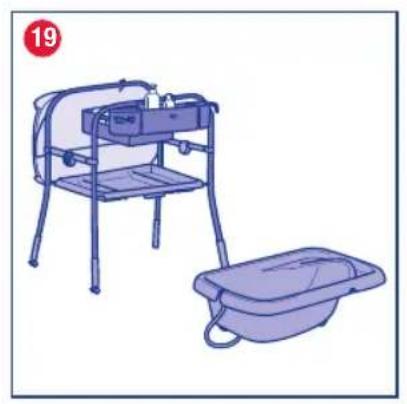

- On a flat surface or inside an adult bath tub (fig. 19).
- Before filling the tub B, make sure that the plug B1 is correctly closed (fig. 20), making sure to remove drain plug and hose B2 by unscrewing it to ensure product stability (fig. 21).

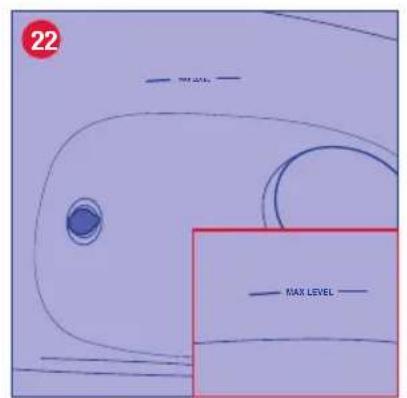

- Then proceed with filling of the tub B to the maximum level indicated by the appropriate symbol on the inner surface of the tub B (fig. 22).

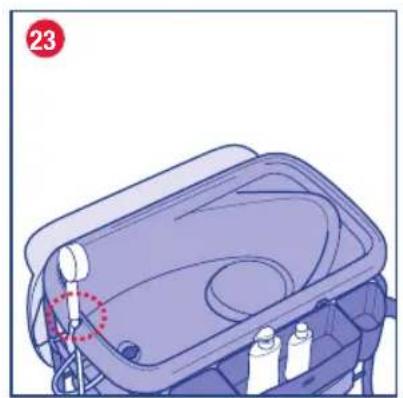

- The hand shower for adults can be temporarily positioned in the dedicated grip on the short side of the tub B (fig. 23).

WARNING: Perform this operation before putting the baby inside the tub.

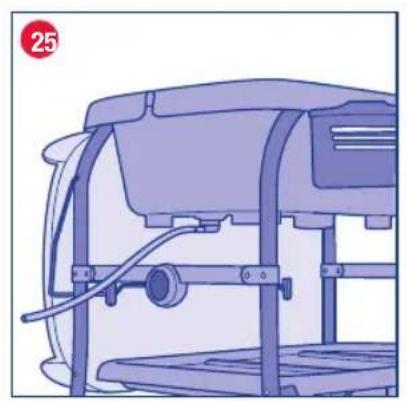

• To empty the tank B, if installed on the frame, it is advisable to use the special tube B2 (fig 25), after opening the rubber plug B1 (fig. 24).
• Alternatively, if the tank B is used in a bath tub or other flat surface, empty it by opening the cap (Fig. 24) or turning it over to drain the water.

WARNING: Drain water into a drain (e.g. bath, toilet, washbasin, bidet).

WARNING: Drain the tub only after the baby has been removed.

• When it is not being used, the tube B2 must be hooked to the relevant fastening point (fig. 29).

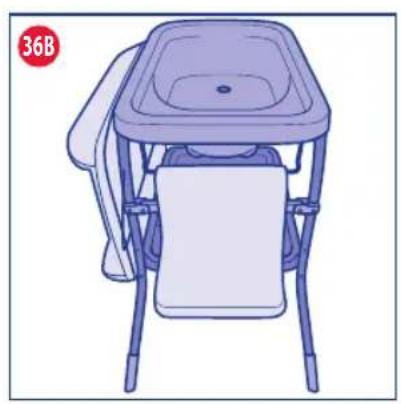

• The structure is provided with a towel holder (fig. 36A-36B).

CLOSING THE PRODUCT

To close the product:

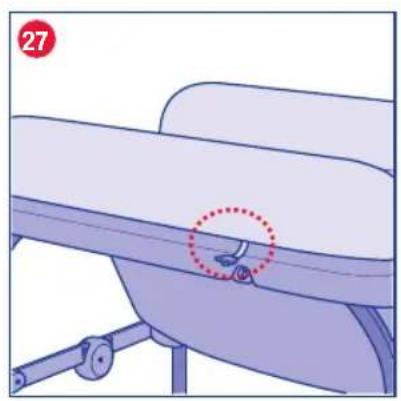

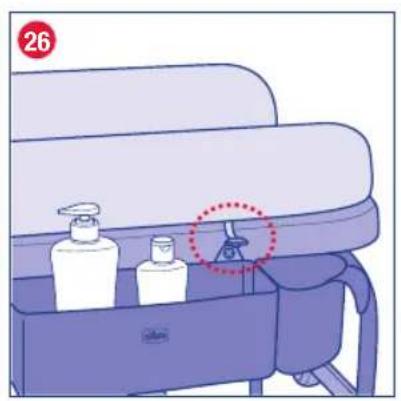

1. Release both buttons from the fixing blocks

A6 (fig. 26 - 27).

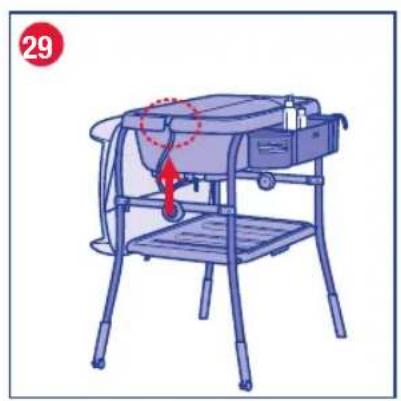

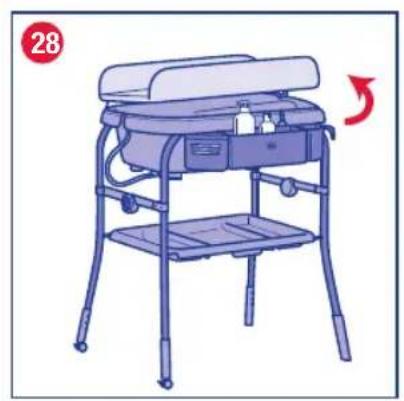

1. Collapse the changing table A2 by making it turn on its back (fig. 28 - 28A).
2. Remove the tub B installed (fig. 30).
3. Remove all objects on the shelf A1.

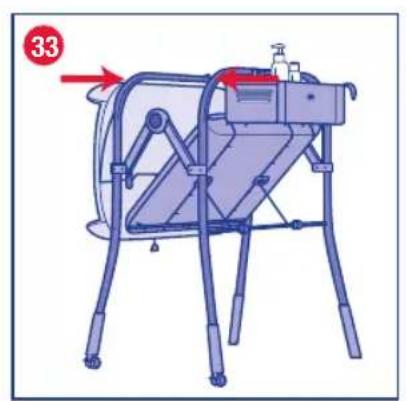

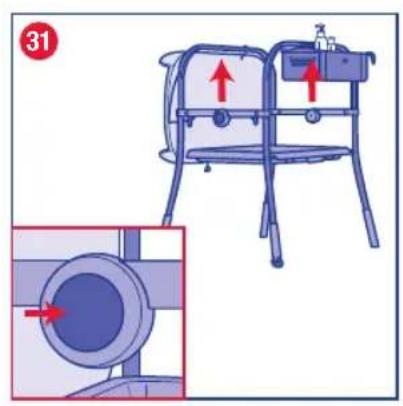

4. Press both intersections A5 and slightly lift them upwards (fig. 31).

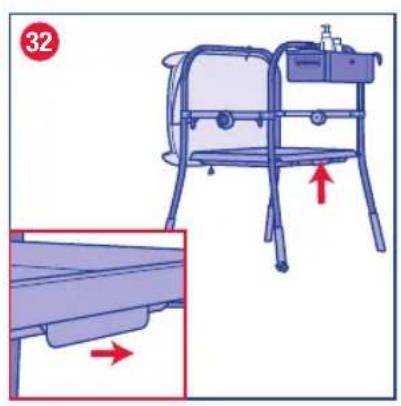

5. Push outwards on the shelf handle A1 to release the shelf A1 (fig. 32).

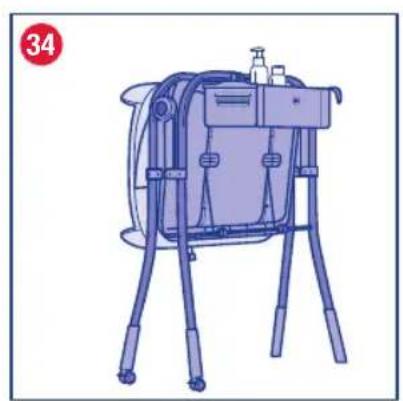

6. At this point, the structure can be folded by moving the tubular profiles of the frame A together until the arms of the intersections A5 have fully closed (Fig. 33-34).

ADJUSTING HEIGHT AND LOCKING THE WHEELS

The product can be adjusted to three different heights to better suit the height of the user.

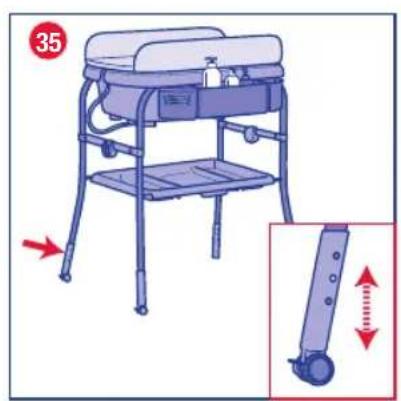

• To proceed with the height adjustment refer to drawing (fig. 35).

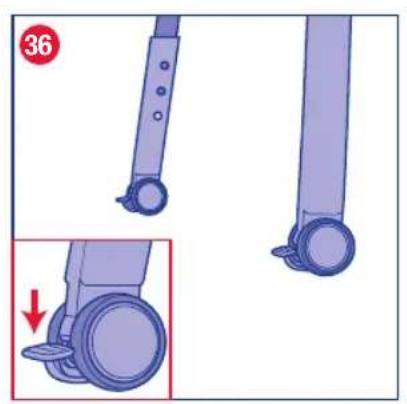

• For extra security and stability of the product during use, it is necessary to lock both wheels by acting on the brake levers, simply by pushing them down (fig. 36).
• In contrast, to move the product with greater ease, unlock the brakes by lifting the brake levers upward.

WARNING: Never move the product while the child is on board.

PRODUCT CLEANING AND MAINTENANCE

Periodically clean the product observing the following:

• The product can be cleaned with a moist cleaning cloth.
• Do not use solvents or abrasive products on any of the surfaces.
  • Always dry the metal parts to prevent the formation of rust.
• Follow the indications below to wash the reducer:

h by hand in cold water

not bleach

not tumble dry

not iron

not dry clean

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provid-

ed for by the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.
