USER MANUAL Protalker PT 1016 TOPCOM

Black office walkie-talkie with visible brand logo and model number P1028 (no text or symbols on device body)

TOPCOM®

Protalker 1016

USER GUIDE

HANDLEIDING

MANUEL D'UTILISATEUR

BEDIENUNGSANLEITUNG

MANUAL DE USUARIO

BRUKSANVISNING

BRUGERVEJLEDNING

ANVANDARHANDBOK

KAYTOOHJE

MANUALE D'USO

MANUAL DO UTILIZADOR

UŽIVATELSKÁ PŘÍRUČKA

Οδηγισα Χρησησ

INSTRUKCJA OBSŁUGI

UŽIVATEL'SKY MANUAL

UK The CF symbol and context the unit complex with the model's reference of the PA-1
ML. HETAVI VASAY AV de 2015 WOR DE BATTLE OCTIL. D'ARTA AVENION DE CE
ma working
FR. In addition, we have to get our financial institutions as a major investment sector.
CE Die Ucrankierung des Corteur mit der grundlagen Anforderungen der HALTZ-Deutsch
In fact, the following is a result that the results of the
NOTE
82. Use varied to be a set of options that are the following rules:
2014年1月1日，公司以自有资金进行现金管理，存放于募集资金专户。
K2: De nanger de 19/07/2013 appenzel (or saner) tel or gru = ligenoch kovan. H=0
□ Lala: 1.
IT
PT. Ostrato CL infraquav vialankladevangra van ena rezaenstav dulevtava PATTLE
60. To make the CF Incent in a way to be necessary, it is a simple solution of
MITS
PL Spread CF arrangements, se comperte as partes brides in prolog diagnoste, PL
SA 5,100.32 (6)

V2.0-0919

Protalker 1016

3

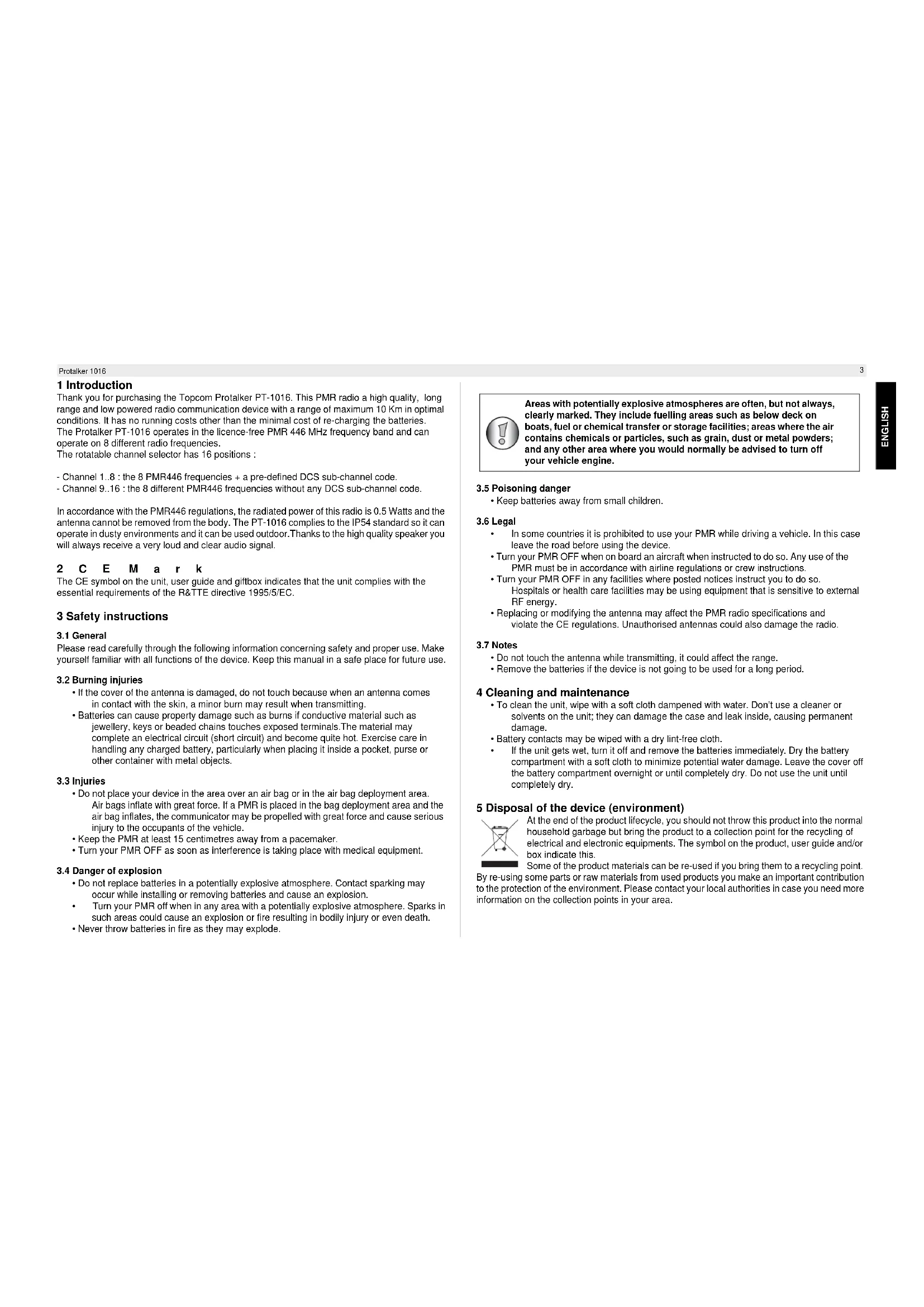

1 Introduction

Thank you for purchasing the Topcom Protalker PT-1016. This PMR radio a high quality, long range and low powered radio communication device with a range of maximum 10 Km in optimal conditions. It has no running costs other than the minimal cost of re-charging the batteries. The Protalker PT-1016 operates in the licence-free PMR 446 MHz frequency band and can operate on 8 different radio frequencies.

The rotatable channel selector has 16 positions :

• Channel 1..8 : the 8 PMR446 frequencies + a pre-defined DCS sub-channel code.
• Channel 9..16 : the 8 different PMR446 frequencies without any DCS sub-channel code.

In accordance with the PMR446 regulations, the radiated power of this radio is 0.5 Watts and the antenna cannot be removed from the body. The PT-1016 complies to the IP54 standard so it can operate in dusty environments and it can be used outdoor. Thanks to the high quality speaker you will always receive a very loud and clear audio signal.

2 C E M a r k

The CE symbol on the unit, user guide and giftbox indicates that the unit complies with the essential requirements of the R&TTE directive 1995/5/EC.

3 Safety instructions

3.1 General

Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all functions of the device. Keep this manual in a safe place for future use.

3.2 Burning injuries

• If the cover of the antenna is damaged, do not touch because when an antenna comes in contact with the skin, a minor burn may result when transmitting.
• Batteries can cause property damage such as burns if conductive material such as jewellery, keys or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

3.3 Injuries

• Do not place your device in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a PMR is placed in the bag deployment area and the air bag inflates, the communicator may be propelled with great force and cause serious injury to the occupants of the vehicle.
• Keep the PMR at least 15 centimetres away from a pacemaker.
• Turn your PMR OFF as soon as interference is taking place with medical equipment.

3.4 Danger of explosion

• Do not replace batteries in a potentially explosive atmosphere. Contact sparking may occur while installing or removing batteries and cause an explosion.
  • Turn your PMR off when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
• Never throw batteries in fire as they may explode.

Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fuelling areas such as below deck on boats, fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.

3.5 Poisoning danger

- Keep batteries away from small children.

3.6 Legal

• In some countries it is prohibited to use your PMR while driving a vehicle. In this case leave the road before using the device.
- Turn your PMR OFF when on board an aircraft when instructed to do so. Any use of the PMR must be in accordance with airline regulations or crew instructions.
- Turn your PMR OFF in any facilities where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.
- Replacing or modifying the antenna may affect the PMR radio specifications and violate the CE regulations. Unauthorised antennas could also damage the radio.

3.7 Notes

• Do not touch the antenna while transmitting, it could affect the range.
• Remove the batteries if the device is not going to be used for a long period.

4 Cleaning and maintenance

• To clean the unit, wipe with a soft cloth dampened with water. Don't use a cleaner or solvents on the unit; they can damage the case and leak inside, causing permanent damage.
• Battery contacts may be wiped with a dry lint-free cloth.
• If the unit gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a soft cloth to minimize potential water damage. Leave the cover off the battery compartment overnight or until completely dry. Do not use the unit until completely dry.

5 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point.

By re-using some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

Protalker 1016

6 Using a PMR 446 Mhz radio

To communicate between PMR devices they need to be set all on the same channel + sub-channel code and within receiving range (up to max. 10 km in ideal conditions). Since the PT-1016 operates on licence free 446 MHz frequencies, all other licence free 446 MHz PMR radio's will operate on the same radio frequencies. Therefore, privacy is not guaranteed. Anybody with a PMR set to your radio frequency can overhear the conversation. If you want to communicate (transmitting a voice signal) you need to press the PTT-button. Once this button pressed, the device will go into transmit mode and you can speak into the microphone. All other PMR devices in range, on the same channel and in standby mode (not transmitting) will hear your message. You need to wait until the other party stops transmitting before you can reply to the message. To reply, just press the PTT-button and speak into the microphone..

If 2 or more users press the PTT- button at the same time the receiver will receive only the stongest signal and the other signal(s) will be suppressed. Therefore you should only transmit a signal (press PTT- button) when the channel is free.

The range of radio waves is strongly affected by obstacles such as buildings, concrete/metal structures, the unevenness of the landscape, woodland, plants, ... This implies that the range between two or more PMR's may in some extreme cases be restricted to a maximum of a few tens of meters. You will soon notice that PMR works best when there is a minimum of obstacles between users.

7 Included in the package

• 1 x Protalker PT-1016
- 1 x Beltclip
• 1 x Desktop Charger
- 1 x Power adapter
- 1 x Li-ion battery
- 1 x User guide

8 Getting started

8.1 Installing the battery pack

Align the battery pack with the back of the PMR body. Press the battery pack and PMR body firmly together until the release latch locks up the battery.

8.2 Removing the battery pack

Line drawing of a handheld electronic device with buttons and a hand interacting with it (no text or symbols)

Lift the safety catch on the PMR body. Then press the release latch underneath the safety catch.

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

While pressing the release latch, pull the battery pack away from the PMR body.

8.3 Installing the belt clip

If necessary, attach the belt clip using the two supplied screws.

8.4 Installing the hand strap

Slide the small loop of the hand strap through the eyelet on the upper rear of the PMR body.

Pull the entire hand strap through the small loop to secure the hand strap in place.

Protalker 1016

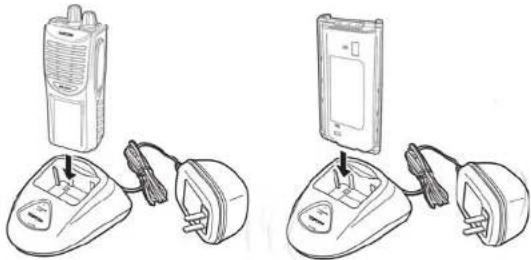

8.5 Charging the battery

1. Connect the power jack of the power adapter to the back of the desktop charger.

2. Plug in the power adapter in an easy accessible power socket.

→The LED on the front panel of the desktop charger will turn green.

1. Put in the PMR (with installed battery) or the separate battery into the charger.

Two line drawings of a portable electronic device with plug and socket, no text or symbols present

The LED colour will indicate the charging status of the battery:

• Red : Charging
  • Light green : 90% full
• Green : Fully charged

When the battery is fully discharged it will take about 4.5 hours to charge the battery to 90% of the full capacity. The remaining 10% charging will take about one hour. So, charging a fully discharged battery to 100% will take about 5.5 hours.

Do not use the PMR while charging the battery. Switch off the power of the PMR while charging.

Do not short-circuit the batteries or dispose in fire. Remove the batteries if this device is not going to be used for a long period.

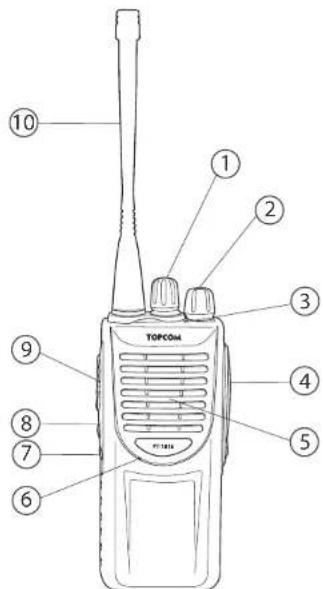

9 The PMR radio

1. Channel selector (16 positions)
2. On-Off/Volume knob

3. Status LED

4. Green : Receiving

5. Green flashing : Scanning
6. Red : Transmitting

7. Red flashing :Battery low

8. External Speaker/Microphone connectors

9. Speaker

10. Microphone
11. Function key #2 : Monitor key
12. Function key #1 : Scan key
13. PTT-button
14. Fixed antenna

TOPCOM 10 1 2 3 4 5 6 7 8 9

When the status LED is flashing red, battery needs to be recharged.

6

Protalker 1016

10 Using the PMR radio

10.1 Switching On/Off the PMR radio

• Turn the "On-Off/Volume knob" clockwise. A clicking sound will indicate that the PMR radio is switched on.
• Adjust the volume level by turning the knob
• Turn the "On-Off/Volume knob" ② fully counter clockwise. The clicking sound will indicate that the PMR radio is switched off.

10.2 Selecting the channel

The PT-1016 is pre-programmed with 16 channels. It is recommended to use the first eight channels (1..8) as these are a combination of a radio frequency combined with a DCS sub-channel code. This way, there will be less interference of other PMR 446MHz users on your channel. Last eight channels (9..16) are the eight different radio frequencies and will allow you to speak/listen to users who are using PMR 446 MHz radio's that are not using sub-channel codes.

- Rotate the "Channel selector" to select the desired channel.

The table in Annex A shows how the PT-1016 channels are pre-programmed.

10.3 Transmitting a signal

Press the "PTT - button" and speak towards the microphone. The ideal distance between the microphone of the PMR radio and your mouth is 5 to 10 cm.

The "Status LED" will turn red while transmitting.

10.4 Receiving a signal

When the PT-1016 is turned ON it will always be in receiving mode on the selected channel. While receiving a signal you can always adjust the volume by turning the knob.②

The "Status LED" will turn green when receiving a signal.

10.5 Monitor function

When you press the "Monitor key" (you will be able to hear weaker signals. When the PMR radio is set on one of the first eight channels (1..8), you will be able to hear nearby users, operating on the same radio frequency but on a different sub-channel, by pressing the "Monitor key" (7)

10.6 Scanning

When you press the "Scan key" (the PMR radio will scan for signals on the first 8 channels (1..8). In this way, the PMR radio will scan for signals coming from other PT-1016 users or from users operating on the same radio frequency with the same DCS sub-channel. (Annex A) The "Status LED" will blink green while scanning.When a signal is received you can answer just by pressing the "PPT-key".The scanning will resume automatically after 4 seconds.

- Press the "Scan Key" again to disable scanning.

11 External speaker/microphone connection

You can connect an optional speaker/microphone (shoulder microphone, ear tube, PC programming cable,...) via the side panel connectors.

Diagram of a HUSON air conditioner with labeled components and directional arrow indicating insertion or release

Speaker/microphone
jack cover

Remove the screw and take away the cover to have access to the speaker/microphone jacks.

If you are not using an external speaker/microphone, install the cover and put back in the screw.

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Insert the speaker/microphone plug into the speaker/microphone jacks of the PT-1016.

The PT-1016 is not fully water resistant while using an external speaker/microphone.

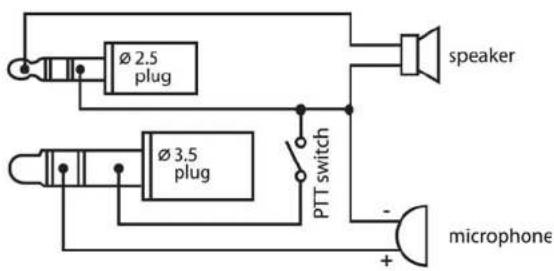

The diagram in Annex B shows how the speaker/microphone is connected.

12 Technical specifications

Please refer to Annex C for the technical specifications.

Protalker 1016

13 Warranty

13.1 Warranty period

The devices have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. There is no warranty on standard or rechargeable batteries. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered. The warranty has to be proven by presentation of the original or copy of the purchase receipt, on which the date of purchase and the unit-model are indicated.

13.2 Warranty handling

A faulty unit needs to be returned to an authorized service centre including a valid purchase note and a filled in service card. If the unit develops a fault during the warranty period, the service centre will repair any defects caused by material or manufacturing faults free of charge, by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit. The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by the service centre.

13.3 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty. The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation. No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible. Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer

1 Inleiding

Line drawing of a handheld hairdryer with control panel and scroll (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio with attached plug and socket (no text or symbols)

Line drawing of a device with a battery and plug, no text or symbols present

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld electronic device with control panel and directional arrows indicating rotation (no text or symbols)

Line drawing of a handheld electronic device with buttons and a handle (no text or symbols)

Two line drawings of a portable electronic device with plug and socket, no text or symbols present

Technical diagram of a Radiobox device with labeled parts and directional arrow indicating rotation or adjustment.

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld device with directional arrows indicating movement (no text or symbols)

Line drawing of a handheld electronic device with a hand adjusting its button (no text or symbols)

Two line drawings of a portable electronic device with attached power plug and cable (no text or symbols)

Technical diagram of a VHDCM radio device with labeled parts and directional arrow indicating rotation

Speaker/microphone
jack cover

Illustration of a T800S air travel phone with attached plug and connector (no text or symbols)

Line drawing of a handheld electronic device with directional arrows indicating rotation (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio with attached plug and socket (no text or symbols)

Line drawing of a battery pack and plug assembly (no text or symbols)

E

Technical diagram of a HXON airway device with labeled parts and directional arrow indicating insertion or positioning.

Speaker/microphone jack cover

Line drawing of a TONOM radio device with attached cable (no text or symbols)

Line drawing of a handheld electronic device with directional arrows indicating motion (no text or symbols)

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

Two line drawings of a portable electronic device with plug and socket, no text or symbols present

Technical diagram of a HROM device with labeled parts and directional arrow indicating insertion or adjustment.

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld electronic device with buttons and a hand interacting with it (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable air conditioner with a plug and power outlet (no text or symbols)

Line drawing of a mobile phone charger connected to a plug, showing internal components (no text or symbols)

Diagram of a HOPON radio device with labeled parts and directional arrow indicating insertion or positioning.

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld hairdryer with directional arrows indicating motion (no text or symbols)

Line drawing of a handheld electronic device with ports and a handle (no text or symbols)

Two line drawings of a portable electronic device with power plugs and a switch, no text or symbols present.

LED-indikatorens farge viser batteriets ladestatus:

Line drawing of a hand holding a radio device with a scroll wheel (no text or symbols)

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a connector inserted (no text or symbols)

Line drawing of a handheld electronic device with control panel and directional arrows indicating rotation (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio and plug device (no text or symbols)

Line drawing of a battery pack connected to a plug, showing internal components and wiring (no text or symbols)

Technical diagram of a walkie-talkie with labeled parts and directional arrow indicating movement

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld electronic device with control panel and directional arrows indicating motion (no text or symbols)

Line drawing of a handheld electronic device with ports and a handle (no text or symbols)

Line drawing of a portable radio and two connected devices (no text or symbols)

Line drawing of a battery pack and plug assembly (no text or symbols)

Diagram of a HONDA radio device with labeled parts and directional arrow indicating insertion or positioning

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld device with directional arrows indicating motion (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio with attached power plug and switch (no text or symbols)

Line drawing of a mobile phone charger connected to a plug, showing internal components (no text or symbols)

Line drawing of a Hangzhou 1990 air conditioner with attached cable (no text or symbols)

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld device with directional arrows indicating motion (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio and plug device (no text or symbols)

Line drawing of a device with a plug inserted into a socket and connected to a terminal block (no text or symbols)

Technical diagram of a PDCM air conditioner with labeled components and directional arrow indicating insertion or adjustment.

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld electronic device with directional arrows indicating rotation (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Illustration of two different types of household appliances: a mobile phone and a washing machine, both with cable and plug (no text or symbols present)

Line drawing of a walkie-talkie with a hand inserting a cable (no text or symbols)

Speaker/microphone jack cover

Diagram of a TONOM air conditioner with attached sensor device (no text or symbols)

Line drawing of a handheld device with directional arrows indicating movement (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio and two connected power plugs (no text or symbols)

Line drawing of a device with a plug inserted into a socket and connected to a terminal block (no text or symbols)

Line drawing of a walkie-talkie with a handle and control panel (no text or symbols)

Speaker/microphone jack cover

Line drawing of a walkie-talkie with a plug inserted, showing no text or symbols

Line drawing of a handheld electronic device with control panel and directional arrows (no text or symbols)

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Line drawing of a portable radio with attached plug and socket (no text or symbols)

Line drawing of a device with a plug inserted into a socket and connected to a terminal outlet (no text or symbols)

75

Speaker/microphone jack cover

Diagram of a walkie-talkie with attached plug, showing no text or symbols

Zasuňte konektor reproduktora/mikrofónu do konektorov reproduktora/mikrofónu na PT-1016.

Pre - programmed channels

		LENNAHC-BUSYCNEUQ
1 446.006	25 N130DzHM = DCS code 04
2 446.018	75 N150DzHM = DCS code 08
3 446.031	25 N270DzHM = DCS code 12
4 446.045	75 N511DzHM = DCS code 16
5 446.056	25 N231DzHM = DCS code 20
6 446.068	75 N551DzHM = DCS code 24
7 446.081	25 N271DzHM = DCS code 28
8 446.093	75 N622DzHM = DCS code 32
9 446.006	25 MHz -
10 446.018	75 MHz -
11 446.031	25 MHz -
12 446.048	75 MHz -
13 446.056	25 MHz -
14 446.068	75 MHz -
15 446.081	25 MHz -
16 446.093	75 MHz -

Annex B

Speaker / microphone connection diagram

ø 2.5 plug ø 3.5 plug PTT switch speaker - microphone +

Annex C

Technical specifications

Frequency range :	446.00625 ... 446.09375 MHz
Channel spacing :	12.5 KHz
Channels :	16
Maximum RF output power :	0.5 W
Modulation :	FM - F3E
Antenna type :	Fixed
Audio output power :	<=500mW
Battery type :	7.4V - 1200mAh (Li-ion)
Operation temperature :	-20 °C ... +55°C
IP-standard :	48P
Dimensions :	142 x 57 x 41 mm (without antenna)
Weight :	275 g (including battery, antenna, belt-clip)

Annex D

CTCSS / DCS Chart

CTCSSCodeChartCodeFreq(Hz)CodeFreq(Hz)CodeFreq(Hz)CodeFreq(Hz)
1 67 11	97,4 21 136,5 31 192,8
2 71,9	2 100 22 141,3	32 203,5
3 74,4	3 103,5 23 146	2 33 210,7
4 77 14	107,2 24 151,4	34 218,1
5 79,7	5 110,9 25 156	7 35 225,7
6 82,5	6 114,8 26 162	2 36 233,6
7 85,4	7 118,8 27 167	9 37 241,8
8 88,5	8 123 28 173,8	38 250,3
9 91,5	9 127,3 29 179	9
10 94,8	10 131,8 30 186	2

DCSCodeChartNoDCSCodeNoDCSCodeNoDCSCode
		21 D134N 42 D311N 63	D516N
1 D023N 22 D143N 43	D315N 64 D532N
2 D025N 23 D152N 44	D331N 65 D546N
3 D026N 24 D155N 45	D343N 66 D565N
4 D031N 25 D156N 46	D346N 67 D606N
5 D032N 26 D162N 47	D351N 68 D612N
6 D043N 27 D165N 48	D364N 69 D624N
7 D047N 28 D172N 49	D365N 70 D627N
8 D051N 29 D174N 50	D371N 71 D631N
9 D054N 30 D205N 51	D411N 72 D632N
10 D065N 31 D223N 52	D412N 73 D654N
11 D071N 32 D226N 53	D413N 74 D662N
12 D072N 33 D243N 54	D423N 75 D684N
13 D073N 34 D244N 55	D431N 76 D708N
14 D074N 35	D245N 56 D43G N 77 D712N
15 D114N 36 D251N 57	D445N 78 D728N
16 D115N 37 D261N 58	D464N 79 D731N
17 D116N 38 D263N 59	D465N 80 D732N
18 D125N 39 D265N 60	D466N 81 D733N
19 D131N 40 D271N 61	D503N 82 D744N
20 D132N 41 D306N 62	D506N 83 D754N

This product is in compliance with the essential requirements and other relevant provisions of the R & TTE directive 1999/5/EC.

The Declaration of conformity can be found on : http://www.topcom.net/support/cedeclarations.php

TOPCOM®

Visit our website

www.topcom.net
