ERi 312x50 - Binoculars LEICA - Free user manual and instructions

Product type	Riflescope
Brand	Leica
Model	ERi 312x50
Magnification	3x - 12x
Objective diameter	50 mm
Exit pupil	14.9 - 4.1 mm
Field of view (at 100 m)	3.2 - 11.5 m
Parallax	Set to 100 m
Eye relief	100 mm
Diopter adjustment	-4 to +3 dpt
Adjustment (1 click)	1 cm at 100 m
Tube diameter	30 mm
Filter thread	M52 x 0.75
Waterproof	Up to 4 m
Reticle illumination	Illuminated dot, 9 brightness levels, automatic shut-off at ±70°
Housing material	High-strength aluminum
Length	346 mm
Weight (without/with rail)	620 g / 660 g
Anti-reflective coating	Aqua Dura™
Light transmission	≥ 90%
Power supply	1 CR2032 battery (not included)
Main functions	Illuminated dot reticle, windage and elevation adjustments, diopter adjustment, magnification change
Care and cleaning	Clean lenses with a damp cloth then chamois; do not use alcohol or chemicals; do not disassemble
Spare parts and repairability	Contact Leica customer service for caps, seals and other parts
Customer service	Leica Camera AG, [phone], [e-mail]

Frequently Asked Questions - ERi 312x50 LEICA

What type of battery does the Leica ERi 312x50 scope use and how to install it?

It uses a CR2032 battery. To install, unscrew the battery compartment cap and insert the battery observing polarity.

How to adjust the diopter on the Leica ERi 312x50 scope?

Turn the eyepiece (1a) until the reticle is optimally sharp. For precise adjustment, aim the scope at a bright background, first turn fully to the right (minus sign) then back to the left (plus sign) until perfect sharpness.

How to change magnification on the Leica ERi 312x50 scope?

Turn the adjustment ring (4): to the right to reduce magnification, to the left to increase it. The lug (4a) helps orientation in the dark.

How to adjust elevation and windage?

Unscrew the protective caps, then turn the turrets: for elevation (5), counterclockwise if impact is high, clockwise if impact is low. For windage (6), counterclockwise if impact is to the right, clockwise if impact is to the left. One click corresponds to 1 cm at 100 m.

How to reset the turret scales?

After adjustment, loosen the fixing screw with a cross-head screwdriver (PH 00) while holding the turret, turn the scale to align zero with the index mark, then retighten the screw.

How to turn on and adjust reticle brightness?

Use the adjustment ring (7) to turn the illumination on/off and set brightness in 9 levels. Automatic shut-off occurs at ±70° of the shooting angle.

How to clean the scope lenses?

First remove coarse particles with a soft brush or by blowing. For stubborn dirt (fingerprints), use a damp cloth then a clean chamois or lint-free cloth. Avoid alcohol and any chemicals.

What to do in case of impact or technical problem?

Protect the scope from impacts not related to shooting. Never attempt to disassemble the scope; repairs are reserved for authorized workshops. Contact Leica customer service.

Where to find spare parts?

Contact Leica customer service ([e-mail]) or your national Leica representative. Available parts include caps, seals and protective caps.

What are storage precautions?

Store the scope in a dry, cool and well-ventilated place, especially in humid climates, to prevent mold.

USER MANUAL ERi 312x50 LEICA

Havage and Save Live Opposite, to: D/D-lead=01C1B, in: a Cem B. lgt. devi: pan 1. Pai 11.0

N° 17 "Tender," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "tend," "teng"

with the function f(x) = 1x^2 + x + 3 . We have f(x) = f(0) + f(-) , and f(-) = - . Thus, we have

very a bit more in comparison to all models . In summary, this small but broadens the range of variables to cope with

FIG.12.3D (a) CuO / NiO , (b) CuO / NiO , (c) CuO / NiO , (d) CuO / NiO , (e) CuO / NiO , (f) CuO / NiO , (g) CuO / NiO , (h) CuO / NiO , (i) CuO / NiO , (j) CuO / NiO , (k) CuO / NiO , (l) CuO / NiO , (m) CuO / NiO , (n) CuO / NiO , (o) CuO / NiO , (p) CuO / NiO , (q) CuO / NiO , (r) CuO / NiO , (s) CuO / NiO , (t) CuO / NiO , (u) CuO / NiO , (v) CuO / NiO , (w) CuO / NiO , (x) CuO / NiO , (y) CuO / NiO , (z) CuO / NiO .

• Time to the place: at a convenient time

• Univariate analysis of the frequency of diabetes in men, women and children

Theorem 2.1. The following are differentiable and can be expressed in terms of y , respectively: for any point x we have

100

```c

include

F=4c+1.2
C=36.780.81

10.12.5.24

THK

2018-03-19 15:46:30 PM (UTC)
Author's contributions: (refers to the author's own, p.p.)
Received 27 March 2018; accepted 27 March 2018

and integral, 417; by review of this may and not be discussed here.

2018年1月14日星期五

LEICAERI2.5-10a42

LEICA ERI #12x50

50

(1)

Inhaltsverzelchnls

Designation of parts.. U2
Items supplied .U2
Foreword 11
Inserting the battery. 12
Assembly 13
Diopter compensation. 13
Elevation and lateral adjustment. 14
"Zeroing" the tower scales. 15
Changing the magnification. 15
Illuminated reticle adjustment 16
Maintenance / cleaning. 17
Spare parts. 18
Technical data 19
Leica Info Service 20
Leica Customer Service 20

foreworD

Dear Customer,

Throughout the world, the name Leica stands for premium quality, accurate precision mechanics, optimum reliability and long service life. We wish you a great deal of enjoyment and every success with your new Leica riflescope.

Your Leica riflescope is equipped with an outstanding optical system and an illuminated dot reticle. This delivers a clear, bright image even in difficult conditions and lighting situations, providing a reliable reticle and a reliable shot every time. It is also easy to operate and functional.

To enable you to make the best possible use of this high performance riflescope features, we recommend that you read these instructions before use.

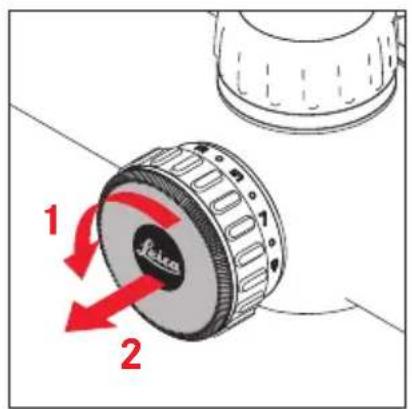

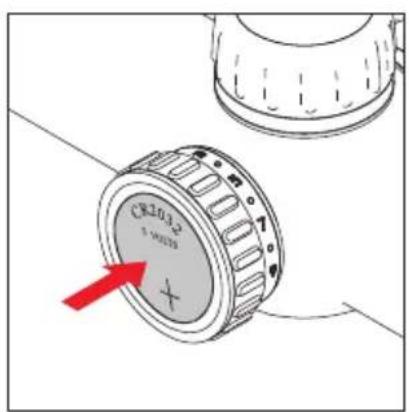

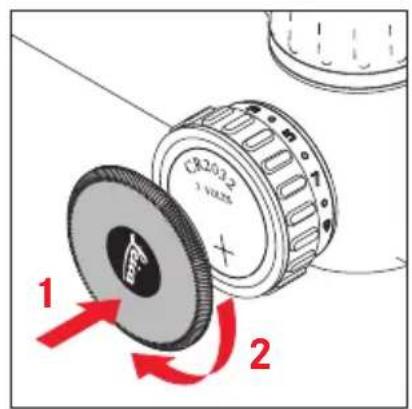

Inserting the Battery

Mounting

The first requirement for a stable point of impact is proper mounting of the riflescope on the weapon. There are a variety of different fittings available in specialist retailers for this purpose.

We recommending using only high quality components from well-known manufacturers for mounting, which offer the same quality as your Leica riflescope itself.

You can mount the sight yourself, making sure that it is flush and free of tension, but Leica recommends using a specialist workshop.

Dlopter coMpensation

The diopter compensation allows you to adjust your Leica riflescope to your eye. To do this, turn the eye cup (1a) on the eyepiece (1) so that you can see the reticle with optimum sharpness. To achieve the most accurate setting possible, we recommend

pointing the riflescope at a neutral, light background, and
- first turning the rotating eye cup all the way to the right (minus direction, see index point 2), so that you can then turn it back in a positive direction from this position to locate the best sharpness for the reticle.
- This method takes into account the accommodative capacity of the eye, thus ensuring an optimum setting.

elevation anD lateral aDjustMent

In case of variations in the point of impact, adjustment of the reticle to the weapon is required. This is done using the two adjusting towers - (5) for the elevation, (6) for lateral, with both adjusted in the same way:

First unscrew the cap (5.a/6.a) counter clockwise. Once the cap is removed, the knurled dial 5.b/6.b is visible, along with the associated scale 5.c/6.c and the corresponding index point 5.d/6.d. The knurled dials are very precisely graduated, with one click corresponding to 1cm at 100m .

If the point of impact is high, requiring downward correction, turn the knurled dial 5.b counter clockwise, or clockwise to correct upwards if the point of impact is low.

Make the lateral adjustments in the same way: If the point of impact is right, requiring correction to the left, turn the knurled dial 6.b counter clockwise, or clockwise to correct to the right if the point of impact is left.

"zeroling" the tower scales

(same procedure for both towers)

The process is initially the same as that described in the previous section.

Then,

1. unscrew the clamping screw with a Phillips head screwdriver (size PH 00), and

2. hold the knurled dial 5b / 6b in the relevant position while simultaneously turning the scale 5c / 6c so that the zero is aligned with the index point 5d / 6d .

3. Finally, this setting is fixed by tightening the clamping screw.

Once you have done this for both scale dials, you can reliably make the initial setting at the zeroing range after any kind of adjustment by returning to the 0 positions, without the need to remember or make a note of anything.

changing the Magnificatlon

To change the magnification, turn the dial (4) - to the right to reduce the magnification and to the left to increase it. The cam 4.1 improves orientation in darkness: If it is pointing upwards, the middle magnification is set, e.g. on the Leica ER 3 - 12 × 50 this is 6.

IIIuMInateD retIcle aDjustMent

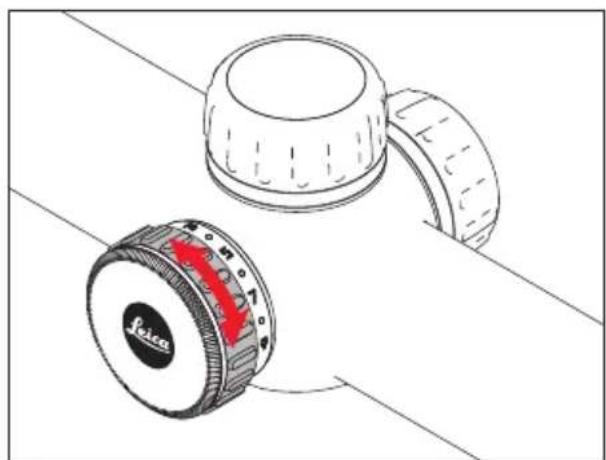

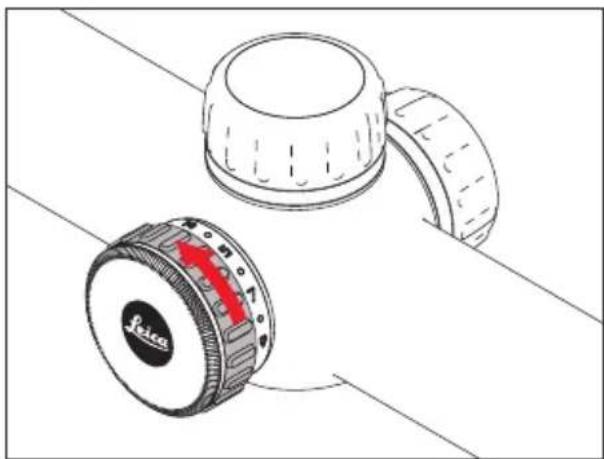

The illumination of the reticle is turned on or off using the setting dial (7):
