Product type	Variable magnification binoculars
Brand	Leica
Available models	Duovid 8+12x42, Duovid 10+15x50
Magnifications	8x/12x (42 mm model) or 10x/15x (50 mm model)
Objective lens diameter	42 mm or 50 mm depending on model
Exit pupil	8x: 5.25 mm; 12x: 3.5 mm (42 model) / 10x: 5.0 mm; 15x: 3.3 mm (50 model)
Field of view at 1000 m	8x: 118 m; 12x: 90 m (42 model) / 10x: 92 m; 15x: 70 m (50 model)
Close focusing limit	3.50 m (42 model) / 3.80 m (50 model)
Adjustable interpupillary distance	56 to 74 mm
Diopter correction	±3 diopters, with automatic compensation (ADC™) when changing magnification
Prism type	Roof prisms with phase correction coating (P40)
Waterproofing	Waterproof to 5 m depth
Nitrogen filling	Yes, anti-fog
Housing material	Die-cast aluminum with rubber armor
Dimensions (L x W x H)	42 model: 120 x 157 x 67 mm; 50 model: 126 x 195 x 67 mm
Weight	42 model: 1045 g; 50 model: 1250 g
Operating temperature	-25°C to +55°C
Storage temperature	-40°C to +85°C
Included accessories	Strap, Nappa leather case, eyepiece caps (for 50 model: tripod adapter)
Maintenance	Clean with fresh water for dirt; remove eyecups for thorough cleaning
Safety	Do not observe the sun or any intense light source to avoid eye injury

Frequently Asked Questions - Duovid LEICA

How to adjust the diopter correction on Leica Duovid binoculars?

To adjust the diopter correction, first focus with the right eye using the central focusing wheel. Then pull the diopter adjustment ring (on the left) to unlock it, and turn it until the image is sharp for the left eye. Finally, push the ring back to lock the setting. The selected value is shown on the scale. Make sure the left magnification ring is in its end position (8x, 12x or 10x, 15x) before unlocking the diopter.

How to change the magnification on the Duovid?

Turn the rotating rings located under the eyecups. Both rings must be placed in the end position (stop) to ensure identical magnification in both eyes and to enable automatic diopter compensation. Intermediate positions are possible but not recommended.

Can I use the binoculars with eyeglasses?

Yes. For observation with glasses, retract the eyecups (position b). Without glasses, extend them by turning counterclockwise (position a). The eyecups snap into position.

How to clean Leica Duovid binoculars?

First remove coarse dirt with a brush or by blowing. For fingerprints, breathe lightly on the surface and wipe with a soft cotton cloth. If the binoculars are very dirty, you can rinse them under running water. Make sure the two halves of the central focusing wheel are coupled to prevent water entry. If exposed to salt water, rinse with fresh water.

Are the binoculars waterproof?

Yes, they are waterproof to a depth of 5 meters. The housing is nitrogen-filled to prevent fogging, making them suitable for harsh outdoor conditions.

How to attach the strap?

Pass the strap through the lugs on the housing (mark n°5). For the case, open the top flap by undoing the snap fasteners and thread the strap through the side slots.

What is the minimum focusing distance?

For the 8+12x42 model, the close focus limit is 3.50 meters; for the 10+15x50, it is 3.80 meters. Beyond infinity, the extension is -4.5 diopters.

Can I use a tripod with these binoculars?

Yes. A tripod adapter with 1/4" thread is available. It is included in the kit for the 10+15x50 model. It allows stable, prolonged observation without risk of damaging the binoculars.

How to adjust the interpupillary distance?

Spread or bring together the two barrels around the hinge axis until the two fields of view merge into a single bright circle. The adjustment range is 56 to 74 mm.

What are the important safety precautions?

Never observe the sun or any intense light source with the binoculars, as this can burn the retina. The device is not suitable for direct solar observation.

USER MANUAL Duovid LEICA

Black Feica Binoculars with dual-lens (no visible text or symbols on the binoculars)

Vorwort

Leica Customer Service 11

Warnhinweis

Black-and-white photo of a tripod-mounted optical or military camera with visible lens and screen (no text or symbols)

Stativadapter

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Three black binoculars with a central dome-shaped head, arranged in a triangular pattern (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Top-down view of a black binoculars with dual lenses (no text or symbols visible)

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols on the covers or background

Close-up of a black binoculars with labeled parts (no readable text beyond labels)

Close-up of a black binoculars with visible lens and adjustment knobs, no text or symbols present.

Achtung:

Close-up of a black speaker with dual speakers and a dial indicator (no text or symbols visible)

Achtung:

Leica Customer Service

Worldwide, the name Leica stands for superb optical quality, close-tolerance precision engineering, absolute reliability, and long product life.

We wish you a great deal of enjoyment and success with your new Leica Duovid. The outstanding optical properties and the variable magnification allow you to adjust these handy binoculars to various viewing situations.

So that you can use them properly, we recommend that you first of all read these instructions.

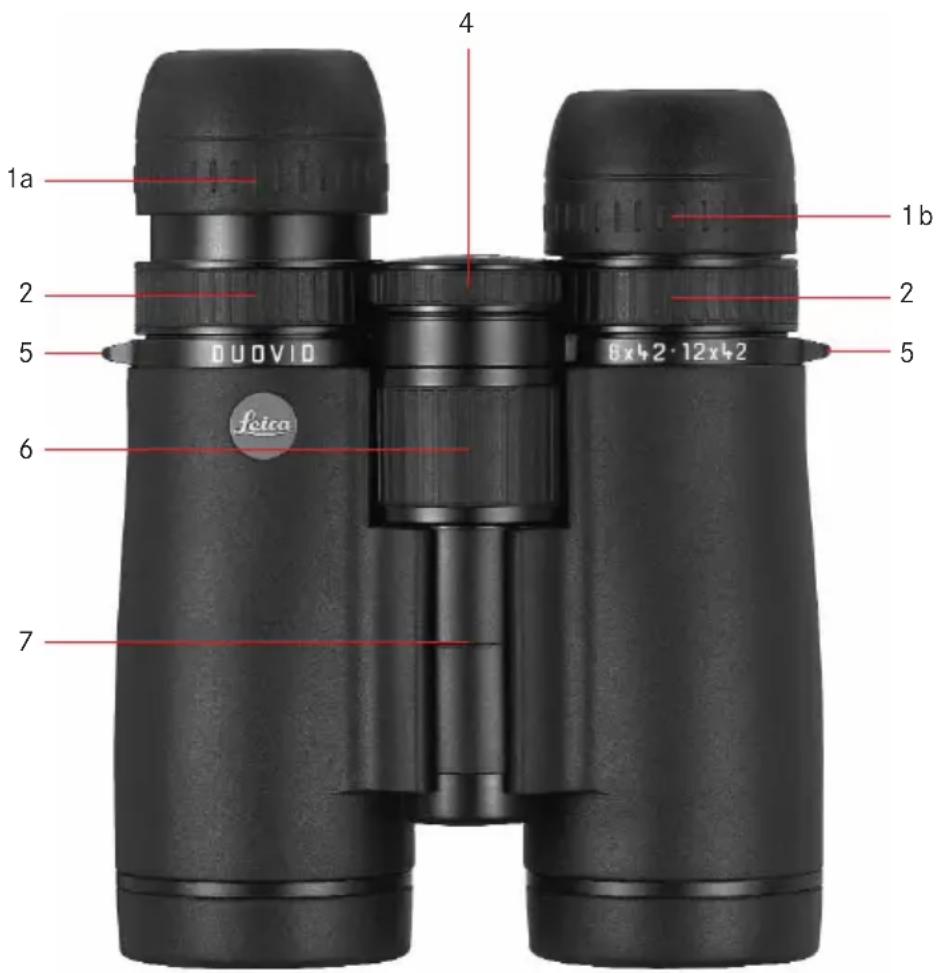

Nomenclature

1. Eyepiece cups
   Position a: unscrewed for viewing without glasses
   Position b: screwed in for viewing with glasses

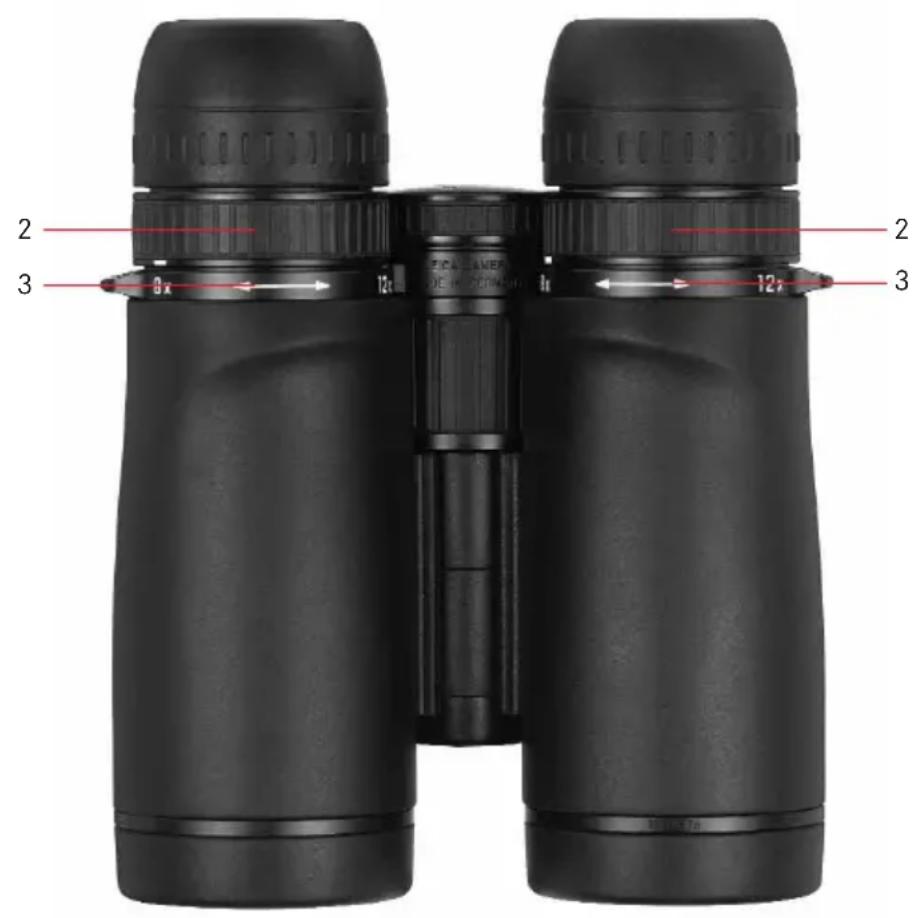

2. Adjustable rings for selecting the magnification with indexed markings
3. Fixed rings with markings for the two magnifications
4. Lockable diopter adjustment ring
5. Eyelets for carrying strap
6. Central focusing ring
7. Hinged joint for adjusting the eyebase

Table of Contents

Foreword 12

Nomenclature 12

Possible applications 14

Attaching the carrying strap 14

Attaching the protective eyepiece cover ..... 14

Care and maintenance 15

Tripod Adapter 15

Carrying case 15

Adjusting the eyecups 16

Adjusting the eyebase 17

Setting the magnification 17

Focusing/Diopter adjustment ..... 18

Technical Data 21

Leica Academy 22

Leica in the Internet 22

Leica Information Service ..... 22

Leica Customer Service 22

Warning notice

As with all binoculars, avoid looking directly at sources of bright light with your Leica Duovid as this could cause eye damage.

Possible applications

The Leica Duovid is a high-performance set of binoculars with two magnifications that can be selected as required. The lower magnification provides a bright, stable image with a large field of view and a large depth of field. The higher magnification offers outstanding recognition of details of distant objects and in conditions of poor light. The balanced weight distribution and the perfect ergonomics combine to give an extraordinarily stable image despite the high magnification.

The Leica Duovid has a hermetically sealed, nitrogen-filled, and die-cast aluminum housing. It is therefore suited for rough outdoor use. There is no need to be concerned with moisture as it is 100% waterproof to a depth of 5 m and the internal optical system is not subject to fogging.

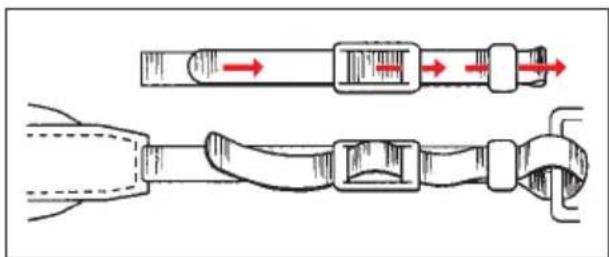

Attaching the carrying strap

Attaching the protective eyepiece cover

The eyepiece cover is placed over the eyepiece cups. It is fixed using the carrying strap.

Care and maintenance

Your Leica binoculars need no special maintenance. Use a soft lens brush or a blower to remove large particles of dirt, sand, etc. To remove fingerprints etc., first wipe the eyepiece and lens with a damp cloth, then dry them with a piece of clean, soft chamois leather or lint-free cloth. If the binoculars, particularly the telescopic eye-pieces tubes, are very dirty, rinse them in a basin of water rather than under a running faucet.

Always rinse off salt water.

Moisture inside the central focusing unit (visible through the scale window) will dry quickest when the diopter adjustment ring (4) is pulled up, i.e. unlocked.

Black-and-white photo of a tripod-mounted optical surveying device (no text or symbols visible)

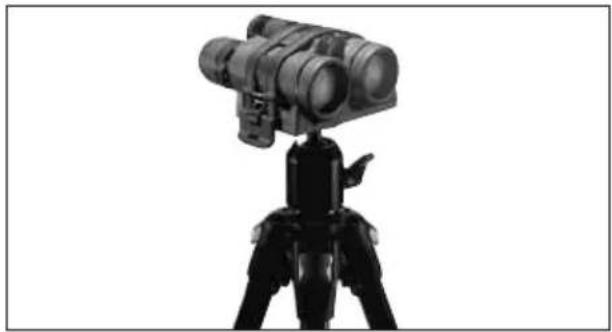

Tripod Adapter

This practical tripod adapter is equipped with a 14 " thread for all Duovid models and allows long-term shake-free viewing. In the case of the Leica Duovid 10+15x50 it is included in the scope of delivery.

Carrying case

The soft leather carrying case supplied with your Leica binoculars protects them from dirt. A flap with snap fasteners is provided at the top of the case, through which the carrying case strap can be fed.

Close-up of two black binoculars with no visible text or symbols on the covers

Close-up of black binoculars with no visible text or symbols

Adjusting the eyecups

The eyepiece cups (1) can be easily adjusted by turning them and they lock securely into the selected positions. They can also be completely removed for thorough cleaning.

For viewing with eyeglasses (Figure A) they remain in the fully screwed-in position. For viewing without eyeglasses, they are unscrewed

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

by turning them anticlockwise. Two positions are available for optimum adjustment (Figure B, C). If the eyepieces are very dirty, it is recommended to remove the cups for cleaning (Figure D). To do this, they are turned slightly back clockwise and gently pulled while in the fully unscrewed position.

Three black binoculars with a central knob, shown against a white background (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black binoculars with measurement arrows indicating 12x length (no text or symbols on the bin itself)

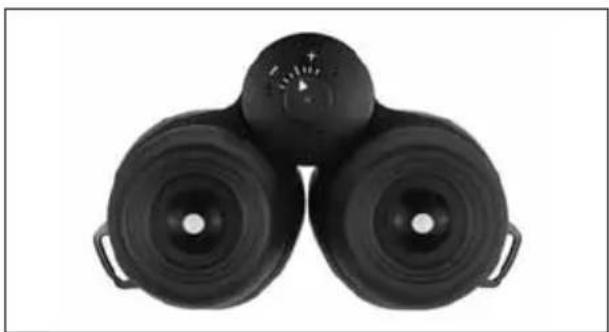

Adjusting the eyebase

To set the eyebase, adjust the binoculars at the hinged joint. The left and right fields of view must merge and produce a single circular image.

Setting the magnification

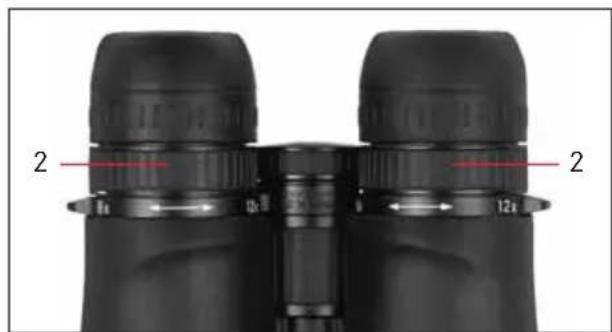

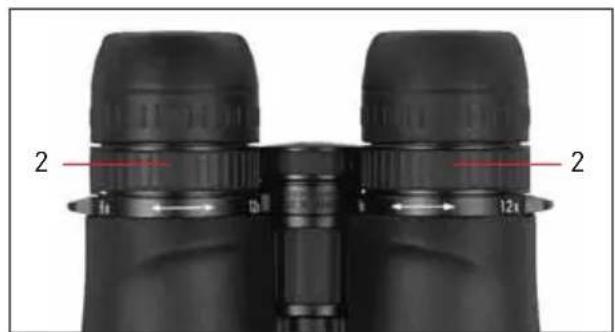

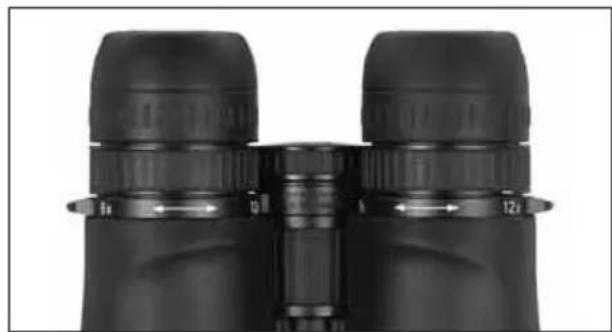

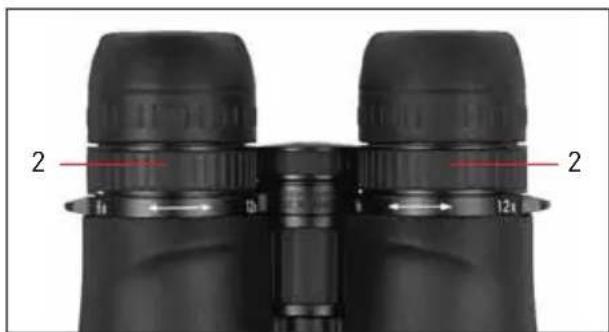

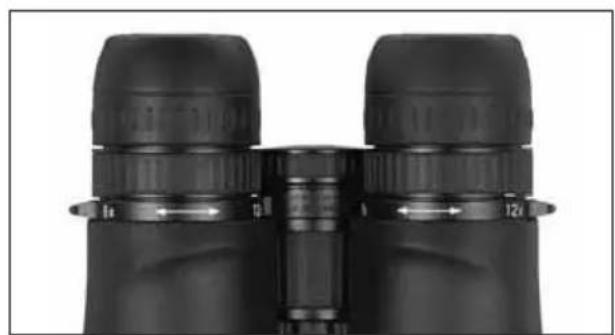

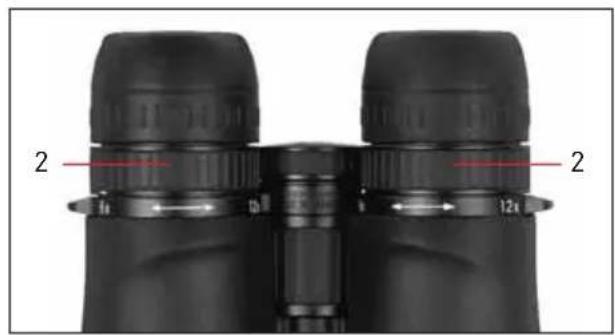

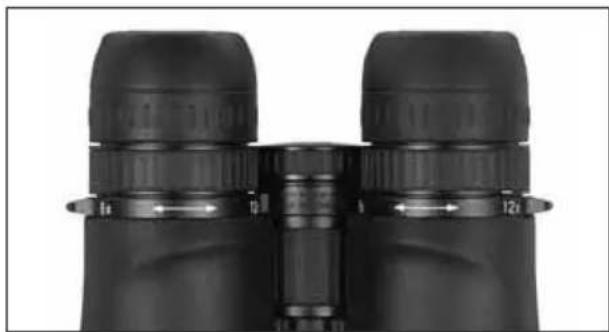

The Leica Duovid offers the user a choice of two magnifications. The magnification is adjusted using the adjustable rings (2) below the two eyepiece cups. Both rings must always be completely moved into the appropriate end position.

Notes:

Intermediate settings are possible, although identical magnification in both optical systems cannot be guaranteed in this case. Furthermore, the automatic diopter setting (ADC™ – Automatic Diopter Compensation, see also the next section “Focusing/Diopter compensation”) only applies in the two end positions. Incorrect settings can therefore quickly lead to a strain on the eyes and to fatigue.

As the left ring is linked to the automatic diopter setting, its movement is slightly stiffer than that of the right ring.

Close-up of black binoculars with visible lens and focal points (no text or symbols on the binoculars themselves)

Focusing/Diopter adjustment

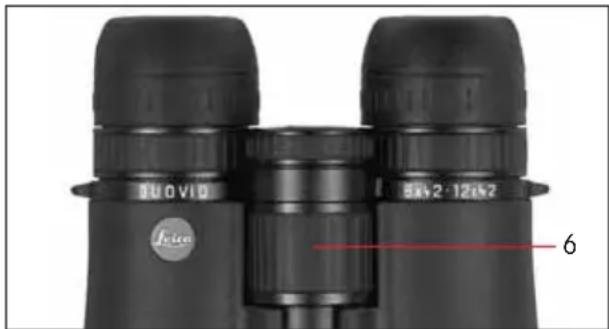

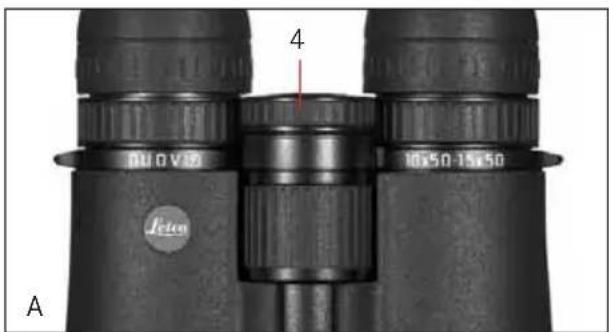

With the Leica Duovid the central focusing ring (6) is used to set the focus for variously distant objects.

Note:

The focusing of the Leica Duovid is retained after the magnification is changed. However, a slight adjustment can be required in practice. This is especially true when changing to a higher magnification after having focused with a lower magnification. The reasons for this are the larger depth of field at lower magnification, which often leads to slightly less precise focusing, and the eyes' accommodation capacity.

Close-up of a black binoculars with visible lens and focal points (no text or symbols on the bin itself)

Compensation for individual defective vision for viewing without eyeglasses is made using the diopter ring (4), which is normally locked. (Figure A). First of all, the central focusing ring is used to focus the right barrel on an object. The diopter ring is then released by pulling it up. (Figure B).

Close-up of a black binoculars with visible lens and adjustment labels (no readable text beyond branding)

Attention:

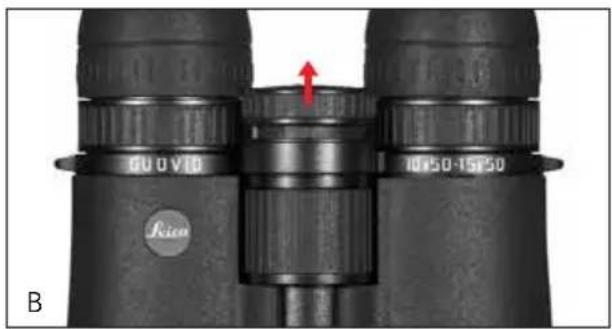

If the left magnification adjustment ring is not in an end position, i. e. at 8x or 12x/10x or 15x, the diopter ring is locked and cannot be released.

The diopter ring is then twisted to set the optimum focusing for the left barrel. Pressing the diopter ring back down locks the set value. Defective vision differences of up to ±3 diopters can be compensated in this way.

Close-up of a black industrial bell pepper with no visible text or symbols

Attention:

Do not adjust the magnification with the diopter ring released. The left ring for adjusting the magnification is locked when the diopter ring is released.

For viewing on just the left or the right side, the other eye should be kept closed or the appropriate half of the binoculars simply covered at the front on the lens.

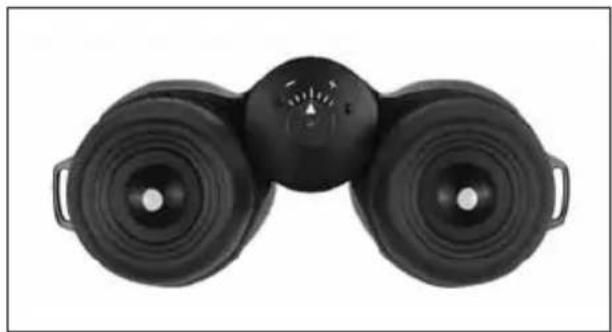

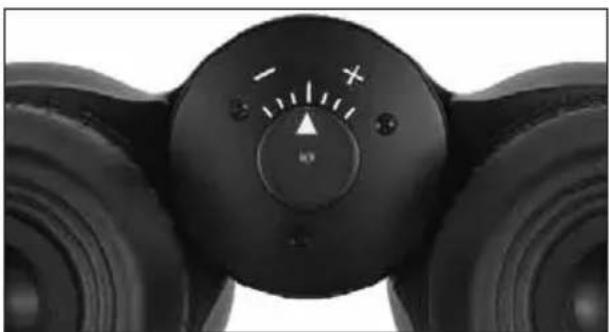

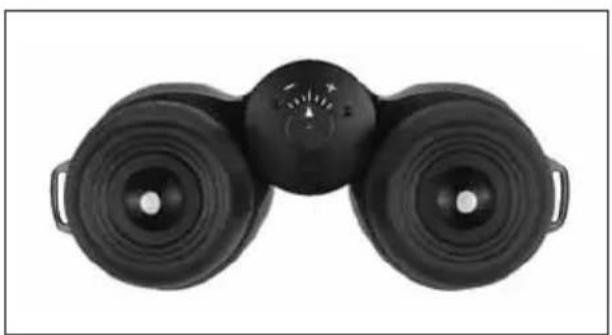

The set value can be conveniently read from the accurate scale on the diopter ring.

Technical Data

	LEICA DUOVID 8+12x 42 LEICA DUOVID	10+15x50
Magnification: 8-/12x 10-/15x
Lens diameter: 42mm 50mm
Exit pupil: for 8x magnification: 5.25mm, for 10x magnification: 5.00mm, for 12x magnification: 3.5mm for 15x magnification: 3.3 mm
Twilight factor: for 8x magnification: 18.33, for 10x magnification: 22.36, for 12x magnification: 22.45 for 15x magnification: 27.39,
Geometric light value:	for 8x magnification: 27.56, for 12x magnification: 12.25 for 15x magnification: 11.1,	for 10x magnification: 25.00,
Field of view:	for 8x magnification: 118 m at 1.000m distance, in degrees 6.7°, for 12x magnification: 90m at 1.000m distance, in degrees: 5.1°	for 10x magnification: 92 m at 1.000m distance, in degrees 5.3°, for 15x magnification: 70 m at 1.000m distance, in degrees: 4.0°
Close focusing limit:	3.50m, -4,5dptr. focussing above infinity	3.80m, -4,5dptr. focussing above infinity
Adjusting magnification:	single eyepiece setting
Diopter compensation:	±3 dptr., -4.5 diopters focusing above infinity, setting is retained when magnification is changed (ADCTM – Automatic Diopter Compensation)
Eyebase:	adjustable between 56–74mm
Type of prism:	roof
Phase correction coating on prisms:	yes, P40
Operating temperature:	-25°C to 55°C
Storage temperature:	-40°C to 85°C
Waterproofing:	waterproof up to 0.5 bar = 5 m water depth, nitrogen-filled to avoid fogging in any situation
Housing material:	die-cast aluminum, completely rubber-armored and ergonomically shaped for secure grip
Dimensions (W1× H2× D1):	120 x 157 x 67mm	126 x 195 x 67mm
Weight:	1.045g	1.250g

^1 With eyebase set to 65mm

^2 With eyecups screwed in

Leica Academy

Our seminars offer participants practical information on the Leica world of values and the fascination of skilled use of Leica products. Course programs are application-oriented and informative. They offer a wealth of practical suggestions, help, and advice.

Leica Camera AG

Leica Akademie

Oskar-Barnack-Str. 11/D 35606 Solms

Tel: [phone]

Fax: [phone]

e-mail: [e-mail]

Leica in the Internet

You can find up to date information about products, novelties, special events, and the Leica company on our home page in the internet:

http://www.leica-camera.com

Leica Information Service

Should you have any technical questions regarding the use of Leica products, the Leica

information service will be happy to answer in writing or by phone, fax, or e-mail:

Leica Camera AG

Leica Customer Service

For service of your Leica equipment and in case of necessary repairs please contact the customer services of Leica Camera AG or of any national Leica agency (see warranty card for address list). Ask your authorized dealer and Leica specialist for advice.

Leica Camera AG

Reparatur-Service

Oskar-Barnack-Str. 11/D 35606 Solms

Tel: [phone]

Fax: [phone]

e-mail: [e-mail]

Avant-propos

Chère cliente, Cher client,

Black-and-white photo of a tripod-mounted optical or military camera with visible lens and screen (no text or symbols)

Close-up of two black binoculars with no visible text or symbols on the covers

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Three black binoculars with a central dome-shaped head, arranged in a triangular pattern (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Top-down view of a black binoculars with dual lenses (no text or symbols visible)

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with visible lens and focal point (no text or symbols on the binches themselves)

Close-up of a black binoculars with labeled parts (no readable text beyond labels)

Close-up of a black binoculars with visible lens and adjustment knobs, no text or symbols present.

Attention:

Close-up of a black speaker with dual speakers and a dial indicator (no text or symbols visible)

Attention:

Leica Customer Service

Black-and-white photo of a tripod-mounted optical surveying device (no text or symbols visible)

Statiefadapter

Close-up of black binoculars with no visible text or symbols

Close-up of two black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Three black binoculars with a circular head cover, arranged in a triangular pattern (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Top-down view of a black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with visible lens and focal points (no text or symbols on the binoculars themselves)

Close-up of a black binoculars with labeled parts (no readable text beyond labels)

Close-up of a black binoculars with visible lens and adjustment labels (no readable text beyond branding)

Let op:

Close-up of a black industrial fan or regulator dial with no visible text or symbols on the dial face (pure technical diagram)

Let op:

Leica Customer Service

Black-and-white photo of a tripod-mounted optical or military camera with visible lens and screen (no text or symbols)

Close-up of two black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Three black binoculars with a central dome-shaped head, arranged in a triangular pattern (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Top-down view of a black binoculars with dual lenses (no text or symbols visible)

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols on the covers or background

Close-up of a black binoculars with labeled parts (no readable text beyond labels)

Close-up of a black binoculars with visible lens and adjustment knobs, no text or symbols present.

Attenzione:

Close-up of a black industrial machine head with dual speakers and a dial (no visible text or symbols)

Attenzione:

Customer Service Leica

Leica & Minox Department

I-20090 Opera-Zerbo (Milano)

Tel: +39 - 02 53 0021

Fax: +39 - 02 5760 9141

e-mail: [e-mail]

Prólogo

Estimado cliente,

Black-and-white photo of a tripod-mounted optical surveying device (no text or symbols visible)

Adaptador de trípode

Close-up of two black binoculars with no visible text or symbols on the covers

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Close-up of black binoculars with no visible text or symbols

Three black binoculars with a circular head cover, arranged in a triangular pattern (no text or symbols visible)

Close-up of black binoculars with red measurement arrows and scale markings (no text or symbols on the bin itself)

Black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black binoculars with measurement arrows indicating width (no text or symbols)

Close-up of black binoculars with visible lens and focal points (no text or symbols on the binoculars themselves)

Close-up of a black binoculars with visible lens and focal points (no text or symbols on the bin itself)

Close-up of a binoculars with a red arrow pointing to the center (no text or symbols on the binoculars themselves)

Atención:

Close-up of a black industrial bell pepper with no visible text or symbols

Atención:

Customer Service Leica
