Product Type	Binoculars
Magnification	10x
Objective Lens Diameter	42 mm
Exit Pupil	4.2 mm
Field of View	110 m at 1000 m
Close Focus	2.5 m
Eye Relief	16 mm
Diopter Adjustment	±3 dpt
Focus System	Central focusing wheel
Prism Type	Schmidt-Pechan
Lens Coating	HD (High Definition) multi-coated
Waterproof	Yes, nitrogen-filled
Weight	795 g
Dimensions	175 x 128 x 68 mm
Material	Magnesium housing, rubber armor
Included Accessories	Neck strap, carrying case, lens covers, cleaning cloth
Warranty	10 years
Recommended Use	Birdwatching, nature observation, hiking

Frequently Asked Questions - Trinovid 10 x 2 HD LEICA

How do I clean the lenses of my Leica Trinovid 10x42 HD?

Is the Leica Trinovid 10x42 HD waterproof?

What is the warranty for Leica Trinovid 10x42 HD?

Can I mount the binoculars on a tripod?

How do I adjust the diopter?

What is the difference between Trinovid HD and Ultravid HD?

How do I change the eyecups?

Why do I see a double image?

What is the field of view of the Trinovid 10x42 HD?

Can I use the binoculars with glasses?

USER MANUAL Trinovid 10 x 2 HD LEICA

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

4

Deutsch....02

English....14

Françias....26

Nederlands 38

Italiano 50

Español....62

Norske....74

Русский....86

FOREWORD

Dear Customer,

The name Leica is synonymous worldwide with the highest quality, precision mechanics, extreme reliability and long service life.

We wish you a great deal of fun and success with your new Leica Trinovid HD binoculars. In order that you can make full use of their possibilities, we recommend that you first read these instructions.

PACKAGE CONTENTS

• Binoculars
• Adventure strap
• Carrying strap
• Lens cloth
• Eyepiece cap
• 2 lens caps
• Instructions
• Warranty card
• Test certificate

DESIGNATION OF PARTS

1 Eyes for carrying strap
2 Diopter ring
3 Eyecups
Position a: fully screwed out, e.g. for use of the binoculars without spectacles
Position b: fully screwed in, e.g. for use of the binoculars with spectacles
4 Diopter scale
5 Central focusing wheel
6 Pivot exes for adjustment of the interocular distance

TABLE OF CONTENTS

Foreword 14

Package contents 14

Designation of parts....14

Potential applications....16

Attachment of carrying strap and eyepiece cap 16

Fitting of lens cap 16

Adjustment of the eyecups/use with and without spectacles....17

Adjustment of the interocular distance....18

Adjustment of the focus/diopter adjustment....19

Diopter scale reading....20

Care/cleaning 20

Accessories 21

Spare parts 21

What to do if 22

Technical data 23

Leica Service addresses....24

Caution:

- Never look at the sun or other bright sources of light through your binoculars! You may damage your eyes!

- Never look through your binocular while you are walking! You might not see obstacles!

POTENTIAL APPLICATIONS

The Leica Trinovid HD binoculars have a hermetically sealed, nitrogen-filled magnesium housing. They are therefore suitable for outdoor use. Wet weather is no problem – the binoculars are absolutely water-tight to a depth of 5m and the internal lenses do not fog.

ATTACHMENT OF A CARRYING STRAP AND THE EYEPIECE CAP

In the delivered condition, the Adventure Strap is already attached to your binoculars. This carrying strap can also be used as a bag. Please refer to the enclosed instructions for details of its use. If you want to attach a different carrying strap: you will find a relevant illustration on the back of the cover.

Note:

If you want to attach the eyepiece cap to the carrying strap, this must be done at the same time as the carrying strap is attached.

Technical line drawing of a handheld device with two lenses and a circular head (no text or symbols)

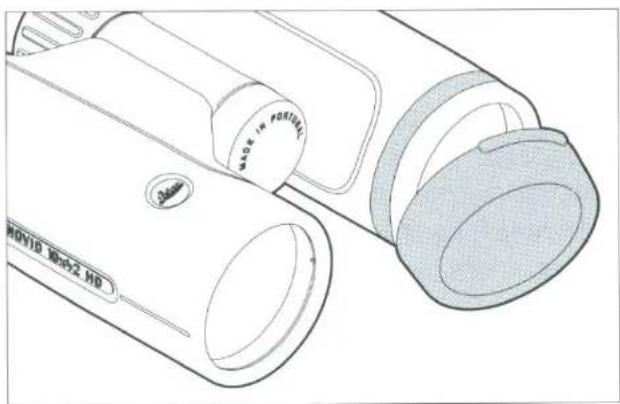

FITTING OF LENS CAPS

To do this, carefully pull the rubber rings on the cap over the binoculars from the lens side.

Line drawing of two identical mechanical components with a central bracket and a red letter 'A' in the top right corner (no text or symbols on the components themselves)

Line drawing of binoculars with a red 'B' label above (no text or symbols on the binoculars)

Line drawing of binoculars with a red 'C' logo above (no text or symbols on the binoculars)

Line drawing of binoculars with a red 'D' label above (no text or symbols on the binoculars)

ADJUSTMENT OF THE EYECUPS/ USE WITH AND WITHOUT SPECTACLES

The eyecups 3 can be easily adjusted by turning and they lock securely in the selected positions. They can be removed completely for thorough cleaning.

If you want to use the binoculars with spectacles, they remain fully screwed in (picture A), or slightly screwed out. For use of the binoculars without spectacles they can be screwed out by turning in counter-clockwise direction. Two positions are available for optimum adjustment.

If the eyepieces are heavily soiled, we recommend removing the eyecups for cleaning. To do this, simply pull out of the completely screwed out position (pictures C, D).

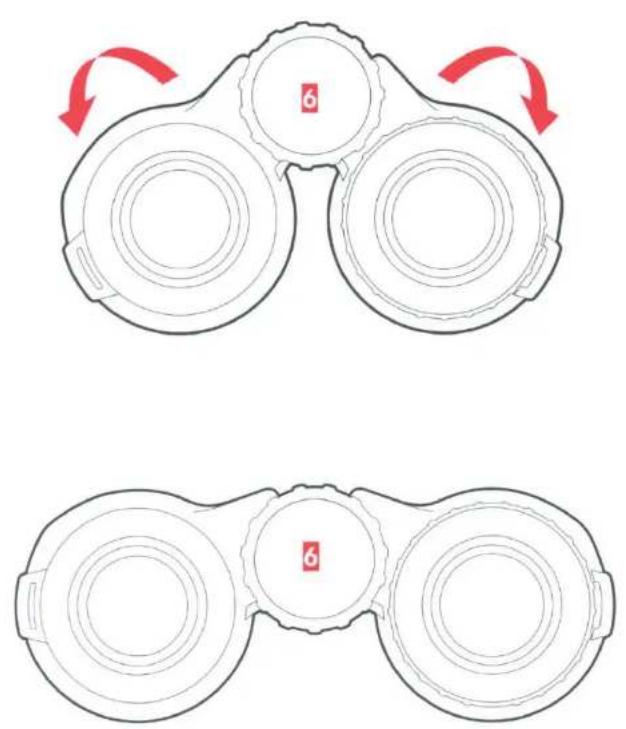

ADJUSTMENT OF THE INTEROCULAR DISTANCE

The individual interocular distance can be adjusted by bending the binoculars about the pivot axes 6. When the interocular distance has been set correctly, the right and left visual field merge into a circular image.

5

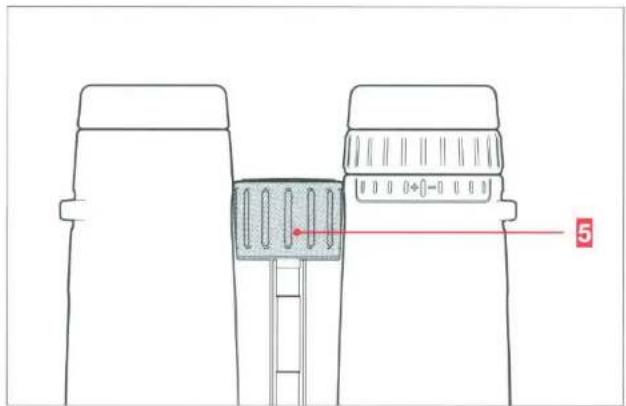

ADJUSTMENT OF THE FOCUS/DIOPTER ADJUSTMENT

The focus for objects at different distances is adjusted on the Leica Trinovid HD binoculars using the central focusing wheel 5.

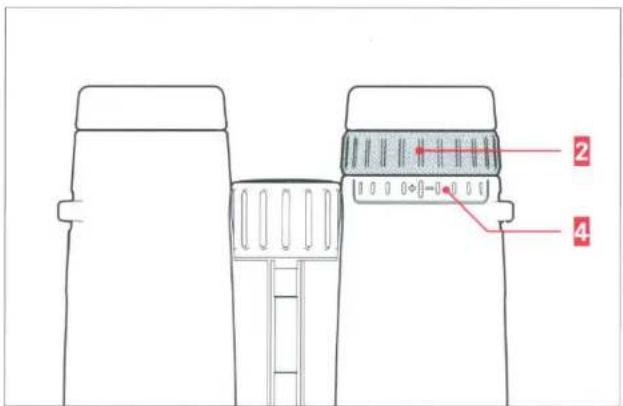

The diopter ring is used to adjust for individual visual impairments so the binoculars can be used without spectacles; 2 this changes only the focus of the right-hand system.

Technical diagram of a device with labeled parts and directional arrows indicating movement or positioning.

Procedure

1. Close your right eye or cover the right-hand lens. Then adjust the central focusing wheel so that you can see the target object with optimum focus through the left-hand binocular tube.
2. Close your left eye or cover the left-hand lens. Then adjust the diopter wheel so that you can see the target object with optimum focus through the right-hand binocular tube.

The value that has been set can be easily read using the red index line on the diopter scale 4.

DIOPTER SCALE READING

The user's individual value determined using the focus adjustment can then be adjusted again within seconds using the scale setting that has been determined once.

In the value that can be read on the scale, the distance between two lines corresponds to approximately one diopter visual impairment between the left and right eyes.

CARE/CLEANING

Your Leica Trinovid HD binoculars have been designed for constant use outdoors. No particular care is needed other than occasional cleaning.

Fingerprints, droplets of water, etc. on lenses and eyepieces can be wiped off using a soft, lint-free cloth. Breathing on the lenses before-hand may help. Coarse soiling on the glass surfaces, such as sand, should be removed using a fine brush or blown off. In the case of severe soiling, the binoculars may be cleaned by rinsing them under running water that is hand-hot at most. Salt water should also be washed off.

Alcohol or other chemical solutions may not be used for cleaning.

Important:

• Make sure not to touch the glass surfaces with your fingers, especially if you previously been applying hand cream, insect repellent, etc. These substances may contain chemicals that damage or destroy the coatings on the glass surfaces.
• Do not apply excessive pressure when cleaning heavily soiled lens surfaces. Although the coating is abrasion-resistant, it can nevertheless be damaged by sand or salt crystals.

ACCESSORIES

You will find details of the extensive range of accessories for your Leica Trinovid HD binoculars on the Leica Camera AG website:

www.leica-camera.com

SPARE PARTS

Should you require spare parts for your binoculars, e.g. eyecups, caps or carrying straps, please contact our Customer Care department or your national Leica agency. The addresses can be found on your warranty card.

MALFUNCTIONS AND THEIR RESOLUTION

Fault	Cause	Remedy
No circular image is obtained during viewing.	a) The binoculars are not sufficiently adapted to your personal interocular distance.	a) Correct the distance between the two binocular tubes simply by bending the pivot axis more or less.
	b) The pupils of the viewer are not in the exit pupil of the binoculars.	b) Correct head, eye and binocular position.
	c) The position of the eyecups does not correspond to correct use with and without spectacles.	c) Correct adjustment: Wearers of spectacles screw the eyecups in; when viewing without spectacles: screw eyecups out.
	d) The position of left and right eyecups is different.	d) Move both eyecups to the same position.

TECHNICAL DATA

	LEICA TRINOVID 8 X 42	LEICA TRINOVID 10 X 42
Magnification	8 x	10 x
Lens diameter	42 mm	42 mm
Exit pupil	5.25 mm	4.2 mm
Twilight factor	18.33	20.5
Geometric light intensity	27.56	17.64
Light transmission	90%	90%
Subjective viewing angle/visual field to 1,000m	53.5°/124m	61.3°/113m
Exit pupil position	17mm	15.5mm
Closest focusing distance (at 0 diopter)	approx.1.8m	approx. 1.6 m
Diopter adjustment/at∞	± 4 dpt./-5dpt.	± 4 dpt./-5dpt.
Eyepiece for wearers of spectacles	yes	yes
Eyecup	Adjustable and removable with 5 locking steps
Adjustable interocular distance	58-76mm
Focusing	Internal focusing via center wheel
Working/storage temperature	-25°-55°/-40°-85°
Water tightness	Pressure water tight to 4 m water depth
Housing	High-pressure die-cast magnesium, nitrogen-filled
Dimensions (W x H x D)	117 x 65 x 145mm
Weight	approx. 750 g	approx. 760 g

LEICA PRODUCT SUPPORT

The Leica Product Support department can provide you with an answer to any technical application questions relating to the Leica range either in writing, on the telephone or by e-mail.

Leica Camera AG

Product Support

Am Leitz-Park 5

D-35578 Wetzlar, Germany

Telephone: [phone] /-108

Fax: [phone]

[e-mail]

LEICA CUSTOMER CARE

Authorized Leica agents and Leica Camera AG Customer Care are available in your country for the service and repair of your Leica equipment (a list of addresses is provided on your warranty card).

Leica Camera AG

Customer Care

Am Leitz-Park 5

D-35578 Wetzlar, Germany

Telephone: [phone]

Fax: [phone]

[e-mail]

my point of view

Leica Camera AG | Am Leitz-Park 5 | 35578 Wetzlar | DEUTSCHLAND

Telefon [phone] | Telefax [phone] | www.leica-camera.com

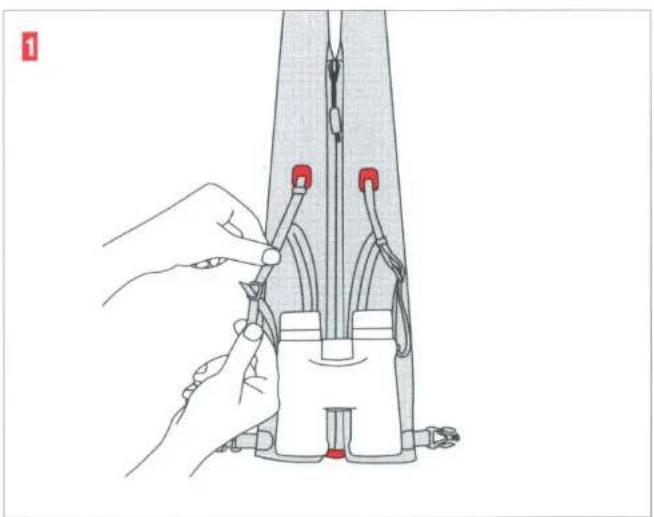

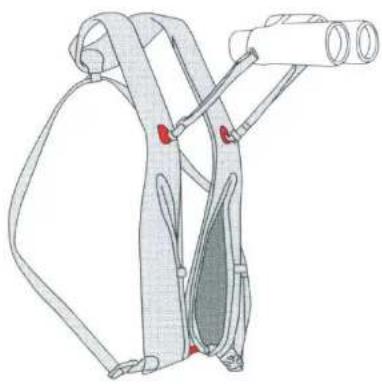

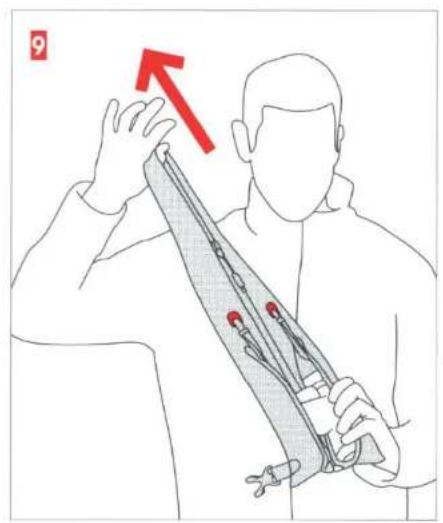

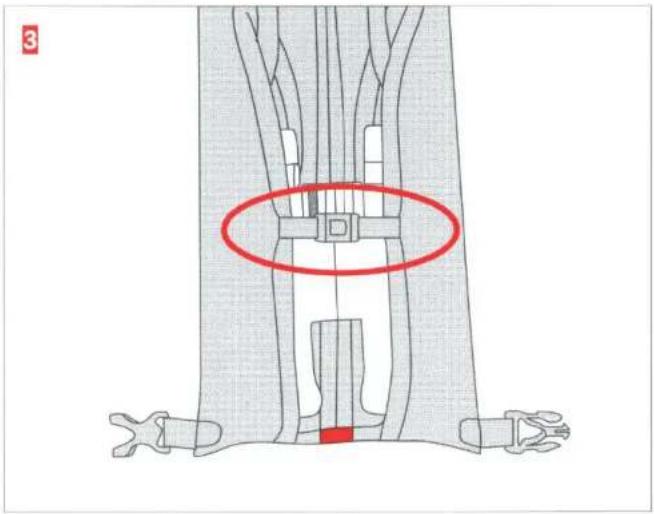

ADVENTURE STRAP

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a person wearing a medical sash and neck-mounted devices (no text or symbols)

Diagram of a mechanical assembly with a red oval highlighting a specific component (no text or symbols present)

4

Diagram of a vertical structure with attached beams and connectors, no text or symbols present

5

Technical illustration of a mechanical device with attached straps and connectors (no text or symbols)

6

Line drawing of a person viewed from the back, wearing a high-sleeve neck and shoulder strap (no text or symbols)

Option A
4

Technical line drawing of a medical or laboratory device with no visible text or symbols

5

Line drawing of a human back view wearing a shirt and belt (no text or symbols)

Option B

Line drawing of a person wearing a scarf and holding medical equipment (no text or symbols)

B

9

10

Line drawing of a person holding a small object, no text or symbols present

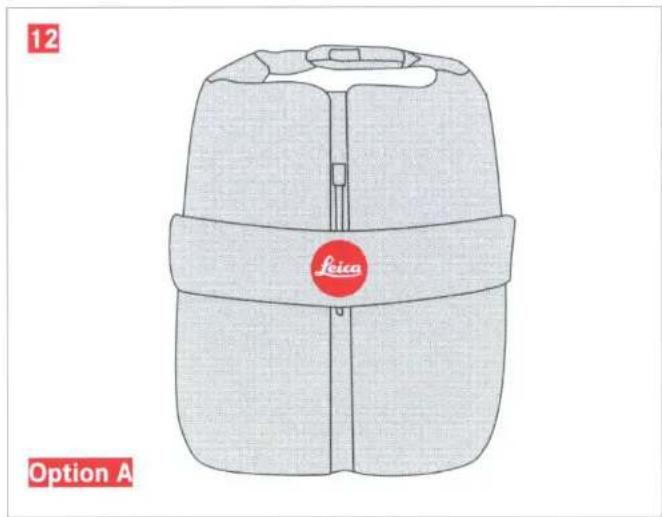

12 feica Option A

Line drawing of a beige leather bag with a red 'Leica' logo on the side, labeled 'Option B' (no text or symbols on the bag itself)

Leica Camera AG | Am Leitz-Park | 535578 WETZLAR | DEUTSCHLAND

Telefon [phone] | Telefax [phone]

www.leica-camera.com

Leica Sport Optics NEW USA and Canada Warranty Program

Welcome to the Leica family! On behalf of Leica Sport Optics, we want to thank you for investing in one of the world's finest sport optics products. All fans of hunting and nature will be impressed by Leica Sport Optics. For over a century, our innovative optics have brought people closer to the wonders afield to appreciate them as never before. Each part of our portfolio – binoculars, spotting scopes, riflescopes, thermal imaging cameras and rangefinders – guarantees an unforgettable adventure.

The Leica Sport Optics team – themselves passionate hunters, target shooters and nature lovers – are the optics’ most demanding critics, frequently putting our products to the test and scrutinizing every detail in action. Physically, our products embody stress-resistance and precision under tough, real world conditions. Visually they create breathtaking visual experiences with light transmission, contrast, and color fidelity perfectly balanced. As a testament of our commitment to you we will stand behind our products in the unlikely event that you discover a problem in defects in materials and workmanship.

All Leica Sport Optic products shipped from Leica Camera Inc. to an authorized USA or Canadian dealer since Jan 1, 2021 will now feature a fully transferable 10-year Passport Protection Plan plus a 30-year Manufacturer's Warranty. Both aspects of our commitment to you compromise the following:

• Fully Transferable
• No Warranty Card Required
• No Receipt Required
- No Charge
- Valid only on products purchased from authorized Leica dealers in USA or Canada*

10 Year Passport Protection Plan: For a period of 10 years we will repair or replace your Leica Sport Optic product purchased from an Authorized USA and Canadian dealer in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition. It doesn't matter how it happened, whose fault it was, or where you purchased it in the USA or Canada.

Please note that our Passport Protection Plan excludes coverage for intentional damage, misuse, cosmetic damage that does not affect the performance of the optic, fire, loss, theft, or unauthorized repair or modification.

This Passport Protection Plan is void, if damage is caused by the use of accessories not sold or authorized by Leica Camera Inc. or from service by persons not authorized by Leica Camera Inc. It will be at Leica Camera Inc.'s sole discretion to extend service under this Warranty for damage arising from the above-mentioned conditions.

30 Year Manufacturer's Warranty: Beyond the 10-year Passport Protection, Leica Sport Optics offers a 30-year warranty on the optical system of our products for products purchased in the USA and Canada from an authorized Leica Camera Inc. North American dealer. Once examined, if it is determined that the optical system is defective, we will repair or replace the instrument or defective part. All non-optical products (i.e. accessories) are warranted for two years from date of purchase. This warranty is void if damage results from unauthorized repairs, accident, alteration, misuse, abuse, neglect, fire, flood or other acts of God.

Any Leica Sport Optic product that is purchased in the USA or Canada that is not imported by Leica Camera Inc. and not sold to a consumer by an Authorized U.S. or Canadian Leica Camera Inc. North America Dealer has no Authorized Warranty.

In the event of a defect, please call customer assistance at 800-222-0118 to obtain a Service Order Number (SO), which will be used to identify your warranty request through its completion. When you call, our customer care representative will give you instructions as to where to send or take the product for service. Whenever you send or deliver your product to us, please enclose your name, shipping address, daytime phone number, and a brief description of the problem. Please write the Service Order Number on the enclosure and on the outside of any packaging. We will determine, at our option, whether to repair or replace the instrument. If the instrument is not covered under the warranty; we will contact you with an estimate of the repair price.

Please note that our Passport Warranty excludes any integrated rechargeable batteries (i.e., Calonox). Battery life is a function of usage and charging frequency.

Integrated rechargeable batteries have a Limited 5-Year Warranty. We believe that this is ample to provide coverage for regular product usage and is not indicative of what a user should expect from this product.

*If you intend to purchase a used Leica product and wish to confirm it was originally purchased via an authorized Leica dealer in the USA or Canada, please contact us and provide us with the serial number, and we will be happy to check it for you.

Any correspondence should be sent to:

Leica Camera Inc.

1 Pearl Court, Unit A

Allendale, NJ 07401

1-800-222-0118

This is a limited warranty, and you may have other rights which vary from state to state. The obligation of the warrantor is solely to repair or replace the product. Neither Leica Camera Inc. nor any of its affiliates are liable for any incidental or consequential damage due to such defect.

2021 April New Leica SO USA & Canada Warranty Memo #2022 | 1 / April 12, 2021

Leica announces new best-in-class Passport Warranty product protection

Any new Leica Sport Optics product purchase automatically includes a best-in-class warranty and product protection plan. The ground-breaking new Leica Passport Warranty is completely free and includes a fully transferrable no-questions, no-fault, 10-year accidental damage cover plan and a 30-year manufacturer's defect warranty, neither of which require a warranty card or receipt. The 10-year cast-iron cover plan allows Leica customers to enjoy their products with greater peace of mind

in the knowledge that for 10-years, Leica will repair or replace any optic product in the event it is damaged, whatever the reason, at no cost to the customer. Moreover, all optics products include a comprehensive 30-year manufacturer defect warranty, also with no charge. If following the 10-year cover plan a product is determined to have a defect with the optical

10 Your Passport Warranty 30 Your Lifetime Warranty

system, Leica will simply repair or replace it. Never before have premium sport optics customers had such back up from a manufacturer after a purchase.

All non-optical products (i.e. accessories) are warranted for two years from date of purchase. The Passport Warranty is only available for products initially purchased from an authorized North American dealer.

In the event of a defect or damage, please call customer assistance at 800-222-0118 to obtain a Service Order Number (SO), which will be used to identify your warranty request through its completion.

For further details on Passport Warranty please visit: leicacamerausa.com/sport-optics-warranty.html

For further information, please contact your Leica Sales Manager:

John Bedlion [e-mail] Brian Bell [e-mail] Catlin Brewer [e-mail] Toby Spanel [e-mail]

For marketing assets, please contact Ryan Trenka [e-mail]

Leica

This Leica product was meticulously examined by experienced professionals at several stages of production.

The Leica Lens Cleaner

With your Leica lens cleaner you own a high-class product. Microfibre and the way of knitting allow you to clean very delicate surfaces immaculatly without using any liquid or impregnation.

This lens cleaner is perfectly made for cleaning glasses, lenses, microscopes, monitors – all in all for any delicate surface.

WASHING INSTRUCTION: If the lens cleaner is dirty, please wash it in soap-suds and clear water and then dry it in the air. It will be as good as new.

PRODUCT DESCRIPTION

CATALOG/VERK NUMBER

SERIAL/FABR. NUMBER

IMPORTANT: Your Leica Sport Optic purchase must be registered within 30 days from date of purchase to obtain the exclusive Leica Camera Inc. (USA) 3 Year Sport Optics Passport Protection Plan. Be sure to sign and return the completed registration card within the required time period.

I. Congratulations on your purchase of a Leica Sport Optics product (Equipment). By registering your purchase, and upon acknowledgment of that registration, you will gain the full benefits of our Leica 3 Year Passport Protection Plan. This exclusive plan provides protection against manufacturer defects, functional failures, or any accidental damages to the covered Equipment, including breakage, water damage or any accident. Excluded are occurrences of loss, theft, fire or deliberate damage.

1. The Leica 3 Year Passport Protection Plan provides for repair or replacement for any problem that prevents the proper optical or mechanical function of the covered Equipment. Cosmetic or other signs of normal wear and tear on external surfaces, including lenses, are not considered as affecting optical or mechanical function of the Equipment.

2. The Leica 3 Year Passport Protection Plan is extended to the following products imported by Leica Camera Inc. (USA) and sold by an Authorized Leica Camera Inc. (USA) Dealer:

– Leica Ultravid Compact and Full Size Binoculars
– Leica Trinovid Compact and Full Size Binoculars
– Leica Televid Spotting Scopes and Oculars
– Leica Duovid Binoculars
— Leica Riflescopes

Specifically excluded from the Leica 3 Year Passport Protection Plan are current (Leica Geovids and LRF/CRF Rangefinders) or future products incorporating electronic components. Also excluded from the Leica 3 Year Passport Protection Plan are all accessories such as cases, straps, lens caps, rain guards, etc. which might be provided with the delivery of the Equipment. The Leica 3 Year Passport Protection Plan is not transferrable.

PLACE

STAMP

HERE

1. Following acknowledgment of registration (you will receive a Leica Passport Service Card) by Leica Camera Inc. (USA) we will repair or replace the registered Equipment at no charge for the original purchaser during the 3 Year Passport period. To gain required service the covered Equipment should be forwarded to Leica Camera Inc. (USA) directly in person or by prepaid and traceable postal or other public carrier.

2. Equipment replacement, if required, will be with a function ally identical or like-featured item that may be either new or refurbished as determined by Leica Camera Inc. (USA).

3. Limited Lifetime Warranty: The listing below defines products that have a Limited Lifetime Warranty beyond that of the Leica 3 Year Passport Protection Plan:

– Leica Ultravid Compact and Full Size Binoculars
– Leica Trinovid Compact and Full Size Binoculars
– Leica Televid Spotting Scopes and Oculars
– Leica Duovid Binoculars
– Leica Riflescopes

1. The Limited Lifetime Warranty provides for the repair or replacement of the warranted item against defects in materials or workmanship, under normal use, for the lifetime of the original purchaser.
2. In the event any devices or accessories other than those distributed or officially recommended by Leica Camera Inc. (USA) are attached to or connected with the Equipment, in such manner that the original factory construction is altered, any damage thereby resulting to the Equipment shall not be

covered by the Leica 3 Year Passport Protection Plan or the Limited Lifetime Warranty.

1. In the event any individual firm, shop, etc. other than the skilled technicians of Leica Camera Inc. (USA) or its authorized agents tampers with the Equipment in a manner other than required by Leica Camera Inc. (USA) for normal operation of the Equipment, any damage thereby resulting to the Equipment shall not be covered by the Leica Lifetime Sport Optics Passport Protection Plan.
2. Recovery under any implied warranty of the merchantability and/or fitness that you may have hereunder is limited to repair or replacement of the Equipment, as provided above.
   II. Any such implied warranty of merchantability and/or fitness is limited to the duration of this warranty. This warranty does not obligate Leica Camera Inc. to reimburse the original purchaser or any user of the equipment for any expenses, loss or other incidental or consequential damages which may arise in connection with any use of the equipment. Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion of limitation of incidental or consequential damages, so the above limitations may not apply to you.
3. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

COMPLETE AND MAIL BELOW PORTION WITHIN 30 DAYS OF PURCHASE.

Registration & Warranty Application

I. Please check your age group.

□ Under 25 □ 46-55
□ 26-35 □ 56-65
□ 36-45 □ 66 and over

1. Please check your approximate household income.

□ Under 100,000
□ 100,000-200,000
□ 200,000-300,000
□ over 300,000

1. Please check your interests.

□ Hunting □ Sporting events
□ Fishing □ Traveling
□ Boating □ Theater/Concert
□ Hiking □ Birding
□ Golf

1. I have registered other Leica equipment.

□ Yes □ No

Thank you

PLEASE PRINT CLEARLY USING FULL FIRST NAME

*Product Description

*Catalog/Verk No.

*Serial/Fabr. No.

*Owner's Name

*Street

*City:

*State *Zip *Phone

E-mail

*Dealer's Name

*Date of Purchase (dd/mm/yy)

*Required Fields
