Product Type	Rangefinding Binoculars
Brand	Leica
Model	Geovid Pro 8x42
Magnification	8x
Objective Lens Diameter	42 mm
Prism System	Perger-Porro prism system with phase correction coating
Field of View	372 ft @ 1000 yds (124 m @ 1000 m)
Eye Relief	18 mm
Close Focus Distance	10 ft (3 m)
Diopter Adjustment	Yes, +/- 4 dpt
Laser Rangefinder Range	Up to 2600 yds (2380 m)
Rangefinder Accuracy	+/- 1 yard (meter)
Ballistic Compensation	Yes, with applied ballistics using Bluetooth connection
Bluetooth	Yes, for data transfer to smartphone apps
GPS	Yes, internal GPS
Waterproof	Yes, waterproof to 5 m (16 ft)
Nitrogen Filled	Yes, for fog-proof performance
Weight	34.5 oz (978 g)
Dimensions (W x H x D)	6.6 x 5.2 x 2.9 in (168 x 132 x 74 mm)
Power Source	One 3V CR2 lithium battery
Included Accessories	Carry strap, hard case, lens covers, instruction manual, cleaning cloth
Warranty	Leica 3-year limited warranty (registration required)

Frequently Asked Questions - Geovid Pro 8x42 LEICA

How do I adjust the diopter setting?

Turn the diopter adjustment ring located on the right eyepiece while viewing a distant object. Adjust until the image appears sharp and in focus through that eye.

How do I use the laser rangefinder?

Center the target in the view, then press the rangefinder button on top of the binoculars. The distance will be displayed in the eyepiece. Use the main button to switch modes (single, scan, etc.).

How do I change the battery?

Open the battery compartment on the top of the bridge, remove the old CR2 battery, and insert a new one with the positive terminal first. Ensure the compartment is clean and dry before sealing.

How should I clean the lenses?

Use a soft lens brush to remove dust, then a microfiber cloth with a few drops of lens cleaning fluid. Wipe gently in a circular motion. Never use paper or harsh chemicals.

Are the Leica Geovid Pro 8x42 waterproof?

Yes, these binoculars are waterproof to 5 meters (16 feet) and nitrogen-filled to prevent internal fogging. They can withstand rain and immersion.

How do I connect the binoculars to my smartphone?

Enable Bluetooth on your phone and download the Leica Hunting app. In binoculars, press and hold the pairing button until the Bluetooth symbol flashes. Select the device in the app.

What is the ballistics function?

The ballistics function uses Applied Ballistics technology. After connecting via Bluetooth, it calculates holdover and windage corrections based on distance, caliber, and environmental data.

Can I mount the binoculars on a tripod?

Yes, the Geovid Pro 8x42 has a tripod adapter socket (standard 1/4-20 thread) on the front of the hinge. Use a compatible binocular tripod adapter.

What is included in the box?

The package includes the binoculars, carrying strap, hard case, lens covers, cleaning cloth, CR2 battery, and instruction manual.

How do I reset the device to factory settings?

With the binoculars off, press and hold the rangefinder button and main button simultaneously for 5 seconds. The display will show 'reset' and then turn off. Confirm by releasing buttons.

USER MANUAL Geovid Pro 8x42 LEICA

we wish you a great deal of enjoyment and every success with your new Leica product.

Please read this manual to familiarize yourself with the full scope of functions your product has to offer.

Please use this product only as described in this manual. Only then can safe and easy operation be guaranteed.

Your Leica Camera AG

The device uses an invisible laser beam. Please read the chapters “Safety Remarks” and “Important Information” before using the product for the first time. Knowledge of the content will prevent inadvertent damage to the product, possible injuries and other risks.

SCOPE OF DELIVERY

The standard scope of delivery* contains the following:

• Binoculars
• Carry strap
• Eyepiece cover
• 2x protective lens caps
• Carry case
• Lens cleaning cloth
• Quick Start Guide
• Test certificate
• 3 V lithium cell (type CR2)

REPLACEMENT PARTS / ACCESSORIES

Contact Leica Customer Care or your specialist Leica retailer for details on the latest replacement parts / accessory range:

https://en.leica-camera.com/Stores-Dealers/Leica-dealer-locator

*The actual scope of delivery may vary depending on model.

LEGAL INFORMATION

LEGAL INFORMATION ABOUT THIS MANUAL

COPYRIGHT

All rights reserved.

All text, images and graphics are subject to copyright and other laws to protect intellectual property. They must not be copied, modified or used for any purpose including trade purposes.

TECHNICAL DATA

Product changes with regards to the product or services may have occurred after the editorial deadline. The manufacturer reserves the right to effect structural or shape changes, color deviations and changes to the scope of delivery or service, where these changes or deviations are reasonably acceptable for the customer, while taking into consideration the interests of Leica Camera AG. In that respect, Leica Camera AG reserves the right to changes and errors. The images in this manual may depict accessory, special features or other items that are not part of the standard scope of delivery or service. Some pages may contain model types and services, which are not offered in specific countries.

BRANDS AND LOGOS

The brand names and logos used in this documented are protected trademarks. These brands or logos must not be used without prior approval by Leica Camera AG.

LICENSE RIGHTS

Leica Camera AG intends to provide you with innovative and informative documentation. Due to the amount of creativity that has gone into its design, we ask for your understanding that Leica Camera AG must protect its intellectual property, including patents, trademarks and copyrights, and that possession of the documentation does not infer any licensing rights of the intellectual property of Leica Camera AG.

REGULATORY INFORMATION

You will find the manufacturing date of your product on the stickers on the packaging. The date format is year/month/day.

CE MARK

The CE mark on our products documents compliance with the fundamental requirements of applicable EU guidelines.

English Declaration of Conformity (DoC) Heroby, "Leica Camera AG" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Customers can download a copy of the original DoC to our Radio Equipment products from our DoC server: www.cerl.leica-camera.com Please contact Leica Camera AG, Am Leitz-Park 5, 35578 Wetzlar, Germany in case of any further questions Depending on product (see technical data)
Type	Frequency zone (center/ frequency)	Maximum output [dBm E.I.R.P.]
Bluetooth + Wireless Technology	2402-2480 KHF 20

APPLIED BALLISTICS and the 4 are Registered in the United States Patent and Trademark Office.

Laser class IEC/EN Class	1
Wavelength (nm) 900
Pulse duration (ns) 57
Output (mW) 1.6
Beam divergence (mrad)	Vertical: 0.8Horizontal: 1.8

CLASS 1 LASER PRODUCT

With the exception of the characteristics permitted under Variance Number IEC 60825-1 Ed. 3, effective May 8, 2019, this product complies with the performance standards for laser products under 21 CFR 1040.10 and 1040.11.

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

(Applies within the EU and for other European countries with active waste separation policies.)

This device contains electric and/or electronic components which must not be disposed of in general household waste. Instead, it should be disposed of at a recycling collection point provided by your local authority.

This service is free of charge. Any standard or rechargeable batteries used in this device must be removed and disposed of separately in accordance with local regulations.

Please contact your local authorities, waste disposal collection point or the retailer, from whom you purchased the device for more information on correct waste disposal.

SAFETY REMARKS

WARNING

Non-compliance with the following points may result in serious injury or death.

LASER

• The use of any operations not described in this manual or any alterations on the device may result in hazardous radiation exposure.
• The laser device is active and emitting an invisible laser beam as long as the display in the eyepiece is active. Never point the laser focusing optics at a person or animal.
• Do not depress any of the two buttons while aiming at a human eye or while looking into the optics from the lens side.
• Never aim the laser at an eye.
• Do not aim the laser at people or animals.

GENERAL INFORMATION

- Avoid looking directly at bright light sources with your Leica Geovid to prevent eye injury.

CAUTION

Non-compliance with the following points may result in personal injury or damage to the device.

LASER

• Avoid touching any of the two buttons while the distance measurement function is not in use to prevent an accidental activation of the laser beam.
• Do not attempt to disassemble, reassemble or repair the Leica Geovid yourself. Emitting laser radiation may pose a serious health risk. The manufacturer warranty is void, once a device was disassembled, reassembled or repaired.
• Remove the battery immediately and stop using the device if the device housing is damaged or if it emits a strange sound after being dropped or behaves unexpectedly for any other reason.

GENERAL INFORMATION

• Keep the device out of the reach of small children.
• Do not use the device while walking. You might trip and fall.
• Do not combine the operation of your Leica Geovid with other optical components, e.g. lenses or binoculars. Using the Leica Geovid in conjunction with another optical device increases the danger of damaging your eyes.
• Do not attempt to disassemble or modify the device; exposing the internal electronics may cause damage, injury or electric shock.

BATTERY

• Only the battery type stated and described in this manual must be used. Any improper use of the batteries or the use of unapproved battery types may result in an explosion!
• Do not expose the battery to sunlight, heat, humidity or moisture for prolonged periods of time. It must not be placed in a microwave oven or a high-pressure container as this would pose a fire or explosion hazard!
• Never dispose of batteries in fire and never attempt to heat, recharge, dismantle or break open a battery.
• Batteries must always be stored out of the reach of children. Do not leave batteries lying around, as they could be swallowed by children or pets.

CARRY STRAP

• The carry strap is usually made of very robust material. You should therefore keep it out of the reach of children. A carry strap is not a toy and poses a strangulation risk.
• Use the carry strap only for its intended purpose on a camera or on binoculars. Any other use poses the risk of injury and may possibly result in damage to the carry strap and is therefore not permitted.
• Carry straps should also not be used for cameras/binoculars during sports activities that pose a risk of entanglement (e.g. when mountain climbing and similar outdoor activities).

IMPORTANT INFORMATION

GENERAL INFORMATION

• Do not attempt to take the device apart yourself. Repairs must only be carried out in authorized workshops.
• Remove the battery from the housing if you will not be using the product for an extended period of time.
• Low temperatures impair battery performance. Carry the device close to the body in cold conditions and use a fresh battery.
• Make sure to store the batteries in a cool, dry place.
• Depleted batteries must never be disposed of in household waste as they contain toxic materials that are harmful to the environment. Battery collection points are provided at most large retail outlets; alternatively, you can dispose of old batteries at a local special waste collection point to ensure correct recycling.
• Do not touch the glass surfaces with your fingers, especially if you have previously applied hand cream, insect repellent, etc. These substances may contain chemicals that damage or destroy the coatings on the glass surfaces.

EYEPIECE

- An eyepiece can have the effect of a magnifying glass when exposed to direct frontal sunlight. The device must therefore be protected against extended exposure to direct sunlight. Storing the device in the shade or ideally in its case will help prevent damage to the device interior.

MEASURING VALUES

• The influence of all ballistically relevant influencing factors is greatly increased at longer ranges and considerable variations may occur. The ballistic values displayed should therefore only be viewed as a guideline.
• Regardless of whether this information is used, you are responsible for assessing the relevant hunting situation.
• Leica Camera AG does not accept liability for the accuracy of values transmitted from third-party devices.
• Powerful electric fields, e.g. emanating from radar systems, may cause errors and/or faulty values.
• The geomagnetic field can similarly cause value deviations.

Definition of the various categories of information found in this manual

Note

- Additional information

Caution

• Non-compliance may result in damage to the device and accessories
  – Non-compliance may result in personal injury

Warning

– Non-compliance may result in serious injury or death

WARRANTY

In addition to your statutory warranty rights from your dealer, Leica Camera AG offers a 5-year warranty for this Leica product in accordance with the conditions started below. The Leica warranty does not impact on any statutory consumer rights in accordance with relevant national law or any consumer rights vis-a-vis the retailer arising from the purchase contract concluded between them.

WARRANTY CONDITIONS

By purchasing this Leica accessory, you have acquired a binoculars that are manufactured in compliance with special quality standards, and which were thoroughly tested at each individual production step by experienced specialists. Our five-year warranty for this product commences on the date of sale by an authorized retailer under the following conditions:

1. In case of a complaint due to a manufacturing fault, we will assume all material costs during the warranty period. We shall decide at our own discretion to repair the faulty product, to replace faulty parts or to replace the entire product with a faultless product of the same type. All other claims of any kind and on whatever legal basis shall not be accepted in connection with this warranty.
2. Wear parts like eyecups, leather details, armoring, carry straps and accessories are exempt from the warranty. The same applies for surface damage.
3. Any warranty claims become void if the defect in question is a result of improper handling – which also includes the use of third-party accessories – or if the product was manipulated by unauthorized persons or workshops or if the serial number of the product was rendered illegible.

4. Warranty claims can be submitted only in conjunction with the original proof of purchase – complete with the date of purchase, as well as the address and signature of an authorized retailer.

5. In case of a warranty claim, please send the Leica product, the original proof of purchase and a description of the fault to Leica Camera AG Customer Care.

PICK-UP SERVICE FOR REPAIR SUBMISSIONS

(Applies for EU only)

We will organize the shipping of your device to our Customer Care department if you should notice a problem with your device during the warranty period. Please contact our service hotline to make the necessary arrangements ([phone]). Our pick-up service will collect your Leica product at the agreed time from your premises free of charge and transport it to our Customer Care location for evaluation.

Contact: en.leica-camera.com/Contact

TABLE OF CONTENTS

FOREWORD....2

SCOPE OF DELIVERY 2

REPLACEMENT PARTS / ACCESSORIES....2

LEGAL INFORMATION....3

SAFETY REMARKS 5

WARNING....5

CAUTION....5

IMPORTANT INFORMATION......6

WARRANTY 8

TABLE OF CONTENTS 9

PART DESIGNATIONS .... 10

PREPARATION 12

ATTACHING THE CARRY STRAP....12

ATTACHING THE PROTECTIVE LENS CAP.... 12

INSERTING/CHANGING THE BATTERY 13

SETTING THE EYECUPS....13

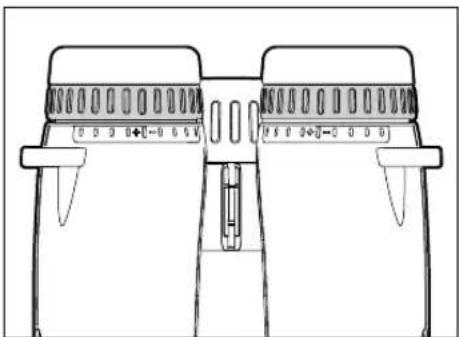

DIOPTER SETTINGS....14

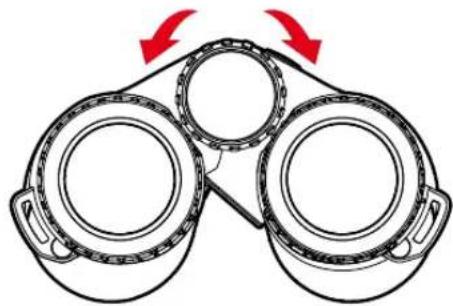

SETTING THE INTERPUPILLARY DISTANCE....14

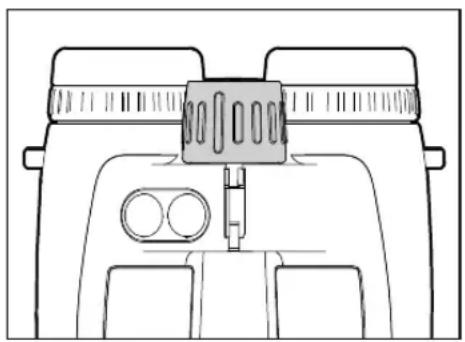

SETTINGS AND OPERATION 15

SETTING THE IMAGE SHARPNESS....15

ACTIVATING THE RANGEFINDER....15

MENU CONTROL....15

MENU OVERVIEW....16

SETTING THE UNIT OF MEASURE 17

SETTING THE OPERATING MODE....17

SETTING THE DISPLAY BRIGHTNESS 17

AUTO POWER OFF....18

BLUETOOTH ACTIVATION/DEACTIVATION....18

METERING OPERATION.... 19

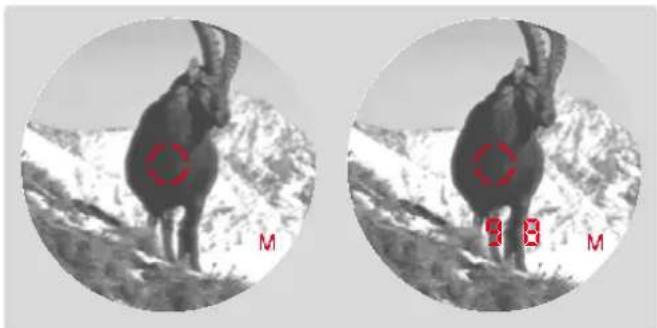

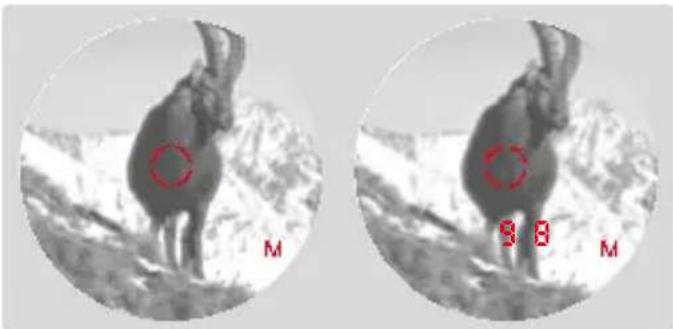

DISTANCE MEASUREMENT MADE EASY 19

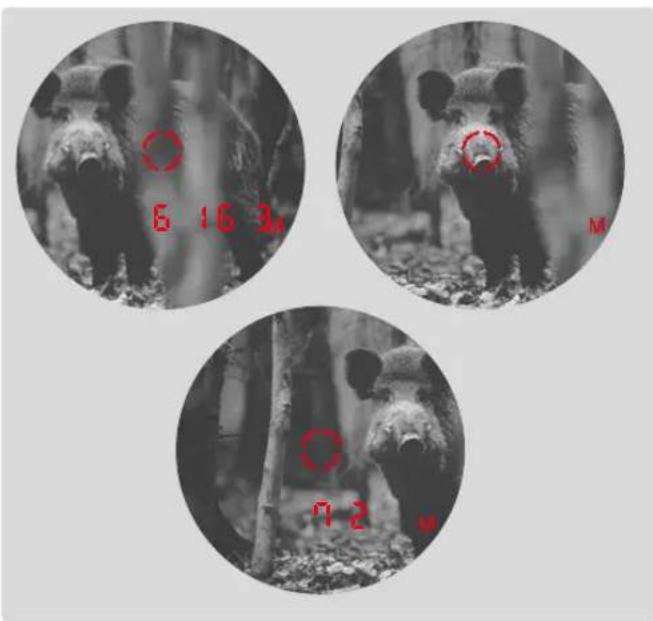

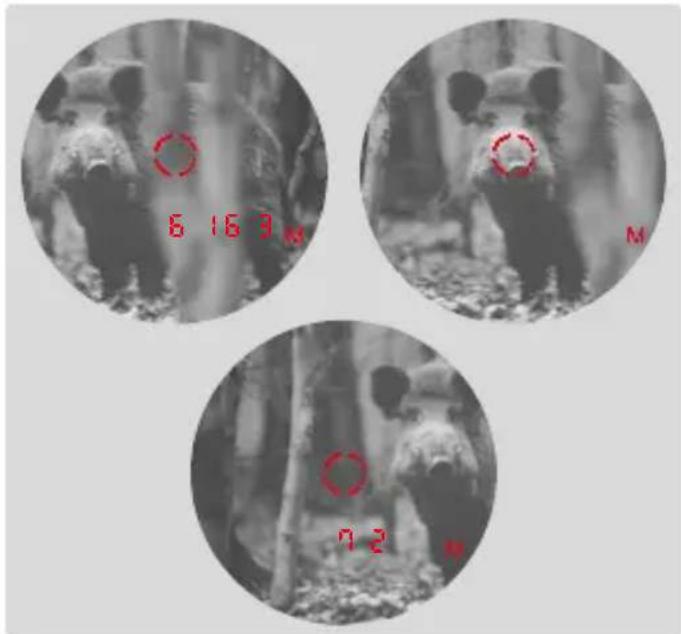

SCAN MODE (OBJECT TRACKING).... 19

METERING RANGE / ACCURACY....20

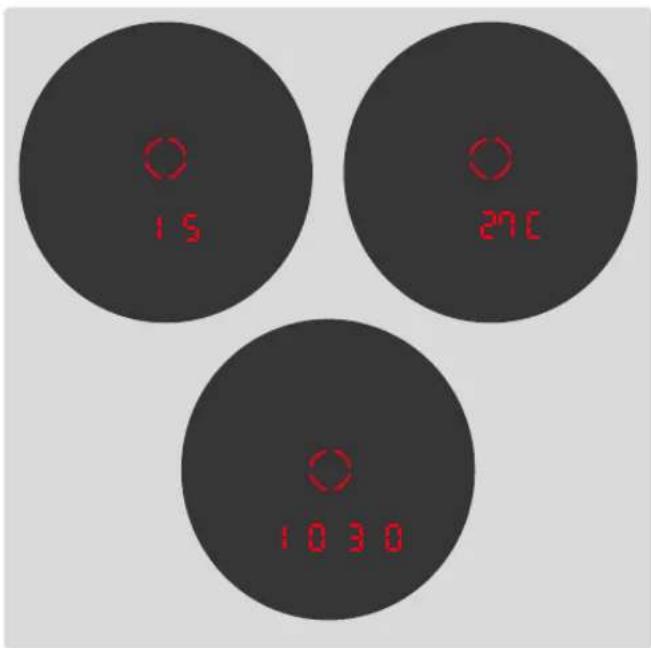

DISPLAYING ATMOSPHERIC CONDITIONS 21

BALLISTICS 22

EQUIVALENT HORIZONTAL RANGE (Ehr) 22

ACTUAL DISTANCE (LOS) 22

BALLISTIC CURVE (BALL) 22

USING USER-DEFINED BALLISTICS CURVES....23

WIND CORRECTION....23

COMPASS CALIBRATION 24

USING THE LEICA BALLISTICS APP 24

WITHOUT USING THE LEICA BALLISTICS APP....24

CONNECTING TO EXTERNAL METERING DEVICES....26

DISPLAYING THE CORRECTION VALUES....26

LEICA BALLISTICS APP 27

CONNECTION....27

REMOTE CONTROL....27

FIRMWARE UPDATES....28

CARE/CLEANING 28

TECHNICAL DATA 29

LEICA CUSTOMER CARE....30

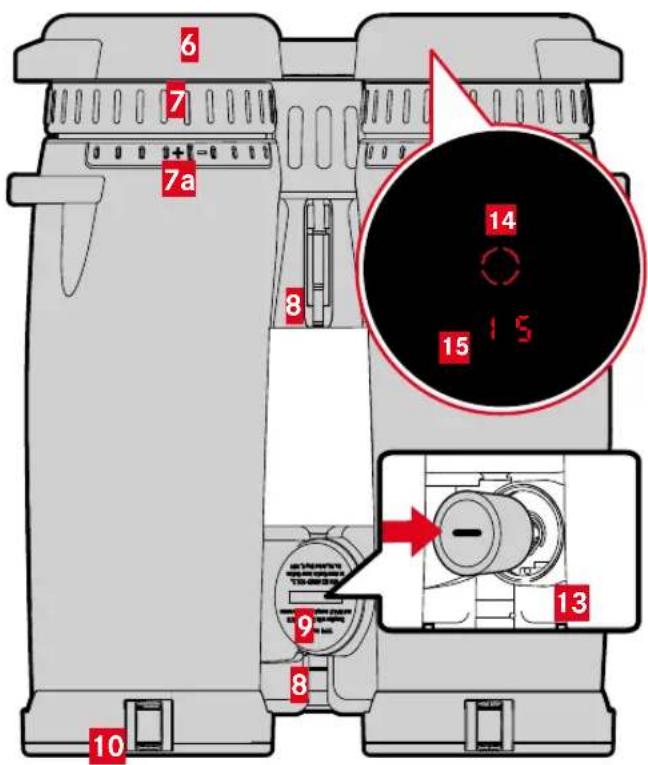

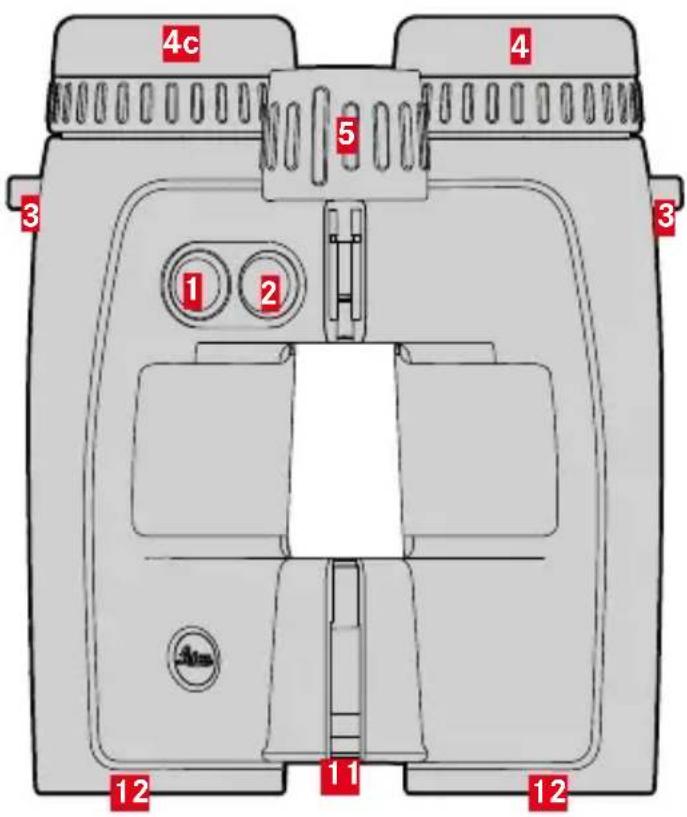

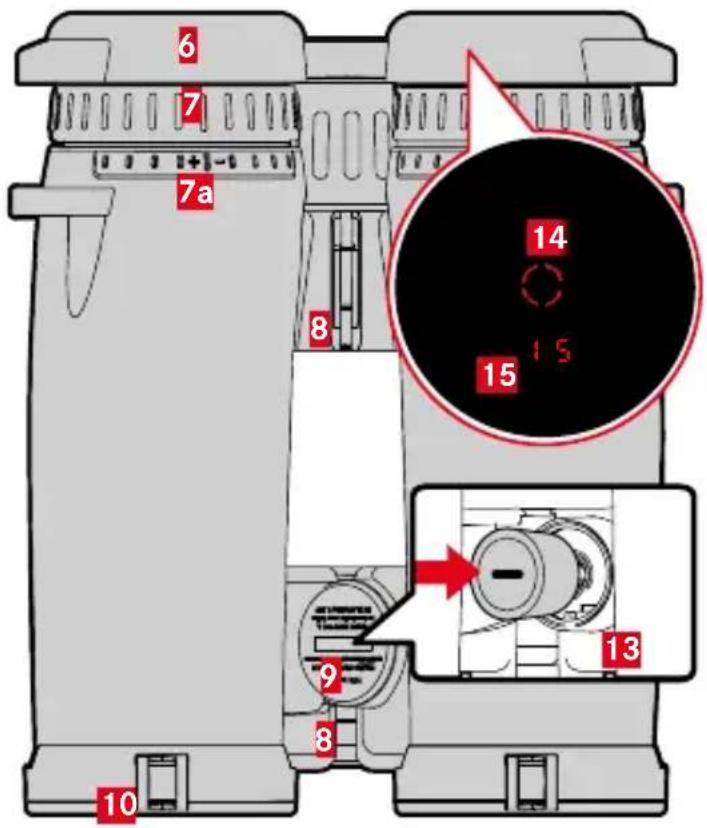

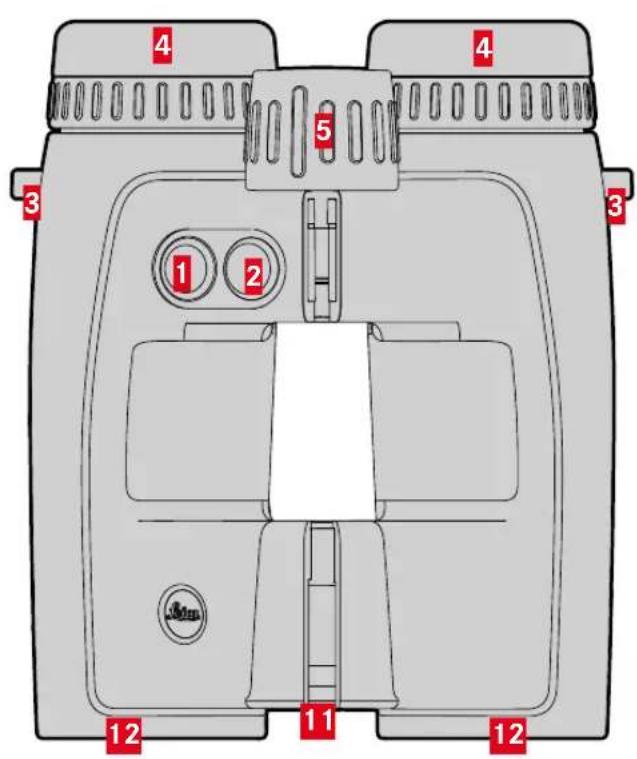

PART DESIGNATIONS

1 Menu Selection Button

EU.US (meter/yard display), MODE (display mode), bt (Bluetooth), brtn (display brightness), ROFF (continuous Bluetooth operation)

2 Main switch

Switching the device ON/OFF

3 Strap lugs

Diagram of a rope knot with red straps, no text or symbols present

4 Eyecups (rotating)

Use without eye glasses: turn in counter-clockwise direction

5 Central focusing wheel

Adjusting the focus

6 Eyepiece cap

Diopter compensation

a Scale

8 Center hinge

Battery compartment cover

Open: Use a coin to turn in anti-clockwise direction

10 Lens caps

11 Laser transmission lens

12 Lens

13 Battery compartment

3 V lithium cell (type CR2)

14 Target mark

15 Display

0 0 (value)/bALL (menu item)/EHR (equivalent horizontal range)/M, Y (unit of measure)/ * (Bluetooth)

PREPARATION

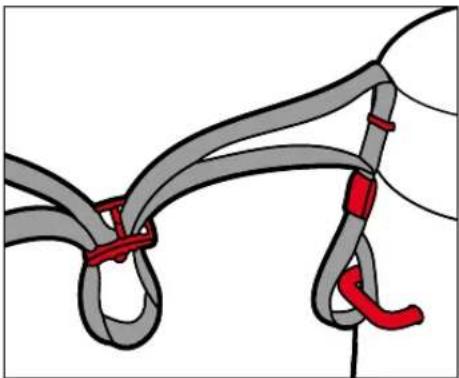

ATTACHING THE CARRY STRAP

Diagram of a rope knot with red straps and loops, no text or symbols present

The eyepiece caps can be attached to the carry strap. at the same time as the carry strap is attached to the binoculars.

▶ Attach and tighten the carry strap as shown in the illustration

Caution

- Check the correct attachment of the carry strap by pulling at it with some force. The length of the carry strap must not change.

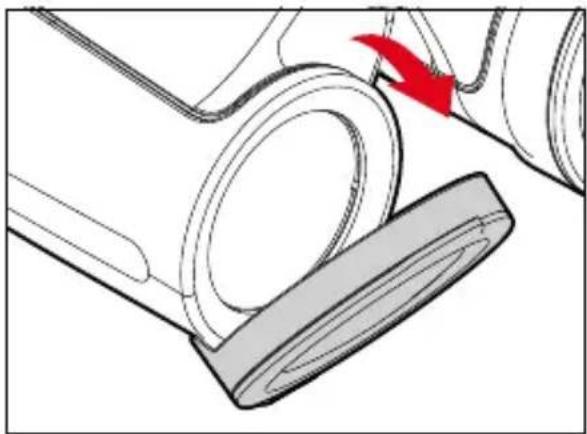

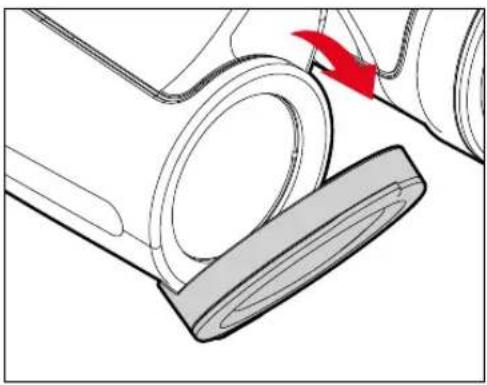

ATTACHING THE PROTECTIVE LENS CAP

Mechanical component diagram showing a lever and wheel assembly with a red arrow indicating motion (no text or symbols)

Note

- When positioned correctly, the protective lens cap will flip open downwards.

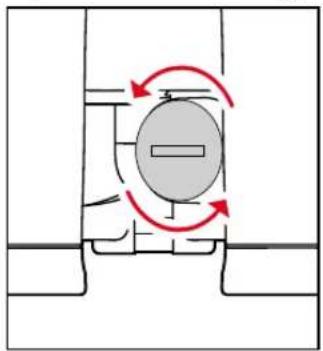

INSERTING/CHANGING THE BATTERY

A cylindrical 3 V lithium cell (type CR2) is required for power supply.

Pure mechanical diagram showing a circular component with red curved arrows indicating rotational motion (no text or symbols)

Mechanical assembly diagram showing a cylindrical component with a red arrow indicating direction (no text or symbols present)

▶ Turn the lid over the battery compartment in anti-clockwise direction

• Use e.g. a small coin.
  Remove the lid
  ▶ Insert the battery with the plus contact first
  ▶ Attach the lid
  ▶ Tighten the lid by turning it in clock-wise direction

BATTERY CHARGE LEVEL

The measured value and reticule display will flash when the battery nears depletion. You will still have enough power for another 50 measurements – but with a gradually reducing range – once the display begins flashing.

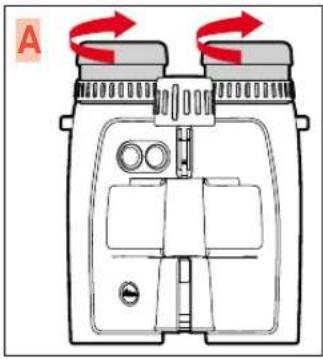

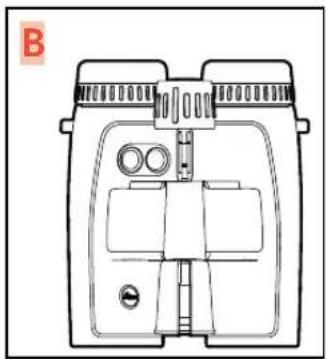

SETTING THE EYECUPS

The position of the eyecups will depend on whether you wear eye-glasses or not. Contact lens wearers can make the settings just like anyone not wearing any eyeglasses.

Diagram of a device with two ports and red arrows indicating rotation or flow direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

FOR USE WITHOUT EYE GLASSES

▶ Rotate the eyecup out half way or fully (Fig. A)

FOR USE WITH EYE GLASSES

▶ Rotate the eyecup fully inward (Fig. B)

DIOPTER SETTINGS

A diopter compensation function for up to ±4 diopter is provided to allow users with diminished vision the use of this product and the fine-tuning of the target mark without eye glasses.

Technical line drawing of a mechanical device with dual supports and a central valve (no text or symbols)

▶ Return both diopter compensation rings to their zero position.
▶ Look through the binoculars
▶ Aim at a distant object
▶ Adjust the focusing wheel until you can see the target object with optimum sharpness
▶ Press the main switch
• The reticule appears.
▶ Adjust the diopter setting ring on the right until the target mark appears with optimum focus in the right-hand binocular tube
▶ Close your left eye or cover the left-hand lens
▶ Turn the focusing wheel until you can see the target object with optimum focus in the right-hand binocular tube
▶ Close your right eye or cover the right-hand lens
Adjust the diopter setting ring so that you can see the target object with optimum focus in the left-hand binocular tube

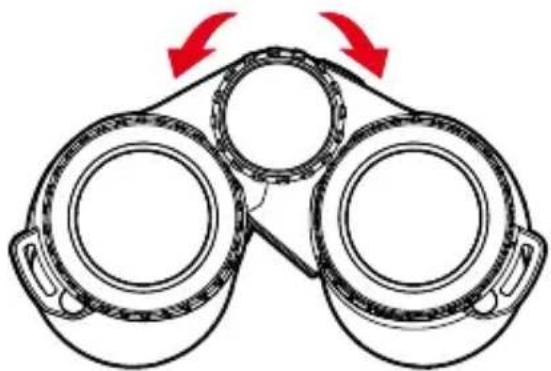

SETTING THE INTERPUPILLARY DISTANCE

Line drawing of binoculars with red directional arrows indicating motion (no text or symbols)

Silhouette of a church with a tower inside a circle, surrounded by two dark circular frames (no text or symbols)

Adjust the interpupillary distance by moving the hinged joint to match your personal requirements. When the interpupillary distance is set correctly, the right and left fields of view merge into a circular image.

▶ Move the two halves of the binoculars via the central joint until no distracting shadows remain in your view

SETTINGS AND OPERATION

SETTING THE IMAGE SHARPNESS

Technical line drawing of a mechanical component with no visible text or symbols

▶ Look through the binoculars
▶ Aim at the target object
▶ Adjust the focusing wheel until you can see the target object with optimum sharpness

ACTIVATING THE RANGEFINDER

▶ Press the main switch
- The device switches on and the target mark appears.

Notes

• The device will switch off automatically after 10 s if the Bluetooth function is deactivated.
• The device will switch off after the time specified for OFF if the Bluetooth function is activated.

MENU CONTROL

ACCESSING THE MAIN MENU

▶ Press and hold the menu selection button 1 (≥3s)

• Eu.US appears.

NAVIGATING IN THE MAIN MENU

▶ Press the menu selection button repeatedly (<2 s each time) until the desired menu item appears

Menu item Options Description
EU.US US		Yard display
	EU	Meter display
i.0dE EKr		Equivalent horizontal distance
	LOS	Actual distance
	b RLL	Ballistic curve
bt OFF		Bluetooth® reception deactivated
	On	Bluetooth® reception activated
brtn	1-5	Display brightness in 5 levels
AOFF	1/3/5	Automatic power off after 1/3/5 min

SELECTING SETTINGS

▶ Press the main switch 2 repeatedly (<2 s each time) until the desired menu item appears

- The selected setting is initially lit continuously as confirmation, then the display switches to the next menu item and then disappears if no further settings are made.

- The device will switch back to metering operation after the last menu item.

MENU OVERVIEW

SETTING THE UNIT OF MEASURE

The device can be set to imperial units of measure (US) or metric units of measure (EU), i.e. yards & inches/Fahrenheit/InHG (inches of mercury) for Distance/Temperature/Air Pressure, or meter & centimeter/Celsius/millibar.

▶ Press and hold the menu selection button
• EU.US appears.
▶ Press the main switch several times briefly until the desired setting appears

EU Display in meters

US Display in yards

Note

• The current setting is always visible in the display: In addition to the numbers, you will see m (for meters) or y (for yards).
• The device is preset to the metric system (ELJ).

The device can be used in various operating modes. See p.22 for more information.

▶ Press and hold the menu selection button
▶ Press the menu selection button 1x briefly
- Code appears.
▶ Press the main switch several times briefly until the desired setting appears

ENr Equivalent horizontal distance

LOS Actual distance

bALL Ballistic curve

SETTING THE DISPLAY BRIGHTNESS

The display brightness can be set manually to various levels.

▶ Press and hold the menu selection button
▶ Press the menu selection button 3x briefly
- brtn appears.
▶ Press the main switch several times briefly until the desired setting appears
- br1-br5 = fixed brightness values

AUTO POWER OFF

The time until automatic power off of the device can be modified if Bluetooth ^® is activated.

▶ Press and hold the menu selection button
▶ Press the menu selection button 4x briefly
- ROFF appears.
▶ Press the main switch several times briefly until the desired setting appears

- The menu item AOFF will only be visible if Bluetooth ^® is activated.

BLUETOOTH ACTIVATION/DEACTIVATION

The device can be connected to external devices via Bluetooth. This will allow the use of user-defined ballistic curves from the Leica Ballistics app on a mobile device (see p. 22 and 27), or the display of ballistic correction values from external ballistic devices (see p. 24).

▶ Press and hold the menu selection button
▶ Press the menu selection button 2x briefly
- bt appears.
▶ Press the main switch several times briefly until the desired setting appears

• OFF: Bluetooth® is deactivated
• On: Bluetooth® is activated
  • *will appear, once the function is activated.

METERING OPERATION

DISTANCE MEASUREMENT MADE EASY

Two circular black-and-white photos of a deer in a snowy mountain landscape, each with a red circle highlighting its head area (no text or symbols present)

▶ Press the main switch briefly
▶ Aim the target mark at the object
▶ Press the main switch again
- The target mark disappears briefly and the measured value is displayed.
- You can do another measurement at any time by pressing the main button while the target mark remains lit.

... will appear in the following scenarios:

• Distance to the object is less than 10 meters / 11 yards
• Range capability is exceeded
• Object is not sufficiently reflective

SCAN MODE (OBJECT TRACKING)

▶ Press the main switch briefly
▶ Aim at the object while target mark is lit
▶ Press and hold main switch for approx. 2.5 seconds

- The device switches to scan mode and will then measure continuously. Scan mode is indicated by a change in the display. A new measured value appears after approx. 0.5 seconds.

METERING RANGE / ACCURACY

Maximum range is achieved in the following scenarios.

• Highly reflective target objects
• at a visual range of about 10 km (6 mi)

Long ranges can be reliably measured or achieved by holding the rangefinder very steady and/or placing it on a solid surface.

Maximum ranges are:

	Geovid Pro 32 Geovid	Pro 42/56
on highly reflective targets	approx. 2300m/2500 yd	approx. 2900 m/3200 yd
on trees	approx. 1400 m/1531 yd	approx. 1850 m/2023 yd
on game	approx. 900 m/984 yd	approx. 1200 m/1312 yd

The measuring range is influenced by the following factors:

Range higher lower
Color	white black
Angle to lens	perpendicular acute
Object size	large small
Sunlight	low light (cloudy)	high light (midday sun)
Atmospheric conditions	clear hazy
Object structure	homogeneous (house wall)	inhomogeneous (underbrush, tree)

The following range/accuracy applies in sunlight and with good visibility:

Range Accuracy (1σ)	Normal Operation	Accuracy (1σ) Scan mode
10–200 m/11-219 yd	±0.5 m /5.5 yd	±1.5 m/1,6 yd
200–400 m/219-437 yd	±1 m/1.1 yd	±2 m/2.2 yd
Above 400 m/437 yd	±0.5%	±0.5%

Note

- Distances below 200 m/219 yd are displayed with an accuracy of one decimal place, e.g. 645.

DISPLAYING ATMOSPHERIC CONDITIONS

The device determines three crucial pieces of additional information during range measurement to accurately calculate the point of impact:

• The inclination of the device
• Temperature
• Atmospheric pressure

These values can be displayed at any time:

▶ Press the menu selection button 2x briefly
- The reticule appears. Then the inclination angle, the temperature and atmospheric pressure are displayed in quick succession for around 2 seconds each.

Note

- If the housing of the device initially has a significantly different temperature than the surroundings, for example when moving from inside to outside, it can take up to 30 minutes before the internal sensor can display the correct ambient temperature again.

BALLISTICS

The device can be used in various operating modes.

EQUIVALENT HORIZONTAL RANGE (EHr)

Shots at higher or lower elevation targets are subject to changed ballistic conditions. They require knowledge of the equivalent horizontal range, which is relevant for hunting. Knowledge of the equivalent horizontal range is important, for example when using ballistic reticles. Ehr values are indicated by the additional Ehr display.

▶ Press and hold the menu selection button
▶ Press the menu selection button 1x briefly
- RDE appears.

▶ Press the main switch several times briefly until EMr appears

Note

- This mode is preset ex works.

ACTUAL DISTANCE (LOS)

Only the actually measured, linear distance will be displayed (individual measurement or scan mode).

▶ Press and hold the menu selection button
▶ Press the menu selection button 1x briefly
- Code E appears.
▶ Press the main switch several times briefly until LOS appears

BALLISTIC CURVE (BALL)

The device comes equipped with a ballistic calculator, and can display correction values in addition to the measured distance. If a ballistic profile is activated, after each distance measurement the linear, direct distance to the target is displayed twice in succession, first for 1 s, and then for 2 s each the calculated correction values for elevation and lateral.

▶ Press and hold the menu selection button
▶ Press the menu selection button 1x briefly
- iOd E appears.

▶ Press the main switch several times briefly until BALL appears

Warning

• A general ballistics profile (based on .308" 175 g Sierra Match-King) is used by default ex works, which may not match the actual munition used.
• The profile most recently synched from the Leica Ballistics app to the device will be used for all subsequent accesses of the bALL function, until a new one is set. That also applies if there is no connection to the app. Make sure to always only use the profile matching the actual munition to be used.

USING USER-DEFINED BALLISTICS CURVES

A ballistic profile from the Leica Ballistics app must be created and activated on the device to determine ballistic correction values.

IN THE BINOCULARS

▶ Press and hold the menu selection button
▶ Press the menu selection button 2x briefly
- bt appears.
▶ Press the main switch 2x briefly
- On appears.
- Bluetooth ^ is activated and a connection is established ( ✕ appears).

ON THE MOBILE DEVICE

▶ Activate Bluetooth
▶ Installation and startup of the “Leica Ballistics” app
▶ Select the relevant device
▶ Create a ballistics profile under "Ballistic Profile"
▶ Activate a suitable ballistics profile
- The profile will be automatically synched with the Leica device after activation.

WIND CORRECTION

Wind speed and direction can be entered on the device manual to display lateral correction values.

WIND SPEED

Wind speed settings between 0 and 40 are available. The value is entered in accordance with the current settings in km/h (EU) or mph (EU).

▶ Press the menu selection button briefly
- 5Pd appears.
▶ Press the main switch several times briefly until the desired setting appears

or

▶ Press and hold the main switch
- The device will quickly cycle through the available settings.

WIND DIRECTION

▶ Press the menu selection button briefly
- SPd appears.
▶ Press the menu selection button again briefly
- dLr appears.
▶ Press the main switch several times briefly until the desired setting appears
- 1-2: the wind direction value is set in accordance with the clock face

Example: wind comes from 6 o'clock.

Note

- Lateral correction values are not displayed if wind speed is set to 0.

COMPASS CALIBRATION

Some device functions (e.g. Leica Pro Track) require directional data. That is why the device comes equipped with a digital compass, which functions like a traditional magnetic compass and self-calibrates during use. A regular manual basic calibration may become necessary to ensure correct functionality (specifically after a change in location, battery change, temperature fluctuations, or in case of incorrect data output).

USING THE LEICA BALLISTICS APP

▶ Establish a connection with the Leica Ballistics app
▶ Launch the Leica Ballistics app
▶ Select the menu item "Compass Calibration" under "Device Settings"
▶ Follow in-app instructions

WITHOUT USING THE LEICA BALLISTICS APP

▶ Press the Main switch/Menu selection button
▶ Tilt the device 45 degrees to the left and hold this position for 3 seconds

Illustration of binoculars with a circular arrow symbol (no text or labels)

▶ Return the device to the horizontal and hold the position for 3 seconds

Line drawing of binoculars with a circular arrow symbol pointing left (no text or labels)

▶ Tilt the device 45 degrees to the right and hold this position for 3 seconds

Illustration of binoculars with a circular arrow symbol (no text or labels)

▶ Return the device to the horizontal and hold the position for 3 seconds

Line drawing of binoculars with a circular arrow symbol on the left (no text or labels)

▶ Press the Main switch/Menu selection button
▶ Move the device in a figure-8 motion 2-3 times while holding it in the horizontal

Line drawing of a portable device with buttons and front panel (no text or symbols)

▶ Stop and hold the device motionless for 3 seconds

Notes

• Device orientation has no bearing for calibration.
- Magnetic fields and other electronic devices or magnetized metallic objects may impact the compass function and cause incorrect readings. Non-magnetic metals and alloys have no impact on the compass function.
- The calibration process can be repeated at any time, provided the device is switched on and the display is lit.
- There will be on separate calibration screen displayed on the device. There will be no confirmation displayed after calibration is complete.
- The calibration is to be done in an open, unencumbered area.

CONNECTING TO EXTERNAL METERING DEVICES

External devices from manufacturers like Nielsen-Kellermann (Kestrel ^® models) or Garmin ^® (Foretrex ^® GPS) are compatible for providing ballistic correction values. These devices receive data like the measured distance, angle and target direction. The devices include the data in the calculation of ballistic values, and return the relevant correction values.

▶ External device configuration
▶ Press and hold the menu selection button
▶ Press the menu selection button 2x briefly
- bt appears.
▶ Press the main switch 2x briefly
- On appears.
- Bluetooth ^® is activated and a connection is established (*appears).

Notes

• The device can only be connected to one smartphone or other external device at a time. An existing connection must therefore be actively disconnected (deactivate Bluetooth®).
  • Take note of the range capabilities of the external devices used.
• Read the manual of the relevant external device for operating instructions.

DISPLAYING THE CORRECTION VALUES

The display of ballistic correction values includes the following:

U (up) Upward correction
d (down) Downward correction
L (left) Correction to the left
r (right)	Correction to the right

The following values are included in the calculation of correction values.

• Measured distance to the target
• Inclination angle of the device
• Measured temperature and atmospheric values
• Set wind speed and wind direction

LEICA BALLISTICS APP

The device can be remotely controlled via smartphone. The Leica Ballistics app allows the setting and storing of personal ballistics profiles. That will require the installation of the “Leica Ballistics” app on the mobile device.

A list of available functions and instructions for their use can be found in the app.

The app is available from Apple App Store™/Google Play Store™

CONNECTION

ESTABLISHING A CONNECTION

IN THE BINOCULARS

▶ Press and hold the menu selection button
▶ Press the menu selection button 2x briefly
- bt appears.
▶ Press the main switch 2x briefly
- On appears.
- Bluetooth ^® is activated and a connection is established ( * appears).

ON THE MOBILE DEVICE

▶ Activate Bluetooth
▶ Launch the Leica Ballistics app
▶ Select the relevant device

DISCONNECTION

▶ Press and hold the menu selection button
▶ Press the menu selection button 2x briefly
- bt appears.
▶ Press the main switch 1x briefly
- OFF appears.
- Bluetooth ^® is deactivated and the connection is dropped.

REMOTE CONTROL

All functions and settings of the device can be done via a mobile device.

▶ Establishing a connection
▶ Operate the desired functions via the app

FIRMWARE UPDATES

Leica is continuously working on the further improvement and optimization of their products. Some of these improvements and expansions of the functional scope can be installed at a later time. Leica releases so-called firmware updates at irregular intervals for that purpose. These updates are handled via the Leica Ballistics app. The information contained in this manual references the most current firmware version at the time of market launch.

▶ Establishing a connection
▶ Follow in-app instructions

Caution

- Do not switch off the device during the update process!

CARE/CLEANING

• Your Leica rangefinder requires no special care.
• Coarse dirt particles like sand can be removed with a soft brush or simply blown off.
• Do not use excessive force when cleaning a severely soiled lens surface. The coating is abrasion resistant, but not impervious to sand or salt crystals.
• Always rinse off any traces of salt water! Dried salt crystals could damage the surfaces.
• Fingerprints, etc. on front lenses and eyepiece lenses can be pre-cleaned with a damp cloth and then wiped dry with a clean leather or lint-free cloth.
• The rangefinder should be stored in a well-ventilated, dry and cool place to prevent fungal growth (particularly important in humid climates).
• Do not use alcohol or chemical cleaning solutions on the optics or housing.

TECHNICAL DATA

Designation Leica Geovid Pro 8x32 Leica Geovid Pro 10x32 Leica Geovid Pro 8x42				Leica Geovid Pro 10x42	Leica Geovid Pro 8x56
Device type	Binoculars Binoculars Binoculars Binoculars Binoculars
Type no.	5932 5932 6931 6931 6931
Order no.	40809	40810	40815	40816	40817
Scope of delivery	Binoculars, carry strap, eyepiece cover, carry case, lens cleaning cloth, instruction manual, test certificate
Magnification	8x	10x	8x	10x	8x
Lens diameter	32mm	32mm	42mm	42mm	56mm
Exit pupil	4mm	3.2mm	5.25mm	4.2mm	6.9mm
Twilight factor	16	17.9	18.3	20.5	21.2
Eye relief	16mm	16mm	18mm	16mm	>18mm
Closest focusing distance	approx. 5m / 16ft	approx. 5m / 16ft	approx. 5m / 16ft	approx. 5m / 16ft	5.8m / 19ft
Field of view at 1,000 m/1000 yd	7.0° (135m / 405ft)	5.8° (115m / 345ft)	7.3° (130m / 390ft)	6.5° (114m / 342ft)	6.8° (118m / 387ft)
Diopter compensation	±4dpt	±4dpt	±4dpt±4dpt±4dpt
Interpupillary distance	Adjustment range: 56 - 74mm / 2.2 - 2.9 in	Adjustment range: 56 - 74mm / 2.2 - 2.9 in	Adjustment range: 56 - 74mm / 2.2 - 2.9 in	Adjustment range: 56 - 74mm / 2.2 - 2.9 in	Adjustment range: 60 - 74mm / 2.4 - 2.9 in
Range	On highly reflective targets max. approx. 2200m / 2406yd			2950m / 3200yd
Measuring accuracy	±0.5m at 10 - 200m / 0.5yds at 10 - 219yds, ±1.0m at 200 - 400m / 1.0yds at 219 - 438yds, ±0.5% above 400m / 0.5% above 438yds
Display/Unit of measure	4 seven-segment LEDs plus additional icons, optional display setting in yard/inch or meter/centimeter
Max. measurement time	approx. 0.3s
Wireless connection	Bluetooth® 5.0 (Low Energy)
Protection type	Waterproof to a depth of 5m / 16ft
Operating temperature	Electrical: -20 to 55°C / -4 to 131°F, Mechanical: -30 to 55°C / -22 to 131°F
Storage temperature	-40 to +85°C / -40 to 185°F
Material	Magnesium die-cast, non-slip rubber reinforcement
Dimensions (W x H x D)	117x153x70mm/4.6x6.0x2.8in	117x153x70mm/4.6x6.0x2.8in	125x178x70mm/4.9x7.0x2.8in	125x174x70mm/4.9x6.9x2.8in	153x187x90mm/6.0x7.3x3.5in
Weight (without battery)	approx. 820g / 28.9 oz	approx. 820g / 28.9 oz	approx. 1000g / 35.3 oz	approx. 970g / 34.2 oz	approx. 1195g / 42 oz

Subject to changes in design, production, and scope of delivery.

LEICA CUSTOMER CARE

Please contact the Customer Care department of Leica Camera AG for the maintenance of your Leica equipment and for help and advice regarding Leica products and how to order them. You can also contact the Customer Care department or the repair service provided by your regional Leica subsidiary for repairs or warranty claims.

Leica Camera AG

Leica Customer Care

Am Leitz-Park 5

35578 Wetzlar

Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

www.leica-camera.com

GEOVID PRO

BEKNOPTE HANDLEIDING

GUIDA RAPIDA | INSTRUCCIONES ABREVIADAS

KORT VEJLEDNING | KORT BRUKSANVISNING

leica-camera.com/Service-Support

2022-11-1-2.0-DE/EN/FR/IT/ES/NL/DA/SV/NO/RU

EN

FOREWORD

Dear Customer,

we wish you a great deal of enjoyment and every success with your new Leica product. Please read the long form manual before using the product for the first time. Knowledge of the content will prevent inadvertent damage to the product, possible injuries and other risks. You can download the long form manual here:

https://en.leica-camera.com/Service-Support/Support/Downloads

REPLACEMENT PARTS/ ACCESSORIES

Contact Leica Customer Care or your specialist Leica retailer for details on the latest replacement parts/accessory range:

en.leica-camera.com/Contact

Please read the chapters “Safety Remarks” and “Important Information” before using the product for the first time. Knowledge of the content will prevent inadvertent damage to the product, possible injuries and other risks.

LEGAL INFORMATION

CE MARK

The CE mark on our products documents compliance with the fundamental requirements of applicable EU guidelines.

English

Declaration of Conformity (DoC)

Hereby, “Leica Camera AG” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Customers can download a copy of the original DoC to our Radio Equipment products from our DoC server:

www.cert.leica-camera.com

Please contact Leica Camera AG, Am Leitz-Park 5, 35578 Wetzlar,

Germany in case of any further questions

Depending on product (see technical data)

Type	Frequency band (center frequency)	Maximum output (dBm E.I.R.P.)
Bluetooth® Wireless Technology	2402-2480 MHz 10

Laser class IEC/EN Class 1
Wavelength (nm) 900
Pulse duration (ns) 57
Output (mW) 1.6
Beam divergence (mrad) Vertical: 0.8Horizontal: 1.8

CLASS 1 LASER PRODUCT

Conforms to 21 CFR 1040.10 and 1040.11 except for conformance to IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, May 8, 2019.

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

(Applies within the EU and for other European countries with active waste separation policies.)

This device contains electric and/or electronic components which must not be disposed of in general household waste. Instead, it should be disposed of at a recycling collection point provided by your local authority. This service is free of charge. Any standard or rechargeable batteries used in this device must be removed and disposed of separately in accordance with local regulations. Please contact your local authorities, waste disposal collection point or the retailer, from whom you purchased the device for more information on correct waste disposal.

REGULATORY INFORMATION

You will find the manufacturing date of your product on the stickers on the packaging. The date format is year/month/day.

SAFETY REMARKS

WARNING

Non-compliance with the following points may result in serious injury or death.

LASER

• The use of any operations not described in this manual or any alterations on the device may result in hazardous radiation exposure.
• The laser device is active and emitting an invisible laser beam as long as the display in the eyepiece is active. Never point the laser focusing optics at a person or animal.
• Do not depress any of the two buttons while aiming at a human eye or while looking into the optics from the lens side.
  • Never aim the laser at an eye.
• Do not aim the laser at people or animals.

GENERAL INFORMATION

- Avoid looking directly at bright light sources with your Leica Geovid to prevent eye injury.

CAUTION

Non-compliance with the following points may result in personal injury or damage to the device.

LASER

• Avoid touching any of the two buttons while the distance measurement function is not in use to prevent an accidental activation of the laser beam.
• Do not attempt to disassemble, reassemble or repair the Leica Geovid yourself. Emitting laser radiation may pose a serious health risk. The manufacturer warranty is void, once a device was disassembled, reassembled or repaired.
• Remove the battery immediately and stop using the device if the device housing is damaged or if it emits a strange sound after being dropped or behaves unexpectedly for any other reason.

GENERAL INFORMATION

• Keep the device out of the reach of small children.
• Do not use the device while walking. You might trip and fall.
• Do not combine the operation of your Leica Geovid with other optical components, e.g. lenses or binoculars. Using the Leica Geovid in conjunction with another optical device increases the danger of damaging your eyes.
• Do not attempt to disassemble or modify the device; exposing the internal electronics may cause damage, injury or electric shock.

BATTERY

• Only the battery type stated and described in this manual must be used. Any improper use of the batteries or the use of unapproved battery types may result in an explosion!
• Do not expose the battery to sunlight, heat, humidity or moisture for prolonged periods of time. It must not be placed in a microwave oven or a high-pressure container as this would pose a fire or explosion hazard!
• Never dispose of batteries in fire and never attempt to heat, recharge, dismantle or break open a battery.
• Batteries must always be stored out of the reach of children. Do not leave batteries lying around, as they could be swallowed by children or pets.

CARRY STRAP

• The carry strap is usually made of very robust material. You should therefore keep it out of the reach of children. A carry strap is not a toy and poses a strangulation risk.
• Use the carry strap only for its intended purpose on a camera or on binoculars. Any other use poses the risk of injury and may possibly result in damage to the carry strap and is therefore not permitted.
• Carry straps should also not be used for cameras/ binoculars during sports activities that pose a risk of entanglement (e.g. when mountain climbing and similar outdoor activities).

IMPORTANT INFORMATION

GENERAL INFORMATION

• Do not attempt to take the device apart yourself. Repairs must only be carried out in authorized workshops.
• Remove the battery from the housing if you will not be using the product for an extended period of time.
• Low temperatures impair battery performance. Carry the device close to the body in cold conditions and use a fresh battery.
• Make sure to store the batteries in a cool, dry place.
• Depleted batteries must never be disposed of in household waste as they contain toxic materials that are harmful to the environment. Battery collection points are provided at most large retail outlets; alternatively, you can dispose of old batteries at a local special waste collection point to ensure correct recycling.
• Do not touch the glass surfaces with your fingers, especially if you have previously applied hand cream, insect repellent, etc. These substances may contain chemicals that damage or destroy the coatings on the glass surfaces.

MEASURING VALUES

• The influence of all ballistically relevant influencing factors is greatly increased at longer ranges and considerable variations may occur. The ballistic values displayed should therefore only be viewed as a guideline.
• Regardless of whether this information is used, you are responsible for assessing the relevant hunting situation.
• Leica Camera AG does not accept liability for the accuracy of values transmitted from third-party devices.
• Powerful electric fields, e.g. emanating from radar systems, may cause errors and/or faulty values.
• The geomagnetic field can similarly cause value deviations.

WARRANTY

In addition to your statutory warranty rights from your dealer, Leica Camera AG offers a 5-year warranty for this Leica product in accordance with the conditions started below. The Leica warranty does not impact on any statutory consumer rights in accordance with relevant national law or any consumer rights vis-a-vis the retailer arising from the purchase contract concluded between them.

WARRANTY CONDITIONS

By purchasing this Leica accessory, you have acquired a binoculars that are manufactured in compliance with special quality standards, and which were thoroughly tested at each individual production step by experienced specialists. Our five-year warranty for this product commences on the date of sale by an authorized retailer under the following conditions:

1. In case of a complaint due to a manufacturing fault, we will assume all material costs during the warranty period. We shall decide at our own discretion to repair the faulty product, to replace faulty parts or to replace the entire product with a faultless product of the same type. All other claims of any kind and on whatever legal basis shall not be accepted in connection with this warranty.
2. Wear parts like eyecups, leather details, armoring, carry straps and accessories are exempt from the warranty. The same applies for surface damage.
3. Any warranty claims become void if the defect in question is a result of improper handling – which also includes the use of third-party accessories – or if the product was manipulated by unauthorized persons or workshops or if the serial number of the product was rendered illegible.
4. Warranty claims can be submitted only in conjunction with the original proof of purchase – complete with the date of purchase, as well as the address and signature of an authorized retailer.
5. In case of a warranty claim, please send the Leica product, the original proof of purchase and a description of the fault to Leica Camera AG Customer Care or a Leica regional subsidiary.

PICK-UP SERVICE FOR REPAIR SUBMISSIONS

(Applies for EU only)

We will organize the shipping of your device to our Customer Care department if you should notice a problem with your device during the warranty period. Please contact our service hotline to make the necessary arrangements ([phone]). Our pick-up service will collect your Leica product at the agreed time from your premises free of charge and transport it to our Customer Care location for evaluation.

Contact:

en.leica-camera.com/Contact

PART DESIGNATIONS

1 Menu Selection Button

EU.US (meter/yard display), MODE (display mode),

bt (Bluetooth), brtn (display brightness), ROFF (continuous Bluetooth operation)

2 Main switch

Switching the device ON/OFF

3 Strap lugs

Diagram of a rope knot with red knots, no text or symbols present

4 Eyecups (rotating)

Use without eye glasses: turn in counter-clock-wise direction

5 Central focusing wheel

Adjusting the focus

6 Eyepiece cap

7 Diopter compensation

a Scale

8 Center hinge

9 Battery compartment cover

Open: Use a coin to turn in anti-clockwise direction

10 Lens caps

11 Laser transmission lens

12 Lens

13 Battery compartment

3 V lithium cell (type CR2)

14 Target mark

15 Display

0 0 (value)/BALL (menu item)/EH- (equivalent horizontal range)/M, Y (unit of measure)/ * (Bluetooth)

MENU OVERVIEW

MENU CONTROL

ACCESSING THE MAIN MENU

▶ Press and hold the menu selection button 1 (≥3s)

• EU.US appears.

NAVIGATING IN THE MAIN MENU

▶ Press the menu selection button repeatedly (<2 s each time) until the desired menu item appears

Menu item Function Description
EU.US	US	Yard display
	EU	Meter display
TOD E	EMr	Equivalent horizontal distance
	LOS	Actual distance
	BALL	Ballistic curve
bt	OFF	Bluetooth ^ reception deactivated
	On	Bluetooth ^ reception activated
brtn	1-5	Display brightness in 5 levels
ROFF	1/3/5	Automatic power off after 1/3/5 min

SELECTING SETTINGS

▶ Press the main switch 2 repeatedly (<2s each time) until the desired menu item appears

- The selected setting is initially lit continuously as confirmation, then the display switches to the next menu item and then disappears if no further settings are made.

OPERATION

SETTING THE INTERPUPILLARY DISTANCE

Line drawing of binoculars with red directional arrows indicating rotation (no text or symbols)

SETTING THE IMAGE SHARPNESS

▶ Look through the binoculars
▶ Aim at the target object
▶ Adjust the focusing wheel until you can see the target object with optimum sharpness

DISTANCE MEASUREMENT MADE EASY

Two circular grayscale images of a goat standing in a snowy landscape, each with a red circle highlighting its body and labeled 'M' (no text or symbols beyond labels)

▶ Press the main switch briefly
▶ Aim the target mark at the object
▶ Press the main switch again

• The target mark disappears briefly and the measured value is displayed.
• You can do another measurement at any time by pressing the main button while the target mark remains lit.

-- -- -- will appear in the following scenarios:

• Distance to the object is less than 10 m/11 yd
• Range capability is exceeded
• Object is not sufficiently reflective

SCAN MODE (OBJECT TRACKING)

Three circular black-and-white photos of a panda in a forest setting, each with a red circle highlighting its face; no text or symbols present.

▶ Press the main switch briefly
▶ Aim at the object while target mark is lit
▶ Press and hold main switch for approx. 2.5 seconds

- The device switches to scan mode and will then measure continuously. Scan mode is indicated by a change in the display. A new measured value appears after approx. 0.5 seconds.

ATTACHING THE PROTECTIVE LENS CAP

Mechanical component diagram showing a curved pipe with a red arrow indicating a specific part (no text or symbols present)

Note

- When positioned correctly, the protective lens cap will flip open downwards.

CONNECTING THE LEICA BALLISTICS APP

The device can be remotely controlled via smart-phone. That will require the installation of the “Leica Ballistics” app on the mobile device. A list of available functions and instructions for their use can be found in the app.

The app is available from Apple App Store™/Google Play Store™

IN THE BINOCULARS

▶ Press the menu selection button repeatedly

- bt appears.

▶ Select the desired setting via the main switch:

- OFF: Bluetooth® deactivated.

- On: Bluetooth® activated.

• *will appear, once the function is activated.

ON THE MOBILE DEVICE

▶ Activate Bluetooth®

▶ Installation and startup of the “Leica Ballistics” app

▶ Select the relevant device

TECHNICAL DATA

Designation	Leica Geovid Pro 8x32	Leica Geovid Pro 10x32	Leica Geovid Pro 8x42	Leica Geovid Pro 10x42	Leica Geovid Pro 8x56
Device type	Binoculars Binoculars	Binoculars Binoculars	Binoculars
Type No.	5932 5932 6931 6931 6931
Order No.	40809 40810 40815 40816 40817
Scope of delivery	Binoculars, carry strap, eyepiece cover, carry case, lens cleaning cloth, instruction manual, test certificate
Magnification	8x 10x 8x	10x 8x
Lens diameter	32 mm	32 mm	42 mm	42 mm	56 mm
Exit pupil	4 mm	3.2 mm	5.25 mm	4.2 mm	6.9 mm
Twilight factor	16	17.9	18.3	20.5	21.2
Eye relief	16 mm	16 mm	18 mm	16 mm	>18 mm
Closest focusing distance	approx. 5 m/16 ft	approx. 5 m/16 ft	approx. 5 m/16 ft	approx. 5 m/16 ft	5.8 m/19 ft
Field of view at 1,000 m/1094 yd	7.0° (135 m/405 ft.)	5.8° (115 m/345 ft.)	7.3° (130 m/390 ft.)	6.5° (114 m/342 ft.)	6.8° (118 m/387 ft.)
Diopter compensation	±4 dpt	±4 dpt	±4 dpt	±4 dpt	±4 dpt
Interpupillary distance adjustable	56 - 74 mm	56 - 74 mm	56 - 74 mm	56 - 74 mm	60 - 74 mm
RangeOn highly reflective targets	max. approx. 2300 m/2406 yd		max. approx. 3200 m/2950 yd
Measuring accuracy	±0.5 m at 10 - 200 m / 0.5 yds at 10 - 219 yds; ±1.0 m at 200 - 400 m / 1.0 yds at 219 - 438 yds; ±0.5% above 400 m / 0.5% above 438 yds
Display/Unit of measure	4 seven-segment LEDs plus additional icons, optional display setting in yard/inch or meter/centimeter
Max. measurement time	approx. 0.3 s
Wireless connection	Bluetooth® 5.0 (Low Energy)
Protection type	Waterproof to a depth of 5 m/16 ft
Operating temperature	Electrical: -20 to 55°C/-4 to 131°F, Mechanical: -30 to 55°C/-22 to 131°F
Storage temperature	-40 to +85°C/-40 to 185°F
Material	Magnesium die-cast, non-slip rubber reinforcement
Dimensions (W×H×D)	117×153×70 mm/4.6×6.0×2.8 in	117×153×70 mm/4.6×6.0×2.8 in	125×178×70 mm/4.9×7.0×2.8 in	125×174×70 mm/4.9×6.9×2.8 in	153×187×90 mm/6.0×7.3×3.5 in
Weight (without battery)	approx. 820 g/28.9 oz	approx. 820 g/28.9 oz	approx. 1000 g/35.3 oz	approx. 970 g/34.2 oz	approx. 1195 g/42 oz

Subject to changes in design, production, and scope of delivery.

FOR US ONLY:

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

To assure continued compliance, follow the attached installation instructions and use only shielded inter face cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Trade Name: LEICA
Type No. 5932 / 6931
Responsible party/Support contact:	Leica Camera Inc.1 Pearl Count, Unit A, Allendale, New Jersey 07401Tel.: [phone] / Fax: [phone] [e-mail]

Type No.: 5932 / 6931

esled o Comp y Wen ICC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: N5A5932 / N5A6931

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines.

This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

FOR CANADA ONLY:

CAN ICES-3 (B)/NMB-3(B) IC: 11245A-5932 /11245A-6931

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

Address of manufacturer:

LEICA Camera AG

Am Leitz-Park 5

35578 Wetzlar

Germany

Country of origin:

Made in Portugal

Technical Data.

Black binoculars with two lenses and a red indicator light (no text or symbols visible)

Black binoculars with no visible text or symbols

Designation Leica Geovid Pro 8 x 42 Leica Geovid Pro 10 x 42

Device type Rangefinder Rangefinder
Order no. 4081540816
Scope of delivery Contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery		Contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery
Magnification 8x10 x
Front lens diameter 42 mm 42 mm
Exit pupil	5.25 mm	4.2 mm
Twilight factor	18.3	20.5
Field of view at 1,000 yds/1,000 m	390 ft. / 130 m	342 ft. / 114 m
Field of view for spectacle wearers	>354 ft. / >118 m	>312 ft. / >104 m
Eye relief	18 mm 16 mm
Objective angle of view	7.3°	6.45°
Close distance	approx. 16 ft. / 5 m	approx. 16 ft. / 5 m
Adjustable interpupillary distance	56 to 74 mm	56 to 74 mm
Diopter compensation	±4 dpt.	±4 dpt.
Distance measurement
Range	10 up to approx. 3,200 yds / 2,950 m	10 up to approx. 3.200 yds / 2,950m
Equivalent horizontal range (EHR)	10 up to approx. 3,200 yds / 2,950 m	10 up to approx. 3.200 yds / 2,950m
Correction output with Applied Ballistics® Ultralight (default setting)	max. 875 yds / 800 m	max. 875 yds / 800 m
Correction output with Applied Ballistics® Elite (upgrade)	max. 3.200 yds / 2,950 m	max. 3.200 yds / 2,950m
Measuring accuracy	±0.5 m at 10-200 m / 0.5 yds at 10-219 yds ±1.0 m at 200 - 400 m / 1.0 yds at 219 - 438 yds ±0.5 % above 400 m / 0.5 % above 438 yds	±0.5 m at 10 - 200 m / 0.5 yds at 10 - 219 yds ±1.0 m at 200 - 400 m / 1.0 yds at 219 - 438 yds ±0.5 % above 400 m / 0.5 % above 438 yds
Measuring time	max. approx. 0.3 sec.	max. approx. 0.3 sec.
Measuring modes	Scanning mode, single measurement	Scanning mode, single measurement
Switchover meter/yards	yes	yes
Ballistic function	yes	yes
On-board wind correction	yes	yes
Output "Equivalent horizontal range"	yes	yes
Output "Unit correction" for elevation and windage	yes	yes
Output "Click correction" for elevation and windage	yes	yes
Applied Ballistics® Ultralight on-board	yes	yes

Technical Data.

Black binoculars with two lenses and a red indicator light (no text or symbols visible)

Black binoculars with no visible text or symbols

Designation Leica Geovid Pro 8 x 42 Leica Geovid Pro 10 x 42

Bluetooth® interface yes yes
Connect to Leica ballistics app yes yes
Use customized ballistic profiles yes yey
Upgradeable to Applied Ballistics® Elite yes yes
BaseMap®	yes yes
Kestrel$ / Garmin® connection yes yes
GPS guide LPTTM (Leica ProTrack) yes yes
Display LED display with 4 digits, easily legible in any light LED display with 4 digits, easily legible in any light
Eyepiece for eyeglass wearers yes yes
Eyecups	yes, rotary sliding sleeve, detachable, with 4 click-stops	yes, rotary sliding sleeve, detachable, with 4 click-stops
Prism system Perger-Porro system	Perger-Porro system
Lens coating	HDC® multilayer coating, AquaDura® coating	HDC® multilayer coating, AquaDura® coating
Focussing	Internal focusing via central drive	Internal focusing via central drive
Laser	Eye-safe invisible laser according to EN and FDA class 1	Eye-safe invisible laser according to EN and FDA class 1
Laser beam divergence	1.8x0.8 mrad	1.8x0.8 mrad
Baromatric pressure sensor	yes yes
Temperature sensor	yes yes
Temperature measurement	yes yes
Angle sensor	yes yes
Compass	yes yes
First destination logics	no	no
Battery	1 x 3 V / Lithium-type CR2	1 x 3 V / Lithium-type CR2
Battery lifetime	Approx. 2,000 measurements at 20°C/68°F	Approx. 2,000 measurements at 20°C/68°F
Watertightness	To a depth of 16 ft / 5 m	To a depth of 16 ft / 5 m
Housing	Magnesium, nitrogen filled	Magnesium, nitrogen filled
Dimensions (W x H x D)	4.9 x 7.0 x 2.8 inch / 125 x 178 x 70 mm	4.9 x 6.9 x 2.8 inch / 125 x 174 x 70 mm
Weight	approx. 35.3 oz / 1,000 g (without battery)	approx. 34.2 oz / 970 g (without battery)
Accessories
Winged eyecups	42006	42006
Floating carrying strap	42163	42163
Tripod adapter 42220	42220
