PRINCIPLE OF OPERATION

The stoves heat the air using wood pellets as fuel, with electro- nically controlled combustion. Hereunder is the explanation of its functions (the letters refer to fi gure 1). The fuel (pellets) is transferred from the storage hopper (A) to the combustion chamber (D) by means of a feed screw (B), which is driven by a gear motor (C). The pellets are ignited by the air that is heated by an electrical resistance (E) and drawn into the combustion chamber by a smoke extractor (F). The fumes produced during the combustion process are extracted from the hearth by the same centrifugal fan (F) and expelled through the outlet (G) located on the lower part at the back of the stove. The stoves allow for hot air channelling to to convey the air to heat adjacent rooms. Two male pipes of a Ø 10 cm for hot air channelling connec- tion are found on the back part. To channel the hot air in one or two adjoining rooms, the stove is equipped with two pipes on the back, to which special alumi- nium pipes must be connected. KIT 11 and KIT 11 BIS optional are available to facilitate air distribution (see page 34-35-36). Fuel quantity, smoke extraction and combustion air supply are all controlled by an electronic control board, which is equipped with Leonardo

software to achieve high combustion effi ciency and low emissions. The synoptic panel (M) is installed on the top, through which all phases of operation can be displayed and controlled. The main functions can also be controlled by remote control. A serial port is found at the back of the stove (optional cable: code 640560) to be connected to devices that allow remote ignition (e.g. remote telephone, local thermostat). The stoves have an internal structure that is made entirely of cast iron.

fi g. 1 SAFETY INFORMATION The stove is designed to heat, through automatic pellet com- bustion in the hearth, the room where it is installed, both by radiation and the air that comes out of the front grille.

• The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.

• The only risks that may derive from using the stove pertain to non-compliance with installation instructions, direct contact with live electrical parts (internal), contact with the fi re or hot parts (glass, pipes, hot air output), when extraneous substances or non-recommended fuel are introduced, or due to incorrect maintenance.

• Only use certifi ed, high quality, 6mm diameter wooden pellets for fuel.

• Should components fail, the stoves are equipped with safety devices that guarantee automatic shutdown. These are activated without any intervention required.

• In order to function correctly, the stove must be installed in accordance with the instructions given herein and the door must not be opened during operation: combustion is fully automatic and requires no intervention.

• Under no circumstances should any foreign substances be entered into the hearth or hopper.

• Do not use fl ammable products to clean the smoke channel (the fl ue section connecting the stove smoke outlet to the chimney fl ue).

• The hearth and hopper parts must only be cleaned when COLD.

• The glass can be cleaned when COLD with a suitable product (e.g. GlassKamin Edilkamin) and a cloth.

• Do not clean when hot.

• Make sure the stove is installed and ignited the fi rst time by Edilkamin-qualifi ed CAT personnel (technical assistan- ce centre) in accordance with the instructions provided here within; this is an essential requirement for the validation of the guarantee.

• When the stove is in operation, the exhaust pipes and door become very hot (do not touch without wearing the thermal glove).

• Do not place anything, which is not heat resistant near the stove.

• NEVER use liquid fuel to ignite the stove or rekindle the embers.

• Do not obstruct the ventilation apertures in the room where the stove is installed, nor the air inlets of the stove itself.

• Do not wet the stove and do not go near electrical parts with wet hands.

• Do not use reducers on the smoke exhaust pipes.

• The stove must be installed in a room that is suitable for fi re prevention and equipped with all that is required (power and air supply and outlets) for the stove to function correctly and safely.

• Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

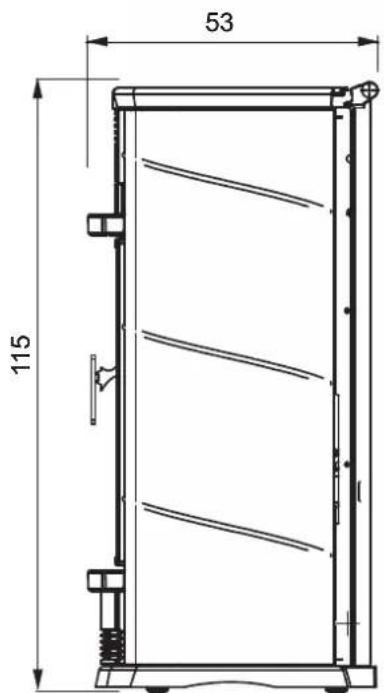

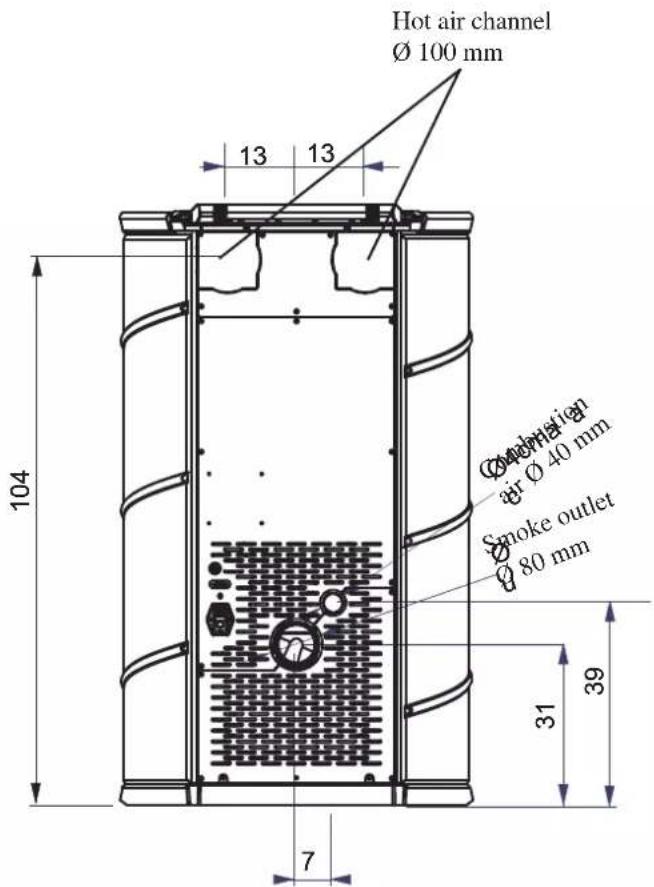

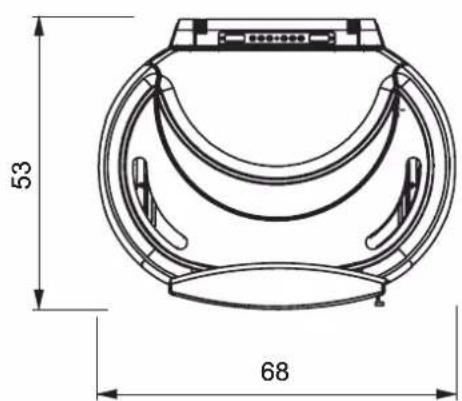

DIMENSIONS AND FINISHINGS

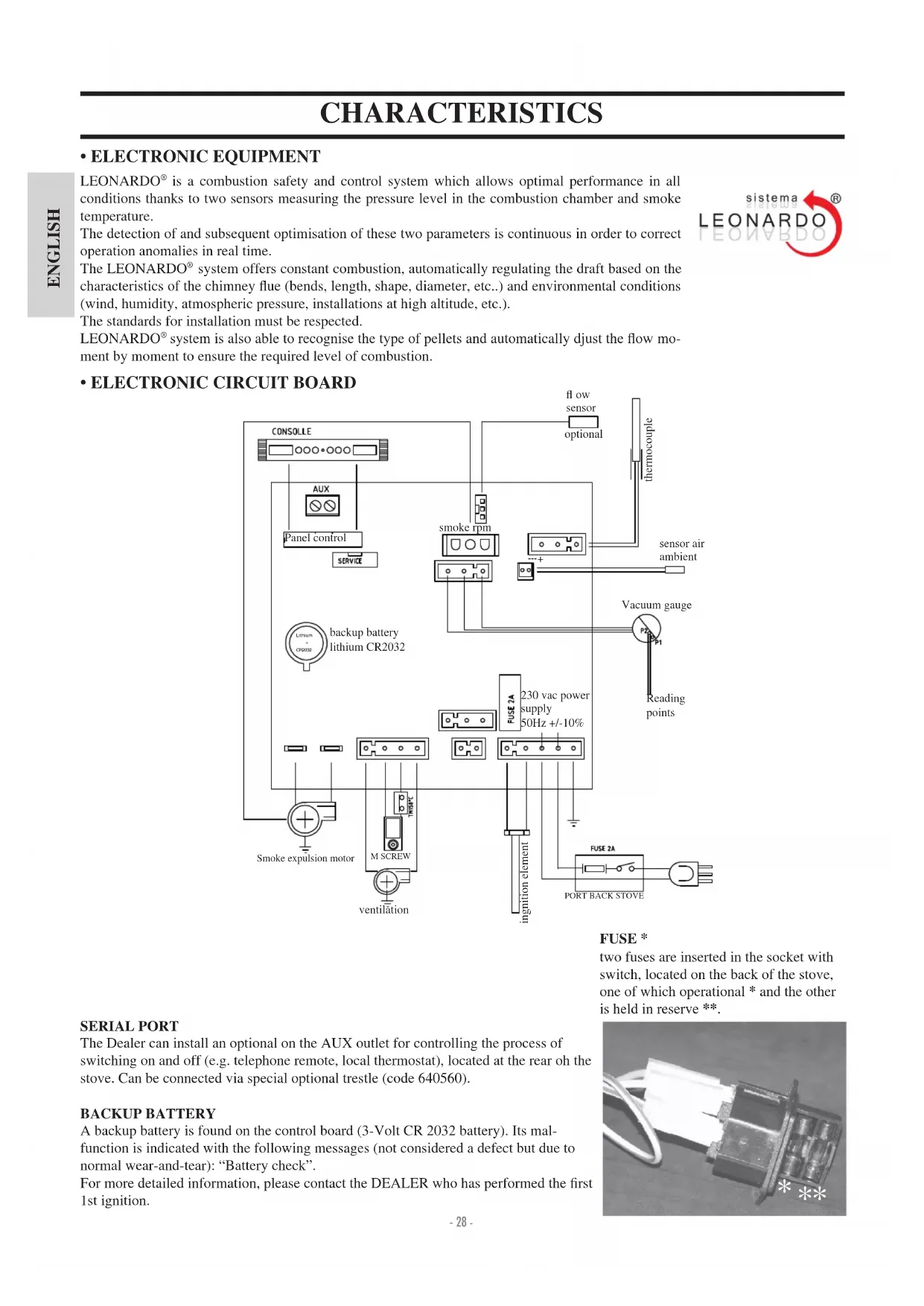

• ELECTRONIC EQUIPMENT SERIAL PORT The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote, local thermostat), located at the rear oh the stove. Can be connected via special optional trestle (code 640560). BACKUP BATTERY A backup battery is found on the control board (3-Volt CR 2032 battery). Its mal- function is indicated with the following messages (not considered a defect but due to normal wear-and-tear): “Battery check”. For more detailed information, please contact the DEALER who has performed the fi rst 1st ignition. FUSE * two fuses are inserted in the socket with switch, located on the back of the stove, one of which operational * and the other is held in reserve **. LEONARDO

is a combustion safety and control system which allows optimal performance in all conditions thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous in order to correct operation anomalies in real time. The LEONARDO

system offers constant combustion, automatically regulating the draft based on the characteristics of the chimney fl ue (bends, length, shape, diameter, etc..) and environmental conditions (wind, humidity, atmospheric pressure, installations at high altitude, etc.). The standards for installation must be respected. LEONARDO

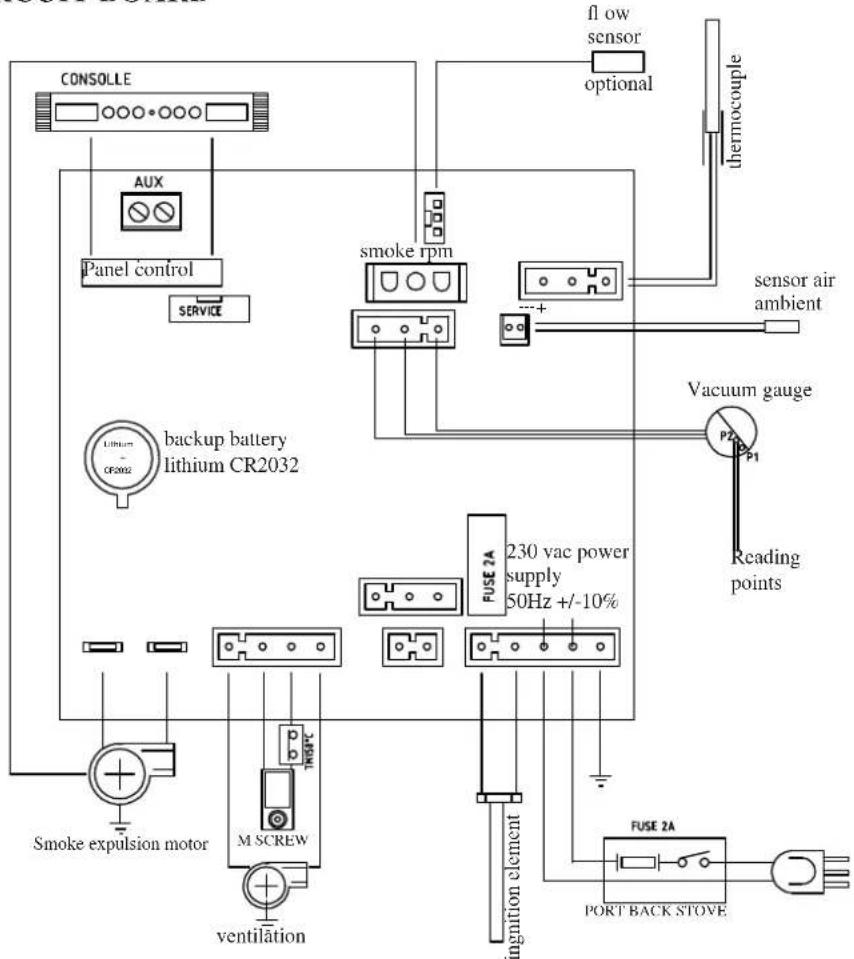

system is also able to recognise the type of pellets and automatically djust the fl ow mo- ment by moment to ensure the required level of combustion. +---Lithium CR2032smoke rpmfl ow sensorthermocoupleVacuum gaugeReadingpointsbackup batterylithium CR2032Smoke expulsion motor230 vac power supply50Hz +/-10%sensor airambient M SCREW ventilationingnition element

Panel controloptional- 29 - ENGLISH CHARACTERISTICS ELECTRICAL CHARACTERISTICS Power supply 230Vac +/- 10% 50 Hz On/off switch si Average power consumption 100 W Power consumption during ignition 400 W Remote control frequency Infrared Protection on mains power supply* (see page 38) 2AT, 250 Vac, 5x20 Fuse Protection on electronic circuit board 2AT, 250 Vac, 5x20 Fuse SAFETY DEVICES

• THERMOCOUPLE: Placed at the smoke outlet to detect the temperature. Turns the stove on and off and controls its operation based on defi ned parameters.

• VACUUM GAUGE: positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

• AIR FLOW SENSOR: located in the suction channel, it is activated when the combustion air fl ow is not correct, with consequent pressure problems in the smoke circuit causing the stove to shut-down.

• SAFETY THERMOSTAT: Trips when the temperature inside the stove is too high. It stops pellet loading, causing the stove to go out.

• The heatable room dimensions are calculated on the basis home insulation in compliance with Italian law 10/91, and subsequent changes together with an expected heat output of 33 Kcal/m³ per hour. N.B.

1) keep in mind that external devices can cause interference to the operation of the circuit board.

2) caution: live parts. Servicing and/or inspections must be carried out by qualifi ed staff.

The data shown above is purely indicative. EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice. THERMO TECHNICAL CHARACTERISTICS according to EN 14785 Nominal power Reduced power Heat output 13,2 5,1 kW Yield / Effi ciency 92,5 93,3 % Emissions CO 13% O

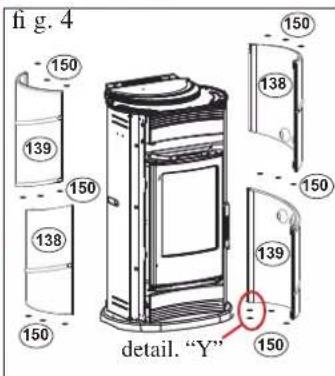

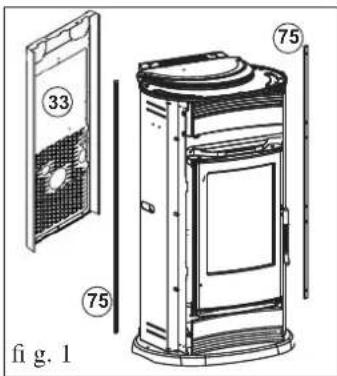

• Remove the rear panel (33) “And the two profi les (75).

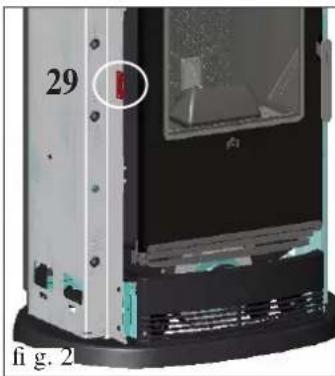

• Fix the two plates (29) to the zinc-plated sides.” “for the FATA model (Illustr. 3-4)

• The left-hand plate must be fi xed to the central and upper holes, whilst the right-hand plate must be fi xed to the central and lower holes.

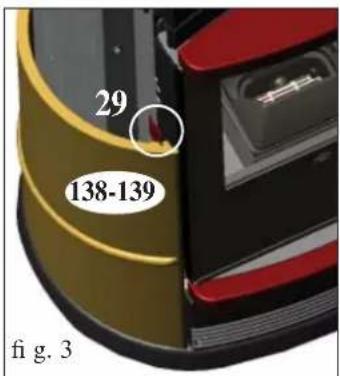

• Fit the ceramic tiles (138-139) on to the plates (29)

• Place 2 silicone-coated spacers (150) in the lower part betwe- en the cast iron base and the lower, right-hand tile (139) (see detail Y - Illustr. 4).

• For correct fastening of the upper right side ceramic tile and the lower left side ceramic tile use the stop adjustment screws located on the zinc-plated sides of the structure (Illustr. 5-6)

• Both plates must be fi xed to the central and lower holes.

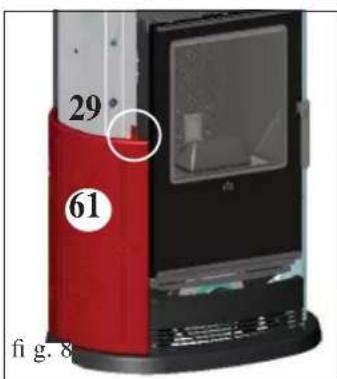

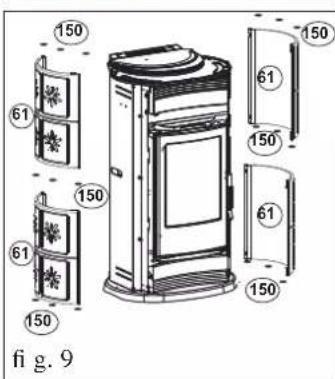

• Fit the ceramic tiles (61) on to the plates (29)” NOTE: Being made through a process of casting,the tiles may differ slightly in height. To compensate for any height varia- tions, silicone spacers may be inserted (150 - fi g. 4-9) without affecting the aesthetic appearance of the stove.

• Replace the profi les (75) Replace the rear panel (33). ASSEMBLING THE UPPER FRONT PANEL FATA/SI- RENA (fi g. 10-11)

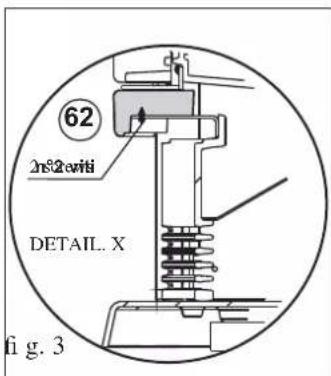

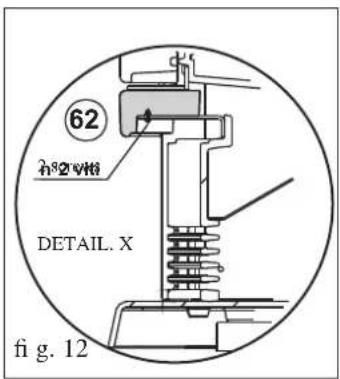

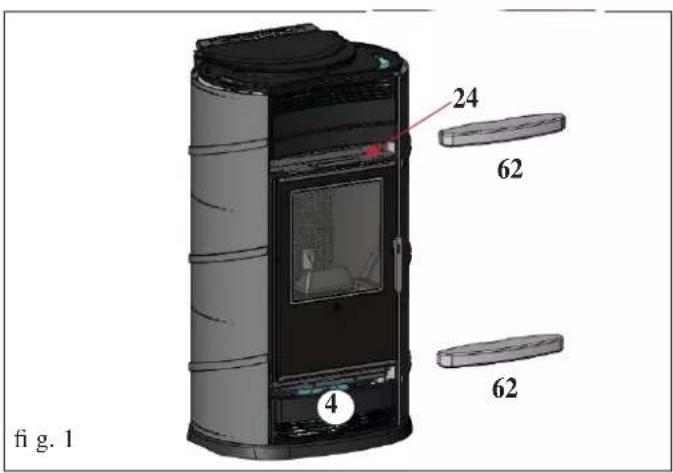

• Position the ceramic upper front panel (62) so that it rests against the front panel support (24) positioned above the door.

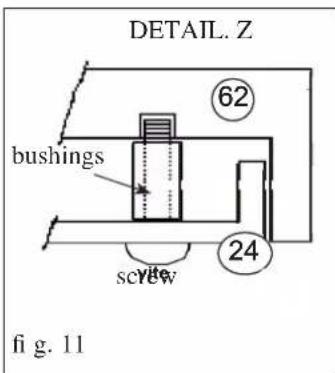

• Use an Allen key to fasten the front panel in place using the 2 supplied M6x25 screws (the door must be opened before performing this operation). NOTE: For correct assembly of the upper front panel (62), pla- ce the bushing supplied between the same and the front panel (24), as shown in detail “Z” in Illustr. 11.

• Use the supplied Allen key to loosen the screws that hold the cast iron lower front grill (4) in place and remove it.

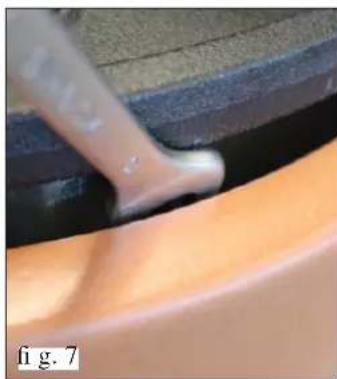

• Position the front panel (62) and use an Allen key to fasten it in place using the 2 supplied M6x25 screws as indica- ted in detail “X” (fi g. 12). detail. “Y” fi g. 7 fi g. 5 fi g. 6

INCLUDED HARDWARE: 2 M6x25 screws 2 M6x12 screws 4 silicone spacers for ceramic top 8 fl at washers diam. 6 2 bushings The stove comes furnished with its lateral metal side panels already assembled, while its ceramic upper and lower front panels (62) and top (140) must be assembled as follows: ASSEMBLING THE UPPER FRONT PANEL (fi g. 1-2)

• Position the ceramic upper front panel (62) so that it rests against the front panel support (24) positioned above the door.

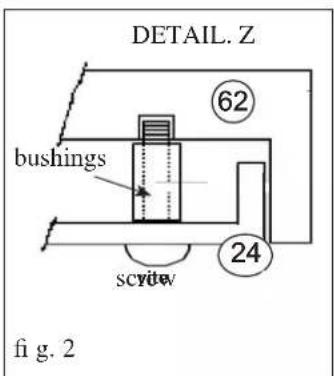

• Use an Allen key to fasten the front panel in place using the 2 supplied M6x25 screws (the door must be opened before performing this operation). NOTE: For correct assembly of the upper front panel (62), place the bushing supplied between the same and the front panel (24), as shown in detail “Z” in Illustr. 2. ASSEMBLING THE LOWER FRONT PANEL (fi g. 1-3)

• Use the supplied Allen key to loosen the screws that hold the cast iron lower front grill (4) in place and remove it.

• Position the front panel (62) and use an Allen key to fasten it in place using the 2 supplied M6x25 screws as indica- ted in detail “X” (fi g. 3).

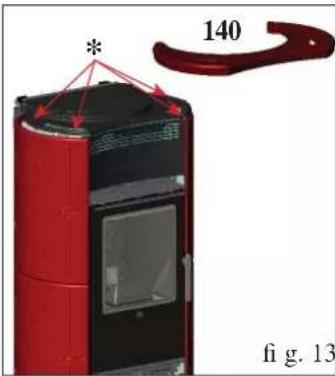

• Insert the 4 ceramics (*) spacers into their 4 free holes in the cast iron top and place the ceramic top (140)

• Where necessary, affi x the supplied washer between the sili- cone spacer and cast iron top. fi g. 1 fi g. 4

• Insert the 4 ceramics (*) spacers into their 4 free holes in the cast iron top and place the ceramic top (140)

• if necessary, insert a washer between the silicone spacer and the cast iron top. NOTE:

• the red enamel with crystalline, applied to the majolica, crazes (cracks) evenly over the whole surface. Crazing is not a defect but is a characteristic of enamel applied to majolica known as “craclè”.

• The ceramic parts (majolica) are cast and enamelled manually and may present small defects that will not affect their quality (small dents or enamel porosity), but instead testifi es to their manual manufacture.- 32 - ENGLISH All local and national laws and European standards must be met when installing and using the appliance. In Italy, refer to the UNI 10683 standard, as well as any regional or local health authority regulations It is necessary to refer to regulations in force in each country. If installing in an apartment building, check with the management company fi rst.

VERIFY COMPATIBILITY WITH OTHER

DEVICES The stove MUST NOT be installed in the same space as type B gas heating equipment (e.g. gas boilers, stoves, and equipment served by an extraction hood) as the stove may cause a vacuum in the space which may compromise or infl uence how these units work.

VERIFYTHE POWER SUPPLYCONNECTION

(the plug must be accessible) The stove is supplied with a power cable that is to be connected to a 230V 50 Hz socket, preferably fi tted with a magnetother- mic switch. Voltage variations exceeding 10% can damage the stove (unless already installed, an appropriate differential switch must be fi tted). The electrical system must comply with the law; particularly verify the effi ciency of the earthing system. The power line must have a suitable cross-section for the stove’s power. An inadequate earthing system can cause anomalies for which Edilkamin cannot be held liable. POSITIONING The stove must be level for it to function correctly. Verify the bearing capacity of the fl oor.

FIRE PREVENTION SAFETY DISTANCES

The stove must be installed in compliance with the following safety conditions: - medium fl ammability items must be kept at a minimum distance of 40 cm from the sides and back of the stove - highly fl ammable items must be kept at a minimum distance of 80 cm if placed in front of the stove. If it is not possible to comply with the above mentioned distances, technical and construction-related provisions must be taken to prevent fi re hazards. If connected to wooden walls or other fl ammable materials, the smoke exhaust pipe must be appropriately insulated AIR INTAKE The room where the stove is located must have an air intake with cross section of at least 80cm2 to ensurereplenishment of the air consumed by combustion.Alternatively, the stove air may be taken directly from outside through a 4 cm steel extension of the pipe. In this case,there may be condensation problems and it is ne- cessary to protect the air intake with a grille, which must have a freesection of at least 12 cm². The pipe must be less than 1 metre long and have no bends. It must end with section at 90° facing downwards or be fi tted with a wind guard. In any case all the way air intake duct must be a free section of at least 12 cm². The external terminal of the air inlet channel must be protected with an anti-insect netting that does not reduce the 12 cm² through passage. INSTALLATION MOKE OUTLET The stove must have its own smoke outlet (the smoke can- not be discharged into a smoke fl ue used by other devices). The smoke is discharged through the 8 cm diameter outlet at the back of the stove. The smoke outlet must be connected to outside by means of suitable steel pipes EN 1856 certifi ed. The pipe must be hermetically sealed. The material used to seal and if necessary insulate the pipes, must be resistant to high temperatures (high temperature silico- ne or mastic). The only horizontal section allowed may be up to 2 m long. It may have up to two 90° bends. A vertical section of at least 1.5m and an anti-wind terminal is necessary (if the discharge outlet is not in a chimney fl ue - reference UNI 10683). The vertical duct can be internal or external. If the smoke chan- nel is outside, it must be appropriately insulated. If the smoke channel is fi tted inside a chimney fl ue, the latter must be suitable for solid fuel. If it is wider than 150 mm in diameter it must be improved by entering a pipe that has a sui- table cross-section and is made of suitable material (e.g. 80 mm diameter steel). All sections of the smoke duct must be accessi- ble for inspection. The chimney pots and smoke ducts con- nected to the solid fuel appliances must be cleaned once a year (verify whether a specifi c legislation exists in your country). Failure to regularly inspect and clean the stove increases the probability of a fi re occurring in the chimney pot. In that case, proceed as follows: Do not use water to extinguish the fi re; Empty the pellet hopper; Contact specialist personnel before reigniting the stove. The stove is designed to work under any weather conditions. In case of particular conditions, such as strong wind, the safety system may be activated, which results in the stove being extinguished. If this happens, do not operate the stove with the safety devices disabled. If the problem per- sists, contact our Technical Service Department. In this case, do not operate the appliance while the safety devices are disabled. If the problem persists, contact the Service Centre. A: insulated steel fl ueB: minimum height of 1.5 m and in any case above the height of the roof gutterC-E: air intake from inside room (minimum internal section: 80 cm²) D: steel fl ue, inside existing brick-built chimney. CHIMNEY POT The main characteristics are: - an internal cross-section at the base, which is the same as that of the chimney fl ue - an outlet cross-section which is no smaller than twice that of the chimney fl ue - its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind, it must be high enough to catch the wind and avoid downdraft areas in turbulent wind. TYPICAL EXAMPLES Fig. 1 Fig. 2- 33 - ENGLISH INSTALLATION

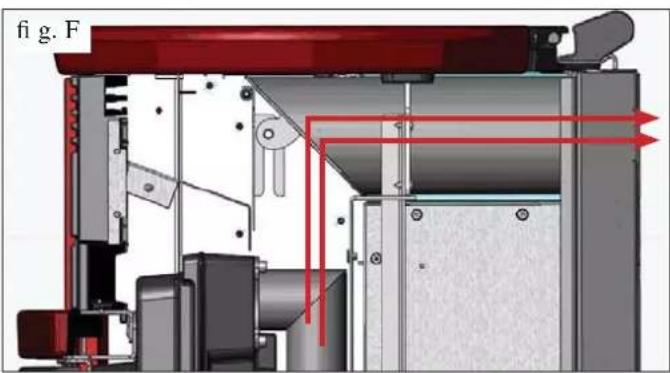

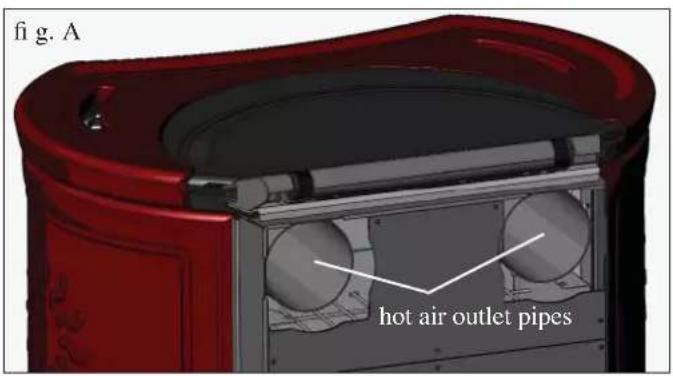

In the installation area, the hot air is emitted through the grill installed in the upper front portion (fi g. E). To channel the hot air in one or two adjoining rooms, the stove is equipped with two pipes on the back (fi g.A), to which special aluminium pipes must be connected. KIT 11 and KIT 11 BIS optional are available to facilitate air distribution (see page 34-35-36). It is essential to remember the importance of proper insulation on the pipe where the hot air passes to avoid dispersion. Avoid curves in the pipe as much as possible. Note: THE PIPES ON THE HOT AIR OUTLETS

ELIMINATE CORRUGATION. IN THIS WAY, THE

INTERNAL DIAMETER WILL BE SLIGHTLY

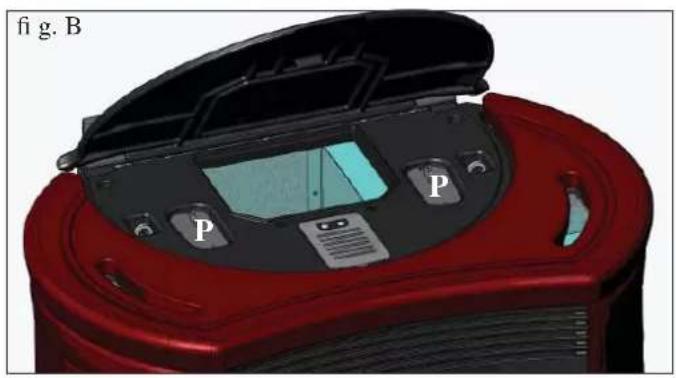

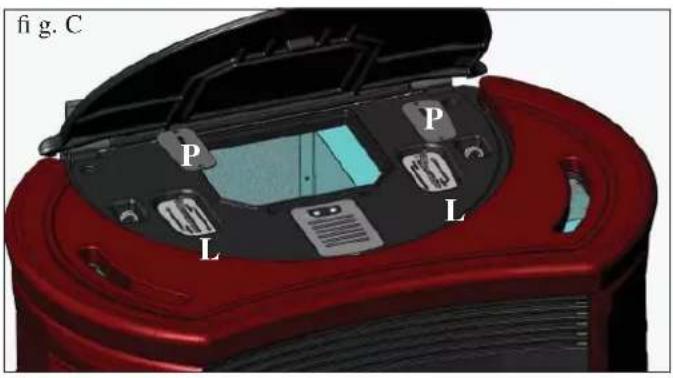

ENLARGED TO FAVOUR ENTRANCE. Channelled air distribution is adjustable manually by means of the “L” lever (fi g.D). To move, remove the “P” locking plates fastened with screws (fi g. B-C). Once the plates have been removed, hot air can be directed either in the upper front panel part fi g. E (lever pulled all the way back - see fi g. D) or in the rear part fi g. F (lever pulled all the way forward - see fi g. D) or half in the upper front panel part and half in the rear part (lever in the middle - see fi g. D). Note: IF THE STOVE IS NOT CHANNELLED, THE PLATES (P) MUST NOT BE REMOVED. fi g. A fi g. F fi g. B fi g. E fi g. C fi g. D

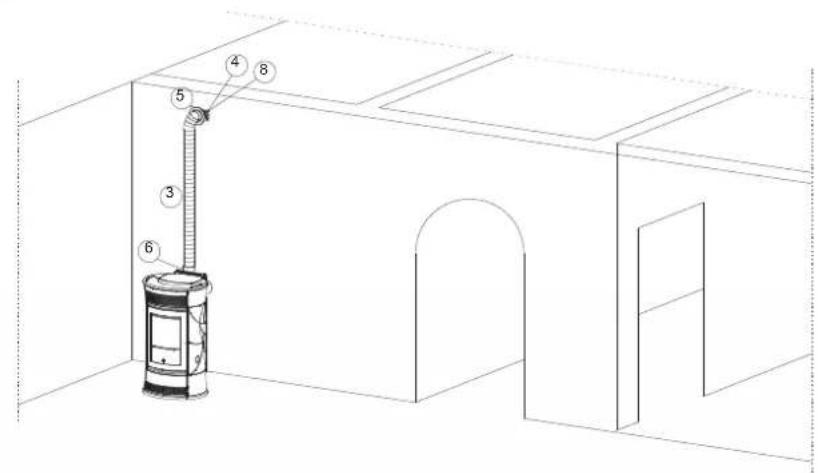

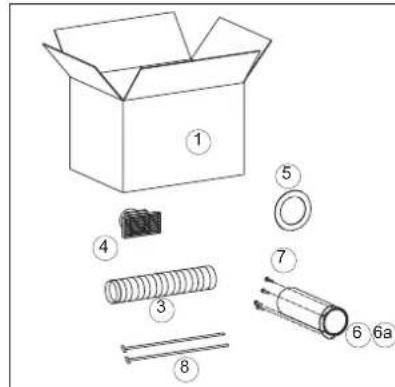

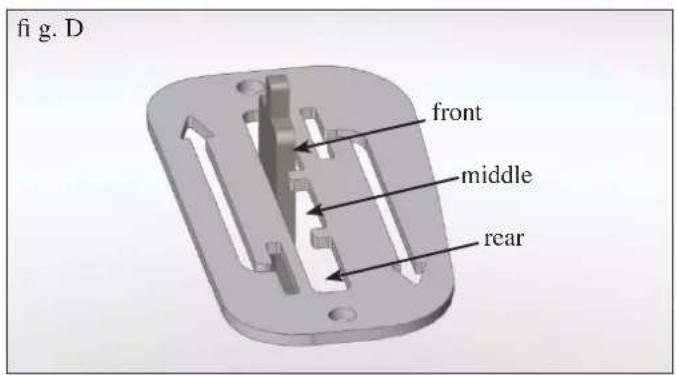

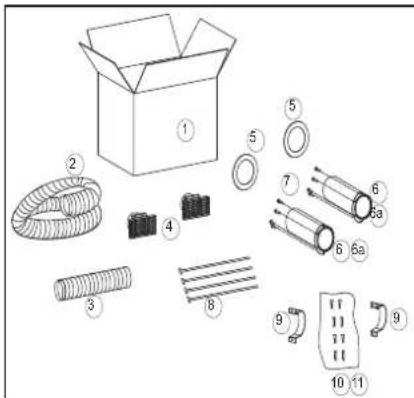

front middle rear- 34 - ENGLISH 1st SOLUTION: KIT 11 (code 645700) - ADJACENT ROOM ONLY Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY “RELAXED” IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE. - Defi ne the position of the stove with respect to the walling (fi g. a). - Disassemble the upper part of the back (132) and remove one of the two predrilled caps in correspondence with the hot air outlet pipes (fi g. b). - Activate the hot air channelling control lever (13), removing the locking plate (133) (fi g. b). - Cut the fl ue cover to size (6) on the wall side (fi g.c) - Place the stove in its defi nite position. - Extend the aluminium pipe (3) for hot air channelling, without connecting the stove outlet. - Fit the medallion (5) on the aluminium pipe and the pipe cover (6a) without locking it in (fi g. c). - Fit the aluminium pipe to the hot air outlet on the back of the stove (8) (fi g. d). - Replace the upper part of the back (132). - Place the pipe cover (6) in the defi nite position and fasten it to the back of the stove with the supplied screws (7) (fi g. d). - Install the terminal outlet (4) and its aluminium pipe (3) (fi g. d). - Fasten the wall medallion (5) with silicone (fi g d). INSTALLATION n° KIT 11 1 Box 1 645740 3 Ø 10 pipe 1 162520 4 Smoke outlet end-piece 1 293430 5 Wall medallion 1 644190 6a Flue cover 1 645730 7 Flue cover fastening screws 4 168260 8 Pipe blocking clamp 2 46160

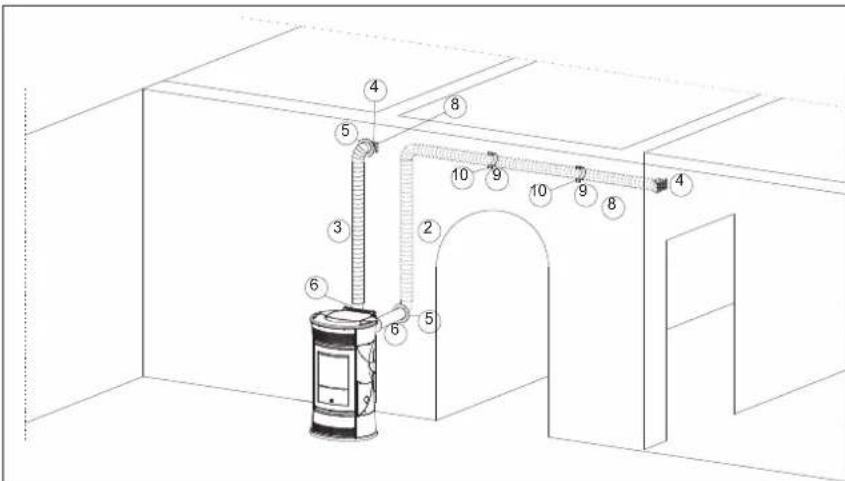

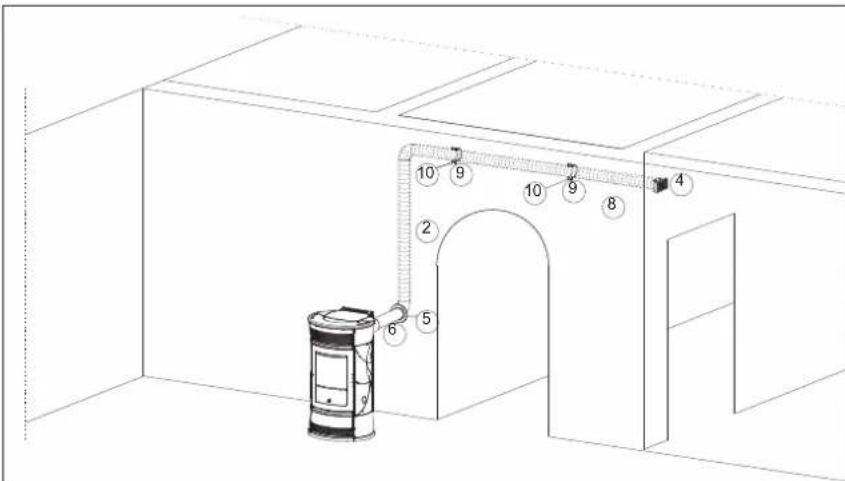

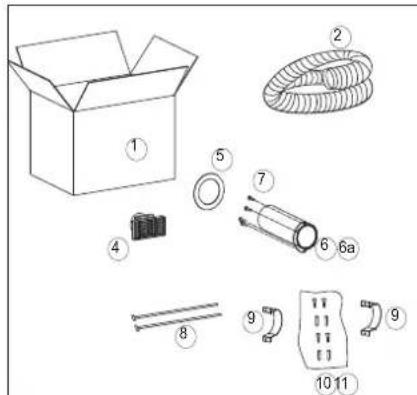

ENGLISH 2nd SOLUTION: KIT 11 BIS (code 645710) - NON-ADJACENT ROOM ONLY Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY “RELAXED” IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE. - Defi ne the position of the stove with respect to the walling (fi g. a). - Disassemble the upper part of the back (132) and remove one of the two predrilled caps in correspondence with the hot air outlet pipes (fi g. b). - Activate the hot air channelling control lever (13), removing the locking plate (133) (fi g. b). - Cut the fl ue cover to size (6) on the wall side (fi g.c) - Place the stove in its defi nite position. - Extend the aluminium pipe (2) for hot air channelling, without connecting the stove outlet. - Fit the medallion (5) on the aluminium pipe and the pipe cover (6a) without locking it in (fi g. c). - Fit the aluminium pipe to the hot air outlet on the back of the stove (8) (fi g. d). - Replace the upper part of the back (132). - Place the pipe cover (6) in the defi nite position and fasten it to the back of the stove with the supplied screws (7) (fi g. d). - Install the terminal outlet (4) and its aluminium pipe (2) fastening it with the wall collar (9) and the dowels with screws (10-11) (fi g. d). - Fasten the wall medallion (5) with silicone (fi g d). INSTALLATION n° KIT 11 BIS 1 Box 1 643910 2 Ø 10 pipe 1 643900 4 Smoke outlet end-piece 1 293430 5 Wall medallion 1 644190 6a Flue cover 1 645730 7 Flue cover fastening screws 4 168260 8 Pipe blocking clamp 2 46160 9 Wall collar 2 645750 10 Screws 4 8410 11 Dowels 4 8520

ENGLISH 3rd SOLUTION: KIT 11 (code 645700) con KIT 11 BIS (code 645710) - BOTH ROOMS Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY “RELAXED” IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE. - Defi ne the position of the stove with respect to the walling (fi g. a). - Disassemble the upper part of the back (132) and remove the predrilled caps in correspondence with the hot air outlet pipes (fi g. b). - Activate the hot air channelling control lever (13), removing the locking plates (133) (fi g. b). - Cut the fl ue cover to size (6) on the wall side (fi g.c) - Place the stove in its defi nite position. - Extend the aluminium pipes (2-3) for hot air channelling, without connecting them to the stove outlets. - Fit the medallions (5) on the aluminium pipes and the pipe covers (6a) without locking them in (fi g. c). - Fit the aluminium pipes to the hot air outlets on the back of the stove (8) (fi g. d). - Replace the upper part of the back (132). - Place the pipe covers (6) in the defi nite position and fasten them to the back of the stove with the supplied screws (7) (fi g. d). - Install the terminal outlets (4) and relative aluminium pipes (2-3), fastening them with the wall collars (9) and the dowels with screws (10-11)(fi g. d). - Fasten the wall medallions (5) with silicone (fi g d). INSTALLATION n° KIT 11 KIT 11 BIS 1 Box 1 645740 643910 2 Ø 10 pipe 1 - 643900 3 Ø 10 pipe 1 162520 - 4 Smoke outlet end-piece 2 293430 293430 5 Wall medallion 2 644190 644190 6a Flue cover 2 645730 645730 7 Flue cover fastening screws 8 168260 168260 8 Pipe blocking clamp 4 46160 46160 9 Wall collar 2 - 645750 10 Screws 4 - 8410 11 Dowels 4 - 8520

Commissioning must be done by a Technical Service Centre authorised by Edilkamin (CAT) prior to ignition and testing according to the UNI 10683 standard. This standard indicates the control operations to be carried out in situ, aimed at ascertaining correct system function. Before igniting. To ignite for the fi rst time, it is essential to contact your local Edilkamin technical service centre (CAT), (for information see the www.edilkamin.com website) to calibrate the stove according to the type of pellets used and installation conditions, thereby starting the guarantee. Failure to have the stove ignited by an authorised C.A.T. pre- vents Edilkamin from guaranteeing correct functioning. There may be a slight smell of paint the fi rst few times it is ignited, however, this will disappear quickly. Before igniting you must check:

• that installation is correct

• that the door closes properly to a perfect seal

• that the combustion chamber is clean

• that the display is on standby (the date, power or temperature fl ashes).

FILLING THE PELLET HOPPER

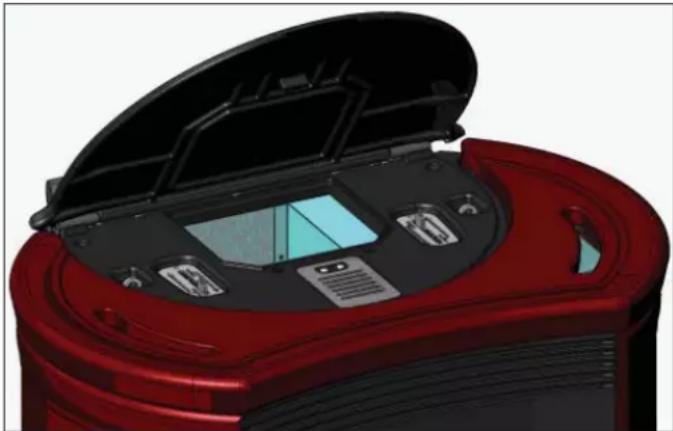

The hopper lid opens and closes with a practical click-clack system. Simply apply slight pressure to the front part of the cast iron lid (fi g. 1). ATTENTION: use the glove supplied when fi lling the stove whilst it is run- ning and therefore is hot. fi g. 1 If pellets with different characteristics are used, the stoves must be recalibrated a similar procedure to that carried out by the DEALER when the stove is ignited the fi rst time. Using unsuitable pellets may: decrease effi ciency; cause malfunctions; stop the stove from functioning due to clogging, dirt on the glass, unburnt fuel, etc. A simple, visual analysis of the pellets may be carried out: Good quality: smooth, uniform length, not very dusty. Poor quality: with longitudinal and transverse cracks, very dusty, various lengths and mixed with foreign matter. NOTE regarding the fuel. The stoves is designed and programmed to burn wood pellets with 6 mm diameter. Pellets are a type of fuel in the form of little cylinders, made from compacted sawdust, compressed under high pressure with no adhesives or foreign materials. They are sold in bags of 15 kg. For the stove to function properly, you MUST NOT burn anything else in it. Using other materials (including wood) will render the warranty null and void. Such use is detected by laboratory analyses. Edilkamin has designed, tested and pro- grammed their stoves to guarantee the best performance when pellets with the following characteristics are used: diameter: 6 millimetres maximum length: 40 mm maximum moisture content: 8% calorifi c value: at least 4300 kcal/kg.- 38 - ENGLISH

INSTRUCTIONS FOR USE

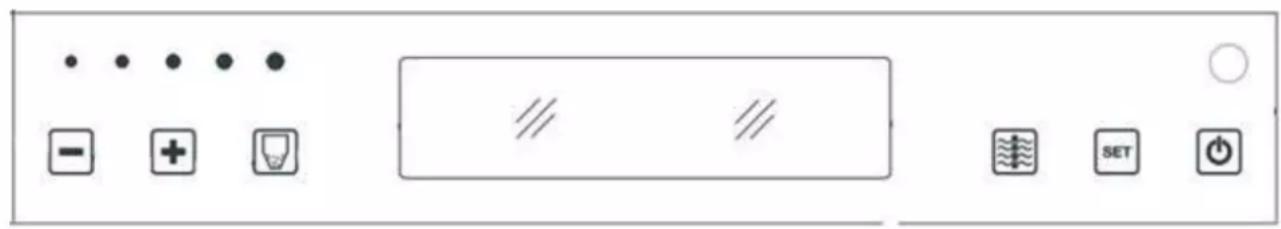

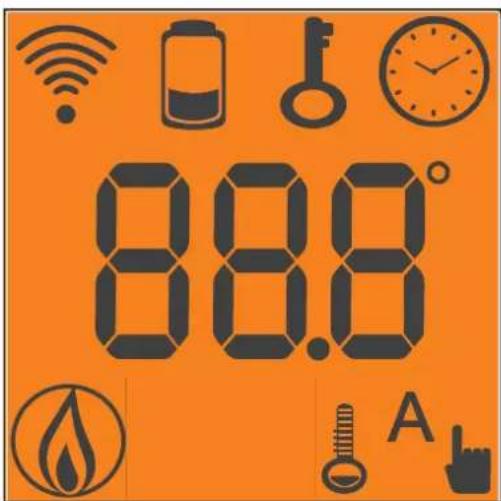

Pressed briefl y it switches the stove from manual to automatic operating mode; held down (pressed and held for 2”) it gives access to the various programming menus. Each time it is pressed tells the electronic circuit board memory that 15Kg have been loaded into the tank; pressing it continuously for 5” cancels any residual or previously loaded Kg. Pressed briefl y it switches the stove’s fan from the quieter “Comfort” level to the higher energy “Turbo” level.

Loading the feed screw. Should the pellet hopper empty completely the feed screw must be fi lled. To do so, keep the + and – keys pressed simul- taneously for a few seconds (on the remote control or synoptic panel). Once released, ‘REFILL’ will appear on the display. This must be carried out before ignition if the stove has stopped due to the pellets having fi nished. It is quite normal for some pellet residue to remain inside the hopper, this is what the feed screw is unable to pick up. Once a month, fully vacuum the hopper to prevent dusty resi- due from accumulating. Automatic ignition With the stove on standby, press the 0/1 button for 2 seconds (on the synoptic panel or remote control). This will startup the ignition process, ‘Start-up’ will appear on the display and a countdown will commence in seconds (1020). There is no preset time for the ignition process: its duration will be automa- tically shortened if the control board detects that certain tests have been carried out positively. The fl ame appears after about 5 minutes. Manual ignition At a temperature lower than 3 °C – too low for the electrical resistance to become red hot - or if the resistance is temporarily not working, you can use a fi relighter to ignite the stove. Insert a well-lit fi relighter into the combustion chamber, close the door and press 0/1 on the synoptic panel or remote control. Operating modes Manual: the user sets the desired operating power (from a minimum of 1 to a maximum of 5) Automatic: the user sets the desired room temperature using the +/- key or the remote control, the stove reads the setting and adjusts the power to reach the temperature set, then sets itself to Power 1. Manual mode from synoptic panel/remote control With the stove in operation mode or on standby, press and release the MENU button on the synoptic panel/remote control and ‘Power’ will appear on the display (showing the power at which the stove is working). Press the + key on the remote control to increase the operating power (from Power 1 to Power 5). Setting the fan via the Synoptic Panel With the stove in operation mode or on standby, rotate the right knob to adjust the ventilation setting (from 1 to 10 in all powers). “Touch in correspondence to the LED points to select the desired operating power. Alternatively, the traditional setting can be used, which can be selected using the +/- buttons.” increases the various settings decreases the various settings; pressing for 5s locks the keypad, pressing for another 5s unlocks the keypad MIMIC PANEL hold down for 2 seconds to turn stove on or off- 39 - ENGLISH

INSTRUCTIONS FOR USE

Automatic mode from synoptic panel/remote control Press the MENU button twice to switch from manual to automatic mode and adjust the temperature desired for the room (on the panel or the + and – keys on the remote control to set the temperature between 10 and 29 ...., and the stove will regulate the operating power required to reach it. If the set temperature is lower than the room temperature, the stove works at Power 1. Shutdown For greater comfort, the stove and the air vents go off at the same power at which it was operating. With the stove in operation mode press the 0/1 key for 2 seconds (on the synoptic panel or remote control). The shutdown procedure will begin and the countdown is displayed. This varies according to the power at which it is running when the shutdown phase begins. The shutdown phase (which will extinguish the fl ame without leaving any unburnt material in the combustion chamber and cool the stove), consists of:

• Pellet loading ceases.

• Ventilation is activated at the level at which the stove was operating.

• Smoke expulsion motor enabled. Never unplug the stove during the shutdown process. Setting the clock Press the MENU button for 2 seconds and use the + and – keys to follow the instructions given on the display to access the ‘Clock’ menu. This allows you to set the time on the electronic control board. Then press MENU and the following data appears in sequence – this can be adjusted: day, month, year, hour, minutes, day of the week. When ‘Save?’ appears on the display you can check that the settings have been entered correctly before confi rming. Press MENU to save the information (‘Save OK’ then appears on the display). Weekly timer Press the MENU button for 2 seconds to access the time setting function and press the + key to access the weekly timer fun- ction – ‘Program ON/OFF’ will appear on the display. A maximum of three timer programs can be set for each day of the week. As you confi rm via the MENU button, one of the following options will appear: - ‘No Prog.’ (no program is set). - ‘Daily program’ (a single program is set for every day) - ‘Weekly program’ (a program is set for each day of the week). Move from one to the other using the + and – keys. Use the MENU button to confi rm the ‘Daily program’ option and access the selection of the number of programs (ignition/shutdown) to be set per day. Use the ‘Daily program’ option to set the identical program/s for every day of the week. The following will be displayed if the + key is pressed: - No Programs. - 1st daily program (one ignition and one shutdown per day), 2nd daily program (same as before), 3rd daily program (same as before). Use the MENU button to show them in reverse order. If the 1st program is selected, the ignition time is shown. The display shows: 1 Ignition Hour 10.30; use the +/– keys to change the hour and press MENU to confi rm. The display shows: 1 Ignition Minutes 10.30; use the +/– keys to change the minutes and press MENU to confi rm. In the same way, adjust the shutdown times. The program is confi rmed by pressing the MENU button when ‘Save OK’ ap- pears on the display. When confi rming the ‘Weekly program’ the day to which the program is to apply must be selected: 1 Mon; 2 Tues; 3 Wed; 4 Thurs; 5 Fri; 6 Sat; 7 Sun Once you have chosen the day by scrolling through them with the + and – keys, confi rm by pressing MENU and proceed with the settings of the programs in the same way as for the ‘Daily program’, selecting whether or not to enable a program for each day of the week and choosing the number and times of interventions. Should you make a mistake whilst setting the programs you can exit without saving by pressing the 0/1 key. Note on fl ame variability The fl ame may vary depending on the type of pellets used, in addition to normal variability of the solid fuel fl ame and regular cleaning of the combustion chamber carried out automatically by the stove. N.B. The automatic cleaning process performed by the stove does not replace the need for the user to vacuum the stove when cold, prior to ignition). Pellet reserve warning Stoves are equipped with an electronic pellet detection system. The detection system is integrated into the electronic control board, allowing the stove to monitor how many kilos of pellets are left. This verifi cation is implemented at any point whilst the stove is in operation mode. For correct system ope- ration, it is important that the following procedure is adhered with during the fi rst ignition (that must be implemented by the DEALER). Before starting to use the pellet detection system, you must load and consume a full sack of pellets. This allows for a brief running-in of the loading system. Hence, load 15 kg of pellets. Then press the ‘reserve’ button once, thereby storing the data into the memory that 15 kg have been loaded. From now on the display will show the remaining pellets as they decrease in kg (15…14...13). Each time pellets are reloaded you must enter the quantity. E.g. when loading 15 kg, simply press the ‘pellet load’ button to enter this into the memory. For other quantities, or in the event of an error, you can specify the quantity using the pellet reserve menu as follows: Press the MENU button for 2 seconds to view the SETTINGS. Press + or – consecutively to view RESERVE. Pressing the + key increases the Kg to be loaded, pressing the - key reduces the Kg, pressing the - key repeatedly sets the load to 00Kg (R on the display), which makes it possible to cancel the residual load.- 40 - ENGLISH

INSTRUCTIONS FOR USE

Confi rm by pressing MENU and the remaining quantity of pellets will be displayed + that being loaded (default is 15 and can be changed using the +/- keys). Should the hopper run out of pellets, the stove will block and ‘Stop/Flame’ will appear (see page 35). Note: Every now and again remember to reset the “pellet reserve warning” for it to function in a more reliable manner. For any clarifi cation please contact the authorised DEALER who performed the fi rst 1st ignition. This provides a reference indicator. Greater precision is obtained by regularly zeroing the system before fi lling it again. Edilkamin does not accept any responsibility for differences from what is indicated (which may be due to external factors). Environmental temperature adjustment this comfortable and simple adjustment feature, as standard in this line of products, allows you to manage the stove power based on the environmental temperature. After activating the “Clima Comfort” function from the para- meters menu (ask the technical assistance centre - TAC), we can use this function to switch off the stove when it reaches the set temperature. This function is combined with the AUTO- MATIC stove setting. MANUAL mode operation will in any case remain unchanged. After the Comfort Clima function has been enabled by the TAC, you can activate/deactivate it from the user menu. Press the SET key, look for the “Comfort Clima” menu with the +/- keys, select it with the SET key, set ON/OFF with the +/ - buttons, save the desired setting and exit using the 0/1 button. Operation details Comfort Clima ON when set on AUTOMATIC, the stove modulates its power by following the temperature set by the user. On reaching environmental temperature, the stove switches off and then switches on again independently when the temperature drops. Temperature selection In “Comfort Clima” mode, by pressing the +/ - buttons on the synoptic panel or on the remote control, you can set the display to the desired environmental temperature. So we will have the following situations: -At environmental temperatures below the setting, the stove switches on independently, modulating the power automatical- ly. -With environmental temperature reached (+2°C) the stove switches to stand-by. The environmental temperature is sent from the remote control; the remote control transmitter must be visually aligned with the receiver of the synoptic panel. If the remote control is incorrectly positioned, it cannot send its recorded temperature. The stove therefore independently switches to use of its on-board temperature sensor and conti- nues thus until the connection with the remote is restored Temperature adjustment with external thermostat another temperature control system is available as an alterna- tive to the remote control. You can in fact connect the thermo- stat serial port to your home thermostat or any (clean output contact) easily available one. The stove will automatically recognise the connection with the serial port of the thermostat under the following conditions: With environmental temperature lower than the thermostat setting (contact closed), the stove modulates power normally to follow the set temperature -With environmental temperature reached by the thermostat (contact open), the stove switches to stand-by mode. Confi guration Temperature provided by the remote control Temperature provided by external environmental thermostat No adjustment (factory setting) "Comfort Clima" parameter ON ON ON “SONDA IR” parameter

Connection to serial port

no connection Yes with blue serial cable

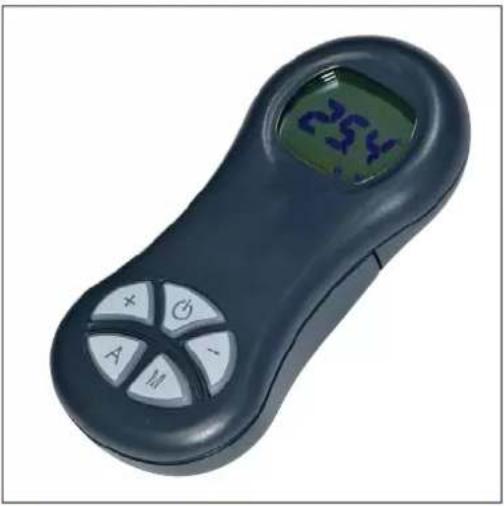

The remote control is equipped with an internal sensor to detect the room temperature and display it in real time. The detected temperature is transmitted periodically to the control board of the insert/stove if the transmission LED of the remote control and the receiving sensor of the synoptic panel of the insert/stove are in each other’s fi eld of view. If the temperature of the remote control does not reach the control board of the insert/stove for over 30 minutes, the temperature detected by the sensor connected to the synoptic panel is used.

SELECTING THE OPERATING MODE

The following functions can be scrolled through and set by briefl y pressing the “M” button: REMOTE CONTROL Indicates data transmission between the remote control and the control board. fl at battery (3 mini alkaline batteries type AAA) blocked keypad; avoid turning on the remote control for no reason (press “A” and “M” simultaneously for a few seconds to block/unblock the keypad) Indicates that ignition / shutdown is being via the “EASY TIMER” program Indicates the room temperature detected by the remote control (it indicates the values of the set parameters during its technical set-up). Indicates that a setting has been transmitted for the stove to ignite automatic function (the temperature value appears on the display) Key to buttons and display: : ignition / shutdown button + : button to increase the power/operating temperature (when inside a menu, it increases the displayed variable) - : button to decrease the power/operating temperature (when inside a menu, it decreases the displayed variable) A : button to switch to the “EASY TIMER ” program M : button to toggle from automatic to manual mode and vice versa manual adjustment function (the operating power value appears on the display) pellet/air stove remote control setting indicator automatic power adjustment manual power adjustment- 42 - ENGLISH

TEMPERATURE DETECTED BY THE REMOTE CONTROL

With the remote control it is possible to use the very quick and intuitive time programming function. - If the stove is on: a delayed shutdown can be set using the remote control – from one to twelve hours. The remaining time befo- re the scheduled shutdown is shown on the synoptic panel’s display. - If the stove is off: a delayed ignition can be set using the remote control – from one to twelve hours. The remaining time before the scheduled ignition is shown on the synoptic panel’s display. - Setting: proceed as follows to set the timer: a) Press the “A” button and the icon will light up on the display, thereby confi rming the “Easy timer” program has been acces- sed. b) Set the hours by pressing the +/- buttons, for example: c) Point the remote control towards the synoptic panel receiver d) Confi rm the setting by pressing the “A” button for a few seconds; the icon will go off and the remaining time before the scheduled intervention will appear on the synoptic panel. e) Repeat points a), b), c), d) to cancel the setting, and set the hours to “00H” BLOCKED KEYPAD The remote control buttons can be blocked so as to prevent it from going on accidentally. Press the A and M buttons simultaneously and the key symbol will light up confi rming that the keys have been blocked. Press the A and M buttons simultaneously once again to unblock the keypad.

LOW BATTERY INDICATOR

When the battery icon lights up it indicates that the batteries inside the remote control are almost fl at. Replace them with three new batteries of the same model (size AAA 1.5V). - Do not use new batteries with used ones. - Do not mix brands and different types as every type and brand has a different capacity. - Do not mix traditional batteries with rechargeable ones; - Do not try recharging alkaline and zinc-carbon batteries as this can cause them to break and/or a liquid leakage.

In accordance with Art. 13 of the Legislative Decree No. 151, dated 25 July 2005, “Implementation of Directives: 2002/95/EC, 2002/96/EC and 2003/108/EC, pertaining to the reduction of hazardous substances used in electrical and electronic equipment, as well as disposal of waste”. The crossed-out wheeled bin symbol shown on the equipment or on the packaging indicates that the product must be disposed of separately at the end of its useful life. Therefore, at the end of the equipment’s useful life, the user must hand in the equipment to suitable collection facilities for electrical and electronic waste, or return it to the retailer when a new, equivalent appliance is purchased in a ratio of one to one.- 43 - ENGLISH Before performing any maintenance, disconnect the appliance from the mains. Regular maintenance is required for the stove to function correctly. FAILURE TO PERFORM REGULAR MAINTENANCE, at least on a SEASONALbasis, could lead to poor functionality. Any problems resulting from lack of maintenance will immediately void the warranty. NOTE: After every 800 kg, “Mainten.” will appear to remind the user to clean the smoke channels, which is the user’s responsibility. This message will disappear by pressing the “TURBO” button for 5 seconds. Upon reaching 2000 kg of pel- lets, a “Mainten.-dealer” message will appear which will not disappear because the assistance of a DEALER is required. This message can be reset from the parameters menu. N.B. - Any unauthorised modifi cation is forbidden - Use spare parts recommended by the manufacturer - The use of pirate parts results in the guarantee becoming null and void DAILY MAINTENANCE Operations must be performed when the stove is off, cold and unplugged from the power supply

• Cleaning must be carried out with a vacuum cleaner. (see optional extras page 47).

• The whole procedure takes up a few minutes every day.

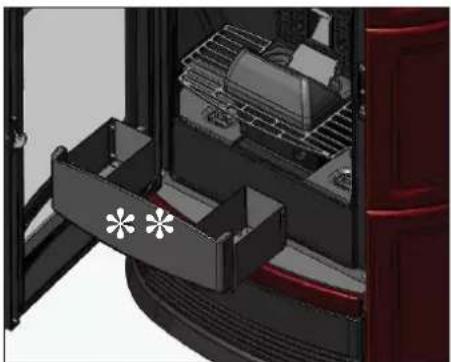

• Remove the combustion chamber or use the spatula to scrape it and clean out any blocked holes on all sides.

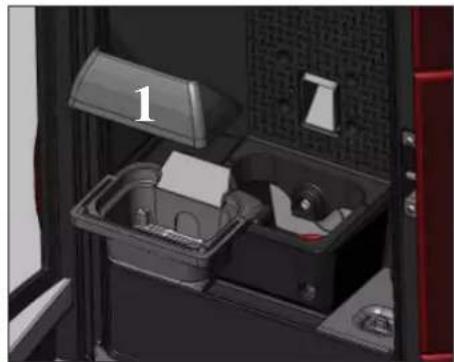

• Remove the combustion chamber (1) (fi g. C) and scrape with a spatula. Clean any obstructions in the apertures.

• Suction the combustion chamber holder, clean the contact edges.

• Clean the glass, if necessary (when cold). Never vacuum hot ash, it can make the vacuum cleaner breakdown and puts the household rooms at risk of fi re. MAINTENANCE WEEKLY MAINTENANCE

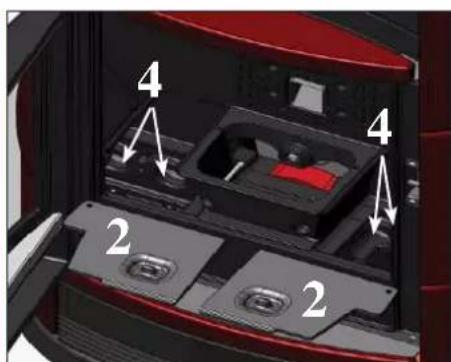

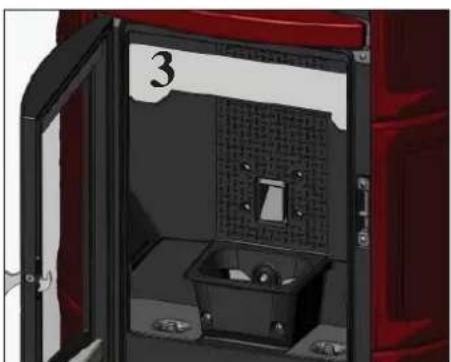

• Clean the hearth (with a brush) after having removed the smoke deviators (3 - fi g. D/E).

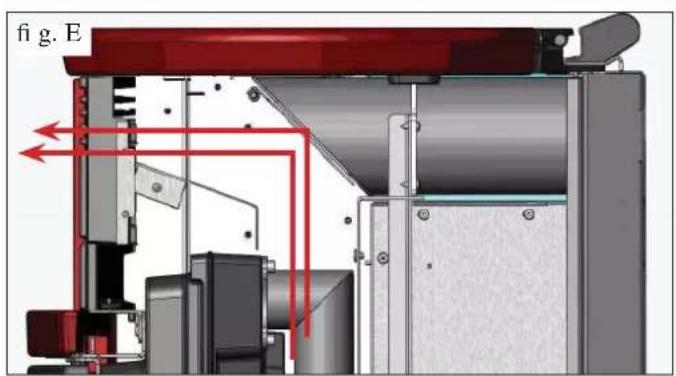

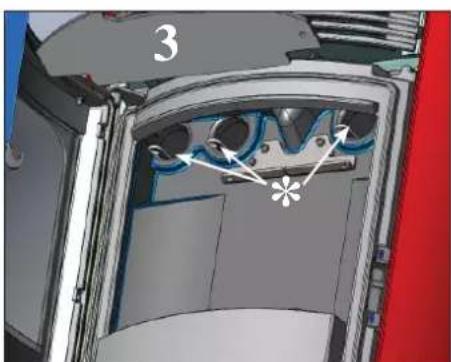

• Use the swabs (* - fi g. E).

• Empty the pellet hopper and clean the base with the vacuum cleaner.

• Clean the stove internally and externally

• Carefully clean the heat exchange tubes

• Carefully clean and remove dirt from the combustion chamber and the relative compartment

• Clean fans, verify mechanical and clamp loosening

• Clean smoke channel (replace seals on smoke exhaust pipe)

• Clean smoke duct (see weekly cleaning)

• Clean smoke extraction fan compartment.

• Clean smoke fl ow sensor.

• Clean smoke check thermocouple.

• Clean, inspect and scrape any residue from the ignition resistance compartment and if necessary, replace it

• Clean/check the Synoptic Panel

• Visually inspect the electrical wires, connections and power cable

• Clean the pellet hopper and check loosening of the feed screw - gear motor assembly

• Replace the door seal

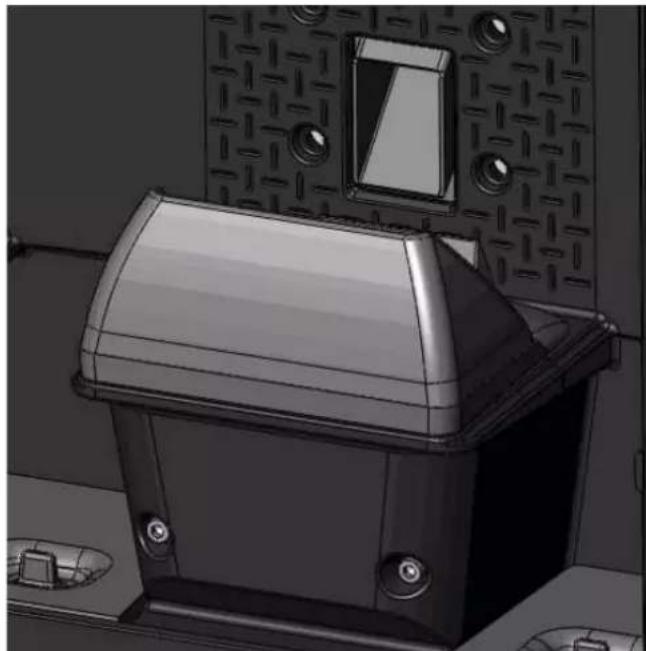

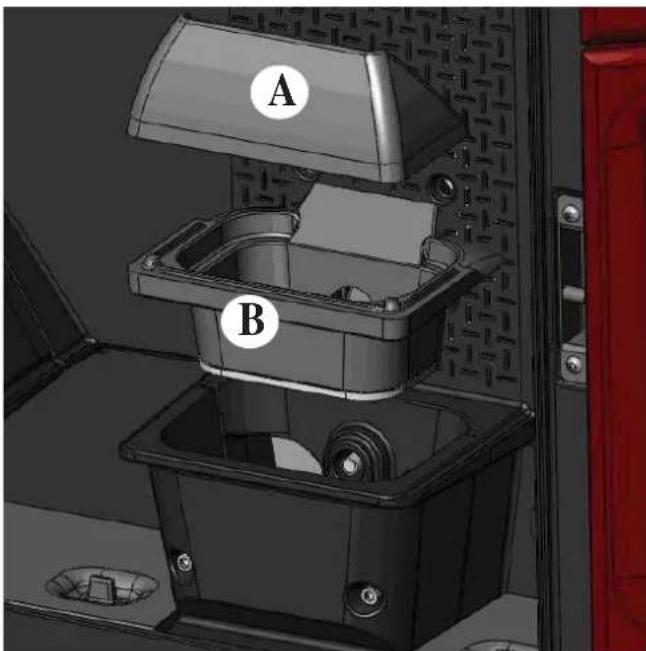

• Functionality test: load the feed screw, ignite, let it run for 10 minutes and shutdown If the stove is used very often, it is recommended to clean the smoke channel every 3 months. ATTENTION !!! After implementing a normal cleaning procedure, INCORRECT coupling of the upper (A) (fi gura 1) and lower (B) (fi gura 1) combustion chambers can compromise the stove’s performance. Before igniting the stove, make sure the combustion chambers are correctly paired as indicated in (fi g. 2) without ash or unburnt material present on the support perimeter. We remind you that using the stove without cleaning the melting pot, may cause a sudden ignition gas inside the combu- stion chamber with the consequent breaking of the glass

B- 45 - ENGLISH POSSIBLE TROUBLESHOOTING In the event of problems the stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below). Never pull the plug during shutdown on account of malfunction. Should it block, to restart the stove you will need to allow the turn-off procedure to take place (600 seconds with audible signal), and then press the button 0/1 . Do not turn the stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible. INDICATION OF POSSIBLE CAUSES OF MALFUNCTION AND INDICATIONS AND REMEDIES:

1) Signalling: Verifi c./air fl ow: (intervenes if the fl ow sensor detects insuffi cient combustion ).

Problem: Turns off for lack of depression Air fl ow may be insuffi cient because the door is open, the door does not close properly (e.g. bad seal), there is an air intake or smoke extraction problem, or the combustion chamber is clogged. Actions: Check:

• combustion air intake duct (clean, paying attention to the fl ow sensor components);

• clean the fl ow sensor with dry air (like that used for PC keyboards);

• stove location: it must not be installed against a wall;

• combustion chamber position and cleanliness (clean regularly according to the type of pellet);

• installation (if it does not comply with regulations or the smoke outlet has more than 2-3 bends); If you suspect the sensor is malfunctioning, carry out cold tests. If the conditions are changed (for example by opening the door) and the value does not change, there is a sensor problem. N.B.: The no depression alarm may also occur during ignition, since the fl ow sensor starts monitoring 90 seconds after the ignition cycle begins.

2) Signalling: Verifi c./extract.: (this trips if the smoke extraction speed sensor detects a fault)

Problem: Shutdown for smoke extraction speed fault detection Actions: • Check smoke extractor function (devolution sensor connection) and board (DEALER).

• Check smoke channel for dirt

• Verify the electrical system and earthing system.

• Check eletronic circuit board (DEALER). 3) Signalling: Stop/Flame: (this trips if the thermocouple detects a smoke temperature lower than the value set, which it interprets as the absence of fl ames) Problem: Turns off due to drop in smoke temperature Actions: • lack of pellets

• too many pellets have suffocated the fl ame, check pellet quality (DEALER)

• the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature) (DEALER)

4) Signalling: Block_FI/NO Start: (intervenes if a fl ame fails to appear within a maximum of 15 minutes, or if ignition

temperature is not reached). Problem: Turns off due to incorrect smoke temperature during ignition Distinguish either of the following cases: Flame does NOT appear Actions: • Check: - combustion chamber position and cleanliness;

• arrival of combustion air in the combustion chamber;

• if the heating element is working (DEALER);

• room temperature (if lower than 3°C use a fi relighter) and damp. Try to light with a fi relighter (see page 38). Flames appear, but AF appears on the display after Ar Actions: • Check: (only by the Dealer)

• if the thermocouple is working (DEALER);

• start-up temperature setting in the parameters (DEALER).

• Repeat start up after having emptying the brazier.

5) Signalling: Black Out: (not a defect of the stove).

Problem: Turns off due to lack of electricity Actions: • Check electricity connection and drops in voltage.

6) Signalling: Fault/RC: (intervenes if the thermo coupling has failed or is disconnected).

Problem: Turns off due to thermo coupling failed or disconnected Actions: • Check connection of thermo coupling to board: check function in cold test (DEALER).- 46 - ENGLISH POSSIBLE TROUBLESHOOTING

7) Signalling: smoke °C/high.

Problem: turns off due to exceeding maximum smoke temperature. Actions: • Check the pellet type

• Check for anomalies with the smoke extraction motor

• Check to see if there are any obstructions in the smoke channel

• Check correct installation

• Check gear motor “drift”

• Check to make sure there is an air intake in the room

8) Signalling: ALARM - HIGH CURRENT: Activated when anomalous, excessive current absorption is detected on the

gear motor.. Actions: Check functioning (CAT): gear motor - Electrical connections and electronic board.

9) Signalling: ALARM - LOW CURRENT: Activated when anomalous, insuffi cient current absorption is detected on the

gear motor. Actions: Check functioning (CAT): gear motor - pressure switch - tank thermostat - electrical connections and electro- nic board

10) Signalling: “Battery check”

Problem: The insert does not stop but the error appears on the display. Actions: • The buffer battery of the control board needs changing (DEALER). Remember that this component is subject to regular wear and so it is not covered by the guarantee.

11) Problem: Remote control not working

Actions: • closer to the receiver of the insert

• check the battery and if necessary, replace it.

12) Problem: Outlet air not hot

Actions: • clean heat exchanger from inside the fi rebox.

13) Problem: During ignition, the differential switch trips (DEALER):

Actions: • clean combustion chamber. NOTA Warnings are shown until you intervene and press the 0/1 key on the control panel. Do not ignite the stove until the problem has been checked and resolved. N.B.: The combustion chambers and smoke ducts connected to the solid fuel appliances must be cleaned once a year (check if your country has specifi c legislation covering this). Failure to regularly check and clean increases the likelihood of a fi re in the chimney pot. IMPORTANT!!! In the case of a fi re in the stove, in the fl ue or in the chimney, proceed as follows: - Disconnect the power supply - Use a carbon dioxide (CO

) extinguisher - Call the fi re brigade DO NOT ATTEMPT TO PUT THE FIRE OUT WITH WATER! After the event, have the appliance checked by an authorised Service Centre and have an authorised technician check the fl ue.- 47 - ENGLISH OPTIONAL TELEPHONE COMBINER FOR REMOTE IGNITION (code 281900) The stove can be ignited remotely by asking the DEALER to connect the telephone combiner to the serial port behind the stove via the optional cable (code 640560). KIT 11 for channelling hot air into an adjacent room, with max channelling pipe length 1.5 m (code 645700). KIT 11 BIS for channelling hot air into a non-adjacent room, with max channelling pipe length 5 m (code 645710). CHECK LIST To be integrated with a complete reading of the technical specifi cations Positioning and installing

• First ignition performed by authorised CAT who released the guarantee certifi cate

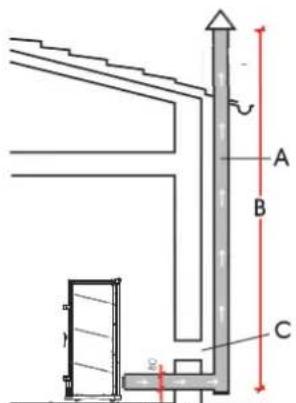

• Only the stove outlet passes through the smoke channel/chimney fl ue

• The smoke channel has: a maximum of 2 curves, a maximum 2 horizontal metres

• Chimney pot that is high enough to avoid downdraft areas

• The discharge pipes are made of a suitable material (stainless steel is recommended)

• When using any fl ammable materials (e.g. wood), all precautions have been taken to prevent a fi re hazard Use

• Good quality, dry pellets are used

• The chimney pot and ash compartment are clean and well positioned

• The door is closed properly

• VACUUM GAUGE: positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

EVACUATION DES FUMEES

• The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.

• Los únicos riesgos que derivan del uso de las estufas están relacionados con el incumplimiento de l instalación o con un contacto directo con partes eléctricas en tensión (internas), o con un contacto con fuego y partes calientes (vidrio, tubos, salida de aire caliente) a la introducción de sustancias extrañas, a combustibles no recomendados, a un mantenimiento no correcto.

• Only use certifi ed, high quality, 6mm diameter wooden pellets for fuel.

WYMIARY I TYPY WYKOŃCZENIA
