USER MANUAL YOUseries Drill BOSCH

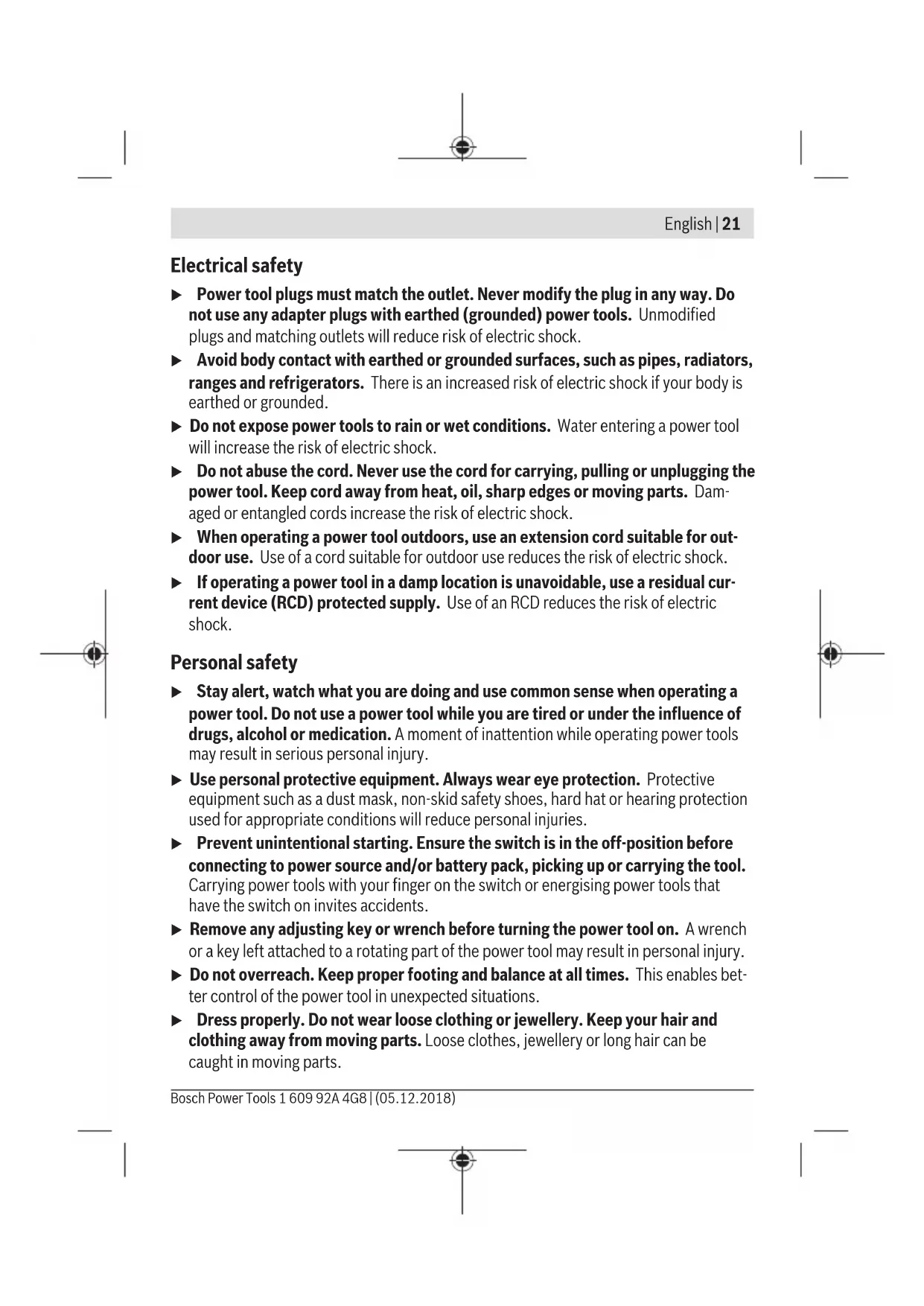

(6) Battery charge indicator

(8) Cover for USB Type-C

(9) Handle (insulated gripping surface) (10) Power adaptor

(13) Battery release button

(15) Screwdriver bit

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. B) USB Type-C

are trademarks of USB Implementers Forum. Technical Data Cordless drill/driver Drill Article number 3 603 JC5 0.. Rated voltage V 3.6 No-load speed – 1st gear min

0 − 1000 Maximum torque, soft screwdriving applic- ation according to ISO 5393 Nm 9.2 Max. drilling diameter (first/second gear) – Metal mm 6 – Hard/soft wood mm 8/10 Max. screw diameter – Soft wood mm 5 Chuck capacity mm 1 − 10 Weight according to EPTA-Procedure 01:2014 kg 0.60 Permitted ambient temperature – during charging °C +10 to +35 – during operation

and during storage °C -10 to +50 Recommended batteries 1 607 A35 08. Recommended power adaptor 1 600 A01 6A. A) Limited performance at temperatures <0°C Noise/Vibration Information Noise emission values determined according to EN 62841-2-1. 1 609 92A 4G8 | (05.12.2018) Bosch Power ToolsEnglish | 27 Typically, the A-weighted sound pressure level of the power tool is less than 70 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80 dB(A). Wear hearing protection Total vibration values a

(triax vector sum) and uncertainty K determined according to EN 62841-2-1 Drilling in metal: a

The vibration level and noise emission value given in these instructions have been meas- ured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total work- ing period. Implement additional safety measures to protect the operator from the effects of vibra- tion, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Fitting u Remove the battery before cleaning or performing maintenance work on the power tool, before making tool adjustments, changing accessories or storing the power tool. This safety measure prevents the power tool from being started accident- ally. Battery Charging (see figure C) u Use only the power adaptor listed in the technical data. Only this power adaptor is compatible with your power tool's lithium-ion battery. Note: The battery is supplied partially charged. To ensure the maximum performance of the battery, use the power adaptor to fully charge the battery before first use. The lithium-ion battery can be charged at any time without reducing its service life. Inter- rupting the charging process does not damage the battery. Bosch Power Tools 1 609 92A 4G8 | (05.12.2018)28 | English The lithium-ion battery is protected against deep discharge by the Electronic Cell Protec- tion (ECP). When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool stops moving. u Do not continue to press the On/Off switch after the power tool has automatic- ally switched off. The battery can be damaged. The battery features NTC temperature monitoring, which only permits charging in a tem- perature range between 10 °C and 35 °C. This achieves a long battery life. You can charge the battery (5) separately or in the power tool. – Open the cover (8). – Connect the battery (5) to the power adaptor (10) using a USB cable (11). – Plug the power adaptor (10) into the plug socket. The charging process begins. The battery charge indicator (6) indicates the charging progress. During the charging process, the power tool is deactivated and cannot be used. If you are not planning to use the power tool again soon, disconnect the power adaptor (10) from the mains. Inserting and removing the battery (see figure A) u Do not use force to insert the battery. The battery is designed in such a way that it can only be inserted into the power tool when it is in the right position. – Slide the battery (5) all the way into the battery bay (12). – To remove the battery (5), press the release buttons (13) on the battery and pull it out of the battery bay (12). Follow the instructions on correct disposal. Battery charge indicator The battery charge indicator (6) is automatically activated when the battery (5) is moved. The battery charge indicator (6) goes out if the battery (5) is not moved for a few seconds. The battery charge indicator (6) is switched off when the power tool is being used. Charging Battery separate or in the power tool (in motion) Charging process (battery with connected power adaptor) 100% Green (continuous) Green (continuous) 1 609 92A 4G8 | (05.12.2018) Bosch Power ToolsEnglish | 29 Charging Battery separate or in the power tool (in motion) Charging process (battery with connected power adaptor) 100% − 50% Green (continuous) Green (flashing) 50% − 20% Yellow (continuous) Green (flashing) 20% − 5% Red (continuous) Green (flashing) 5% − 0% Red (flashing) Green (flashing) Note: If the battery (5) has been stored away and has not been used for a long period of time, it is possible that the battery charge indicator (6) will not be activated. This pro- tects the battery (5) from deep discharge. Once the battery (5) is charged, the indicator will be activated again. In this case, the charging time may increase. The battery charge indicator (6) goes out a few minutes after the battery (5) has been fully charged. Note: If the battery charge indicator (6) is flashing white, the temperature is outside the permitted ambient temperature range. The charging process begins automatically once the permitted temperature range has been reached again. The battery charge indicator (6) will flash green during the charging process. Changing the tool (see figure B) Open the keyless chuck (2) by turning it in the direction of rotation ➋ until the tool can be inserted. Insert the tool. Firmly tighten the keyless chuck (2) by turning it by hand in the direction of rotation ➊. Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carcinogenic, especially in con- nection with wood-treatment additives (chromate, wood preservative). Materials con- taining asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Bosch Power Tools 1 609 92A 4G8 | (05.12.2018)30 | English Observe the relevant regulations in your country for the materials to be worked. u Avoid dust accumulation at the workplace. Dust can easily ignite. Operation Starting operation u Ensure that the cover of the USB Type-C

We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless Drill/Driver Article number
