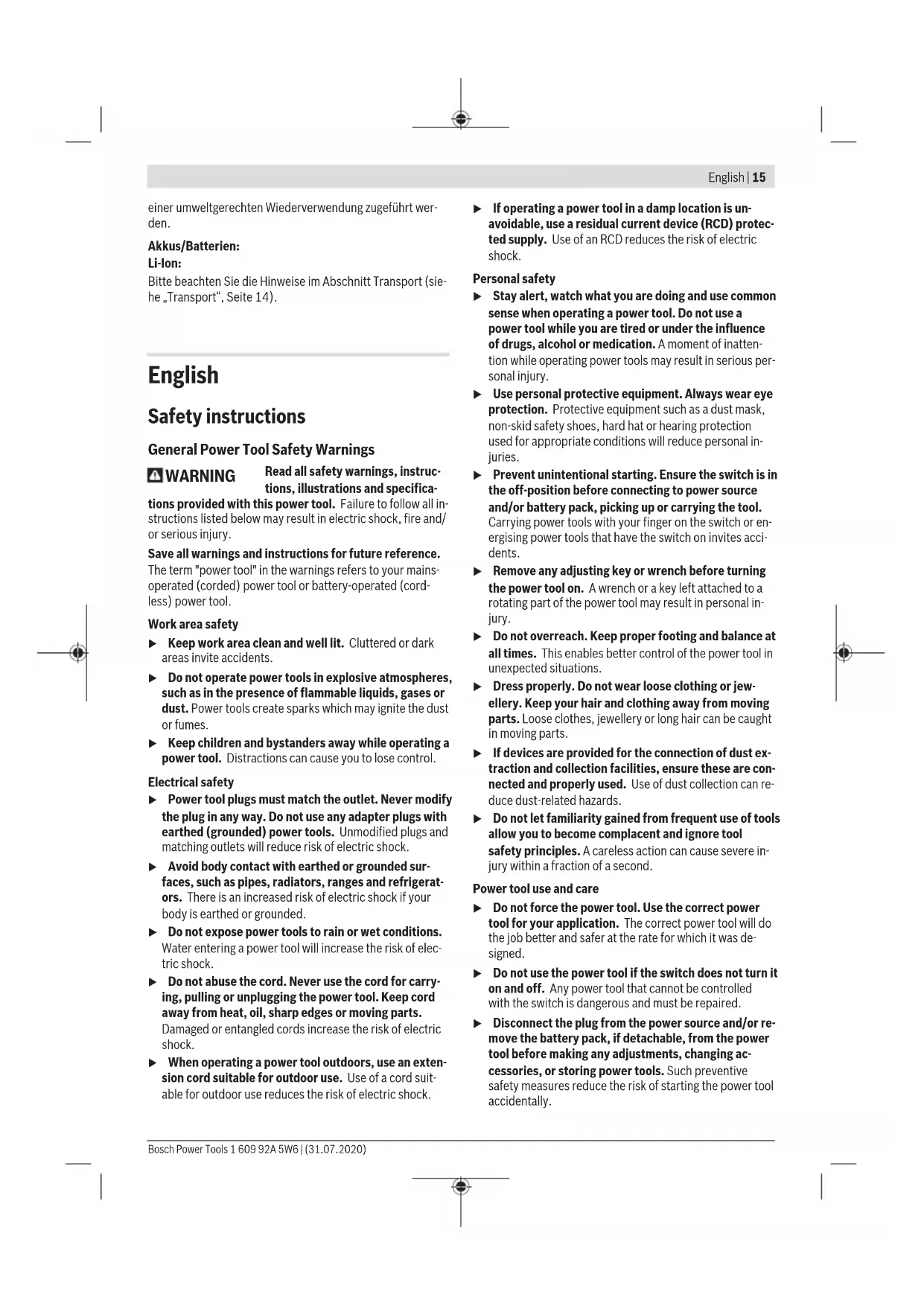

(10) Handle (insulated gripping surface) (11) Magnetic bit holder (12) Light (13) Battery charge indicator (14) On/off switch (15) Magnetic cap (16) Screw holder (17) Angle screw adapter

(19) Off-set angle adapter

(20) Screwdriver bit

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless drill/driver AdvancedDrill18 AdvancedImpact18 Article number 3 603 JB5 0.. 3 603 JB5 1.. Rated voltage V= 18 18 No-load speed

– Screws (first screw phase) min

0–430 0–450 – Drilling/impact drilling (second screw phase) min

Nm 42 39 Max. drilling diameter – Masonry mm – 11 – Steel mm 13 13 – Wood mm 35 35 Tool holder 1.5–13 1.5–13 Max. screw diameter mm 10 10 Weight according to EPTA-Procedure 01:2014

kg 1.3 (1.5Ah)–1.6 (6.0Ah) 1.4 (1.5Ah)–1.7 (6.0Ah) Bosch Power Tools 1 609 92A 5W6 | (31.07.2020)18 | English Cordless drill/driver AdvancedDrill18 AdvancedImpact18 Recommended ambient temperature during charging °C 0 to +35 0 to +35 Permitted ambient temperature during opera- tion

and during storage °C –20 to +50 –20 to +50 Recommended rechargeable batteries PBA 18V...W-. PBA 18V...W-. Recommended chargers

Measured at 20−25°C with rechargeable batteryPBA 18V 2.5Ah W-B. B) Depends on battery in use C) Limited performance at temperatures <0°C D) The following chargers are not compatible with the PBA rechargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV Noise/Vibration Information AdvancedDrill 18 Noise emission values determined according toEN62841-2-1. Typically, the A-weighted sound pressure level of the power tool is less than 70dB(A). The noise level when working can exceed the volume stated. Wear hearing protection! Total vibration values ah (triax vector sum) and uncertainty K determined according to EN62841-2-1, EN62841-2-2: Drilling in metal: a

AdvancedImpact 18 Noise emission values determined according to EN62841-2-1. Typically, the A-weighted noise level of the power tool is: Sound pressure level 85dB(A); sound power level 96dB(A). Uncertainty K=5dB. Wear hearing protection Total vibration values ah (triax vector sum) and uncertainty K determined according to EN62841-2-1, EN62841-2-2: Drilling in metal: a

impact drilling in concrete: a

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Fitting Battery charging u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. Removing the battery To remove the battery , press the battery release button and pull the battery to the rear and out of the power tool. Do not use force to do this. Battery charge indicator When the on/off switch (14) is pressed in halfway or com- pletely, the battery charge-control indicator (13) indicates the charge condition of the battery for several seconds. The indicator consists of three green LEDs. 1 609 92A 5W6 | (31.07.2020) Bosch Power ToolsEnglish | 19 LED Capacity Continuous lighting 3x green ≥ 66% Continuous lighting 2x green 33–66% Continuous lighting 1x green 11–33% Slowly flashing light 1 x green ≤ 10% The three LEDs in the battery charge indicator flash quickly when the temperature of the battery is outside the operating temperature range of –30 to +65 °C and/or the overload protection has been triggered. Changing the Tool Inserting the application tool (seefigureA) Insert the application tool all the way into the tool holder (2). The application tool is held in the tool holder by means of a magnet. Removing Remove the application tool from the tool holder (2). Fitting the adapter (see figure B) Remove the application tool. Insert the adapter into the tool holder (2). The adapter clicks audibly into place. Check that it is seated securely by pulling the adapter. Inserting the application tool into the adapter (see figure

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless drill/dri- ver Article number
