USER MANUAL Gran Style GG 2016 GAGGIA

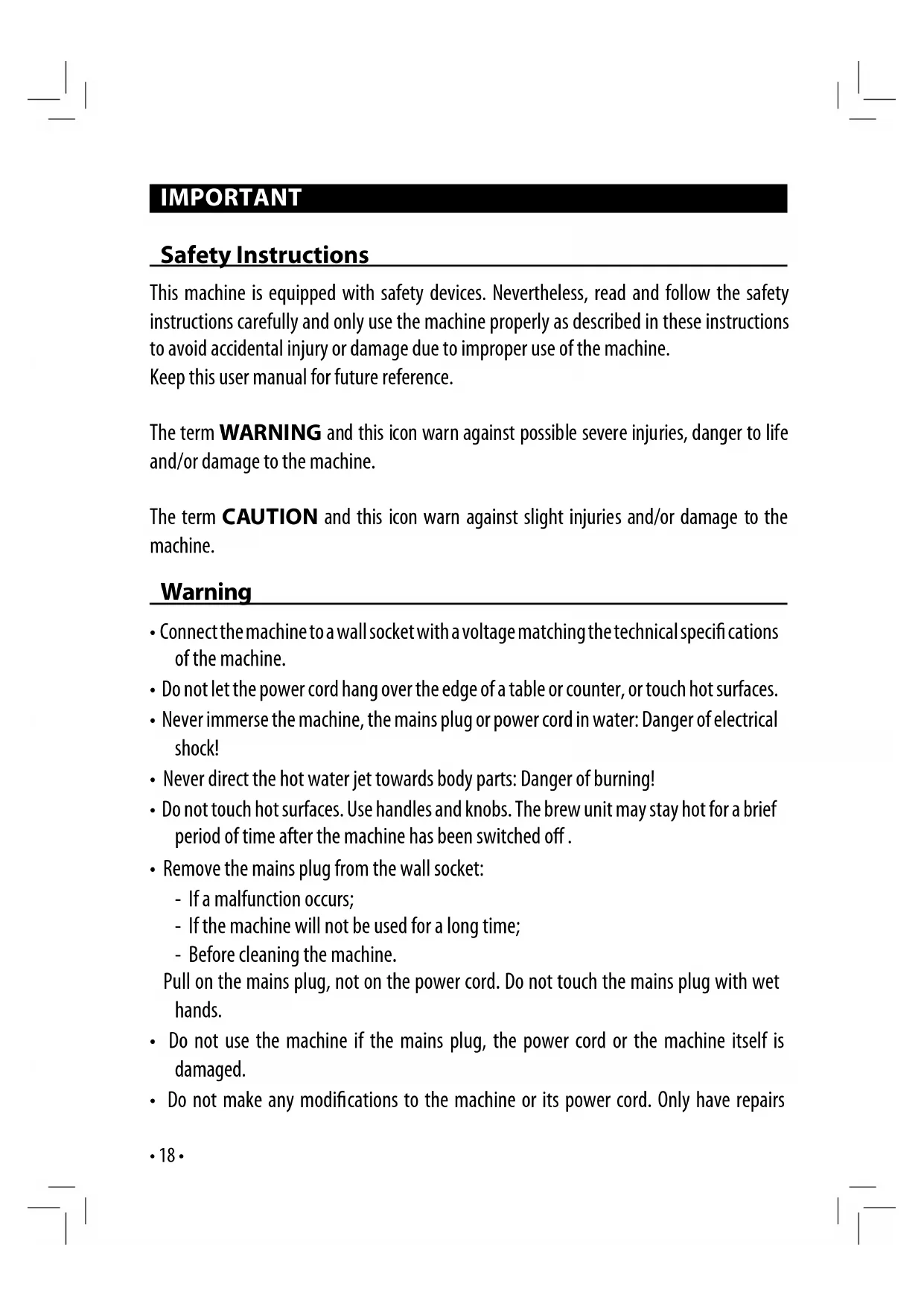

• Connect the machine to a wall socket with a voltage matching the technical speci cations of the machine.

• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.

• Never immerse the machine, the mains plug or power cord in water: Danger of electrical shock!

• Never direct the hot water jet towards body parts: Danger of burning!

• Do not touch hot surfaces. Use handles and knobs. The brew unit may stay hot for a brief period of time after the machine has been switched o .

• Remove the mains plug from the wall socket: - If a malfunction occurs; - If the machine will not be used for a long time; - Before cleaning the machine. Pull on the mains plug, not on the power cord. Do not touch the mains plug with wet hands.

• Do not use the machine if the mains plug, the power cord or the machine itself is damaged.

• Do not make any modi cations to the machine or its power cord. Only have repairs• 19 • carried out by a service centre authorised by Philips to avoid a hazard.

• The machine should not be used by children younger than 8 years old.

• The machine can be used by children of 8 years and upwards if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.

• Cleaning and maintenance should not be carried out by children unless they are more than 8 years old and supervised by an adult.

• Keep the machine and its power cord out of reach of children under 8 years old.

• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient experience and/or skills if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.

• Children should be supervised to ensure that they do not play with the machine. Cautions

• The machine is for household use only. It is not intended for use in environments such as canteens, sta kitchens of shops, o ces, farms or other work environments.

• Always put the machine on a at and stable surface.

• Do not place the machine on hot surfaces, directly next to a hot oven, heater units or similar sources of heat.

• Let the machine cool down before inserting or removing any parts.

• Never use warm or hot water to ll the water tank. Use only cold non sparkling drinking water.

• Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.

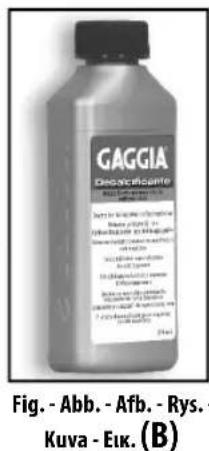

• Descale your machine regularly. Not doing this will make your appliance stop working properly. In this case repair is not covered under your warranty!

• Do not keep the machine at temperature below 0 °C. Residue water in the heating system may freeze and damage the machine.

• Do not leave water in the water tank when the machine is not used over a long period of time. The water can be contaminated. Use fresh water every time you use the machine.• 20 • Compliance with Standards The machine complies with art.13 of the Italian Legislative Decree dated 25 July 2005, no. 151 “Implementation of the Directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”. This machine complies with EU Directive 2002/96/EC. This Philips appliance complies with all the applicable standards and regulations relating to the exposure to electromagnetic elds.• 21 • English 1 GENERAL INFORMATION The co ee machine is suitable for preparing 1 or 2 cups of espresso co ee and is provided with a swivel steam and hot water wand. The controls on the front side of the machine are labelled with easy-to-read symbols. The machine has been designed for domestic use and is not suitable for professional, continuous use. Warning. No liability is held for damage caused by:

• Incorrect use not in accordance with the intended purposes;

• Repairs not carried out in authorised service cen- tres;

• Tampering with the power cord;

• Tampering with any part of the machine;

• Use of non-original spare parts and accessories;

• Failure to descale the machine and storage at tem- peratures below 0°C. In these cases, the warranty is not valid.

1.1 To Simplify Manual Reading

The warning triangle indicates all important instructions for the user’s safety. Carefully follow the- se instructions to avoid serious injury! References to illustrations, parts of the appliance or controls, etc. are indicated by numbers or letters. Whenever possible, refer to the illustration. This symbol is used to highlight information that is particularly important to ensure opti- mal use of the machine. The illustrations corresponding to the text can be found on the rst pages of the manual. Please refer to these pages while reading the operating instructions.

1.2 How to Use these Operating Instruc-

tions Keep these operating instructions in a safe place and make them available to anyone who may use the co ee machine. For further information or in case of problems, please refer to an authorised service centre. 2 TECHNICAL SPECIFICATIONS The manufacturer reserves the right to make changes to the technical speci cations of the product. Nominal voltage - Power rating - Power supply See label on the appliance Housing Material Plastic / Steel Size (w x h x d) (cm) 210 x 300 x 280 Weight

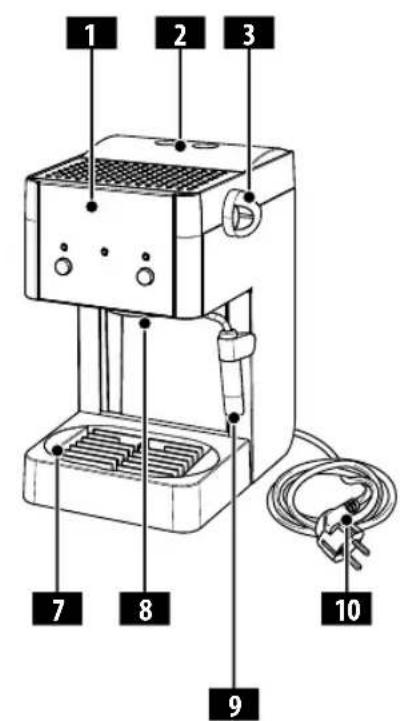

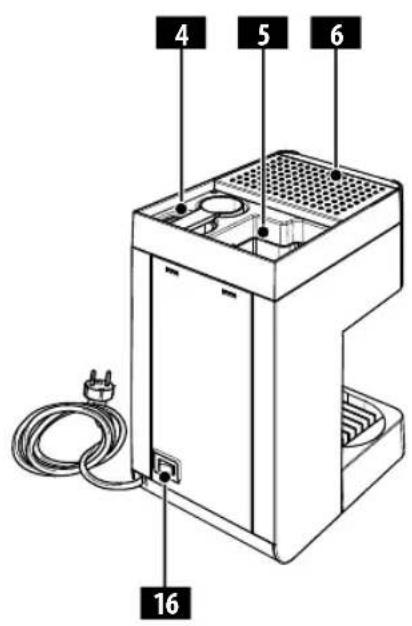

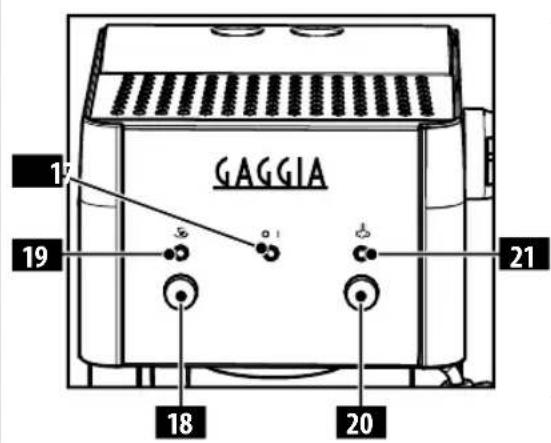

Control Panel Front side Filter Holder Pressurized type Pannarello (only installed in the Style, Deluxe and Prestige models) Special for cappuccinos Water Tank

1.25 litres - Removable type

Pump Pressure 15 bar Safety Devices Manual reset thermostat Thermal fuse• 22 • 3 KEY TO MACHINE PARTS (PAGE 2) 1 Control panel 2 Water tank lid 3 Hot water/steam knob 4 Seat for accessories 5 Water tank 6 Cup holder rest 7 Water recovery tray + grill (if any) 8 Brew unit 9 (*) Steam wand (Pannarello) 10 Power cord 11 Pressurized lter holder 12 Ground co ee measuring scoop 13 (*) Ground co ee lter (single piece for 1 or 2 co ee(s)) 14 (*) Co ee pod lter adapter 15 (*) Co ee pod lter 16 ON/OFF button 17 "Machine on" indicator light Light ON = the machine is on Light OFF = the machine is o 18 Co ee brew button 19 Co ee/water - "Machine ready" indicator light Light ON = OK for co ee brewing / hot water dispensing Light OFF = temperature is low for co ee brewing / hot water dispensing 20 Steam button 21 "Steam ready" indicator light Light ON = OK for steam dispensing Light OFF = temperature is low for steam dispensing (*) Only installed in the Style, Deluxe and Prestige models 4 INSTALLATION For your own and other people safety, carefully follow the "Safety Regulations" indicated in chapter 3.

The original packaging has been designed and manufactured to protect the machine during transport. We recommend keep- ing the packaging material for possible future transport.

4.2 Installation Instructions

Before installing the machine, read the following safety in- structions carefully:

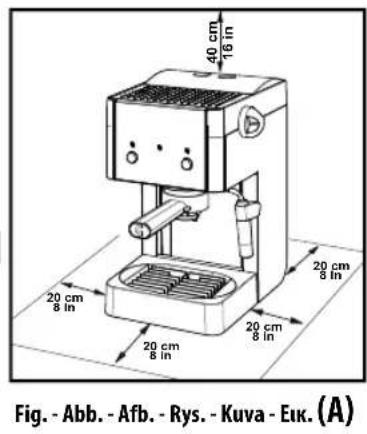

• Place the machine in a safe place;

• Make sure children cannot play with the machine;

• Do not place the machine on hot surfaces or near open ames. The co ee machine is now ready to be connected to the electric network. Note: we recommend washing the components before using them for the rst time and/or af- ter they have not been used for a certain period of time.

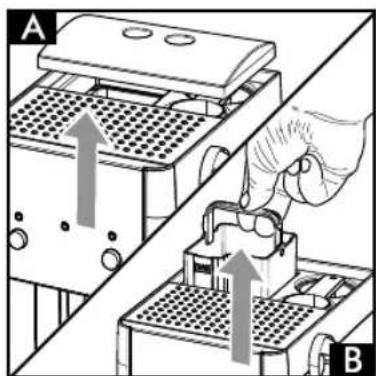

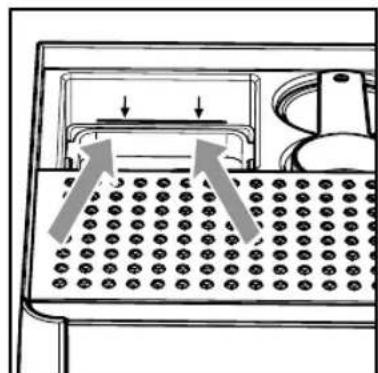

• (Fig.1A) - Remove the lid from the water tank (2) by lifting it.

• (Fig.1B) - Remove the water tank (5). Note: the machine accessories are placed on the water tank side (5).

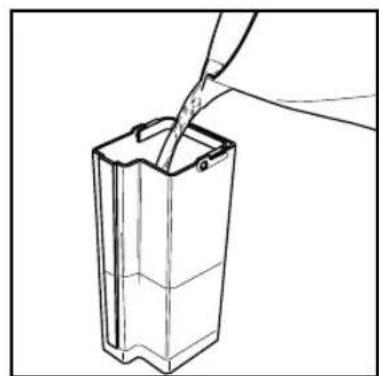

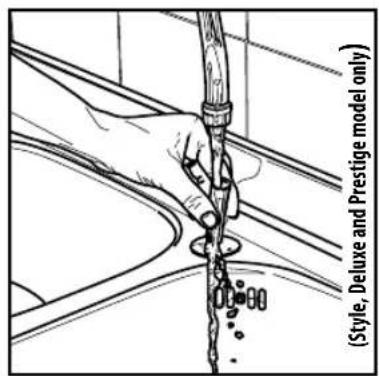

• (Fig.2) - Rinse the water tank and ll it with fresh drinking water: do not exceed the (MAX) level indicated on the wa- ter tank. Fill the tank only with fresh, non-sparkling, drinking water. Hot water or any other liquid may damage the tank. Do not operate the machine without water. Make sure there is enough water in the tank.

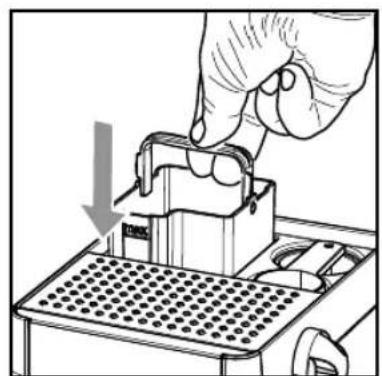

• (Fig.3) - Insert the water tank making sure that it has been properly repositioned in its seat and then reposition the lid (2). Make sure that the tank is fully inserted in the machine by pressing it gently up to its limit stop (THE REFERENCE MARK SHOWN IN FIG. 4 SHOULD BE COMPLETELY VISIBLE). This is to avoid water leaks from its bottom.

4.4 Machine Connection

Electric power may be very dangerous! It is therefore necessary to strictly follow the safety regulations. Do not use faulty power cords. Faulty cords and plugs must be replaced immediately by Authorised Service Centres. The voltage of the appliance has been pre-set by the manu- facturer. Check that the voltage matches the indication on the data plate at the bottom of the appliance.• 23 • English

• Insert the plug into a wall socket with suitable power volt- age.

Upon rst use, after dispensing steam or when the water tank is empty, the machine’s water circuit must always be primed.

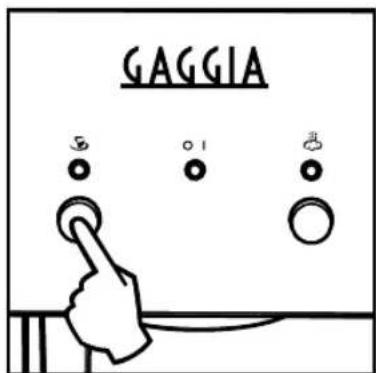

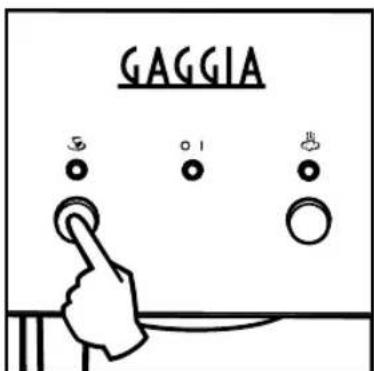

• (Fig.5) - Press the ON/OFF button (16); the indicator light (17) will turn on to indicate that the machine is on.

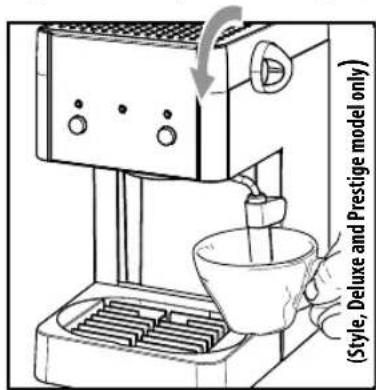

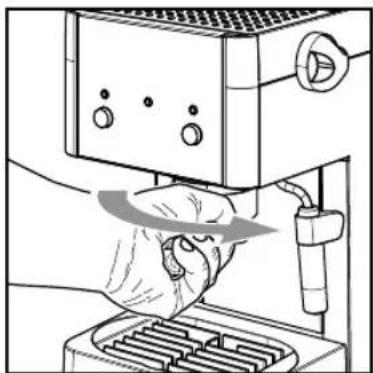

• (Fig.6) - Place a container under the steam wand. Open the "hot water/steam" knob (3) by turning it counter- clockwise.

• (Fig.7) - Press the brew button (18).

• Wait until a steady jet of water ows out of the steam wand (Pannarello).

• (Fig.7) - Press the brew button (18) again to end the op- eration.

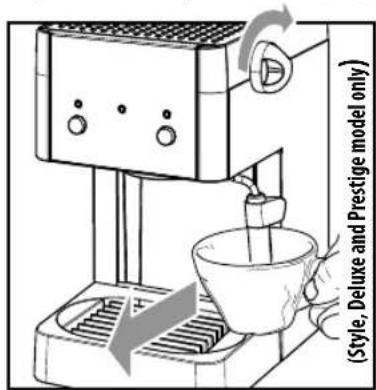

• (Fig.8) - Close the "hot water/steam" knob (3) by turning it clockwise. Remove the container. The machine is now ready to brew co ee and dispense steam. Please see related chapters for operating details.

4.6 Using the Machine for the First Time

or after a Period of Inactivity This simple operation ensures an optimum brewing and must be performed: - At rst start-up; - When the machine remains inactive for a long time (more than 2 weeks). Water dispensed during this process must be emptied into an adequate drain and is not suit- able for food use. If the container lls up during the cycle, stop dispensing water and empty the container before resuming the operation. A (Fig.2) - Rinse the tank and ll it again with fresh drinking water. B (Fig.6) - Place a container under the steam wand. Open the knob (3) slowly by turning it counter-clockwise. (Fig.7) - Press the brew button (18). C Dispense the whole water tank content from the steam/ hot water wand. (Fig.7) - Press the brew button (18) again to end the op- eration. (Fig.8) - Close the knob (3) by turning it clockwise. D (Fig.2) - Fill the tank with fresh drinking water. E (Fig.15-16) - Insert the lter holder into the brew unit (8) from the bottom and turn it from left to right until it locks into place. F Place a suitable container under the lter holder. G (Fig.18) - Press the brew button (18) and dispense all the water in the tank. Once the water tank is empty, stop dis- pensing by pressing the brew button (18) again. At the end, empty the container. H (Fig.20) - Remove the lter holder from the unit by turn- ing it from right to left and rinse it with fresh drinking wa- ter. I The machine is now ready to be used. 5 COFFEE BREWING Warning! During the co ee brewing it is forbid- den to remove the pressurized lter holder by manually turning it clockwise. Danger of burns.

• During this operation the "machine ready" indicator light (19) may ash. This should be considered a standard op- eration, not a fault.

• Before using the machine, make sure that the hot water/ steam knob (3) is closed and that there is enough water in the machine tank.

• (Fig.5) - Press the ON/OFF button (16); the indicator light (17) will turn on to indicate that the machine is on.

• Wait until the "machine ready" indicator light (19) turns on. The machine is now ready to brew co ee. Accessories for co ee brewing are placed in a specially designed seat to make operations easy and immediate. If the ground co ee measuring scoop and/or the l- ters are required, lift the cover (2) and take what you need (Fig.35 and Fig.36). If co ee is NOT brewed after pressing the brew button (18), press the brew button (18) again and check the "Troubleshooting" table before remo- ving the lter holder.

5.1 Using Ground Co ee

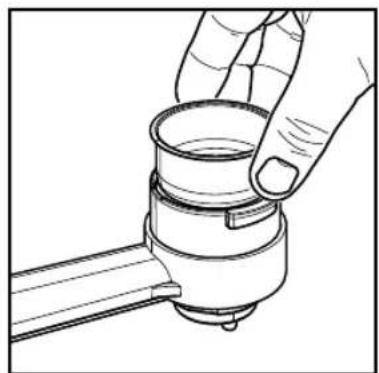

• (Fig.9) - Insert the lter (13) in the pressurized lter holder (11); the lter is already inserted when using the machine for the rst time.

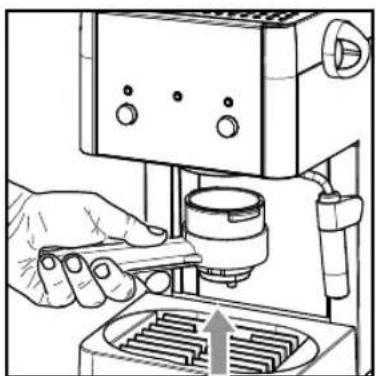

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.• 24 •

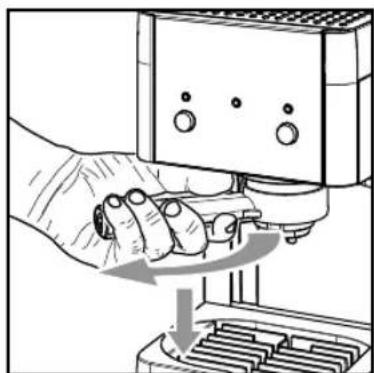

• (Fig.16) - Turn the lter holder from left to right until it locks into place. Release the grip from the pressurized lter holder. The handle is automatically slightly turned leftwards. This movement guarantees proper pressurized lter holder performance.

• (Fig.18) - Preheat the pressurized lter holder by pressing the brew button (18); some water will ow out of the pres- surized lter holder (this operation is only necessary for the rst co ee).

• After 150cc of water has owed out, press the brew button (18) again to stop hot water dispensing.

• (Fig.16) - Remove the lter holder from the machine by turning it from right to left and pour out any water left.

• (Fig.35) - Remove the measuring scoop from the ma- chine.

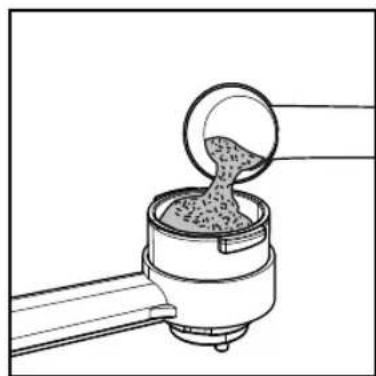

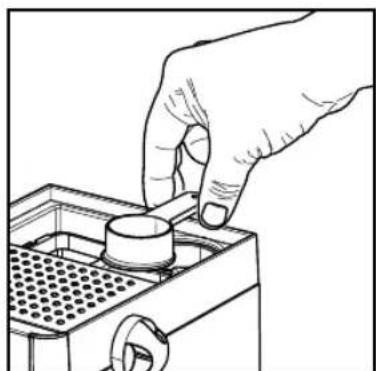

• (Fig.10) - Add 1-1.5 measuring scoop(s) for single co ee and 2 measuring scoops for double co ee. Remove any co ee residues from the rim of the lter holder.

• (Fig.15) - Insert the lter holder (11) into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place.

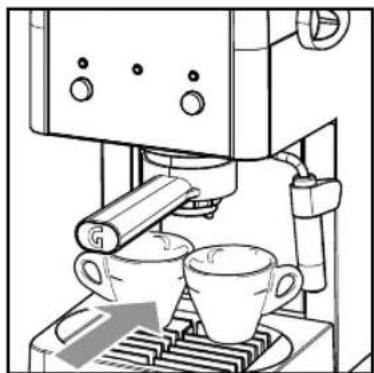

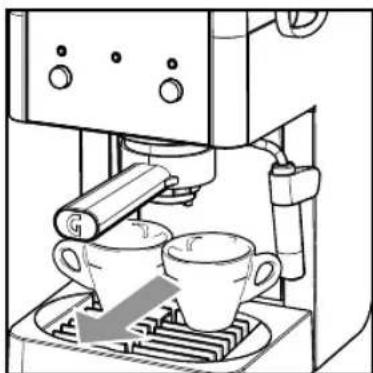

• (Fig.17) - Take 1 or 2 preheated cups and place them under the lter holder. Make sure that they are correctly placed under the co ee brewing nozzles.

• (Fig.18) - Press the brew button (18).

• When the desired quantity of co ee has been obtained, press the brew button (18) again to stop brewing and re- move the cups of co ee (Fig.19).

• (Fig.20) - Wait a few seconds after completing the brew- ing. Then remove the lter holder and empty the remain- ing co ee grounds out. Note: if a small quantity of water remains in the lter holder, this has to be considered as absolutely normal and is due to the lter holder fea- tures. Important Note: the lter (13) should be kept clean to guarantee perfect results. Clean daily after use (Fig.21).

5.2 Using Co ee Pods

Important note: This function is only available in the Style, Deluxe and Prestige models.

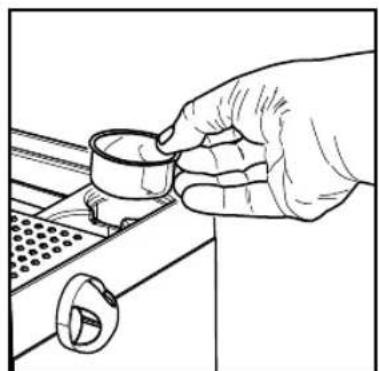

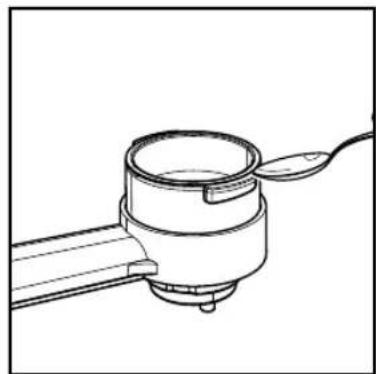

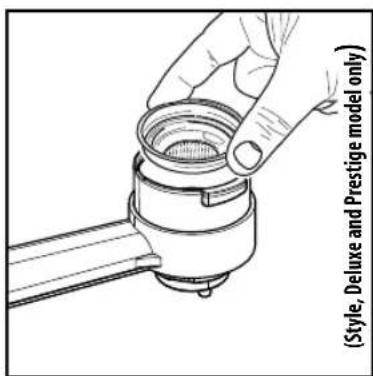

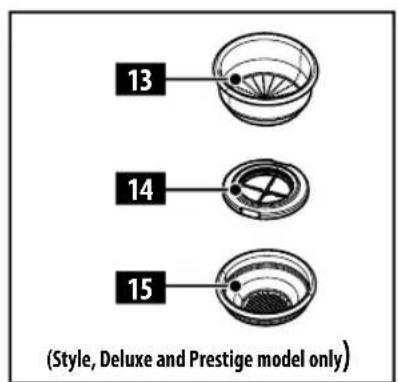

• (Fig.11) - Use a co ee spoon to remove the lter for ground co ee (13) from the pressurized lter holder (11).

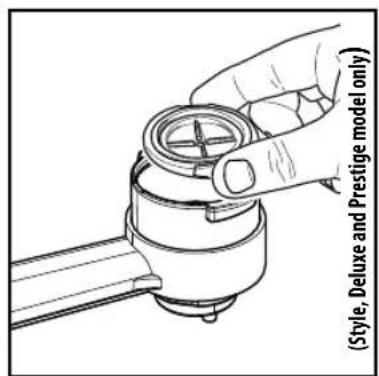

• (Fig.12) - Insert the pod adapter (14) - with the convex part facing down - into the pressurized lter holder (11).

• (Fig.13) - Then, insert the pod lter (15) into the pressur- ized lter holder (11).

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place. Release the grip from the pressurized lter holder. The handle is automatically slightly turned leftwards. This movement guarantees proper pressurized lter holder performance.

• (Fig.18) - Preheat the pressurized lter holder by pressing the brew button (18); some water will ow out of the pres- surized lter holder (this operation is only necessary for the rst co ee).

• After 150cc of water has owed out, press the brew button (18) again to stop hot water dispensing.

• (Fig.20) - Remove the pressurized lter holder from the machine by turning it from right to left and pour out any water left.

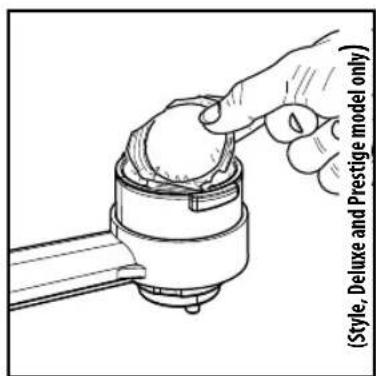

• (Fig.14) - Insert the pod into the lter holder and make sure that the paper of the pod does not overhang the lter holder.

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place.

• Take 1 preheated cup and place it under the lter holder. Check that it is correctly placed under the co ee brewing nozzles.

• (Fig.18) - Press the brew button (18).

• When the desired quantity of co ee has been obtained, press the brew button (18) again to stop brewing and re- move the cup of co ee.

• (Fig.20) - Wait a few seconds after brewing, then remove the lter holder and dispose of the used pod. Important Note: the lter (15) and the adapter (14) should be kept clean to guarantee perfect results. Clean daily after use (Fig.21).• 25 • English

6 TIPS FOR CHOOSING COFFEE

As a general rule, any type of co ee available on the market can be used. However, co ee is a natural product and its avour changes according to its origin and blend; it is therefore a good idea to try di erent types of co ee in order to nd the most suited to your personal taste. For optimal results, we recommend using espresso machine blends. As a rule, co ee should always come out of the pres- surized lter holder, without dripping. The co ee brewing speed can be modi ed by slightly chang- ing the amount of co ee in the lter and/or using a di erent co ee grind. GAGGIA recommends using ESE single-dose co ee pods for a tasty co ee and easier cleaning and preparing. Note: The ESE Pod Kit is only available in the Style, Deluxe and Prestige models.

BEFORE PERFORMING ANY OPERATIONS RELATED

TO HOT WATER/STEAM DISPENSING, MAKE SURE THAT THE STEAM WAND IS DIRECTED OVER THE WATER RECOVERY TRAY. 7 HOT WATER Danger of scalding! Dispensing may be preced- ed by small jets of hot water. The steam wand may reach high temperatures: never touch it with bare hands.

• Before using the machine, make sure that the hot water/ steam knob (3) is closed and that there is enough water in the machine tank.

• (Fig.5) - Press the ON/OFF button (16); the indicator light (17) will turn on to indicate that the machine is on.

• Wait until the "machine ready" indicator light (19) turns on. The machine is now ready.

• During this operation the "machine ready" indicator light (19) may ash. This should be considered a standard op- eration, not a fault.

• (Fig.22) - Place a container under the steam wand. Open the "hot water/steam" knob (3) by turning it counter- clockwise.

• (Fig.23) - Press the brew button (18).

• (Fig.23) - When the required amount of hot water has been dispensed, press the brew button (18) again.

• (Fig.24) - Close the "hot water/steam" knob (3) by turning it clockwise. Remove the container. 8 STEAM / CAPPUCCINO Danger of scalding! Dispensing may be preced- ed by small jets of hot water. The steam wand may reach high temperatures: never touch it with bare hands. Warning! Never brew co ee when the steam function is on, as the temperature is too high and there is a risk of burns. Warning! During co ee brewing, do not remo- ve the lter holder (if inserted) by manually turning it clockwise. Danger of burns! The lter holder can only be disconnected after deactivating the steam function by pressing the (20) button and letting the machine cool down as described in Section 4.5.

• During this operation the "machine ready" indicator light (19) may ash. This should be considered a standard ope- ration, not a fault.

• (Fig.5) - Press the ON/OFF button (16); the indicator light (17) will turn on to indicate that the machine is on.

• Wait until the "machine ready" indicator light (19) turns on.

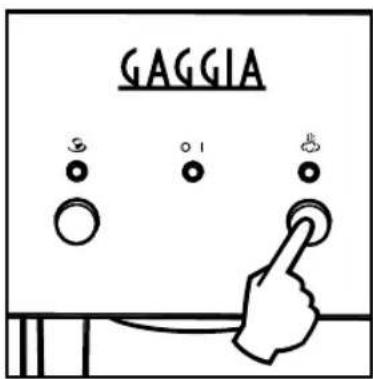

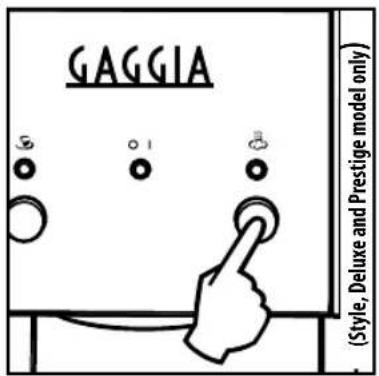

• (Fig.19) - Press the steam button (20). The "machine ready" indicator light (19) turns o .

• Wait until the "machine ready" indicator light (19) and the "steam ready" indicator light (21) turn on. The machine is now ready for steam dispensing.

• During this operation, the indicator lights (19) and (21) may ash on and o ; this is to be considered as standard operation and not a fault.

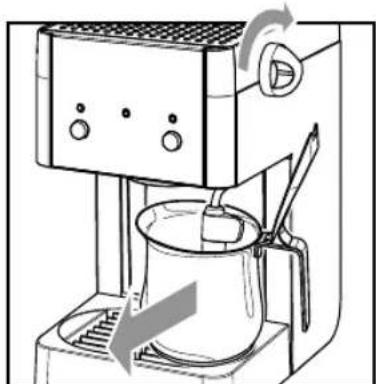

• (Fig.26) - Insert a container under the steam wand and open the knob (3) for a few seconds, so that remaining wa- ter can ow out of the steam wand. In a short delay only steam will come out.• 26 •

• (Fig.27) - Close the knob (3) and remove the container.

• Fill 1/3 of the container you wish to use to prepare the cap- puccino with cold milk. Use cold milk to get a better result.

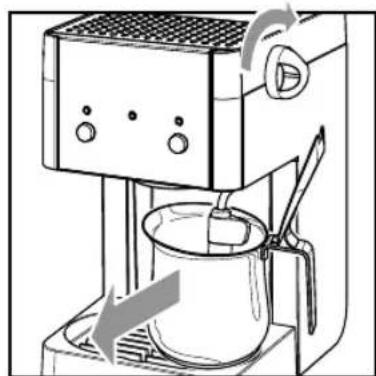

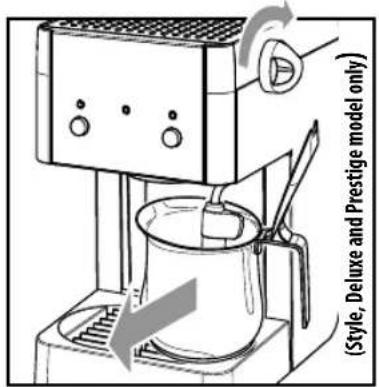

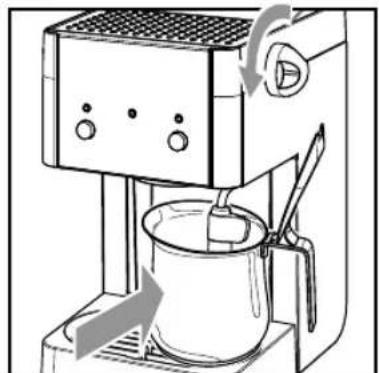

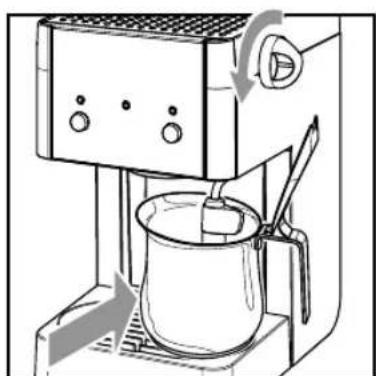

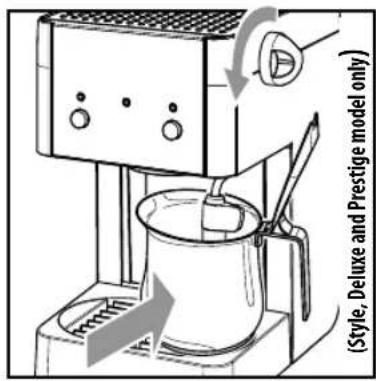

• (Fig.28) - Immerse the steam wand in the milk and open the knob (3) by turning it counter-clockwise. Turn the milk container with slow upward movements so that it warms up evenly.

• (Fig.29) - At the end, close the knob (3) and take the cup with frothed milk.

• (Fig.25) - Press the steam button (20) again.

• Prime the circuit as described in Section 4.5 to make the machine ready for use. Never brew co ee when the ( ) button is pressed or when the indicator light (21) is on, because this means that the steam function is on and the temperature of the boiler is too high. Wait for the co ee ready condition to be active (19 indi- cator light on) before brewing co ee. Note: the machine is ready when the "machine ready" indicator light (19) is permanently on. Important note: if it is not possible to brew a cappuccino as described, prime the circuit as explained in Section 4.5 and then repeat the steps. The same procedure can be performed to heat other beverages.

• After this operation, clean the steam wand with a wet cloth. 9 ENERGY SAVING The machine is equipped with an auto power-o function for energy saving. To restart the machine, press the ON/OFF button (16); the "ma- chine on" indicator light (17) turns on. Wait until the "machine ready" indicator light (19) turns on. 10 CLEANING Maintenance and cleaning can only be carried out when the machine is cold and disconnected from the electric network.

• Do not immerse the machine in water or place any of its parts in a dishwasher.

• Do not use spirit, solvents and/or aggressive chemical agents.

• We recommend cleaning the water tank and re lling it with fresh water daily.

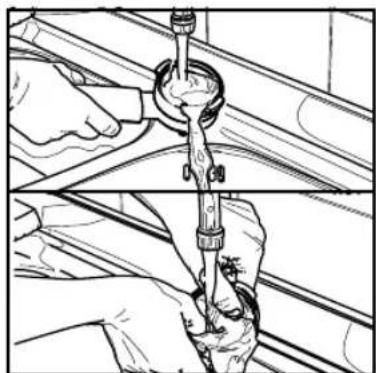

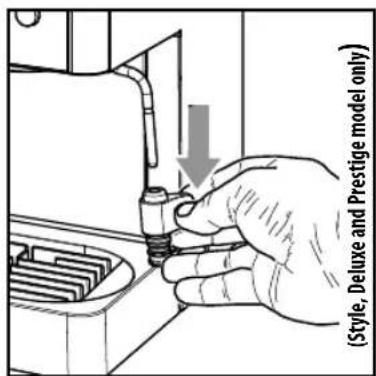

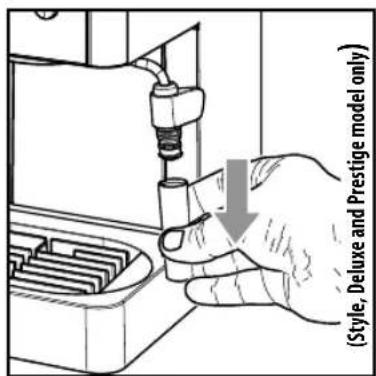

• (Fig.31-33) - Every day, after heating milk, remove the external part of the Pannarello and wash it with fresh drinking water.

• (Fig.31-32-33) - Clean the steam wand weekly. In order to do this, perform the following operations: - Remove the external part of the Pannarello (for standard cleaning); - Remove the upper part of the Pannarello from the steam wand; - Wash the upper part of the Pannarello with fresh drinking water; - Wash the steam wand with a wet cloth and remove any milk residue; - Reposition the upper part in the steam wand (make sure it is completely inserted); - Reassemble the external part of the Pannarello.

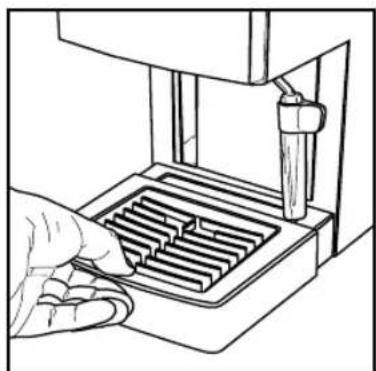

• (Fig.34) - Empty and clean the drip tray every day.

• Use a soft, dampened cloth to clean the appliance.

• (Fig.21) - Perform the following operations to clean the pressurized lter holder: - (Fig.11) - Remove the lter and wash it thoroughly with hot water. - Remove the adapter (if tted), and wash it thoroughly with hot water. - Wash the internal part of the pressurized lter holder.

• Do not dry the machine and/or its parts using a microwave and/or standard oven.• 27 • English 7 Turn on the machine by pressing the ON/OFF button (16); the (17) indicator light will turn on to indicate that the ma- chine is on. Fill up (as described in the “HOT WATER” chapter of the manual) 2 cups of water (about 150 ml each) from the ste- am/hot water wand. Turn o the machine by pressing the ON/OFF button (16) and leave it o for 3 minutes. 8 Repeat the operations described in step 7 until the water tank is completely empty. 9 (Fig.2) - Rinse the water tank and ll it with fresh drinking water. Turn on the machine by pressing the ON/OFF button (16); the (17) indicator light will turn on to indicate that the machine is on. 10 (Fig.6) - Place a container under the steam wand (Pan- narello). Open the knob (3) slowly by turning it counter- clockwise. (Fig.7) - Press the brew button (18). 11 Dispense the whole water tank content through the steam/hot water wand. (Fig.7) - Press the brew button (18) again to end the op- eration. (Fig.8) - Close the knob (3) by turning it clockwise. 12 (Fig.2) - Fill the water tank with fresh drinking water. 13 (Fig.17) - Place a suitable container under the lter hold- er. 14 (Fig.18) - Press the brew button (18) and dispense all the water in the tank. Once the water tank is empty, stop dispensing by pressing the brew button (18) again. At the end, empty the container. 15 Repeat the operations from step (9) once again for a total of 4 tanks. The machine is now ready to be used. (Fig.20) - Remove the lter holder from the unit by turning it from right to left and rinse it with fresh drinking water. The descaling cycle is now complete. (Fig.2) - Fill the tank again with fresh water. If necessary, prime the circuit as described in Section 4.5 of the manual. Once nished, reposition the previously installed Pannarello (or Cappuccinatore) on the steam wand. 11 DESCALING Limescale normally builds up with the use of the appliance. The machine needs descaling every 1-2 months (if used) and/ or whenever a reduction in water ow is noticed. Use the GAG- GIA descaling solution only. In case of con ict, priority must be given to what is indicated in the operation and mainte- nance manual over the instructions provided on sepa- rately sold accessories and materials. Use the GAGGIA descaling solution only. Its formula has been designed to ensure bet- ter machine performance and operation for its whole operat- ing life. If correctly used, it also avoids alterations in the brewed product. The descaling solution is to be disposed of according to the manufacturer’s instructions and/or regulations in force in the country of use. Never drink the descaling solution or any prod- ucts dispensed until the cycle has been carried out to the end. Never use vinegar as a descaling solu- tion. 1 (Fig.15-16) - Insert the lter holder (without co ee) into the brew unit (8) from the bottom and turn it from left to right until it locks into place. 2 (Fig.1) - Remove and empty the water tank. 3 (Fig.2) - Pour the ENTIRE content of the GAGGIA concen- trated descaling solution into the water tank, then ll the tank with fresh drinking water up to the MAX level. 4 Remove the Pannarello (or Cappuccinatore) installed on the steam wand, if any. 5 Turn on the machine by pressing the ON/OFF button (16); the (17) indicator light will turn on to indicate that the ma- chine is on. Fill up (as described in the “HOT WATER” chapter of the manual) two cups of water (about 150 ml each) from the steam/hot water wand and turn o the machine by pres- sing the ON/OFF button (16); the indicator light (17) turns o . 6 Let the descaling solution take e ect for approx.15-20 minutes with the machine turned o .• 28 • 12 DISPOSAL - The packing materials can be recycled. - Appliance: unplug the appliance and cut the power cord. - Deliver the appliance and power cord to a service center or public waste disposal facility. This product complies with eu directive 2002/96/EC. The symbol on the product or on its packaging indica- tes that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inap- propriate waste handling of this product. For more detailed in- formation about recycling of this product, please contact your local city o ce, your household waste disposal service or the shop where you purchased the product.• 29 • English Problem Possible Causes Solution The machine does not switch on. The machine is not connected to the elec- tric network. Connect the machine to the electric network. The machine turns o while brewing co ee or dispensing hot water. Energy saving mode is on. Press the ON/OFF button (16) to turn on the machine and restart brewing. The pump is very noisy. No water in the tank. Fill the water tank and prime the circuit again (section 4.5). No co ee is brewed after pressing the brew button (18). Filter holder is clogged. Press the brew button (18) again. Turn the machine o and let it cool down (approx. 1 hour). Then remove and wash the lter holder thoroughly. If the problem persists, contact the service centre. Co ee is too cold. The "co ee ready" indicator light (19) was o when the button was pressed (18)

Wait until the "co ee ready" indicator light (19) turns on. The lter holder is not inserted for pre- heating (Chapter 5). Preheat the lter holder. The cups are cold. Preheat the cups with hot water. The milk does not froth. It is not possible to prepare a cap- puccino. The milk is not suitable: powdered milk, low-fat milk. Use whole milk. The steam wand is dirty. Clean the steam wand as described in Chapter
