Brand	Soundmaster
Model	RR18SW
Product type	Radio alarm clock with cassette player and USB/SD recorder
Mains power supply	230 V AC ~ 50/60 Hz
Battery power supply	4 x 1.5 V DC type UM-1 (D) (not supplied)
Power consumption	10 W max
Audio output power	1 x 3 W RMS
Radio wave bands	FM, AM, SW1, SW2
Antenna	Telescopic, extendable for FM and SW
Main functions	Radio, cassette playback, cassette recording, USB/SD playback, USB/SD recording, microphone
Auto power off	Yes, after 20 minutes without audio signal
Connectivity	USB port, SD card slot, 3.5 mm headphone jack
Care and cleaning	Clean only with a dry cloth. Do not use detergents or abrasive cloths.
Safety	Do not open the device, risk of electric shock. Refer all repairs to qualified personnel. Do not expose to moisture or heat sources.
Spare parts and repairability	No user-serviceable parts. For any repairs, contact an authorized center.
General information	Indoor use only. Suitable for moderate climates. Compliant with directive 2014/53/EU.

Frequently Asked Questions - RR18SW Soundmaster

How to turn on the device?

Set the function selector to RADIO or USB, or press a function button for cassette mode.

How to adjust volume and tone?

Use the Volume knob to adjust volume and the Tone knob to adjust sound.

How to listen to the radio?

Set the function selector to RADIO, choose the band (FM, AM, SW1 or SW2) with the band switch, then turn the tuning knob to select a station. Extend the telescopic antenna for FM and SW.

How to install batteries?

Open the battery compartment cover on the back of the device. Insert 4 UM-1 (D type) 1.5 V batteries respecting the indicated polarity, then close the cover.

How to record radio to a USB drive or SD card?

Set the function selector to RADIO, insert a USB device or SD card, then press and hold PLAY/PAUSE/RECORD to start recording. Press and hold again to stop.

How to play an audio file from a USB drive or SD card?

Set the function selector to USB, insert the device or card. Playback starts automatically. Use the SKIP FORWARD and SKIP REWIND buttons to navigate between tracks. Press PLAY/PAUSE/RECORD to pause or resume.

How to clean the device?

Use a dry, soft cloth. Never use detergents or abrasive cloths that could damage the surface.

Why does the device turn off by itself?

It is a power-saving feature: if no audio signal is emitted for 20 minutes, the device automatically switches off. Simply turn the device off and on again to resume playback.

How to use the cassette player?

Set the function selector to TAPE/OFF, insert a pre-recorded cassette and press PLAY. Use FAST FORWARD or FAST REWIND to fast forward or rewind. Press STOP/EJECT to stop or eject.

What to do in case of poor FM reception?

Fully extend the telescopic antenna and adjust its position for better reception. Avoid placing the device near computers or microwave ovens.

USER MANUAL RR18SW Soundmaster

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

警告	WARNING
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

Safety, Environmental and Setup Instructions

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

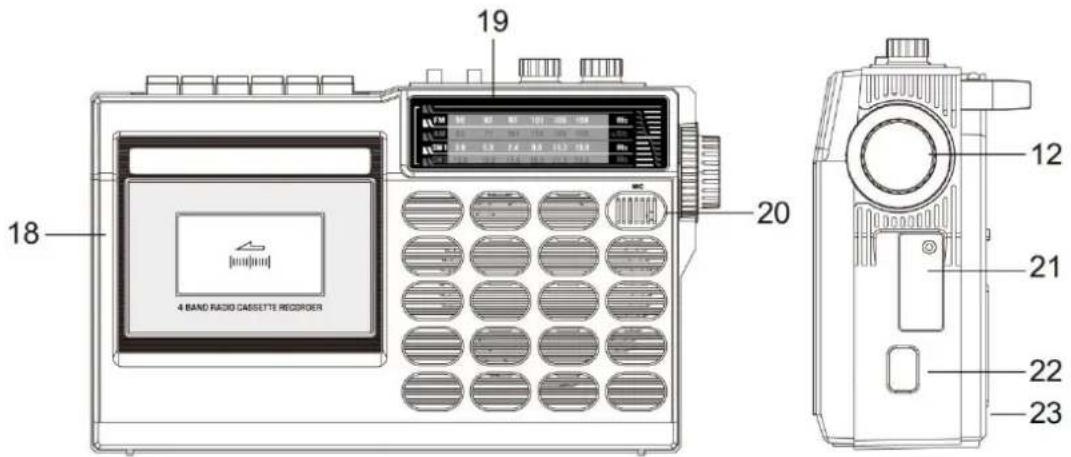

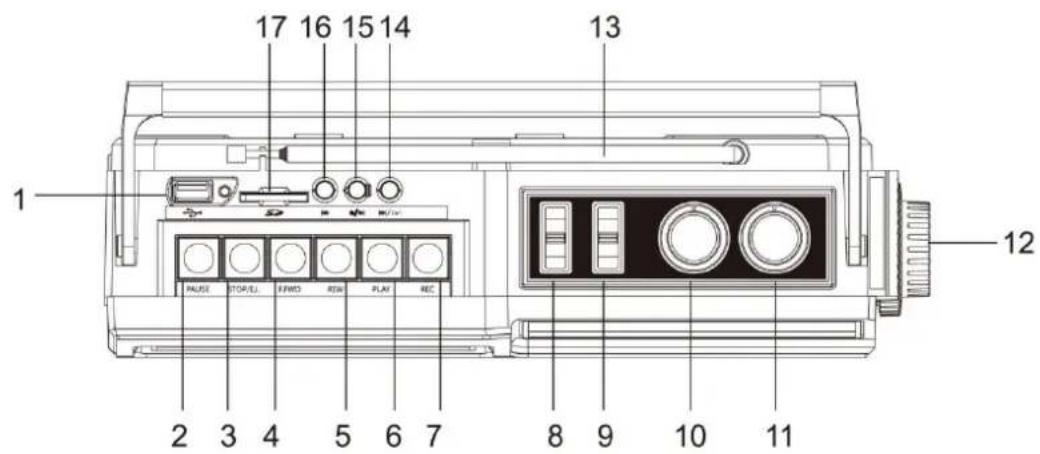

LOCATION OF CONTROLS

1 USB port
2 Cassette: PAUSE button
3 Cassette: STOP/EJECT button
4 Cassette: FAST FORWARD button
5 Cassette: FAST REWIND button
6 Cassette: PLAY button
7 Cassette: RECORD button
8 Function switch / OFF
9 Band switch
10 Tone knob
11 Volume knob
12 Tuning knob

13 Telescopic antenna
14 SKIP FORWARD button
15 PLAY/PAUSE/RECORD button
16 SKIP BACK button
17 SD card slot
18 Cassette tray
19 Dial scale
20 Microphone
21 Headphone jack
22 Power plug
23 Battery compartment

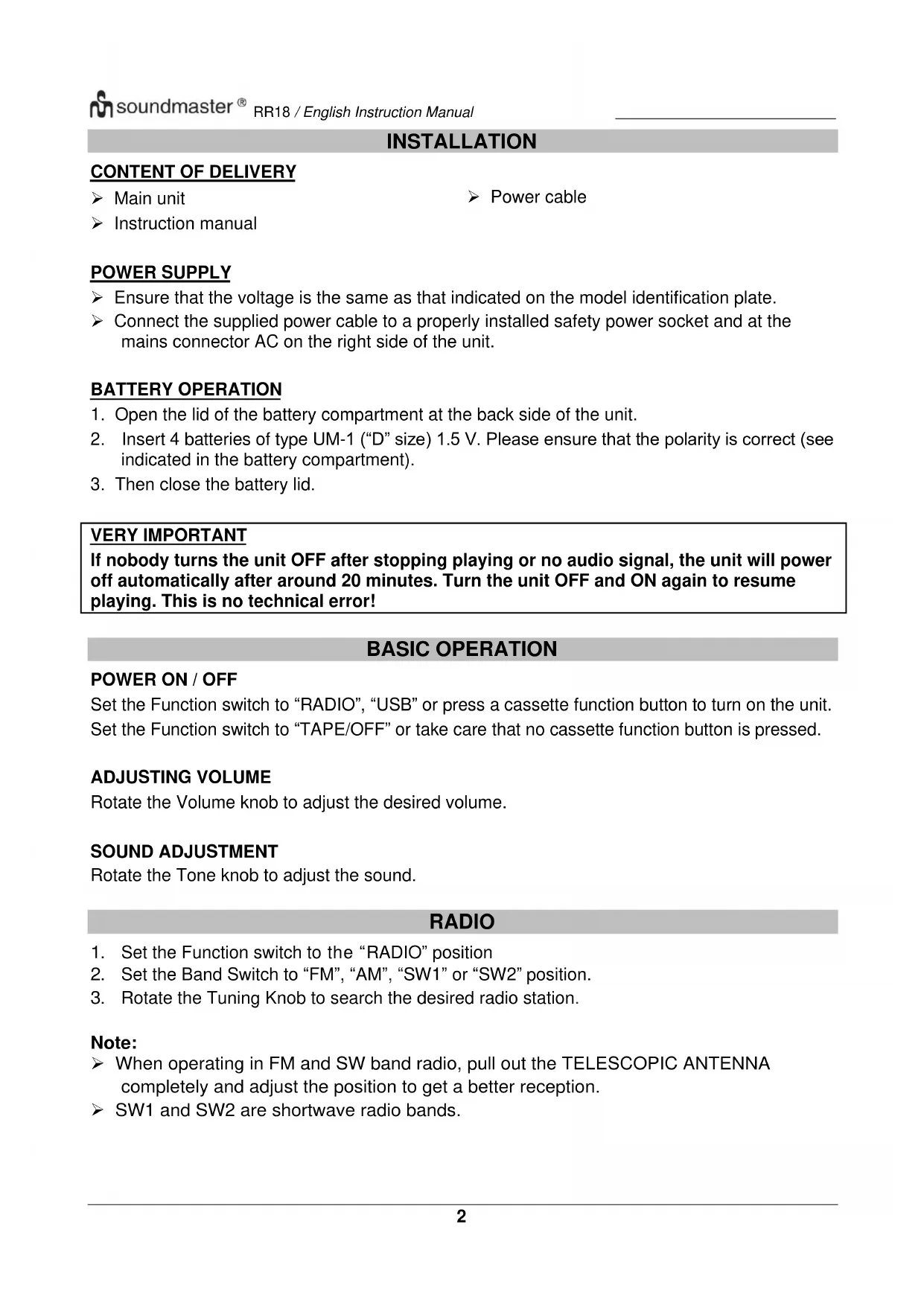

INSTALLATION

CONTENT OF DELIVERY

Main unit
Power cable

Instruction manual

POWER SUPPLY

Ensure that the voltage is the same as that indicated on the model identification plate.
Connect the supplied power cable to a properly installed safety power socket and at the mains connector AC on the right side of the unit.

BATTERY OPERATION

1. Open the lid of the battery compartment at the back side of the unit.
2. Insert 4 batteries of type UM-1 ("D" size) 1.5V . Please ensure that the polarity is correct (see indicated in the battery compartment).
3. Then close the battery lid.

VERY IMPORTANT

If nobody turns the unit OFF after stopping playing or no audio signal, the unit will power off automatically after around 20 minutes. Turn the unit OFF and ON again to resume playing. This is no technical error!

BASIC OPERATION

POWER ON / OFF

Set the Function switch to "RADIO", "USB" or press a cassette function button to turn on the unit. Set the Function switch to "TAPE/OFF" or take care that no cassette function button is pressed.

ADJUSTING VOLUME

Rotate the Volume knob to adjust the desired volume.

SOUND ADJUSTMENT

Rotate the Tone knob to adjust the sound.

RADIO

1. Set the Function switch to the "RADIO" position
2. Set the Band Switch to "FM", "AM", "SW1" or "SW2" position.
3. Rotate the Tuning Knob to search the desired radio station.

Note:

When operating in FM and SW band radio, pull out the TELESCOPIC ANTENNA completely and adjust the position to get a better reception.
SW1 and SW2 are shortwave radio bands.

CASSETTE OPERATION

1. Set the Function switch to the "TAPE/OFF" position.
2. Insert the prerecorded cassette into the cassette tray, and press the "PLAY" button.
3. To fast forward, press the "FAST FORWARD" button in. To stop fast forwarding and return to the playback mode, press the "PLAY" button.
4. To rewind, press the "FAST REWIND" button in. To stop rewinding and return to the playback mode, press the "PLAY" button.
5. To stop the playback, press the "STOP/EJECT" button once. To eject the cassette, press the "STOP/EJECT" button again.

Note: Remove the cassette from the cassette holder when it is not in use.

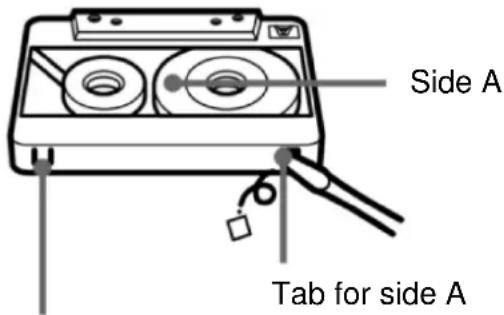

CASSETTE RECODING

Note: To prevent accidental recording, break off the cassette tab from side A or side B.

Tab for side B

MICROPHONE to TAPE

1. Set the Function switch to the "TAPE/OFF" position
2. Insert a cassette tape and press the "RECORD" button to record the sounds through the microphone.
3. To pause the recoding, press the "PAUSE" button.
4. To stop the recording, press the "STOP/EJECT" button.

RADIO to TAPE

1. Set the Function switch to the "RADIO" position
2. Insert a cassette tape, and press the "RECORD" button to record the sounds from the radio.
3. To record, press the "RECORD" button to start recording.
4. To pause the recoding, press the "PAUSE" button.
5. To stop the recording, press the "STOP/EJECT" button.

USB/SD to TAPE

1. Set the Function switch to the "USB" position
2. Insert a cassette tape, and press the "RECORD" button to record the sounds from USB/SD.
3. To pause the recoding, press the "PAUSE" button.
4. To stop the recording, press the "STOP/EJECT" button.

1. Set the Function switch to "USB" position.
2. Insert a USB device into the USB port or a SD memory card into the SD card slot.
3. To fast forward, press the "SKIP FORWARD" button in and release.
4. To rewind, press the "SKIP REWIND" button in and release.
5. To stop the playback, press the "PLAY/PAUSE/RECORD" button.

USB/SD-CARD RECORDING

RADIO to USB/SD RECORDING

1. Set the Function switch to the RADIO position.
2. Insert a USB device or SD memory card and press long the "PLAY/PAUSE/RECORD" button to record the current radio program on the USB device or SD memory card.
3. When you have finished recording, press long the "PLAY/PAUSE/RECORD" button.

CASSETTE to USB/SD RECORDING

1. Set the Function switch to the "TAPE/OFF" position.
2. Insert a USB device or SD memory card and press long the "PLAY/PAUSE/RECORD" button to record the current cassette playing on the USB device or SD memory card.
3. When you have finished recording, press long the "PLAY/PAUSE/RECORD" button.

DELETE A TRACK

1. Set the Function switch to the "USB" position.
2. Insert a USB device into the USB port or a SD memory card into the SD card slot. The playback starts automatically.
3. Select the desired track with the "USB/SD SKIP FORWARD" or "USB/SD SKIP REWIND" button.
4. Press and hold the "USB/SD SKIP FORWARD / DEL" button. The track will be deleted.
5. To delete more tracks, repeat steps 3 and 4.

TECHNICAL SPECIFICATION

Power supply : AC 230V~ 50/60Hz

Battery supply : 4x DC 1.5V UM-1 / “D” size (not included)

Max. power consumption : 10W

Audio power output : 1x3W RMS

Technical changes and misprints reserved

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

CE
