USER MANUAL Alloy FPS HYPERX

HyperX Alloy Elite Mechanical Gaming Keyboard

Find the language and latest documentation for your HyperX Alloy Elite Mechanical Gaming Keyboard here.

HyperX Alloy Elite Mechanical Gaming Keyboard User Manual

For instructions in English
Para instrucciones en Español
Für Anleitungen in Deutsch
Pour des instructions en Français
...... Per le istruzioni in Italiano
Por as instruções em Português
Instrukcje w języku polskim
Для инструкции на русском
C. Turkce talimatlar icin
Japanese
Korean
Thai
Vietnamese

Simplified Chinese ..... 中文说明

Traditional Chinese ....中文說明

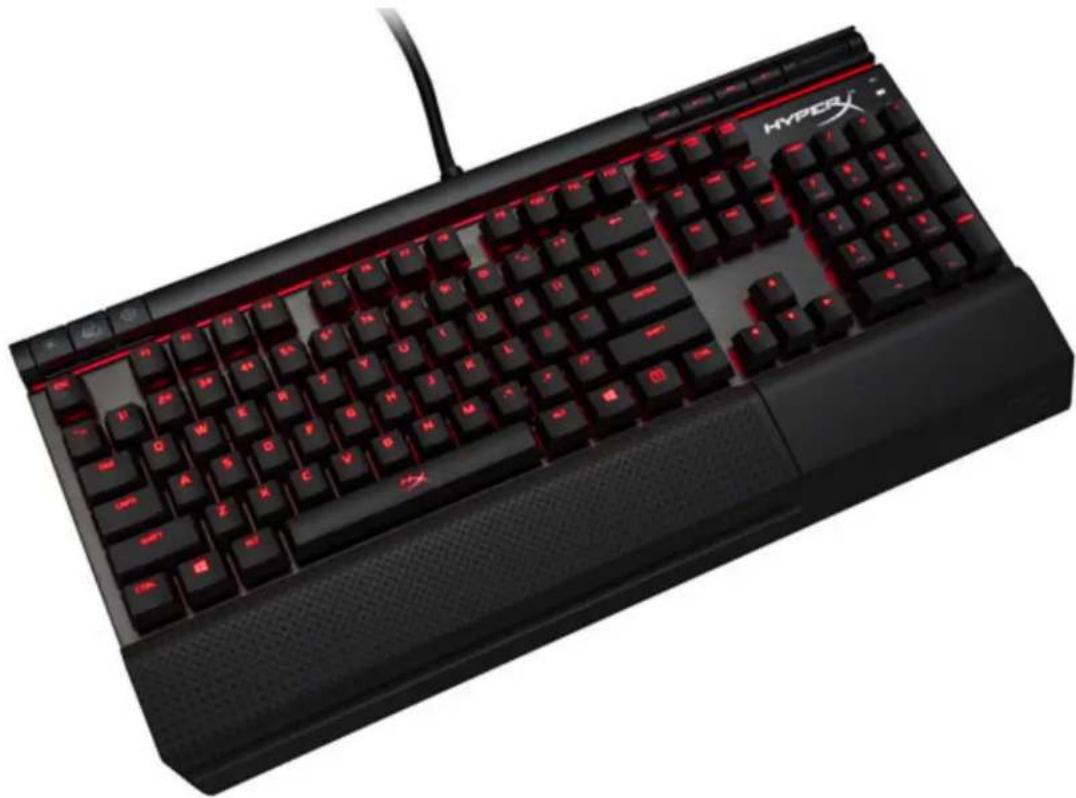

HyperX Alloy Elite Mechanical Gaming Keyboard

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

Part Numbers
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

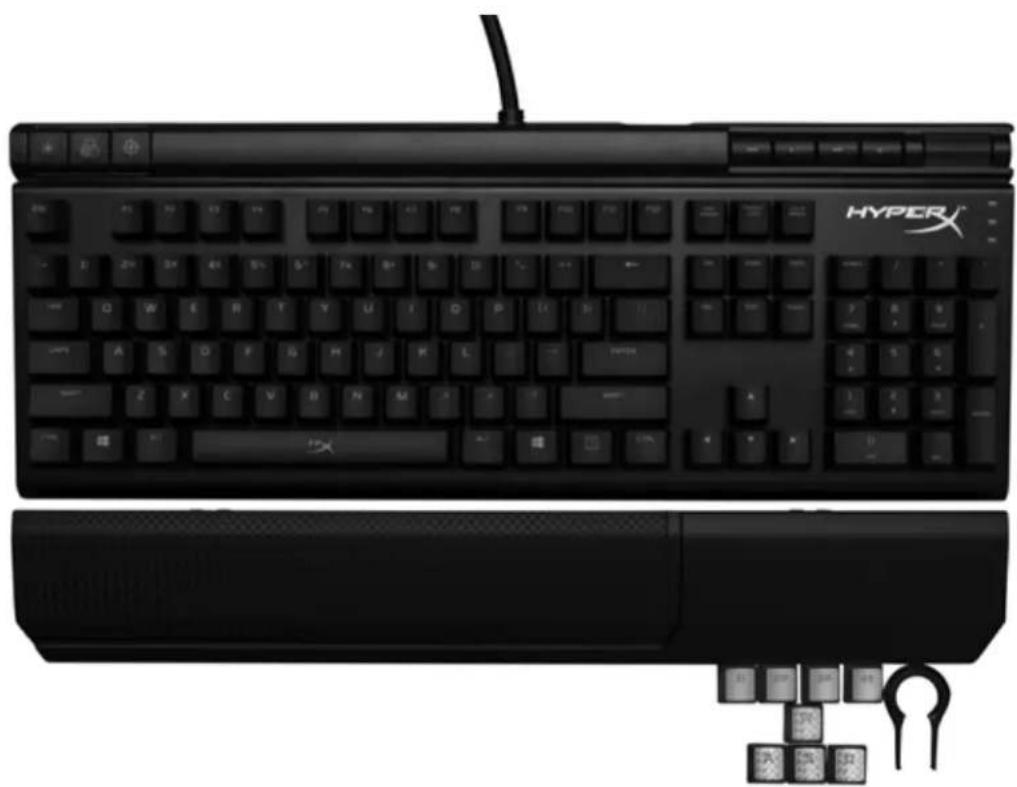

What's included:

• HyperX Alloy Elite Mechanical Gaming Keyboard
•8x Gaming keycaps
•Keycaps puller
•Wrist rest

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

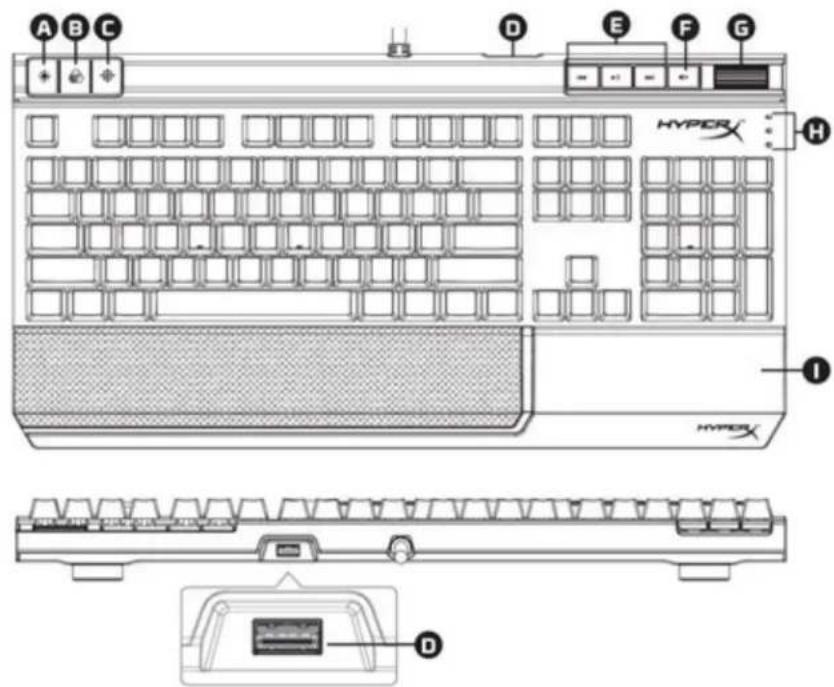

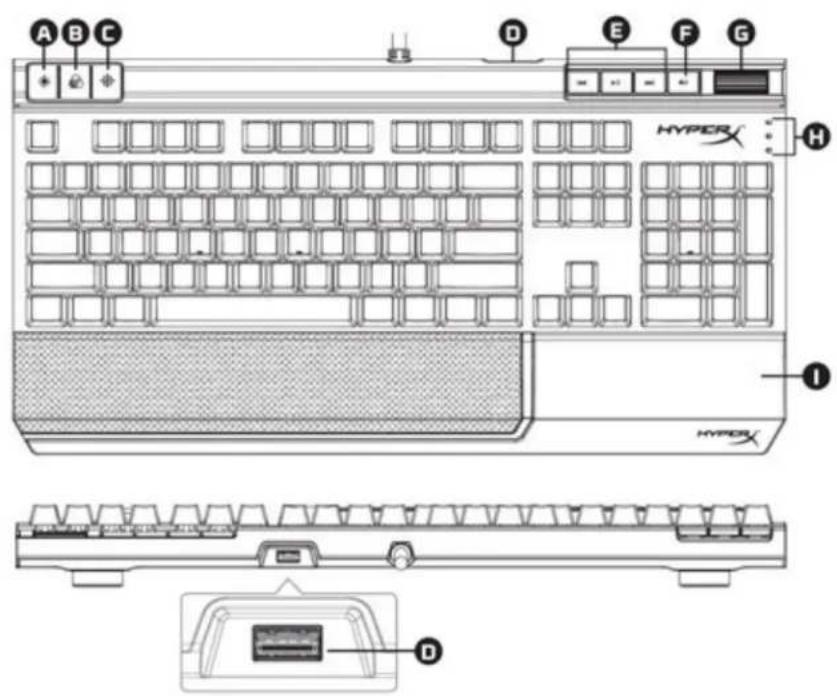

Keyboard Overview:

A B C D E F G HYPER H I HYPER D

A- Brightness control button
B- LED mode control button
C- Game Mode button
D- Back USB port (USB 2.0 pass-through)
E- Media control buttons
F- Volume mute button
G- Volume control wheel
H- Game Mode / Num Lock / Caps Lock indicators
I- Detachable wrist rest

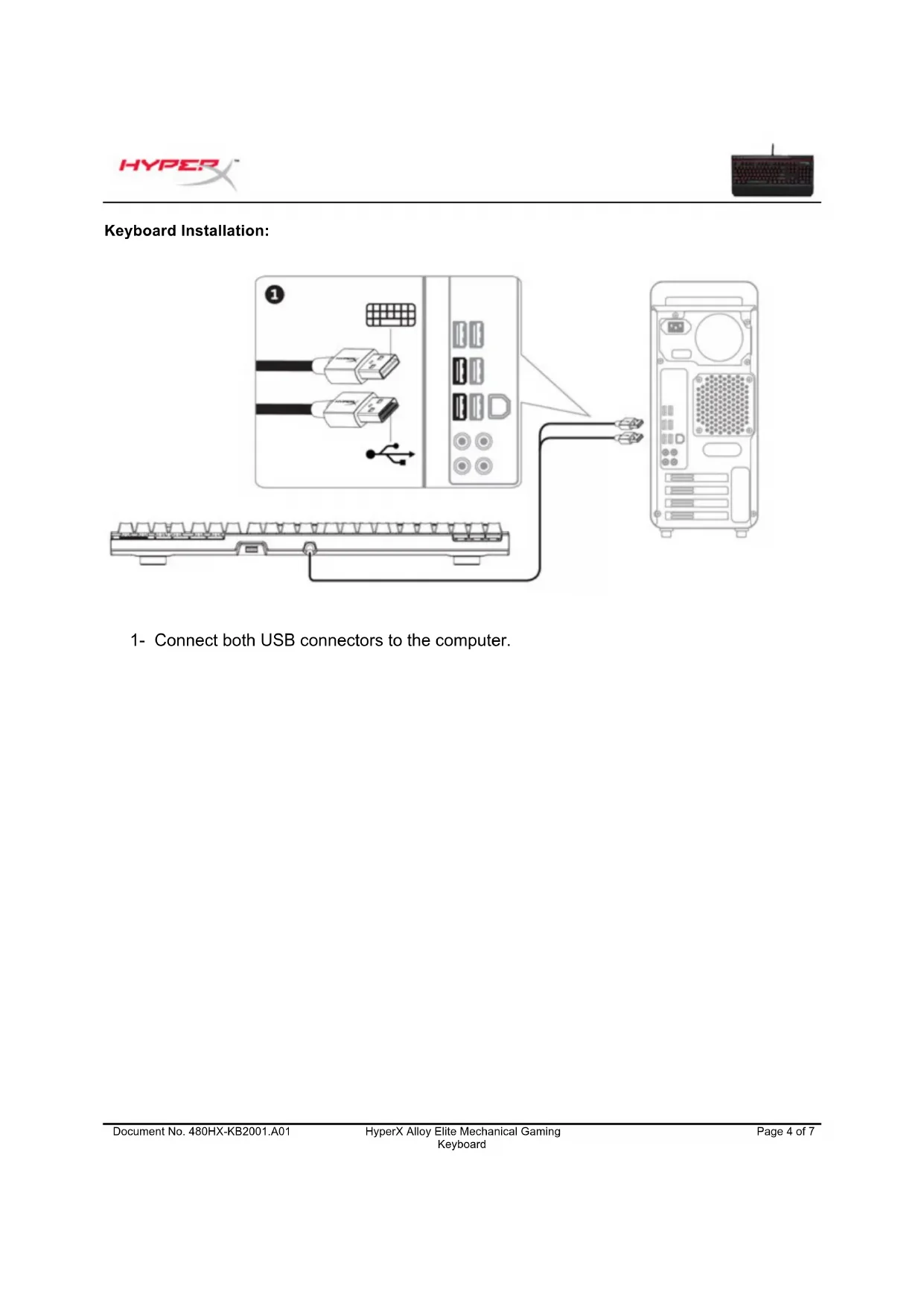

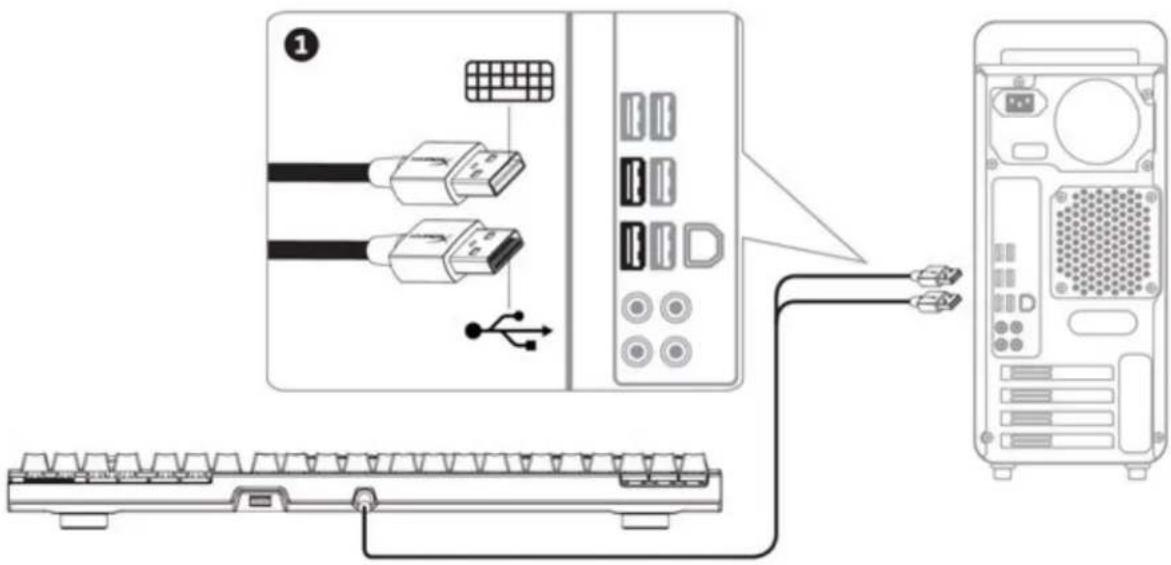

Keyboard Installation:

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

1- Connect both USB connectors to the computer.

Function Keys:

Function Keys	Secondary Feature
	Change the LED Backlight brightness. There are 4 levels of brightness: OFF, low, medium and high.
	Switch between the LED backlight modes.
	Enable Game Mode to disable the Windows key and prevent accidental interruption during gaming. When Game Mode is enabled the indicator will illuminate.
	Play/pause ▶skip backwards or skip forward while listening to music or watching videos.
	Mute computer audio.
	Increase or decrease computer audio volume.

LED backlight modes:

There are six LED backlight modes: ▶ Solid (default) ▶ Breathing ▶ Trigger ▶ Explosion ▶ Wave ▶ Custom.

Solid: Constant lightning (default setting).

Breathing: Slow rhythmic blinking that mimics breathing.

Trigger: Individuals keys will light up when pressed and slowly fade after one second.

Explosion: A lighting effect will radiate from individual keys when pressed.

Wave: Keys will light up from left to right in a wave pattern.

Custom: You can choose which keys you want to light up.

Follow these steps to customize:

1- Switch the backlight mode to Custom.

2- Hold until the backlight turns off.

3- Press the key or keys you want to have backlight ON.

4- When finished, press again to save your custom backlight profile.

Keyboard factory reset:

If you are experiencing any issue with the keyboard you can perform a factory reset. You will lose your custom LED profile by doing this.

Function Keys	Secondary Feature
	Press all three keys simultaneously until the keyboard LED backlight blinks twice.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Números de pieza
Cherry® MX azul	Cherry® MX marrón	Cherry® MX rojo
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HypEx H989 CPU keyboard with red LED lighting (no text or symbols visible)

Artikelnummern
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Im Lieferumfang:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Tastaturübersicht

A B C D E F G HYPER H I HYPER D

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Références produits
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Le produit inclut :

Black HyperX keyboard with visible keys and a separate close-up of the keyboard (no text or symbols on main body)

I- Repose-poignet amovible

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Numeri di parte
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Diagram showing connection between a server rack and an external network device, with labeled ports and cable connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Referências
Azul Cherry® MX	Castanho Cherry® MX	Vermelho Cherry® MX
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Conteúdo da caixa:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

D- Porta USB traseira (USB 2.0 pass-through)

E- Botões de controlo de multimédia

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

Numery katalogowe
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Zawartość zestawu:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Номера по каталогу
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Комплект поставки:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Обзор клавиатуры:

A B C D E F G HYPER H I HYPER D

Diagram showing connection between a server rack and an external network device, with labeled ports and cable connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Parça Numaraları
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

キーボードの概要:

A B C D E F G HYPER H I HYPER D

A- 明度コントロールボタン

B- LED モードコントロールボタン

C- ゲームモードボタン

Diagram showing connection between a server rack and an external drive, with labeled components and cable routing.

Black HyperX CPU keyboard with red LED lighting, no visible text or symbols on the main body

부품 번호
Cherry® MX Blue	Cherry® MX 브라운	Cherry® MX 레드
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

구성품:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

키보드 개요:

A B C D E F G HYPER H I HYPER D

A- 밝기 제어 버튼

B- LED 모드 제어 버튼

C- 게임 모드 버튼

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

เลขชีนส่วน
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

สิ่งที่จัดมาให้:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HypCerX keyboard with red LED lighting, no visible text or symbols on the main body

Mã sản phẩm
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

Bộ sản phẩm gồm có:

Black HyperX keyboard with visible keys and a separate black outline of the keyboard (no text or symbols on main body)

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

产品型号
Cherry® MX Blue	Cherry® MX Brown	Cherry® MX Red
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

包含内容:

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

键盘概览：

A B C D E F G HYPER H I HYPER D

Diagram showing connection between a server rack and an external network device with labeled ports and cables

1- 将两个 USB 接头连接到电脑。

功能键：

Black HyperX keyboard with red LED lighting, no visible text or symbols on the main body

產品型號
Cherry® MX 青軸款	Cherry® MX 茶軸款	Cherry® MX 紅軸款
HX-KB2BL1-UK/R1	HX-KB2BR1-UK/R1	HX-KB2RD1-UK/R1
HX-KB2BL1-FR/R1	HX-KB2BR1-FR/R1	HX-KB2RD1-FR/R1
HX-KB2BL1-DE/R1	HX-KB2BR1-DE/R1	HX-KB2RD1-DE/R1
HX-KB2BL1-NO/R1	HX-KB2BR1-NO/R1	HX-KB2RD1-NO/R1
HX-KB2BL1-RU/R1	HX-KB2BR1-RU/R1	HX-KB2RD1-RU/R1
HX-KB2BL1-LA/R2	HX-KB2BR1-LA/R2	HX-KB2RD1-LA/R2
HX-KB2BL1-US/R1	HX-KB2BR1-US/R1	HX-KB2RD1-US/R1
HX-KB2BL1-US/R2	HX-KB2BR1-US/R2	HX-KB2RD1-US/R2

内容物：

Black HyperX keyboard with visible keyframe and front panel, no text or symbols on the main body

鍵盤概覽：

A B C D E F G HYPER H I HYPER D

Diagram showing connection between a server rack and a computer tower via USB cable, with labeled components and wiring connections.

1- 將兩組 USB 接頭連接至電腦。

功能鍵：
