USER MANUAL Alloy Origins Core HYPERX

HyperX Alloy Origins Core

Find the language and latest documentation for your HyperX Alloy Origins Core here.

Alloy Origins Core Installation Guide

For instructions in English
Para instrucciones en Español
Für Anleitungen in Deutsch
Pour des instructions en Français
...... Per le istruzioni in Italiano
Por as instruções em Português
Instrukcje w języku Polskim
Для инструкции на Русском
C. Turkce talimatlar icin
日本語マニュアル用
한국어 안내
......คำแนะนำภาษาไทย
Đế xem hướng dẫn bằng tiếng Việt

Simplified Chinese ..... 简体中文说明书

Traditional Chinese ....繁體中文說明

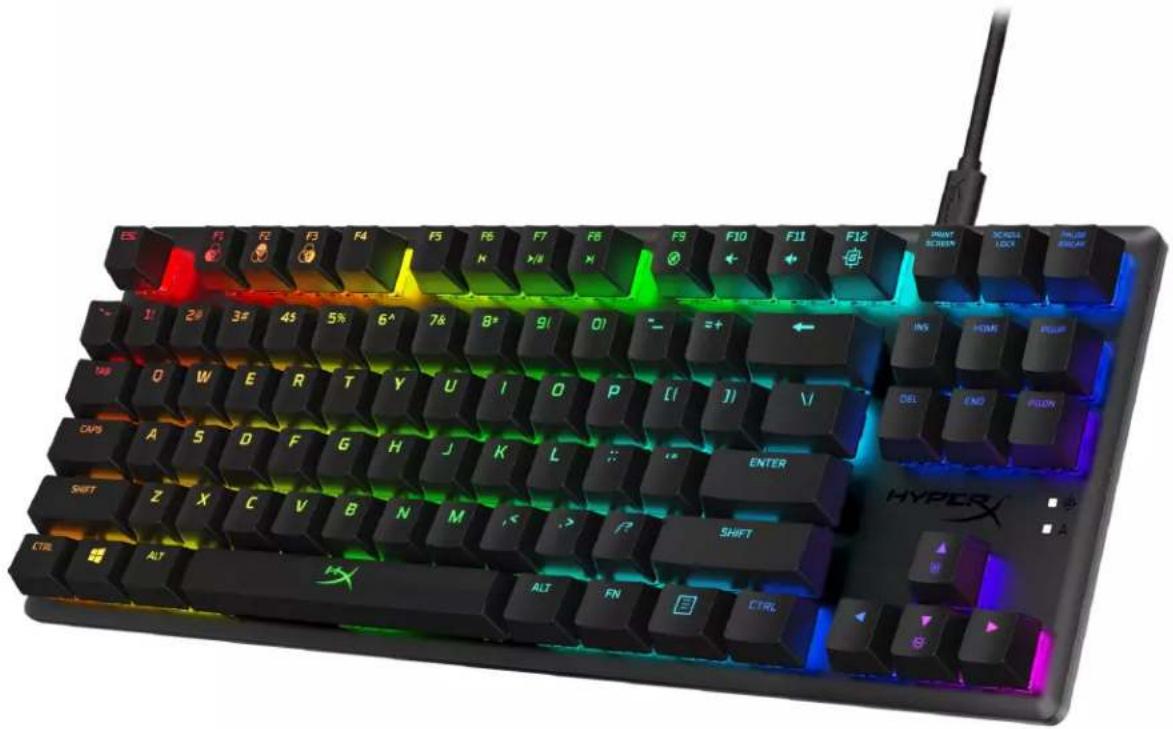

HyperX Alloy Origins™ Core

Black and white photo of a modern HYPRESS keyboard with glowing keys and a black cable, no visible text or symbols on the keys themselves.

Part Numbers

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

TABLE OF CONTENTS

Overview....3

Specifications 5

Installation....6

Function Keys....7

HyperX NGENUITY Software 8

Using with Console 8

Factory Reset......8

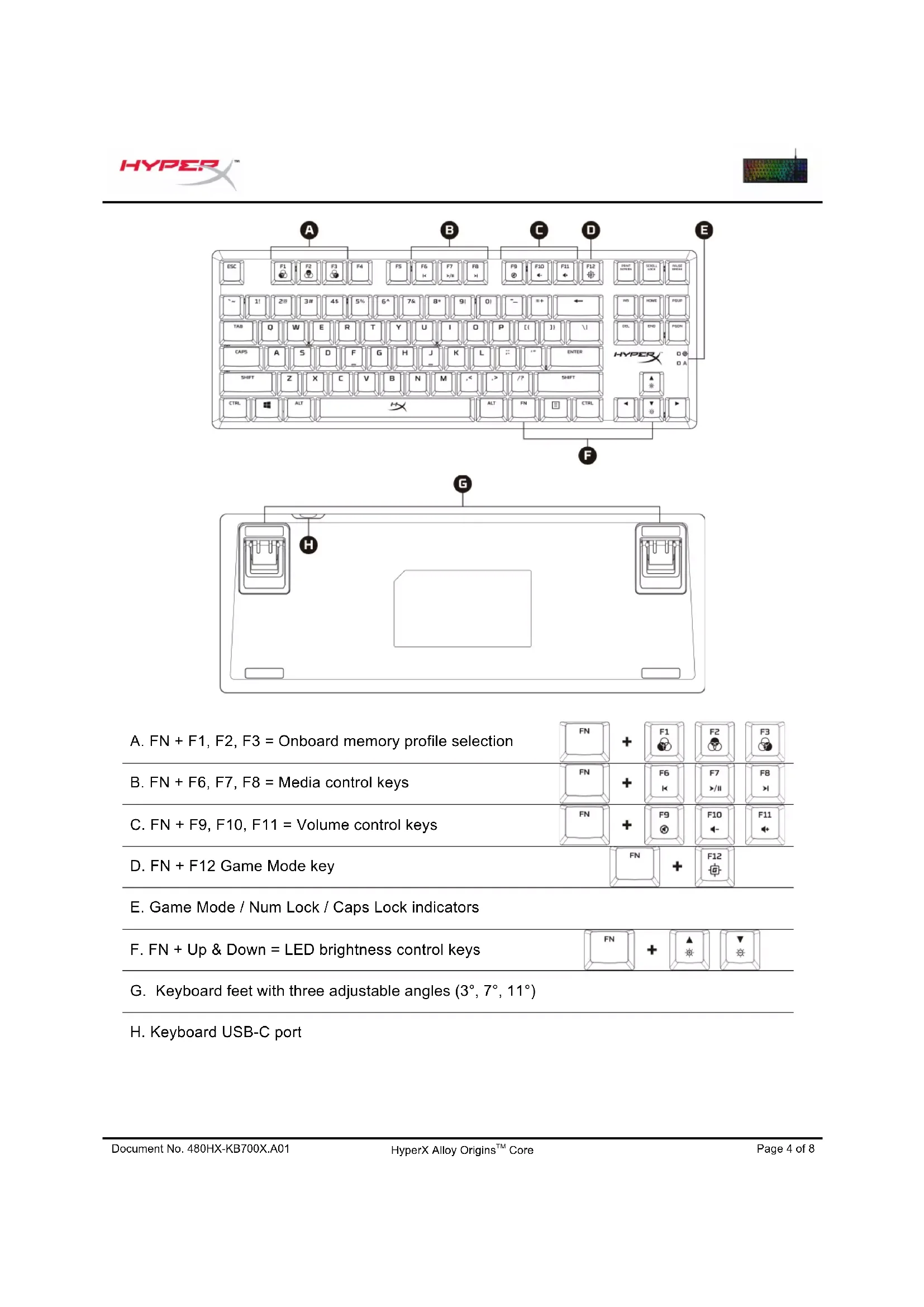

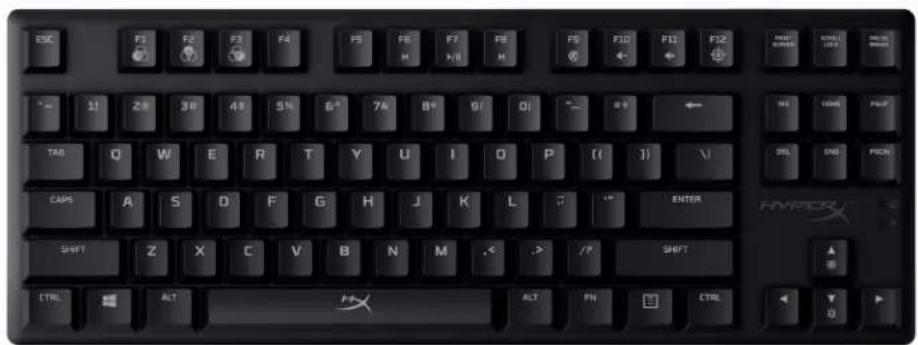

Overview

ESC F1 F2 F3 F4 PS F5 F6 F7 F8 P9 P10 P11 P12 11 28 39 45 54 6* 7* 8* 9 I O - 8 T ← TAB Q W E R T Y U I D P ( ) \ / CAPS A S D F G H J K L : : ENTER SHIFT Z X C V B N M ,< ,> /P SHIFT CTRL ACT ALT FN CTRL HYPERX

Coiled black USB cable with connector port (no text or symbols visible)

What's Included

•HyperX Alloy Origins Core Mechanical Gaming Keyboard

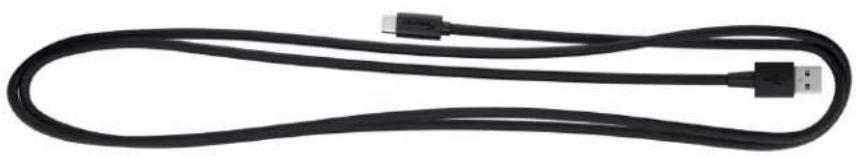

• Detachable USB Type-C cable

ESC F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 1! 2# 3# 45 5% 6* 7& 8* 9! 0! "— 0+ ← TAB Q W E R T Y U I O P [ ( ] \\ CAPS A S D F G H J K L : : ** ENTER SHIFT Z X C V B N M ,< /? SHIFT CTRL ALT ALT FN CTRL HYPER D @ D A F

Front view diagram of a rectangular device with two ports and labeled points (H and G), no text or symbols present.

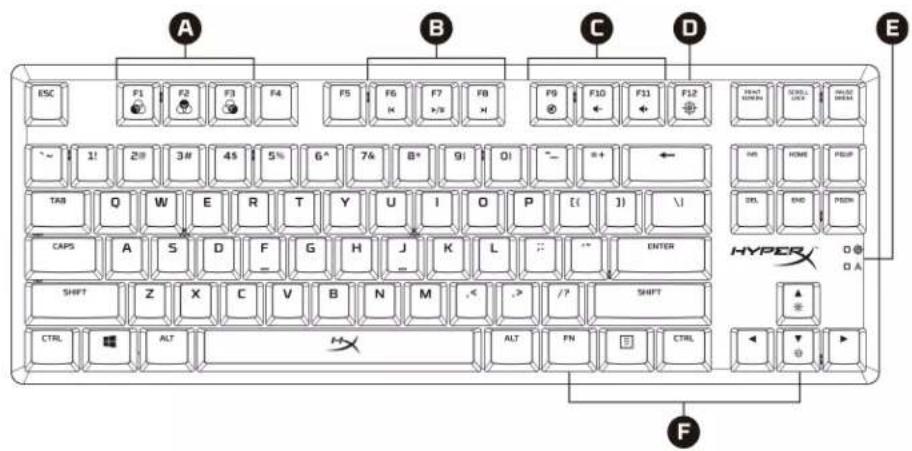

A. FN + F1, F2, F3 = Onboard memory profile selection	FN	+	F1	F2	F3
B. FN + F6, F7, F8 = Media control keys	FN	+	F6	F7	F8
C. FN + F9, F10, F11 = Volume control keys	FN	+	F9	F10	F11
D. FN + F12 Game Mode key		FN	+	F12

E. Game Mode / Num Lock / Caps Lock indicators

F. FN + Up & Down = LED brightness control keys

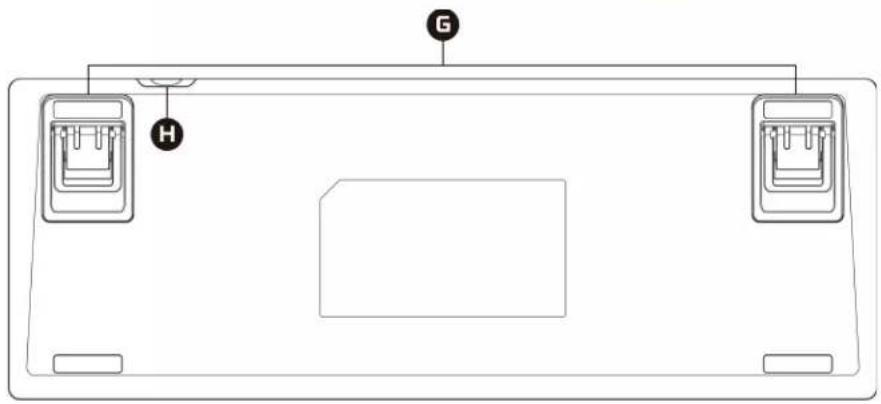

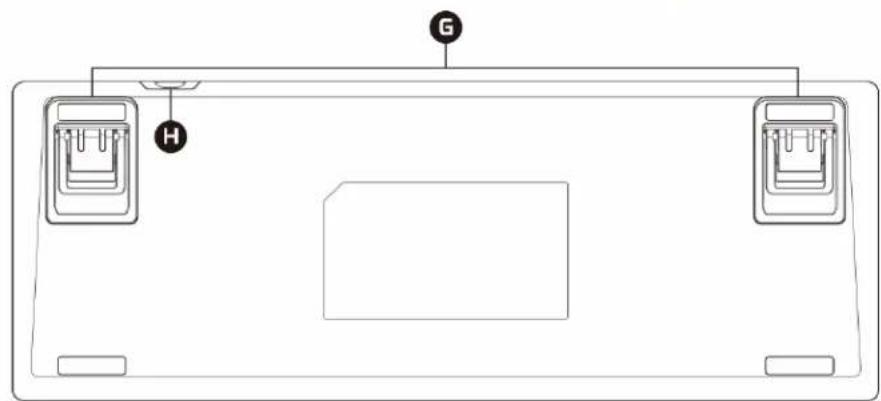

G. Keyboard feet with three adjustable angles ( 3^ , 7^ , 11^ )

H. Keyboard USB-C port

Specifications

Keyboard

Switch: HyperX Switch

Type: Mechanical

Backlight: RGB (16,777,216 colors)

Light effects: Per key RGB lighting** and 5 brightness levels

Onboard memory: 3 profiles

Connection type: USB Type-C to USB Type-A

Adjustable keyboard feet: 3^ , 7^ , 11^

Anti-ghosting: 100% anti-ghosting

Key rollover: N-key mode

LED indicator: Yes

Media control: Yes

Game Mode: Yes

OS compatibility: Windows ^® 10, 8.1, 8, 7

Console compatibility: PS4, Xbox One

Key Switches

Switch: HyperX Red Switch

Operation style: Linear

Operating force: 45 g

Actuation point: 1.8 mm

Total travel distance: 3.8 mm

Life span (keystrokes): 80 million

Cable

Type: Detachable, Braided

Length 1.8 m

Dimensions

Width: 360.0 mm

Depth: 132.5 mm

Height: 34.5 mm

Weight (keyboard and cable): 900 g

**Per key RGB lighting customizable with HyperX NGENUITY Software

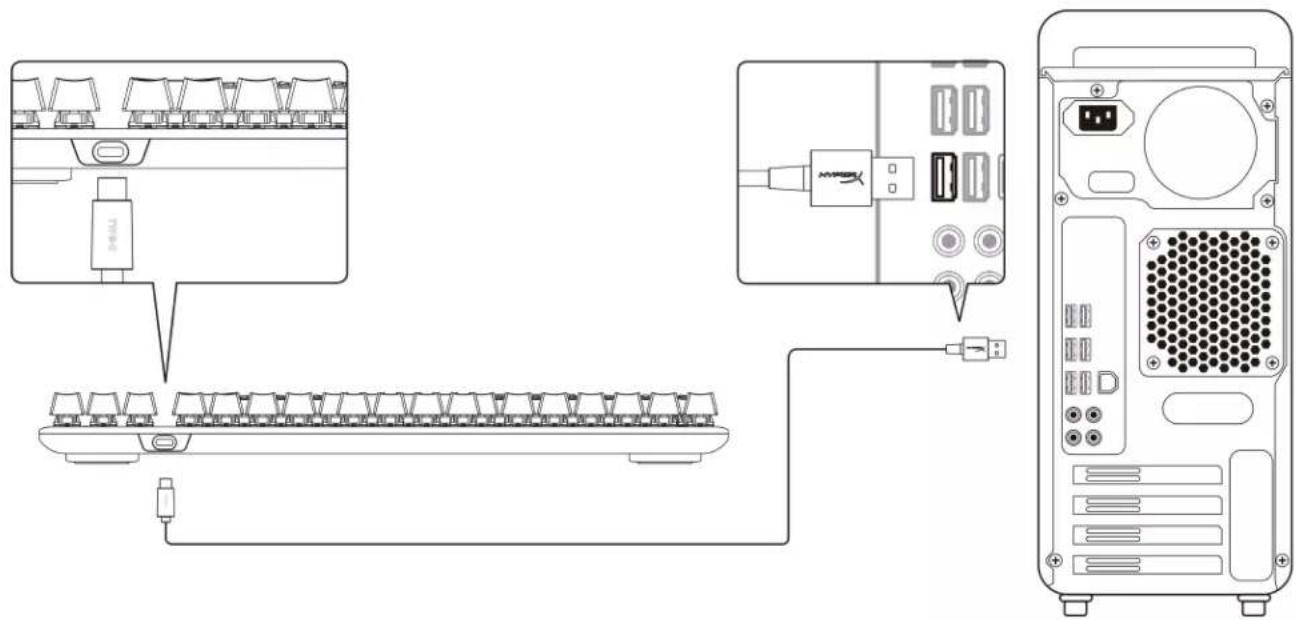

Installation

Diagram showing connection between a computer tower, an RJ4 device, and an external CPU via cable routing.

1. Connect the USB-C connector to the keyboard.
2. Connect the USB connector to the computer.

Function Keys

Press and a function key at the same time to activate its secondary feature.

Function Keys					Secondary Feature
	+				Switch between the profiles on the onboard memory.
	+				Play/pause, skip backward, or skip forward through your media.
	+				Mute, decrease, or increase your volume level.
		+			Toggle Game Mode on/off.Game Mode will disable the Windows key.When Game Mode is enabled, the indicator on the top right of the keyboard will illuminate.
		+			Increase or decrease the LED backlight brightness.There are 5 levels of brightness: Off, 25%, 50%, 75%, 100%.

HyperX NGENUITY Software

To customize Lighting, Game Mode and Macro Settings, download the HyperX NGENUITY Software here: hyperxgaming.com/ngenuity.

Using with Console

Connect to PS4 or Xbox One using the included USB cable.

Factory Reset

If you are experiencing any issue with the keyboard, you can perform a factory reset. Onboard memory will be cleared, and all settings will revert back to default.

Function Keys	Secondary Feature
	Perform a factory reset on the keyboard.

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/

HyperX Alloy Origins™ Core

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Coiled black cable with two USB connectors (no text or symbols visible)

Elementos incluidos

Anti-ghosting: 100 % Anti-ghosting

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Artikelnummern

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

INHALT

Übersicht....3

Spezifikationen 5

Installation....6

Coiled black cable with two USB connectors (no text or symbols visible)

Anti-Ghosting: 100 % Anti-Ghosting

Key-Rollover: N-Key-Modus

LED-Anzeige: Ja

Mediensteuerung: Ja

Gaming-Modus: Ja

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

Black and white photo of a HyperX keyboard with glowing blue and green keys (no readable text or symbols)

Coiled black USB cable with two connectors (no text or symbols visible)

Le produit inclut :

Anti-ghosting : Anti-ghosting 100 %

Technical diagram showing exploded view of a computer setup with labeled components including RAM, GPIO, and CPU ports

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Numeri di parte

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

INDICE

Coiled black cable with two USB connectors (no text or symbols visible)

Anti-Ghosting: 100% Anti-Ghosting

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Número das peças

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

ÍNDICE

Visão geral 3

Especificações....5

Instalação 6

Teclas de função 7

Software HyperX NGENUITY 8

Coiled black cable with two USB connectors (no text or symbols visible)

O que está incluído

Anti-ghosting: 100% anti-ghosting

Rollover da tecla: Modo N-key

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

1. Conecte o conector USB Tipo C ao teclado.
2. Conecte o conector USB ao computador.

Teclas de função

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Numery katalogowe

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

SPIS TREŚCI

Prezentacja.... 3

Dane techniczne 5

Instalacja 6

Coiled black cable with two USB connectors (no text or symbols visible)

Zawartość zestawu

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Номера по каталогу

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

СОДЕРЖАНИЕ

Обзор 3

Coiled black cable with two USB connectors (no text or symbols visible)

Комплект поставки

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Parça Numaraları

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

İÇINDEKILER

Genel Görünüm 3

Teknik özellikler 5

Kurulum....6

Fonksiyon Tuşları 7

Coiled black cable with two USB connectors (no text or symbols visible)

Kutunun İçindekiler

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

製品番号

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

目次

概要 3

仕様 5

インストール方法....6

ファンクションキー 7

Coiled black USB cable with two connectors (no text or symbols visible)

製品內容

Diagram showing exploded view of a computer interface with labeled components including RAM slots, connected ports, and an external CPU.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

부품 번호

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

목차

개요 3

규격 5

설치 6

기능 키 7

Coiled black USB cable with two connectors (no text or symbols visible)

구성품

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

หมายเลขขึ้นส่วน

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

สารบัญ

ภาพรวม 3

Coiled black cable with two USB connectors (no text or symbols visible)

สิ่งที่จัดมาให้

Anti-ghosting: 100% anti-ghosting

Key Rollover: Halma N-key

ไฟสถานะ LED: ใช่

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Mã sản phẩm

HX-KB7RDX-US

HX-KB7RDX-NO

HX-KB7RDX-RU

HX-KB7RDX-BR

HX-KB7RDX-JP

HX-KB7RDX-KO

Mục LỤC

Tổng quan 3

Coiled black cable with two USB connectors (no text or symbols visible)

Bộ sản phẩm gồm có

Anti-ghosting: 100% anti-ghosting

Diagram showing connected hardware components including a rack-mounted device, an RJ4 card slot, and a server tower with ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no readable text or symbols)

Coiled black cable with two USB connectors (no text or symbols visible)

包装内容

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.

Black and white photo of a modern computer keyboard with glowing blue and green keys (no text or symbols visible)

Coiled black USB cable with connector port (no text or symbols visible)

内容物：

• HyperX Alloy Origins Core 機械式電競鍵盤
- 可拆式 USB Type-C 線

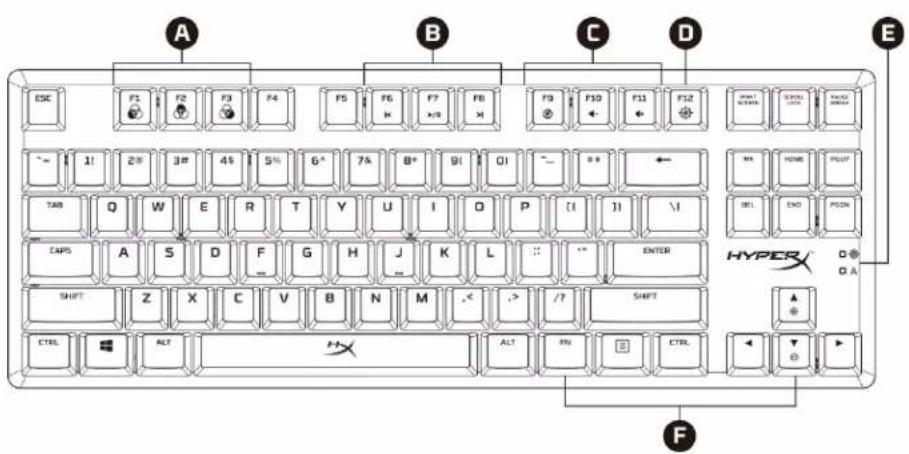

A B C D ESC F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 ~ 1! 2# 3# 4$ 5% 6^ 7& 8* 9! 0! ~ 8 * ← TAB Q W E R T Y U I O P [ ( ] \ I CAPS A S D F G H J K L :: ** ENTER SHIFT Z X C V B N M ,< ,> /? SHIFT CTRL ALT ALT FN CTRL HYPER O A F

G H

A. FN + F1, F2, F3 = 切換設定檔
B. FN + F6, F7, F8 = 媒體控制鍵
C. FN + F9, F10, F11 = 音量控制鍵
D. FN + F12 遊戲模式鍵

Diagram showing connection between a computer tower, an RJ4 device, and an RJ4 server with labeled ports and connectors.
